HC CH120 20UM High Resolution USB3.0 Industrial Camera C mount

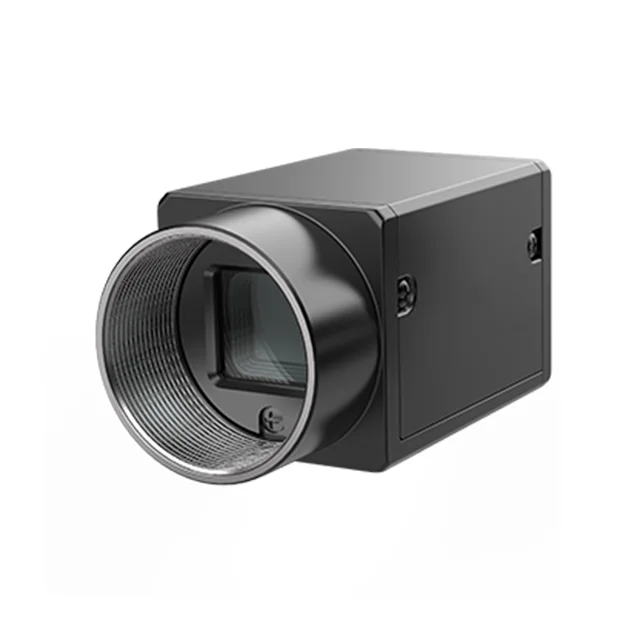

HC-CH120-20UM High Resolution USB3.0 Industrial Camera C mount
HC-CH120-20UM High Resolution USB3.0 Industrial Camera C mount

HC CH120 20UM High Resolution USB3.0 Industrial Camera C mount

Share on (1600628828428):


Price:

Quantity:


Product Overview

Description



Product Description


High-quality series fulfill what you think
All series can provide excellent image quality with GigE/10GigE/USB 3.0/Camera Link / CoaXPress interfaces and high-quality imaging sensors equipped.




High-end area scan camera with high resolution coverage
Covering 5M-151M pixels that can meet high resolution and high frame rate requirements. Equipped with fan or TEC cooling models to meet various imaging requirements. Years of accumulation of 100-level purification processes have also given the product a world-class delivery advantage.

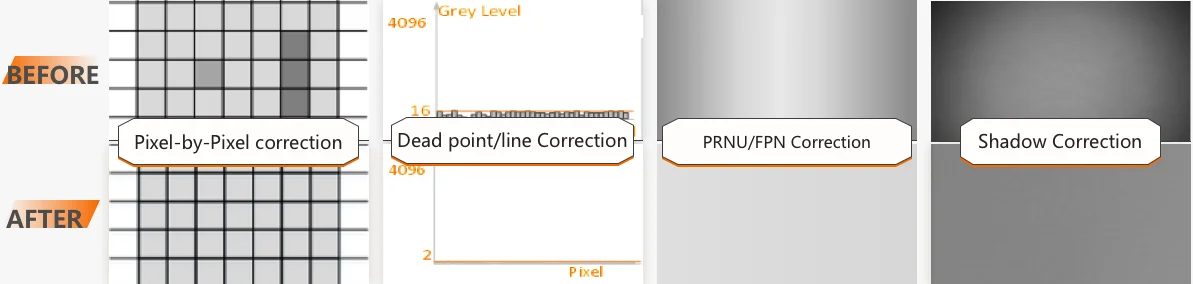

Rich ISP algorithm
Built-in ISP algorithms, including bright field correction, dark field correction, shadow correction, dead pixel/bad line correction, and pixel-by-pixel correction, to ensure consistent and stable image output.




Specification


HC-CH120-20UM High Resolution GigE Industrial Camera C mount
Key Feature
* Supports auto or manual adjustment for gain and exposure time, and manual adjustment for LUT and Gamma correction.
* Compact design with mounting holes on panels for flexible mounting from 4 sides.
* Supports hardware trigger, software trigger and free run mode.
* Compatible with USB3 Vision Protocol, GenlCam Standard, and the third-party software based on these protocol and standard.


HC-CH120-20UM/UC camera adopts OnSemi XGS12000 sensor to provide high-quality images. It uses USB3.0 interface to transmit images in real time, and its max. frame rate can reach 28 fps in full resolution.


Model
HC-CH120-20UM
Sensor type
CMOS, global shutter
Sensor model
OnSemi XGS12000
Pixel size
3.2 µ m × 3.2 µ m
Sensor size
1"
Resolution
4096 × 3072
Max. frame rate
28 fps @4096 × 3072
Dynamic range
68 dB
SNR
40 dB
Gain
0 dB to 18 dB
Exposure time
UltraShort exposure mode: 52 μs to 161 μs
Standard exposure mode: 162 μs to 10 sec
Exposure mode
Off/Once/Continuous exposure mode
Mono/color
Mono
Pixel format
Mono 8/10/10p/12/12p
Binning
Supports 1 × 1, 2 × 2, 4 × 4
Decimation
Supports 1 × 1, 2 × 2
Reverse image
Supports horizontal and vertical reverse image output
Data interface
USB3.0, compatible with USB2.0
Digital I/O
6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), optoisolated output × 1(Line 1), and
bi-directional non-isolated I/O × 1 (Line 2)
Power supply
9 VDC to 24 VDC, supports USB3.0 power supply
Power consumption
Typ. 3.5 W@5 VDC (USB3.0 provides power supply)
Lens mount
C-Mount
Dimension
29 mm × 29 mm × 30 mm (1.1" × 1.1" × 1.2")
Weight
Approx. 80 g (0.2 lb.)
Ingress protection
IP40 (under proper lens installation and wiring)
Temperature
Working temperature: 0 °C to 50 °C (32 °F to 122 °F)
Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
Humidity
20% to 95% RH, non-condensing
Client software
MVS or third-party software meeting with USB3.0 Vision Protocol
Operating system
32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS
Compatibility
USB3 Vision, GenlCam
Certification
CE, FCC, RoHS, KC

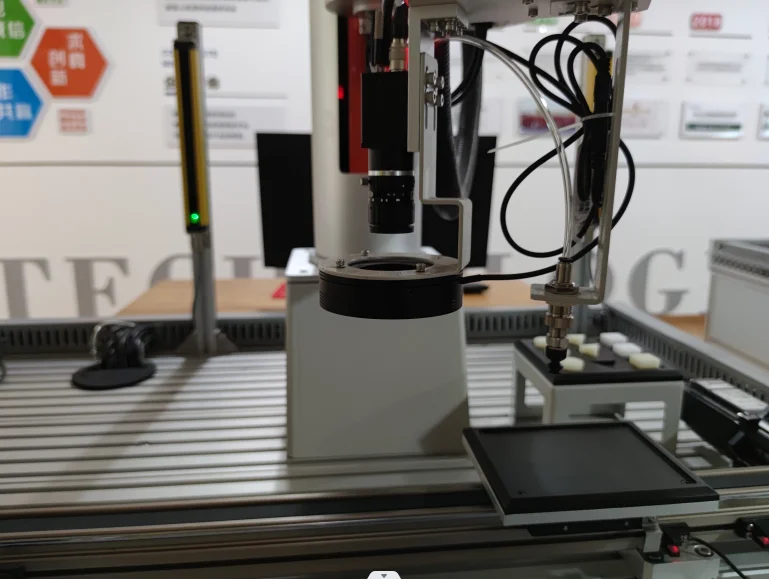

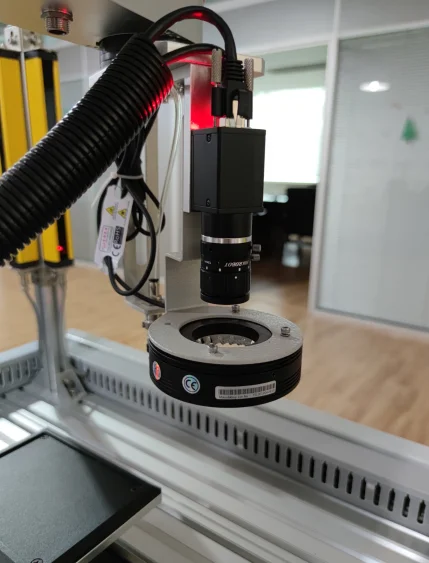

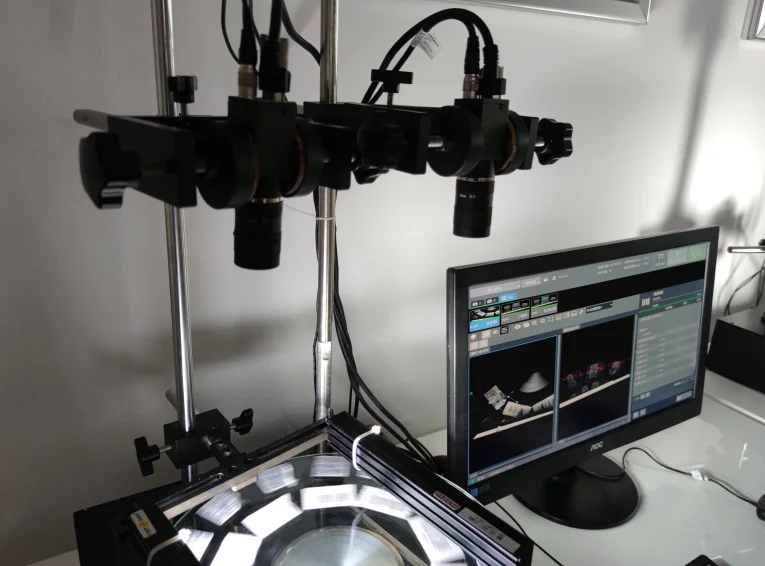

Application Industry




Packing & Delivery


Standard export packing.


Company Profile




Located in Hangzhou, Mstar Technologies, Inc is a professional manufacturer of machine vision products. We have over 6 years of experience in machine vision and have a good reputation in this field.

Quality and Safety: We have implemented a strict and complete quality control system, which ensures that each product can meet quality requirements of customers. Besides, all of our products have been strictly inspected before shipment.

Your Success, Our Glory: Our aim is to help customers realize their goals. We are making great efforts to achieve this win-win situation and sincerely welcome you to join us.


Certifications




Exhibition




FAQ


1. When will you ship my order?
Generally, once we get confirmation for payment, we will ship the order within 7-10 days. The specific delivery time depends on the items and the quantity of your order.
2. Does OEM/ODM available?
Yes, just let us know your details, then we can help you to design and put it into production.
3. The sample request is ok? if so, for free?
Re: MOQ is needed for a factory but one sample for testing is acceptable. We'd like to see our customer having a try on our
products. But sorry, it's not for free, you need to pay for it.
4. Driver and SDK problems?
Re: We will provide the SDK with the camera for free. And if you meet any problems when using it, just feel free to let us know.
5. How to pay?
RE: Payment Term Credit card, VISA card, e-checking, PayPal, Western Union, T/T.
6. Could I print our logo or company name on our products?
Re: Of course, we could print your logo or company name as your requirements, but you need to send us your logo certification and the certificate of authorization.
7. Shipping
We have strong cooperation with ARAMEX and UPS.
You also can choose your own shipping forwarder.
8. If you have any questions, please contact us at any time.
