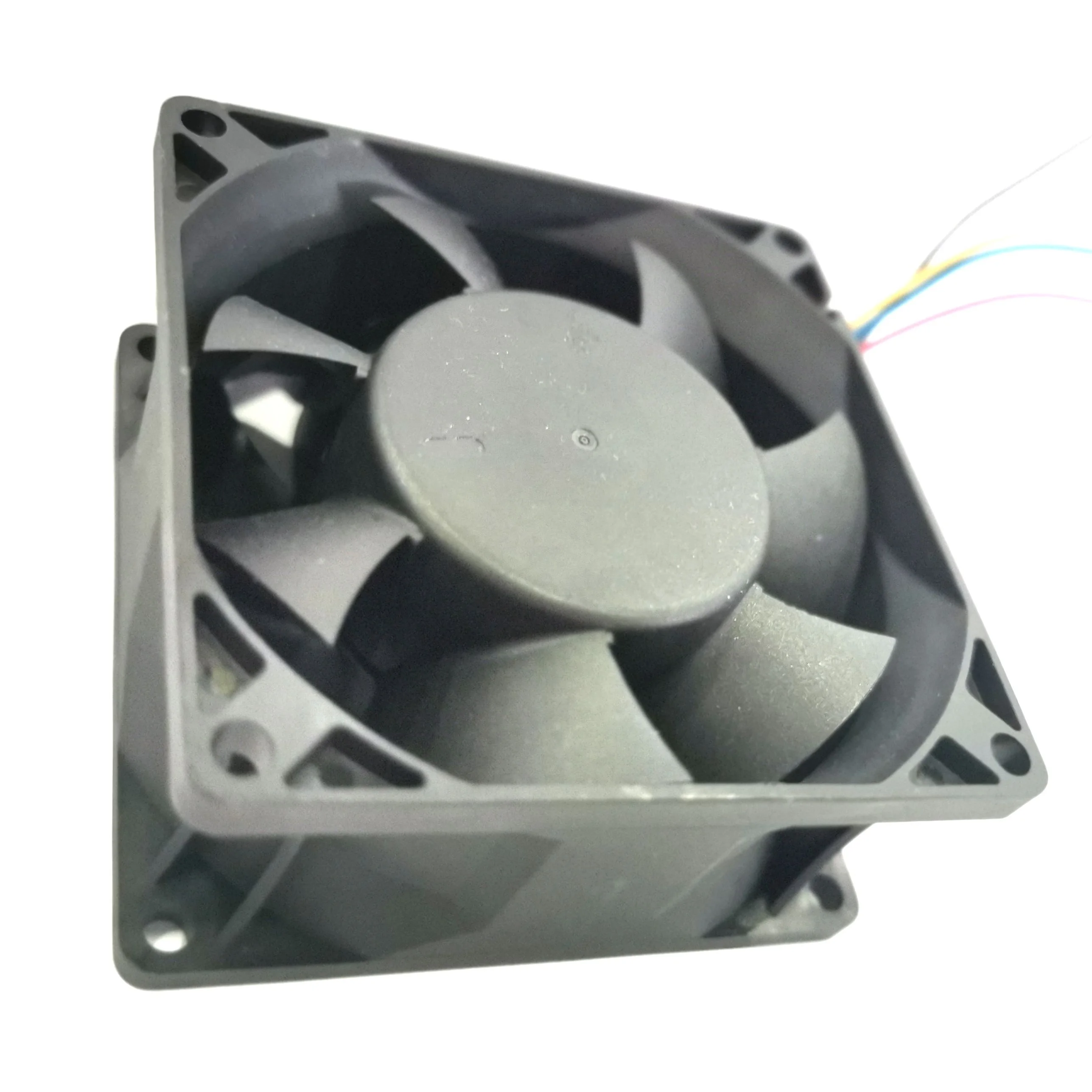

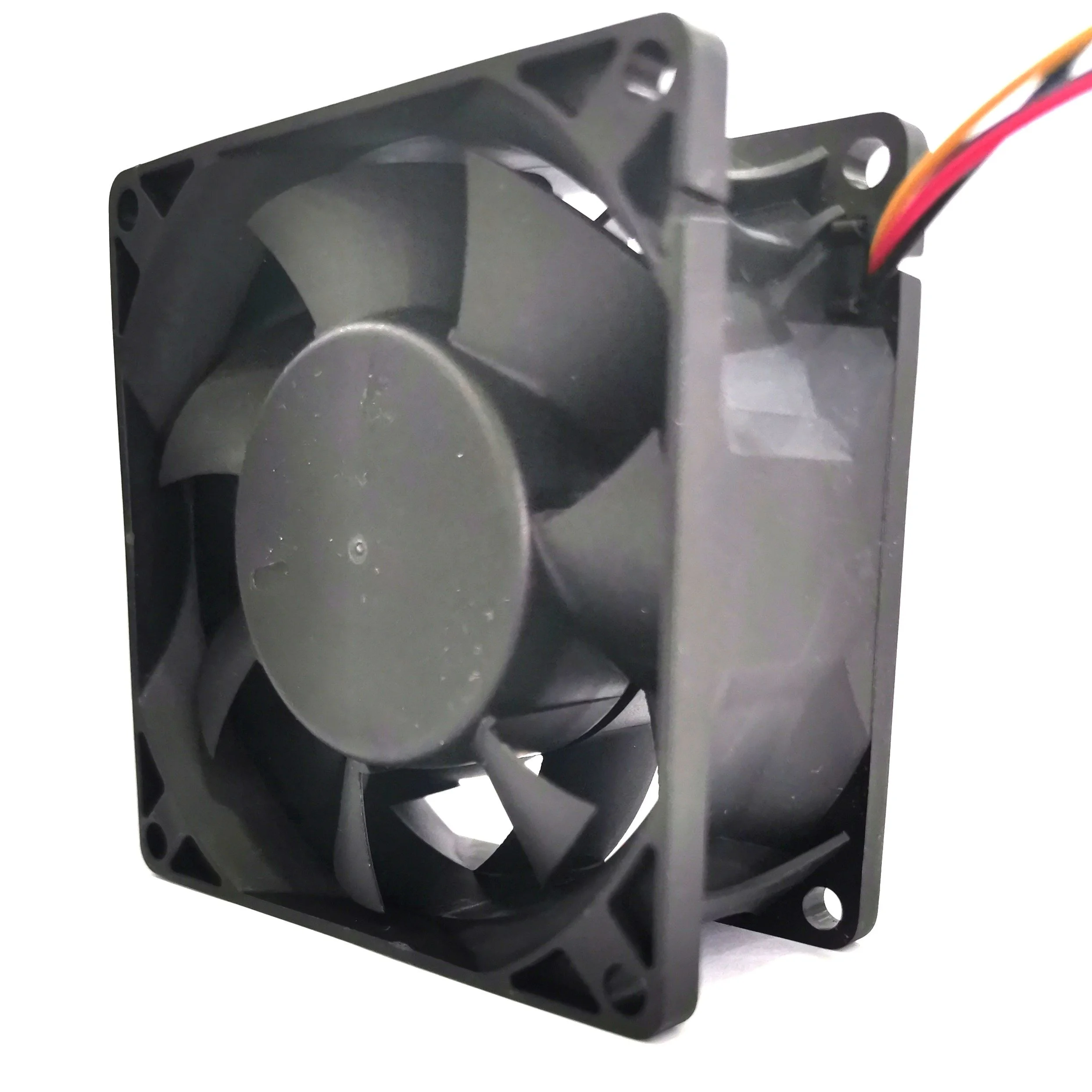

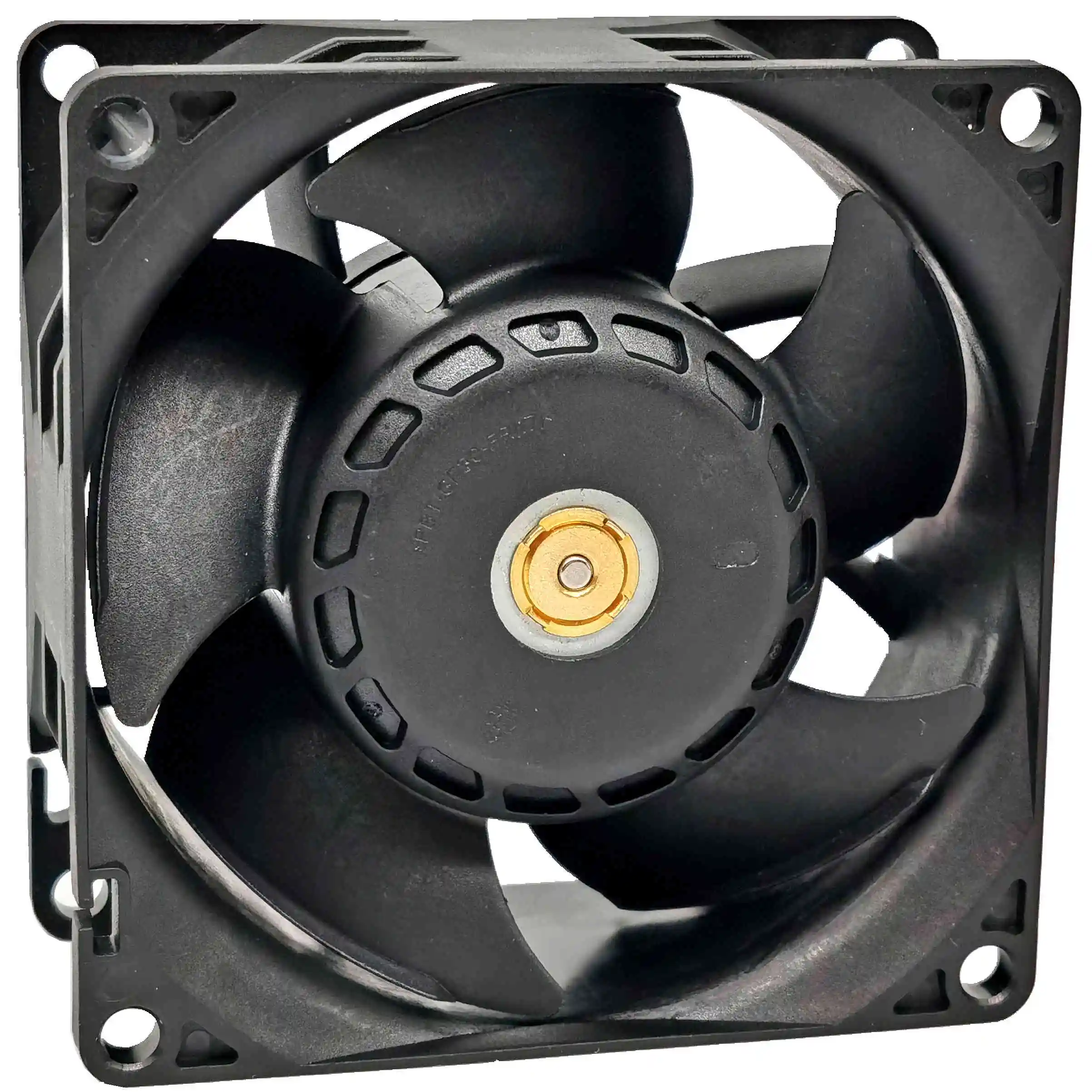

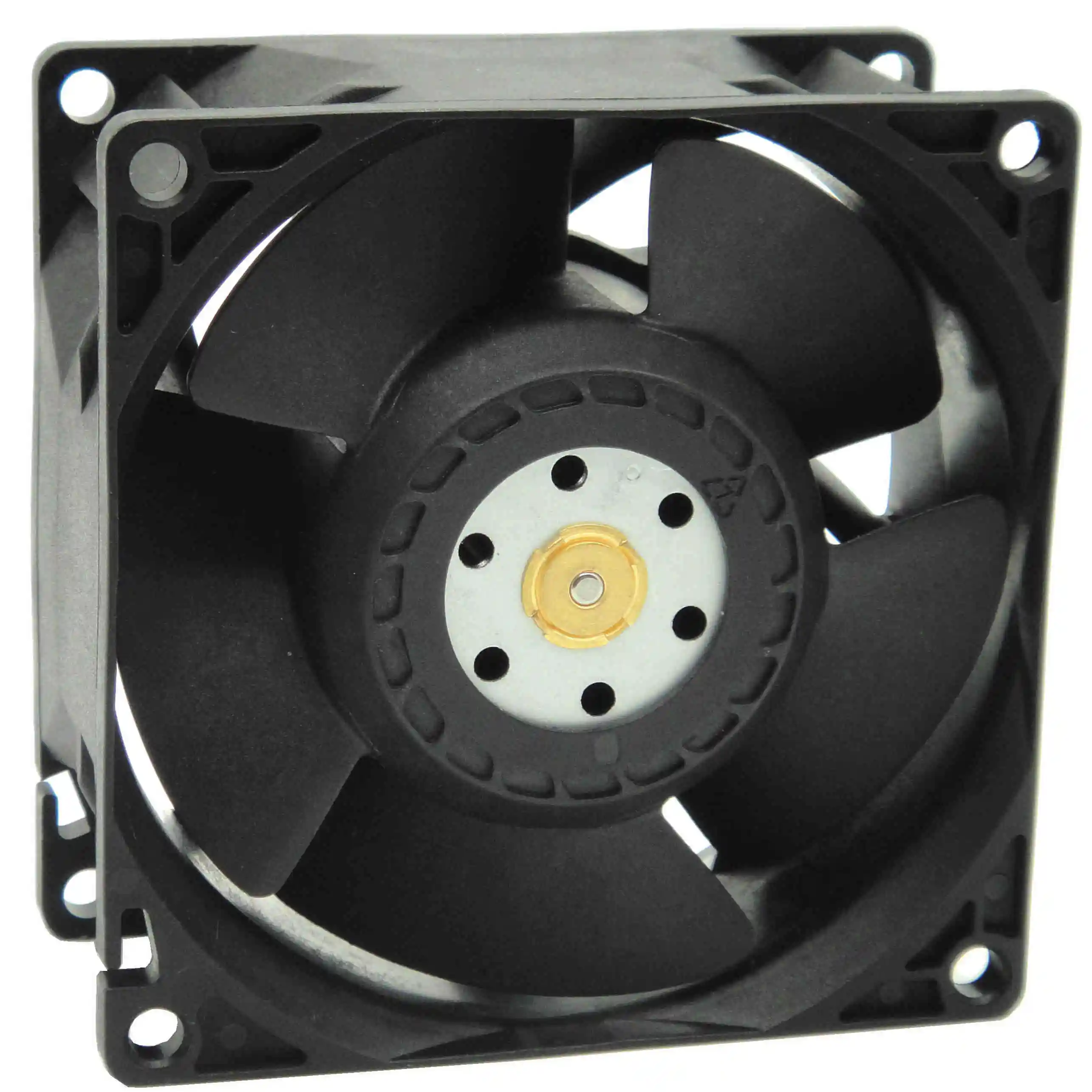

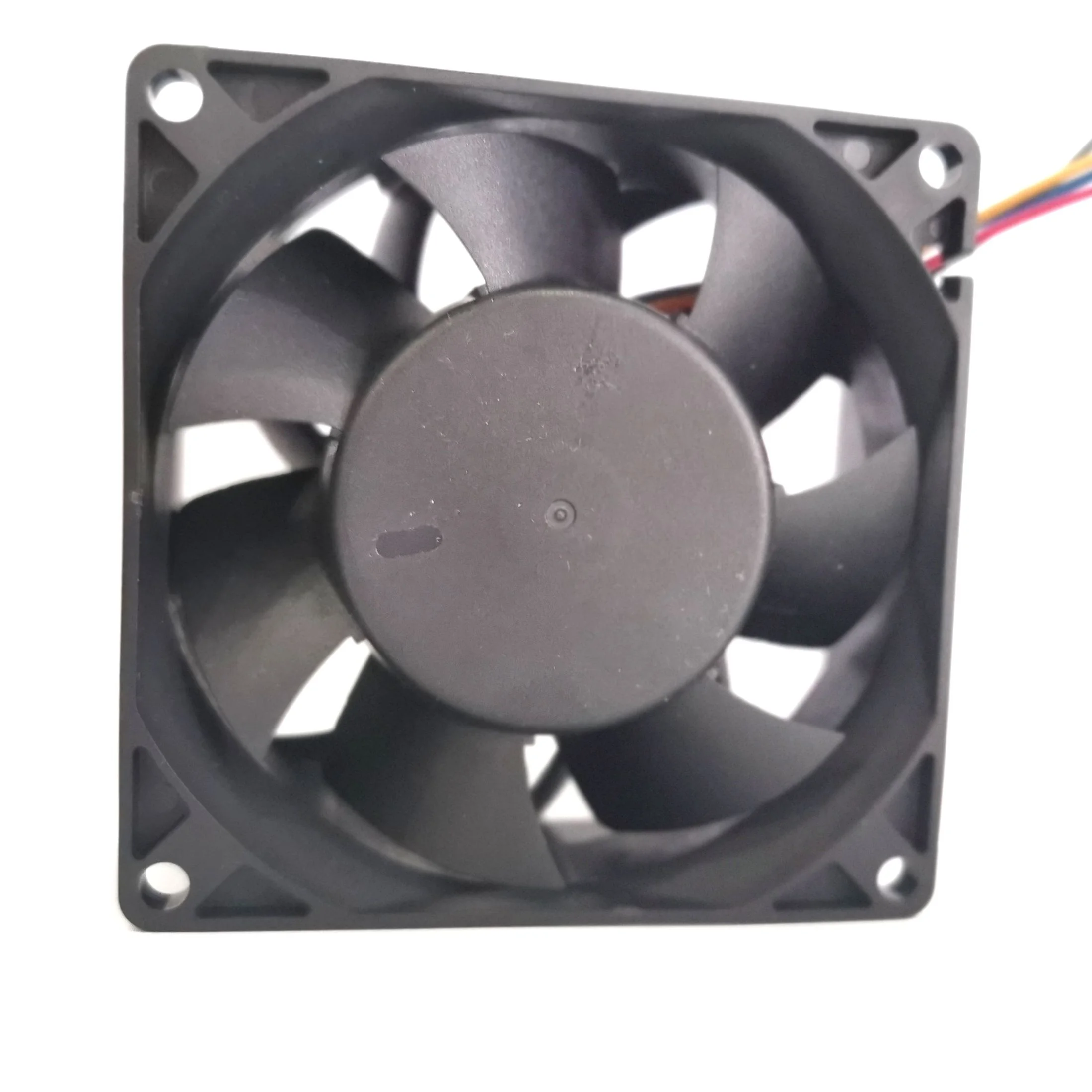

YCCFAN Plastic PBT Fans DC 12v 24v High CFM 80x80x38mm 8038 Ventilation Fan
- Category: >>>
- Supplier: Shenzhen Yccfan Technology Co. Ltd.
Share on (1600628833496):
Product Overview
Description
plastic PBT fans dc 12v 24v High CFM 80x80x38mm H8038 ventilation fan price
Product Description
80x80x38mm dc 12v high CFM fan specification
Item | Specification |
Dimension | 80*80*38mm |
Housing | BLACK PBT(UL94V-0) |
Fan Blade | BLACK PBT(UL94V-0) |
Bearing System | Two Ball Bearing |
Rated Voltage | 12.0VDC |
Operating Voltage Range | 10.8~13.2VDC |
Start-up Voltage | 9.0VDC |
Rated Current | 1.63±0.16(Label:2.0)Amp |
Rated Power | 19.56Watt |
Rated Speed | 7500±10%RPM |
Air Flow/ | 101.13CFM |
Air Pressure | 31.89mmAq |
Noise Level | 58.58dBA |
More Products
YCCFAN provide DC&AC axial fan &DC Blower with different sizes, check below to find what you need. And more information is to be continued, just contatc me if any interest.
DC axial fan size | AC axial fan size | DC blower fan size |
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
fan's application
--------------------------------------------------------------------YCCFAN-----------------------------------------------------------------------------
-------------------------------------------------------------- Main Products -----------------------------------------------------------------
--------------------------------------------------------------Your Correct Choice------------------------------------------------
Company Information

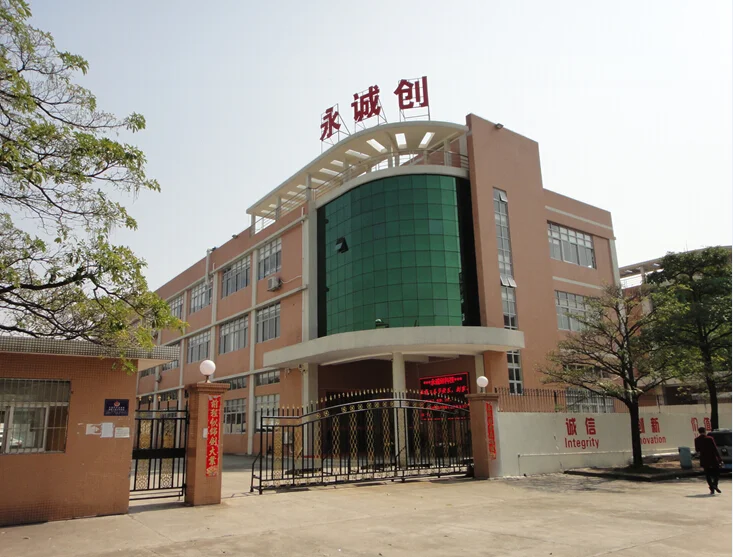

1.Factory Panorama 2.Warehouse
Founded in 2006,YCCFAN located in Shenzhen,China Warehouse capacity, material flow and IQC

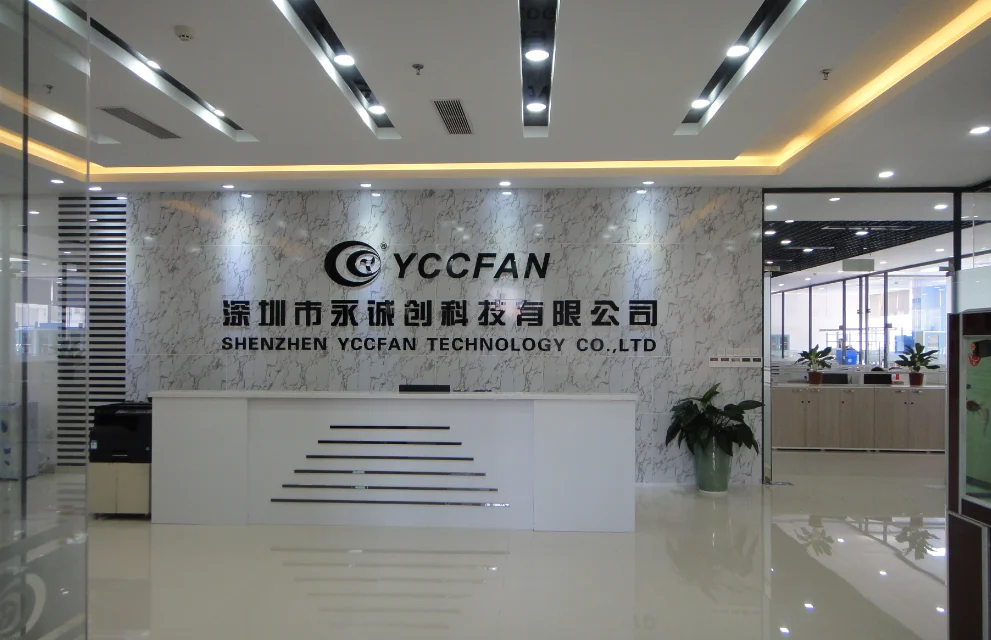

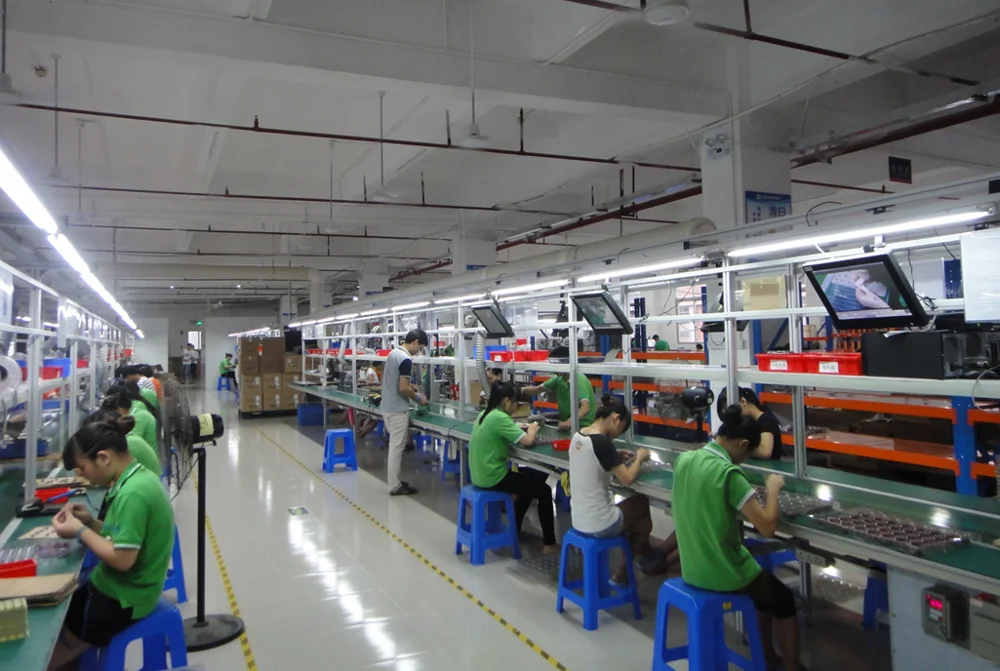

3.Office 4. Work shop
We warmly welcome customers visit us ! DC & AC two plants with automatic equipment
5. Our Team
Activities after working hours
R & D Ability
Every year, YCCFAN invest 50% of turnover to R&D new products, purchase experimental and detecting instrument.

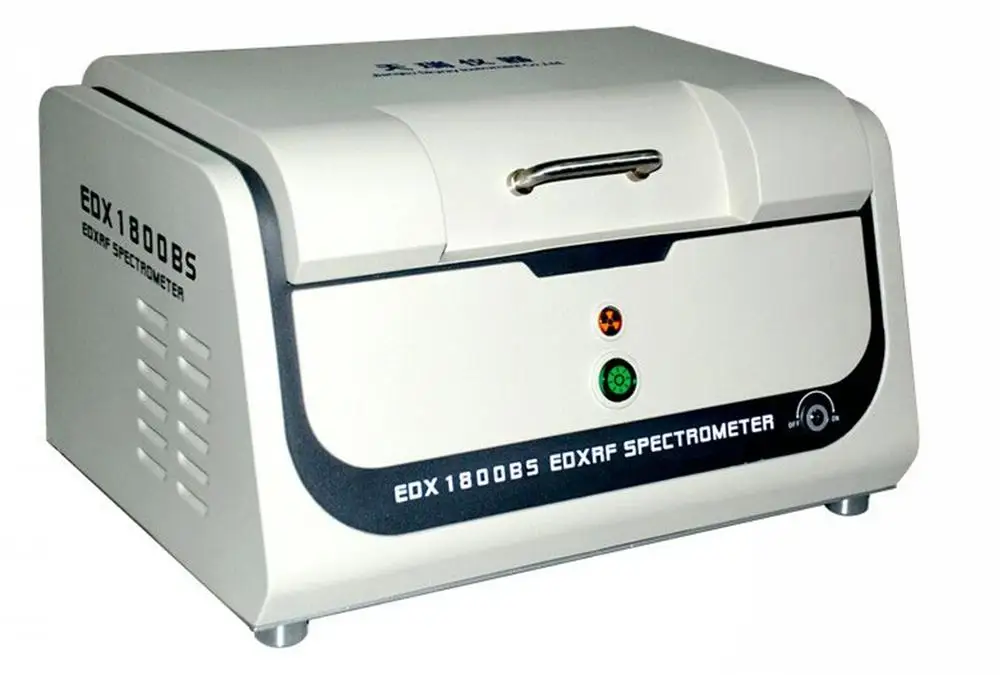

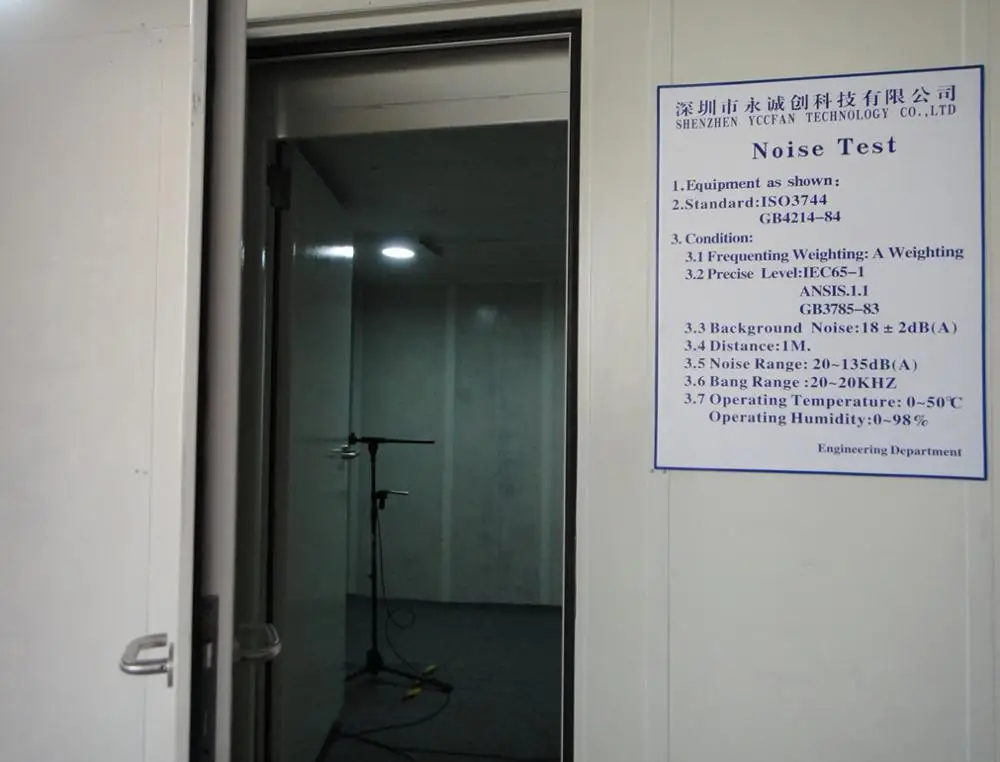

1.Noise Room 2.Wind Tunnel 3.XRF-RoHS
for testing the noise level(background precise air flow measure equipment element analysis range from S to U,
<=20dBA) ( 0 -400cfm) analysis unit from 1ppm to 99.99%

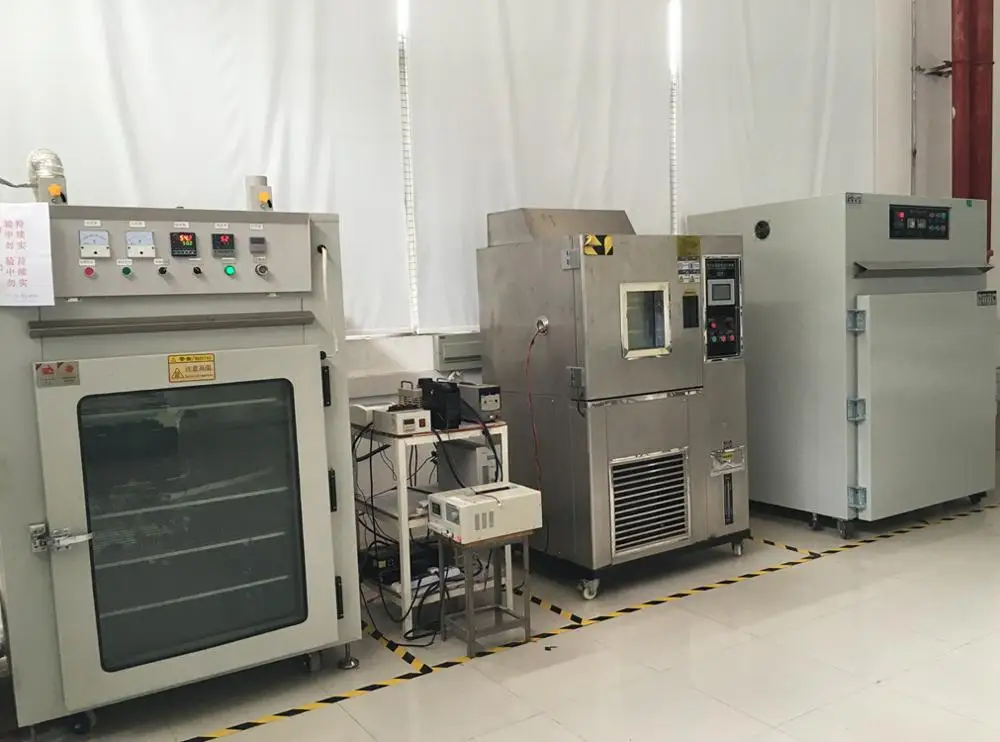

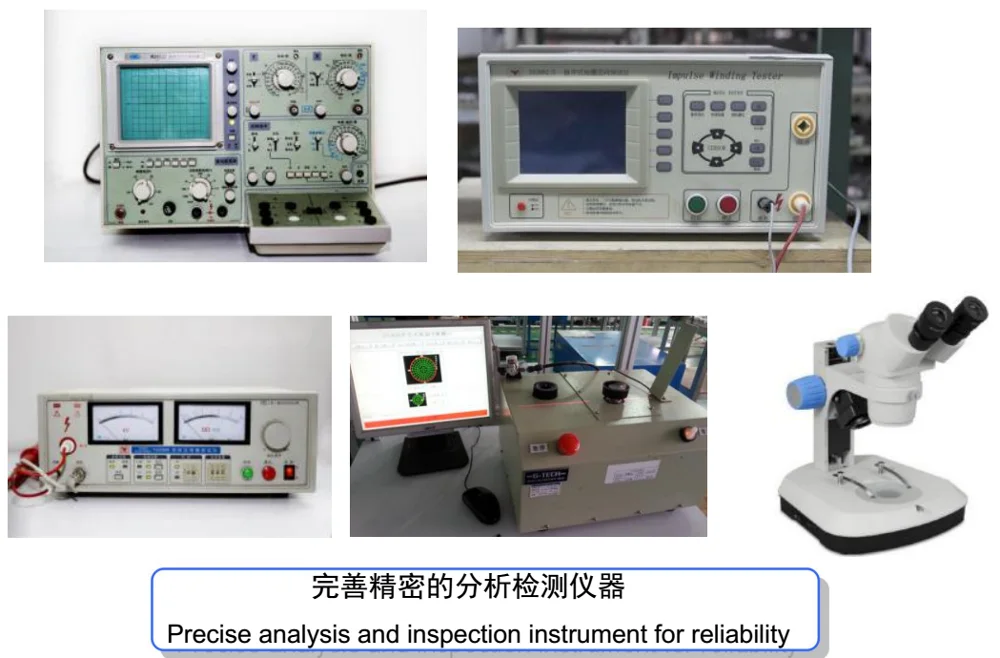

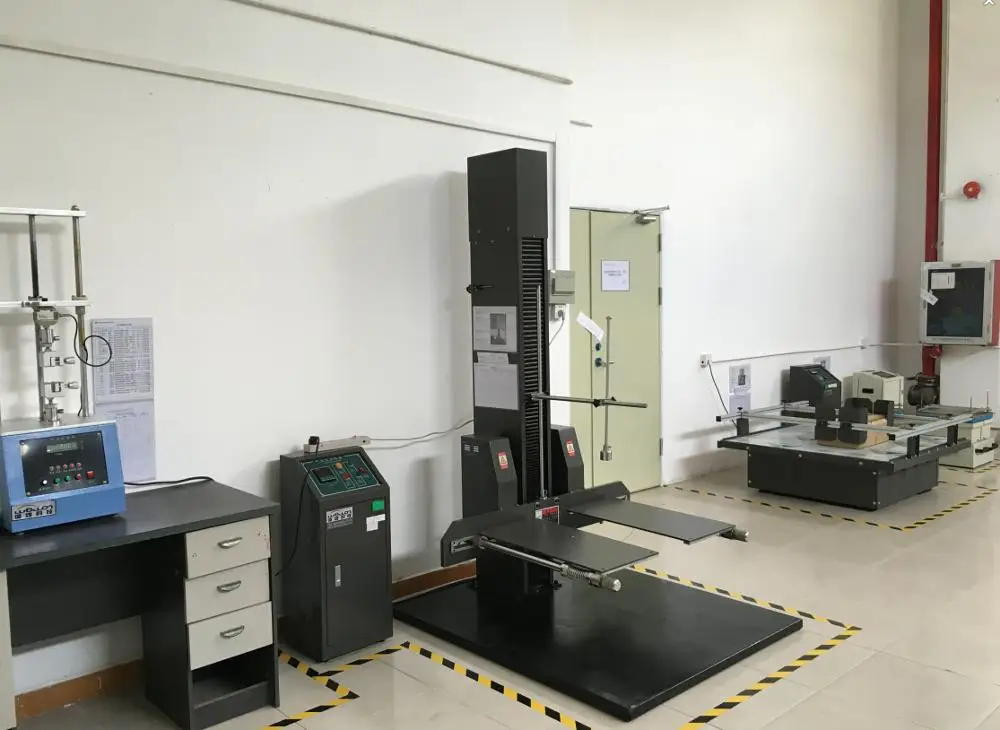

4. Precise analysis and inspection 5.Drop testing &Pull-push strength 6. The lifetime testing under high
instrment for reliability test & simulated transport vibration and normal temperature
Our Certifications
UL & CUL & CE & RoHS & SGS & ISO9001 & ISO14001 &3C and more to be continued.
Main Customers
Thanks for truthing YCCFAN, we commited to providing better service for customers.
Our Services
1. 100 % testing before the fan leave our factory
2. Good after services to every customer
3. Inspection 100% raw material for quality, UL94V-0 plastic are compliance to RoHS SGS standard.
4 . Generally 2-3 free sample for testing first ,when quality approved,then mass production,the product quality is totally compliance to sample checked and specification recognized.
5.Warranty : Two-year for ball bearing fan, one-year for sleeve bearing fan
6.Customized products and cooling products is provided as customer request.
