Hot Sale Image Scopes Hunting Cheap Thermal Imaging Infrared Sight Scope
Hot Sale Image Scopes Hunting Cheap Thermal Imaging Infrared Sight Scope
Hot Sale Image Scopes Hunting Cheap Thermal Imaging Infrared Sight Scope
Hot Sale Image Scopes Hunting Cheap Thermal Imaging Infrared Sight Scope

Hot Sale Image Scopes Hunting Cheap Thermal Imaging Infrared Sight Scope

Share on (1600628835205):


Price:$2,450.00 - $2,599.00

Quantity:


Product Overview

Description



Specification


Model
HW-SC5A
HW-SC5B
Infrared detector
The resolution of the
384×288
640×480
Type of detector
Uncooled detector
Working band
8~14p m
Like yuan size
17p m
NETD
≤50mk
The lens parameters
The focal length
35mm~75mm
Focusing
Fixed focus, manual focus
The F value
F1.0
Viewing Angle
10.6。×8°(±5%)
17.7。×14.2°(±5%)
According to
Frame frequency
50Hz
25Hz
OLED
0.39 inch OLED screen
The resolution of the
1024×768
Electronic amplification
× 1、×2、×4
Image schema
Black heat, white heat, red heat, false color, sky, edge
The eyepiece
Monocular display, adjustable diopter
Range
Range of detector
The human body (1.7 x 0.5 m) 900 m
Vehicle (2.3 x 2.3 m) 1200 m
The human body (1.7 x 0.5 m) 1500 m
Vehicle (2.3 x 2.3 m) 1800 m
Identify the distance
The human body (1.7 x 0.5 m) 500 m
Vehicle (2.3 x 2.3 m) 800 m
The human body (1.7 x 0.5 m) 800 m
Vehicle (2.3 x 2.3 m) 1200 m
The power supply
The battery type
18650 rechargeable lithium battery x 2
Working time
≥8h (at room temperature)
interface
Electrical interface
Navigation in the interface

Environmental adaptation
Working temperature
Temperature range: -40 ° C to 60 ° C
Storage temperature
Temperature range: -45 ° C to 65 ° C
Protection grade
IP67
Physical properties
The weight of the
≤700g (including battery)
≤750g (including battery)
Size
225mm (L) x 85mm (W) x 105mm (H)
Mechanical properties
Impact
500G (1200G is optional)
Stents
Picatinny holder/Optional 95/95-1
Additional attributes
Laser ranging
Optional


Product Description

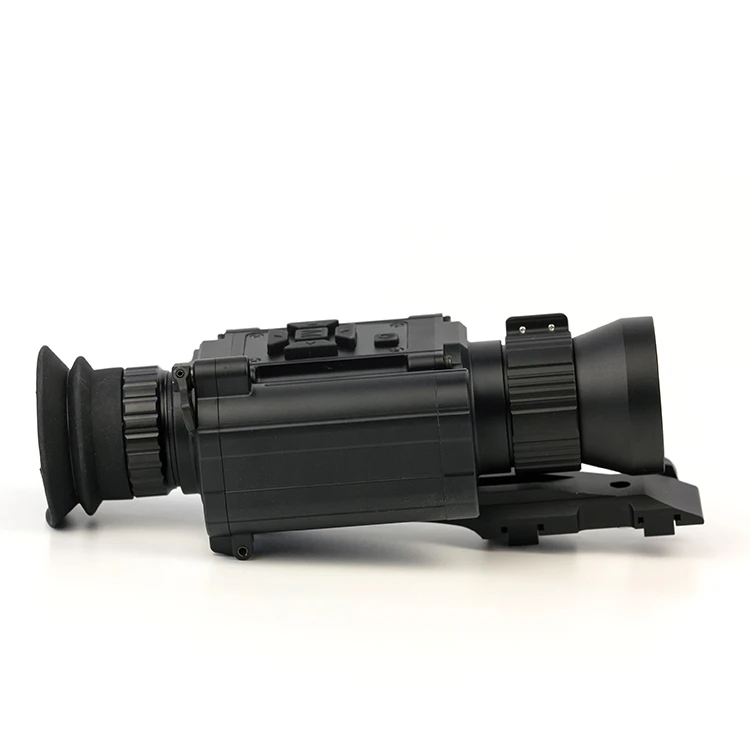

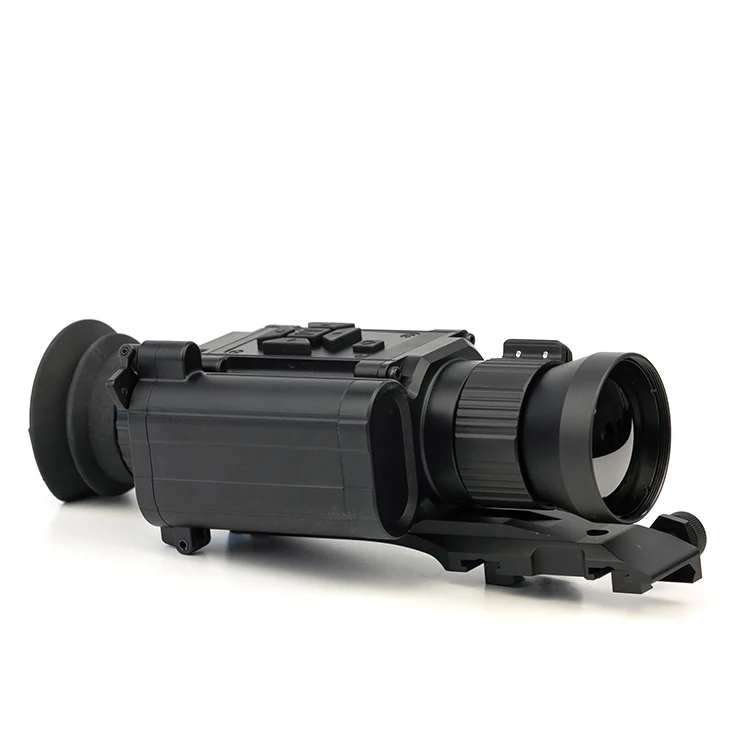

Infrared sight scope
HW-SC5 infrared scope uses advanced technology of no screen, with high sensitivity, high refresh rate, high stability of the special point, can be 24 hours a day full scene imaging investigation, used in investigation observation, outdoor hunting, outdoor exploration, security, maritime operations, the execution of special tasks and other occasions.


Product features
*No screen technology
*High sensitivity
*Quick start
*Small size and light weight
*Remote, non-contact monitoring
*Long standby time
*High protection level
*GJB9001 Quality assurance


Application scenarios
*Investigation of observation
*Outdoor hunting, outdoor adventure
*Border and sea patrols
*Search and rescue






Company Profile








Packing & Delivery




To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.


FAQ




Q: How could I get a sample?
A: Before we received the first order, please afford the sample cost and express fee. We will return the sample cost back to you within your first order.

Q: Whether you could make our brand on your products?
A: Yes. We can print your Logo on both the products and the packages if you can meet our MOQ.

Q: Whether you could make your products by our color?
A: Yes, The color of products can be customized if you can meet our MOQ.

Q: How to guarantee the quality of your products?
A: 1) Strict detection during production.
2) Strict sampling inspection on products before shipment and intact product packaging ensured.
