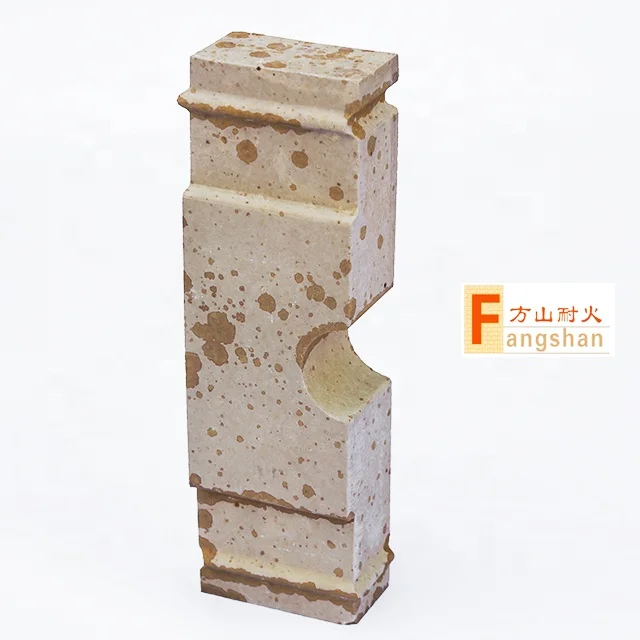

Silica Brick BG 96B for Silica Brick For Coke Oven Silica Refractory Brick For Blast Furnace
- Category: >>>
- Supplier: Luoyang Fangshan Refractory Material Co. Ltd.
Share on (1600628835933):
Product Overview
Description
Product Description
Silica Brick
Silica brick is a refractory product with silica as the main component and its content is above 93%. It is made of quartzite as raw material, with a small amount of mineralizing agent, and is fired at high temperature.
Product features of Silica acid resistance refractory brick
(1) high softening temperature under load.The coke oven silicon brick can bear the dynamic load of the coal car on the top of the oven at high temperature and can be used for a long time without deformation.
(2) high thermal conductivity.Coke is made from coking coal in the coking chamber by heating through the wall of the combustor.In the temperature range of coke oven combustion chamber, the thermal conductivity of silicon brick is higher than that of clay brick and high aluminum brick.The thermal conductivity of compact coke oven silicon brick can be increased by 10% ~ 20% compared with that of ordinary coke oven silicon brick.
(3) good thermal shock resistance at high temperature.The temperature of the silicon bricks on both sides of the combustion chamber wall changes dramatically due to the periodic coal loading and coke discharging of coke oven.Normal operating temperature fluctuation range does not cause serious crack and spalling, silica brick for above 600 ℃, coke oven silica brick has good thermal shock resistance;
(1) high softening temperature under load.The coke oven silicon brick can bear the dynamic load of the coal car on the top of the oven at high temperature and can be used for a long time without deformation.
(2) high thermal conductivity.Coke is made from coking coal in the coking chamber by heating through the wall of the combustor.In the temperature range of coke oven combustion chamber, the thermal conductivity of silicon brick is higher than that of clay brick and high aluminum brick.The thermal conductivity of compact coke oven silicon brick can be increased by 10% ~ 20% compared with that of ordinary coke oven silicon brick.
(3) good thermal shock resistance at high temperature.The temperature of the silicon bricks on both sides of the combustion chamber wall changes dramatically due to the periodic coal loading and coke discharging of coke oven.Normal operating temperature fluctuation range does not cause serious crack and spalling, silica brick for above 600 ℃, coke oven silica brick has good thermal shock resistance;
Specification
item | value |
Place of Origin | China |
Henan | |
Shape | Brick |
Material | silica |
SiO2 Content (%) | 95-98 |
Al2O3 Content (%) | ≤0.6 |
Refractoriness (Degree) | Common (1580°< Refractoriness< 1770°) |
Model Number | silica refractory bricks BG-95,96A,96B |
Brand Name | Fangshan Luoyang |
Item | Refractory Silica brick | Silica refractory brick for glass kiln | |||||||
BG-94 | BG-95 | BG-96B | BG-96A | ||||||
SiO2% ≥ | 94 | 95 | 96 | 96 | |||||
Fe2O3 %≥ | 1.4 | 1.2 | 0.8 | 0.7 | |||||
Refractoriness °C | 1710 | 1710 | 1710 | 1710 | |||||
0.2MPa refractoriness under load ℃ ≥ | 1650 | 1660 | 1670 | 1680 | |||||
Apparent porosity % | 24 | 22 | 22 | 22 | |||||
True Density g/cm3 | 2.33 | 2.34 | 2.34 | 2.34 | |||||
Cold crushing strength MPa | unit weight <20kg ≥ | 30 | 35 | 35 | 35 | ||||
unit weight ≥20kg≥ | 30 | 30 | 30 | 30 | |||||

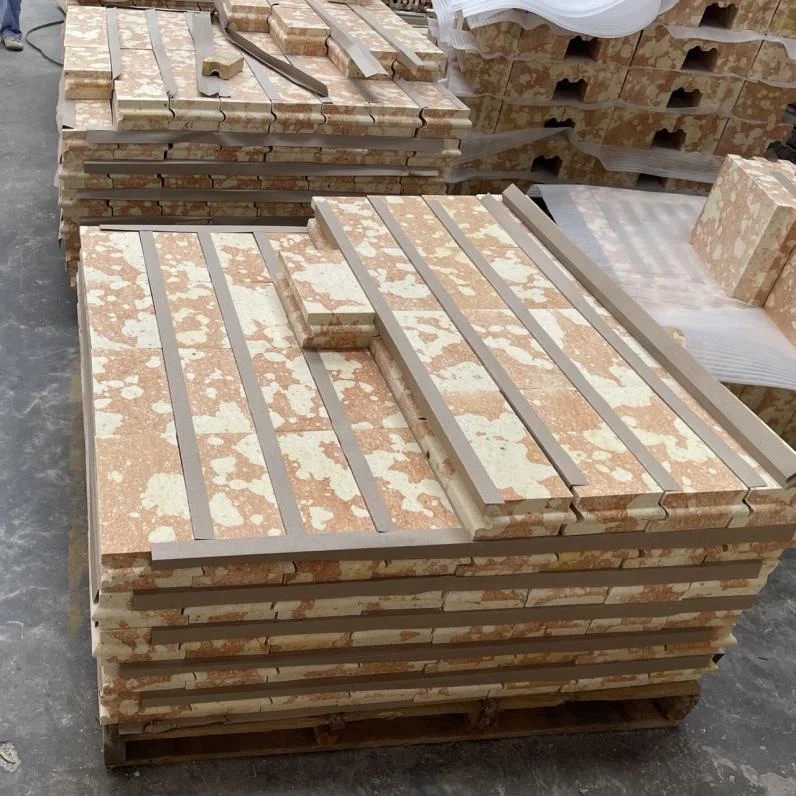

Packing & Delivery

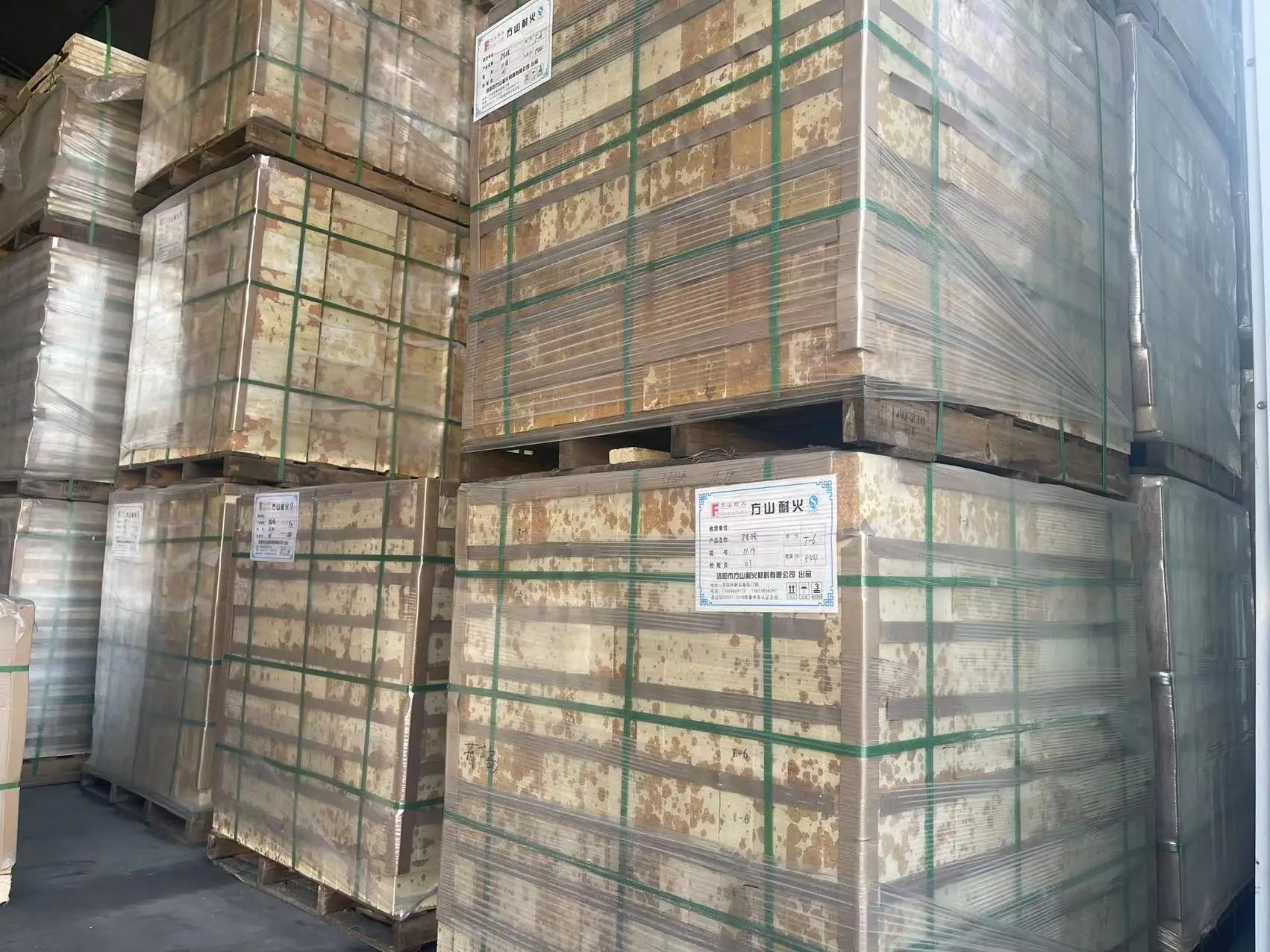

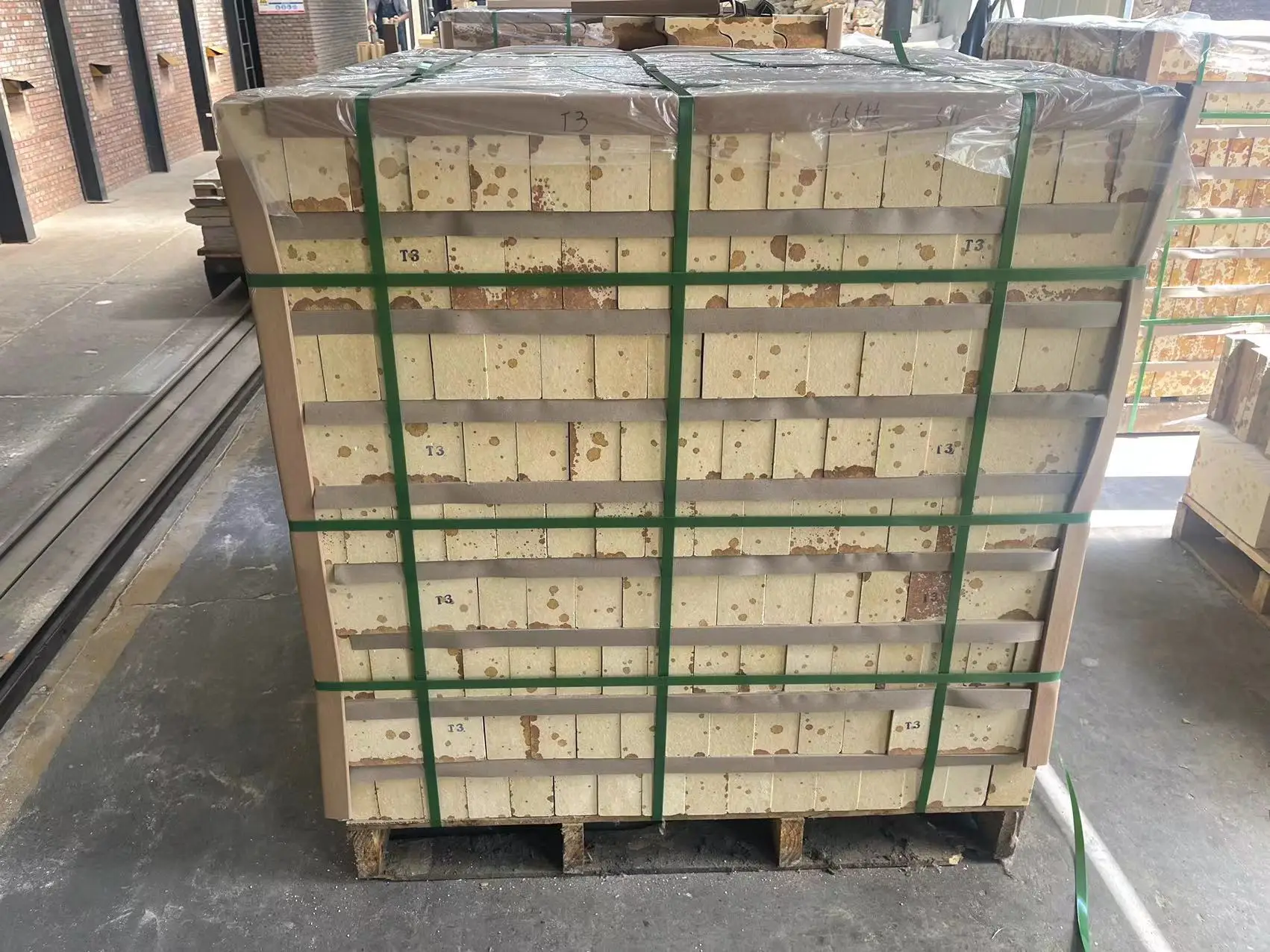

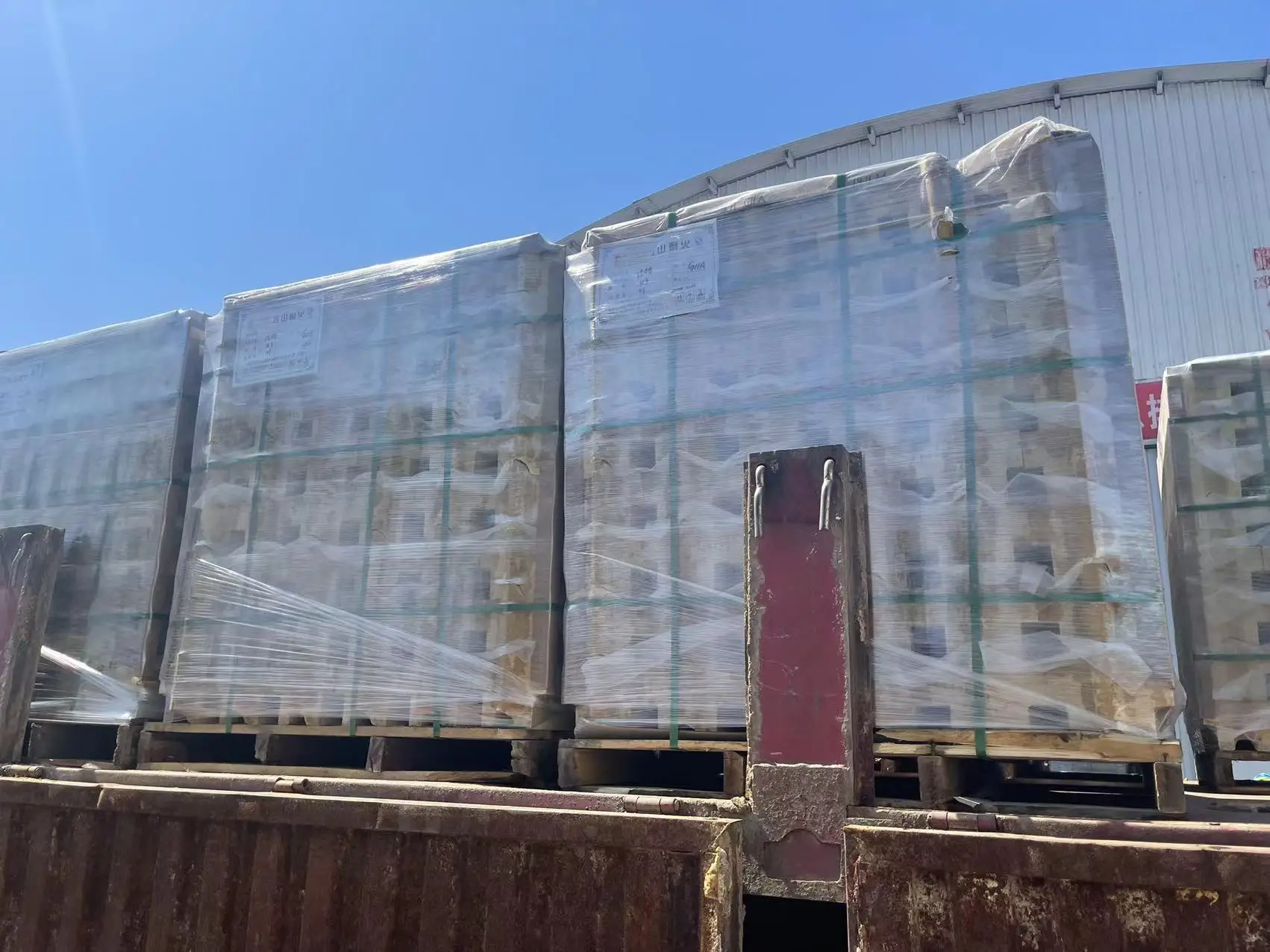

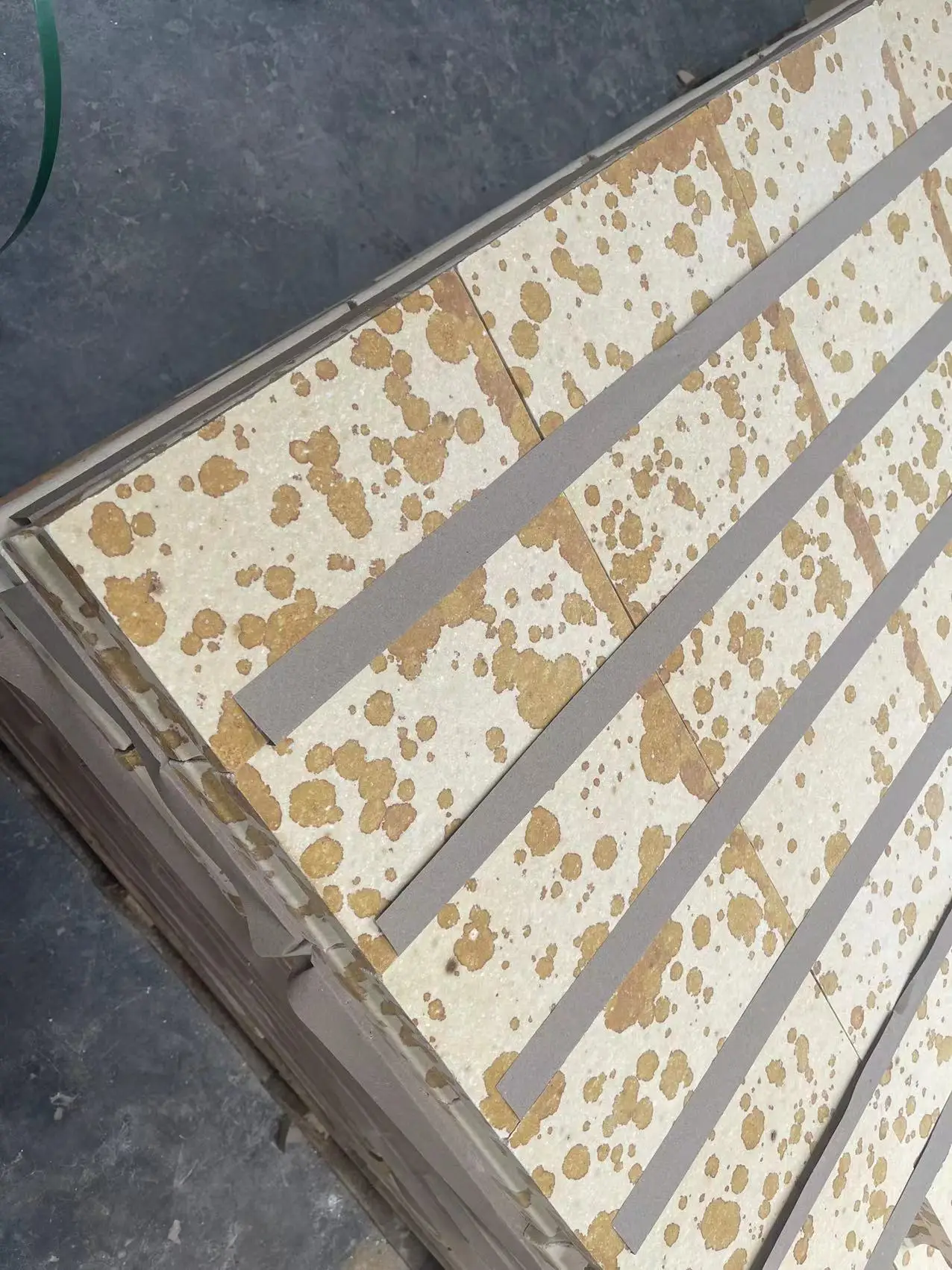

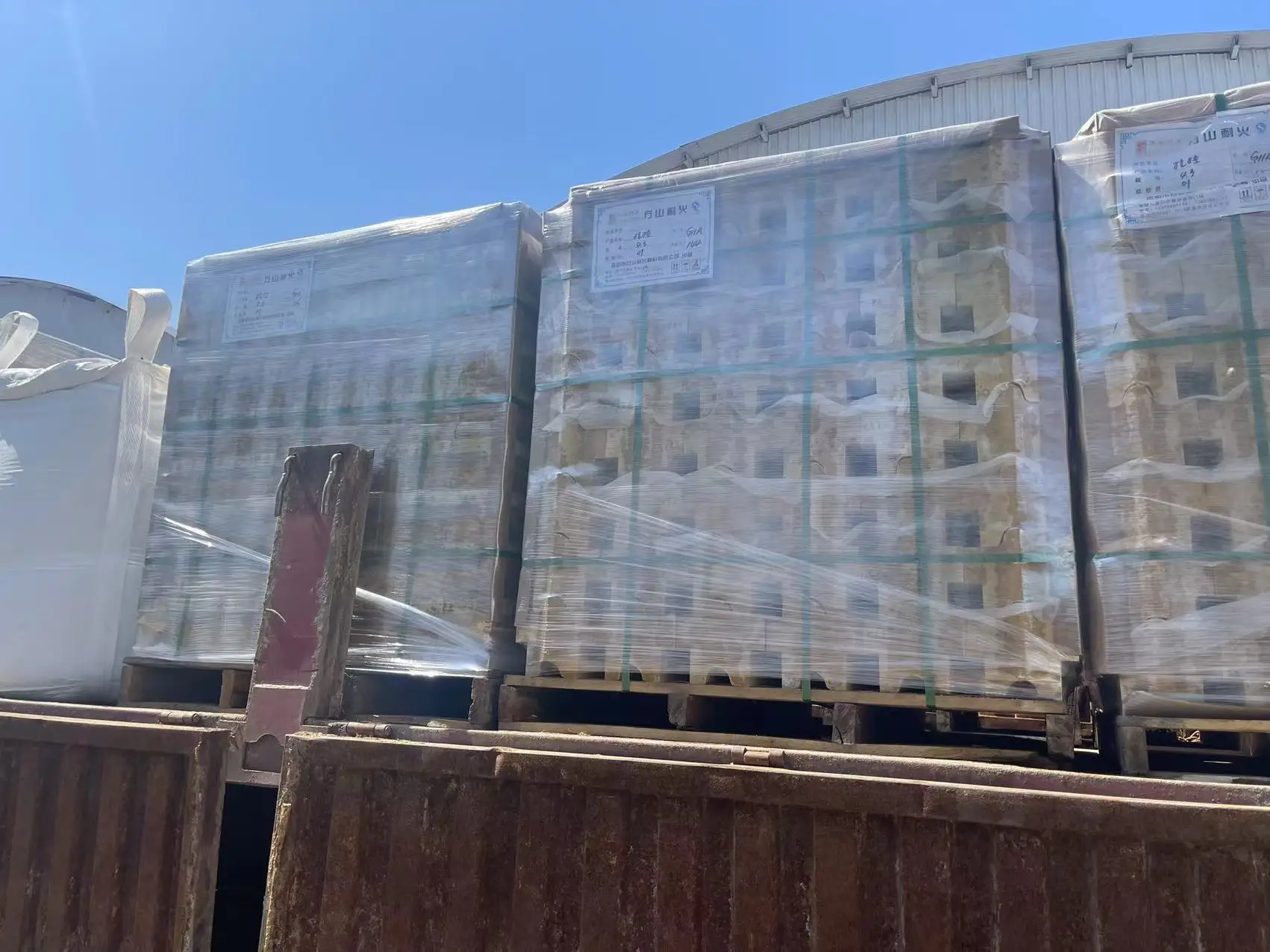

Export fumigation tray, winding film packaging
Company Profile
Luoyang Fangshan refractory material Co., Ltd. is located at the foot of Fangshan, tiemen Town, 40km west of Luoyang, and close to 310 National Highway and Lianhuo Expressway in the north. It is adjacent to Longhai railway special line in the south, and the transportation is very convenient. Moreover, the silica in tiemen Fangshan has high grade and large reserves. It is an important raw material base for high-quality silica bricks in China.
Founded in 1986, the company was formerly a subordinate enterprise of Lobo group. Integrating the technical advantages of Lobo group and Sinosteel luonai Institute, the company developed high-quality silica brick. In 1998, our company participated in the formulation of the national standard of high-quality silica brick in China. It was restructured into a private enterprise in 2001. Under the leadership of Mr. Wang Guihong, chairman of the board of directors, the enterprise scale, product quality and economic
The business philosophy has made great progress, and now it has developed into having more than 85 million fixed assets and annual sales revenue
With more than 55 million employees, 120 employees, 10 undergraduate graduates and 10 middle and senior engineers, it is a large-scale manufacturer specializing in the production of silica bricks for tank calciner.
As the "formulation and revision unit of national standard for high quality silica brick in 1998", the company has been committed to product R & D and process innovation. Since 2010, our company has regarded high-quality silica brick as the company's "fist product", continuously developed and innovated, strengthened product R & D and strengthened the construction of product quality system. According to the damage mechanism of different furnace type silica bricks, our company has innovated its production process and production equipment, and successfully developed low air hole and high density silica bricks, and its physical and chemical indexes far exceed the national standards. The product has the remarkable effects of anti-corrosion, high thermal conductivity, low energy consumption and long service life in practical use. According to the actual evaluation of users, the furnace life has increased significantly, which is highly praised by the majority of consumers.
The company has a high-quality silica mining and processing production line, which provides a reliable guarantee for the source of raw materials for the company. It has four large wet mills, two 800 ton CNC presses, two 630 ton CNC presses, four 500 ton presses, four 400 ton CNC presses, one 180 meter automatic gas tunnel kiln, with an annual output of 25000 tons of high-quality silica bricks and light insulating bricks
And 10000 tons of bulk materials. The company has complete quality inspection and testing center and product research and development center, and carries out monitoring and testing of the whole process of product quality, ensuring the advanced quality and reliability of the process. Every month, the company carries out vocational skills training and safety production training for all employees to continuously improve the process quality of products on the premise of safety production. The company implements the last elimination system to eliminate incompetent employees and managers in time to ensure the healthy development of the company.
Quality is the root and honesty is the foundation. We always adhere to the business philosophy of quality first and customer first; Adhere to the honest and pragmatic work style, take building a world-class silica brick as our goal, and take "Fangshan silica brick, let me feel at ease" as our service concept. We will win the trust of customers and make customers feel at ease with our diligent work style and excellent product quality. Luoyang Fangshan refractory Co., Ltd. looks forward to working with you to create a better tomorrow!
Founded in 1986, the company was formerly a subordinate enterprise of Lobo group. Integrating the technical advantages of Lobo group and Sinosteel luonai Institute, the company developed high-quality silica brick. In 1998, our company participated in the formulation of the national standard of high-quality silica brick in China. It was restructured into a private enterprise in 2001. Under the leadership of Mr. Wang Guihong, chairman of the board of directors, the enterprise scale, product quality and economic
The business philosophy has made great progress, and now it has developed into having more than 85 million fixed assets and annual sales revenue
With more than 55 million employees, 120 employees, 10 undergraduate graduates and 10 middle and senior engineers, it is a large-scale manufacturer specializing in the production of silica bricks for tank calciner.
As the "formulation and revision unit of national standard for high quality silica brick in 1998", the company has been committed to product R & D and process innovation. Since 2010, our company has regarded high-quality silica brick as the company's "fist product", continuously developed and innovated, strengthened product R & D and strengthened the construction of product quality system. According to the damage mechanism of different furnace type silica bricks, our company has innovated its production process and production equipment, and successfully developed low air hole and high density silica bricks, and its physical and chemical indexes far exceed the national standards. The product has the remarkable effects of anti-corrosion, high thermal conductivity, low energy consumption and long service life in practical use. According to the actual evaluation of users, the furnace life has increased significantly, which is highly praised by the majority of consumers.
The company has a high-quality silica mining and processing production line, which provides a reliable guarantee for the source of raw materials for the company. It has four large wet mills, two 800 ton CNC presses, two 630 ton CNC presses, four 500 ton presses, four 400 ton CNC presses, one 180 meter automatic gas tunnel kiln, with an annual output of 25000 tons of high-quality silica bricks and light insulating bricks
And 10000 tons of bulk materials. The company has complete quality inspection and testing center and product research and development center, and carries out monitoring and testing of the whole process of product quality, ensuring the advanced quality and reliability of the process. Every month, the company carries out vocational skills training and safety production training for all employees to continuously improve the process quality of products on the premise of safety production. The company implements the last elimination system to eliminate incompetent employees and managers in time to ensure the healthy development of the company.
Quality is the root and honesty is the foundation. We always adhere to the business philosophy of quality first and customer first; Adhere to the honest and pragmatic work style, take building a world-class silica brick as our goal, and take "Fangshan silica brick, let me feel at ease" as our service concept. We will win the trust of customers and make customers feel at ease with our diligent work style and excellent product quality. Luoyang Fangshan refractory Co., Ltd. looks forward to working with you to create a better tomorrow!
FAQ
1. who are we?
We are based in Henan, China, start from 2001,sell to Domestic Market(75.00%),Eastern Asia(25.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
refractory,silica brick,light weight brick,silica powder,Refractory cement
4. why should you buy from us not from other suppliers?
Regional advantages: it is 3km away from tiemen mine, a famous silica mine in China. The mining area is rich in reserves, with a silicon content of more than 99.5%. Talent advantages: the company has 20 people with bachelor's degree or above, 10 middle and
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
We are based in Henan, China, start from 2001,sell to Domestic Market(75.00%),Eastern Asia(25.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
refractory,silica brick,light weight brick,silica powder,Refractory cement
4. why should you buy from us not from other suppliers?
Regional advantages: it is 3km away from tiemen mine, a famous silica mine in China. The mining area is rich in reserves, with a silicon content of more than 99.5%. Talent advantages: the company has 20 people with bachelor's degree or above, 10 middle and
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
