Metal Mesh demister Coalescer filter Gas Turbine Air Filter

Product Overview

Description

Desc.:

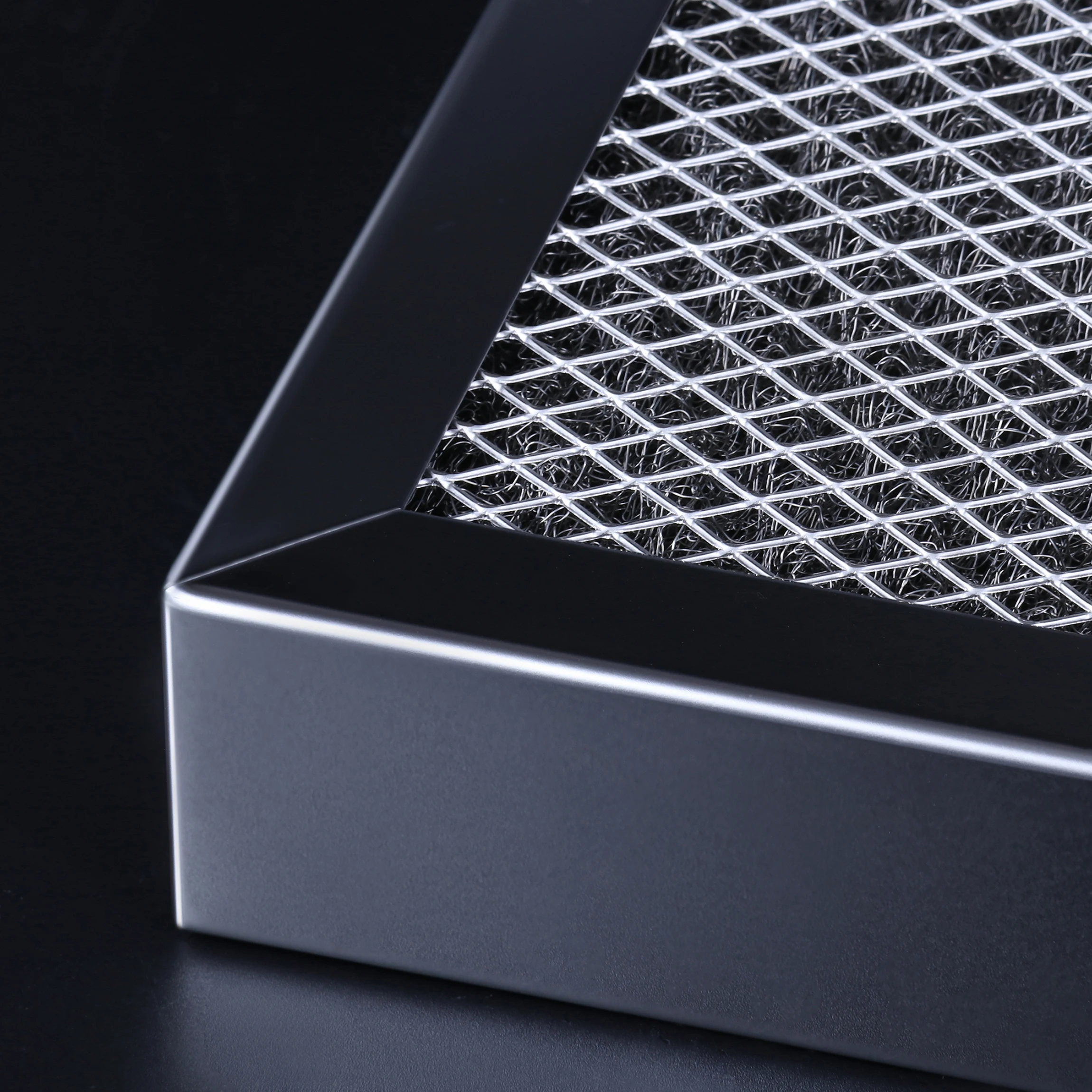

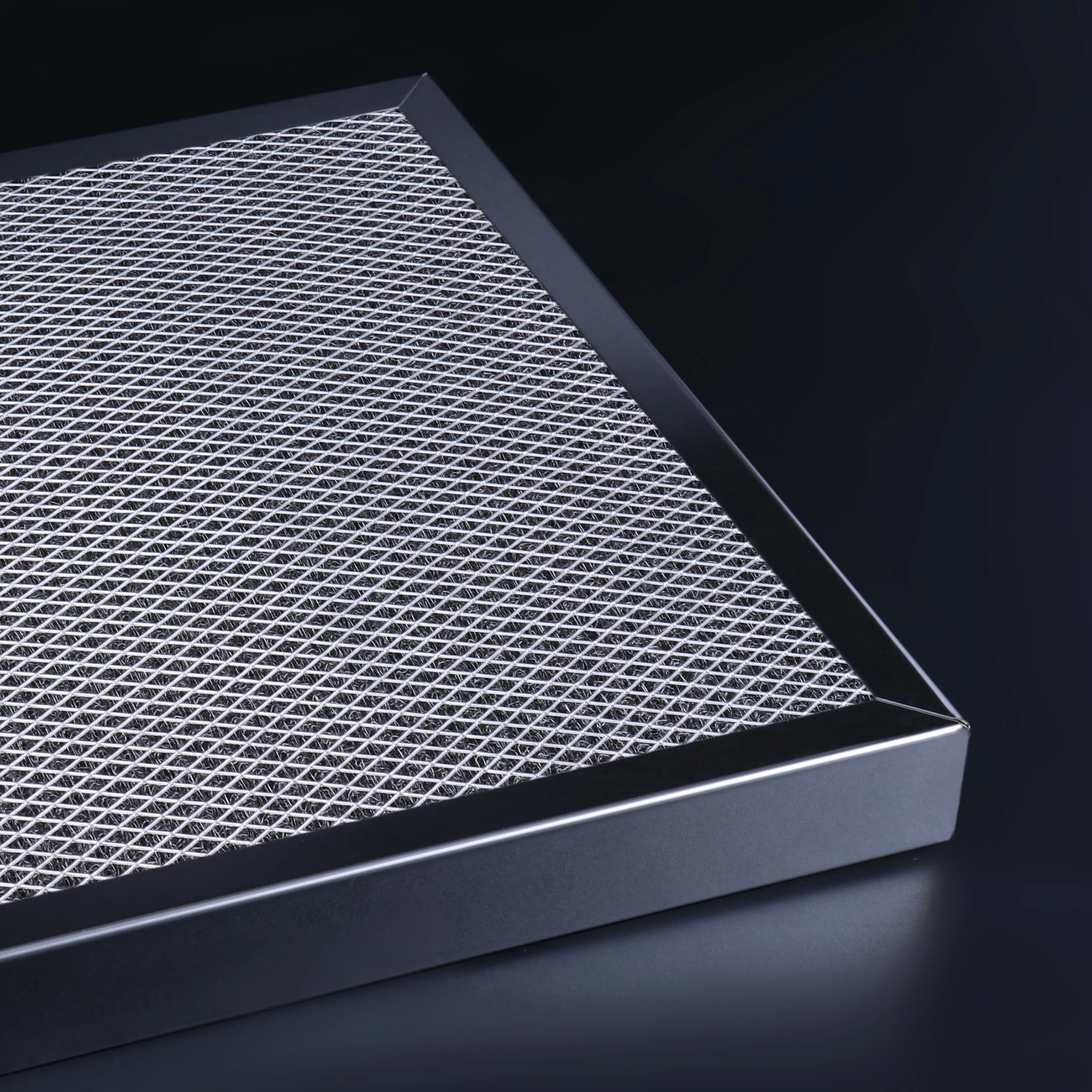

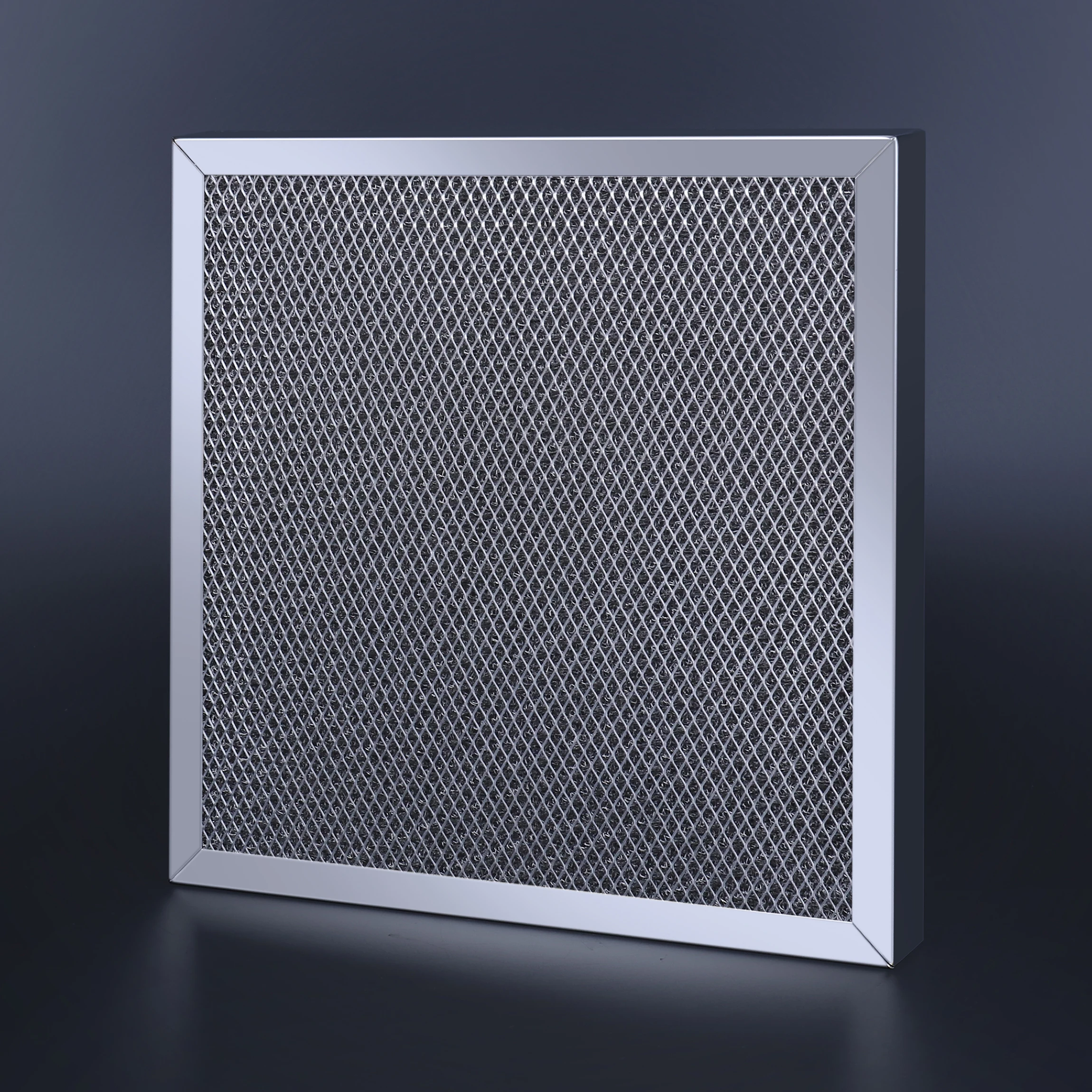

Stainless steel oil mist filter(knitted wire mesh)





Product structure:





Panel frame:Galvanized steel,Aluminum(natural),Stainless steel



Filter material:Metal knitted wire mesh



Protecting wire mesh:Screen,diamond mesh,perforated plate



Dimension:L*W*H(Non-standard customization)



Material: 201,304,316,2205,TA2 etc.





Performance parameter:



Lowest oil mist particle >3um;



Removal efficiency 60%-99%(20-100mm thickness);



Airflow speed<1.5m/s.





Feature:



1)Large oil capacity, high temperature resistance, fireproof, effective filtration of fume, dust and powder;



2)Permanent, durable,washable and not easy to oxidize for a long life;



Customized according to your request even if non-standard.



Application:



Machining oil mist purification; heat treatment quenching smoke purification; air purification in die casting and injection molding workshop; pre-filtering for food fume purifier.



The data to Filter for air conditioning from Guotao:

Desc.	Pre-filter,Medium filter,Hepa filter,Oil mist filter
Panel frame	Galvanized,Aluminium,SS304,Paper board
Size to panel frame	Thickness:0.8~2.0mm; Width:10~25mm.
Filtering material	Synthetic fiber,Paper,Cotton,Carbon, Aluminum wire mesh,Aluminum foil,SS304 wire mesh.
Protecting coated	Aluminum,SS304.
Protecting type	No,single side or double sides .
Dimension to filter	TBA less than 2000mm for length or width ,height from 10mm to 300mm
Type	Pleated,Flat













Packing:PP bag,Carton,Plywood case,Pallet for your choice.









Shipping:by land,by sea,by air,by courier for your choice.







Certificate:
