JERRYPACK JPF1000 8 50 1000ml 8 Nozzles Electric Automatic Piston Ketchup Mayonnaise Filling Machine
- Category: >>>
- Supplier: Changzhou Jerry Packaging Technology Co. Ltd.
Share on (1600628855400):
Product Overview
Description
Products Description

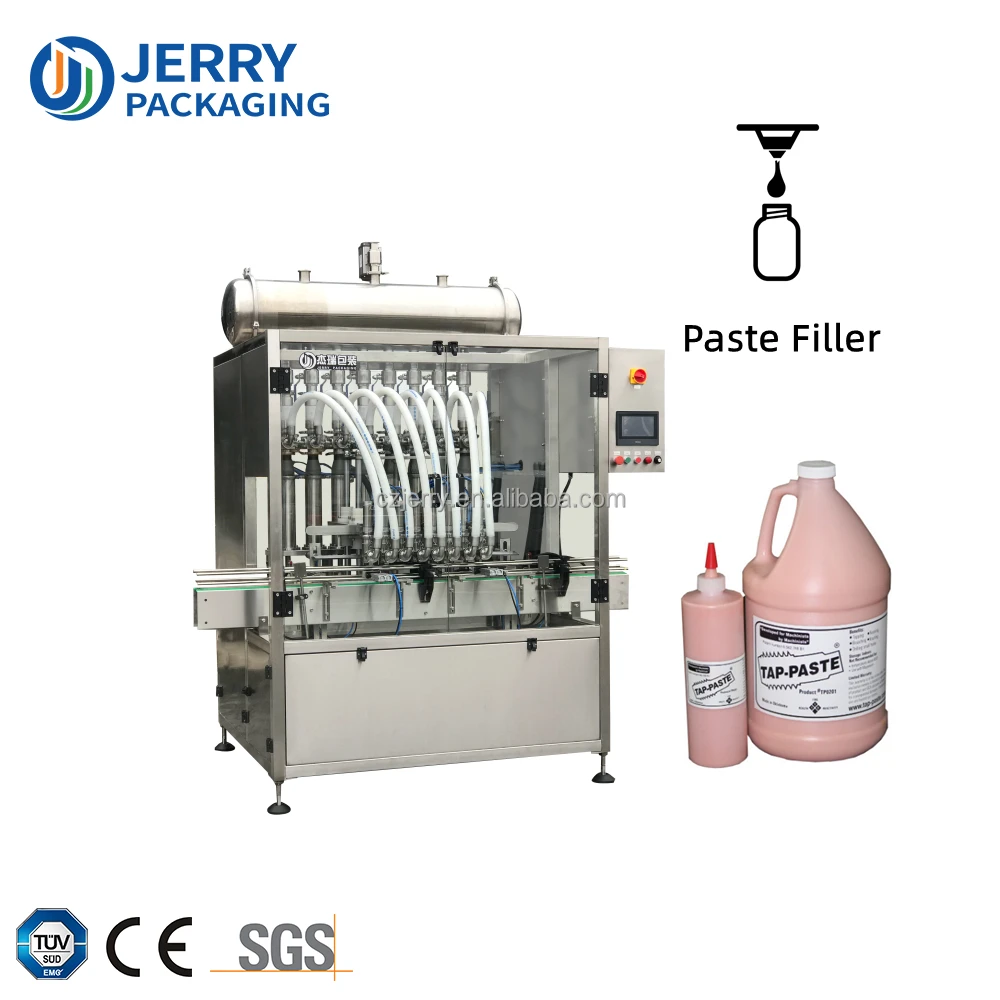

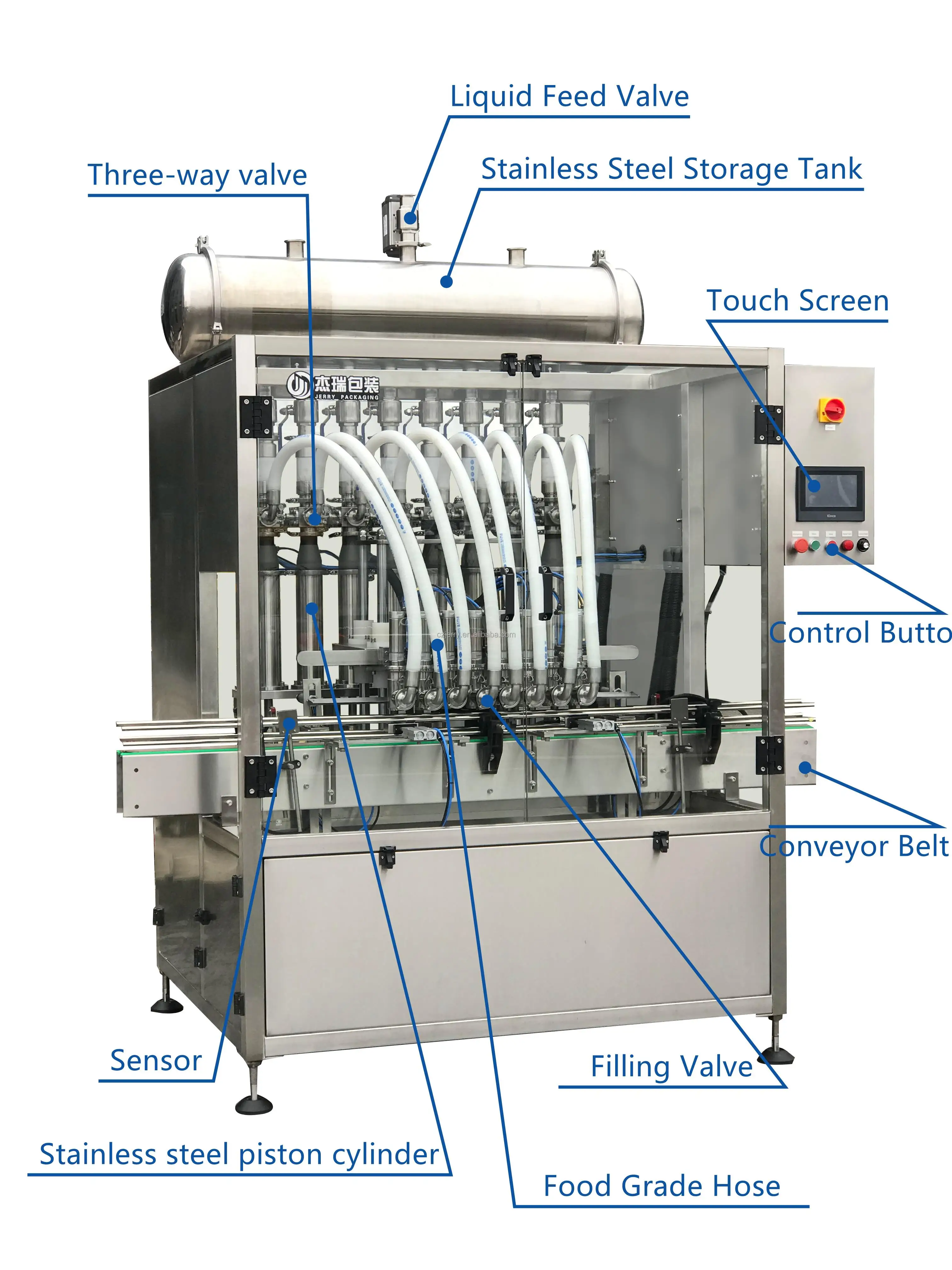

JPF Series Automatic Piston Filling Machine
JPF Series intelligent high-viscosity filling machine is suitable for packaging of non-viscosity and high-viscosity materials.The whole machine has an in-line structure, and the principle of servo motor-driven filling and volumetric filling is used to achieve high accuracy of the filling dose. Optional high-precision electronic scale automatic weighing data transmission system for faster dose adjustment.

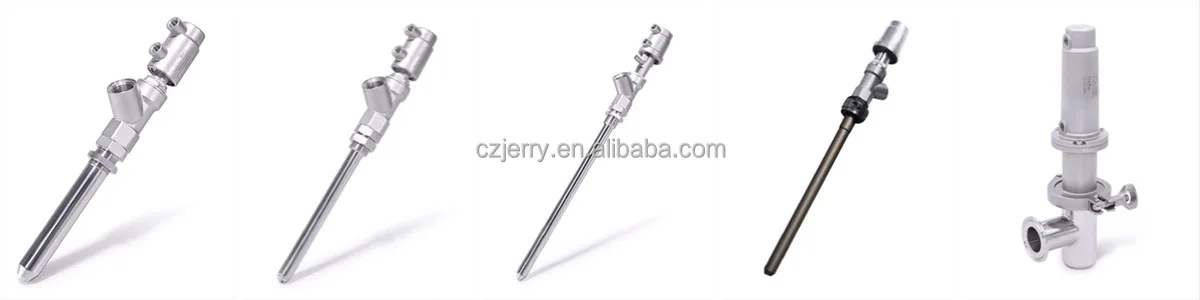

Filling Nozzle Options

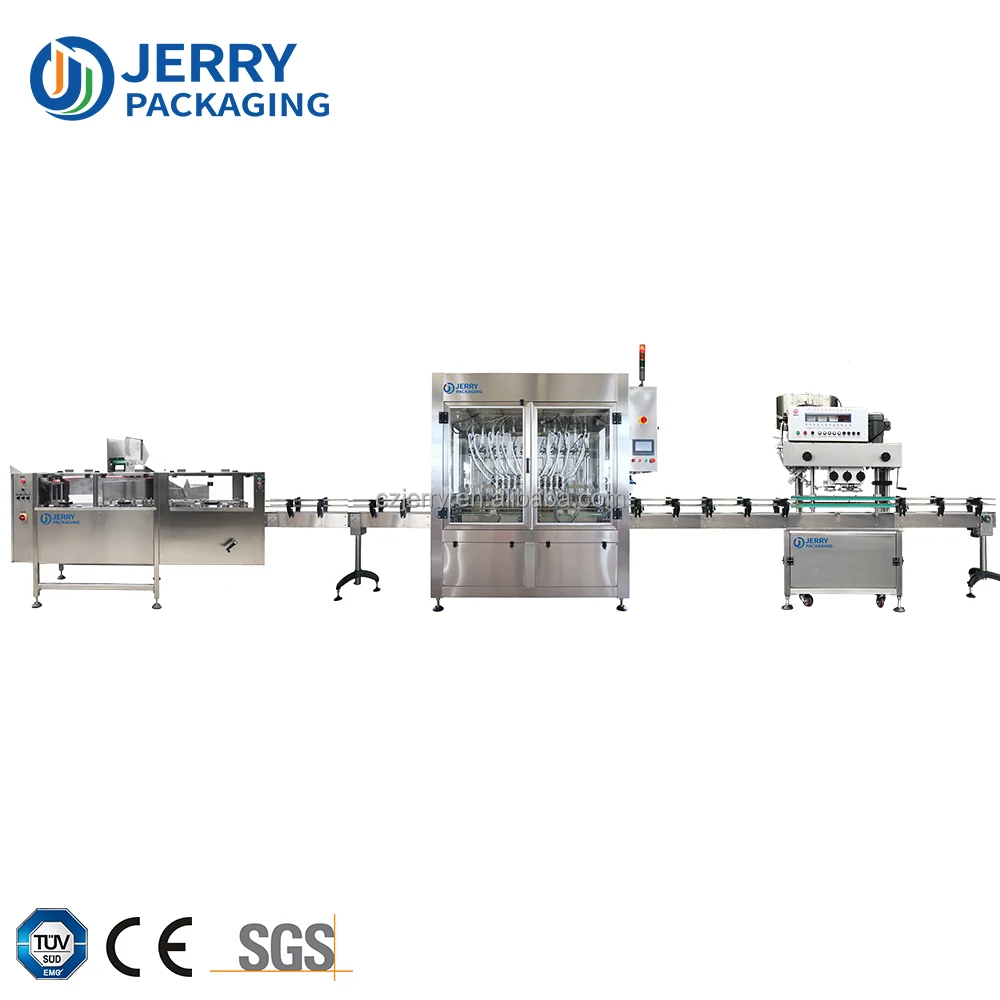

Automatic Filling Production Line
Bottle unscrambler-Filling-Capping-Labeling-Date printer-Case packing-Palletizer
Product Application
Product Features

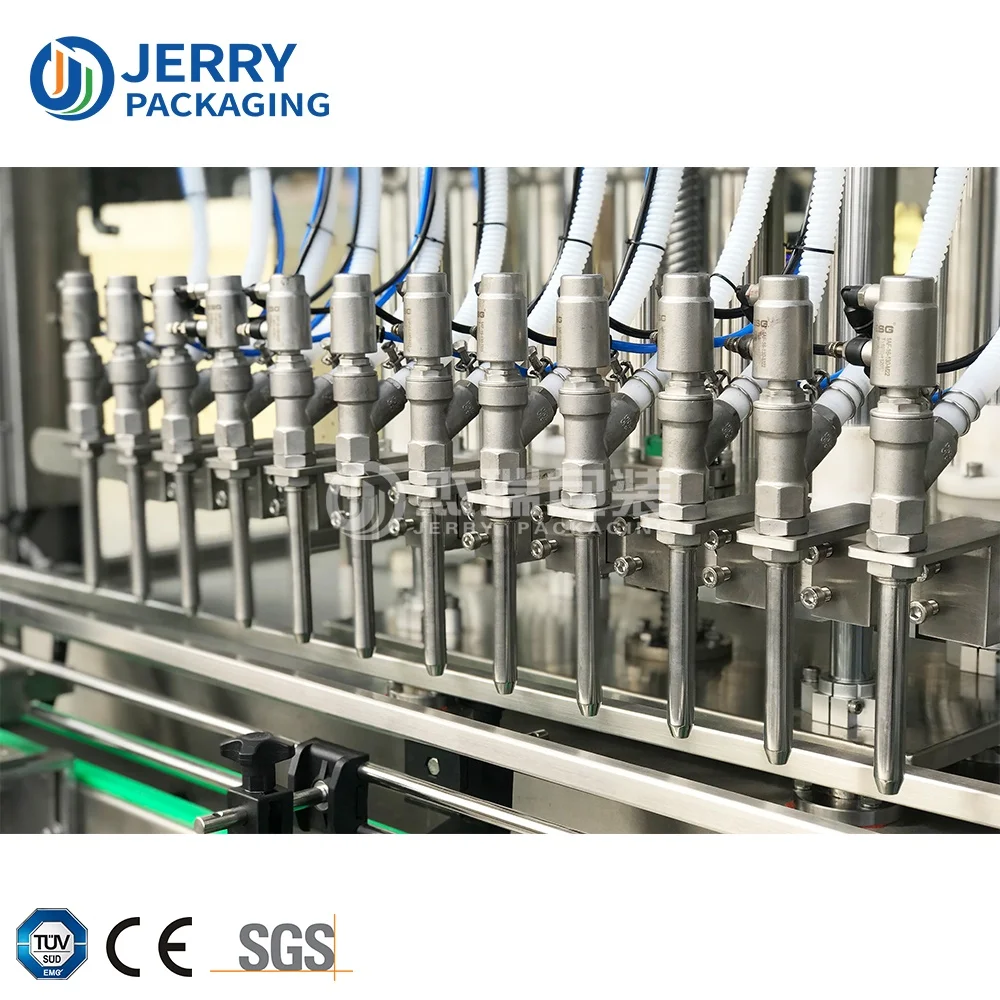

Filling Nozzles
1.The filling valve adopts high-quality anti-drip filling valve. And it is equipped with a liquid receiving tray to ensure that the liquid will not drip onto the bottle.
2.The length and diameter of the filling nozzle will be matched with a suitable filling valve according to the customer's product size. 3.The number of filling heads will be customized according to the customer's product output requirements.
2/4/6/8/12/16/20/32 filling heads option

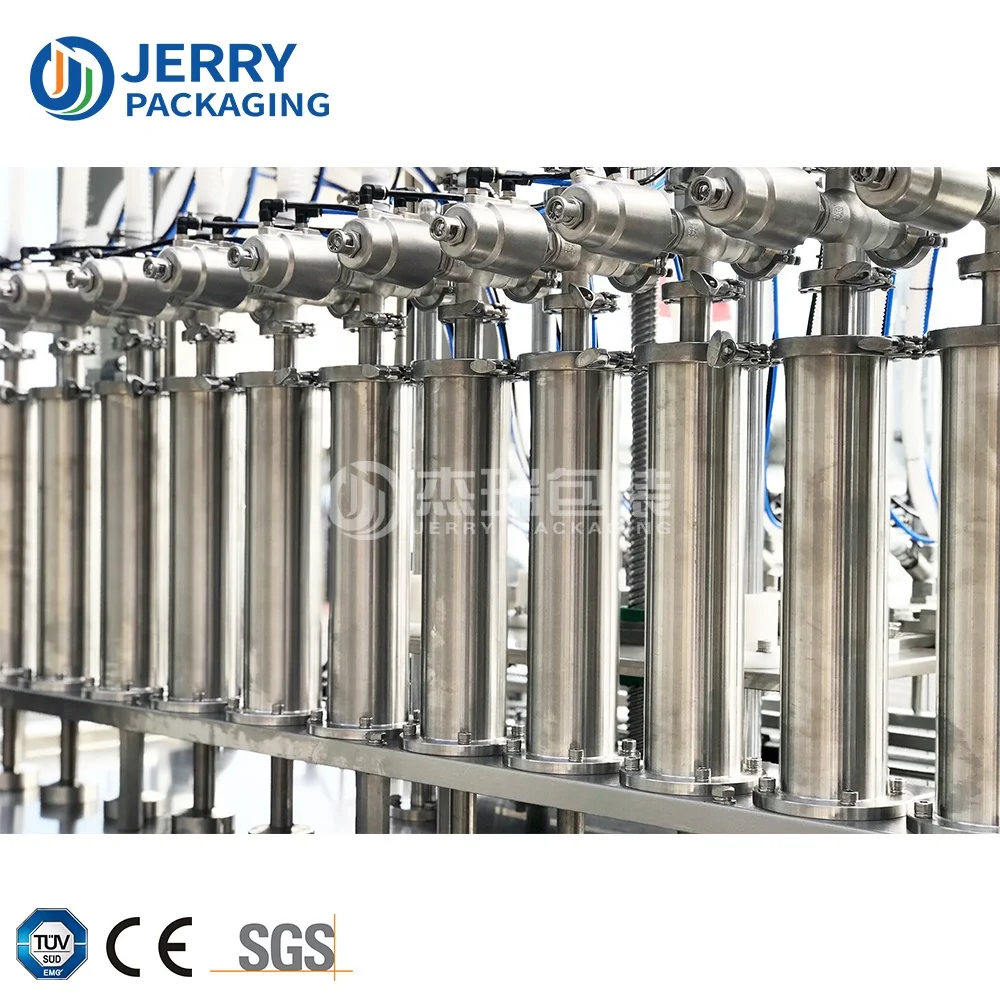

Piston Cylinder
1.Use 316 stainless steel piston cylinder.
1L,2L,5L option
2.It can fill a variety of liquids, viscous materials, and is widely applicable.
3.It is driven by Panasonic servo motor to ensure the accuracy of filling.

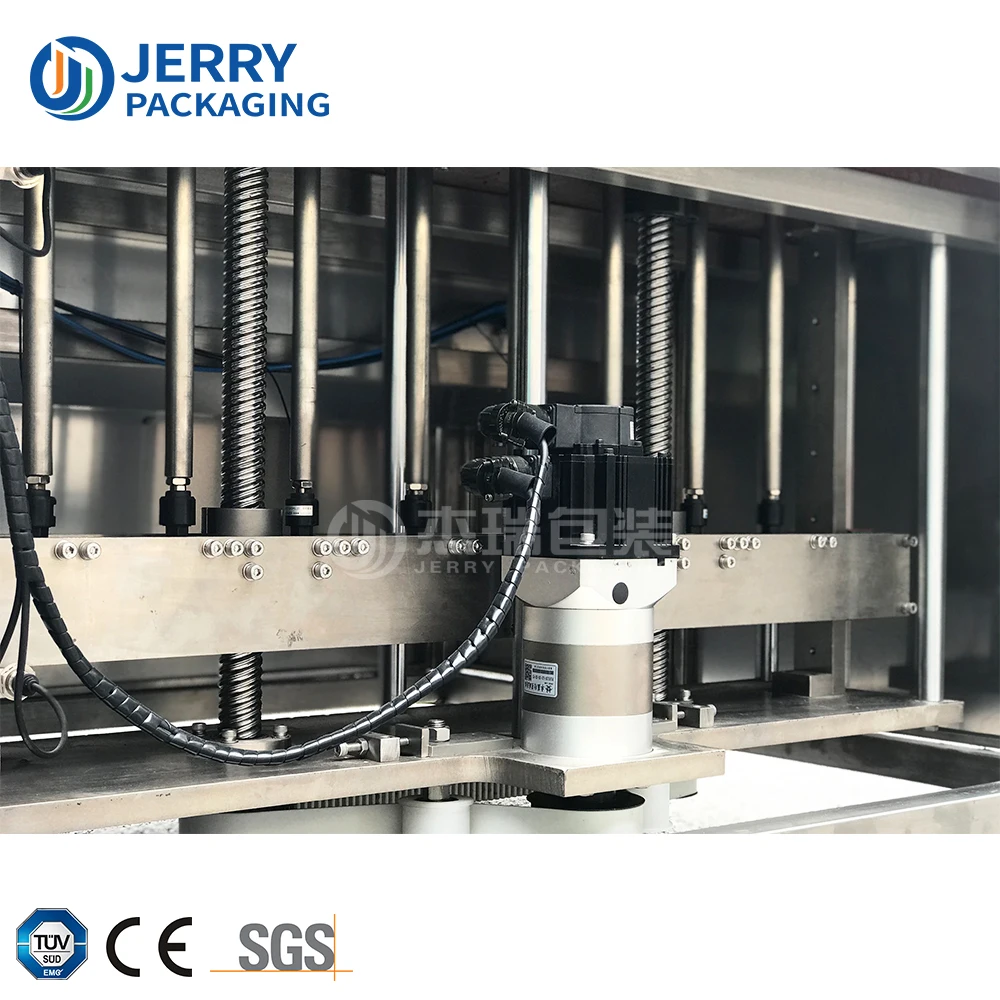

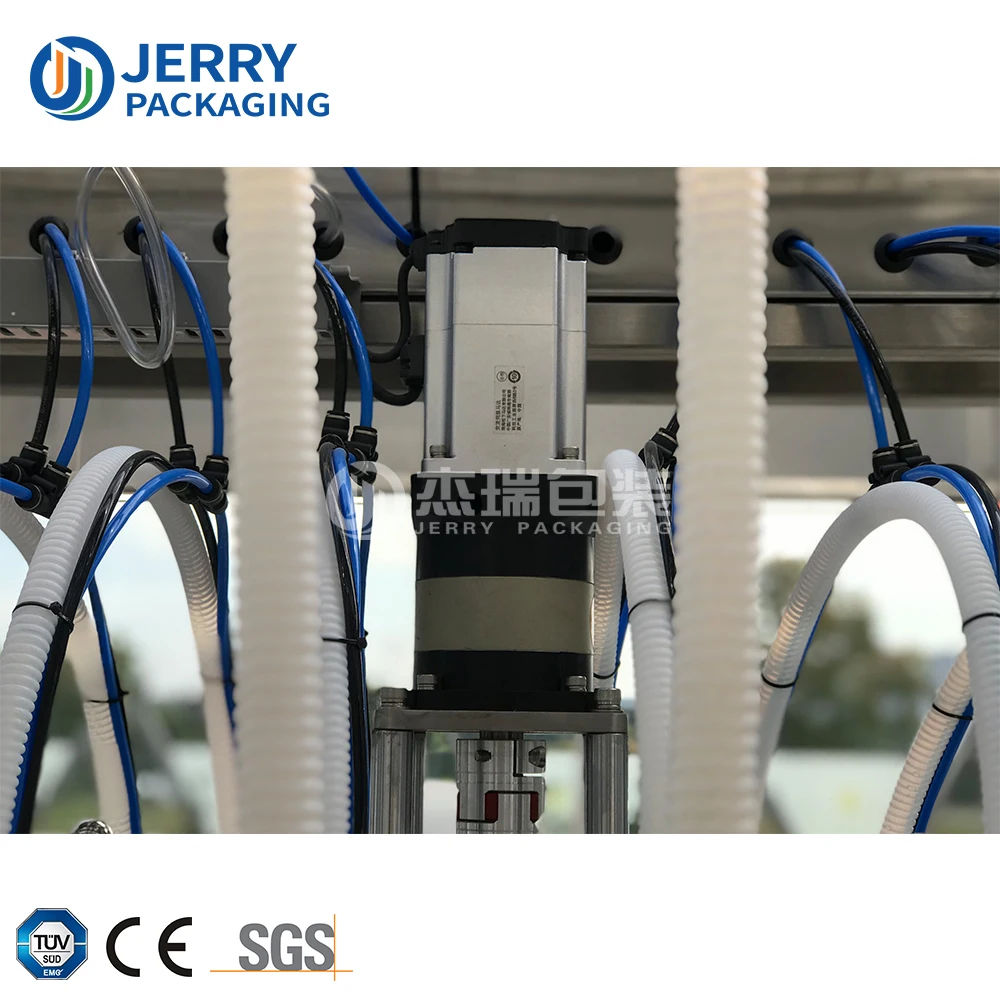

Servo motor of filling nozzle
For easy foaming liquid, we use Panasonic servo motor to control the filling nozzle up and down.The nozzle can diving into the bottle bottom and up with the liquid together.

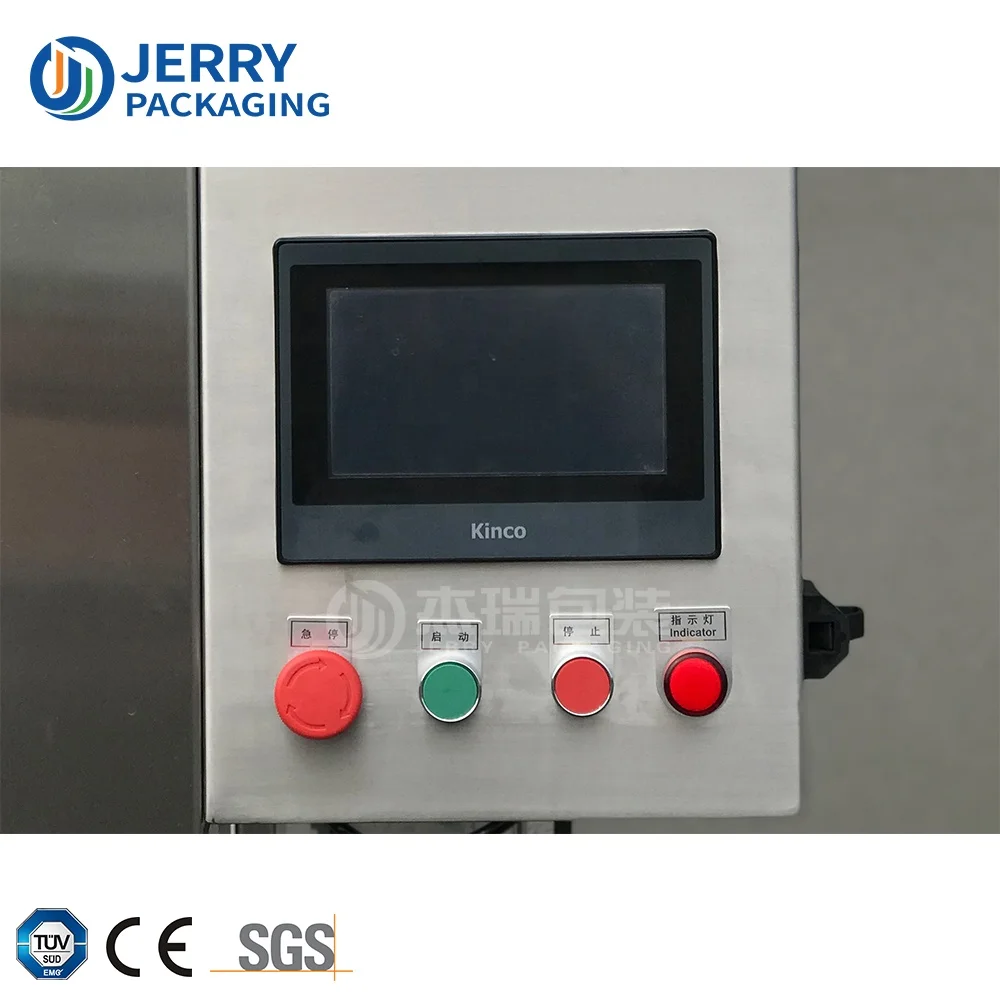

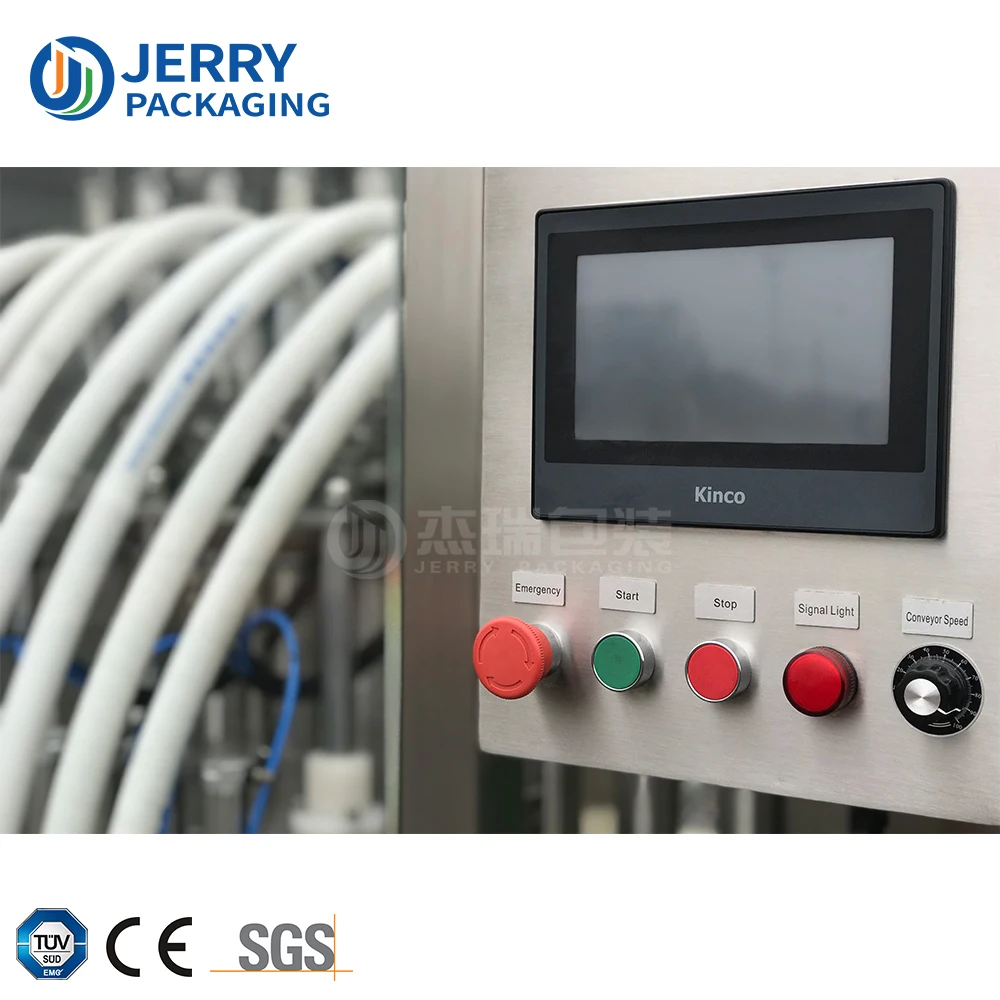

Touch Screen

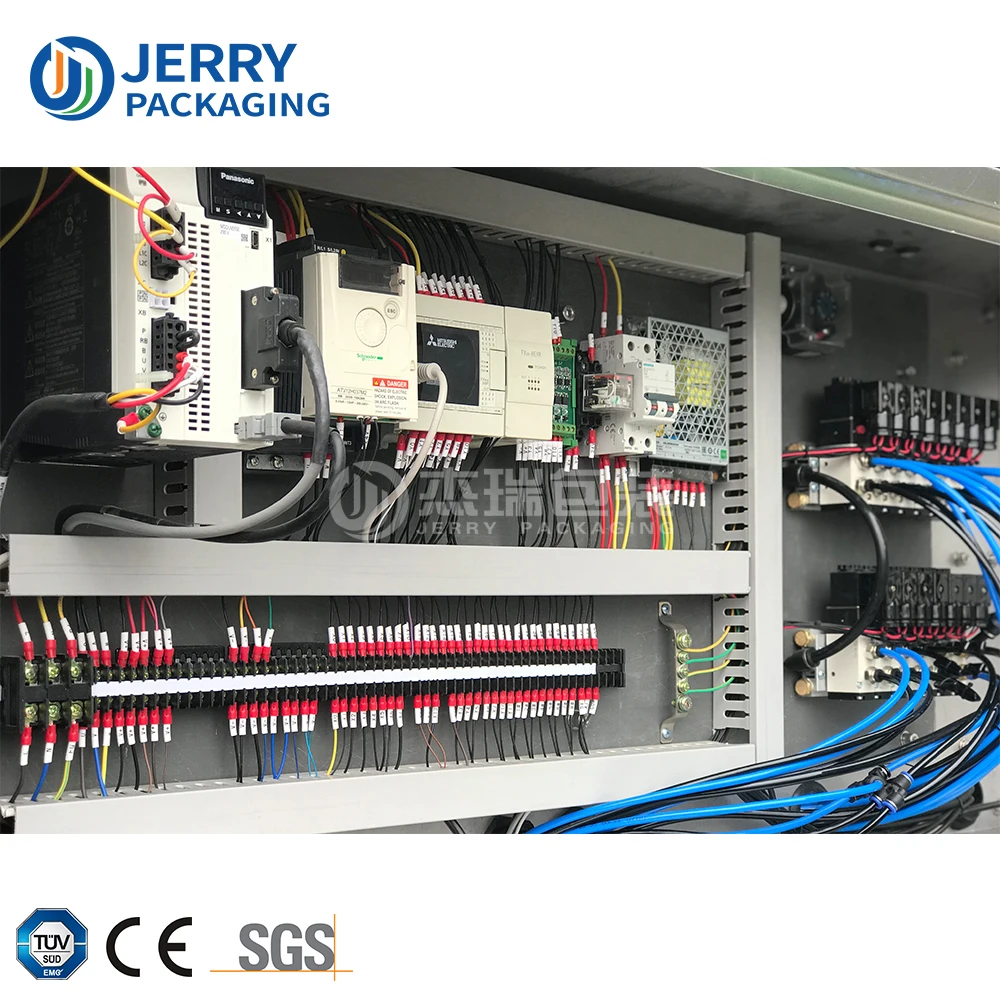

Adopt PLC control and touch human-machine interface, the whole machine is convenient and intuitive to operate.
Chinese and English interface.(Other language can be specified)

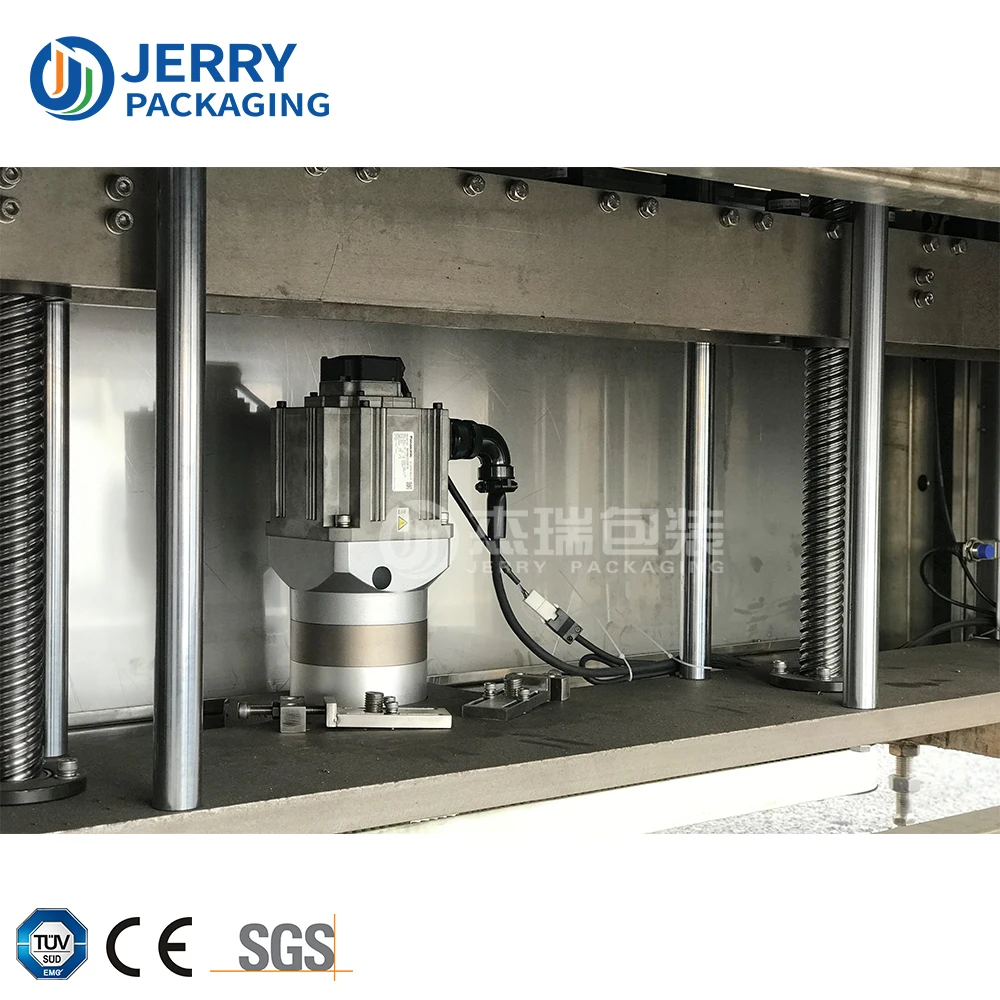

Servo driven
The principle of servo motor-driven filling and volumetric filling is used to achieve high accuracy of the filling dose.
Technical Parameters
Filling head | 8 heads((can be customized 2/4/6/8/12/16/20/32)) | ||||||
Filling volume | 50ml-1000ml/100ml-2000ml/1000ml-5000ml | 100ml-2000ml | 1000ml-5000ml | ||||
Production Capacity | 3500-4000BPH(Based on 12 filling nozzles,1L/bottle) | ||||||
Supply Voltage | 220V, 50-60Hz, 1 Phase | ||||||
Power Consumption | 2Kw | ||||||
Air Pressure | 0.4-0.6Mpa | ||||||
Machine Dimension | (L)2000mm X (W)1050mm X (H)1970mm | ||||||
Machine weight | 650kg | ||||||
Our Service
OUR SERVICES
For All Your Packaging NeedsPackaging line design and consultation
Factory acceptance testing
Installation, startup, and training
Installation, startup, and training
Free technical online support
Field service and preventative maintenance
+86 17851027256
sharon@jpacks.com
Why Choose JERRY PACK
Changzhou Jerry Packaging Technology Co., Ltd. is specializing in packaging machinery R & D, manufacturing and sales.Our liquid bottle packaging technology is most advanced in China.All products are in accordance with the national "GMP" standard. The advanced design concepts and professional technology has been a prominent feature of Jerry Packaging Technology.We have perfect manufacturing system. We manage service after sale strictly and considerately.Jerry Packaging Technology has won a good reputation in the area.

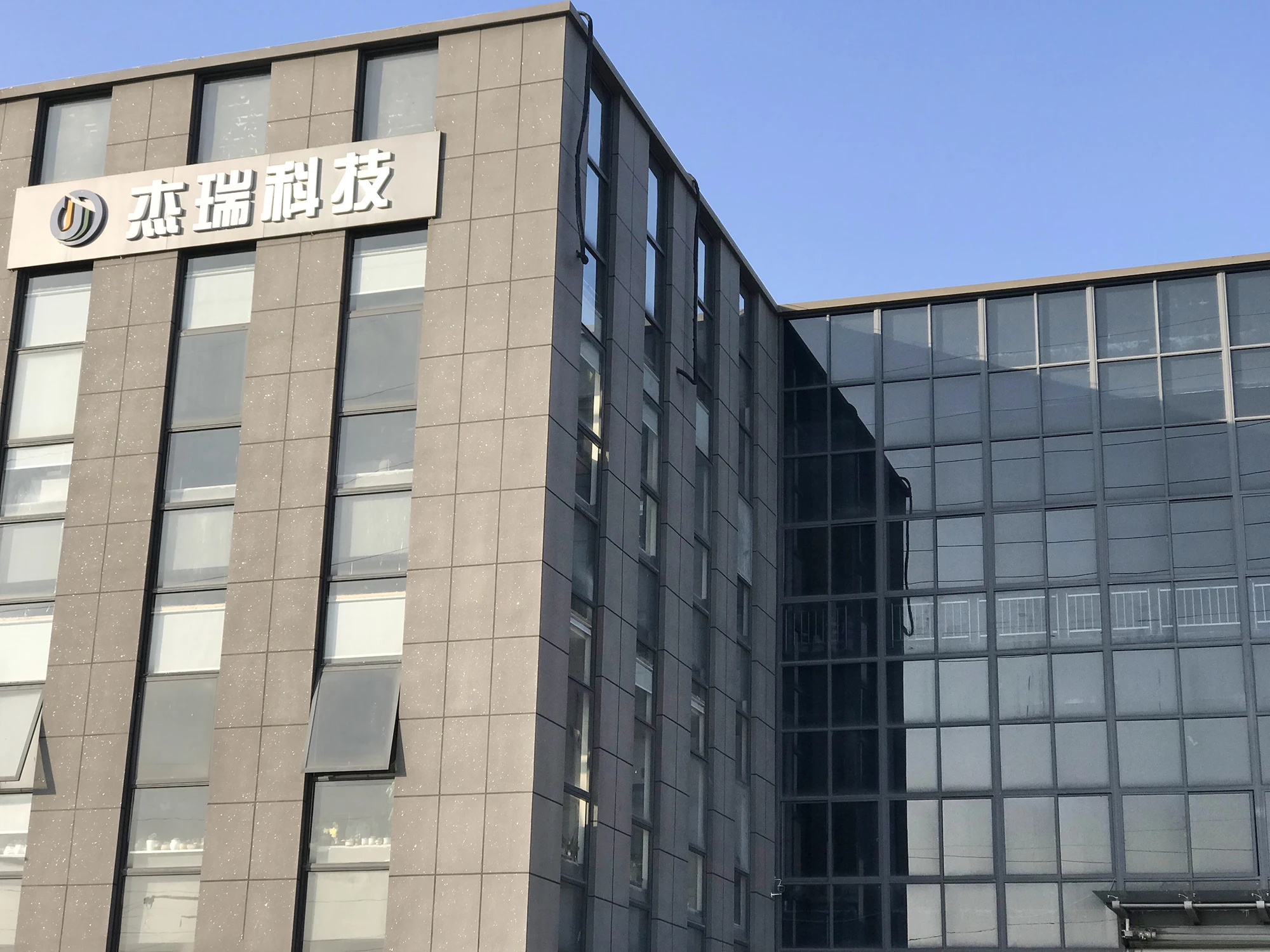

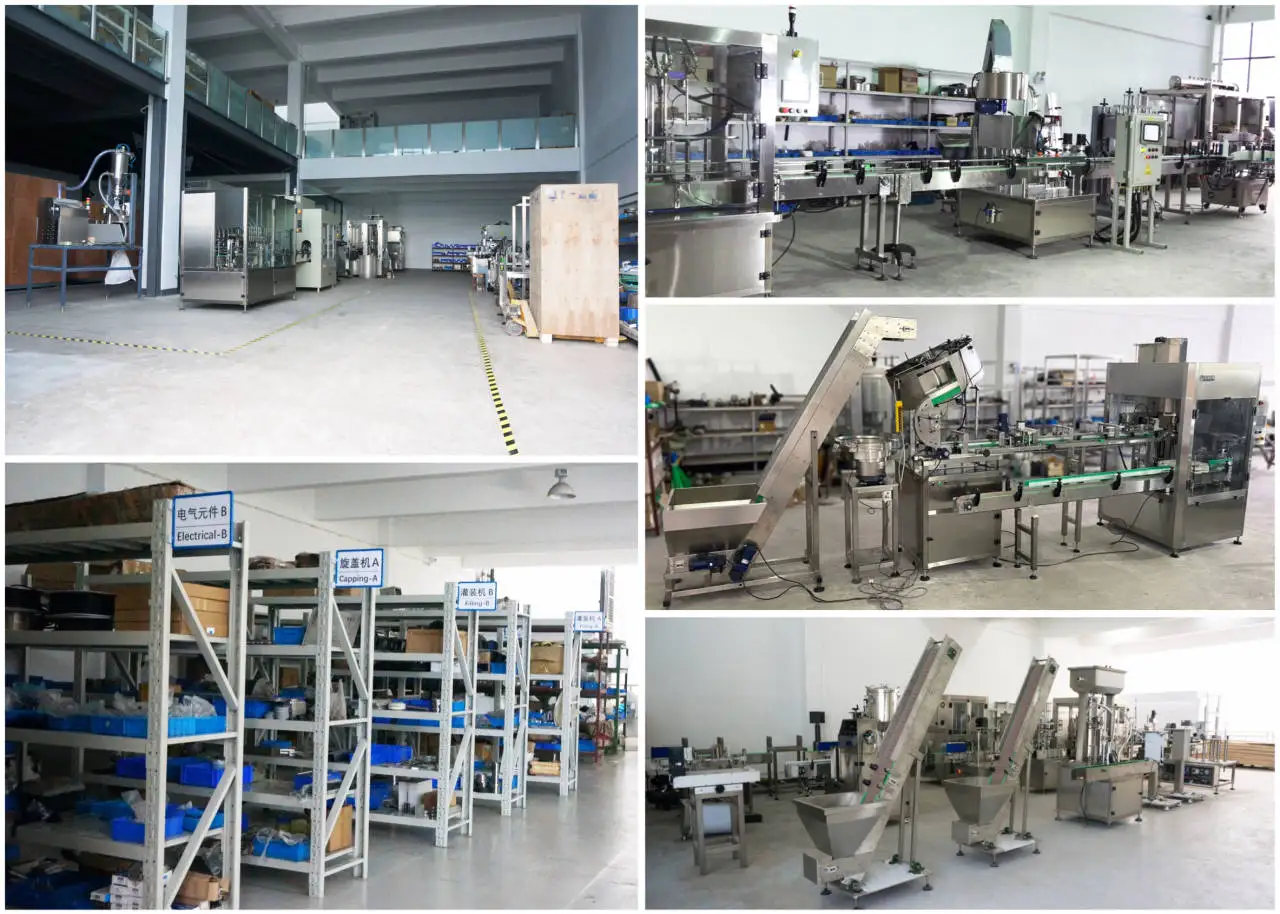

OUR FACTORY
OUR TEAM

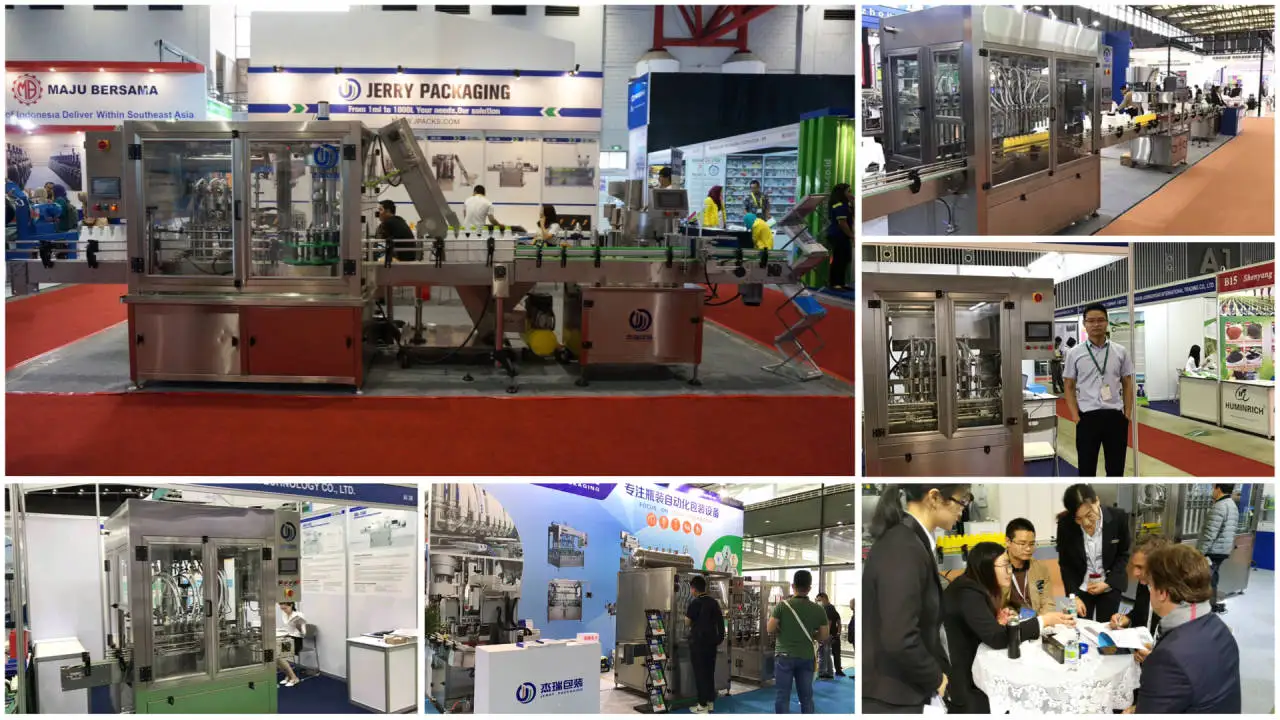

INTERNATIONAL EXHIBITION

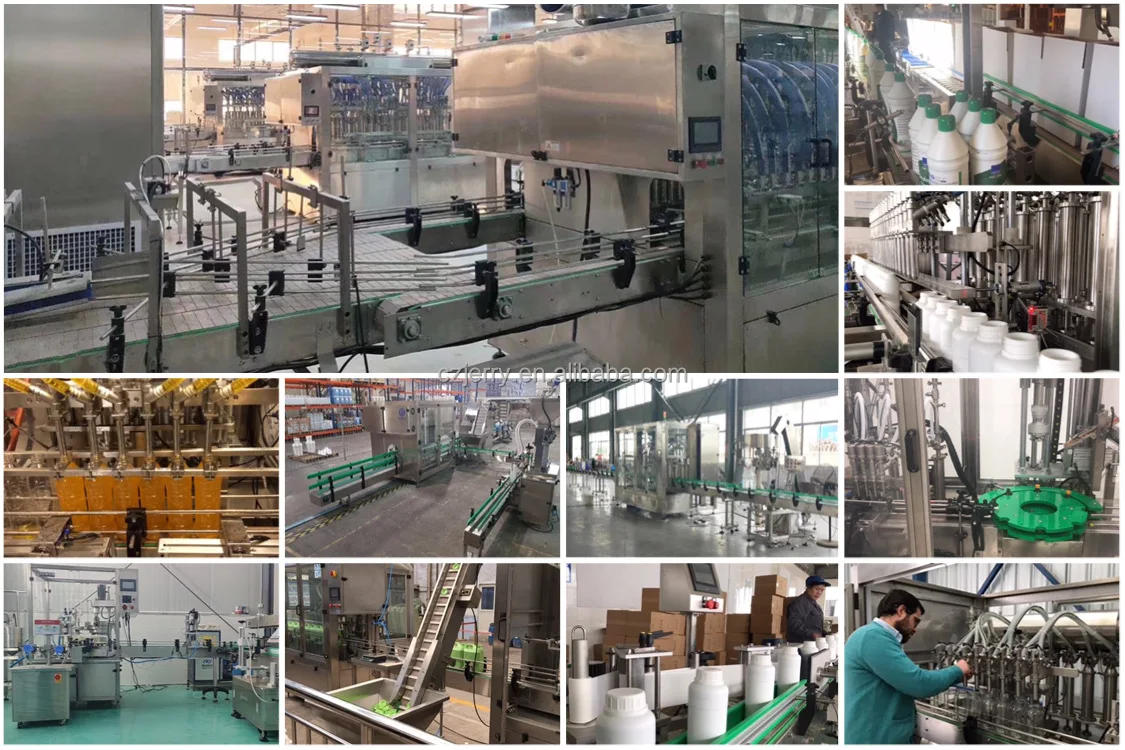

OUR MACHINE IN CUSTOMER
OUR COMPONENT
SUPPLIERS
QC & INSPECTION
THROUGH WHOLE PRODUCTION PROCESS
ALL RAW MATERIALS
ALL PARTS
ALL COMPONENTS
Recommend Products
FAQ
Q1: Are you factory or trading company?
A: We are factory or manufacturer.
Q2: Can you guarantee your quality?
A: Of course. We are the manufacture factory. More importantly, we put a high value on our reputation. Best quality is our principle all the time. You can be assured on our Ketchup Mayonnaise Filling Machine completely.
Q3: What should I do if we are not able to operate the Ketchup Mayonnaise Filling Machine when we receive it?
A: Operation manual and video demonstration sent along with the Ketchup Mayonnaise Filling Machine to give instructions. Besides, we have professional after-sale group to customer 's site to solve any problems.
Q4: How could I get the spares on Ketchup Mayonnaise Filling Machine?
A:We will send extra sets of easy broken spares and accessories like O ring etc. Non-artificial damaged spares will be sent freely and shipping free during 1 year's warranty.
Q5: Is there any insurance which I pay for to guarantee I will get the Ketchup Mayonnaise Filling Machine?
A: We are an onsite check supplier from Alibaba. Trade Assurance provides quality protection, ontime shipment protection and 100% safe payment protection. Our factory is already highest star of the grade.
Q6.What's the payment terms and trade terms for new customers?
A: Payment terms:30% T/T DEPOSIT PAYMENT IN ADVANCE,BALANCE 70% AGAINST COPY OF B/L.WESTERN UNION,LC ARE ACCEPTABLE.
Q7:What's the Minimum Order Quantity of Ketchup Mayonnaise Filling Machine and warranty?
A:MOQ:1 set Warranty:12 months,some customized products will be 24 months.
Q8:Do I need to pay for the extra cost like tax or duty ?
A:It is the buyers' responsibility to pay the custom duty.The shipping fee will not include the tax,please pay attention to this.
