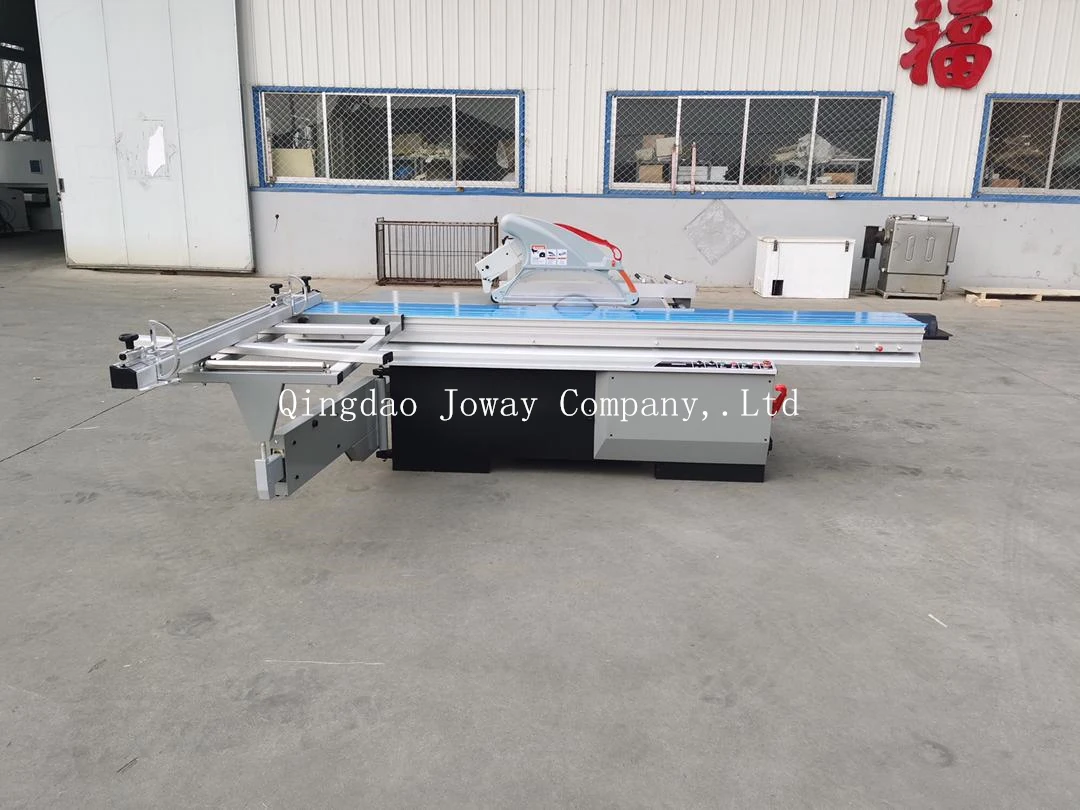

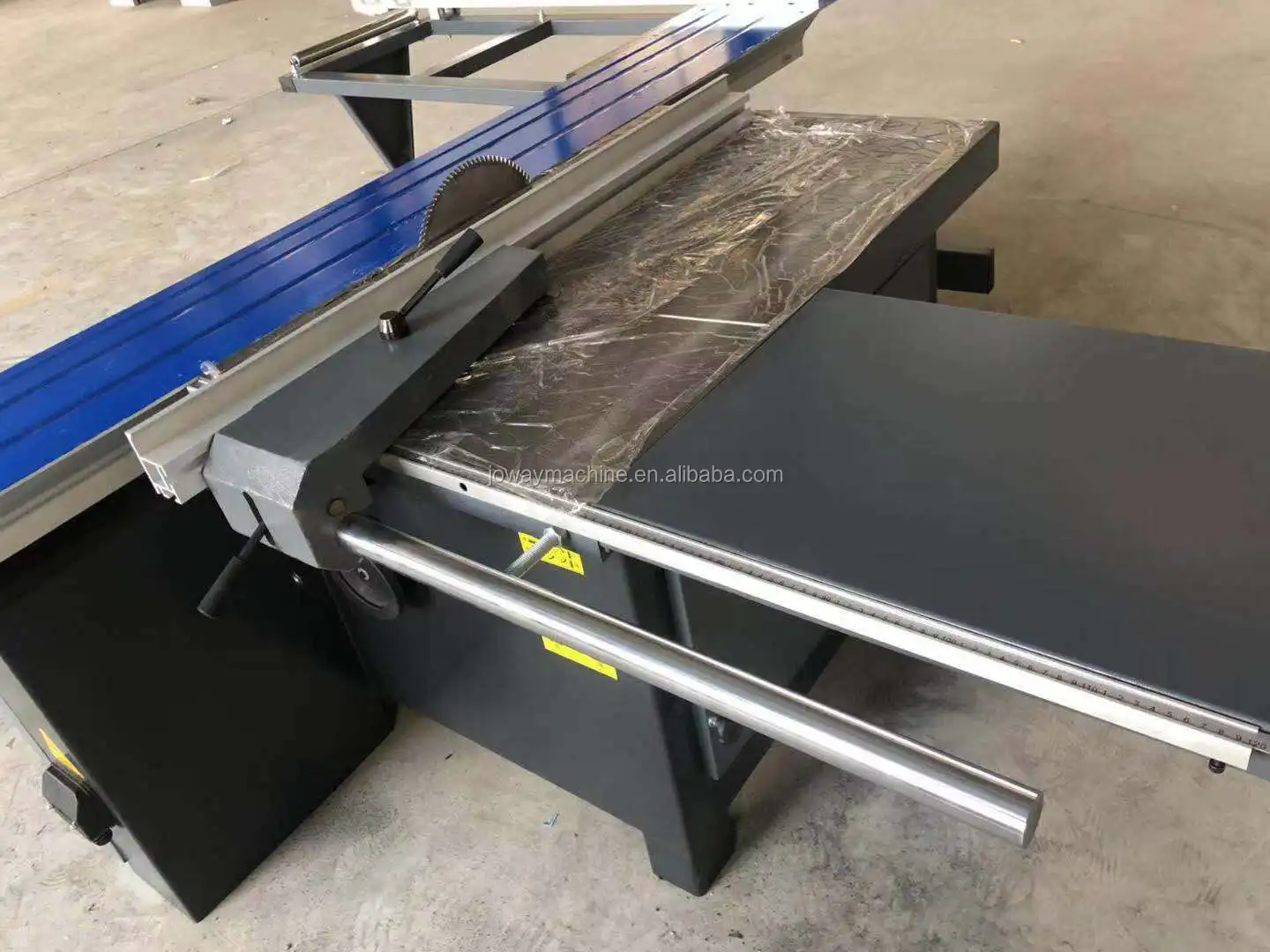

3200mm Automatic uk Circular saw wood cutting machines panel saw machine precision sliding table saw machinery for mdf pvc panel
- Category: >>>
- Supplier: Qingdao Joway Machinery Co. Ltd.
Share on (1600628878618):
Product Overview
Description
Product Description
Precision cutting plate saw
1.Applicable products:
density board,particle board,artificial board, ABS board,PVC board,plexiglass, solid wood and other wood structure and similar hardness board.
density board,particle board,artificial board, ABS board,PVC board,plexiglass, solid wood and other wood structure and similar hardness board.
2.Working principle:
push the moving table forward and backward by hand to realize the sawing process. The marking saw is cut in advance.
push the moving table forward and backward by hand to realize the sawing process. The marking saw is cut in advance.
3.The main saw blade can be cut by changing speed with tower wheel.
To achieve the effect :manual push feed when light and labor saving,high machining accuracy , good saw cutting quality.
4.Structural advantages: the moving table guide rail adopts high strength extruded aluminum alloy material , high strength, no deformation, chrome-plated round rod structure,high positioning accuracy, the table surface adopts oxidation treatment, beautiful grinding.
To achieve the effect :manual push feed when light and labor saving,high machining accuracy , good saw cutting quality.
4.Structural advantages: the moving table guide rail adopts high strength extruded aluminum alloy material , high strength, no deformation, chrome-plated round rod structure,high positioning accuracy, the table surface adopts oxidation treatment, beautiful grinding.
Specification
Name | Precision cutting plate saw JW-45 |
Dimensions sliding table | 1600*375 mm |
Max cutting plate length | 3000mm |
Max cutting plate thickness | 75mm |
Tiling saw blade | 0-45 ° |
Saw blade diameter | 300mm |
Deputy saw blade diameter | 120mm |
The main saw blade rotation speed | 4500/6000rpm |
Deputy saw blade rotation speed | 6000/8000rpm |
Spindle diameter | 30mm |
Spindle of scoring saw | 20mm |
Main motor power | 4-4.5kw |
Scoring power | 0.75kw |
Voltage | 380v/50hz/3phase |
Dimension | 3000*1100*1200mm |
Details Images

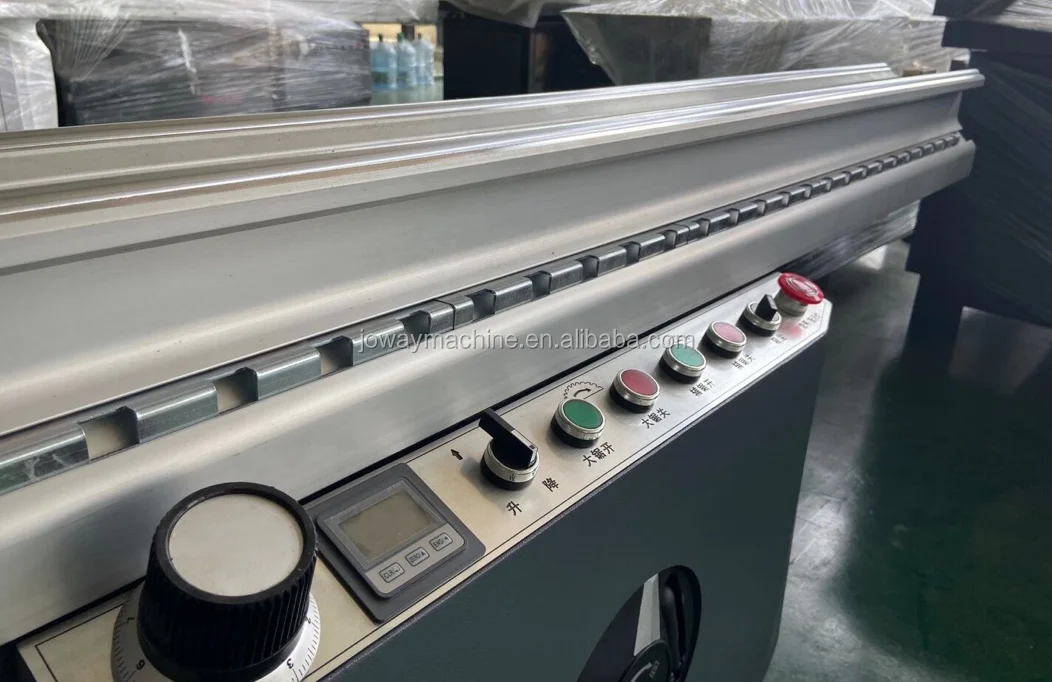

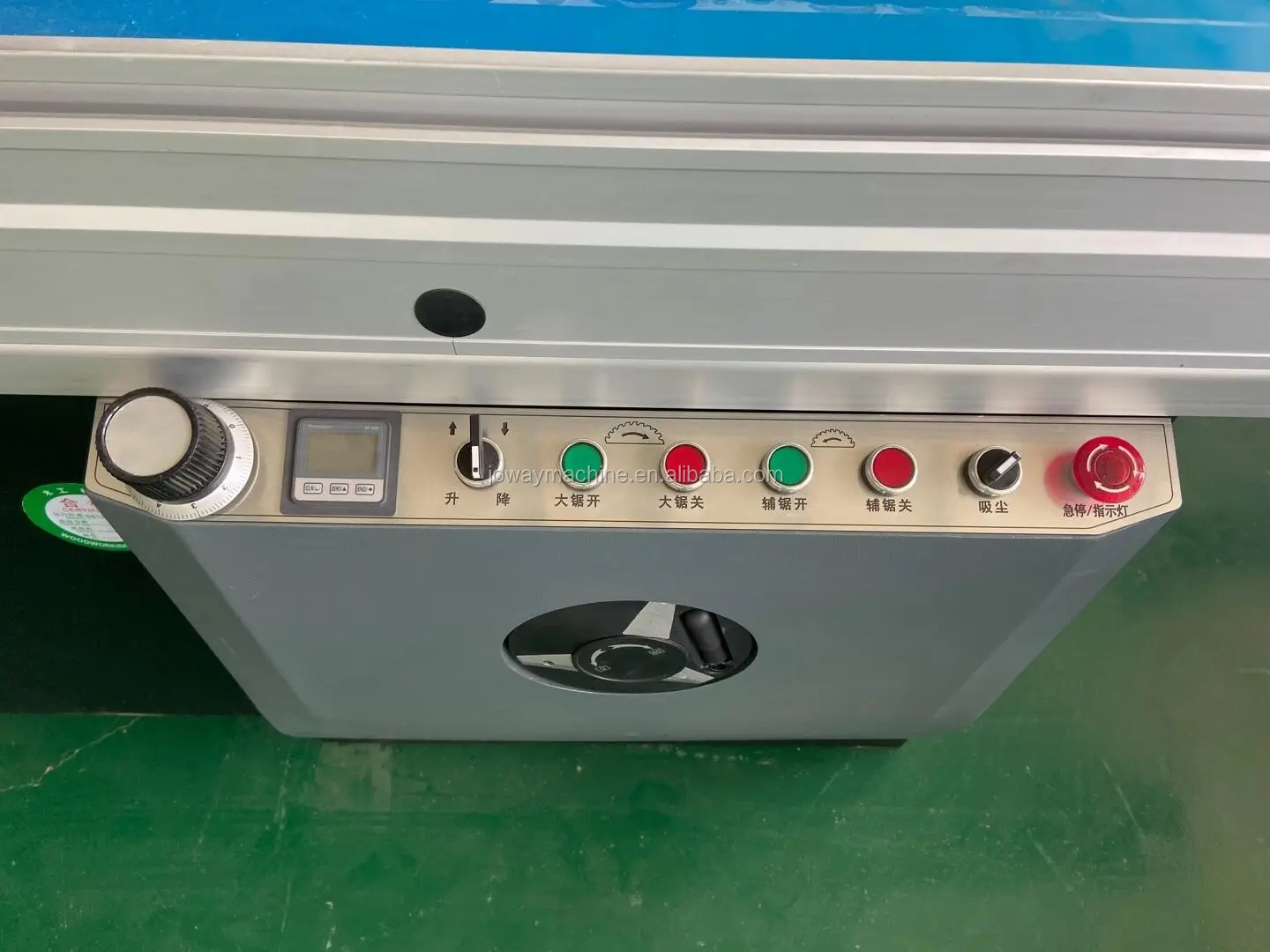

Electric elevator

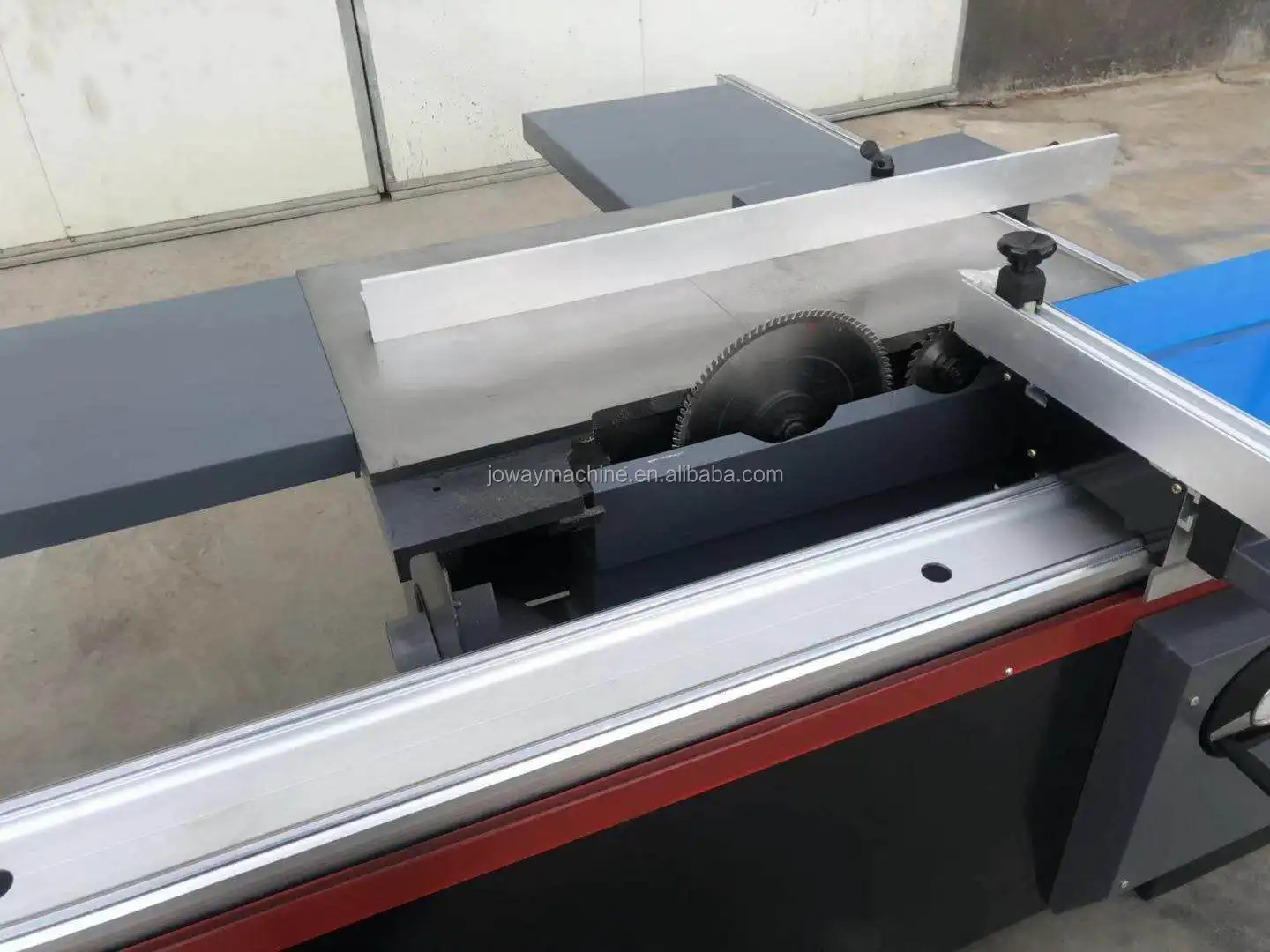

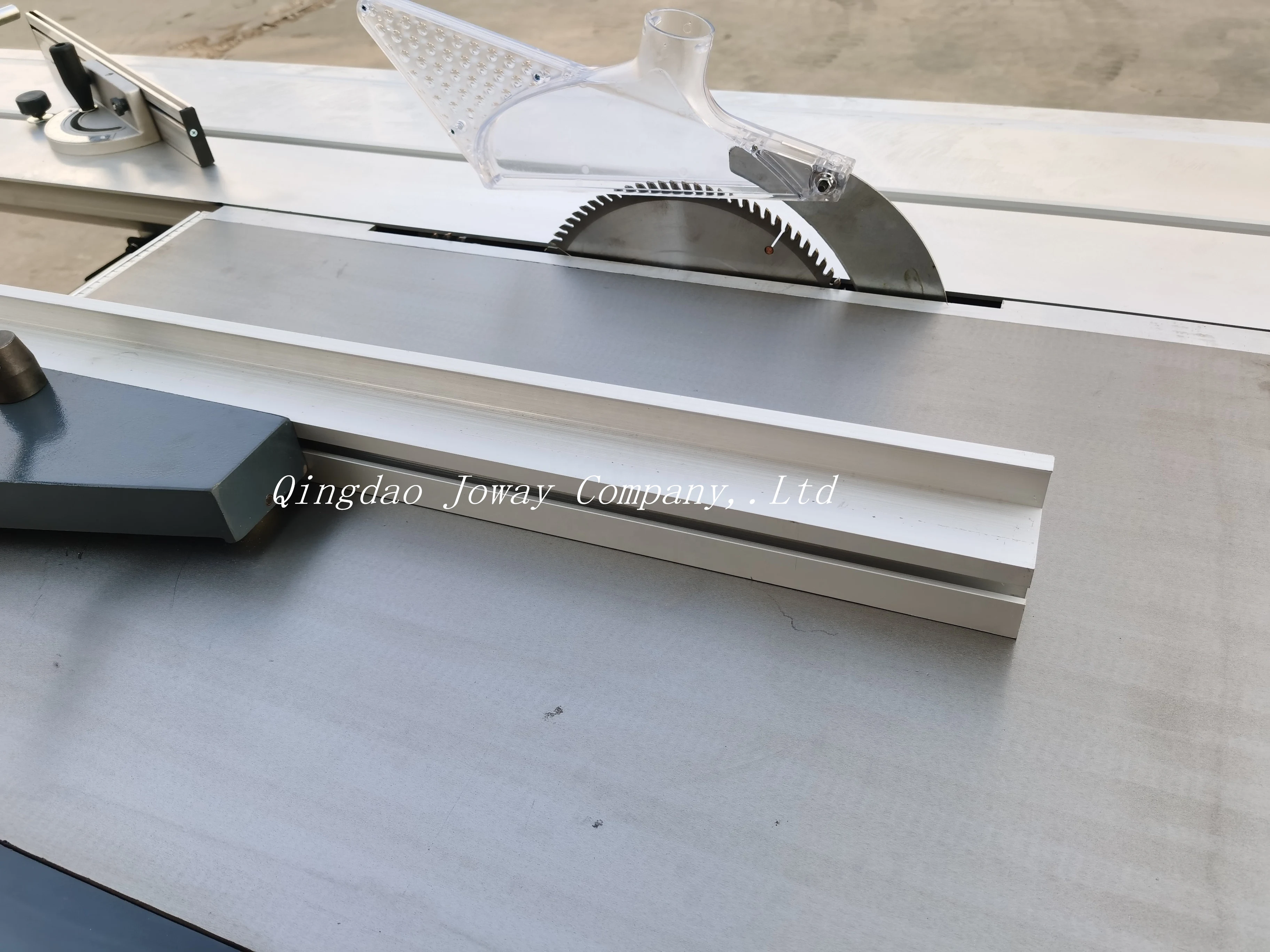

Saw blade
Packing & Delivery

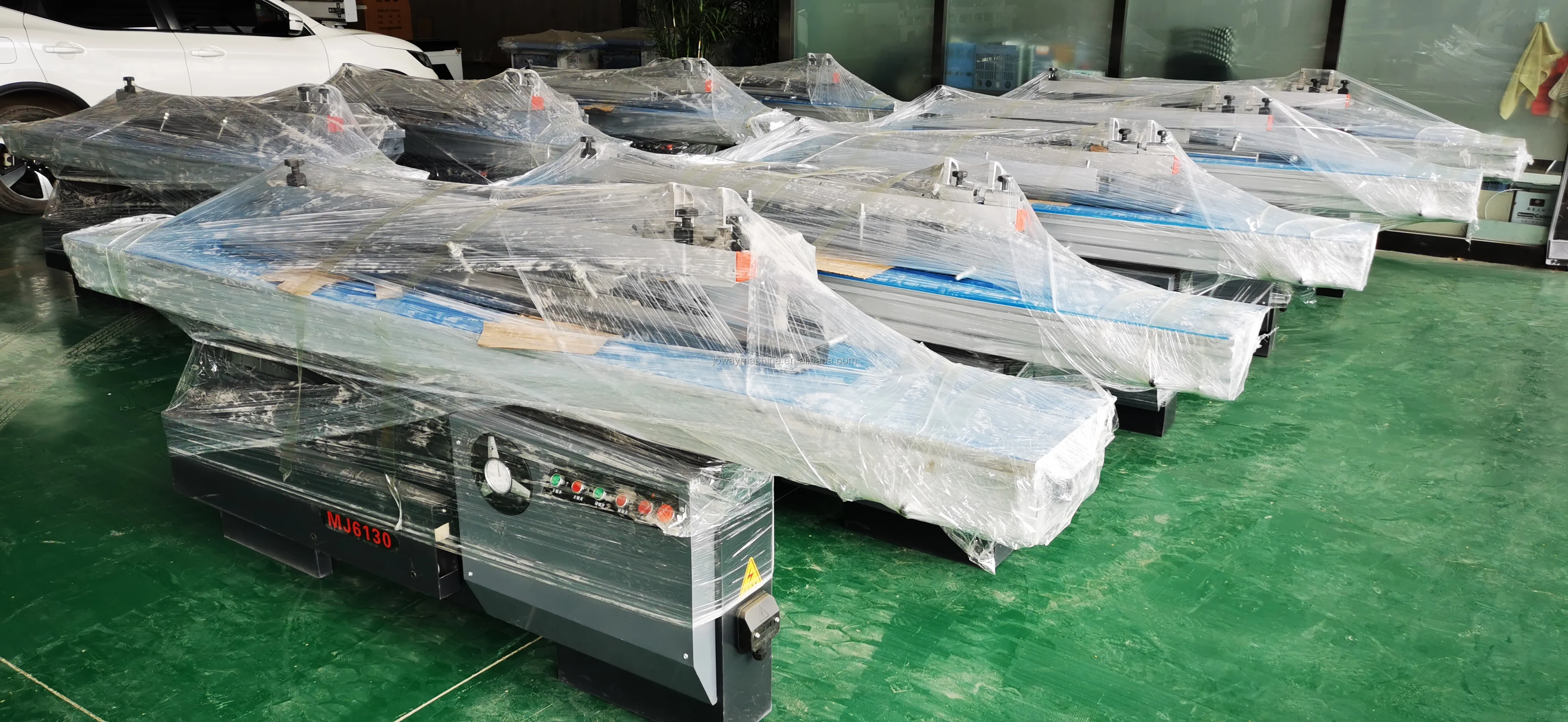

The cutting plate saw machine and spare parts will be packed in strong anti-moisture bag and plywood box before shipping.
FAQ
Q1: Are you a manufacturer or trading company?
A: We are a manufacturer . We are dedicated to woodworking machinery manufacturing.
Q2: Where is the nearest airport and port from your factory?
A: The nearest port is Qingdao
Q3: How can I get an accurate price?
Kindly send us the picture of furniture you want to produceand and the working size.
Or detailed machine functions you need, electricity voltage, Hz.
Q4: How is your after sales service?
Our sales are online for 24-hours. We can also supply overseas install service. Also we have more than 10 countries warehouse and
department.
Q5: How long is the delivery time?
Generally 7 ~ 15 days.
Q6: Can I get a machine according to my own requirements?
Sure.We accept OEM and ODM
A: We are a manufacturer . We are dedicated to woodworking machinery manufacturing.
Q2: Where is the nearest airport and port from your factory?
A: The nearest port is Qingdao
Q3: How can I get an accurate price?
Kindly send us the picture of furniture you want to produceand and the working size.
Or detailed machine functions you need, electricity voltage, Hz.
Q4: How is your after sales service?
Our sales are online for 24-hours. We can also supply overseas install service. Also we have more than 10 countries warehouse and
department.
Q5: How long is the delivery time?
Generally 7 ~ 15 days.
Q6: Can I get a machine according to my own requirements?
Sure.We accept OEM and ODM
