MEPER extrusion blow molding machine for 50ml Pe Antiperspirant Plastic Roll On deodorant Bottles
- Category: >>>
- Supplier: Suzhou Pekoe Import And Export Co. Ltd.
Share on (1600628878879):
Product Overview
Description
Product Overview
MEPER extrusion blow molding machine for 50ml Pe Antiperspirant Plastic Roll On deodorant Bottles
D series machine is standard type machine with double station tie bar structure, The clamping structure is three or four tie bars direct locking structure with automatic lubrication system. The structure is simple and stable and it is convenient for plastics waste collection.
The whole machine adopts computer control, simple operation, reliable work, high degree of automation, good interchangeability of components,realize one machine multi-purpose. It can choose single and double mode-shifting models to meet different output requirements. It can be equipped with single head, double head, four head, multi-layer head, double transparent line head and servo wall thickness control head to meet the requirements of different products.
Machine application
Extrusion blow molding machine produce many kinds of hollow plastic products,such as milk bottle,oil drum,ocean ball and so on.
MEPER machine for plastic bottles
Extrusion blow molding machine can product 0-6 layers bottles,especially for d isinfectant bottle, pesticide bottle,farming bottles,in order to avoid liquid leakage.

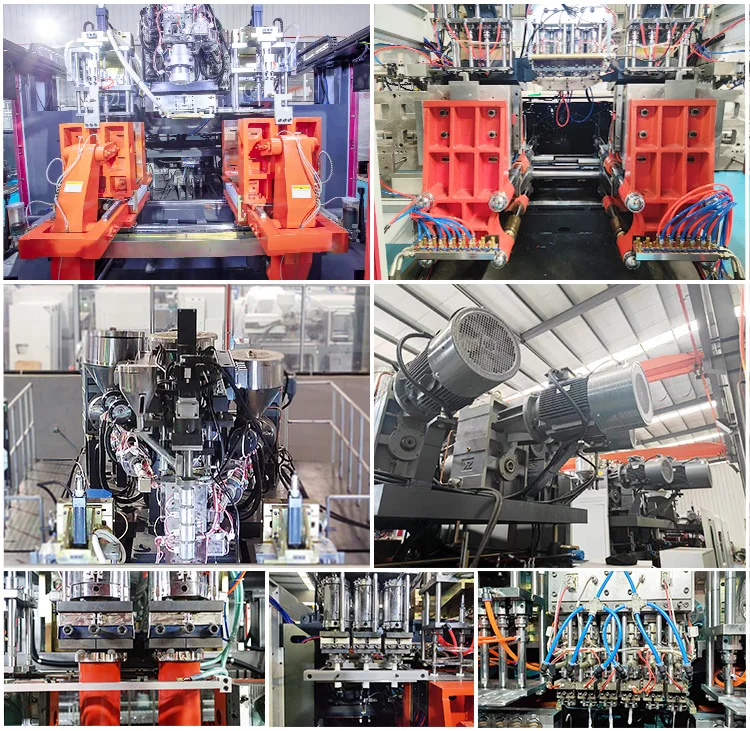

FEATURES AT A GLANCE
Extrusion system
Extrusion motor and gear box offer the power for screw. Meanwhile screw and barrel with strong material make sure plasticizing plastic material well, ceramic material heater with evenly and quickly heating function!

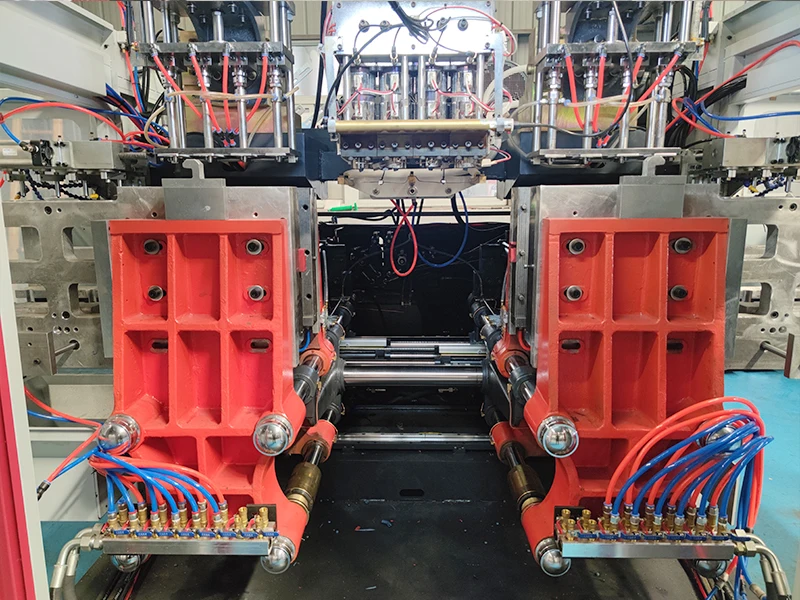

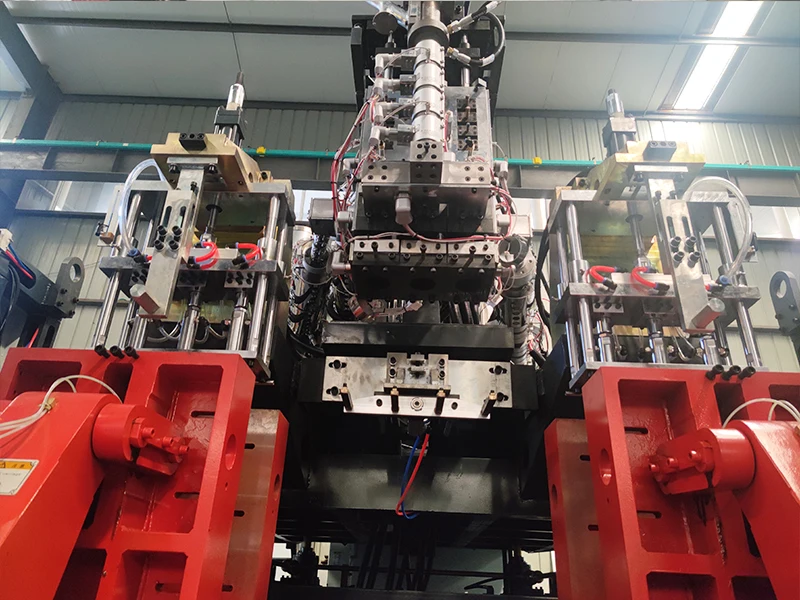

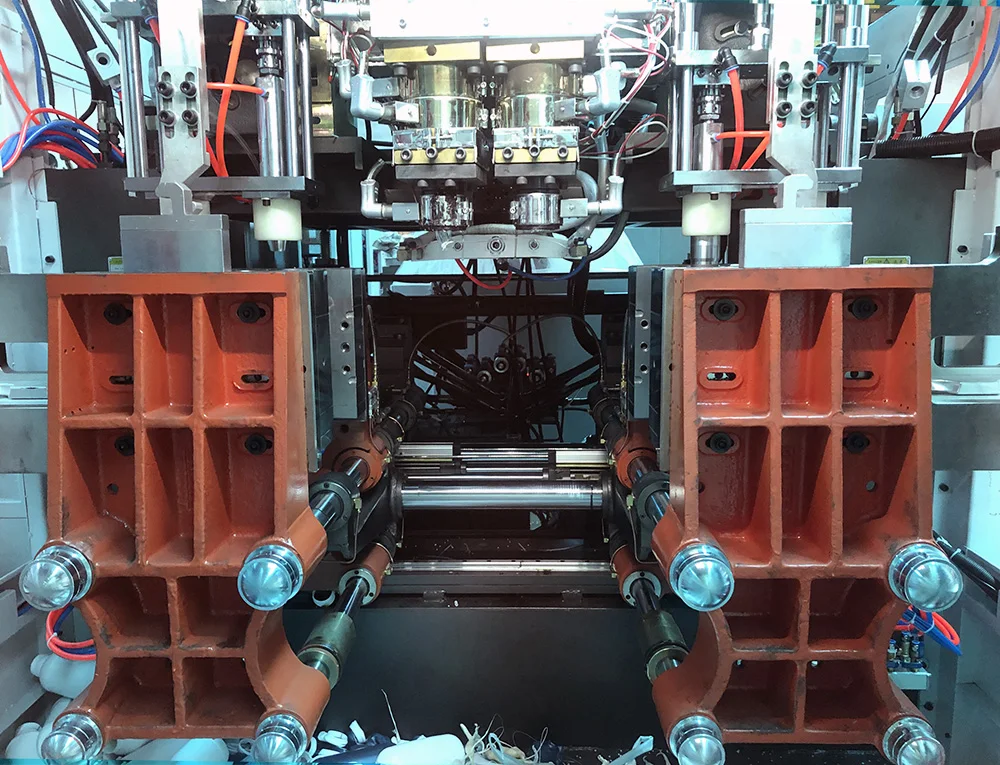

Clamp system
It has clamping plate and cylinder, linear guide, slider, transducer... Mold is fixed on the plate. All components make sure mechanical movement precision, stable and quick!
Electrical control
It has operation touch screen, PLC, contact switch, air switch, delay, voltage stabilized power, inverter. We could input, modify and monitor the parameter of heating, pressure, time, alarm... to control whole machine’s action parameter by touch screen. It has two operation languages, Chinese and English!

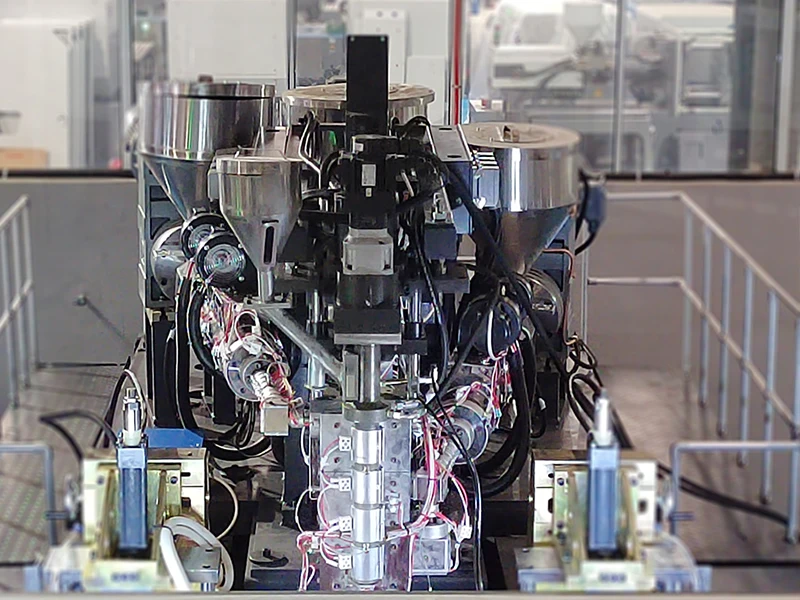

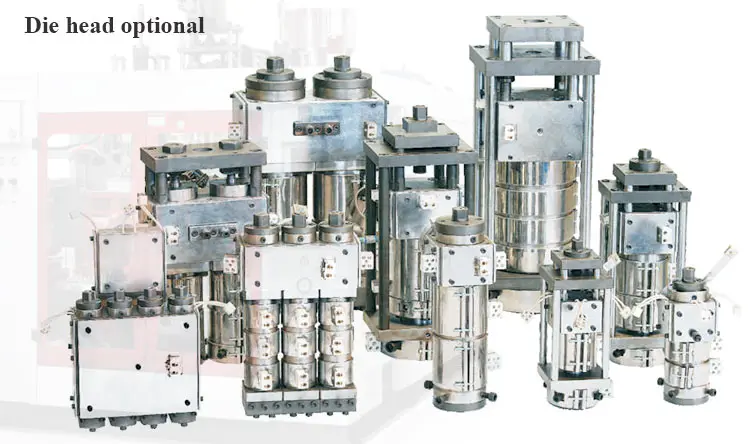

Head system
Adopt continuous type, material central coming in, eject material quickly and easy change
the head!
the head!
Hydraulic system
It has hydraulic motor, valve, pump, oil tank, oil cooler, tube... Offer power for mechanical action, meanwhile proportional valve is controlled by oil flow pressure for transfer digital signal into mechanical action, to control the action of blow pin, clamping structure, head and extrusion.
PRODUCT SPECIFICATIONS
MACHINE MODEL | MP80D |
SPECIFICATIONS | |
Material | PE PP PVC PA... |
Max container capacity | 10L |
Number of die | 1,2,3,4,6 |
Machine Dimension(LxWxH) | 4x2.3x2.5m |
Total weight | 8.2ton |
CLAMPING UNIT | |
Clamping force | 150kN |
Platen openning stokes | 220-620mm |
Carriage stroke | 540mm |
Max mould size(WxH) | 520x460mm |
EXTRUSION UNIT | |
Screw diameter | 80mm |
Screw L/D ratio | 24 L/D |
(HDPE) Plasticizing capacity | 108kg/h |
Screw heating zone | 4 zone |
Screw heating power | 15.6kw |
Screw fan power | 0.14kw |
Extrusion motor power | 30kw |
DIE HEAD | |
Die head heating zone | 3 zone |
Power of die heating | 13.5kw |
ENERGY CONSUMPTION | |
Total power of machine | 74.98kw |
Power of oil pump motor | llkw |
Air pressure | 0.6-0.8 Mpa |
Average energy consumption | 35kw |
Consumption compression air | 1.5m3/min |
Consumption cooling water | 40L/min |
SALES AND SERVICE NETWORK

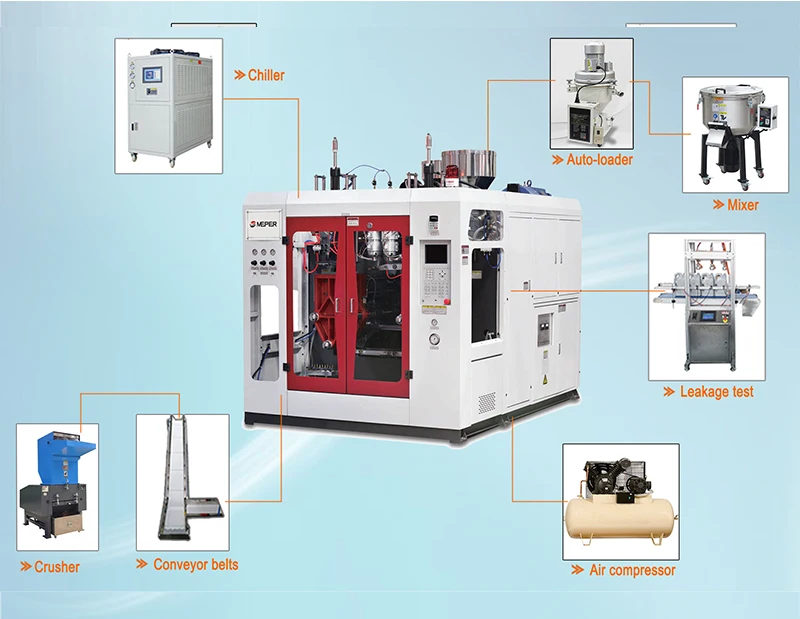

Whole production line
Mould for plastic machines
Auxiliary machine for plastic machines
RELATED PRODUCTS
HOW TO COOPERATE WITH US
Choosing the sulitable machine:
According to the customer's requirement, we will recommend the suitable machine for you.
Warranty time:
Our waranty ime is 12 months after the delivery. During this period, any quality problem of the machine, please contact us freely, We will invite professional engineers for both online and offline guidance.
Shipping and Training:
We will provide machine install video and run video to our customers before delivery. we should provide the training for the
buyer's employee for free in buyer's factory.Or the buyer let his employee come our factory learn with our engineer.
Installation and test:
when the machine reaches the buyer's factory,the buyer could tell us, we will dispatch an engineer to the buyer's factory to help install and test the machine until it runs normally.
According to the customer's requirement, we will recommend the suitable machine for you.
Warranty time:
Our waranty ime is 12 months after the delivery. During this period, any quality problem of the machine, please contact us freely, We will invite professional engineers for both online and offline guidance.
Shipping and Training:
We will provide machine install video and run video to our customers before delivery. we should provide the training for the
buyer's employee for free in buyer's factory.Or the buyer let his employee come our factory learn with our engineer.
Installation and test:
when the machine reaches the buyer's factory,the buyer could tell us, we will dispatch an engineer to the buyer's factory to help install and test the machine until it runs normally.
Any question,please feel free to contact us.
