High efficient JoTun JT XTC Sander Hand polishing machine for stainless steel flat welding seam surface
- Category: >>>
- Supplier: Anhui Jotun Import & Export Co. Ltd.
Share on (1600628891463):
Product Overview
Description
Product Description

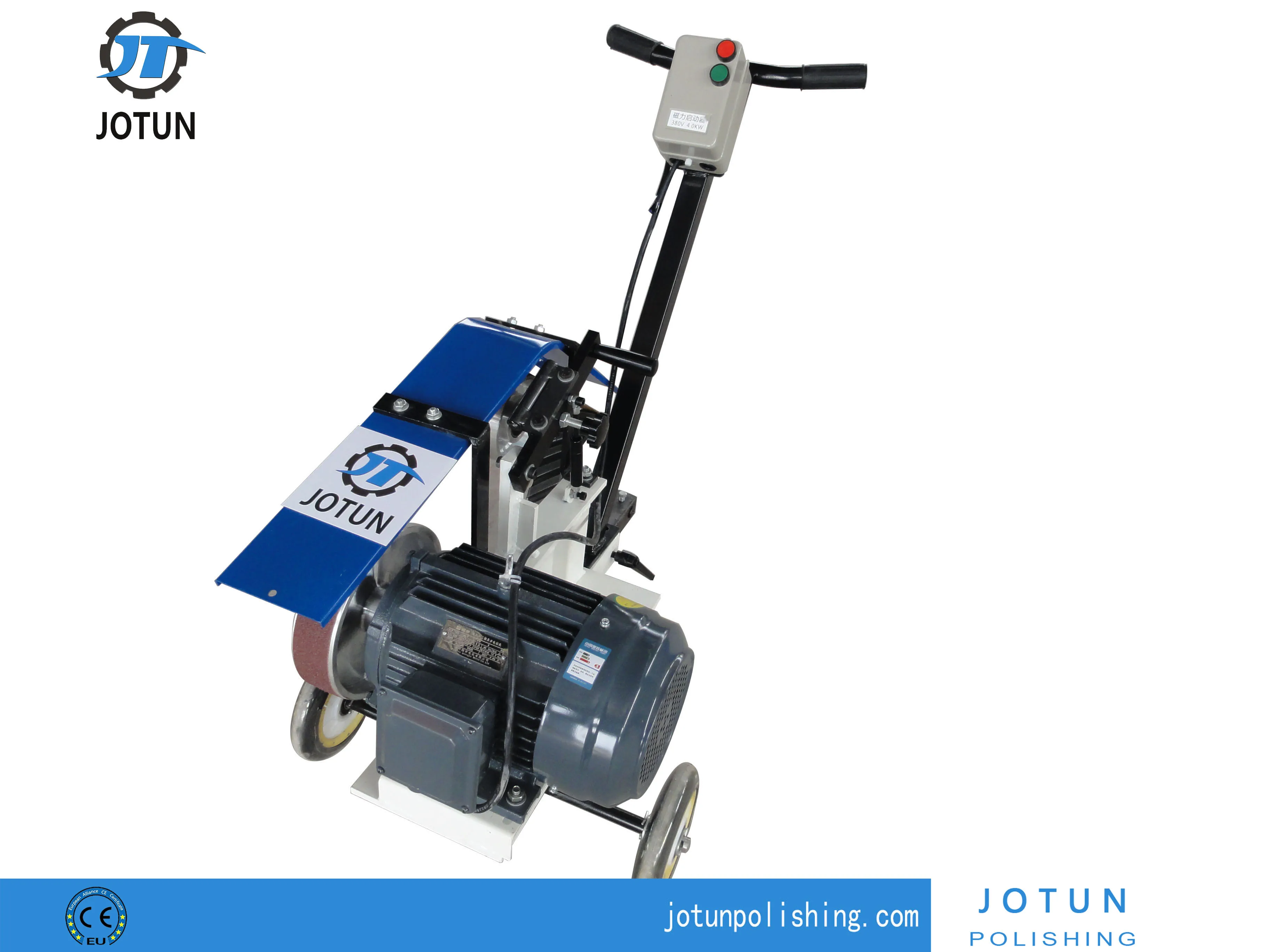

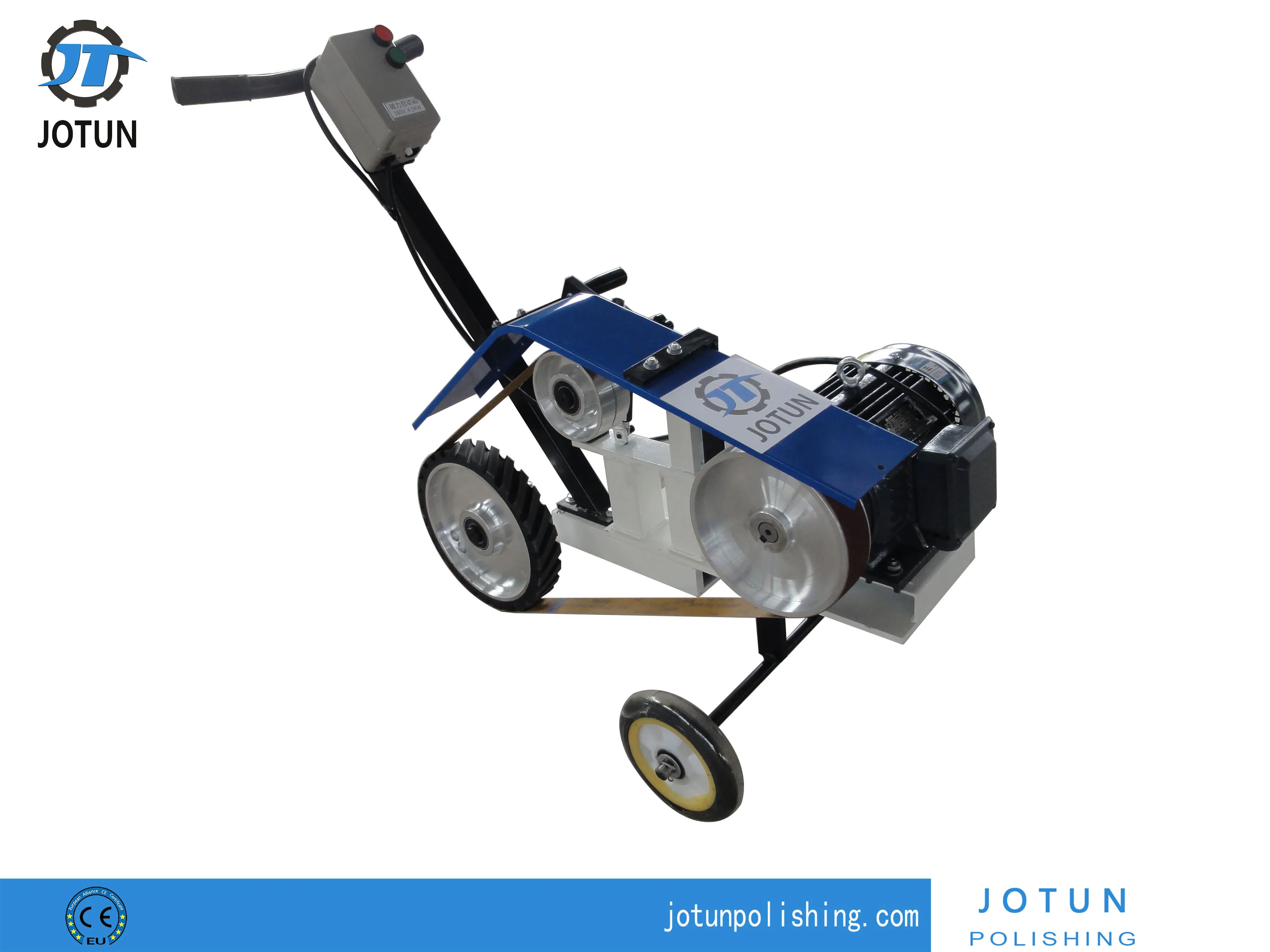

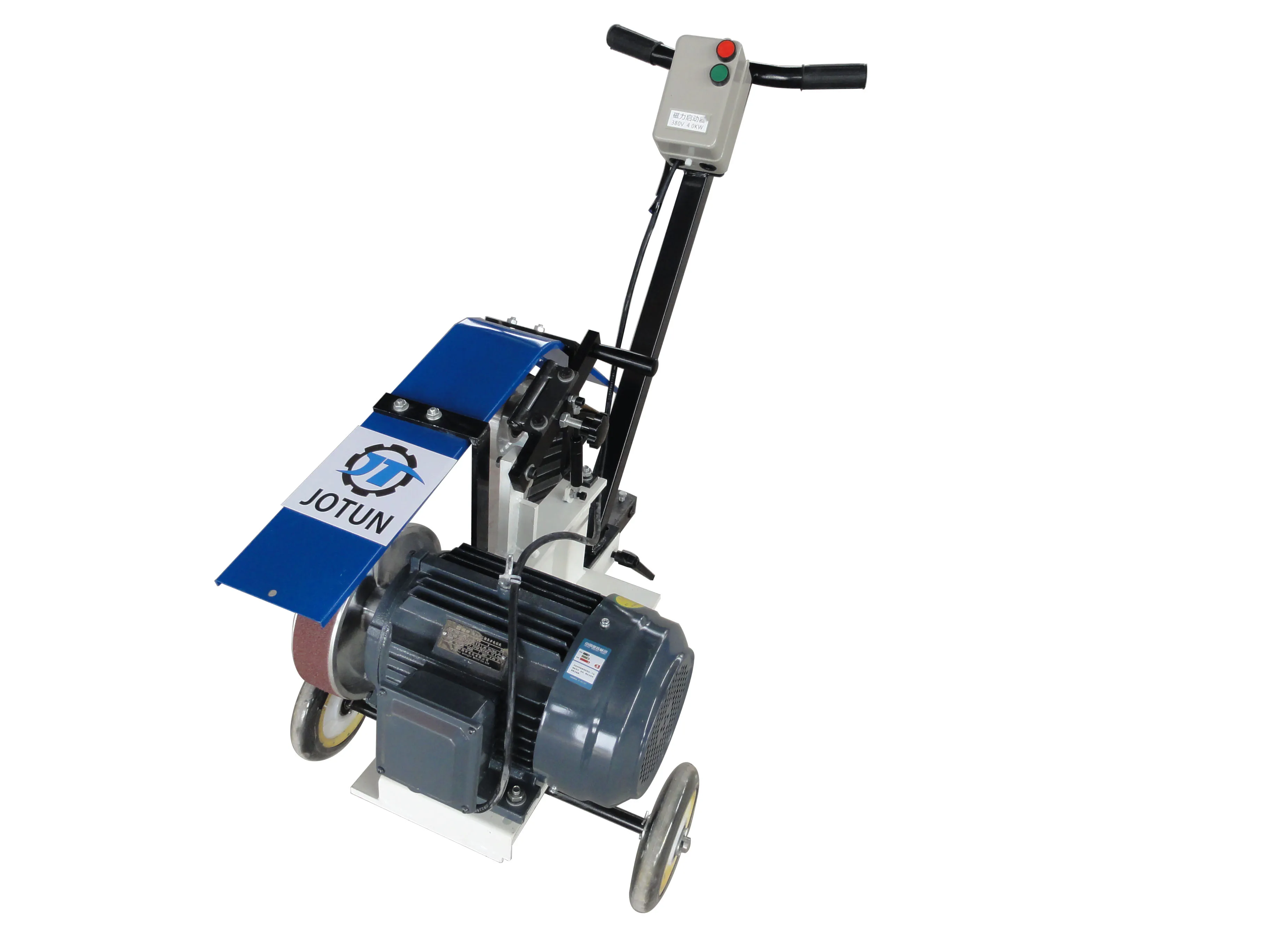

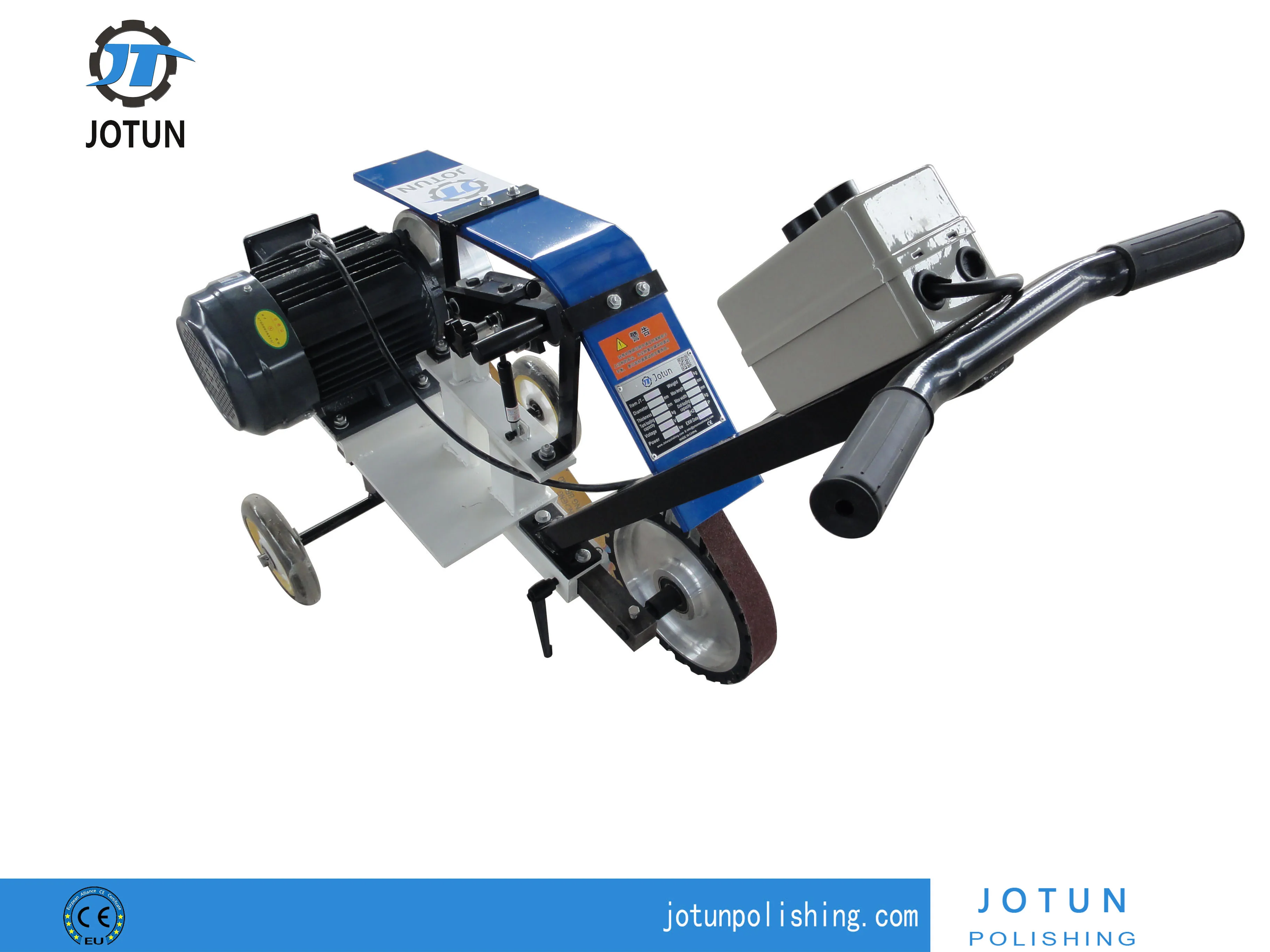

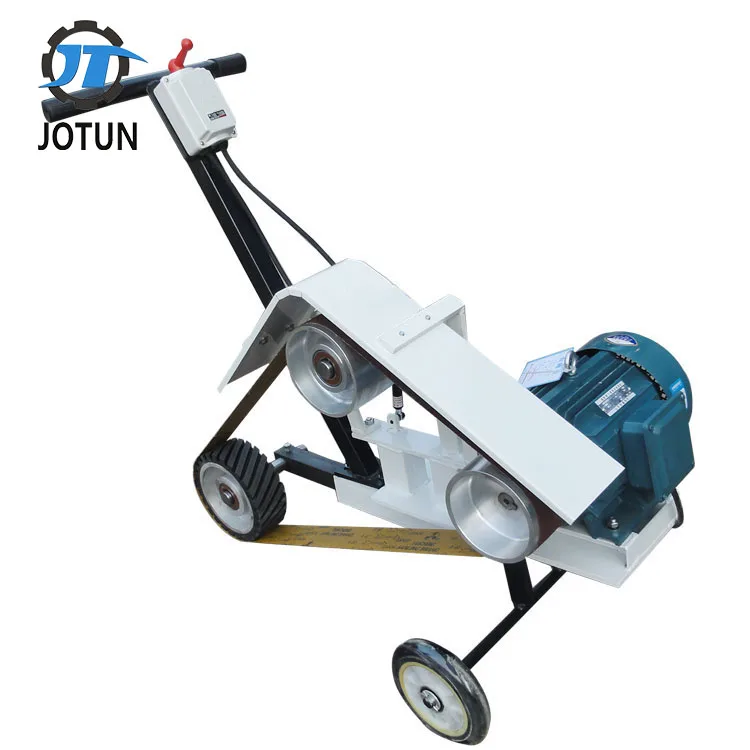

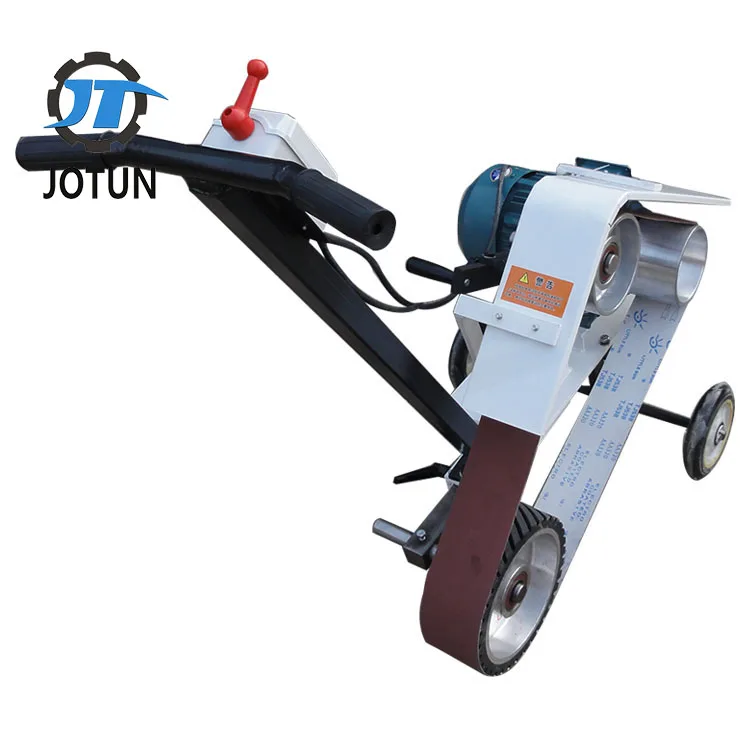

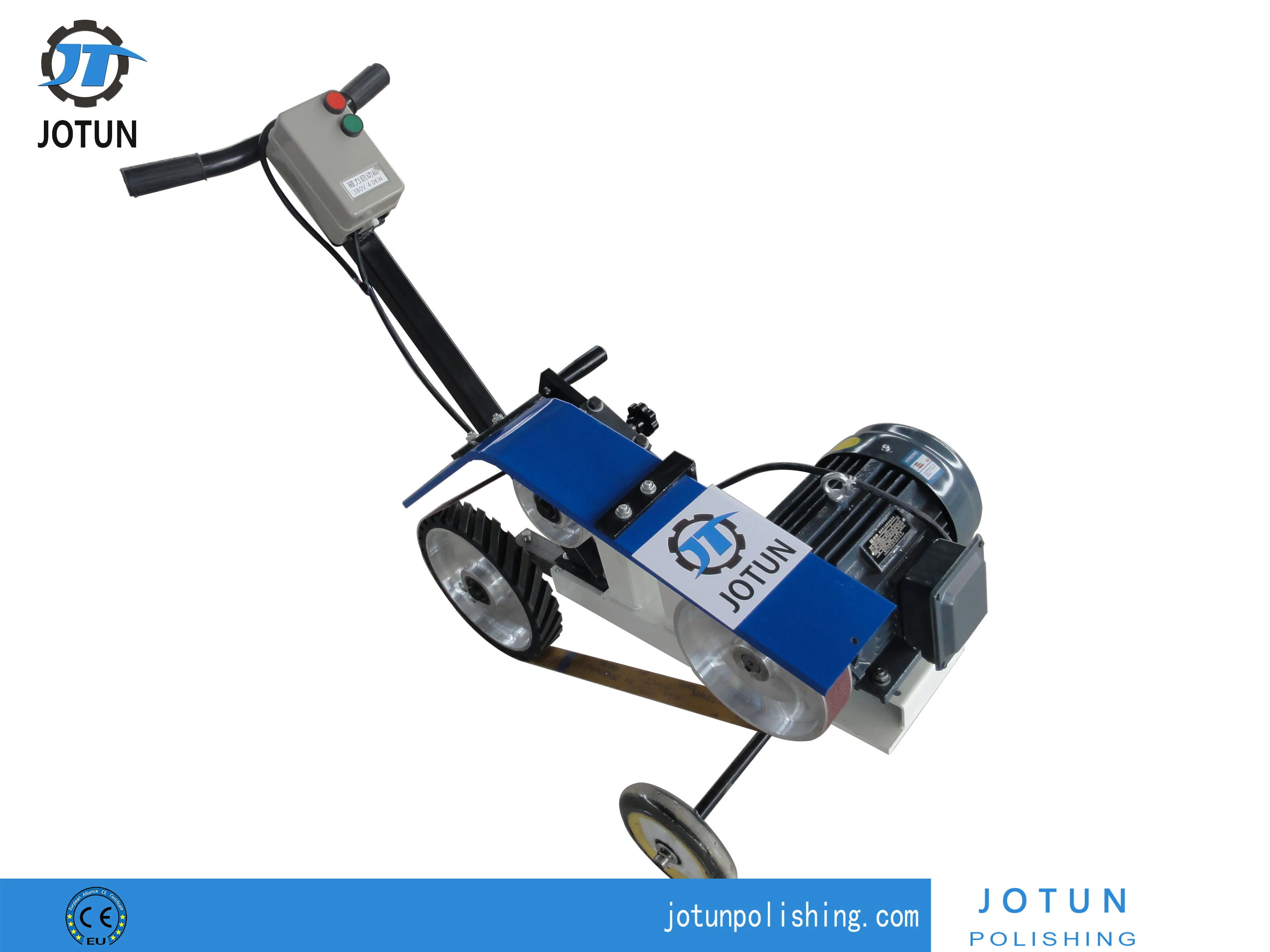

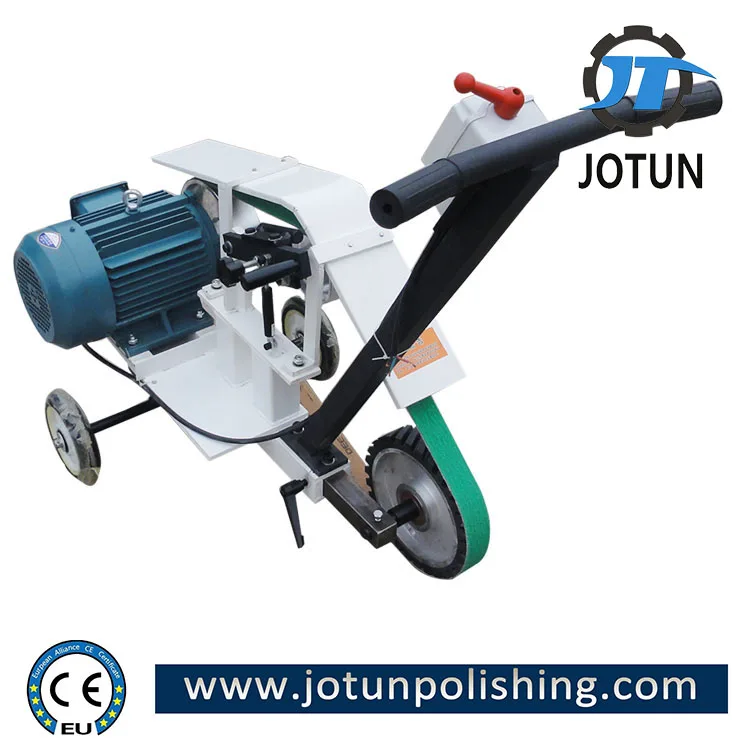

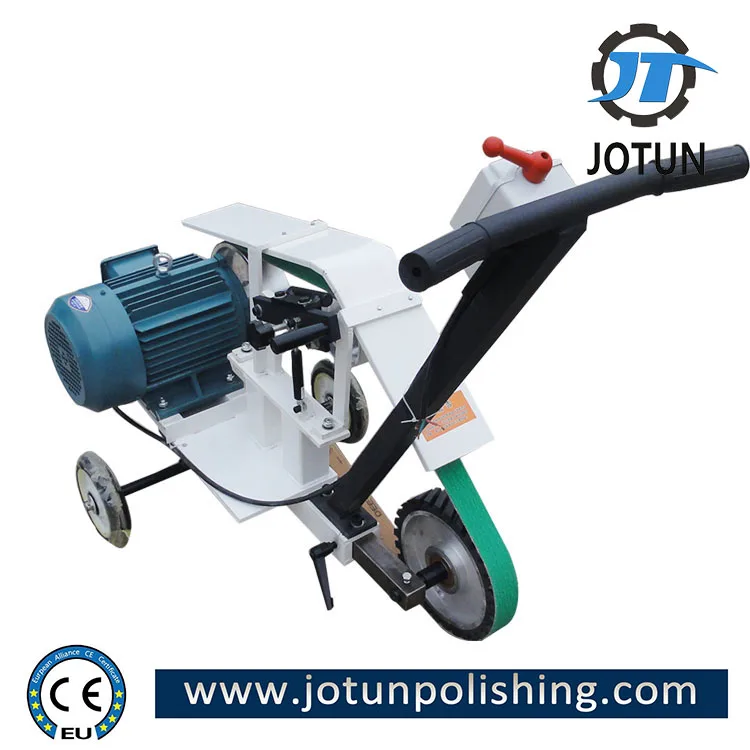

JT-XTC Welding seam Polishing buffing Machine
apparatus primarily consists of abrasive belt actuating mechanism, contact wheel (abrasive
wheel) train, grinding head body, supporting seat, stand bars, truckles, abrasive belt, pushrods
electrical control system. Electro motor directly transmits power to the driving wheel, to revolve
abrasive belt at a high speed, and with the abrasive belt tensioned by the straining device, the
contact wheel is used for abrasive machining.
Specification of grinding and polishing machine | ||||||
Outer Dimension | 1000*500*800 mm | |||||
Machine Weight | 100 kg | |||||
Input Power | 4 KW | |||||
Control System | PLC | |||||
Polishing Materials | Abrasive belt | |||||
Abrasive Blet Size | 2100*50 mm,2100*75 mm,2100*100 mm | |||||
Note | Our products all Non-Standard Customization | |||||
Specifications of working pieces | ||||||||
Work piece size | Min Thickness | 1mm | ||||||
Width | 1000mm | |||||||
Material | stainless steel,aluminium alloy,carbon steel,red copper,etc. | |||||||
Surface rounghness | Ra ≤ 0.3 μm (Mirror Finished) | |||||||
Abrasive belt line speed | 22 meters/s | |||||||
Product Features
JoTun JT-XTC Trolley Belt Sander Hand polishing machine Main Features
1.Light weight, simple construction, easy maintenance and low cost.
2.This machine adopts abrasive belt for grinding, so dust is inconspicuous, noise is low, shaking is feeble, operation is easy,
and abrasive belt’s grinding and cutting force is strong. It applies to the grinding of weld and the surface grinding of heavy
carbon sheet.
3.Contact wheel is located in front of polishing machine, convenient for observing grinding status, and adjusting grinding angle
and pressure at any time. Motor directly transmits power to the driving wheel, to revolve the abrasive belt at a high speed, and
with the abrasive belt tensioned by the straining device, the contact wheel is used for abrasive machining.
2.This machine adopts abrasive belt for grinding, so dust is inconspicuous, noise is low, shaking is feeble, operation is easy,
and abrasive belt’s grinding and cutting force is strong. It applies to the grinding of weld and the surface grinding of heavy
carbon sheet.
3.Contact wheel is located in front of polishing machine, convenient for observing grinding status, and adjusting grinding angle
and pressure at any time. Motor directly transmits power to the driving wheel, to revolve the abrasive belt at a high speed, and
with the abrasive belt tensioned by the straining device, the contact wheel is used for abrasive machining.
Our Team
Anhui Jotun supply China professional Metal tank shell,dished end,flat sheet polishing grinding/buffing machine,welding seam treatment equipment,widely used for pharmaceutical industry,food,water purification,water supply,chemical,and new energy.Including elliptical dish,cone dish head,spherical shell ,butterfly shell,pharmaceutical stainless steel tank,pressure vessel, brewery, cylinder, cosmetic, sanitary, reaction kettle,fermentation tank,sterilizer,disinfection cabinet,filter, and LNG etc.
Everyone in our team will do their best to serve you, solve your problems and achieve mutually beneficial cooperation.
Certifications
Our Service
Our product has exported to America,Argentina,Australia,Denmark,South Korea,India,Poland and 20 other countries and regions.We always focused on research development and innovation,and has recently developed water polishing to meet enviroment management certification.
We regards"reasonable prices,efficient production time and good after-sales service".Hope to cooperate with more customers for mutual development and benefits.
Packing & Delivery
After the product is commissioned, we will split the product. The shock absorbing material is carefully wrapped on the surface of the product to prevent the product from being worn during transportation. The product will then be fixed in accordance with the shipping method requested by the customer to protect the integrity and condition of the product. The way the product is packaged can be determined by the customer and we will do our best to meet your requirements.
