Product Overview

Description



Product Description


  • Overview:

QZ3300 QR code & IC reader is a multi-functional intelligent identification device that integrates 1D/2D code scanning and dual-interface IC card reading and writing
functions.

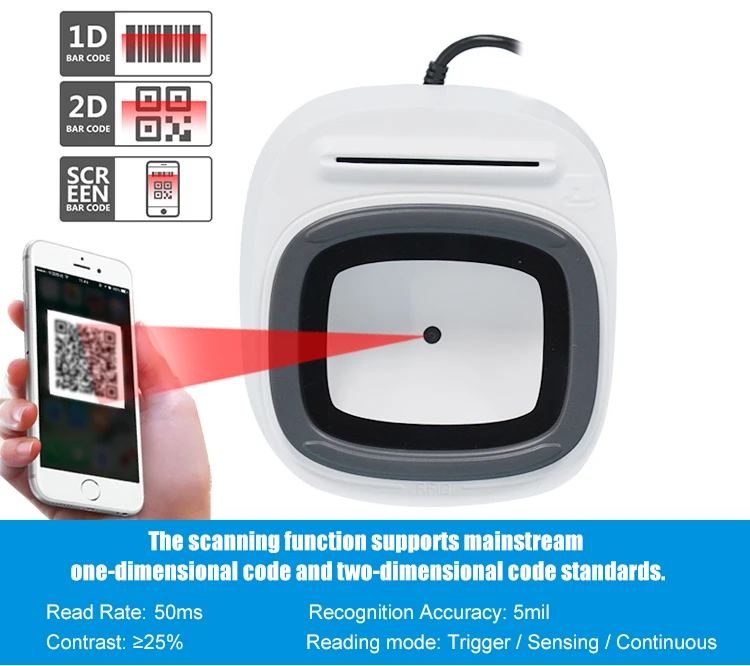

The scanning function supports mainstream 1D codes and 2D codes standards. IC card function can read and write dual interface radio frequency card and contact CPU card. Support ISO7816, EMV2000 and PBOC3.0 specifications. One SAM card socket
can be extended.
F3300 detects the connection with PC and related equipment through USB interface. It can be widely used in industries such as finance, social security, industrial and commercial taxation,transportation, securities, post and telecommunications. It also supports contactless mobile payment applications.


Details Images




Supported code samples


F3300 supports various of 1D/2D codes, The followings are some code samples.




Product Specification


Parameters
Description
Parameters
Description
Device Features
IC Card Features
Power Supply
USB Bus or DC：+5V±10% 1000mA.
Contact IC Card
Power Consumption
Typical operating current: 300mA Max
Standard
ISO7816 / EMV2000 Level 1 / PBOC 3.0
Peak current: 420mA Max
Card Types
ISO/IEC7816 logic card/PBOC2.0 & EMV2000 T=0, T=1 contact CPU card

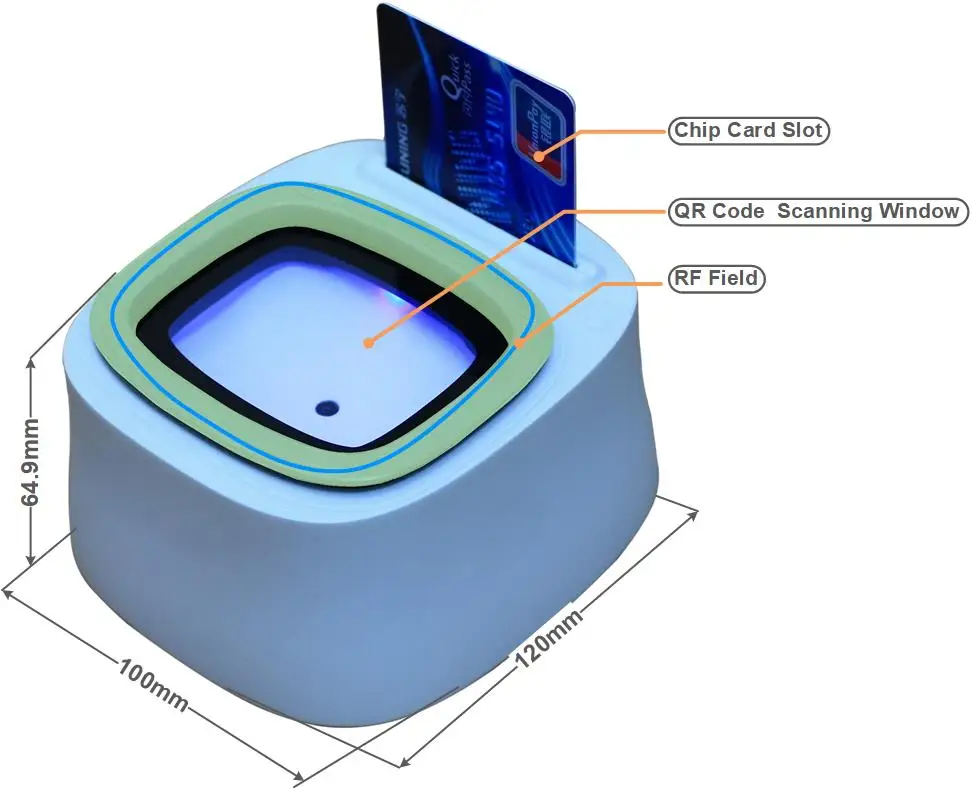

Dimension
120L*100W*65H mm
Voltage
5V / 3.3V / 1.8V
Working Temperature
-10ºC to 60ºC
Protocol
T=0 / T=1
Working humidity
10 to 85% No condensation
IC card contactor
8 contact points, providing short circuit protection, contact pressure 0.4N±0.1N.
Contactor life: >200,000 times
Storage temperature
-30ºC to 70ºC
Communication rate
9600bps~38400bps，Support PPS
storage humidity
10 to 90% No condensation
Contactless IC card
Interface
Mode 1 ：RS232 serial port：9600 Baud, None Parity, 8 bits
Standard
ISO14443TYPE-A&B / EMV2000 Level 1 / PBOC 3.0
Mode 2 ：USB-HID - Manufacturer-defined interface that conforms to the HID specification.
Protocol
T = CL
Mode 3 ：USB CCID - Smart Card USB PC/SC Protocol
Working frenquency
13.56MHz
Mode 4 ：USB Virtual Serial COM - USB VCOM, 9600 Baud, None Parity, 8 bits(Optional)
Operation distance
0~4cm
1D/2D Code Reader Features
Communication rate
106K/212K/424K bps，Suppot PPS
Sensor
I640H * 480V 30fps
PSAM Card (Optional function)
Field of view
Horizontal: 65° Diagonal: 81° Vertical: 61°
PSAM card numbers
2 PSAM cards
Deflection angle
Horizontal: ±50° Vertical: ±50°Whirling: 360°
Standard
ISO7816 / EMV2000 Level 1 / PBOC 3.0, The physical interface conforms to the GSM11.11 standard.
Motion tolerance
3m/s
Voltage
3.3V
Code system
2D: PDF417/QR Code/Data Matrix/Royal Mail Cmdm Mailmark / PPN / Swiss QR Code
Protocol
T=0 / T=1
1D：Code128 / Code32 / Code 39 / Code 9 3/ EAN 13 / EAN 8 / EAN / UCC128 / ISBN13/ ISMN / ISSN / Logmars / NVE18 / PZN7 / PZN8 /
service-id / SSCC 18 / UPC 12 / UPCA / DPD / UPU S10 / Swedish Postal Shipment ItemID
Contactor
8 contact points, Contactor life: >5,000次
Reading rate
50ms
The 2nd generation ID card of China
Reading accuracy
5mil
Standard
ISO14443 TYPE-B
Contrast
≥25%
Working frenquency
13.56MHz
Reading mode
Three modes: Trigger/Sensing/Continuous
Operation distance
0~4cm
Read medium material
Screen / Paper / Metal / PVC Film
HMI
Ambient lighting
0~100,000LUX
LED indicator
Indicates the working status of power supply, Code scanning module, contact IC card and contactless IC card
Buzzer
Yes
