Product Overview
Description

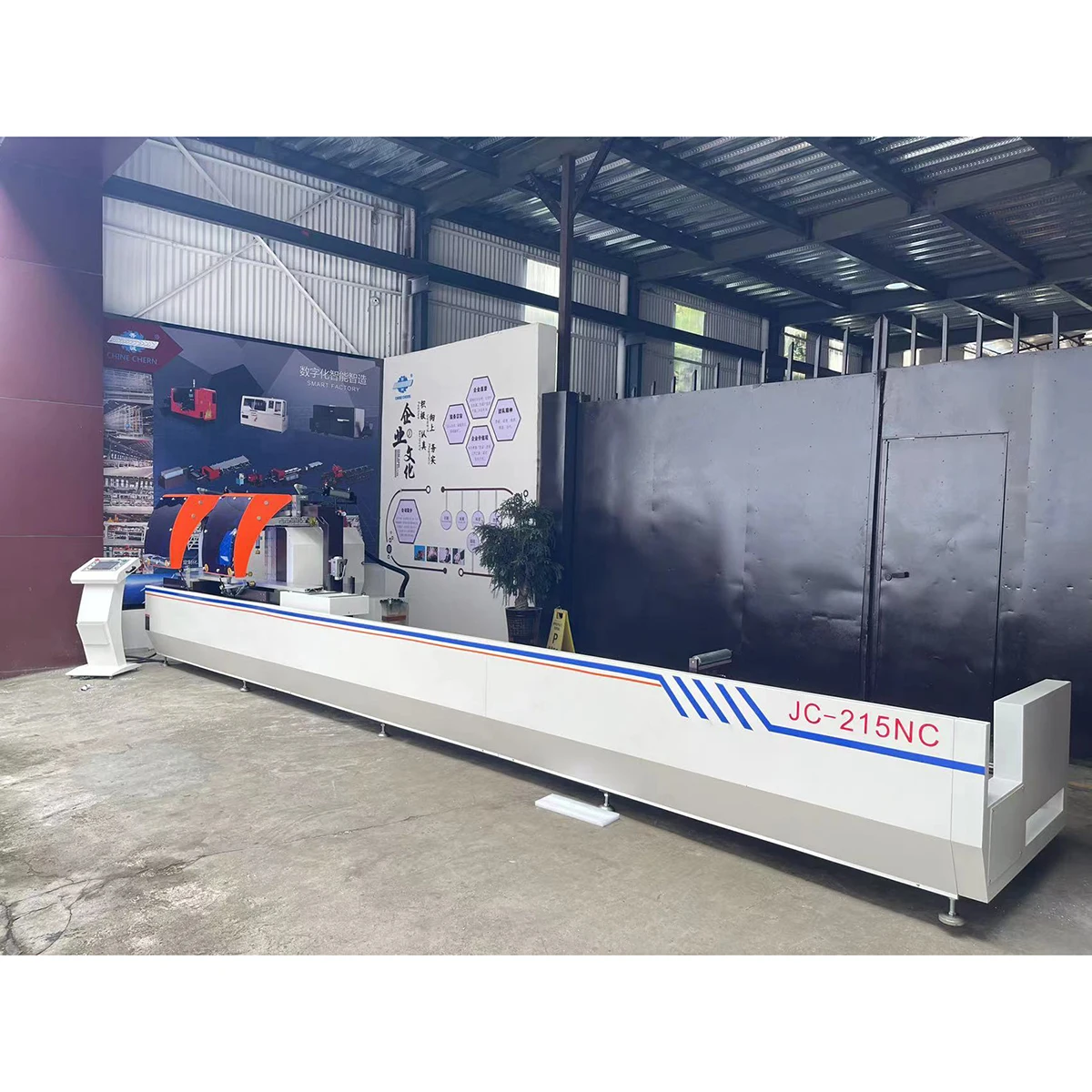

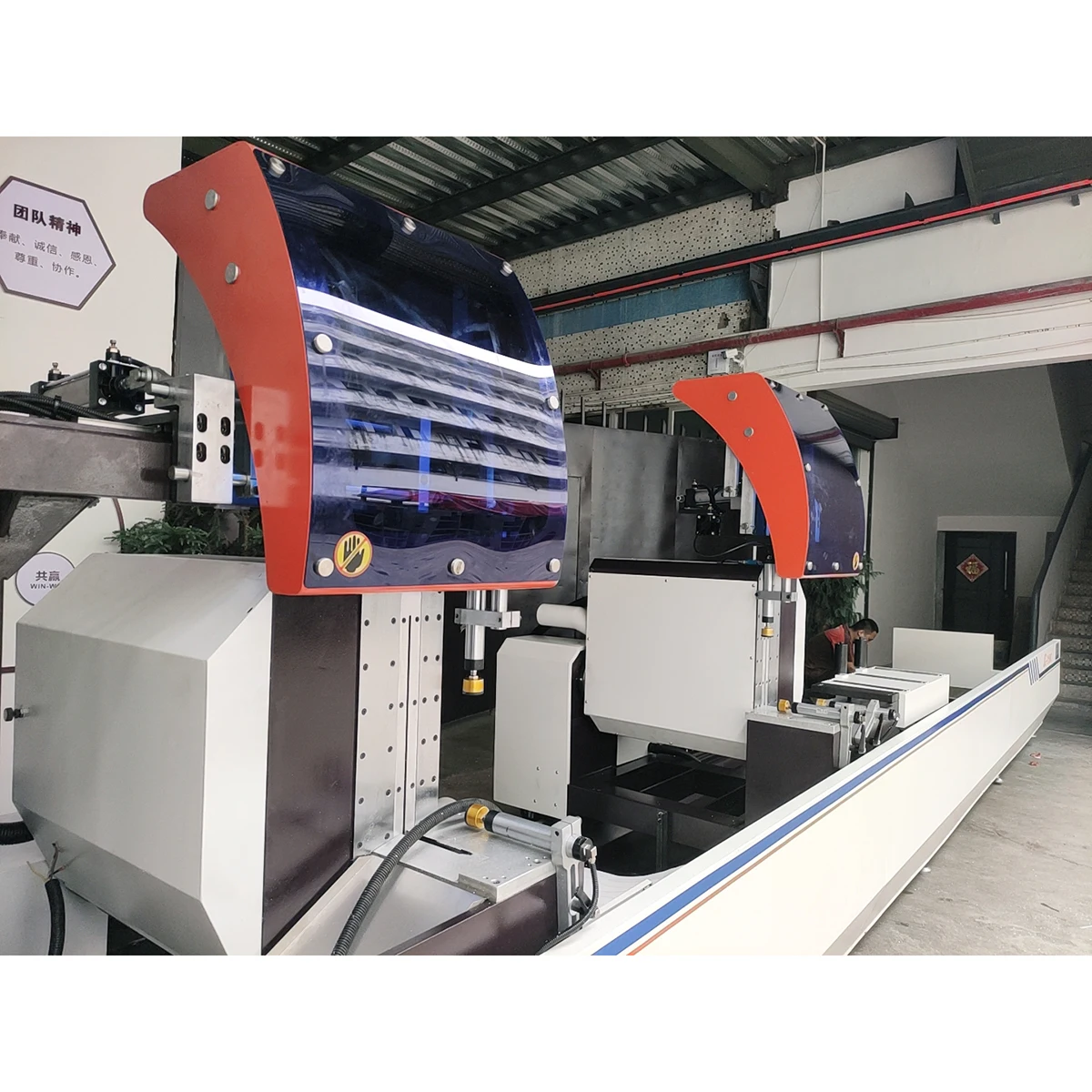

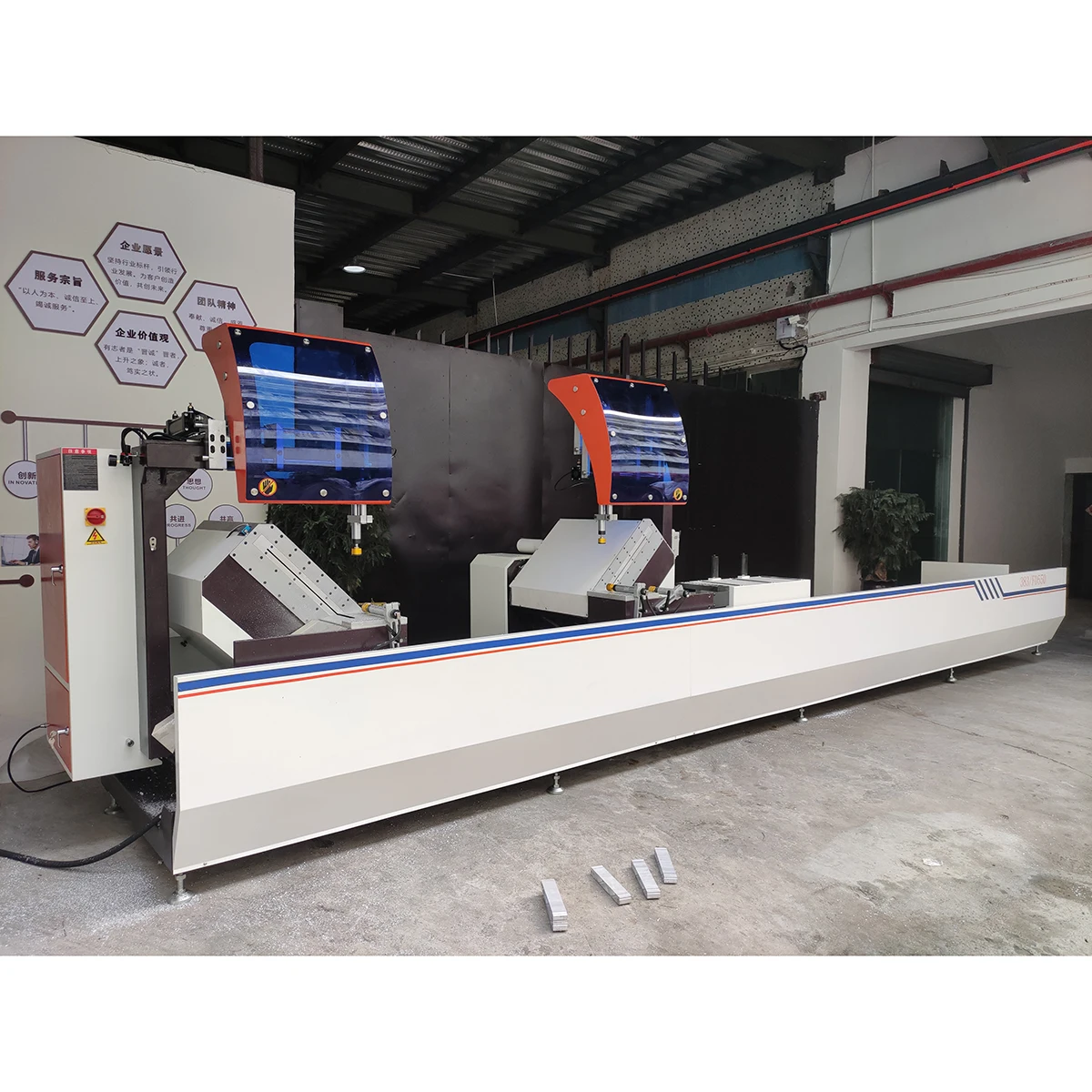

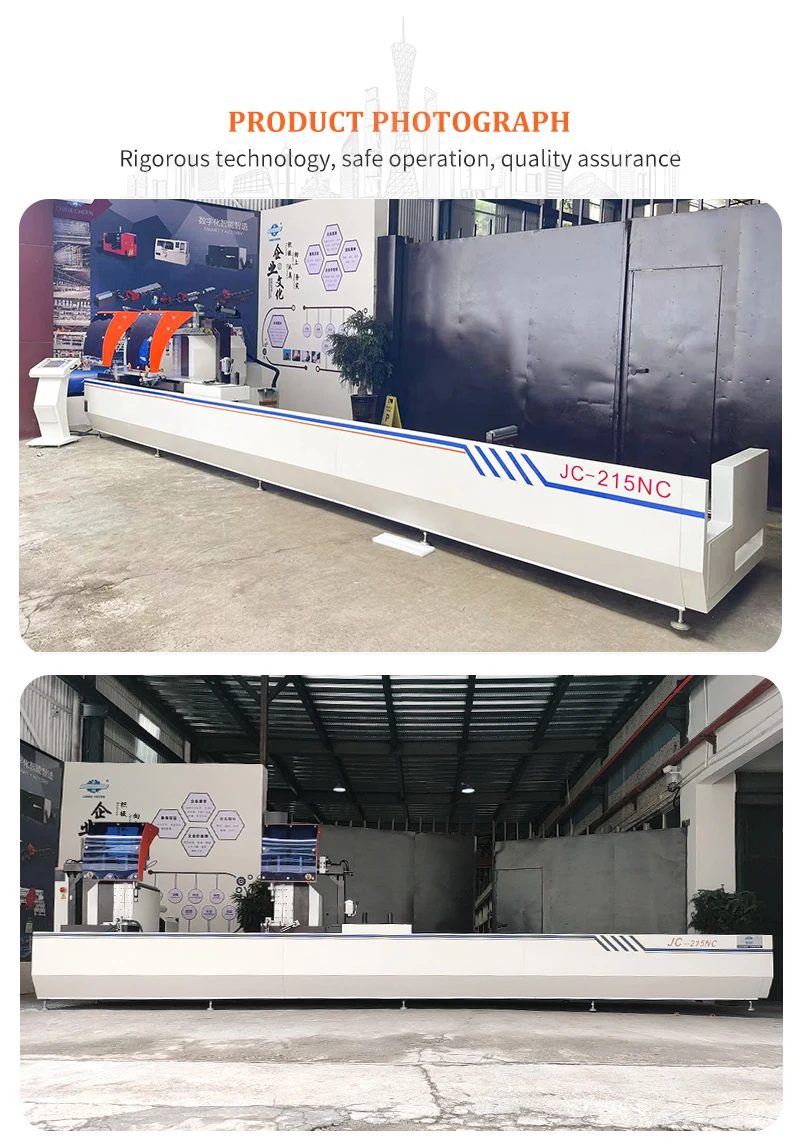

High Productivity Automatic Digital Display Double Head Mitre Aluminum Profile Circular Saw Cutting Machine
The characteristics of the aluminum profile circular saw cutting machine:
- Adopt servo drive horizontal feed for machine cutting head movement to ensure repeated positioning accuracy to a greater extent.
- Imported spindle motor is directly connected with the saw blade, greatly reducing equipment vibration and improving stability.

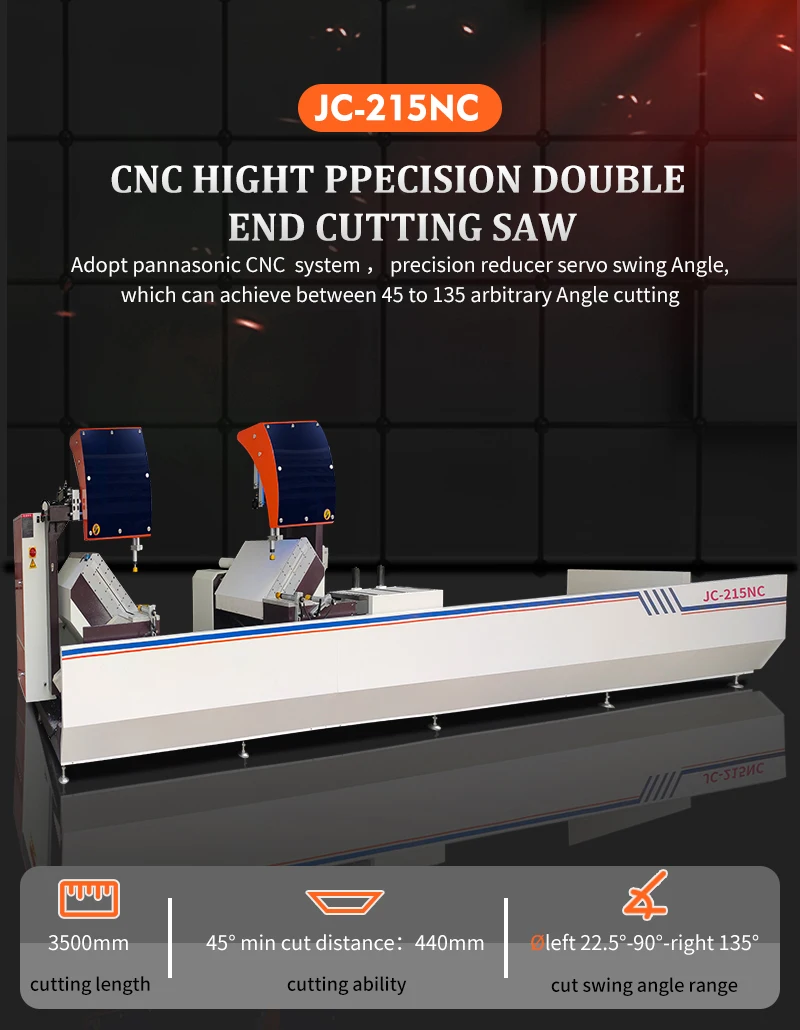

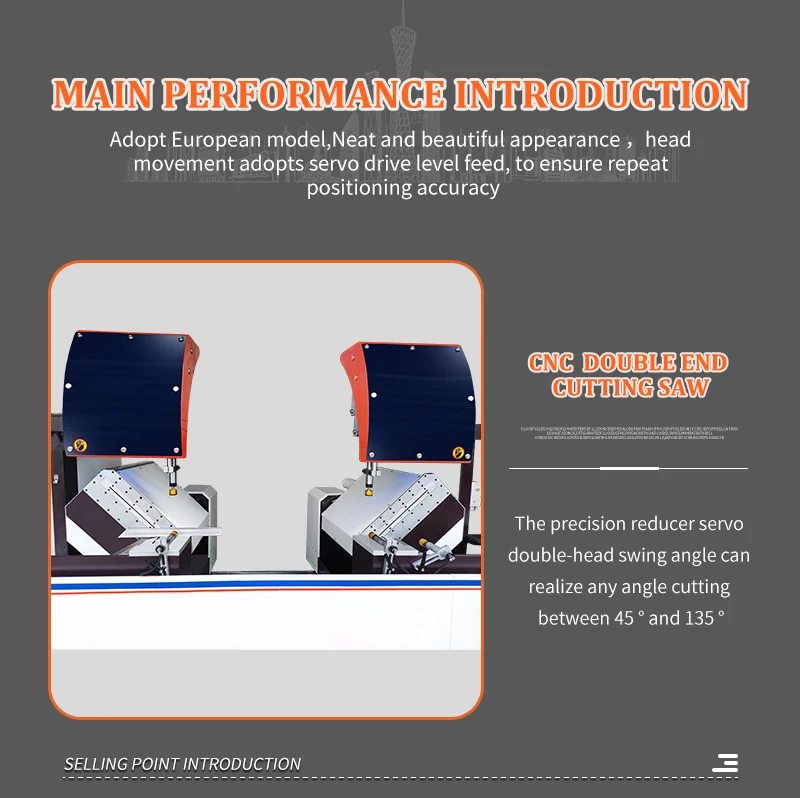

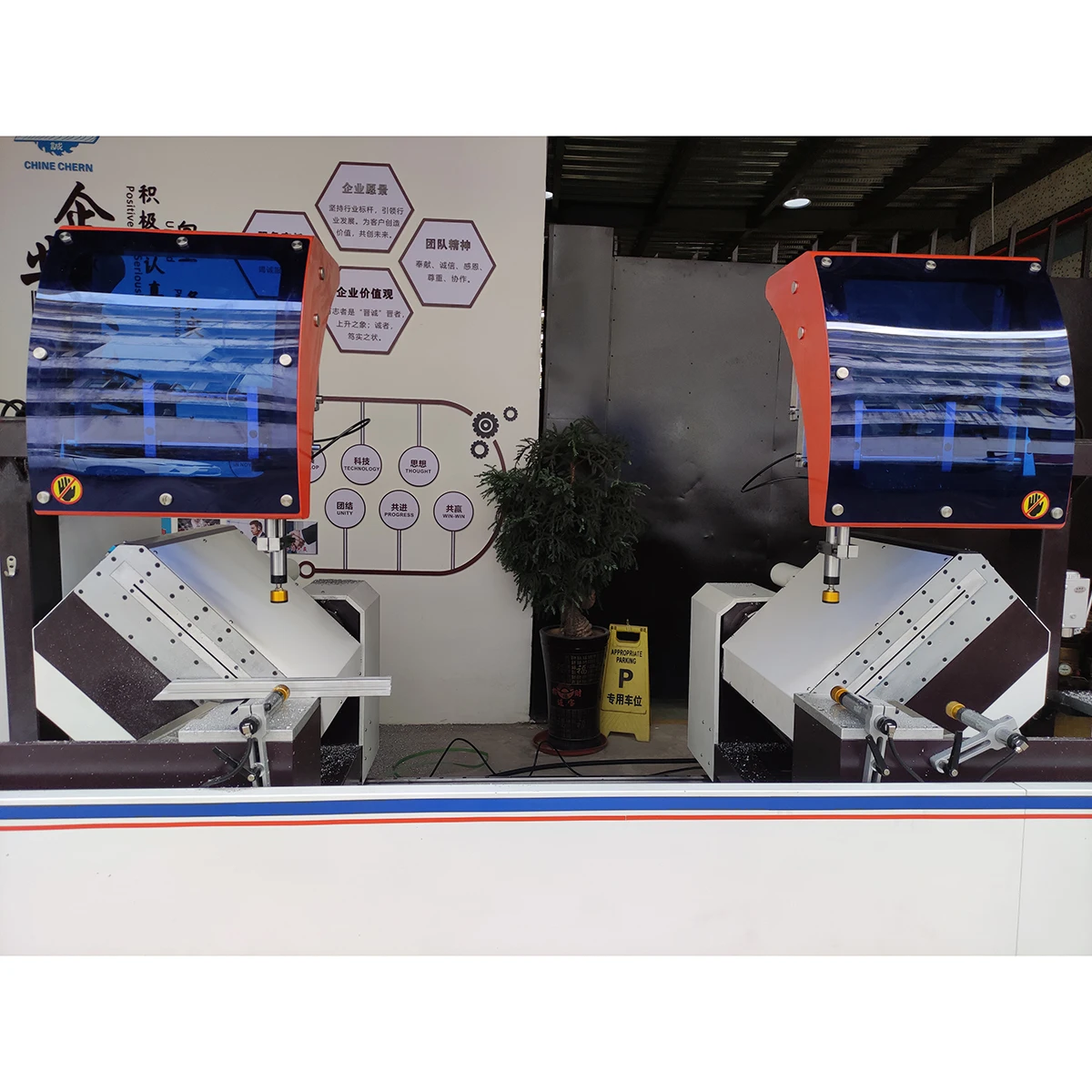

- Using Panasonic CNC system and servo swing angle of precision reducer, arbitrary angle cutting between 45 ° and 135 ° can be realized

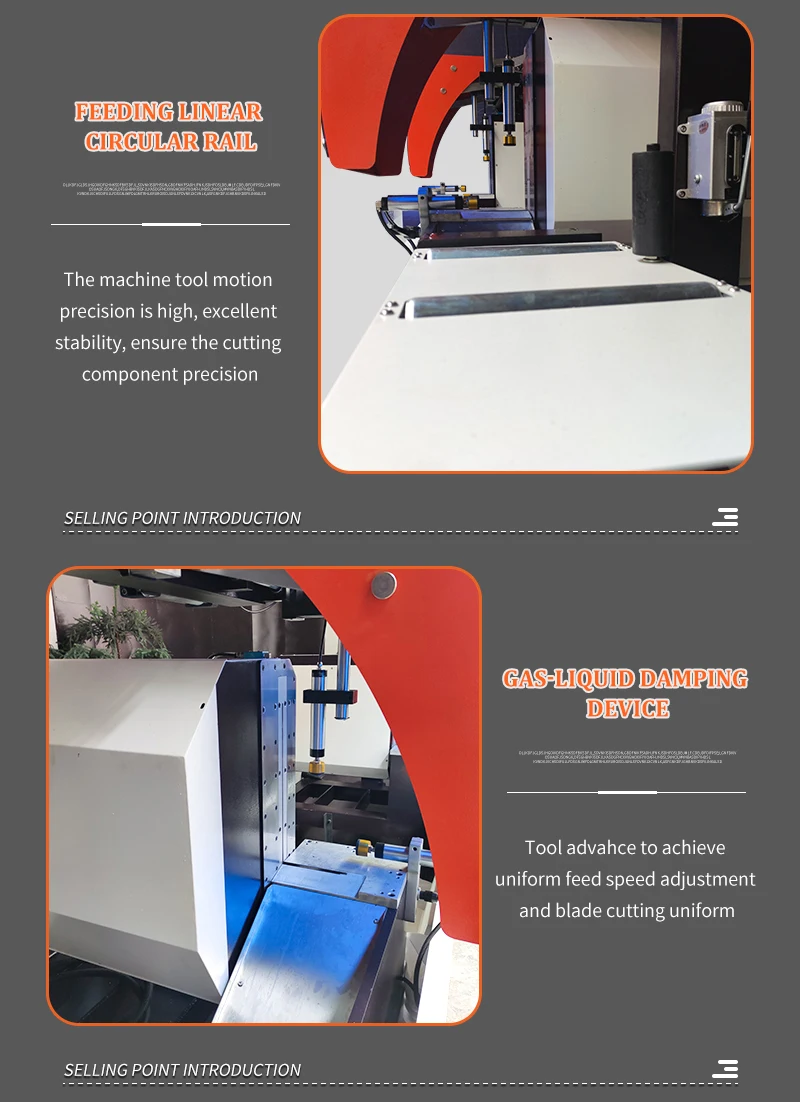

- The machine body and head adopt linear circular rail, which has high movement accuracy and good stability, ensuring the accuracy of cutting components.
- The hydraulic damping cylinder realizes uniform feed speed regulation and even sawblade cutting
- The dimensions of multiple profiles can be input at one time to achieve continuous cutting of different lengths.
- Realize the direct input of processing size, and change the sawing length, no need to return back to the reference point.
- Imported carbide saw blade, high processing precision and high durability.
- Motor protector is installed in the circuit system, the safety of motor and circuit system is much improved.
| High Productivity Automatic Digital Display Double Head Mitre Aluminum Profile Circular Saw Cutting Machine | |
| Item | specifications |
| Cutting Length | 385-4200mm |
| Cutting Height | max 120mm |
| Cutting Width | max 300mm in 90 degree, max 200mm in 45 degree |
| Repeat Length Accuracy | ≤0.2mm |
| Angle Tolerance | ±5 |
| Flatness of Cutting Surface | ≤0.1 |
| Roughness of Cutting Surface | Ra12.5µm |
| Motor Speed | 2800r/min |
| Saw Head Motor | 2.2kw * 2 |

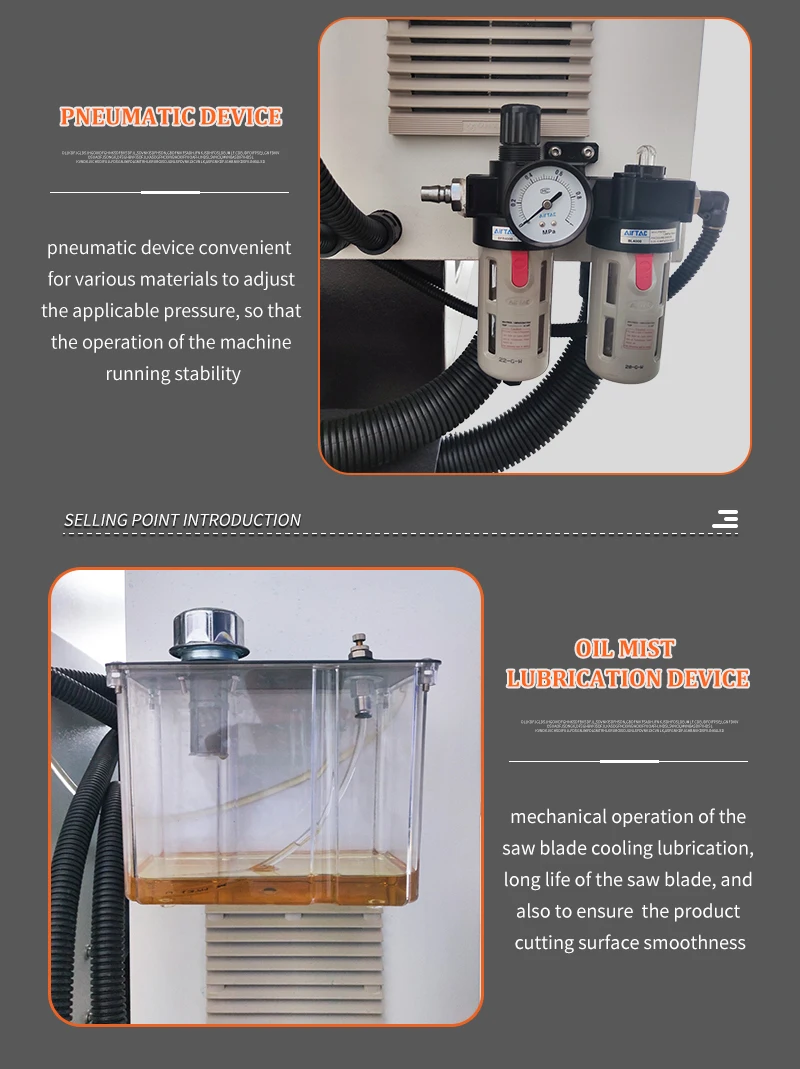

| Compressed Air Consumption | 60L/min |
| Working Pressure | 0.5-0.8Mpa |
| Saw Blade Feed Speed | 0-3m/min |
| Net Weight | 1800kg |
| Dimension(L*W*H) | 5530*1750*1950MM |

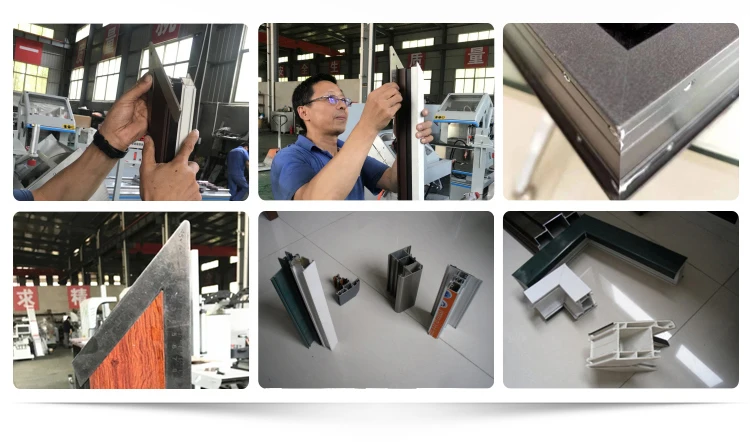

the machine can cut the profile of aluminum/upvc door and windows,curtain wall and corner connector in high accuracy, the cutting surface is smooth and without any burrs.

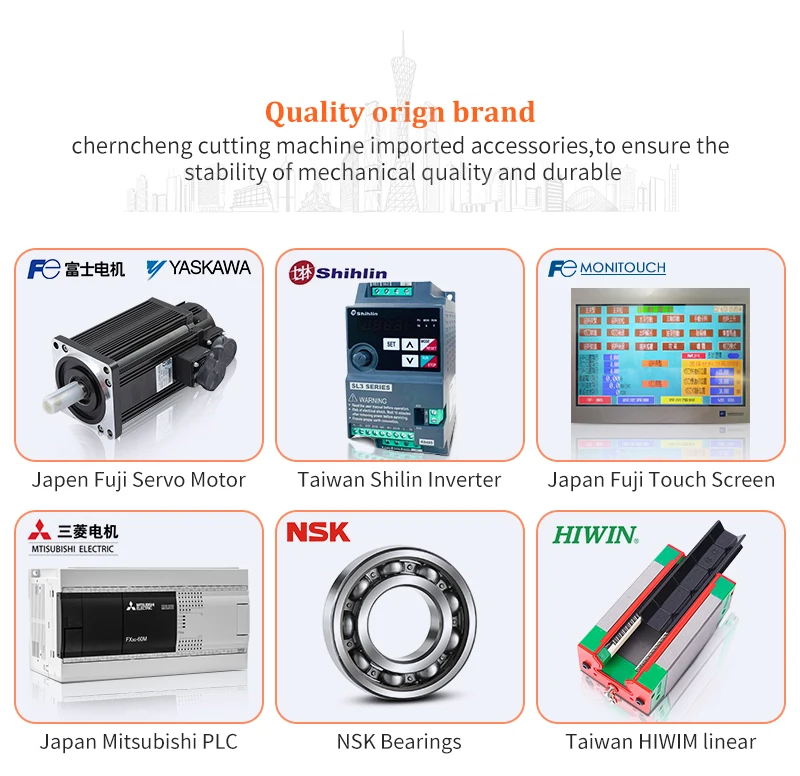

Q1 What is the brand of your machine main component?
* PLC: Japan Mitsubishi
* Servo motor: Japan Yaskawa
* Hydraulic system: Taiwan CML
* Main motor: Taiwan FUKUTA
* PLC: Japan Mitsubishi
* Servo motor: Japan Yaskawa
* Hydraulic system: Taiwan CML
* Main motor: Taiwan FUKUTA
Q2 How to choose the machines? pls advise below details to save time:
* The material name
* The material size
* The material name
* The material size
Q3 What are your main machines?
* Copper/Aluminum metal high speed precision circular sawing machine
* Super hard metal bars cold sawing machine
* Metal pipe scrapless circular blade cutting off machine
* Pipe/Bar end chamfering machine
* Circular saw blade sharpening machine
* Automatic pipe bending machine. Tube end forming machine.
* HSS circular saw blade/ TCT cold saw blade/ Tipped tungsten carbide circular saw blade.
* Automatic lift, arrange, rack, feed and cut off, chamfer, get rid of burrs, measure, composite processing line.
Chine Chern Machinery are dedicated to providing the industry with the best machining equipment at the most ideal price, with its ability to enhance the overall industry quality.
MAINTENANCE
The whole machine is guaranteed with one year warranty, life time maintenance and after-sales maintenance. Solutions shall be provided within 12 hours and on-site technical solutions shall be sent within 48 hours.
TECHNICAL TRAINING
On-site installation, commissioning and sample testing, one-to-one demonstration and guidance.
24/7 CUSTOMER SUPPORT
We provide exclusive solutions and timely technical support to help you improve production efficiency and solve your problems.
ENTERPRISE CORE
Leading company scale, industry qualification, brand strength guarantee; Introduce advanced technology and accessories from Taiwan and Japan to strongly guarantee product quality; Long-term service to well-known brand customers have a good industry reputation; Full coverage of pre-sales, in-sales, and after-sales, quick response to customer needs.
