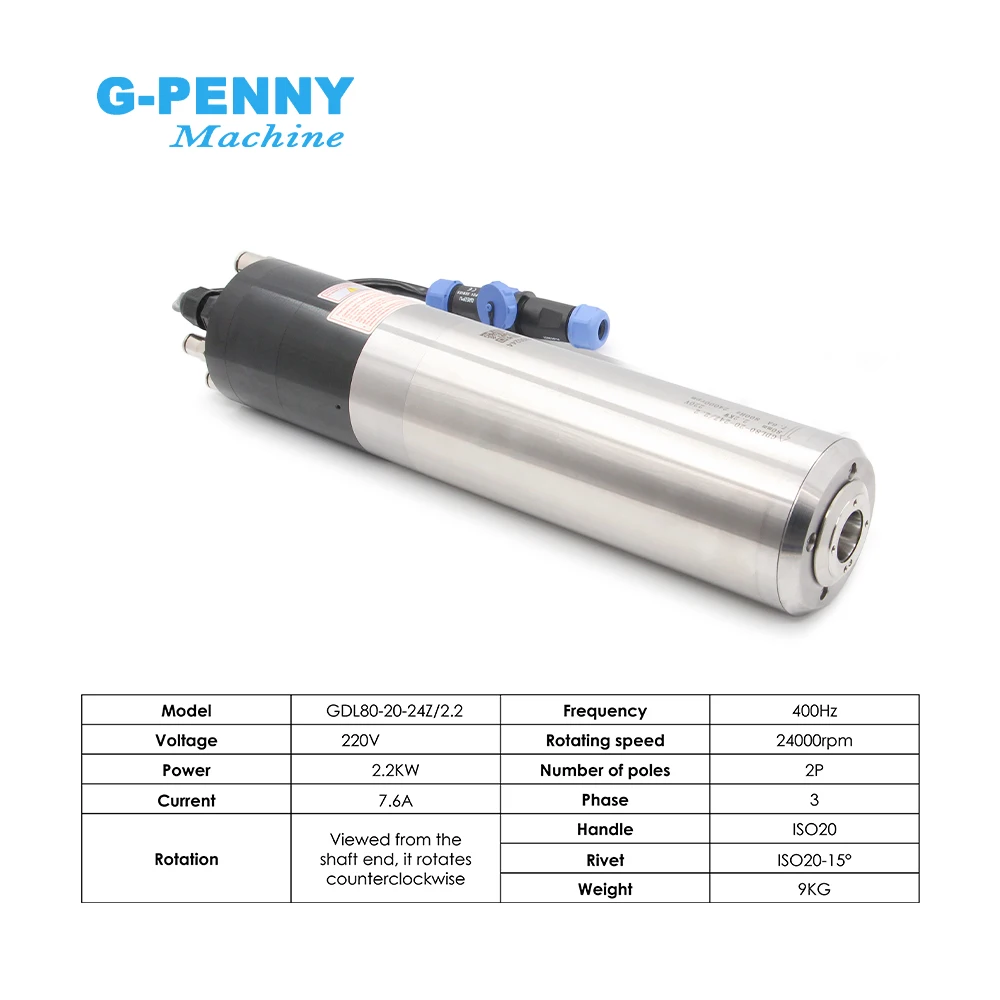

2.2kw Water Cooled Spindle ATC Spindle Motor 220v Rotating spdeed 24000rpm 2Pole 400Hz IS020 15
- Category: >>>
- Supplier: Suzhou Penny Machinery Equipment Co. Ltd.
Share on (1600629021457):
Product Overview
Description
Product Description

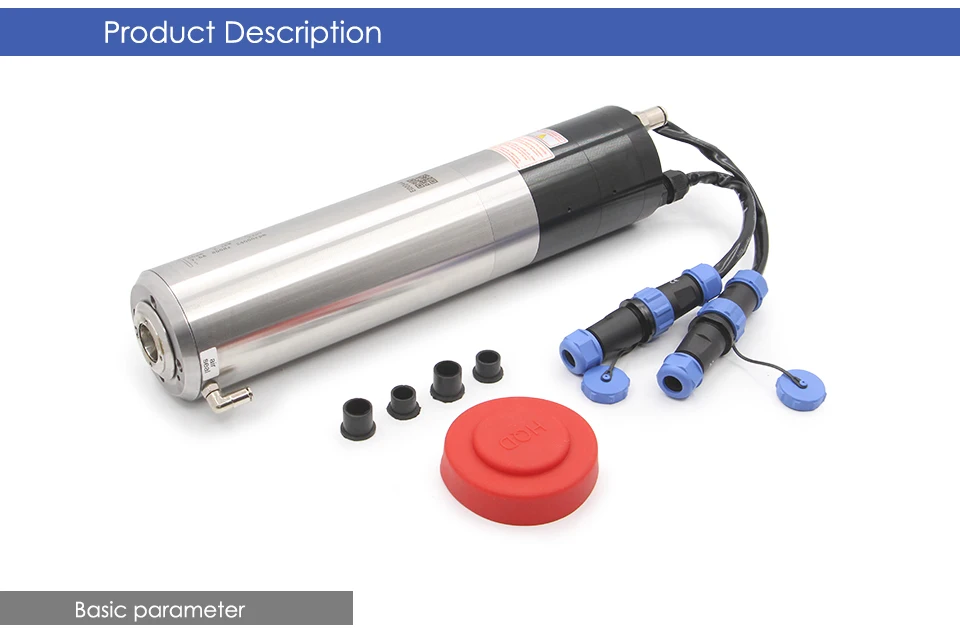

1 pcs -- 220v/380v 2.2kw Water cooled spindle motor ATC Spindle motor (NEW DESIGN-WITH AIR PLUG)
Spindle Model：GDL80-20-24Z/2.2
Voltage: 220v/380V
Power: 2.2kw
Current: 7.6A
Frequency: 400Hz
Rotating speed: 24000rpm
Pole number: 2P
Phase number: 3
Weight(kg):9KG
Blind rivet: IS020-15° (Parfaite is recommended)
Tool holder: IS020 (Parfaite is recommended)
Rotating direction: Viewed from the shaft end, i rotates counter clcok wise
Voltage: 220v/380V
Power: 2.2kw
Current: 7.6A
Frequency: 400Hz
Rotating speed: 24000rpm
Pole number: 2P
Phase number: 3
Weight(kg):9KG
Blind rivet: IS020-15° (Parfaite is recommended)
Tool holder: IS020 (Parfaite is recommended)
Rotating direction: Viewed from the shaft end, i rotates counter clcok wise
Size | Power | Voltage | Current |

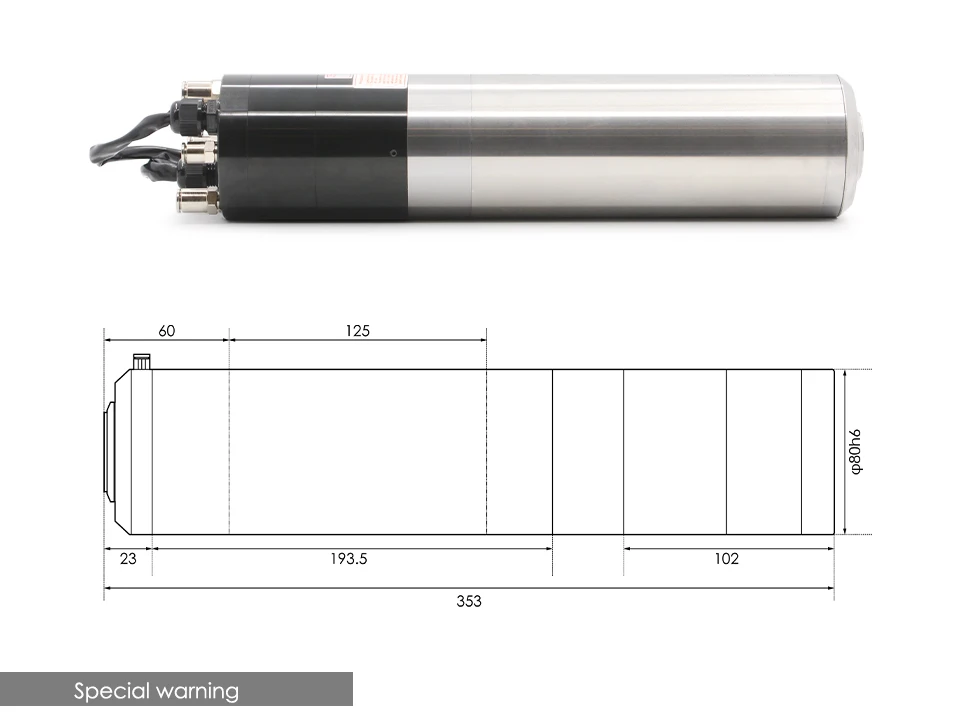

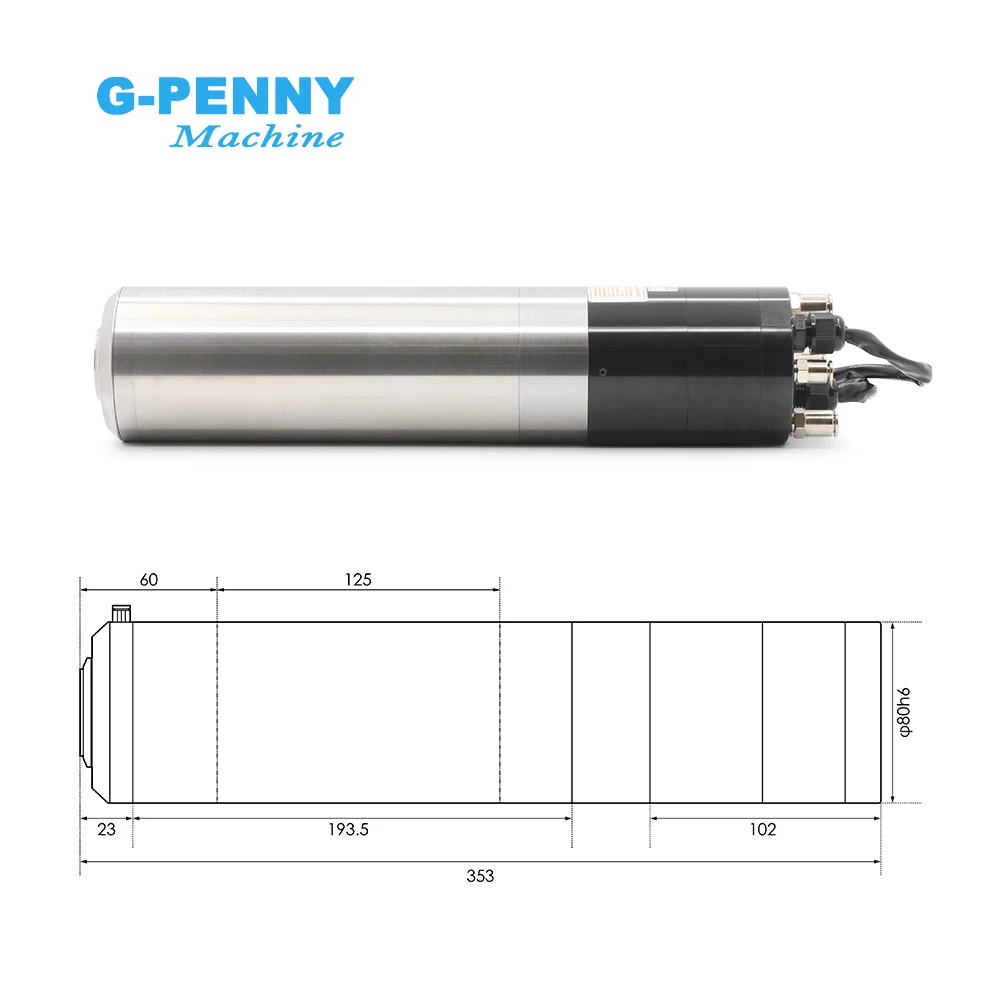

80*353mm | 2.2kw | 220v | 7.6A |
Frequency | Speed | Pole number | Phase number |
400Hz | 24000rpm | 2p | 3 |
1. The electric spindle must be installed in the clamping position, otherwise the bearing will be damaged easily.
2. The spindle must be completely stopped to change the tool. The manual tool change button must not work when the spindle rotates, otherwise the spindle will be stuck.
3. The compressed air must be clean and dry with a filtration accuracy of 0.1 microns. The gas seal is always open. It is recommended to use secondary filtration with a filtration accuracy of 0.5 microns and 0.1 microns, and the air filter has a self-draining device.
2. The spindle must be completely stopped to change the tool. The manual tool change button must not work when the spindle rotates, otherwise the spindle will be stuck.
3. The compressed air must be clean and dry with a filtration accuracy of 0.1 microns. The gas seal is always open. It is recommended to use secondary filtration with a filtration accuracy of 0.5 microns and 0.1 microns, and the air filter has a self-draining device.

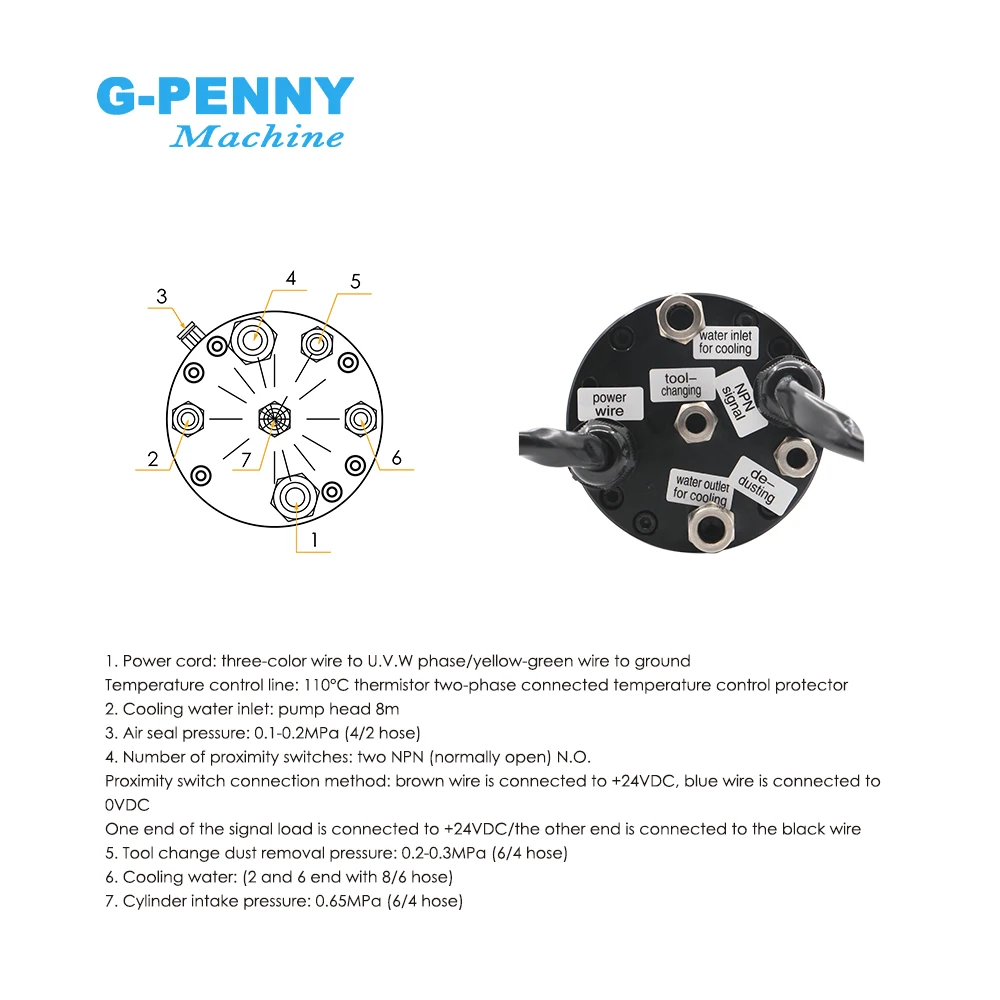

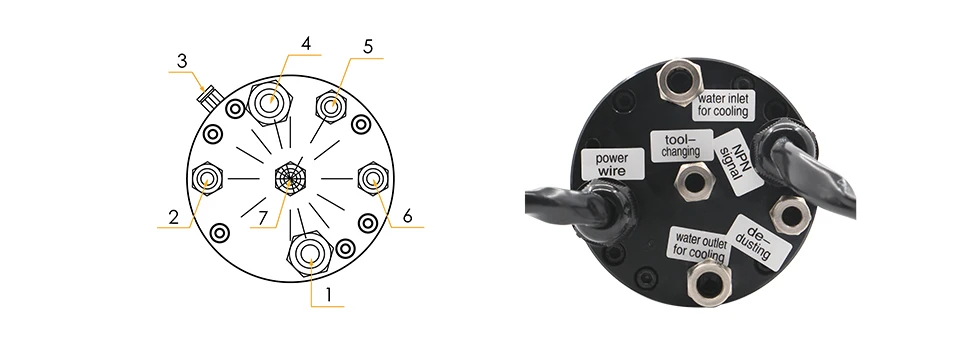

1. Power cord: three-color wire to U.V.W phase/yellow-green wire to ground Temperature control line: 110°C thermistor two-phase connected temperature control protector
2. Cooling water inlet: pump head 8m

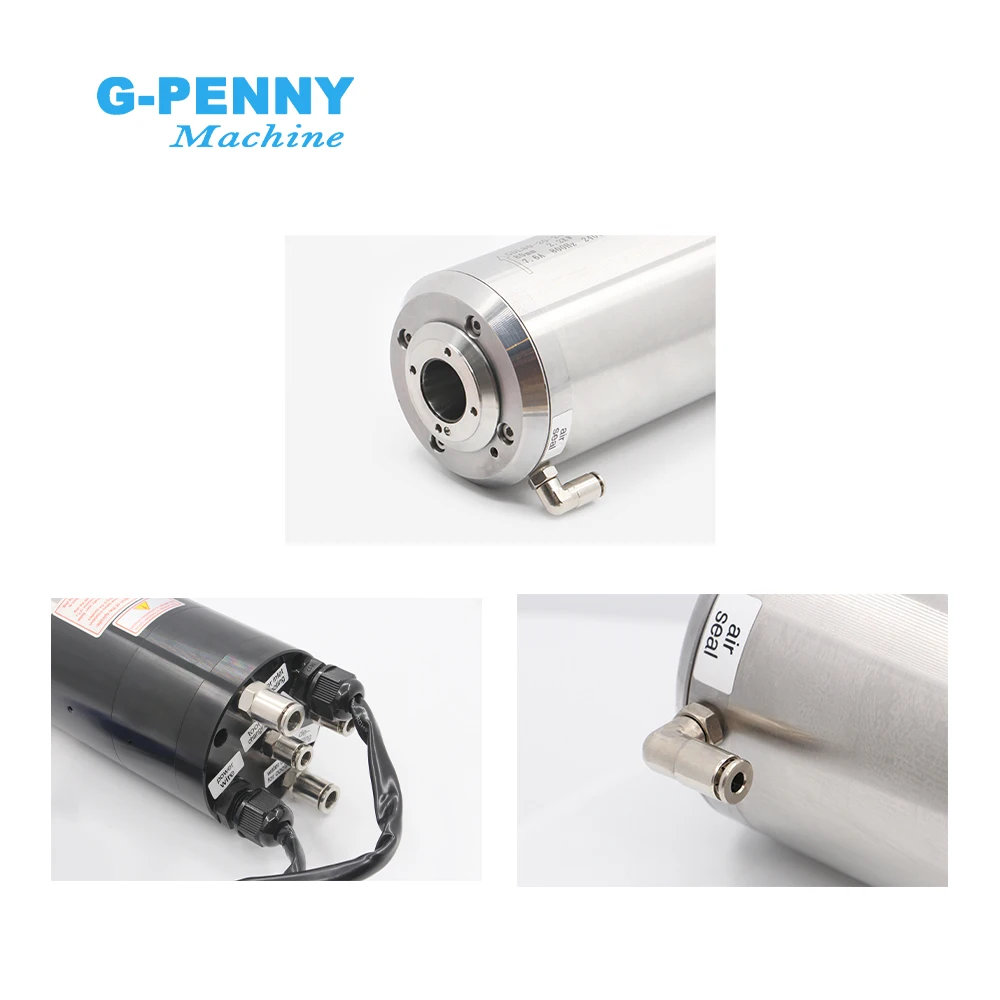

3. Air seal pressure: 0.1-0.2MPa (4/2 hose)
4. Number of proximity switches: two NPN (normally open) N.O. Proximity switch connection method: brown wire is connected to +24VDC, blue wire is connected to 0VDC One end of the signal load is connected to +24VDC/the other end is connected to the black wire
5. Tool change dust removal pressure: 0.2-0.3MPa (6/4 hose)
6. Cooling water: (2 and 6 end with 8/6 hose)
7. Cylinder intake pressure: 0.65MPa (6/4 hose)
2. Cooling water inlet: pump head 8m
3. Air seal pressure: 0.1-0.2MPa (4/2 hose)
4. Number of proximity switches: two NPN (normally open) N.O. Proximity switch connection method: brown wire is connected to +24VDC, blue wire is connected to 0VDC One end of the signal load is connected to +24VDC/the other end is connected to the black wire
5. Tool change dust removal pressure: 0.2-0.3MPa (6/4 hose)
6. Cooling water: (2 and 6 end with 8/6 hose)
7. Cylinder intake pressure: 0.65MPa (6/4 hose)

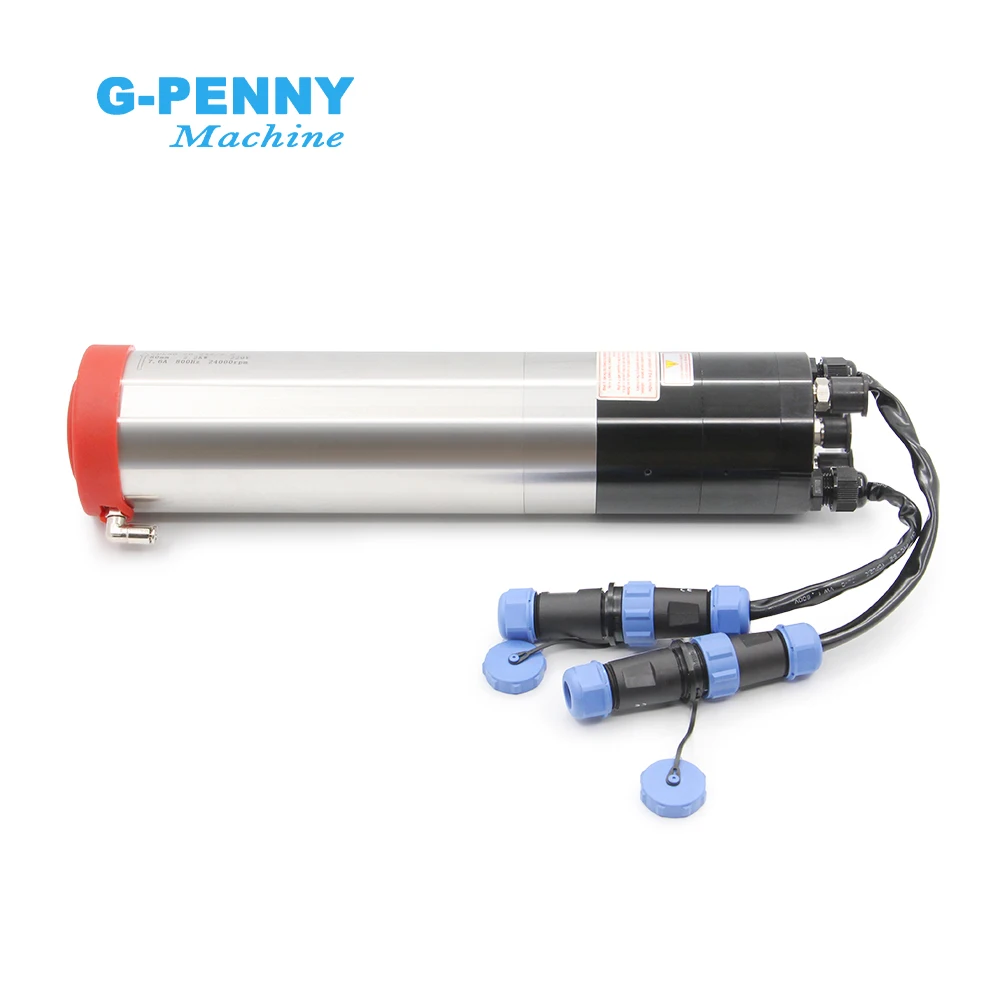

Each interface is equipped with a silicone cover to prevent damage during transportation.
