Product Overview

Description



New Products New Manufacturing
Veterinary monitor Type:VE15


Products Description


Veterinary Monitor is a portable, compact, simple, reliable and durable physiological monitoring device. Including electrocardiogram, heart rate, respiration, blood oxygen, blood pressure, body temperature; Can greatly improve the care of animals; It is widely used in veterinary clinics, research units, and hospitals.


Rich advanced parameters
Innovative modular warehouse design, flflexible expansion
Support CO2,2-IBP
Optional imported Nellcor blood oxygen module, suntech blood pressure module
Multi-parameter fusion
ECG, SpO2 homologous signal fusion analysis, intraoperative cable
Parameter performance is guaranteed even when the contact is poor or the measurement is disturbed
Stable and accurate, better protect animal safety.


Function:

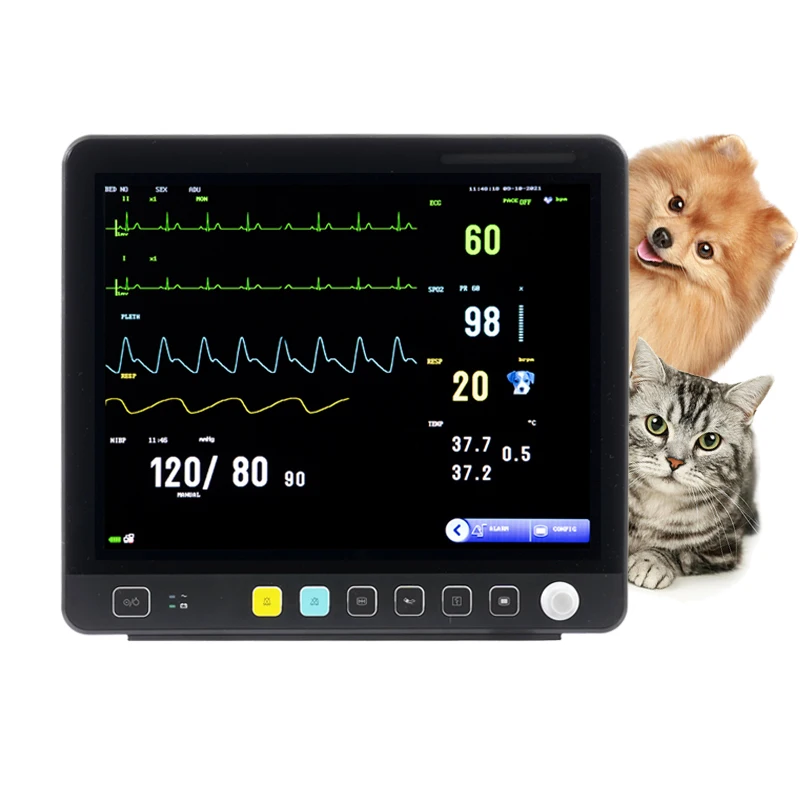

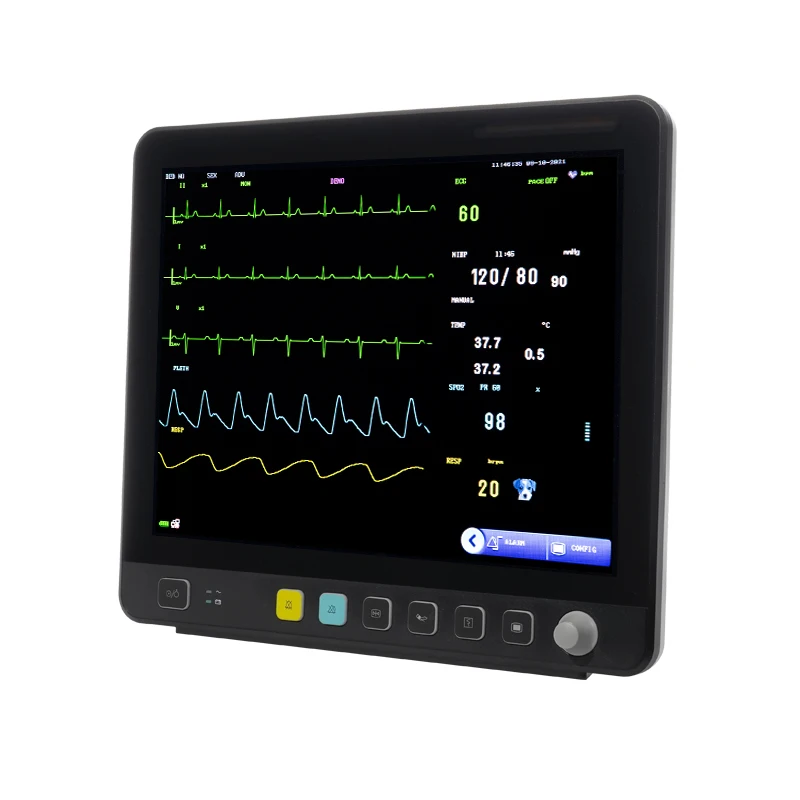

15-inch high-resolution color TET LCD display.
Thinner and lighter in design, convenient and portable for users.
Real-time S-T segment analysis, pacemaker detection.
Various interfaces: standard screen, trend screen, oxy CRG screen, NIBP list screen, big front screen.3-level audio/visual alarms.
Efficient resistance to interference of defibrillator and HF knife.
Up to 400 groups NIBP list, 6000seconds, ECG waveform recall, 60 alarm event records recall, 7-day trend chart in storage.
Built-in rechargeable lithium battery, 2-hour working capability.
Wireless central monitoring system applicable
Language support: English, French, Grape, Polish, Spanish, Italian


ECG
Input
3/5 wire ECG cable
Lead section
I II III aVR, aVL, aVF, V
Gain selection
*0.25, *0.5, *1, *2, Auto
Sweep speed
6.25mm/s, 12.5mm/s, 25mm/s, 50mm/s
Heart rate range
15-30bpm
Calibration
±1mv
Accuracy
±1bpm or ±1% (select the bigger data)
NIBP
Test method
Oscillometer
Philosophy
Adult, Pediatric and Neonate
Measurement type
Systolic Diastolic Mean
Measurement parameter
Automatic, Continuous measurement
Measurement method Manual
mmHg or ±2%
SPO2
Display Type
Waveform, Data
Measurement range
0-100%
Accuracy
±2% (between 70%-100%)
Pulse rate range
20-300bpm
Accuracy
±1bpm or ±2% (select the bigger data)
Resolution
1bpm
2-Temperature (Rectal & Surface)
Number of channels
2 channels
Measurement range
0-50℃
Accuracy
±0.1℃
Display
T1, T2, ☒T
Unit
ºC/ºF selection
Refresh cycle
1s-2s
Respiration (Impedance & Nasal Tube)
Measurement type
0-150rpm
Accuracy
±1bm or ±5%, select the bigger data
Resolution
1rpm
Packing Information
Packing size
37*37*28cm
N.W.
6kg
G.W.
7kg





Size: 15inch
Weight: 6kg
Electrical Specification: 100-240v AC, 50/60Hz, Max Input Power: 70VA
Battery: 11.1V 2200mAh rechargeable
lithium battery.
Standard configuration: SpO2, PR, NIBP, ECG, RESP, TEMP
Optional Configuration: Nellcor SpO2, 2-IBP, ETCO2, Touch screen, Built-in Thermal Printer.

Package Include: 1 x device 1 x Li-Battery 1 x Power line 1 x Earth wire 1 x User’s Manual 1 x Blood oxygen probe (for SpO2, PR) 1x Blood pressure cuff (for NIBP) 1 x ECG cable (for ECG, RESP) 1xTemperature probe (for Temperature)
