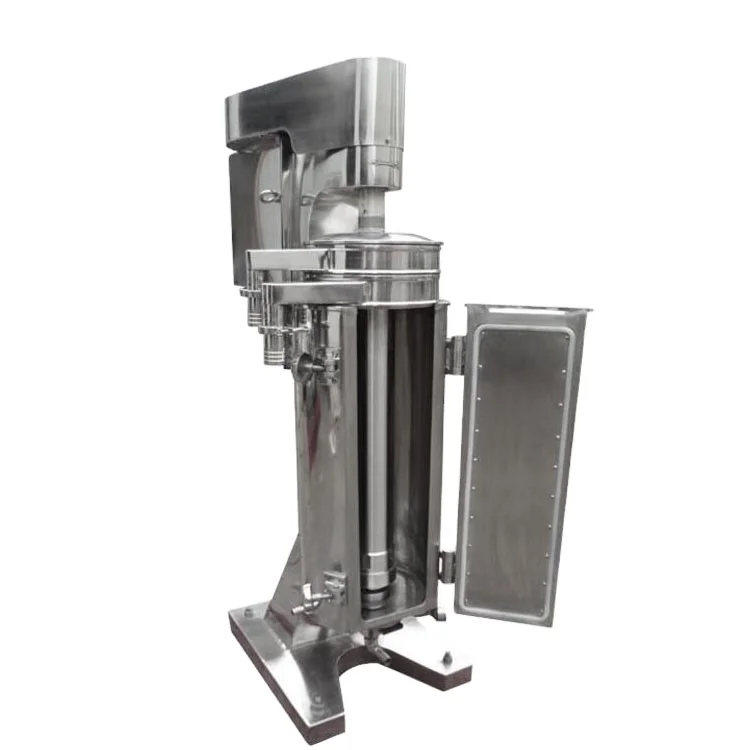

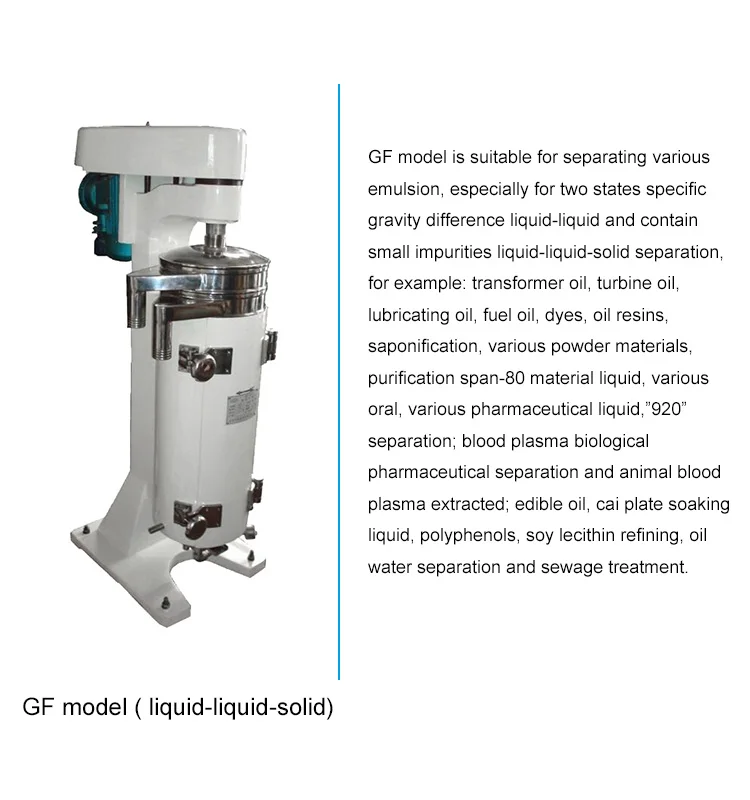

GF75 GF105 tubular type centrifuge separator for coconut oil
- Category: >>>
- Supplier: Liaoning SINOPES Machinery Co. Ltd
Share on (1600629039796):
Product Overview
Description
butular centrifuge
Product Description
Technical Parameters
| Item | GQ(F)L45 | GQ(F)L75 | GQ(F)L105 | GQ(F)L125 | |
| Drum | Inner diameter (mm) | 45 | 75 | 105 | 124 |
| Effective height(mm) | 280 | 430 | 730 | 735 | |
| sediment capacity(L) | 0.45 | 2 | 5.5 | 7.5 | |
| Rotating speed(r/min) | 28000 | 20000 | 16000 | 15000 | |
| Separating factor | 19800 | 16770 | 15025 | 15500 | |
| Material inlet pressure (Mpa) | >0.05 | >0.05 | >0.05 | >0.05 | |
| Production capacity(Kg/h) | ~100 | ~500 | ~1000 | ~2000 | |
| Motor | Item | Universal motor | Y90S-2 | Y90L-2 | Y(B)112M-2-B5 |
| Power(Kw) | 0.6 | 1.5 | 2.2 | 4.0 | |
| Rotating speed(r/min) | 4500 | 2840 | 2880 | 2890 | |
| Heat dissipation | 580×650×750 | 950×1230×1600 | 950×1230×1600 | 1010×510×1715 | |
| Weight(Kg) | 120 | 300 | 400 | 565 | |
| Cooling tube | Heat dissipation | 0.5 | 0.5 | 1.3 | |
| Loading pressure (Mpa) | 1 | 1 | 1 | ||
