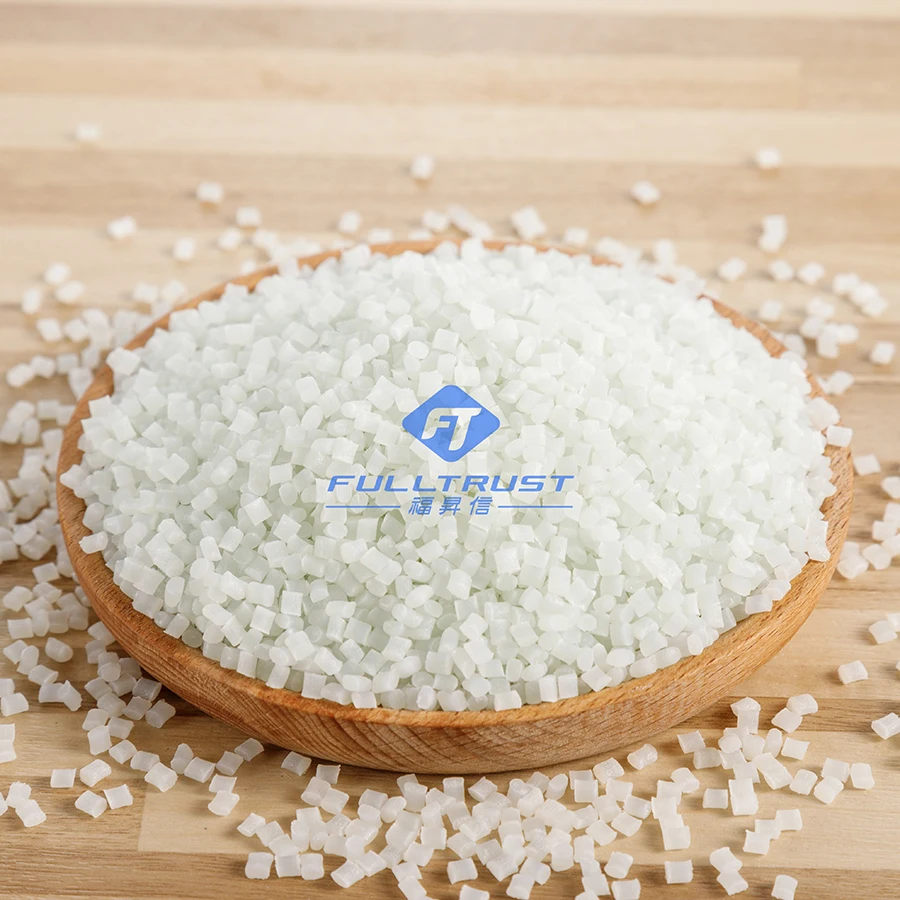

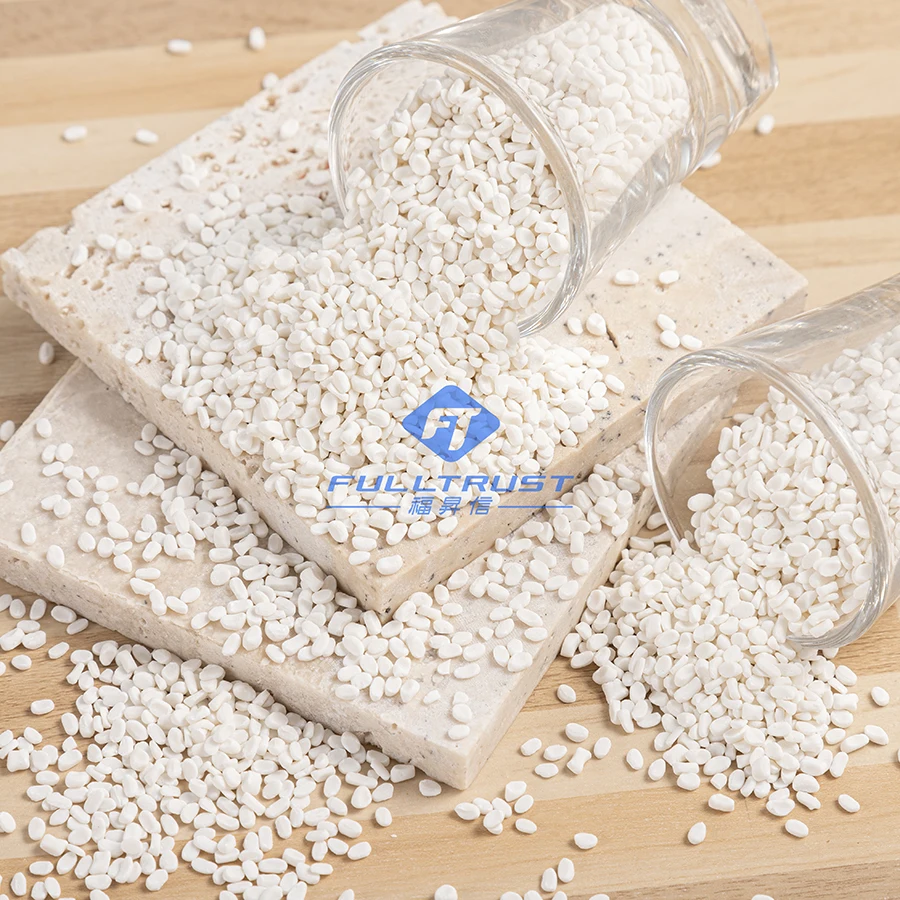

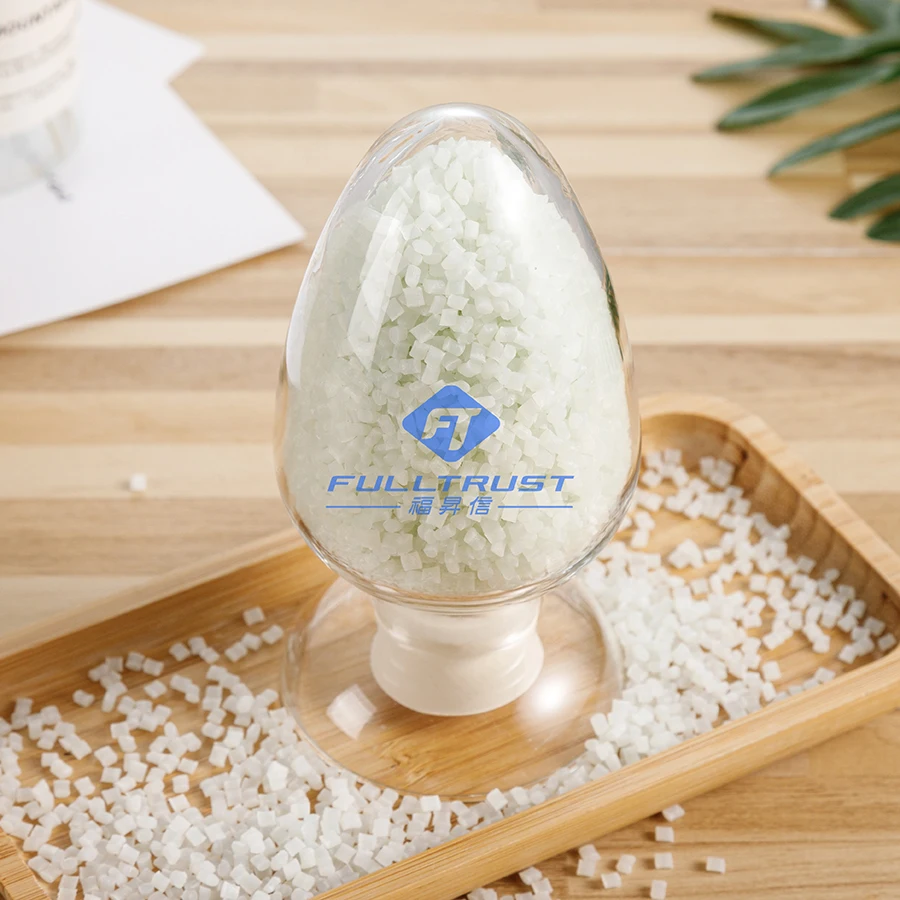

Flame retardant material PPO V0 granules gappo polymers SABIC GTX6203
- Category: PPO >>>
- Supplier: Jiaxing Fulltrust Plastic Co. Ltd.
Share on (1600629129709):
Product Overview
Description
Physical Properties | Metric | English |
Specific Gravity | 1.25 g/cc | 1.25 g/cc |
Density | 1.24 g/cc | 0.0448 lb/in³ |
Moisture Absorption | 0.0700 % | 0.0700 % |
1.10 % | 1.10 % | |
Water Absorption at Saturation | 3.2 % | 3.2 % |
Viscosity | 20 cP @Load 5.00 kg, Temperature 280 °C | 20 cP @Load 11.0 lb, Temperature 536 °F |
Linear Mold Shrinkage, Flow | 0.0060 - 0.0090 cm/cm @Thickness 3.20 mm | 0.0060 - 0.0090 in/in @Thickness 0.126 in |
Linear Mold Shrinkage, Transverse | 0.0060 - 0.0090 cm/cm @Thickness 3.20 mm | 0.0060 - 0.0090 in/in @Thickness 0.126 in |
Melt Flow | 20 g/10 min @Load 5.00 kg, Temperature 280 °C | 20 g/10 min @Load 11.0 lb, Temperature 536 °F |
Mechanical Properties | Metric | English |
Tensile Strength at Break | 60.0 MPa | 8700 psi |
65.0 MPa | 9430 psi | |
Tensile Strength, Yield | 60.0 MPa | 8700 psi |
65.0 MPa | 9430 psi | |
Elongation at Break | 3.0 % | 3.0 % |
10 % | 10 % | |
10 % | 10 % | |
Elongation at Yield | 2.5 % | 2.5 % |
3.0 % | 3.0 % | |
Tensile Modulus | 4.60 GPa | 667 ksi |
4.90 GPa | 711 ksi | |
Flexural Strength | 90.0 MPa | 13100 psi |
100 MPa | 14500 psi | |
Flexural Modulus | 3.80 GPa | 551 ksi |
4.00 GPa | 580 ksi | |
Izod Impact Notched | 60.0 J | 44.3 ft-lb |
50.0 J @Temperature -30.0 °C | 36.9 ft-lb @Temperature -22.0 °F | |
Izod Impact, Notched (ISO) | 6.00 kJ/m² | 2.86 ft-lb/in² |
5.00 kJ/m² @Temperature -30.0 °C | 2.38 ft-lb/in² @Temperature -22.0 °F | |
Izod Impact, Unnotched (ISO) | 50.0 kJ/m² | 23.8 ft-lb/in² |
Charpy Impact, Notched | 0.500 J/cm² | 2.38 ft-lb/in² |
Dart Drop, Total Energy | 10.0 J | 7.38 ft-lb |
