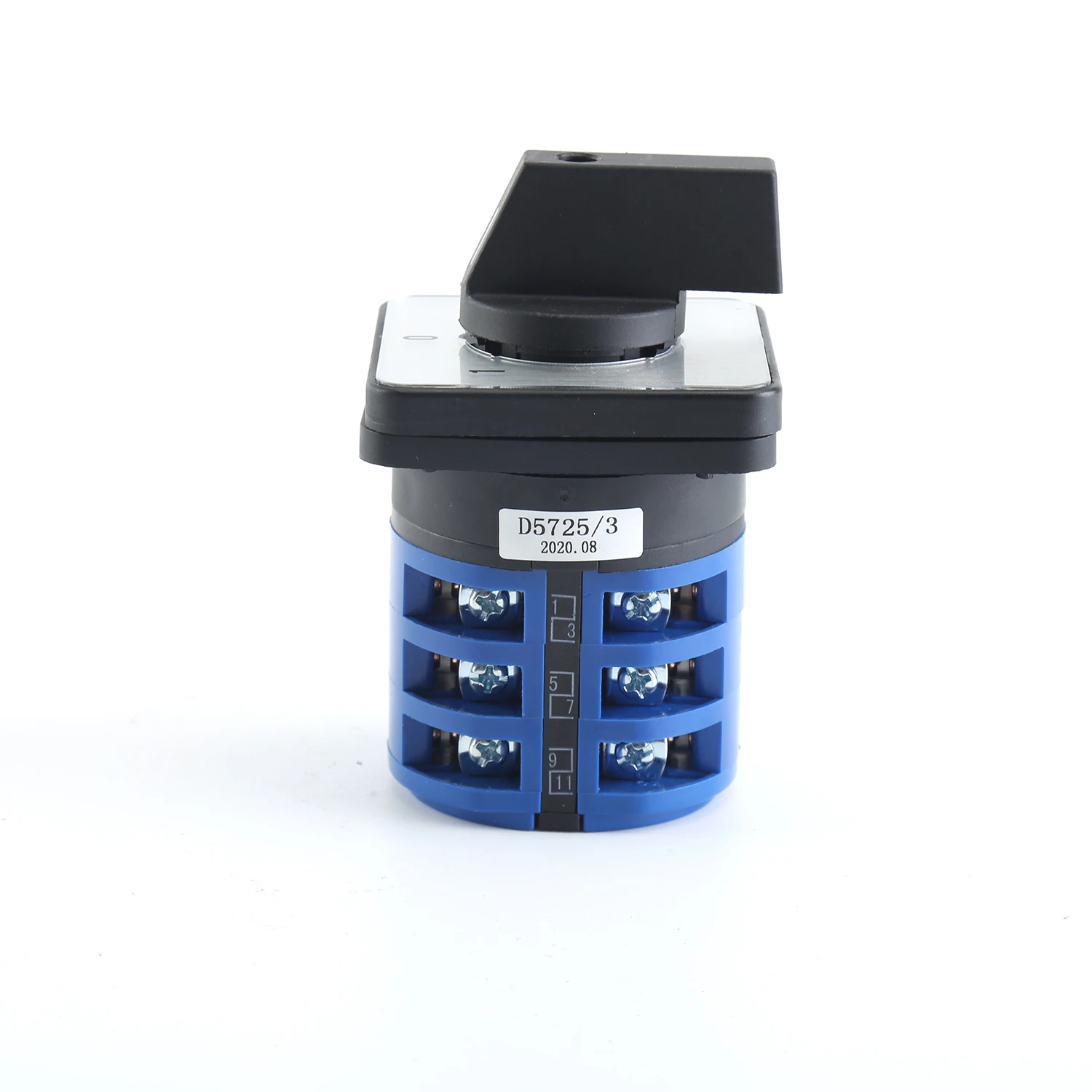

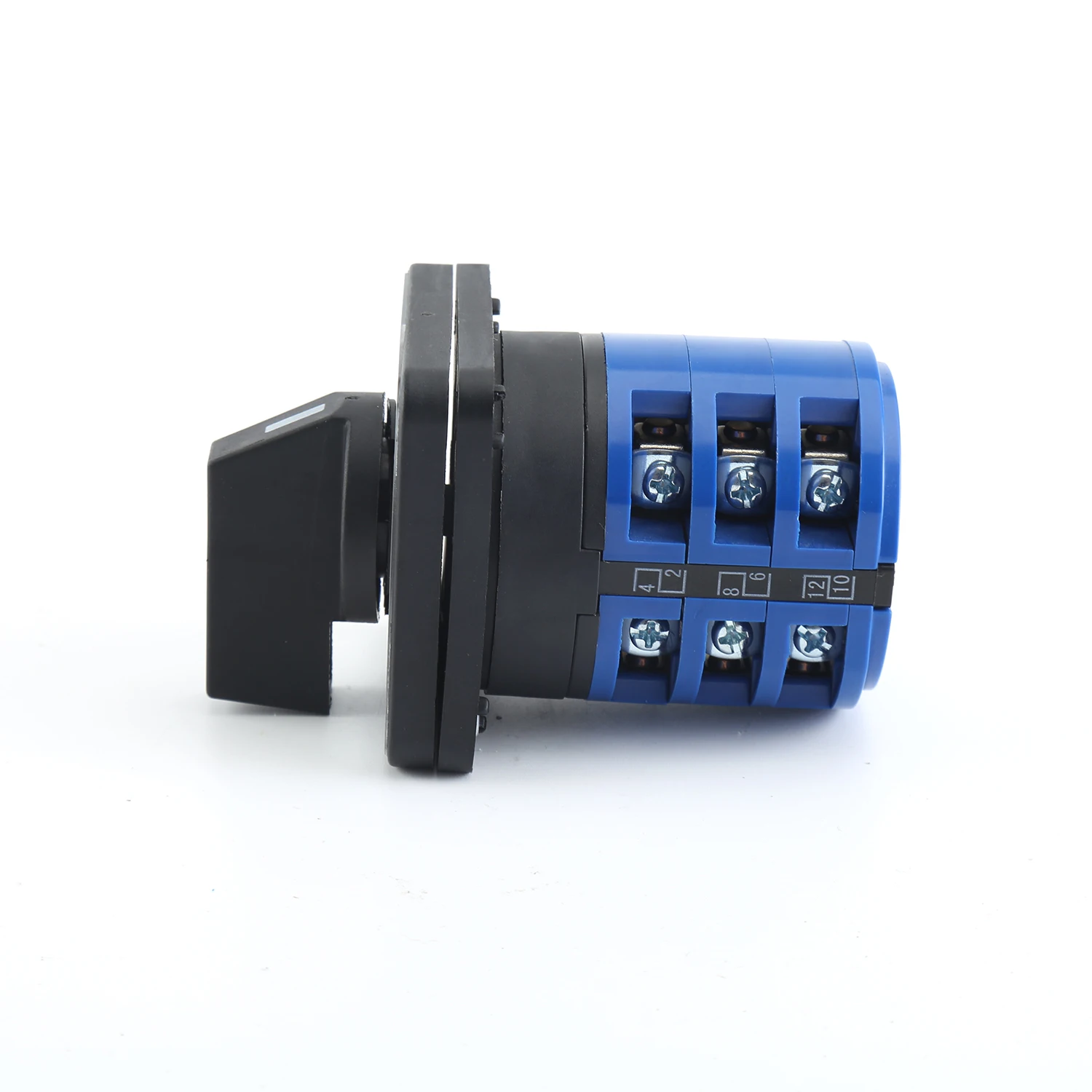

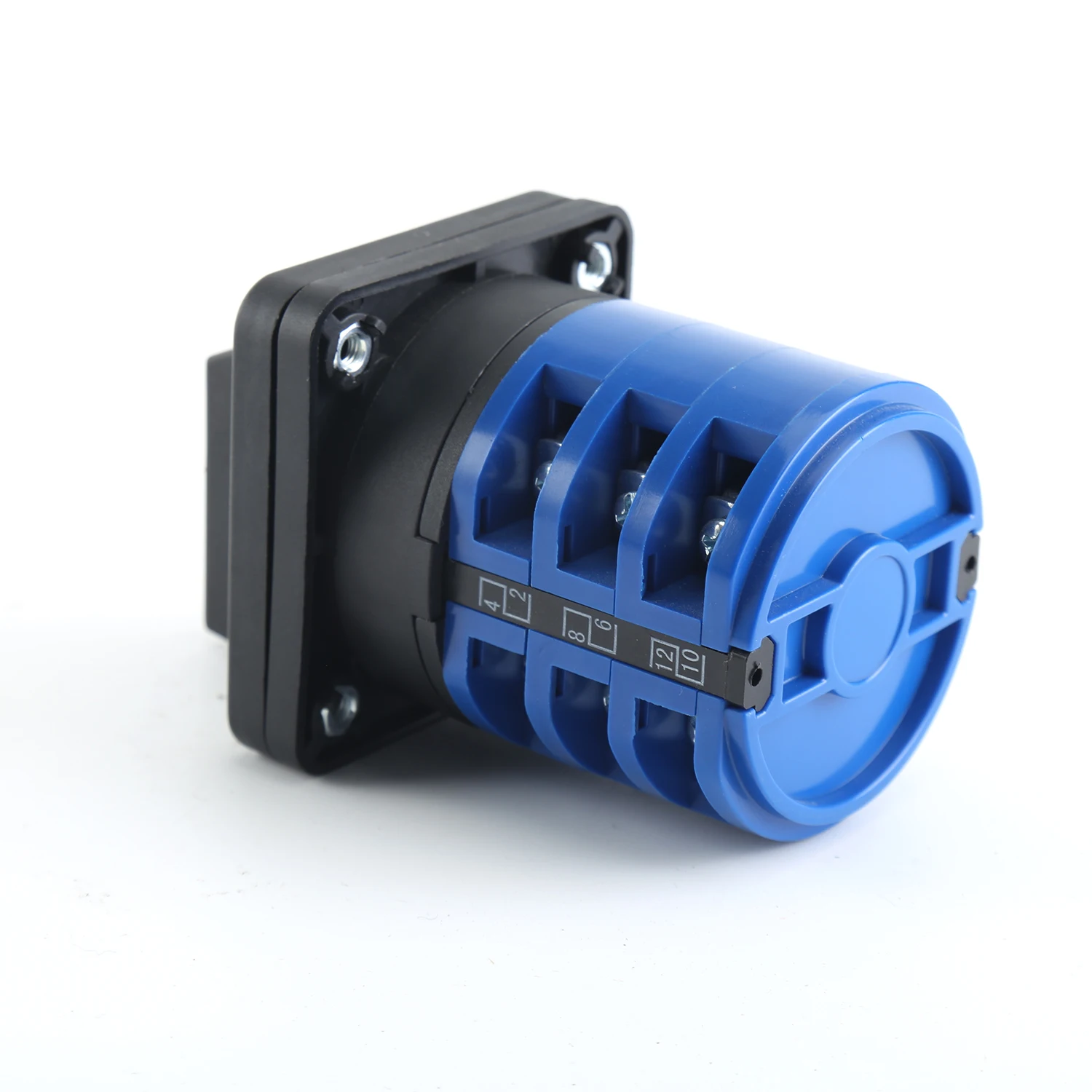

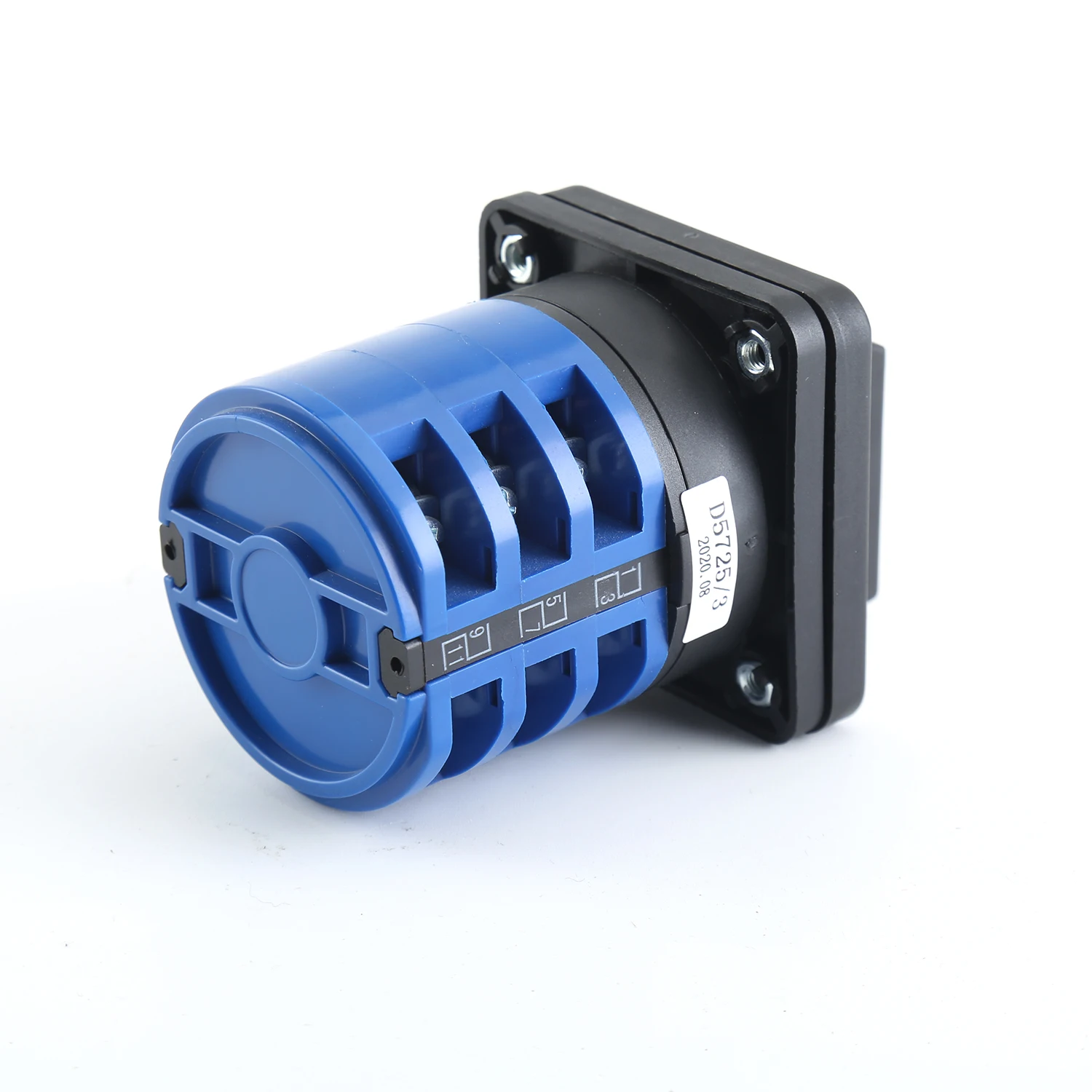

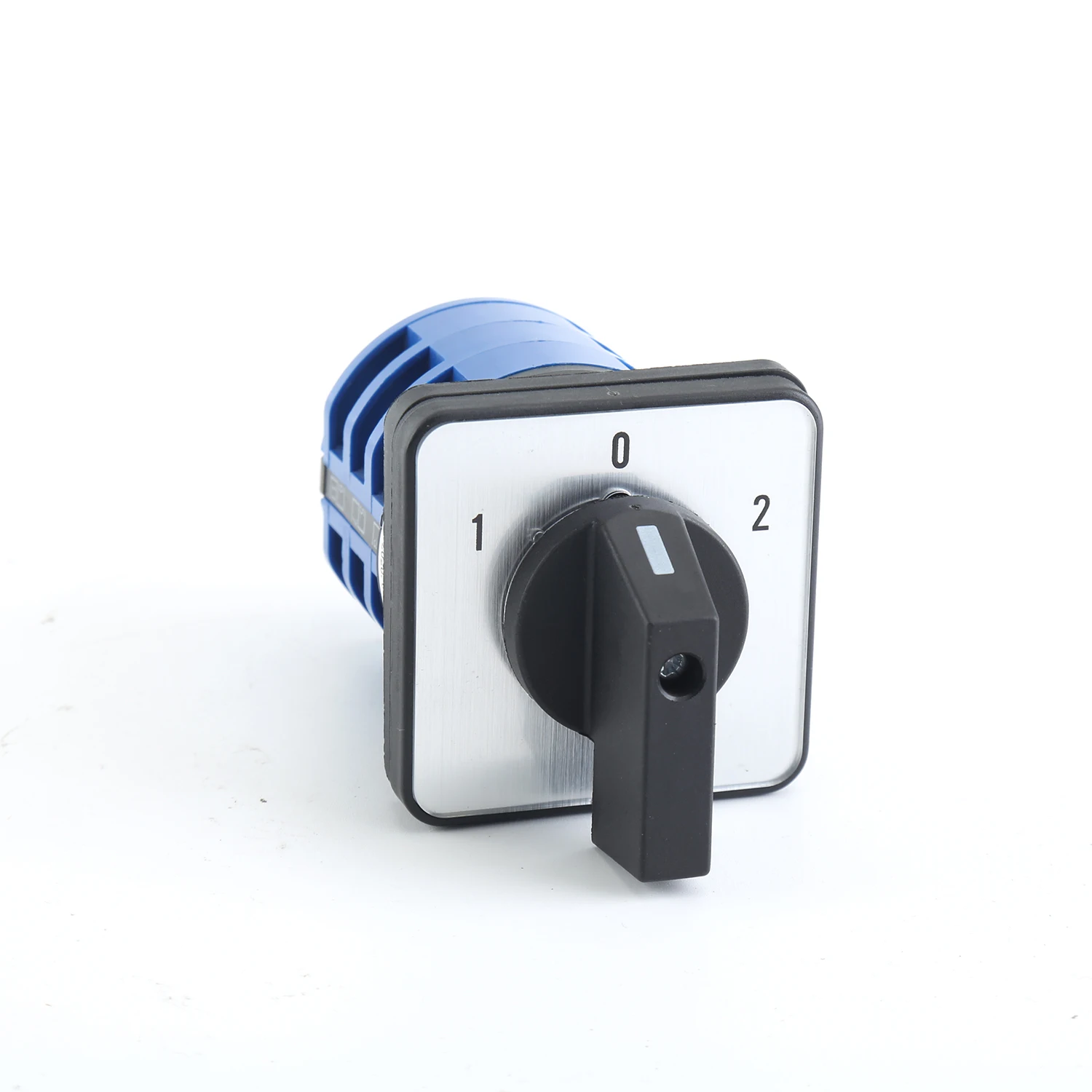

Factory supply LW26 32 32A selector universal changeover rotary cam switch
- Category: >>>
- Supplier: Wenzhou Longqi New Energy Technology Co. Ltd.
Share on (1600629148145):
Product Overview
Description
Product introducti on
LW26 series rotary switch is mainly suitable for AC 440V 50Hz and below following circuits. It is used for circuit opening, closing and switching under non-frequent manual operation. Typical applications are: three-phase motor control switchgear, instrument control switches, machinery and welder transfer switches. This series of products meet the requirements of GB 14048.5 and IEC 60947-5-1.
Lw26 series has 8 currents etc.: 10A, 20A, 25A, 32A, 40A, 63A, 125A, 160A
They are designed for multiple functions and a wide range of applications. LW26-10, LW26-20, LW26-25 have finger protection terminals. The LW26 series rotary switches are replacements for most transfer switches. There are two derivatives of the LW26 series rotary switches, the LW26GS padlock type and the LW26S key lock type. They are all suitable for circuits that require physical control. We can be equipped with a protective box (IP65) from 20A to 160A.

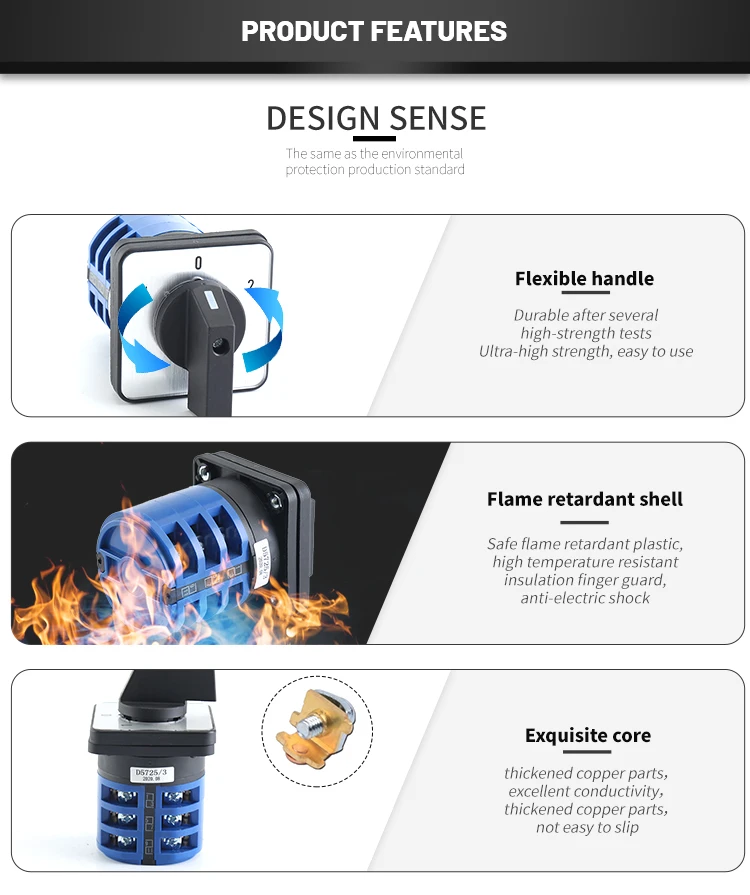

Product Features
The ambient air temperature does not exceed +40°C. And the average temperature within 24h does not exceed +35C:
The lower limit of ambient air temperature does not exceed - 25°C;
The altitude of the installation site shall not exceed 2000m;
When the maximum temperature is + 40°C, the relative humidity of the air does not exceed 50%, and a higher relative humidity can be allowed at lower temperatures, such as 90% at 20°C. Special measures should be taken for occasional condensation due to temperature changes.
Technical parameters
LW26 series rotary switch is mainly suitable for AC 440V 50Hz and below following circuits. It is used for circuit opening, closing and switching under non-frequent manual operation. Typical applications are: three-phase motor control switchgear, instrument control switches, machinery and welder transfer switches. This series of products meet the requirements of GB 14048.5 and IEC 60947-5-1.
Lw26 series has 8 currents etc.: 10A, 20A, 25A, 32A, 40A, 63A, 125A, 160A
They are designed for multiple functions and a wide range of applications. LW26-10, LW26-20, LW26-25 have finger protection terminals. The LW26 series rotary switches are replacements for most transfer switches. There are two derivatives of the LW26 series rotary switches, the LW26GS padlock type and the LW26S key lock type. They are all suitable for circuits that require physical control. We can be equipped with a protective box (IP65) from 20A to 160A.
Product Features
The ambient air temperature does not exceed +40°C. And the average temperature within 24h does not exceed +35C:
The lower limit of ambient air temperature does not exceed - 25°C;
The altitude of the installation site shall not exceed 2000m;
When the maximum temperature is + 40°C, the relative humidity of the air does not exceed 50%, and a higher relative humidity can be allowed at lower temperatures, such as 90% at 20°C. Special measures should be taken for occasional condensation due to temperature changes.
Technical parameters
Regu1 at i on | LW26-32 | ||||
Rated insulation vo1tage | 660/690 | ||||
Rated cur rent | 32 | ||||
Rated working vo1tage | 240 | 440 | |||
Rated working cur rent | |||||
AC-21A | 32 | 32 | |||
AC-23A | 30 | 30 | |||
AC-2 | 30 | 30 | |||
AC-3 | 22 | 22 | |||
AC-4 | 1 1 | 1 1 | |||
AC-15 | 44 | 6 | |||
AC-13 | / | / | |||
Power | |||||
AC-23A | 7. 5/4 | 15/7. 5 | |||
AC-2 | 7. 5 | 15 | |||
AC-3 | 5. 5/4 | 1 1/5. 5 | |||
AC-4 | 2. 7/1.5 | 5. 5/3 | |||

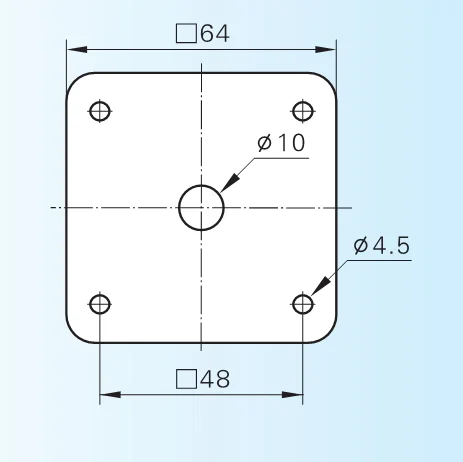

Install at ion and size
Universal transfer switch contact diagrams
number | LW26-32/4.0414.2（202/2) | |||||
Angle | 45° | 0° | 45° | |||
↖ | ↑ | ↗ | ||||
Panel label | 1 | 0 | 2 | |||
1-2 | X | |||||
3-4 | X | |||||
5-6 | X | |||||
7-8 | X | |||||
number | LW26-32/4.0723.3 | |||||
Angle | 45° | 0° | 45° | |||
↖ | ↑ | ↗ | ||||
Panel label | 1 | 0 | 2 | |||
1-2 | X | |||||
3-4 | X | |||||
5-6 | X | |||||
7-8 | X | |||||
9-10 | X | |||||
11-12 | X | |||||
number | LW26-32/4.1050.4 | |||||
Angle | 45° | 0° | 45° | |||
↖ | ↑ | ↗ | ||||
Panel label | 1 | 0 | 2 | |||
1-2 | X | |||||
3-4 | X | |||||
5-6 | X | |||||
7-8 | X | |||||
9-10 | X | |||||
11-12 | X | |||||
13-14 | X | |||||
15-16 | X | |||||
Q: Is OEM available?
A: Yes, OEM and customization are available. Also, we can provide label printing service.
Q: Are samples available?
A: Free samples are available while freight is chargeable.
Q: What is your payment terms?
A: T/T,L/C,D/A,D/P,Paypal for different circumstances.
Q: What's your delivery way?
A: Express delivery, air shipping, sea shipping are available for your request.
Q: What's your delivery time?
A: Usual delivery time is 5-10days after recieving the advance payment;
For the customized product, 15-30 days after receiving the advance payment.
A: Yes, OEM and customization are available. Also, we can provide label printing service.
Q: Are samples available?
A: Free samples are available while freight is chargeable.
Q: What is your payment terms?
A: T/T,L/C,D/A,D/P,Paypal for different circumstances.
Q: What's your delivery way?
A: Express delivery, air shipping, sea shipping are available for your request.
Q: What's your delivery time?
A: Usual delivery time is 5-10days after recieving the advance payment;
For the customized product, 15-30 days after receiving the advance payment.
