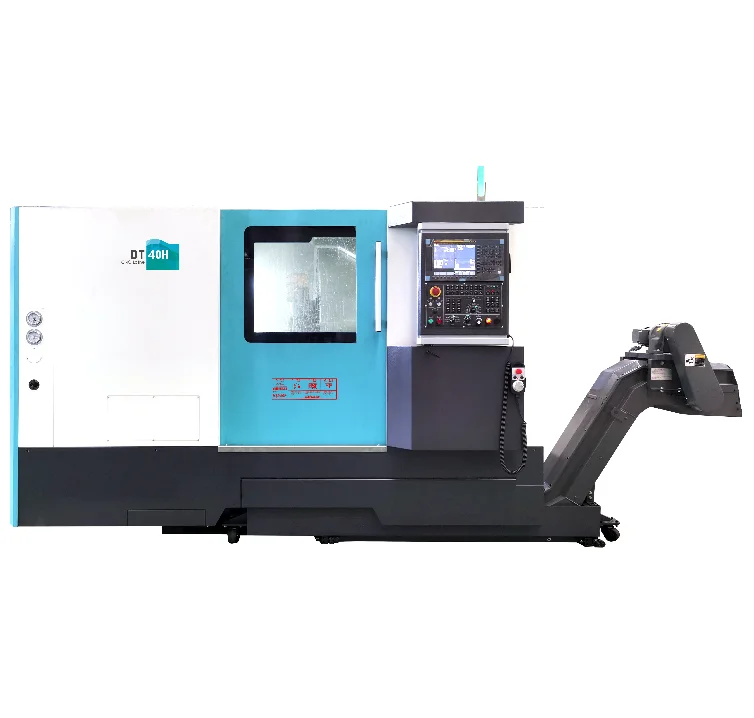

DT-40H 3 axis CNC turning center
Recommended Lathes
DT-30H 3 axis CNC turning center
Brief Introduction
The turning center is equipped with continuous and effective linear roller guide rail and ball screw automatic lubrication, automatic chip removal and forced cooling, to ensure long-term uninterrupted work machine, spindle maximum speed of 4000r/min, fast moving speed X-axis 30m/min, Z-axis 30m/min, the tool changing time is only 0.31 s.
The machine is totally enclosed to avoid the leakage of iron filings and coolant. The self-diagnosis and warning of all kinds of limit protection coordination system can ensure the continuous work of the machine without stopping.

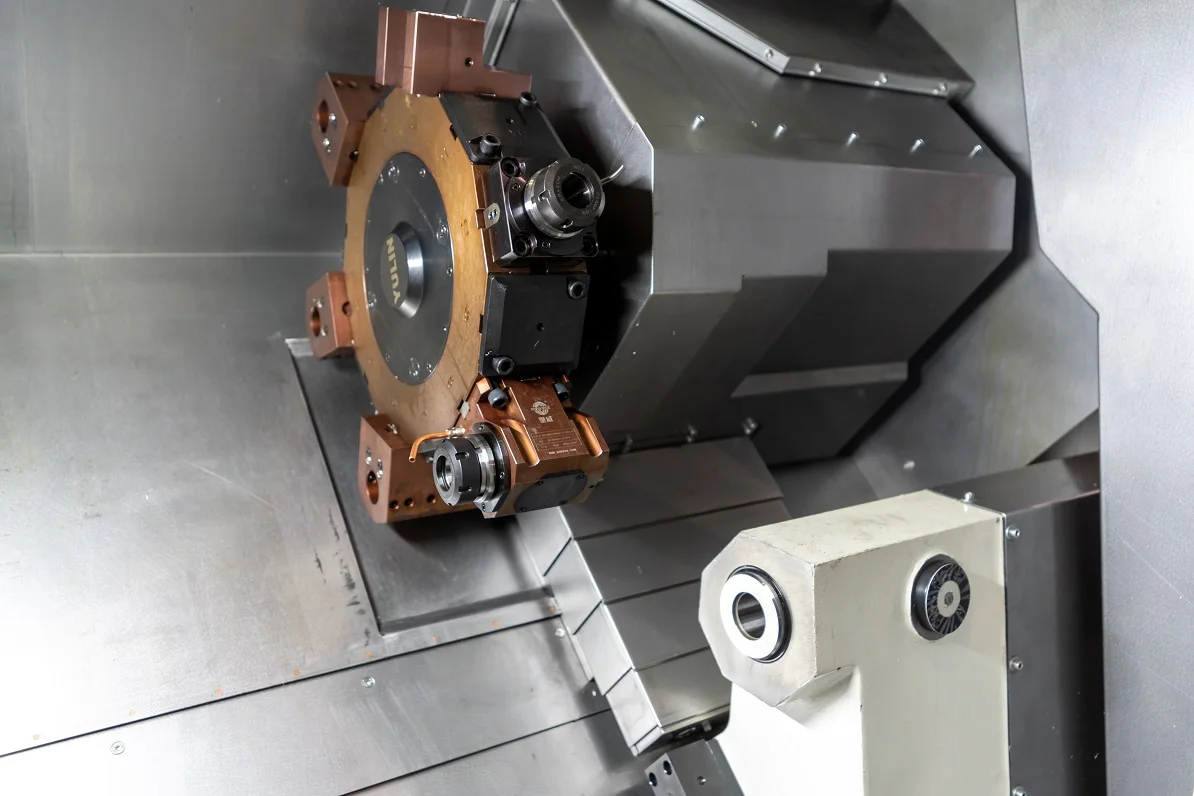

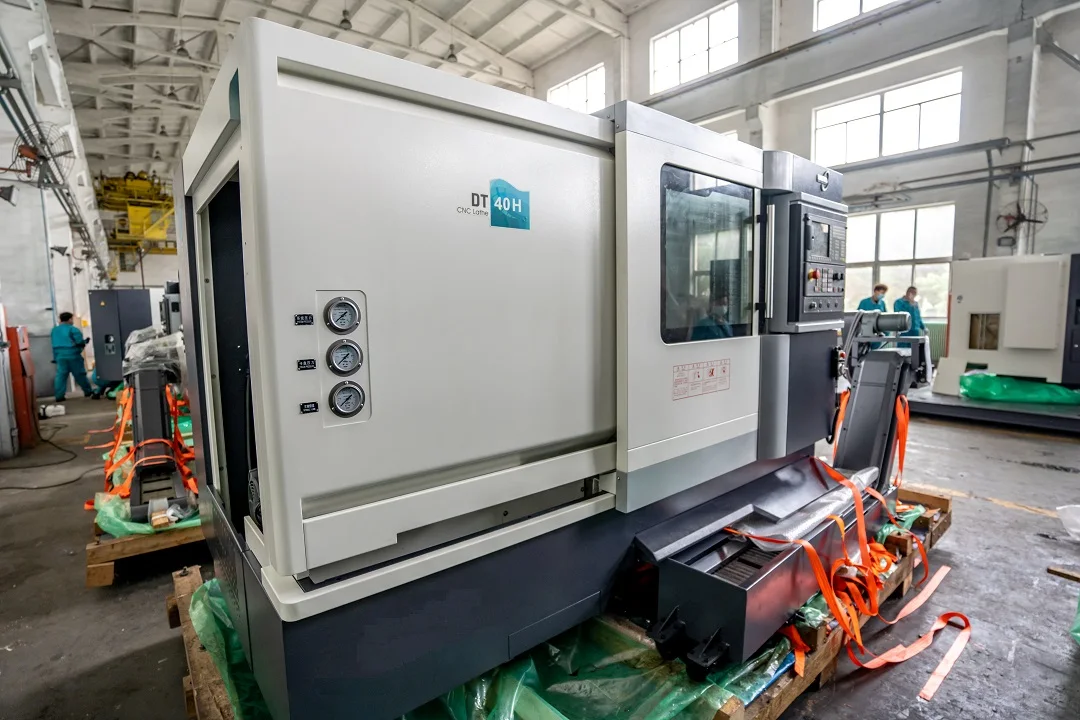

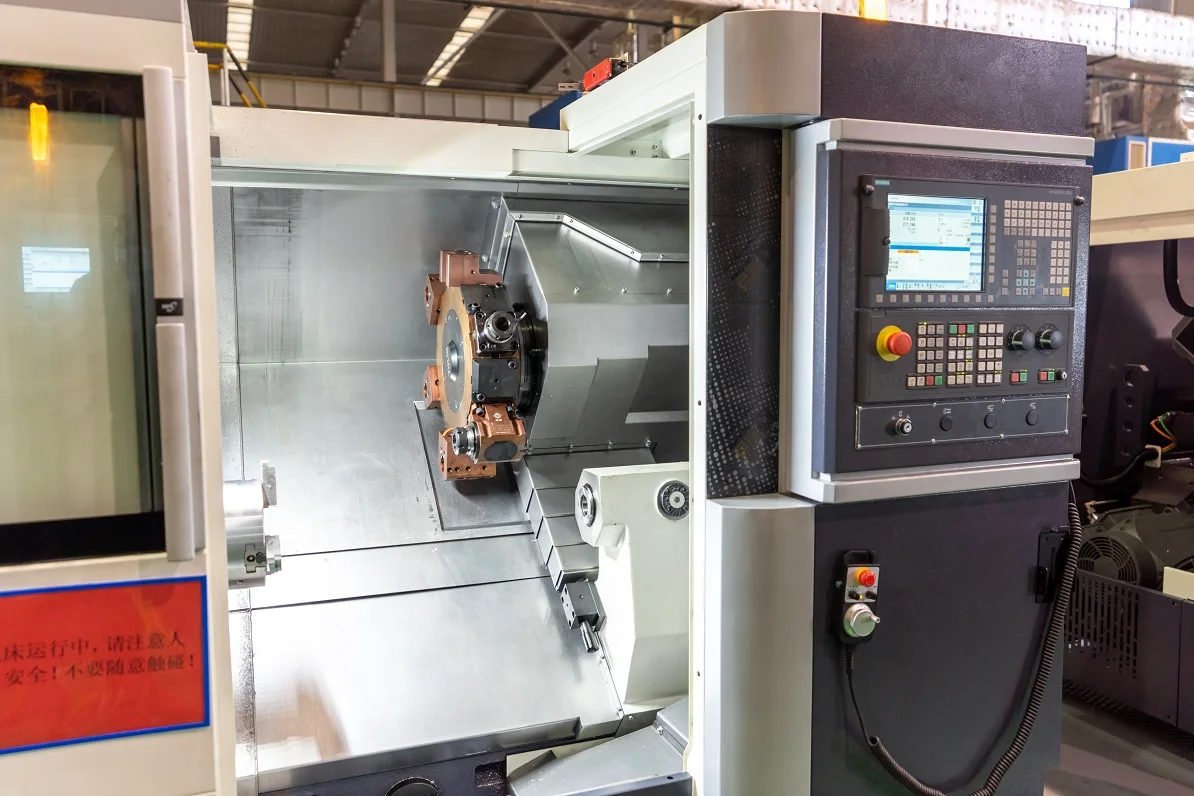

Detail Photos
Main Technical Data
Specifications | Unit | Parameter |
Max. swing over bed | mm | Φ580 |
Max. turning diameter(Shafts/ Discs) | mm | Φ350/350 |
Max. turning length | mm | 585/1085 |
Guide way type(X/Y/Z-axis) |
| Linear guide ways |
Spindle nose |
| A2-6 Opt.A2-8 |

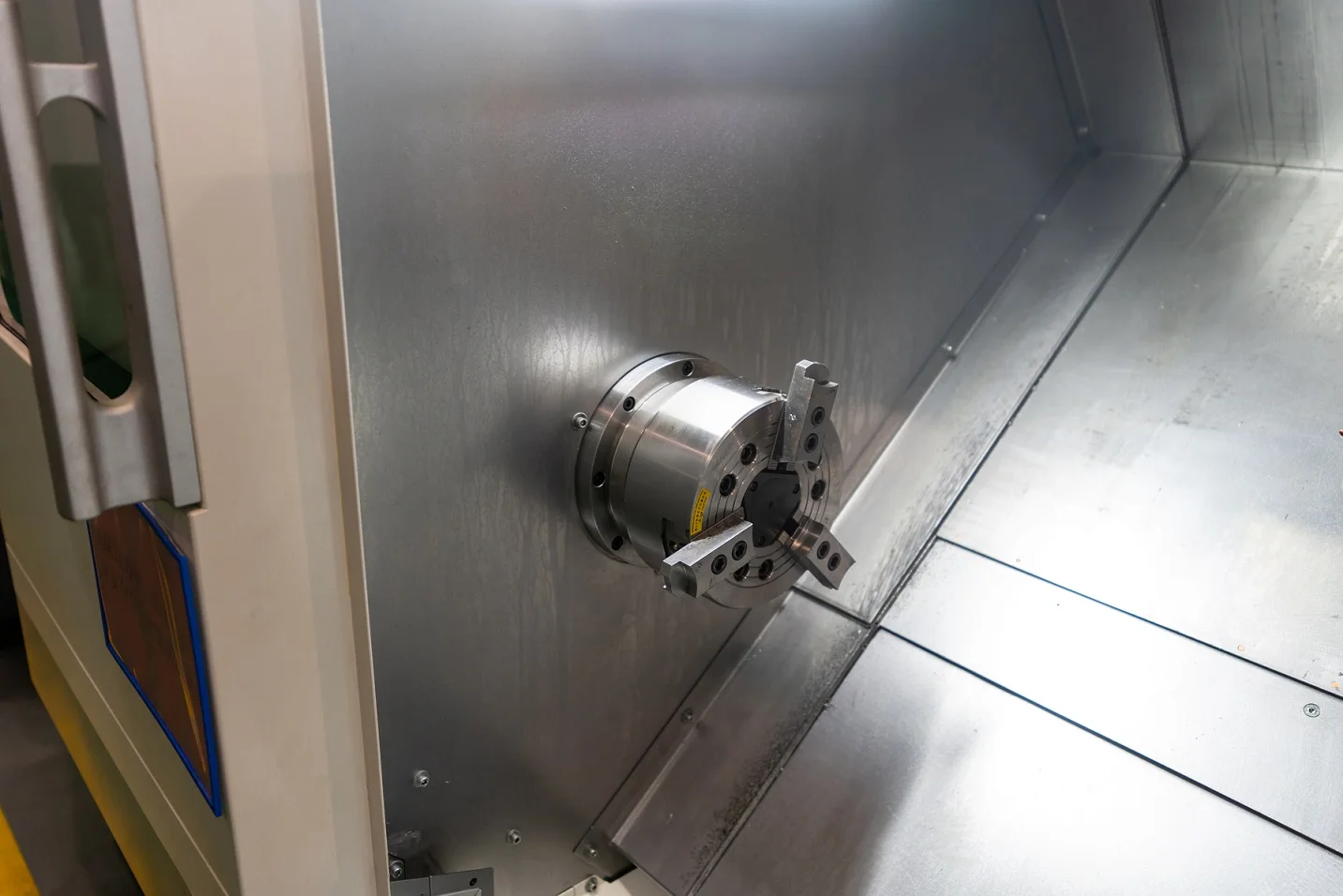

Chuck size | inch | 8"/10" |
Spindle speed range | rpm | 4000/3500 |
Spindle bore diameter | mm | Φ70/Φ87 |
Max. bar capacity(equipped with through-hole hydraulic chuck) | mm | Φ51/Φ73 |
Main spindle motor power | kW | 11/15 |
Max. travel of X-axis | mm | 215 |
Max. travel of Z-axis | mm | 445/945 (ITALY tool turret) 555/1055(CHINA tool turret) |
Rapid travel of X/Y/Z-axis | mm/min | 30/30/30 |
Turret type and tool numbers |
| Live tooling 12-postion turret |
Tool shank size | mm | 25x25 |
Indexing time (adjacent/farthest) | s | 0.49/0.96(ITALY tool turret) |
Tailstock quill diameter | mm | Φ85 |
Tailstock quill travel | mm | 500/960 |
Tailstock quill thrust | N | 940~2700 |
Tailstock taper |
| MT.NO.5 |

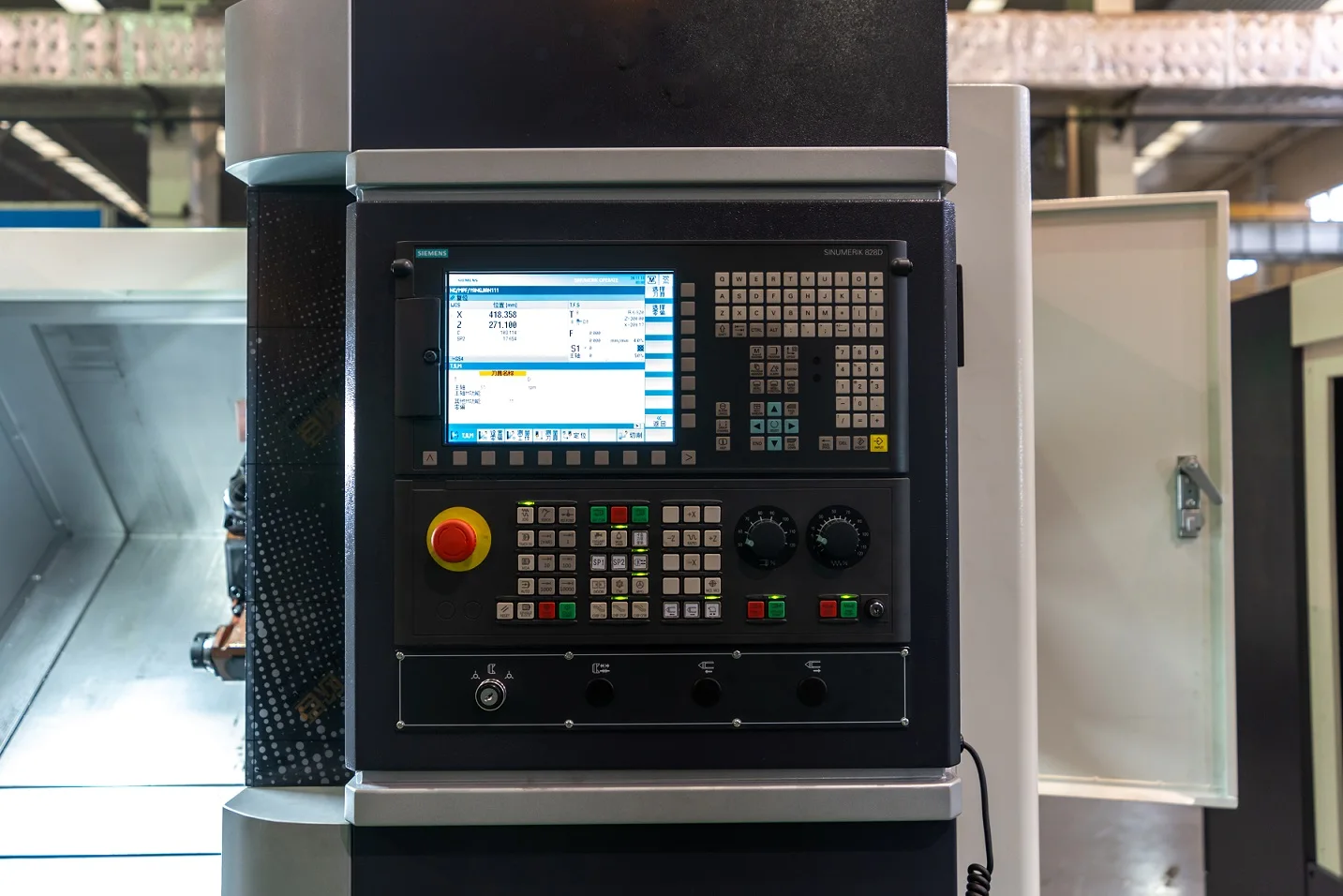

CNC controller |
| FANUC 0i TF(5) plus, FANUC 0i TF(1) plus, SIEMENS SINUMERIK 828D |
Positioning accuracy | mm | X-axis:0.005 / Y/Z -axis:0.007(600) X-axis:0.005/ Y/Z -axis:0.008(1000) C -axis: 63’’ |
Repeat positioning accuracy | mm | X-axis: 0.003/ Y/Z -axis:0.004(600) X-axis:0.003/ Y/Z -axis:0.005(1000) C -axis: 25’’ |
Reverse differential | mm | X-axis:0.007/ Y/Z -axis:0.007(600) X-axis:0.007/ Y/Z axis:0.008(1000) C -axis: 25’’ |
Power tool turret speed | r/min | 5000 (ITALY tool turret) 4000(CHINA tool turret) |
Powerful tool motor power | kW | According to the system configuration |
Hydraulic oil tank volume | L | 45 |
Hydraulic pump motor power | kW | 1.5 |
Cooling tank volume | L | 500 |
Cooling pump motor power | W | 550 |
Machine size: LxWxH (without chip conveyor) | mm | 2922x1900x2010(600) 3422x1900x2010(1000) |
Net weight of machine | kg | 5300/6300 |
Note: width increases by 1190 when equipped with rear chip conveyor, length increases by 1190 when equipped with side conveyor | ||
Free Std Accessories
1.40°overall inclined bed,
2. spindle Stepless Speed,
3.8″hydraulic Solid chuck,
4. 12-station hydraulic turret,
5. Hydraulic tailstock,
6. Lateral waste device
7.Closed-end protection,
8. Linear guideway;

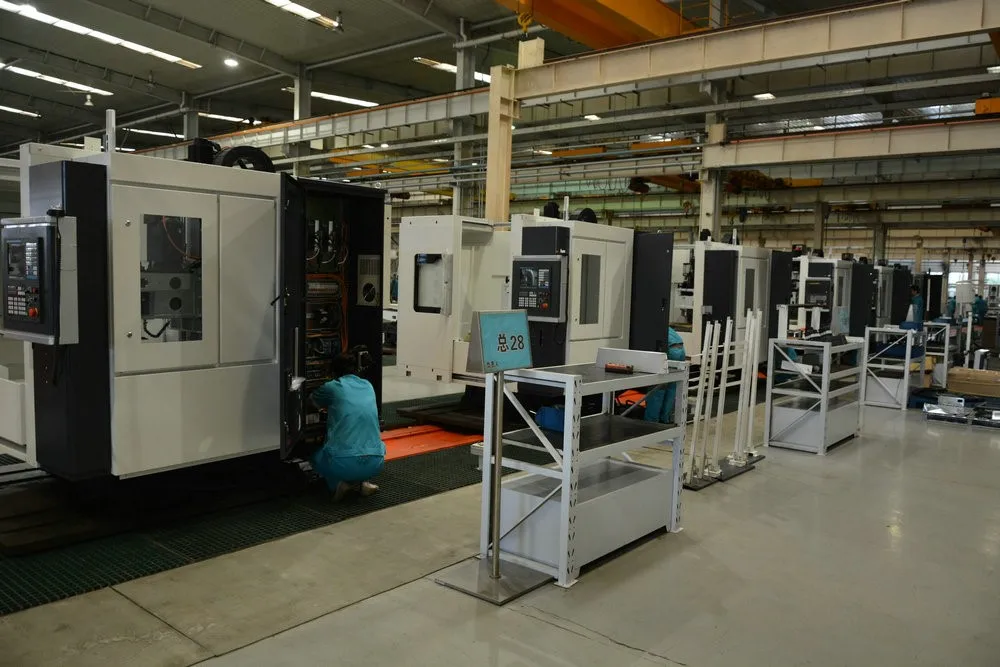

Factory Overview
