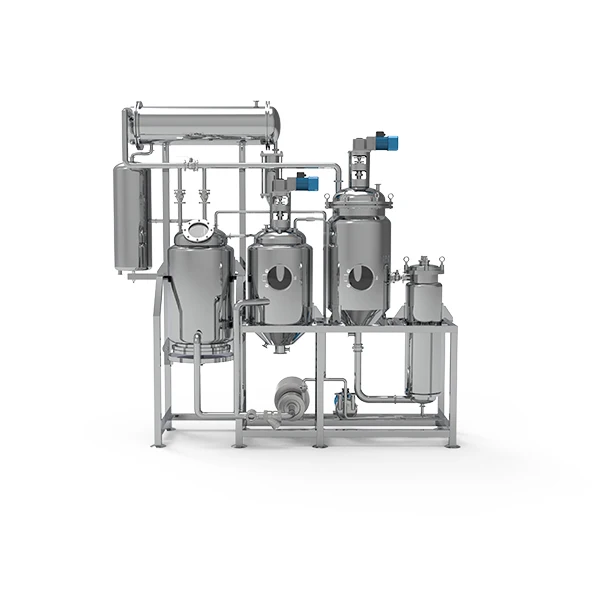

Stainless Steel Cbd Oil Essential Oil Herbal Hemp Extract Machine Extraction Equipment
- Category: >>>
- Supplier: ZHEJIANG LEADTOP PHARMACEUTICAL MACHINERY CO. LTD
Share on (1600629193485):
Product Overview
Description
The Marked Prices Of Our Products Are All Range Prices Of The Entire Product Series.
If You Need a Detailed Quotation, Please Send An Inquiry At The Bottom Of The Page.
Attention:
--- All prices and parameters shown above are automatically generated by the system, if you want to know the exact
information,please click "Contact Supplier" to send mail to us.
--- Because of the time difference, we suggest that you can choose to send us an inquiry instead of online chat.
--- When sending us an enquiry or message, please tell us your Email or WhatsApp/Wechat/Skype .etc, then our sales manager can
contact you quickly.
information,please click "Contact Supplier" to send mail to us.
--- Because of the time difference, we suggest that you can choose to send us an inquiry instead of online chat.
--- When sending us an enquiry or message, please tell us your Email or WhatsApp/Wechat/Skype .etc, then our sales manager can
contact you quickly.
Products Description
Traditional Chinese Medicine Hot Backset Current Low Temperature Draw Low Temperature Concentrate Unit Comprehensive Backset Current, Ooze And Filter Drawing, Adverse Current And Hot Backset Current Extraction And Concentrate Four Kinds Of Principles.

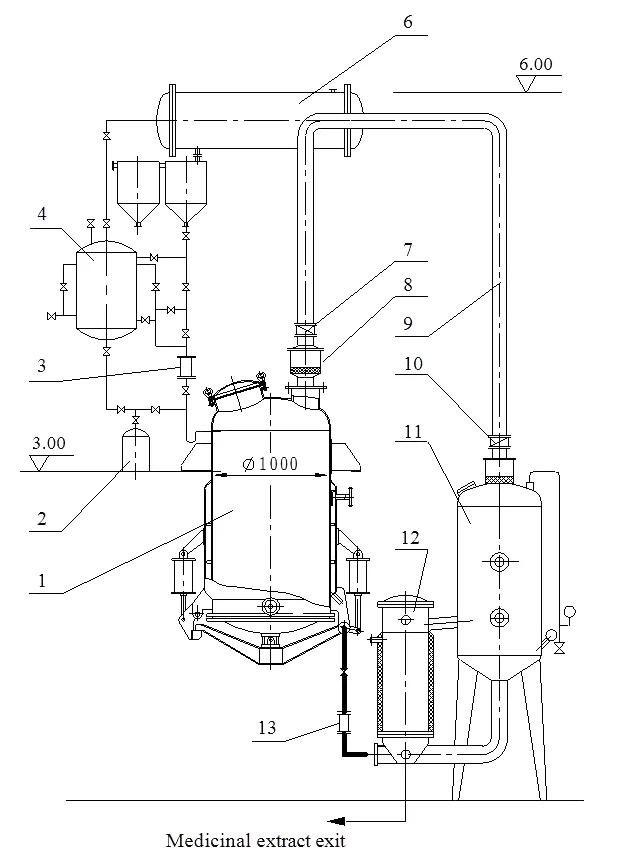

Schematic Diagram
1.Extracting tank
2.Oil or water separator

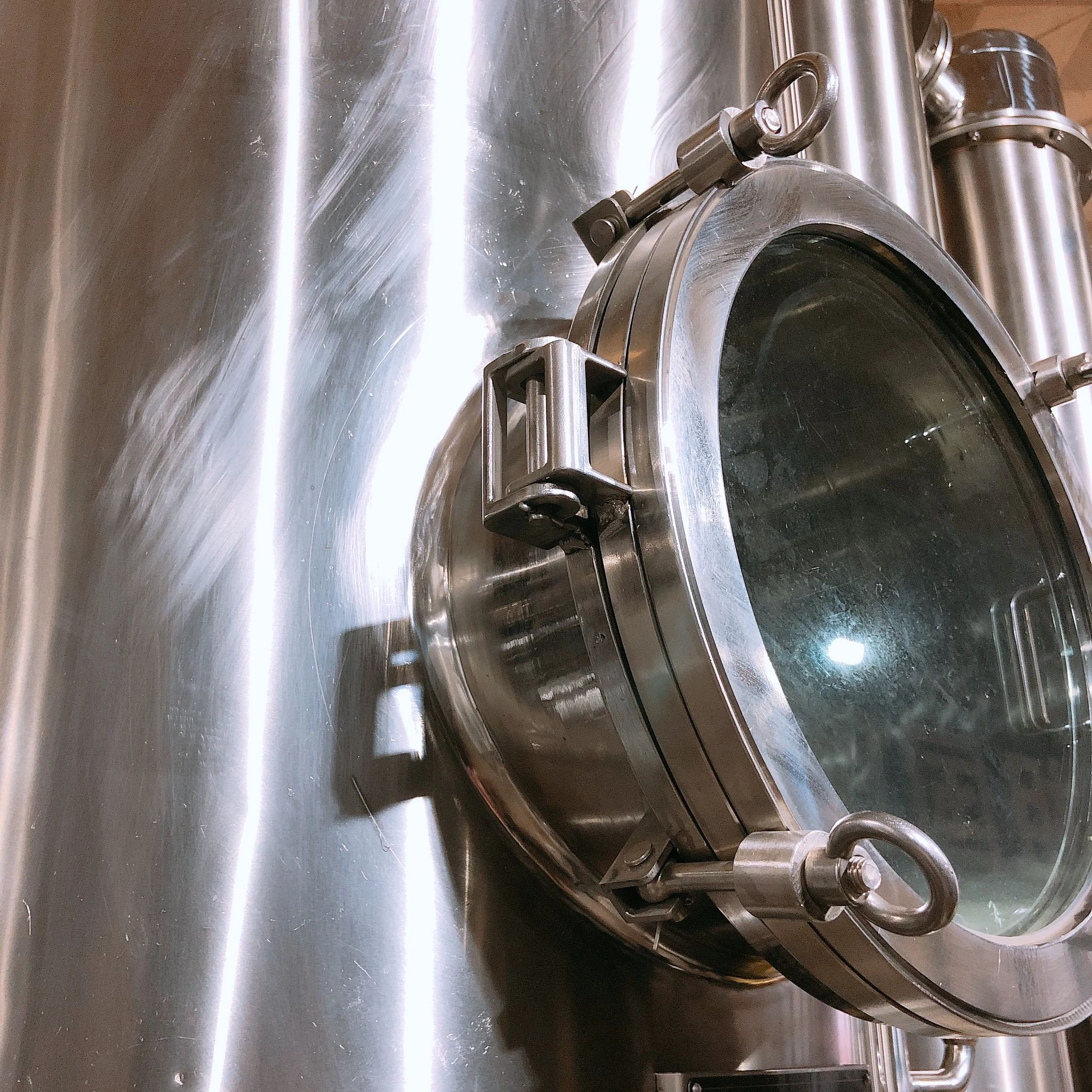

3.Sight glass
4.Vacuum switcher
5.Cooler
6.Hot backset current condenser
7.Butterfly valve
8.Defoamer machine
9.Reflux pipe
10.Butterfly valve
11.Concentrating Evaporator
12. Heater
13.Sight glass
2.Oil or water separator
3.Sight glass
4.Vacuum switcher
5.Cooler
6.Hot backset current condenser
7.Butterfly valve
8.Defoamer machine
9.Reflux pipe
10.Butterfly valve
11.Concentrating Evaporator
12. Heater
13.Sight glass
Main Technical Data
Model | LTN-0.1/25 | LTN-0.3/75 | LTN-0.5/125 | ||
The volume of extracting (m³) | 0.1 | 0.3 | 0.5 | ||
The work temperature of extracting and concentrating (°C) | Water: 50-90°C Alcohol: 40-80°C | ||||
Raw Material Input Capacity (kg) | 10-15 | 30-45 | 50-70 | ||
Capacity of Concentrating Evaporator | 25kg/hour | 75kg/hour | 125kg/hour | ||
Power of Vacuum Pump | 2.2kw | 2.8kw | 3.5kw | ||
The time of extraction (h) | 6-8 | ||||
Concentrate density (%) | 1.2-1.35 | ||||
Features
Low Temperature Densely:
The main solvent is water and ethanol in the Chinese extracted, if adopt the low extracting and low
concentrating, the water extracting is control in 50℃-90℃, ethanol extracting is control in 40℃-80℃. Because of the low
extracting, it can avoid the Chinese medicinal materials active ingredient, especially the organisms activated not easy to
destroy, at the same time it can avoid producing the inefficacy ingredients in the high temperature, such as dextrin, colloid,
tannin etc, improve the products quality, convenient for isolation and purification.
High Drawing Rate:
Because of the extracting pot at the condition of the vacuum pressure and low temperature, it can enable the Chinese medicinal materials cell to expedite expand, cell membrane broken at once, at cell inside, it stripping the active ingredient. And the continuously supplement of the reflus-norma new solvent, which it enable the solvent played at the medicinal materials surface and penetrate into the medicinal materials interior, improve the medicinal attrition elution-force and the solubility, the medicinal material and the solvent keep higher gradient of concentration and extend ability, having accelerated the dissolving out of solvent of active principle of the medicinal materials ,improve the extracting rate and the harvested ointment rate of the Chinese medicinal material.
Save The Solvent:
Only need to join 8 times of solvents of crude drugs quantity once, utilize new solvent conduct of hot backset current to hot backset current to supplement, which the backset total is equal to the old extracting need 2-3 times join solvent total, it save the solvent 50%-60%, also it can increased the collecting volume of medicinal materials.
Design innovation:
Through the vacuum of the vacuum converter and the height difference of the vacuum height suction of the key design, it shorten the extracting and contracting time, improve the medicinal harvested ointment rate and some active ingredient keeping rate.
Advanced Craft:
Extracting concentrating is go on meanwhile, completion gets medicinal extract directly, shortens the craft.
Computer Controlled:
Adopt the PLC main-machine interface, vacuum converted timing ect, also it can setup the temperature controlled, vacuum controlled, density controlled and production original recording printing device.
Lower Costs:
The all right equipment of aircrew simplifies, washed the convenient, the whole closed operation, has no environmental pollution, compared with necessary equipment of traditional craft, the equipment reduces by 1/3, the occupation of land reduces by 2/3, investment can save by 40%, energy consumption can be reduced by 40%, the attendant reduces by 1/3, so the production cost can be reduced by about 50%.Only need to join 8 times of solvents of crude drugs quantity once, utilize new solvent conduct of hot backset current to hot backset current to supplement, which the backset total is equal to the old extracting need 2-3 times join solvent total, it save the solvent 50%-60%, also it can increased the collecting volume of medicinal materials.
concentrating, the water extracting is control in 50℃-90℃, ethanol extracting is control in 40℃-80℃. Because of the low
extracting, it can avoid the Chinese medicinal materials active ingredient, especially the organisms activated not easy to
destroy, at the same time it can avoid producing the inefficacy ingredients in the high temperature, such as dextrin, colloid,
tannin etc, improve the products quality, convenient for isolation and purification.
High Drawing Rate:
Because of the extracting pot at the condition of the vacuum pressure and low temperature, it can enable the Chinese medicinal materials cell to expedite expand, cell membrane broken at once, at cell inside, it stripping the active ingredient. And the continuously supplement of the reflus-norma new solvent, which it enable the solvent played at the medicinal materials surface and penetrate into the medicinal materials interior, improve the medicinal attrition elution-force and the solubility, the medicinal material and the solvent keep higher gradient of concentration and extend ability, having accelerated the dissolving out of solvent of active principle of the medicinal materials ,improve the extracting rate and the harvested ointment rate of the Chinese medicinal material.
Save The Solvent:
Only need to join 8 times of solvents of crude drugs quantity once, utilize new solvent conduct of hot backset current to hot backset current to supplement, which the backset total is equal to the old extracting need 2-3 times join solvent total, it save the solvent 50%-60%, also it can increased the collecting volume of medicinal materials.
Design innovation:
Through the vacuum of the vacuum converter and the height difference of the vacuum height suction of the key design, it shorten the extracting and contracting time, improve the medicinal harvested ointment rate and some active ingredient keeping rate.
Advanced Craft:
Extracting concentrating is go on meanwhile, completion gets medicinal extract directly, shortens the craft.
Computer Controlled:
Adopt the PLC main-machine interface, vacuum converted timing ect, also it can setup the temperature controlled, vacuum controlled, density controlled and production original recording printing device.
Lower Costs:
The all right equipment of aircrew simplifies, washed the convenient, the whole closed operation, has no environmental pollution, compared with necessary equipment of traditional craft, the equipment reduces by 1/3, the occupation of land reduces by 2/3, investment can save by 40%, energy consumption can be reduced by 40%, the attendant reduces by 1/3, so the production cost can be reduced by about 50%.Only need to join 8 times of solvents of crude drugs quantity once, utilize new solvent conduct of hot backset current to hot backset current to supplement, which the backset total is equal to the old extracting need 2-3 times join solvent total, it save the solvent 50%-60%, also it can increased the collecting volume of medicinal materials.

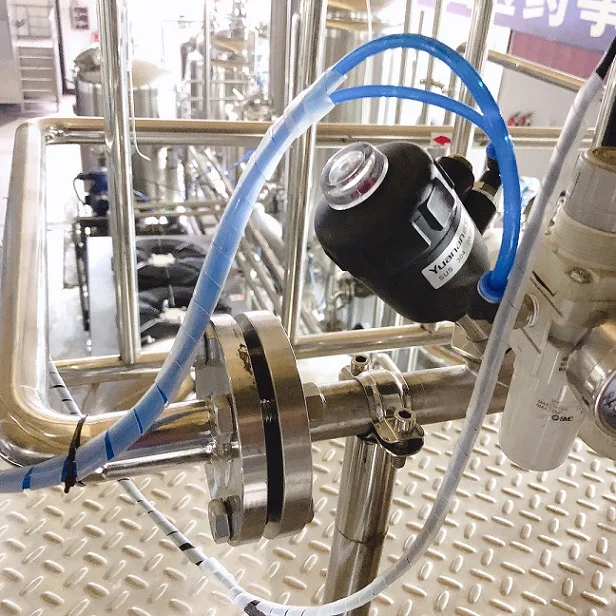

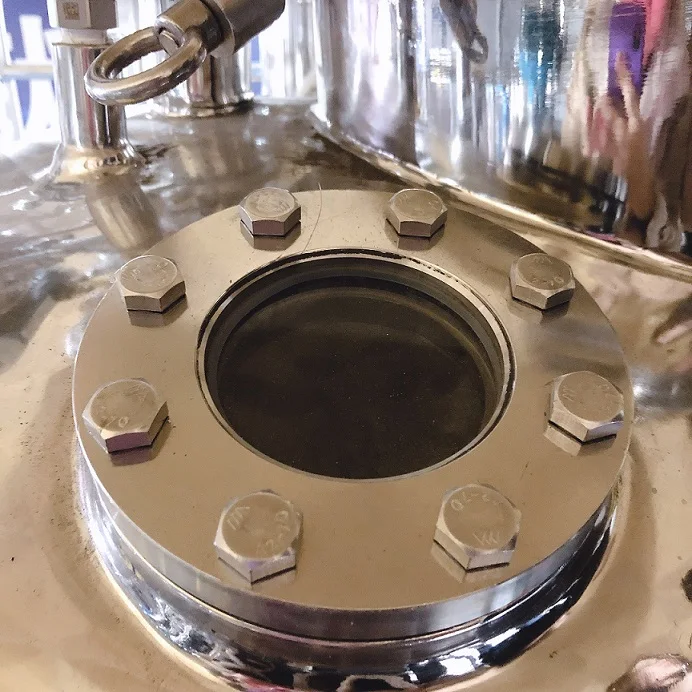

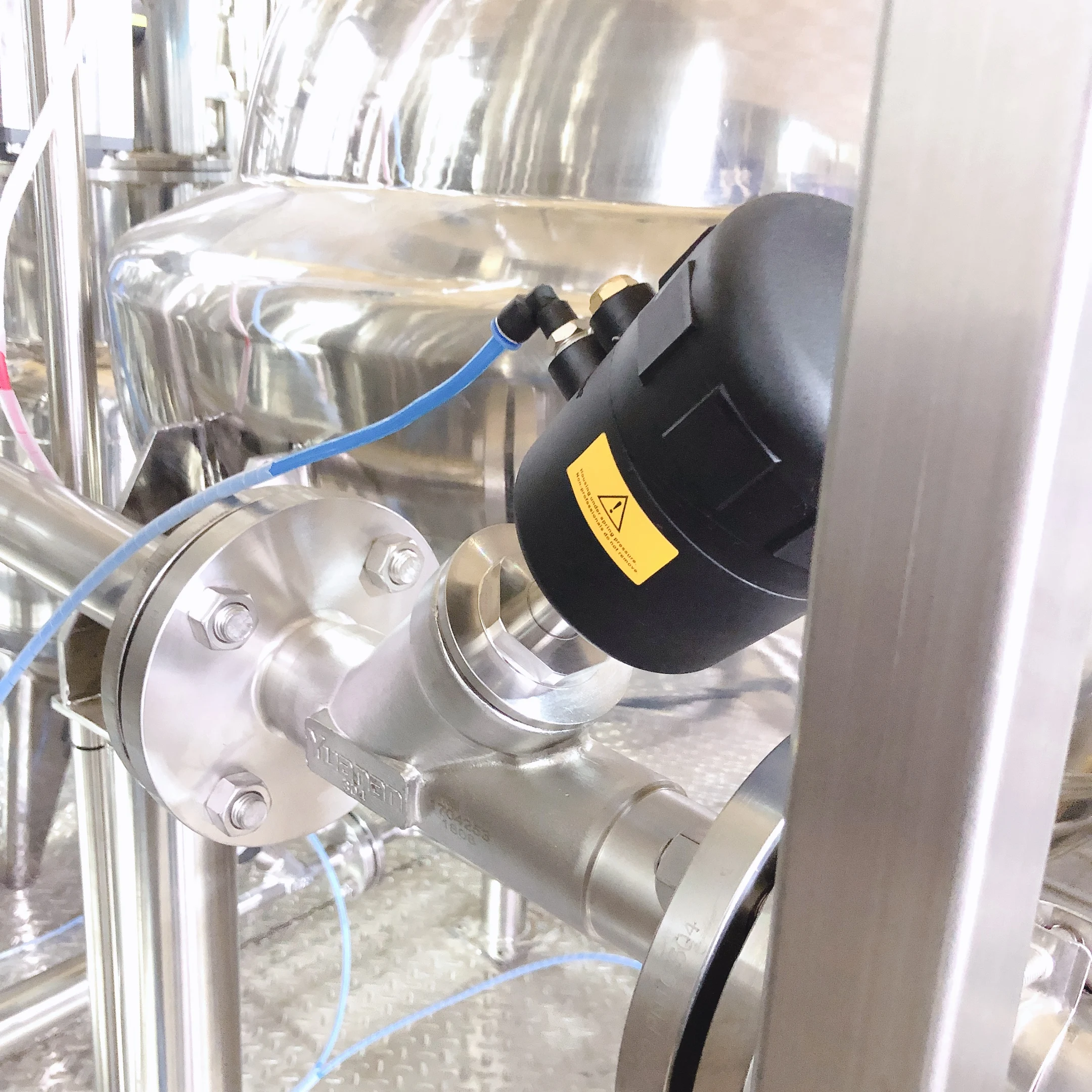

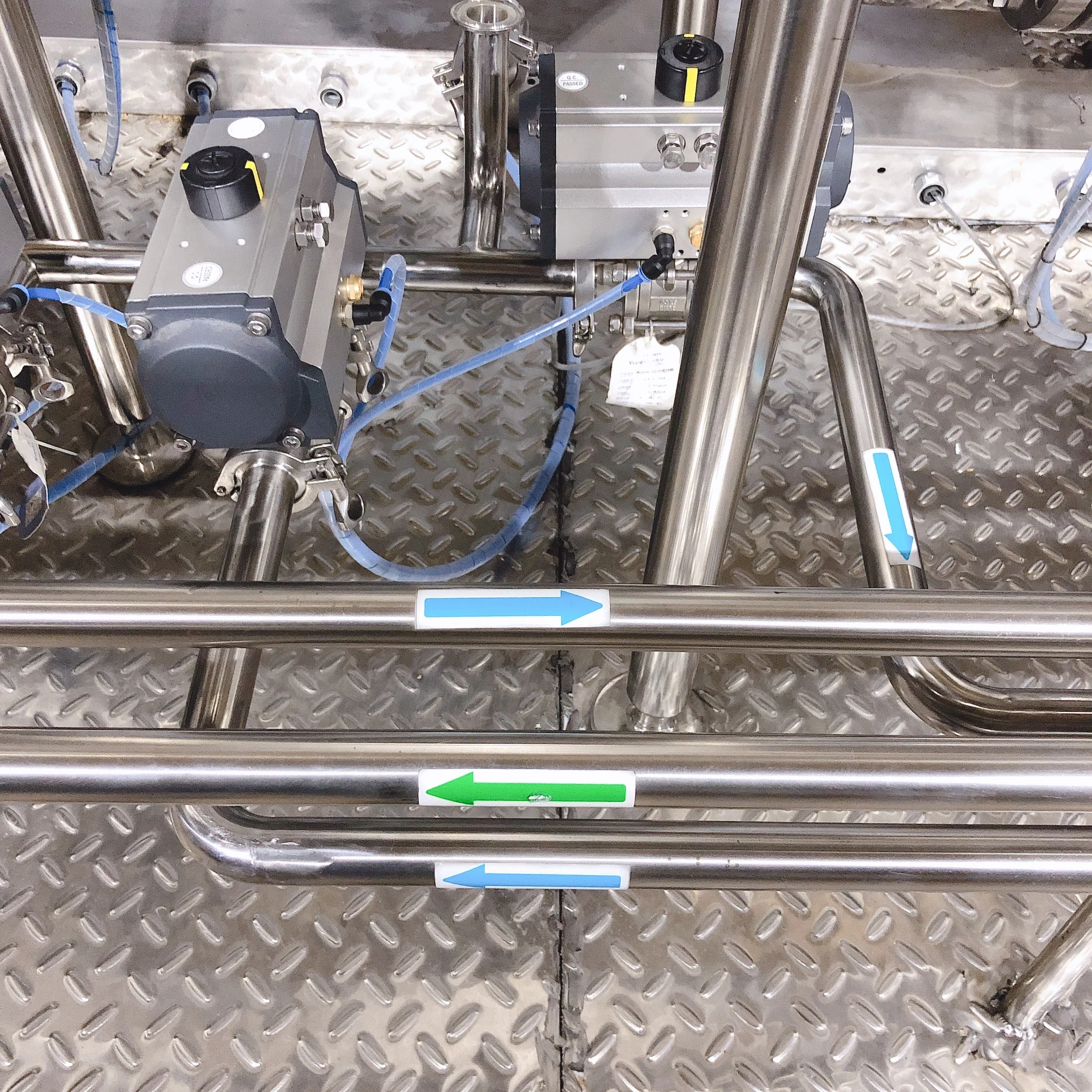

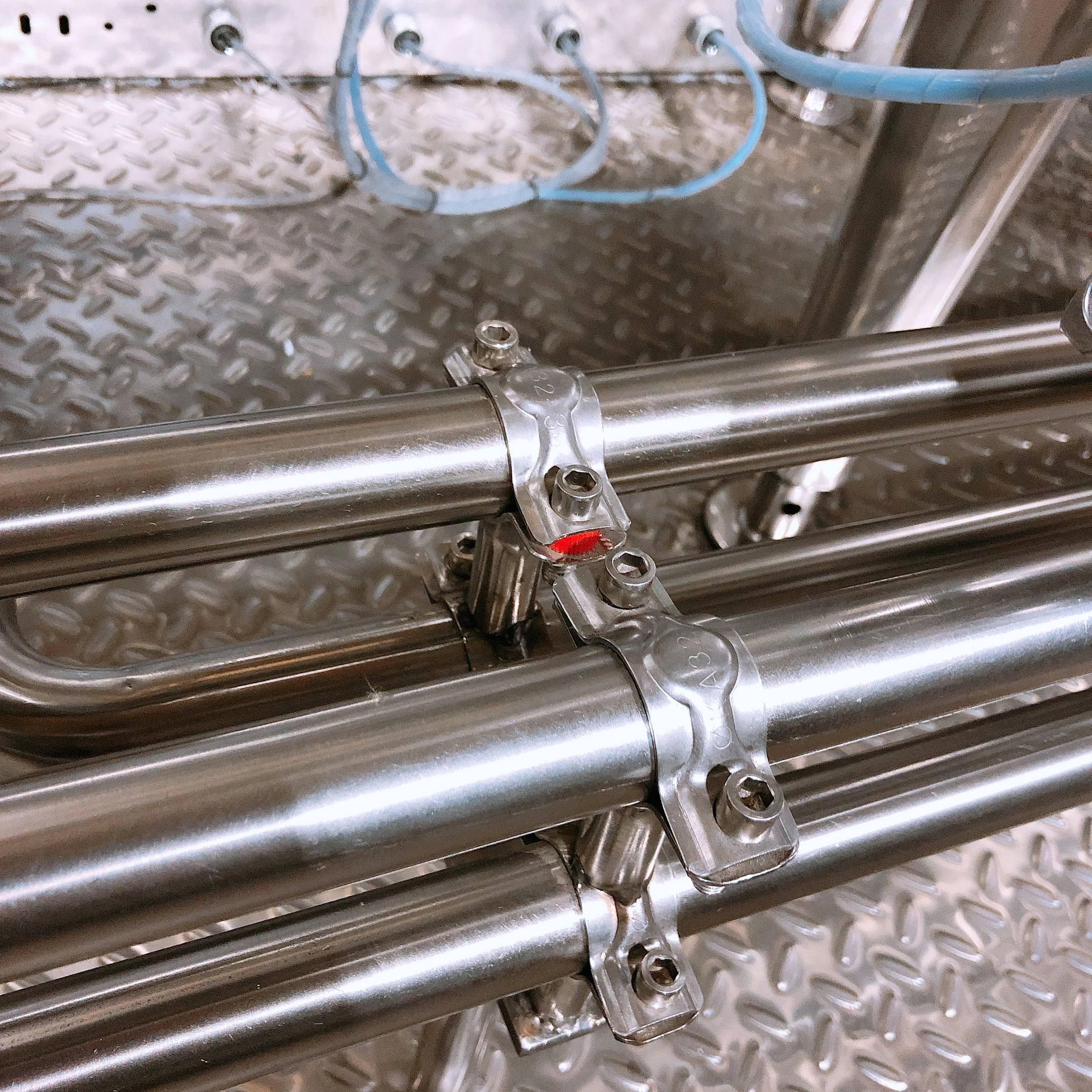

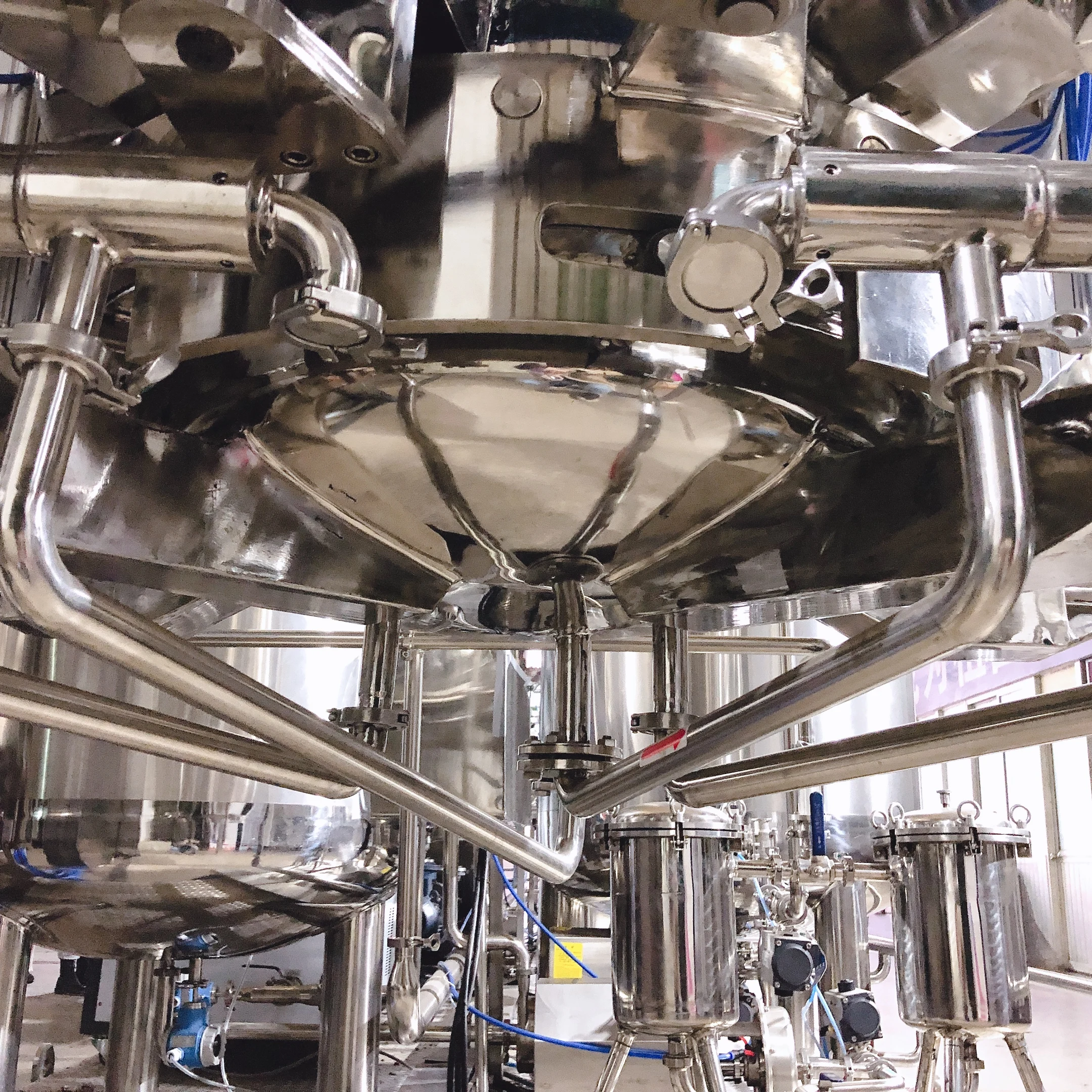

Details Images
Products

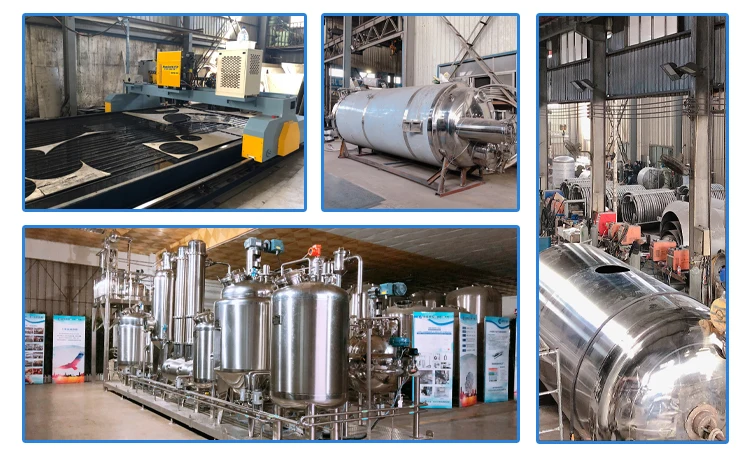

Workshop
Company Profile
Our Company
- Since year 1996, LTPM CHINA had started manufacturing Pharmaceutical and food packaging machines such as Capsule Filling Machine, Ampoule Filling and Sealing Machine, Blister Packaging Machine, Pill Counting and Bottling Line, Cartoning Machine, Bag Packaging Machine, Liquid Filling and Capping Machine etc. - LTPM CHINA designs different types of packaging lines for customers, including standard or non-standard models.
- LTPM CHINA's machinery = High automation + High precision + More energy saving + Satisfactory warranty and after-sales service + Trusted brand
Our Machinery Workshop
Our Certificates
ISO, CE, SGS, BV Certified Company.
Our Sales Team
Our Customers
Orders from Alibaba
Packing & Shipping
All machine delivery with anti rust spray, film wrapping and Sea shiping affordable wooden box.
FAQ
Q: What price terms you offer?
A: We can offer FOB, FCA, CFR, CIF, EXW and other price terms based on your request.
Q: What payment terms you take?
A: TT, LC, other terms are also workable.
Q: Will you help with installation and stuff training?
A: Yes, we can send our engineers to your place to guide the installation and train your workers if you need, but the buyer should
bear our technician's round tickets, accomodation, food and subsidiary USD100/day.
Q: How can I visit your factory?
A: Our factory is located in Ruian city Zhejiang Province. Just let us know your schedule in advance and we will arrange
everything for you!
Any other doubts about our machine, please feel easy to contact with us.
A: We can offer FOB, FCA, CFR, CIF, EXW and other price terms based on your request.
Q: What payment terms you take?
A: TT, LC, other terms are also workable.
Q: Will you help with installation and stuff training?
A: Yes, we can send our engineers to your place to guide the installation and train your workers if you need, but the buyer should
bear our technician's round tickets, accomodation, food and subsidiary USD100/day.
Q: How can I visit your factory?
A: Our factory is located in Ruian city Zhejiang Province. Just let us know your schedule in advance and we will arrange
everything for you!
Any other doubts about our machine, please feel easy to contact with us.
