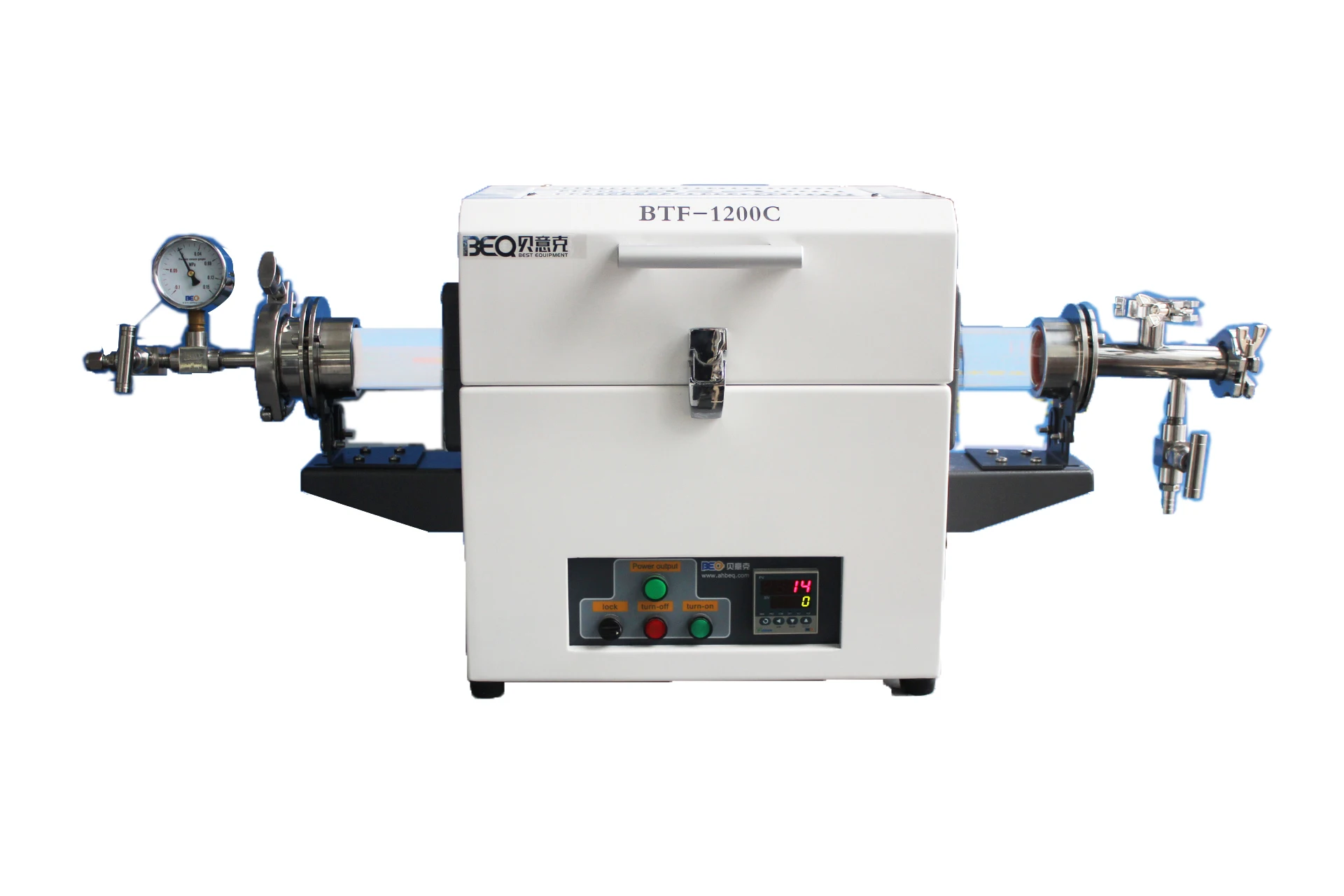

Vacuum tube furnace with 1200 degree centigrade split tube furnace quartz tube furnace BTF 1200C S

Power

 Furnace input 220V 50/60 HZ

Working Temperature

· Max. Temperature: 1200 °C

· Continuous working temperature:≤1000 °C

· Max. Heating Rate: 80°C /min

Heating Zone

· Heating Zone Length: 230mm

· Constant Temperature Zone:  100mm

Temperature Controller

· PID automatic control and auto-tune function.

· 30 programmable segments for precise thermal processing.

· Built-in protection for the over-heated and broken thermocouple.

           ·Temperature Accuracy: +/- 1 °C.

· K type thermocouple.

Heating Elements

· Fe-Cr-Al Alloy doped by Mo

Processing Tube

· Fused quartz tube:  25/50 OD x 600 mm Length is included(optional)

· Two fibrous ceramic tube blocks are included for blocking heat radiation generated from tube center. (Ceramic blocks must be fully inserted into the furnace chamber before heating).

Vacuum Flange

·  KF25 quick clamp flange

Vacuum Pressure

· 10^-1pa can be achieved by mechanical pump

Dimensions

           350*290*345mm(L*W*H without tube & flange)

Net weigh

           18kgs

Compliance

          CE Certified
