XN800 Self Loading Mini Dumper 800kg Tracked Dumpers Rhinoceros Small Track Transporter
- Category: >>>
- Supplier: Shandong Rhinoceros Engineering Machinery Co. Ltd.
Share on (1600629206936):
Product Overview
Description

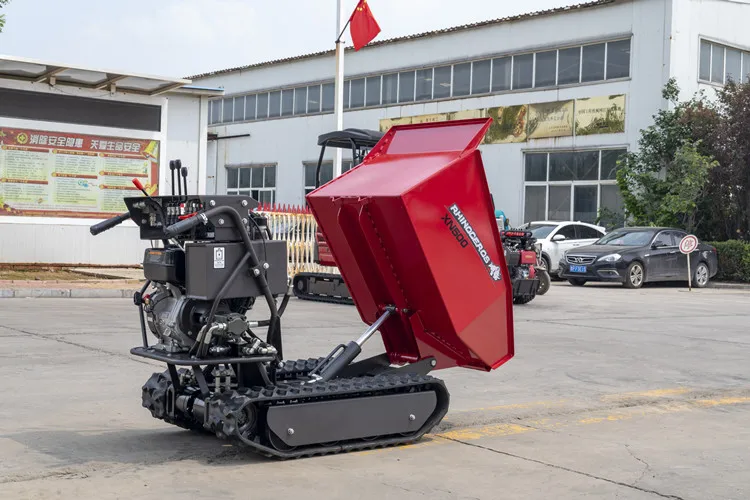

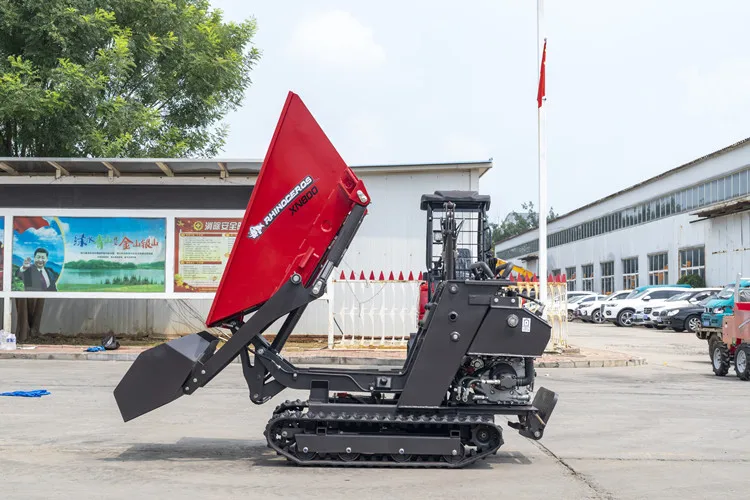

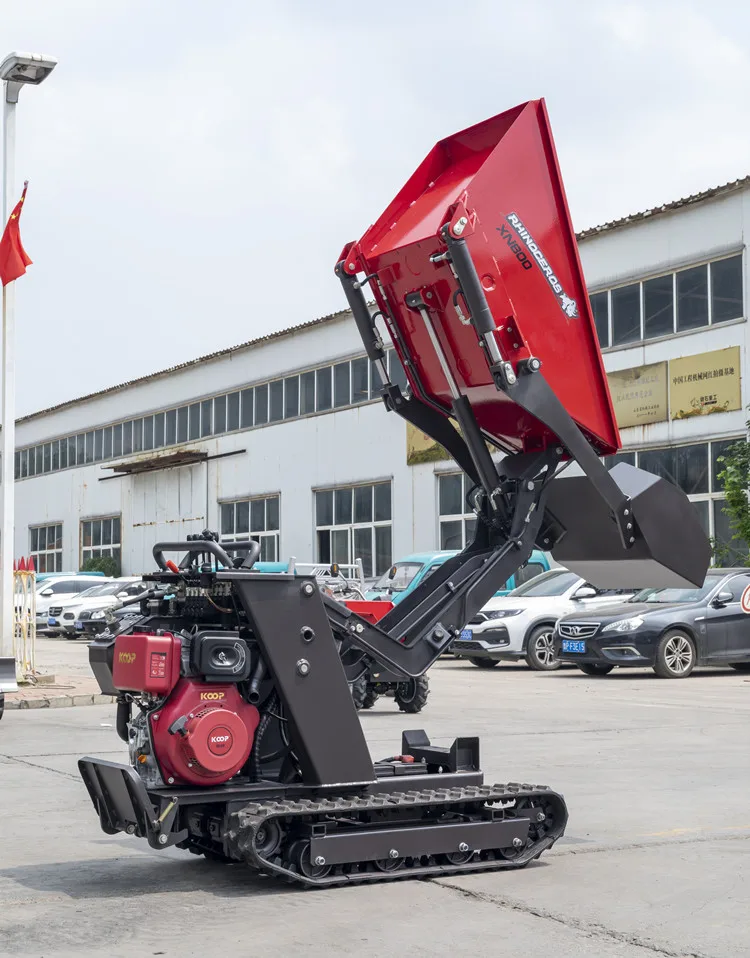

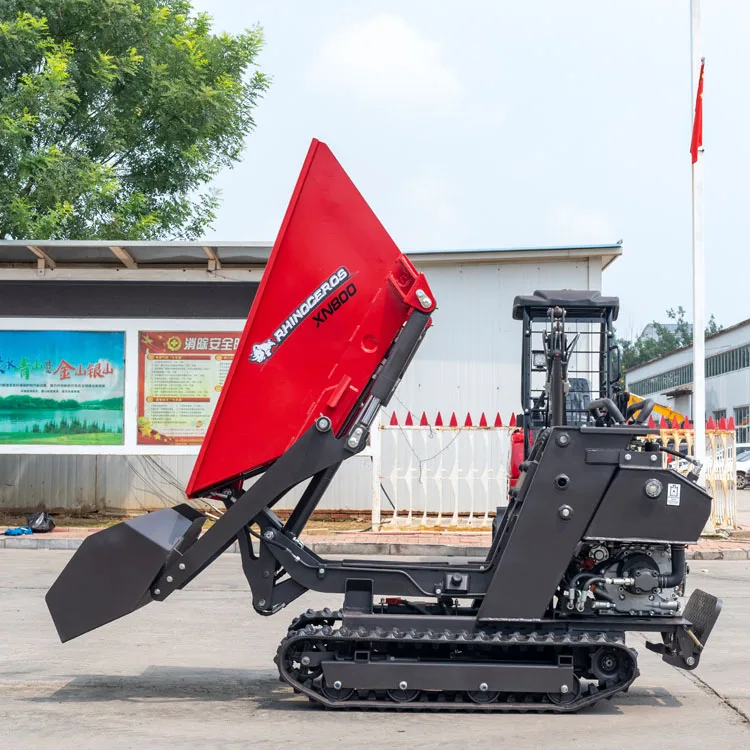

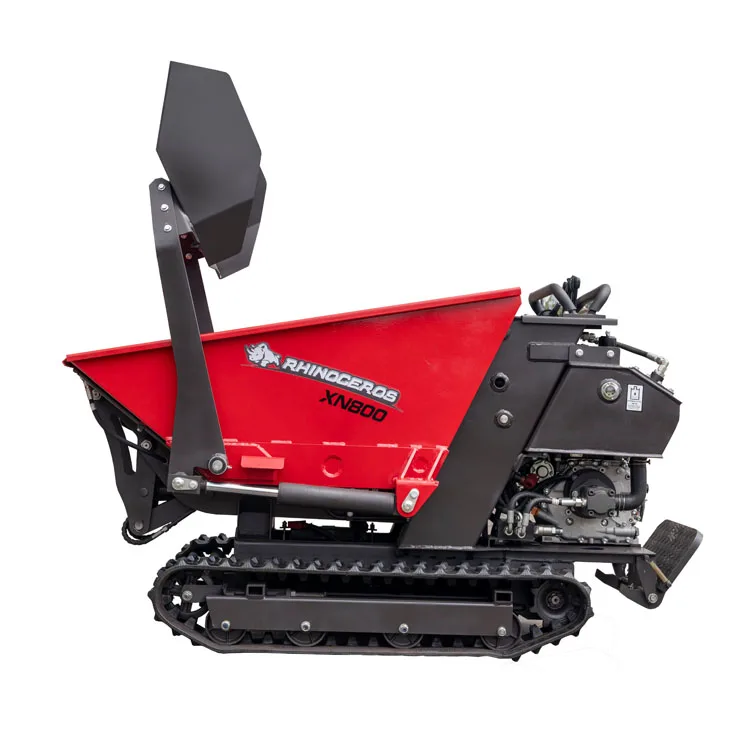

XN800 Self Loading Mini Dumper 800kg Tracked Dumpers Rhinoceros Small Track Transporter
Mini dumper is mainly composed of hopper and walking chassis, simple operation and easy maintenance.
It is suitable for short-haul transportation of various bulk materials such as gravel, earthwork, coal, ore, etc. It usually has the mechanical return function.
It is suitable for short-haul transportation of various bulk materials such as gravel, earthwork, coal, ore, etc. It usually has the mechanical return function.
Product Description
Specification
Model | XN800 | ||
Machine weight | 630kg | ||
Maximum load | 800kg | ||
Dump capacity | 0.26m³ | ||
Type | Dump | ||
Model | KOOP 192 | ||
Displacement | 0.499L | ||
Rated power/speed | 7.6 Kw/3000r/min | ||
Max. torque | 23.8N.m/3000r/min | ||
Weight | 50 kg | ||
Size | 441×417×494/mm | ||
Max. speed | 4.2km/h | ||
Min. speed | 2.1km/h | ||
Max. gradeability | 30° | ||
Ground pressure | 21.21KPa | ||
Material | Rubber | ||
Tightening type | Screw adjustment | ||
Pump type | Gear Duplex Pump | ||
Pressure | 16MPa | ||
Flow | 30L /min | ||
Hydraulic oil tank | 12.8L | ||
Fuel tank | 5.5L | ||
