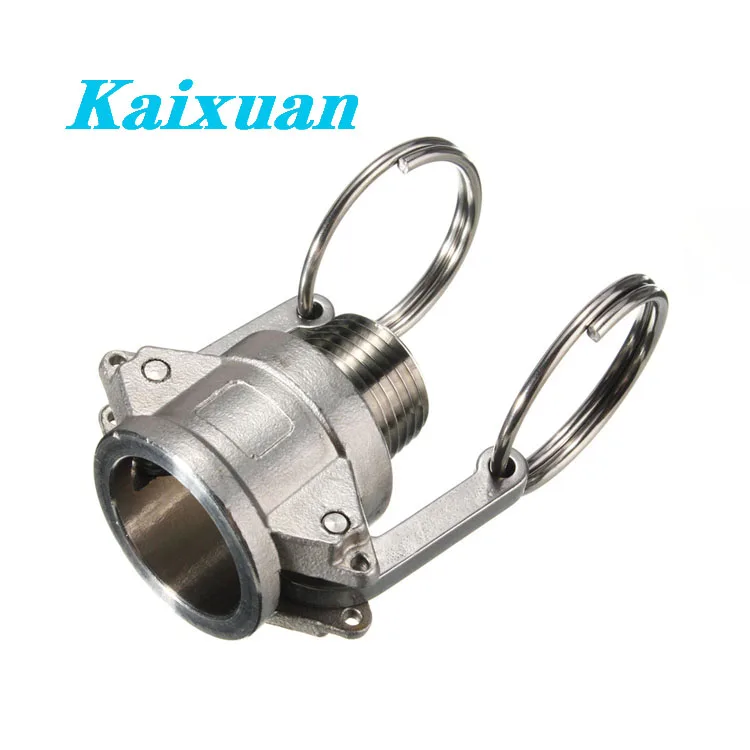

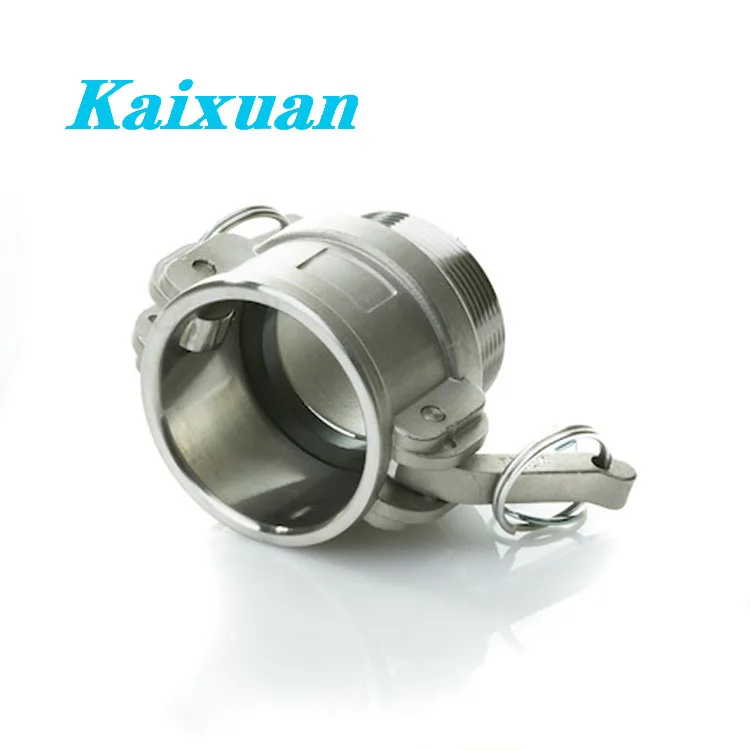

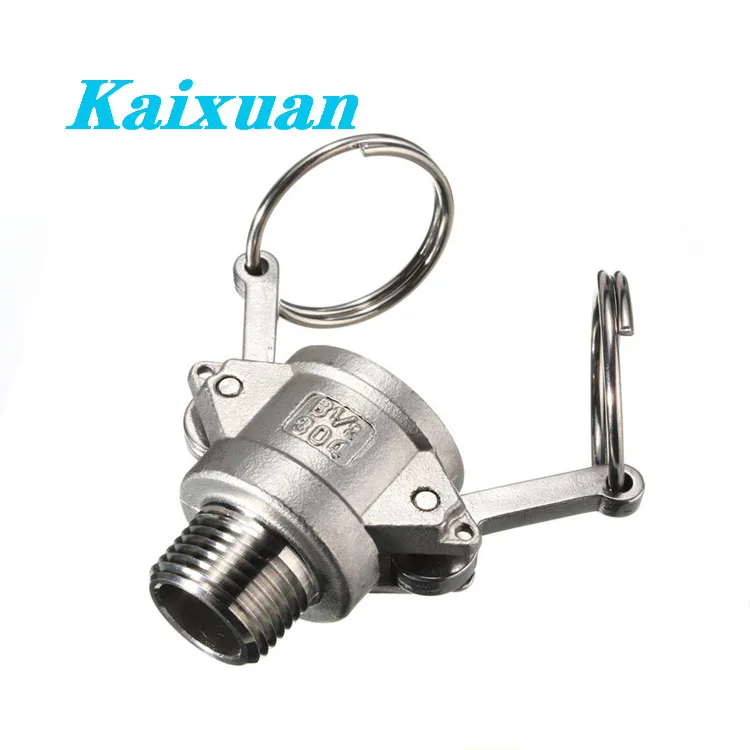

Factory supply stainless steel cam and groove fittings Type B

Product Overview

Description

Stainless Steel 316 Camlock

Camlocks also called cam and groove coupling, a kind of hose coupling used to rapidly connect and disconnect fitting on piping or hose, they come in a variety of materials to be used with different liguids and a variety of sizes to accommodate hose or piping diameter.     >>>>>>Inquiry

Product Specification

Camlock Quick Coupling
Material	stainless steel ANSI 304,316,304L,316, Aluminum
Size	1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3", 4", 5", 6"
Thread	Thread BSP, BSPT, NPT, DIN259/2999

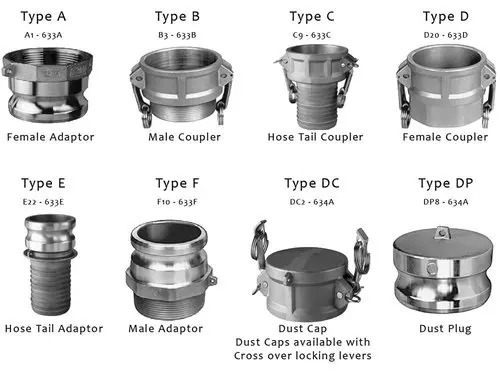

Type	A, B, C, D, E, F, DC, DP(A, B, D, F with thread, B, C, D, DC with handles)
	Type "A", has a male grooved adapter and a female pipe thread (BSP or NPT thread)of the same size Type "B", has a female camlock end and a male pipe thread of the same size Type "C", has a female camlock on one end and a male hose tail on the other Type "D", has a female camlock end and a female pipe thread of the same size Type "E", has a male camlock on one end and a male hose tail on the other Type "F", has a male grooved adaptor and a male pipe thread of the same size
Cam levers	We use stainless steel cam levers
Pressure	3/4"-2" 250PSI(17.6bar),3"-4" 200PSI(14.8bar) 2 1/2" 225PSI(15.8bar),6" 150PSI(10.5bar)
Technology	Investment casting.precision casting,CNC machine
Packing	pcs/polybag, polybag/carton ,cartons/pallet or according to your requirement
Certificate	ISO9001:2000 & CE
Process	CNC machine,Testing equipment
Application	Quick release coupling for low-pressure systems
Advantages	1.Simple strcture,convenient operation,quick connect and open it. 2.compact size,light weight,good sealing and interchangeability. 3.Adapt to all kinds of working conditions, widely used in liquid, powder and other medium. 4.Joint connected with taper pipe threads,outside taper pipe threads,intubation connection,flange connection,etc.
>>>>> > contact us

Relaxted Product



                                                                  >>>>>> Pleaase tell us your requestment

Product Process

1. Do the product mold, wax mould processing.

2. The combination type wax.

3. To set a good wax mucilage, 4-5 times

4. Dry processing.

5. In the heart of the dewaxing kettle wax processing.

6. In the high temperature furnace roasting.

7. The key casting operations.

8. The product grinding.

9. The product cut apart.

10. for blasting processing.

11. CNC machining thread.

Product Application



                                                                                        >>>>>> Contact Us

Product Packing & Shippling

Packing :

1).Our regular packing is that the ball valve and parts are placed in the carton,

finally are placed on the pallet or in a big wooden case if the customers have this

requirement of package of camlock quick coupling.

2).Of course if the customers have specifical packing requirement, we can make adjustment according to your request.

3).Standard Carton Size:32cm×22cm×20cm

4).Standard Wooden Case Size:105cm×105cm×95cm

5).Sually,48 small cartons are loaded into a big pallet.(We can make adjustment on the size according to the cargo quatity.)
