200/5A 1A accuracy class 0.5 CT energy meter current transformer

Share on (1600629234372):


Price:$6.00 - $8.00

Quantity:


Product Overview

Description



Product Description


Product Name: 200/5A 1A accuracy class 0.5 CT energy meter current transformer

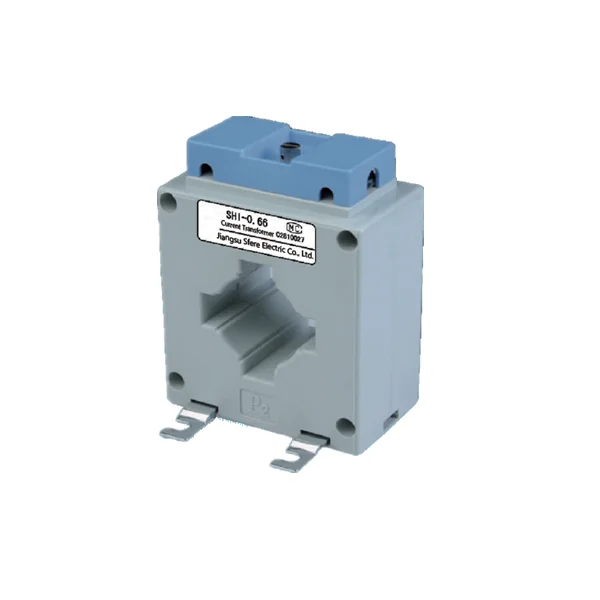

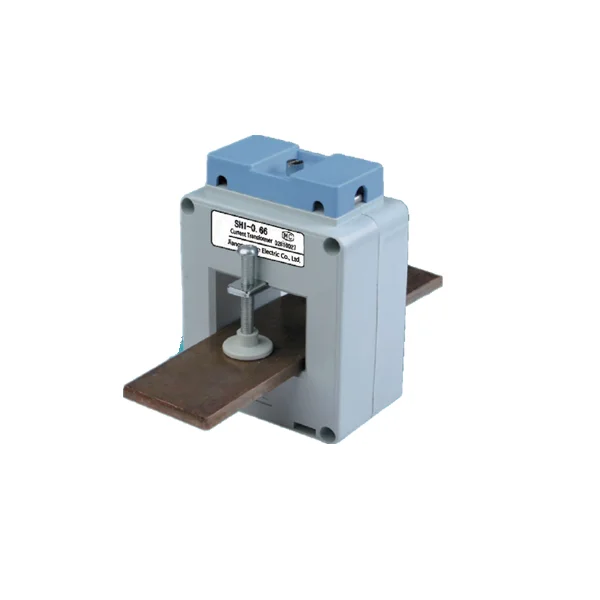

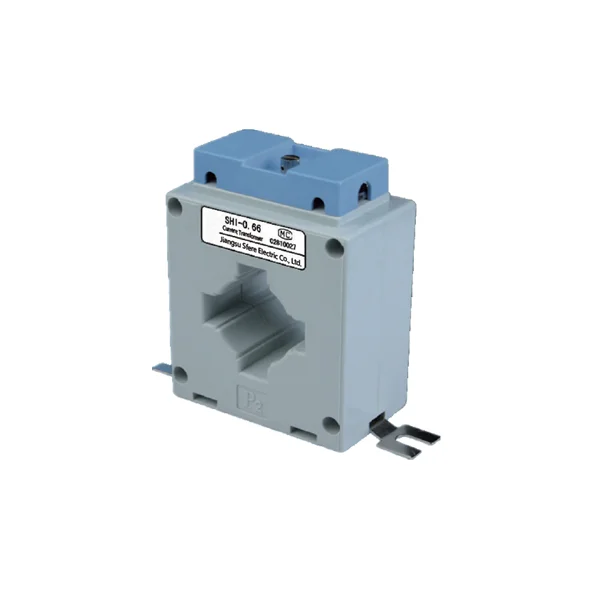

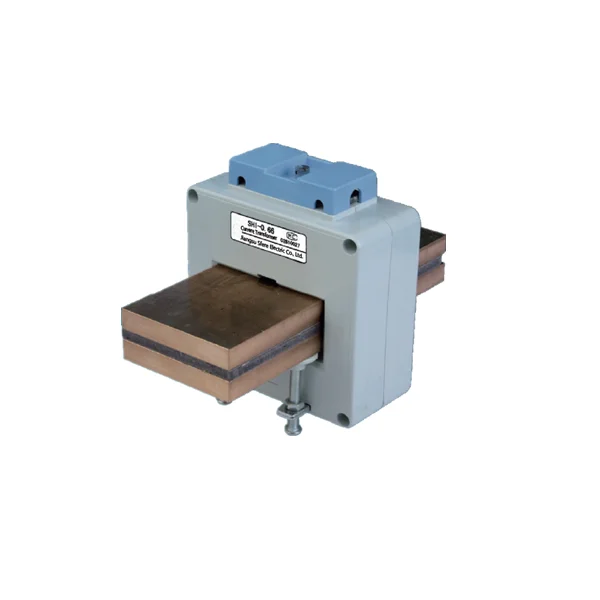

SHI-0.66I using square and circular combined mounting hole. Mainly used for single cable, multiple cable passing through or single busbar passing through. Horizontal type is compatible for square and round hole, can be passed through a cable or a single bus bar and is used for measurement. Rated primary current range is 15~3000A, rated secondary current is 5A or 1A Matching with ammeter, as electrical measurement.






Detail Images

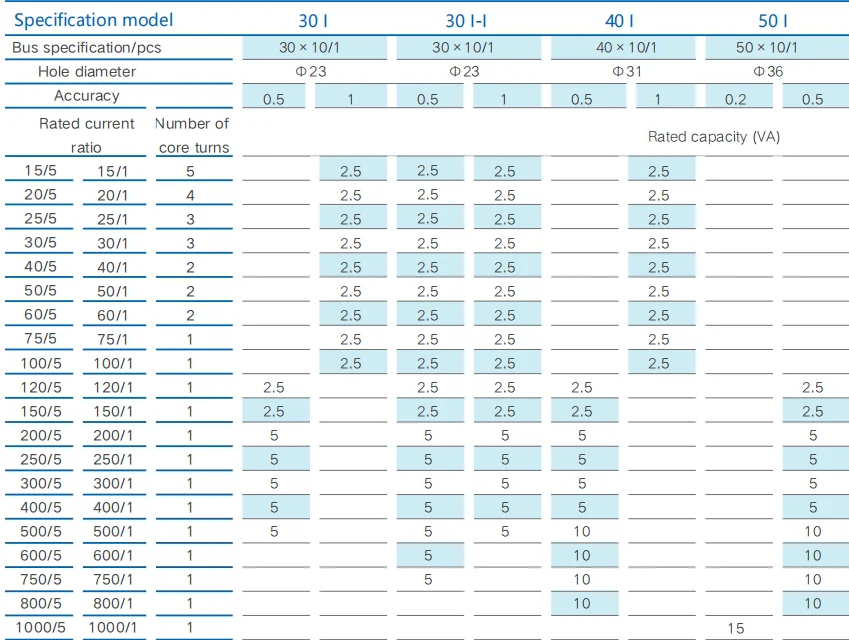

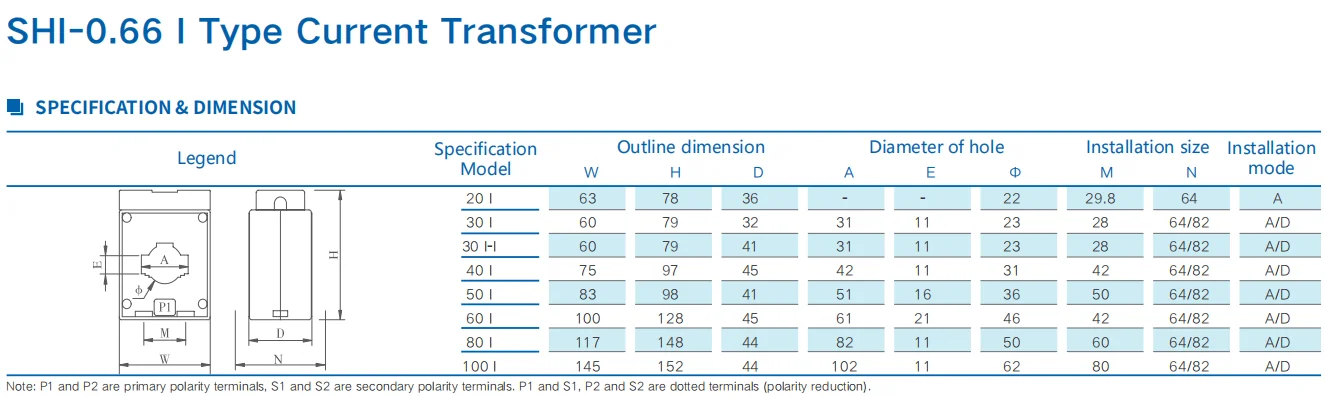

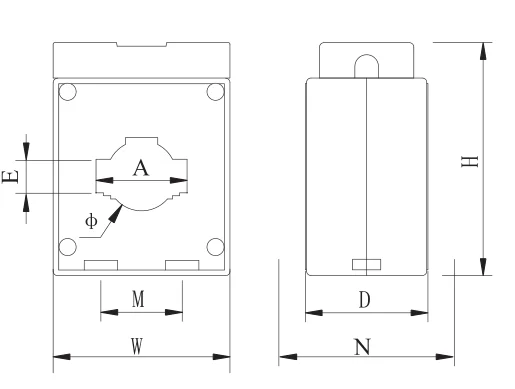

Specification




Company Profile








FAQ


Q: Are you trading company or manufacturer ?
A: We are factory located in Jiangyin Jiangsu Province.

Q: Does your company provide customized manufacturing?

A: We provide OEM/ODM service to our customers. Our experienced R&D team will give our customer solution in a high efficiency way.


Q: How long is your delivery time?
A: 3-5 working days for the items were in stock, 15-21days for the items out of stock.

Q: Do you provide samples ? Is it free or extra ?
A: You need to pay for the sample and cover the freight as well.

Q: What is your terms of payment ?
A: Order amount less than $3000, 100% paid before shipment, order amount more than $3000,30% as deposit, 70% before shipment, or by negotiated for the both parties.
