Product Overview
Description
Product Description
Introduction

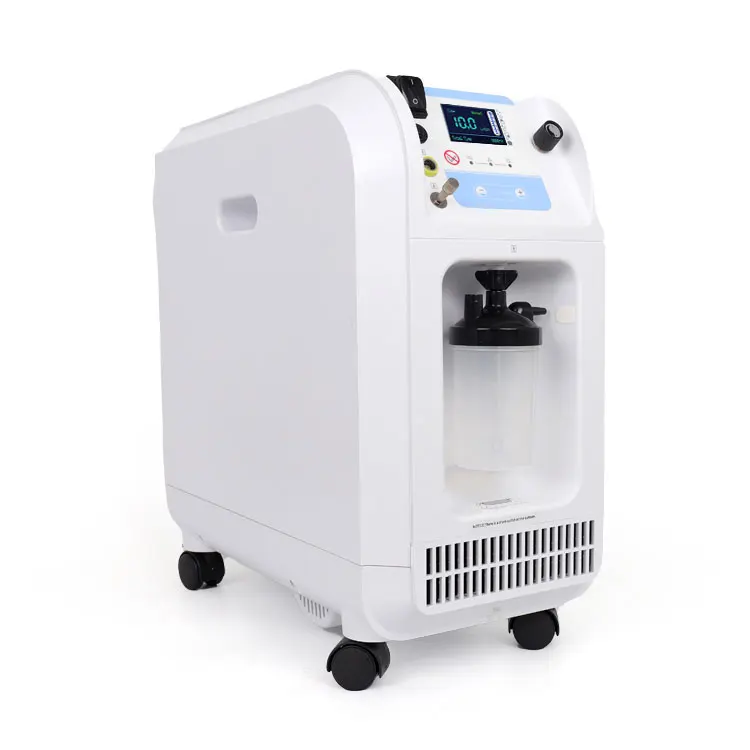

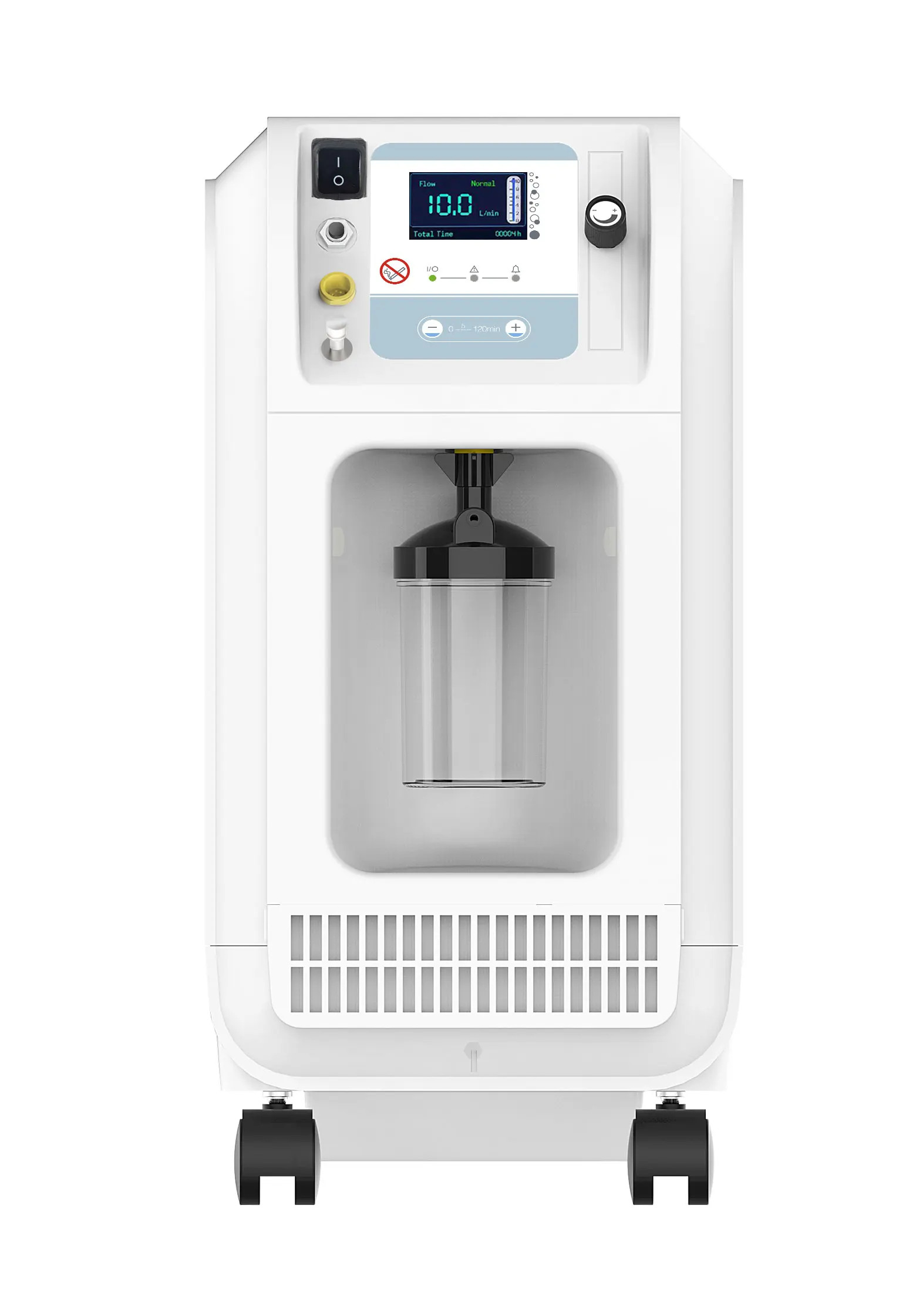

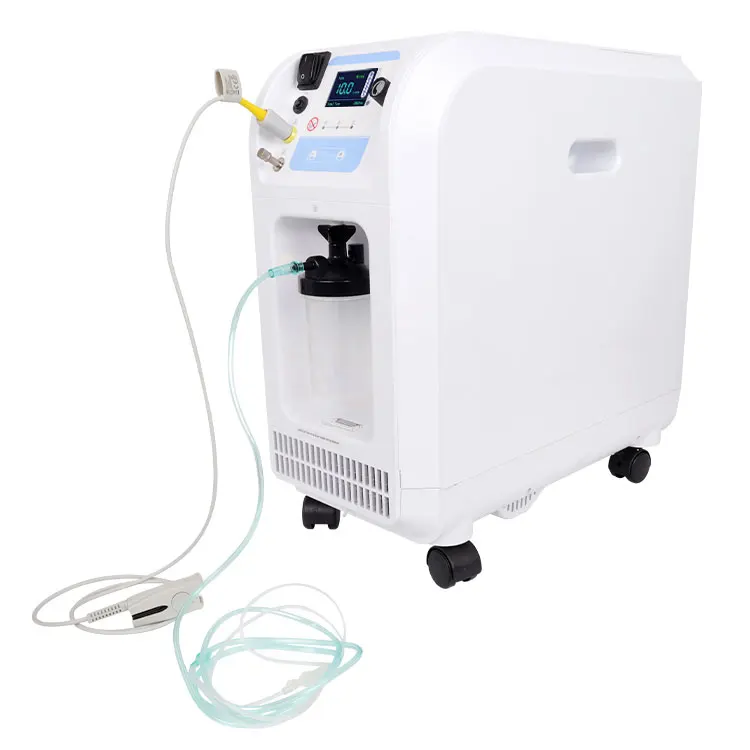

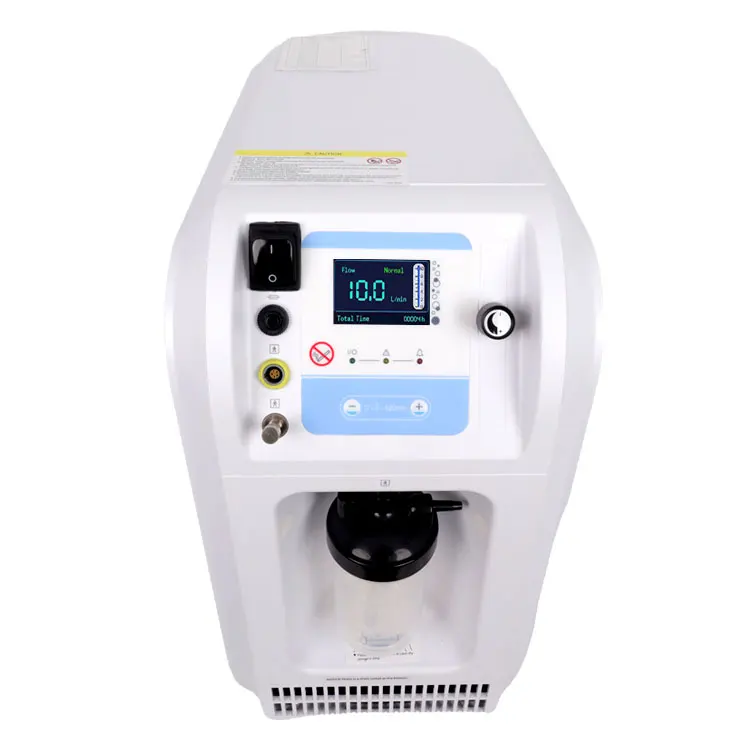

CONTEC21-X Oxygen Concentrator consisted of air compressor, adsorption tower of molecular sieve, sensor and flowrate controller.
With the molecular sieve to be absorbent, the machine adopts PSA(pressure swing absorbers ) method to directly concentrate medical
oxygen with high concentration from the air.
It is small and mobile. The machine takes the advantages of small in volume, light in weight, convenient in moving (as it has
turning truckle), stable in performance, high in safety, easy in operating, low in noise, safe in working, which complies with
requirements of medical device.
The machine has a wide application, including clinic, hospital, oxygen bar, plateau outpost, gym center, etc.
Function
1)With working indicator
2)Built-in filters to pure the gas
3)Oxygen concentration status indicator
4)Oxygen flow indication
5)Function of accumulating time
6)Function of timing shutdown
7)Alarm for power failure
8)Alarm for high/low pressure protection
9)Alarm for low flowrate
10)Alarm for high temperature
Performance
Maximum flowrate recommended: 10 L/min
Oxygen Output Concentration Levels: 93 %±3 %
Flowrate range: 0.5 L/min~10 L/min
Flowrate change at maximum recommended flowrate with 7 kPa back pressure: <1 L/min.
Outlet pressure: 20 kPa~50 kPa
Input Power Consumption: 700 VA
Electrical Requirements: AC110 V±10 % ~ 60 Hz±1 Hz
AC220 V±10 % ~5 0 Hz±1 Hz
AC220 V±10 % ~ 60 Hz±1 Hz
Operating noise: ≤60 dB(A)
Safety categories
1) Type of protection against electroshock: class Ⅱ equipment
2) Degree of protection against electroshock: Type BF applied part
3) Degree of protection against ingress of water: IP21

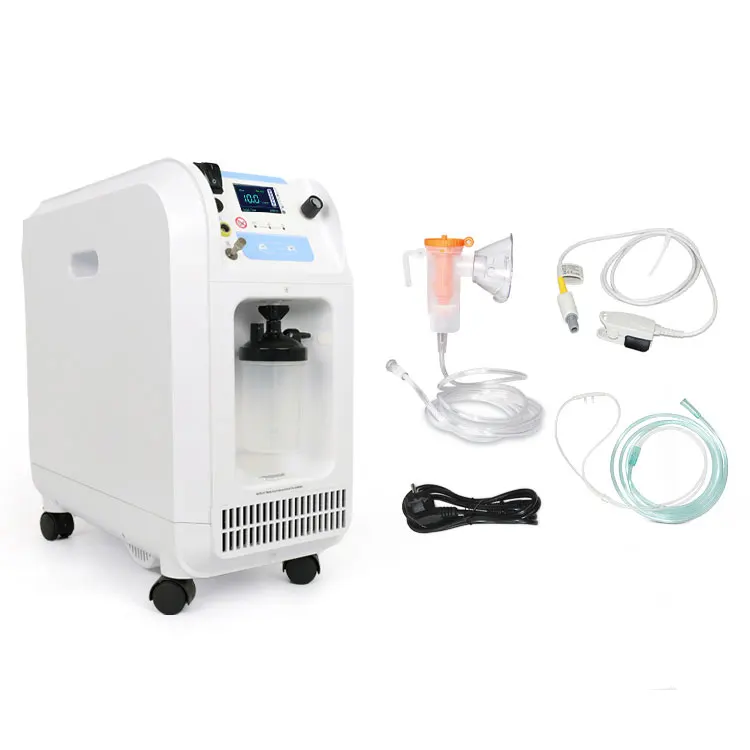

Accessories
Humidifier bottle
User manual
Power cord
Nasal cannula
Physical characteristic
Dimension: 508 mm×260 mm×530 mm
Weight: 28 kg
Environment
a) Temperature: 10 ℃~40 ℃
b) Relative humidity: ≤80 %
c) Atmospheric pressure: 860 hPa~1060 hPa
CONTEC21-X Oxygen Concentrator consisted of air compressor, adsorption tower of molecular sieve, sensor and flowrate controller.
With the molecular sieve to be absorbent, the machine adopts PSA(pressure swing absorbers ) method to directly concentrate medical
oxygen with high concentration from the air.
It is small and mobile. The machine takes the advantages of small in volume, light in weight, convenient in moving (as it has
turning truckle), stable in performance, high in safety, easy in operating, low in noise, safe in working, which complies with
requirements of medical device.
The machine has a wide application, including clinic, hospital, oxygen bar, plateau outpost, gym center, etc.
Function
1)With working indicator
2)Built-in filters to pure the gas
3)Oxygen concentration status indicator
4)Oxygen flow indication
5)Function of accumulating time
6)Function of timing shutdown
7)Alarm for power failure
8)Alarm for high/low pressure protection
9)Alarm for low flowrate
10)Alarm for high temperature
Performance
Maximum flowrate recommended: 10 L/min
Oxygen Output Concentration Levels: 93 %±3 %
Flowrate range: 0.5 L/min~10 L/min
Flowrate change at maximum recommended flowrate with 7 kPa back pressure: <1 L/min.
Outlet pressure: 20 kPa~50 kPa
Input Power Consumption: 700 VA
Electrical Requirements: AC110 V±10 % ~ 60 Hz±1 Hz
AC220 V±10 % ~5 0 Hz±1 Hz
AC220 V±10 % ~ 60 Hz±1 Hz
Operating noise: ≤60 dB(A)
Safety categories
1) Type of protection against electroshock: class Ⅱ equipment
2) Degree of protection against electroshock: Type BF applied part
3) Degree of protection against ingress of water: IP21
Accessories
Humidifier bottle
User manual
Power cord
Nasal cannula
Physical characteristic
Dimension: 508 mm×260 mm×530 mm
Weight: 28 kg
Environment
a) Temperature: 10 ℃~40 ℃
b) Relative humidity: ≤80 %
c) Atmospheric pressure: 860 hPa~1060 hPa
