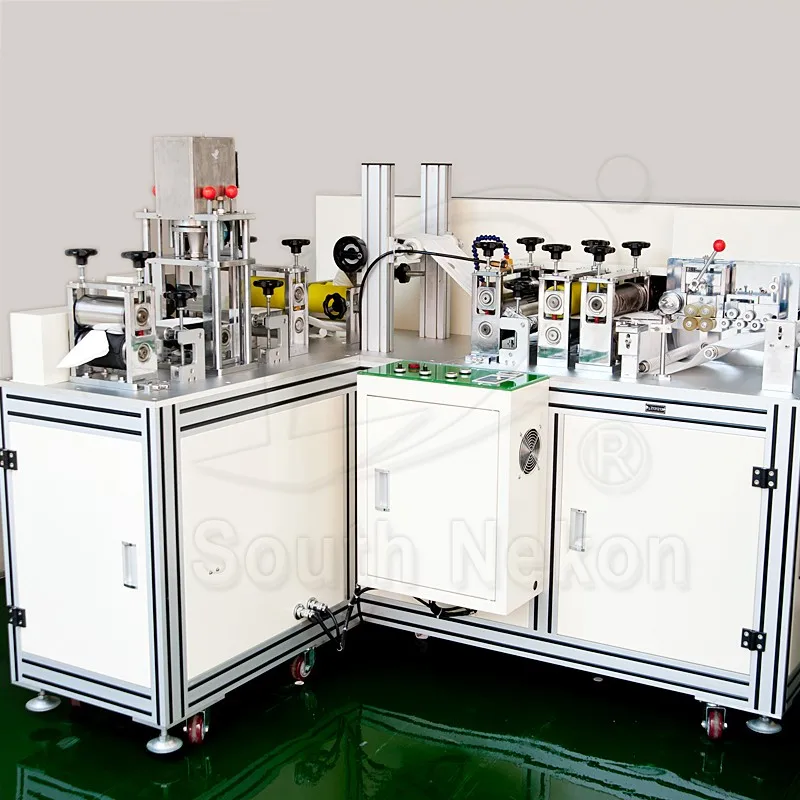

Nonwoven 3D face mask machine for making 4 layers mask

 Nonwoven 3D face mask machine for making 4 layers mask

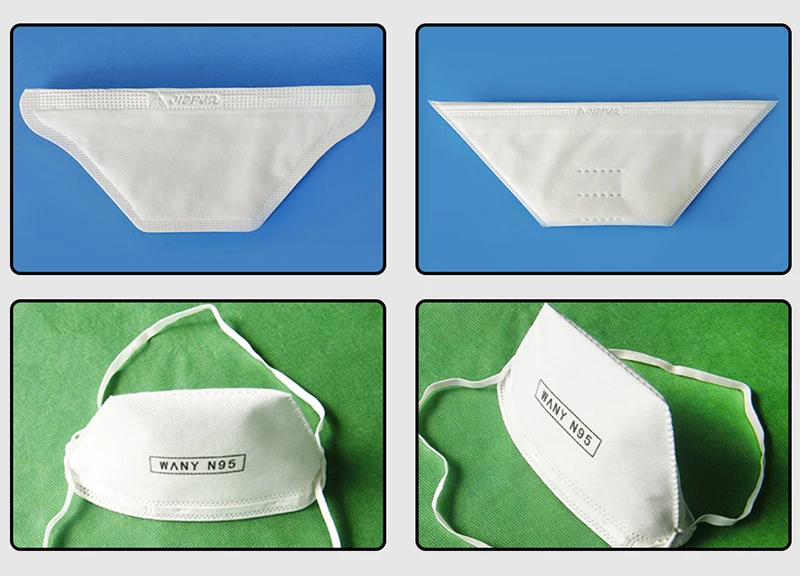

The 3D face mask machineis the automatic equipment which make the Duck-Mouth Masks, which make the use of ultrasonic technology for welding, totally procedure including: feeding, mask blank making, elastic

ear-loop welding and then finished of the masks will be finished by the Trapezoid mask machine automatically.

1.      The making of the mask blank and the welding of the elastic ear-loop will be finished with one machine;

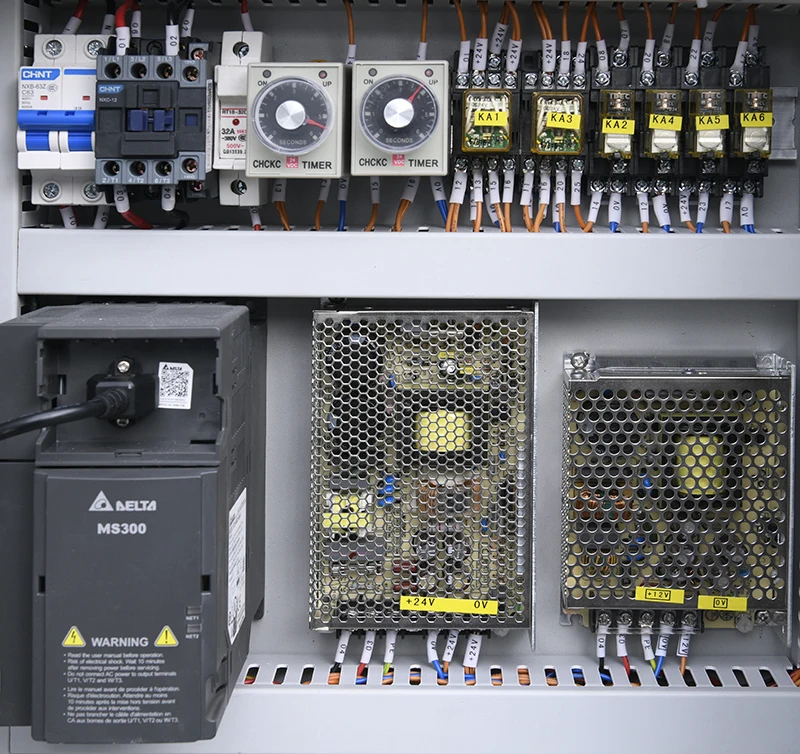

2.      PLC control;

3.      Photoelectric detection which can lower the failure rate;

4.      The structure of the whole  machine is made from aluminum alloy, beautiful, strong and rustproof;

5.      Add printing equipment to this machine;

6.      With high stability, low failure rate.

Summarize:
The Machine is the automatic equipment which make the Duck-Mouth Masks, which make the use of ultrasonic technology for welding, totally procedure including: feeding, mask blank making, elastic ear-loop welding and then finished of the masks will be finished by the machine automatically.

Technical Data:
Model No.:NK-YZ0006
Main Machine:4200(L)x 820(W)x 1660(H)MM
Voltage :220V ,50/60 Hz
Capacity:70~80 pcs/min
Power :5.3 KW

Features and Function:

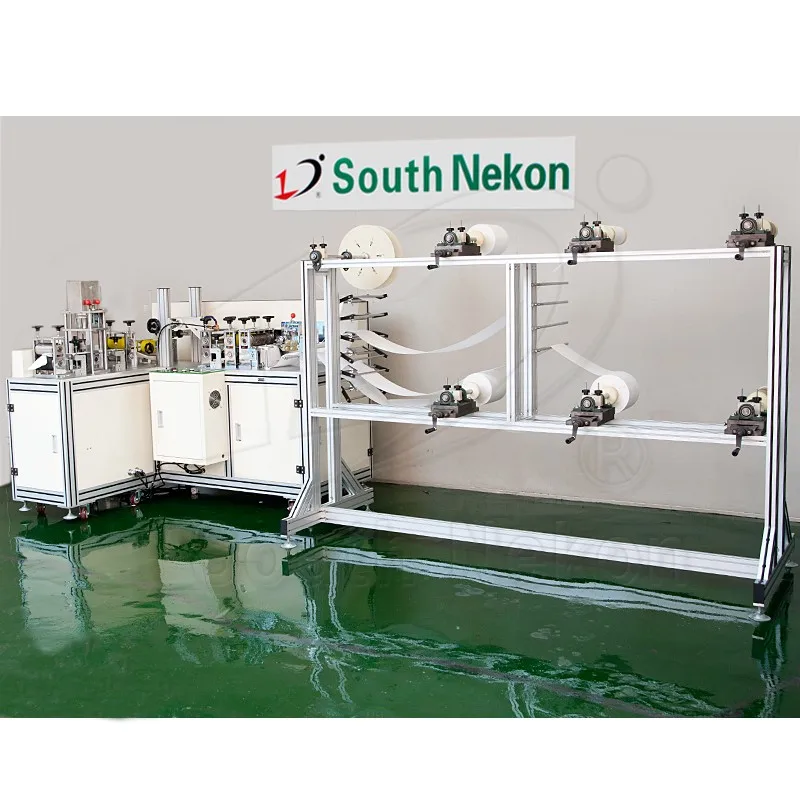

1. Automatic feeding system
1). Aluminum alloys frames, solid and artistic;
2). PLC controlled, ensure the accuracy of finished products;
3). All clamps are made in stainless steel, position can be adjusted;

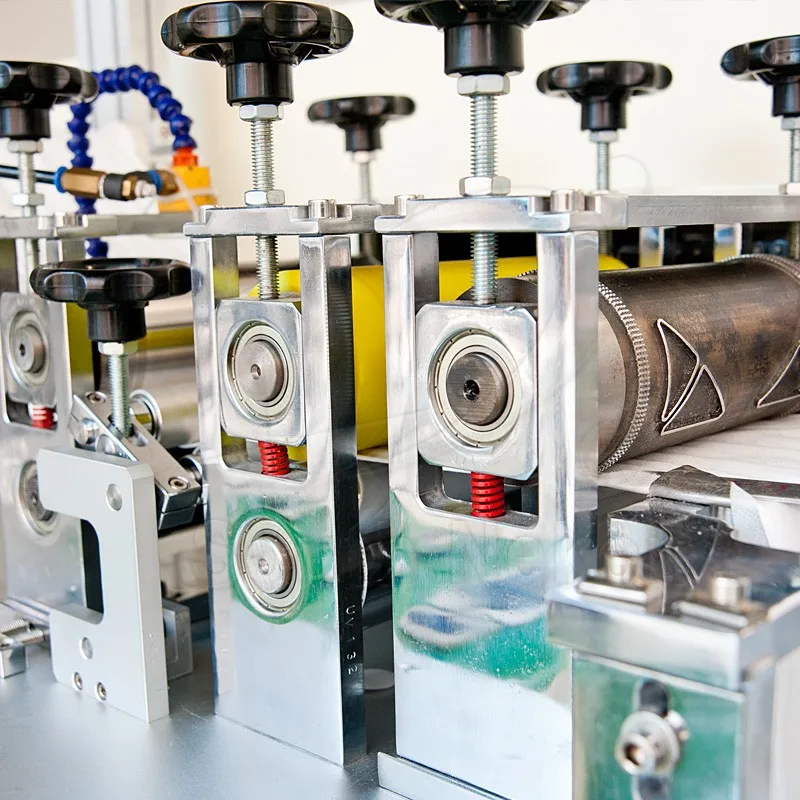

4). Adjustable tensioned device, ensure the appearance and flatness of finished products;
5). Independent nose clip feeding device, easy to adjust and maintain; after inserted, the anchor point will position automatically, ensure position and stability of nose clip.

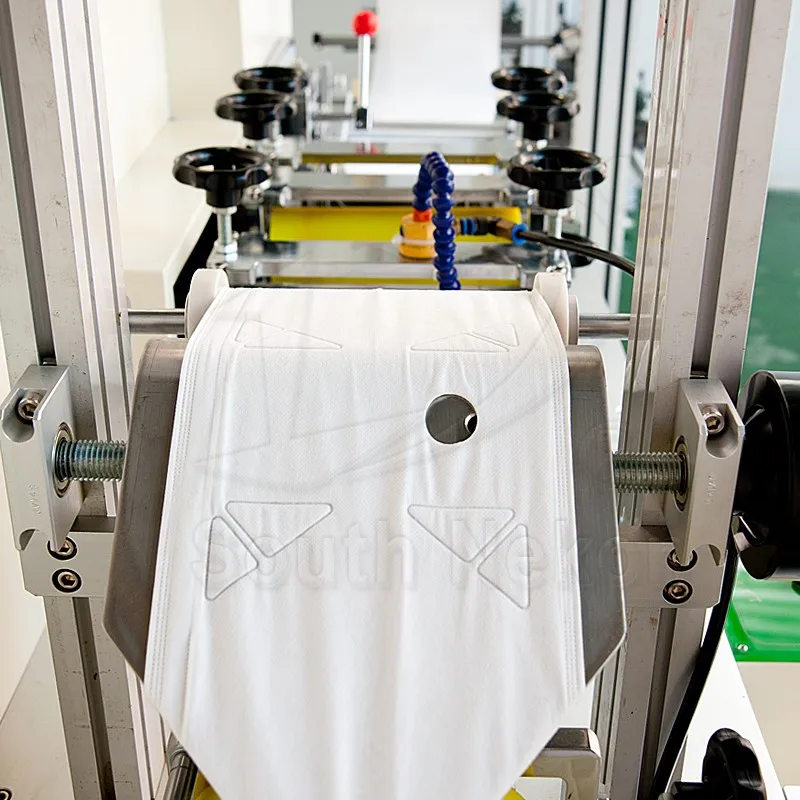

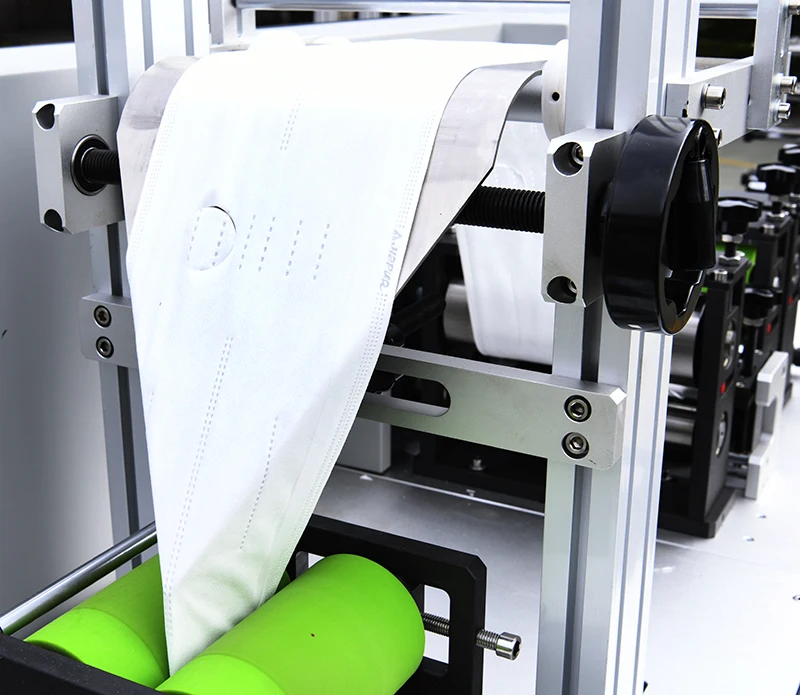

2. Folding and forming system:
1). Folding device for folding, high precision and easy to control;
2). Large diameter welding wheel, effectively reduce product deformation.
3. Ultrasonic system:

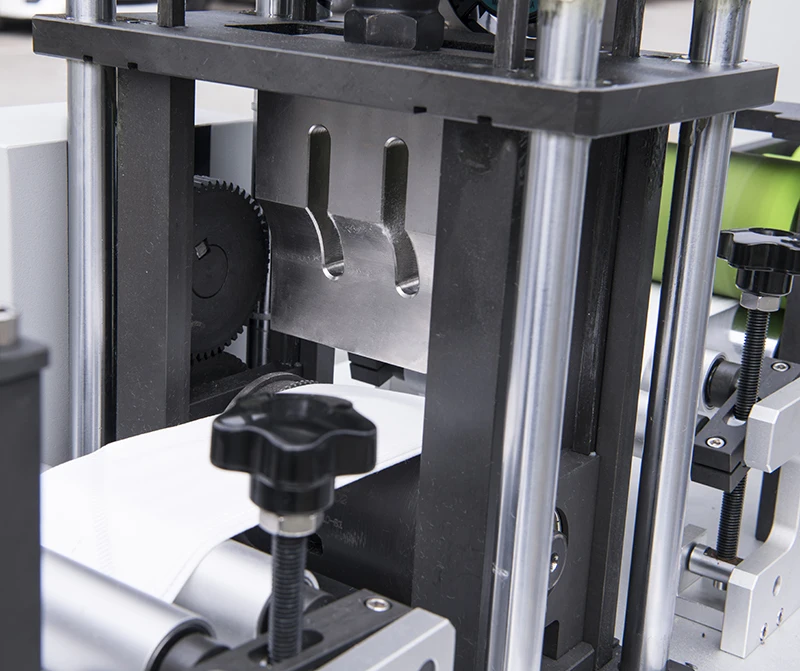

1). Alloy welding horn:
While most of the face mask machines manufacturer offer normal aluminum alloy moulds/die, we offer and suggest the factories to choose aircraft grade aluminum moulds/die, because compared with the shortcoming of normal aluminum alloy mould/dies: easy oxidation, easy blowout, not suitable for long time use on operation, short using life, the advantage of aircraft grade aluminum moulds/dies are very evident:

A. Toughness, suitable for long hair vibration;
B. Better thermal conductivity and ultra-sonic transferring guaranteed the product of welding and cutting effect more beautiful;
C. Strong hardness, durable from craze, deformation and rust;
D. Although the costs will be higher than normal aluminum moulds, but considering from the production benefits, it still is much better choice.
2. Imported ultrasonic transducer, frequency is 20 KHz as the international standards; the output power will be more strong and steady. Two sets of ultrasonic system, which will ensure the welding effect of the finished masks.

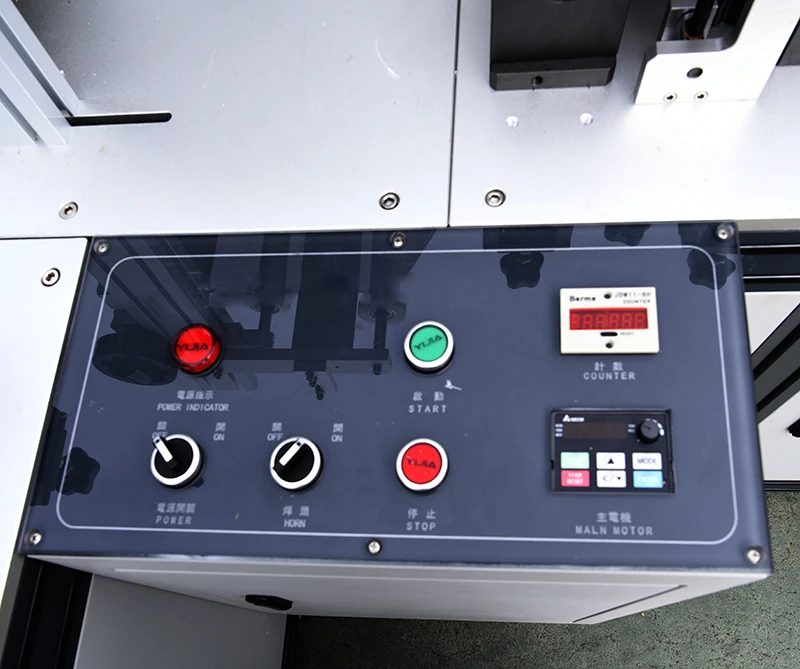

3. PLC controlled, reduce the use difficulty of operation.

Technical Data:

Dimension: 4190(L)x 820(W)x2500(H)mm

Voltage: 220V, one or three phase

Productivity: 70-80pcs/min

Power Consumption: 5.3KW

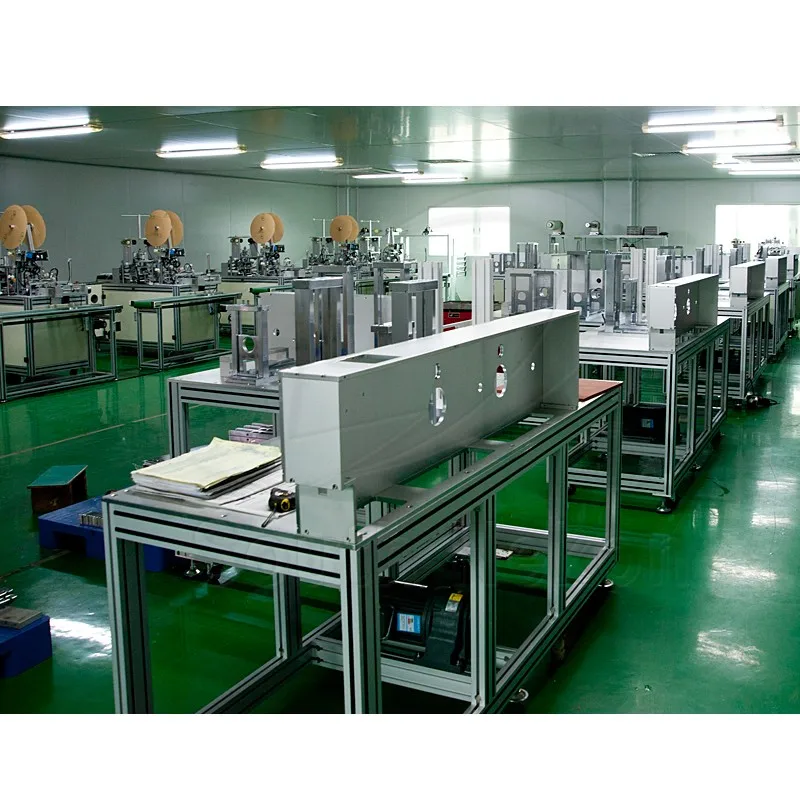

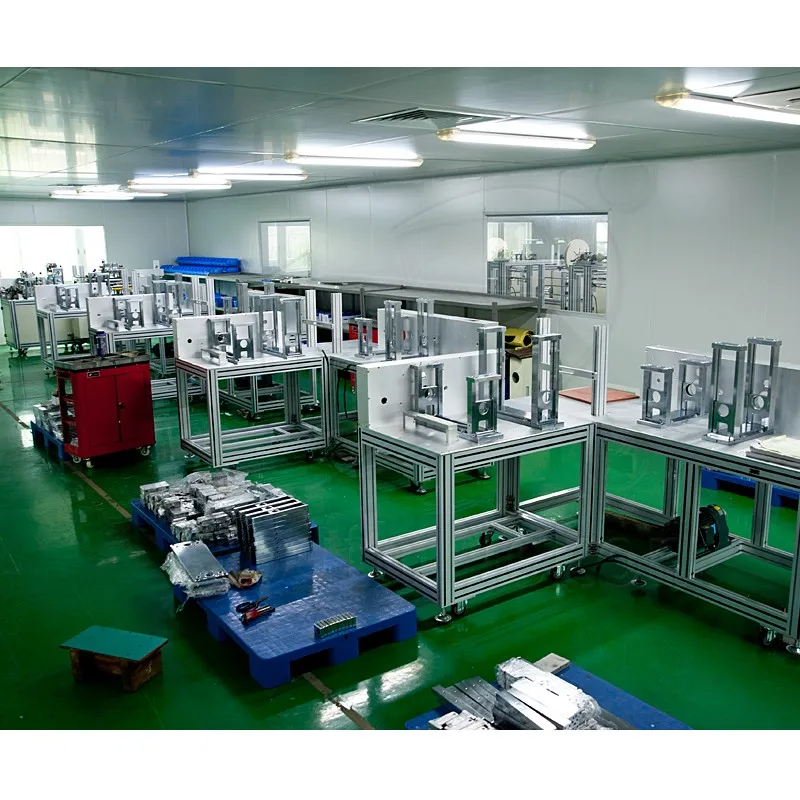

OUR FACTORY:
