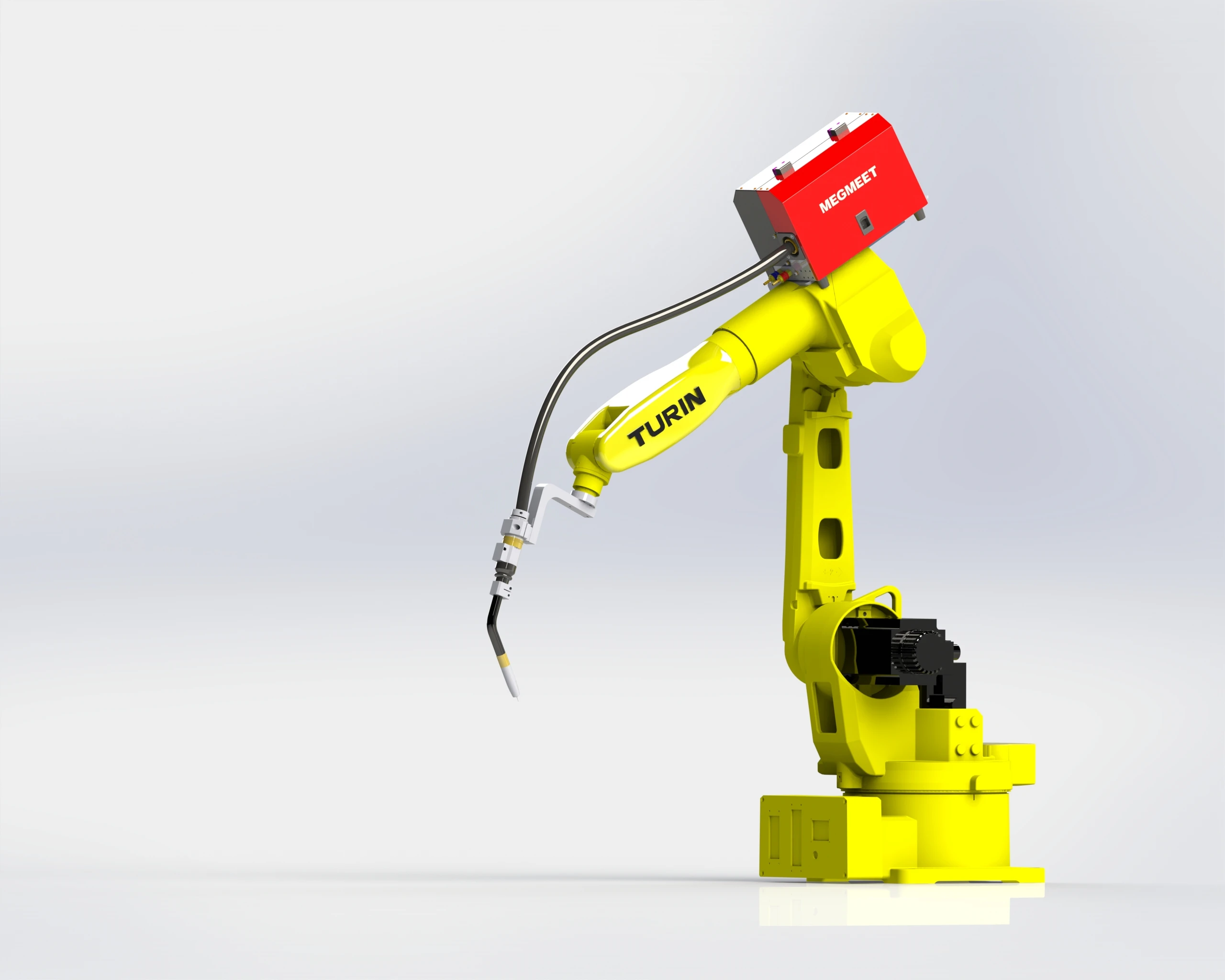

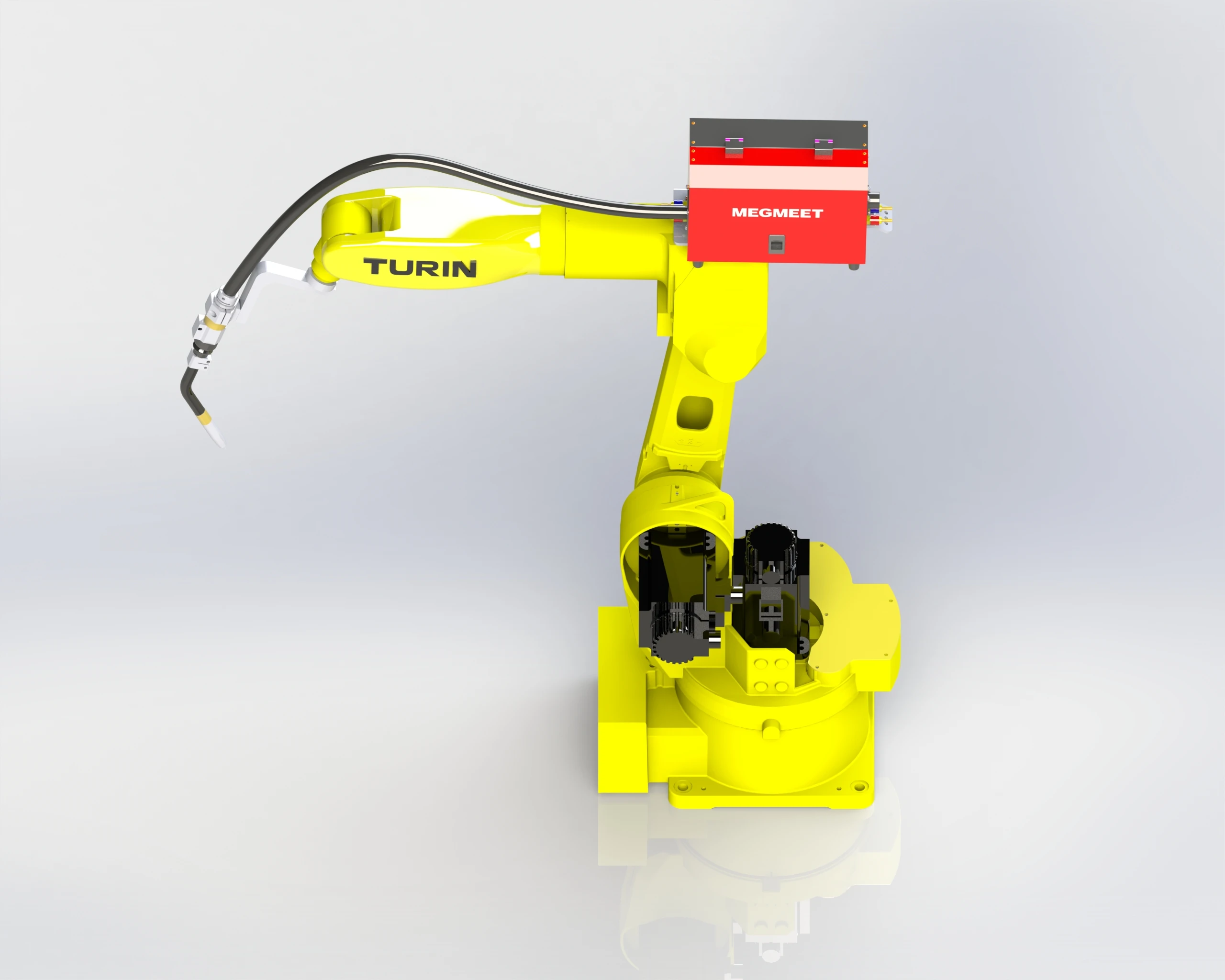

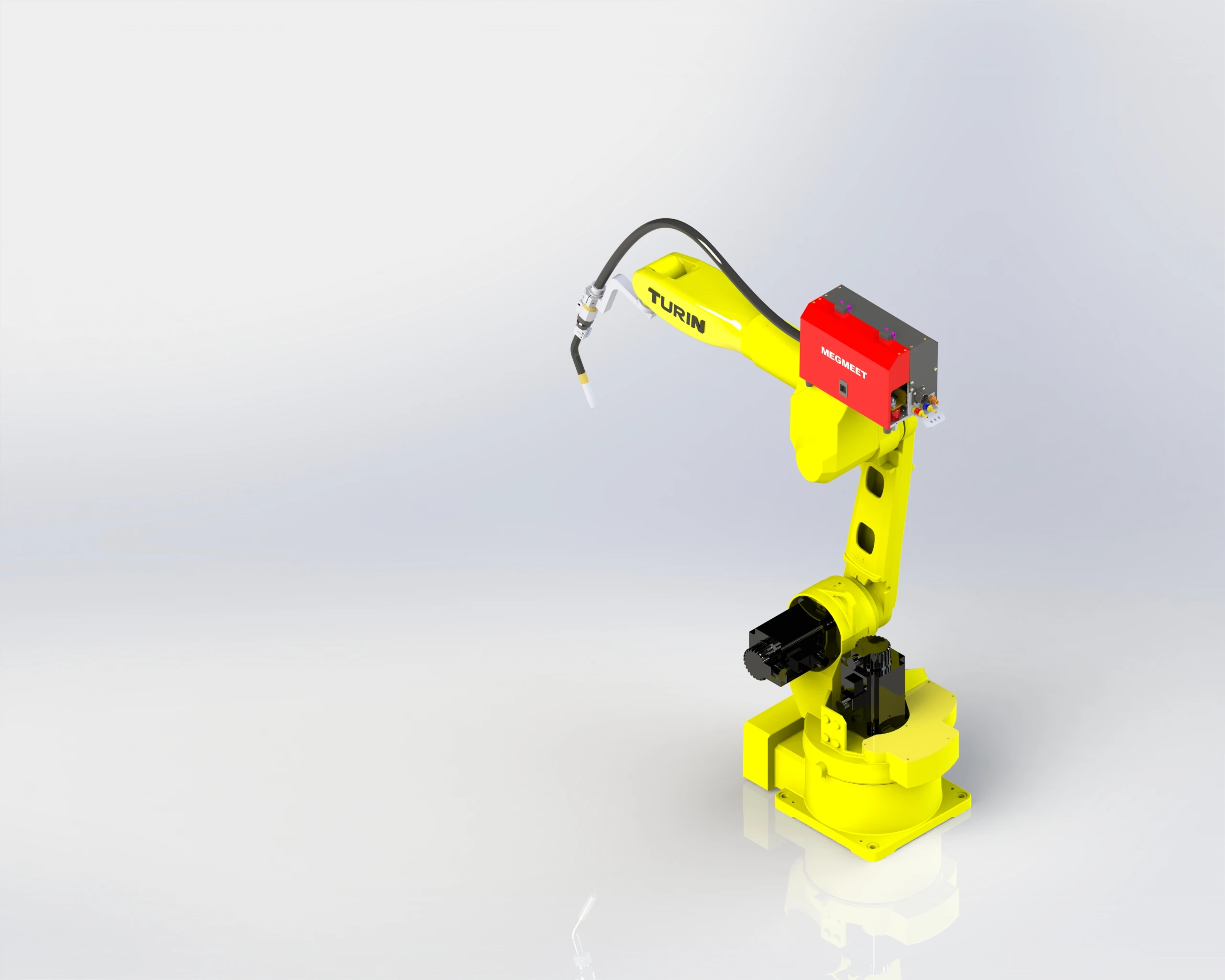

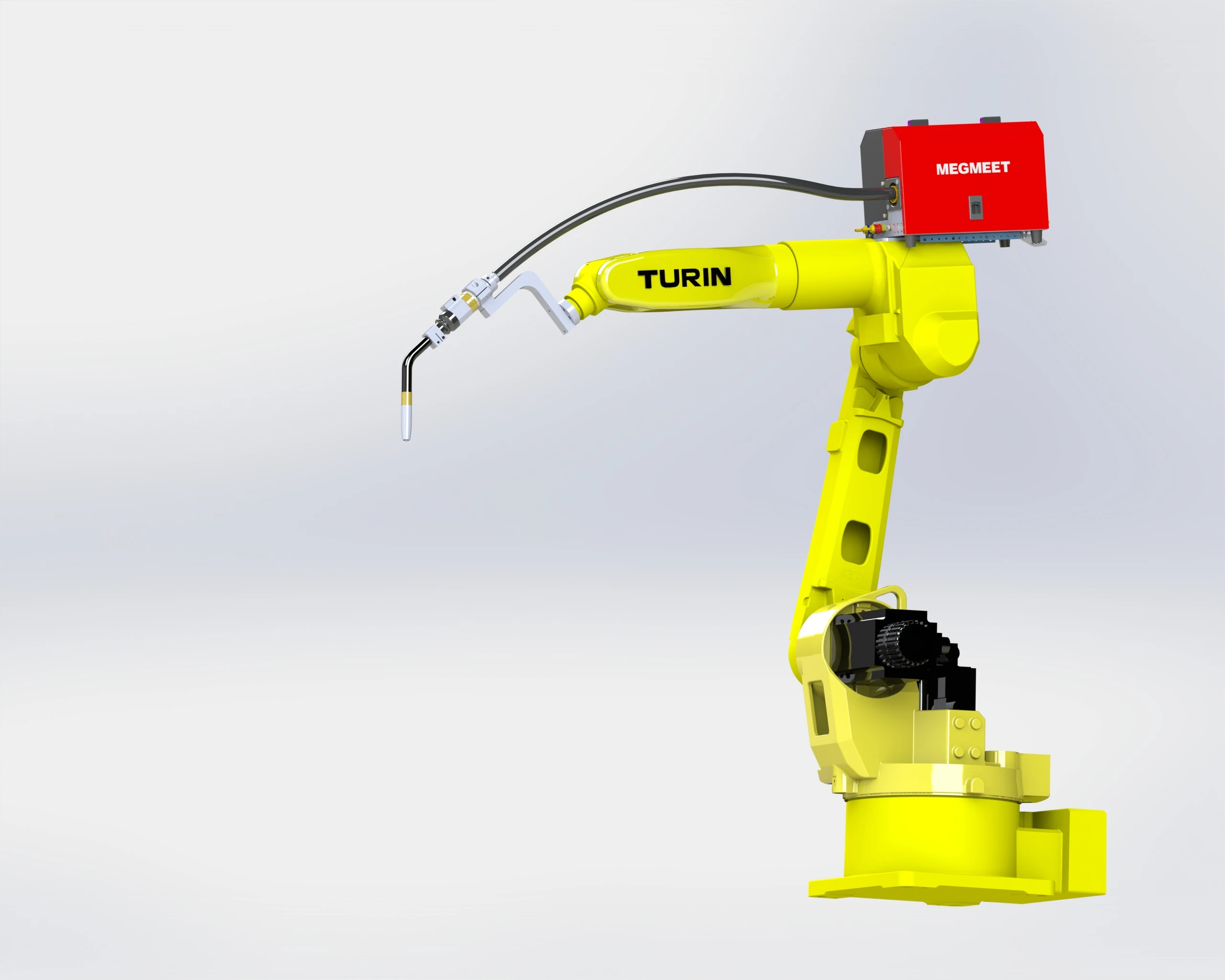

Turin Automatic Welder CO2 MIG MAG Welding Robot 6 Axis Welding Manipulator Robot Arm

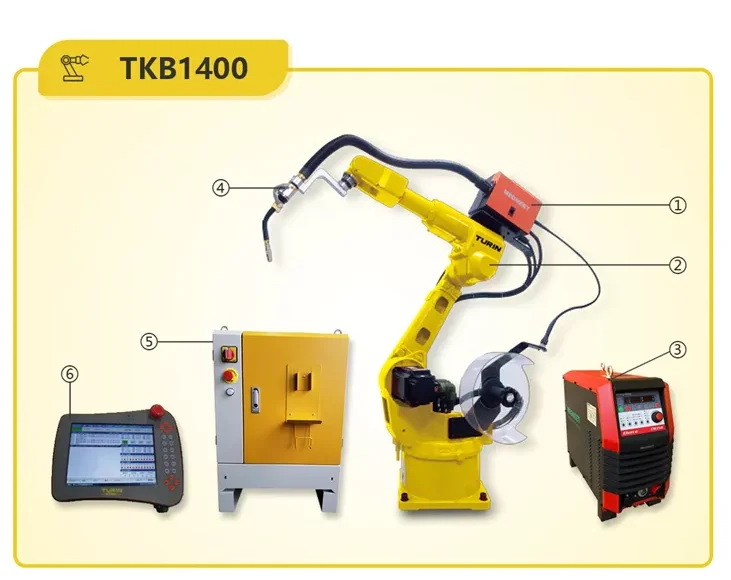

 TKB1400

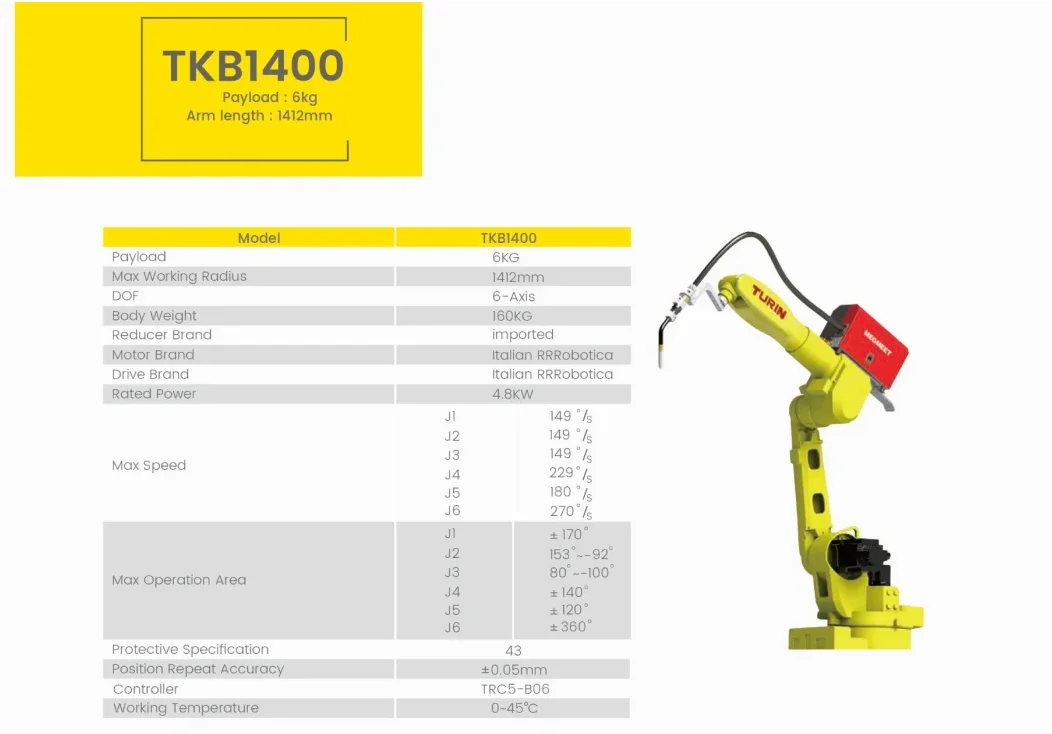

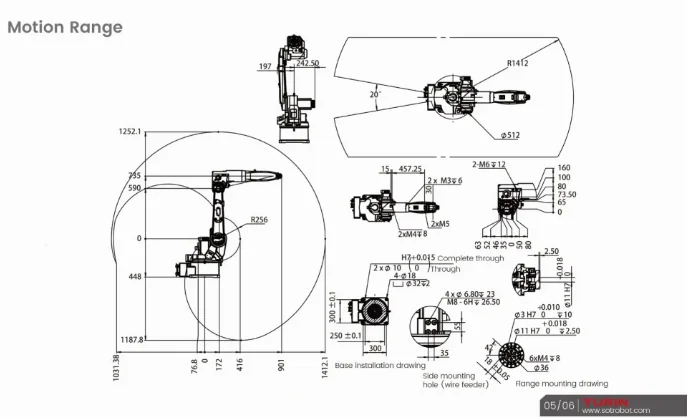

The extension of the robotic arm is 1441.5 mm and has a payload of 6 kg. It can be installed on the floor, wall or ceiling, very flexible.

 With a wide range of workspace and high operating speed, our industrial robots are ideal for welding, spraying, loading and unloading machine tools, handling, sorting, assembly and other applications.

Use Italian design technology in mechanics and circuits, and adopt wiring layout technology in the manufacture of our robot bodies. Use a modular design to simplify wiring, dual safety circuit design and dust protection design for the electrical cabinet.

Single-phase support. The 220 v operating voltage can be best adapted in various environments. The robot body has a dual circuit gas pipe and meets welding and handling requirements.

Programmable robot body, cables are made of special cables for flexible robots.

The robot body has a dual circuit gas pipe and meets welding and handling requirements.

Design of traditional but more mature external welding torch.

6 + 3 axes (6 standard axes, 3 external axes is optional).

Supports external PLC, arc tracking and other accessories (optional), visual software (optional), laser tracking software (optional), arc tracking software (optional), etc.

Support Chinese/English/Japanese/polish/Spanish.
