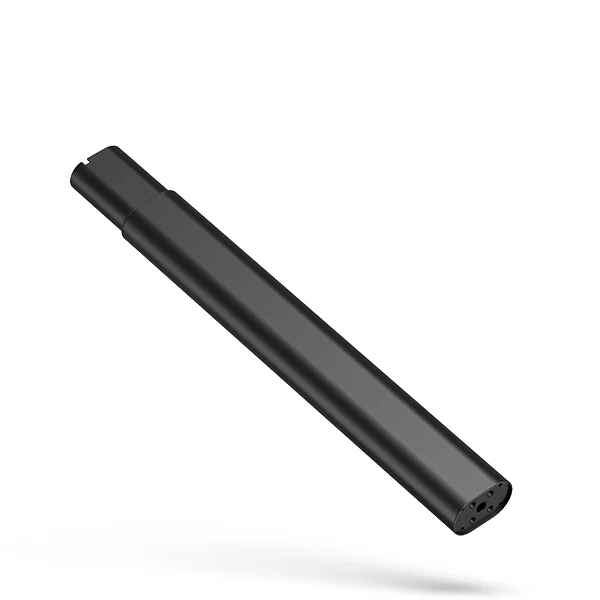

Ningbo Summit ZE1 2 S High Speed Low Noise Office Height Adjustable Rectangle Desk Legs
- Category: >>>
- Supplier: Ningbo Summite Im & Ex Co. Ltd.
Share on (1600629292048):
Product Overview
Description
Specification
· 2 Stage
· Ellipse 91*57 mm
· Inline Column
· Ellipse 91*57 mm
· Inline Column

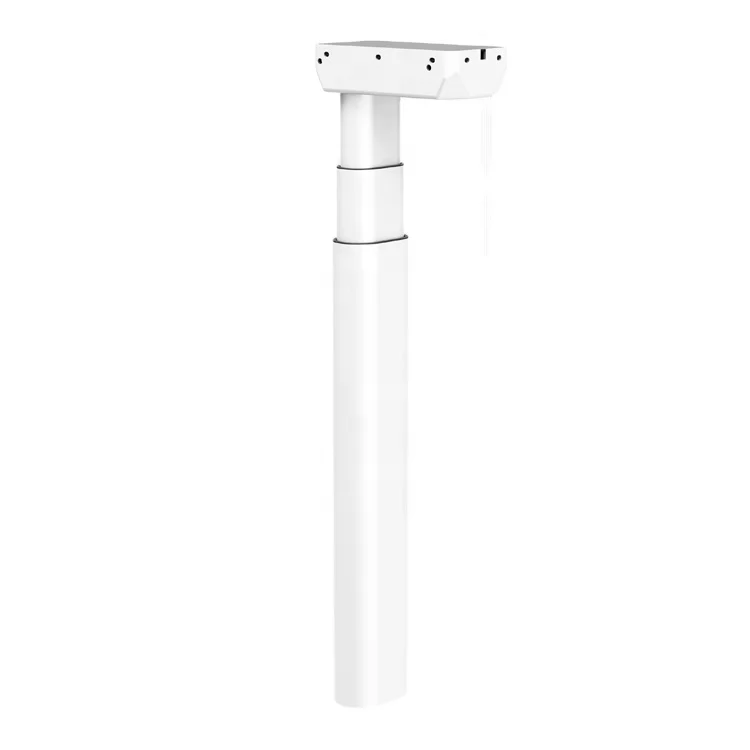

- ZE1-2-S is a compact 2-part ellipse tube inline column that provides more diverse design for the overall lifting system.
- Without motor housing design, it has a simple appearance, compact structure and a wide range of applications.
- 1500N static self-locking force, to ensure strong static load capacity of complete set of lifting table;
- Excellent comprehensive performance, low noise, high load, high stability.
- Suitable for offifice, home and business environment.
- Without motor housing design, it has a simple appearance, compact structure and a wide range of applications.
- 1500N static self-locking force, to ensure strong static load capacity of complete set of lifting table;
- Excellent comprehensive performance, low noise, high load, high stability.
- Suitable for offifice, home and business environment.
Features
- Non-porous design of tube
- Max load: 800N
- Max load of TS sets: 1250N
- Static self-locking force of TS: 5000N
- Full load & non load capacity keep the stable speed: 32mm/s
- Low noise level: ≤50dB
- The bending moment: 100N.m
- Standard installation length: 650mm
- Standard stroke length: 500mm
- Size of outer tube: 91*57mm
- Motor: high-power motor by SUMMIT
- Surface: powder coating; Standard colors: white, black, grey
- Max load: 800N
- Max load of TS sets: 1250N
- Static self-locking force of TS: 5000N
- Full load & non load capacity keep the stable speed: 32mm/s
- Low noise level: ≤50dB
- The bending moment: 100N.m
- Standard installation length: 650mm
- Standard stroke length: 500mm
- Size of outer tube: 91*57mm
- Motor: high-power motor by SUMMIT
- Surface: powder coating; Standard colors: white, black, grey
Usages
- Single column lift or two columns, three columns, four columns synchronous lift; Can be used with our TO( single column), TS( double columns), TT( three columns), TF( four columns) standard frames
- Compatible with control box: LA-CBNS1; LA-CBNH2
- Duty cycle: 10 %, Max. 2 minutes operation/Min. 18minutes rest of continuous use at full load
- Working environment: Indoor
- Storage and transport temperature: -10°C ~ 70°C
- Compatible with control box: LA-CBNS1; LA-CBNH2
- Duty cycle: 10 %, Max. 2 minutes operation/Min. 18minutes rest of continuous use at full load
- Working environment: Indoor
- Storage and transport temperature: -10°C ~ 70°C
Related Products
Assembly

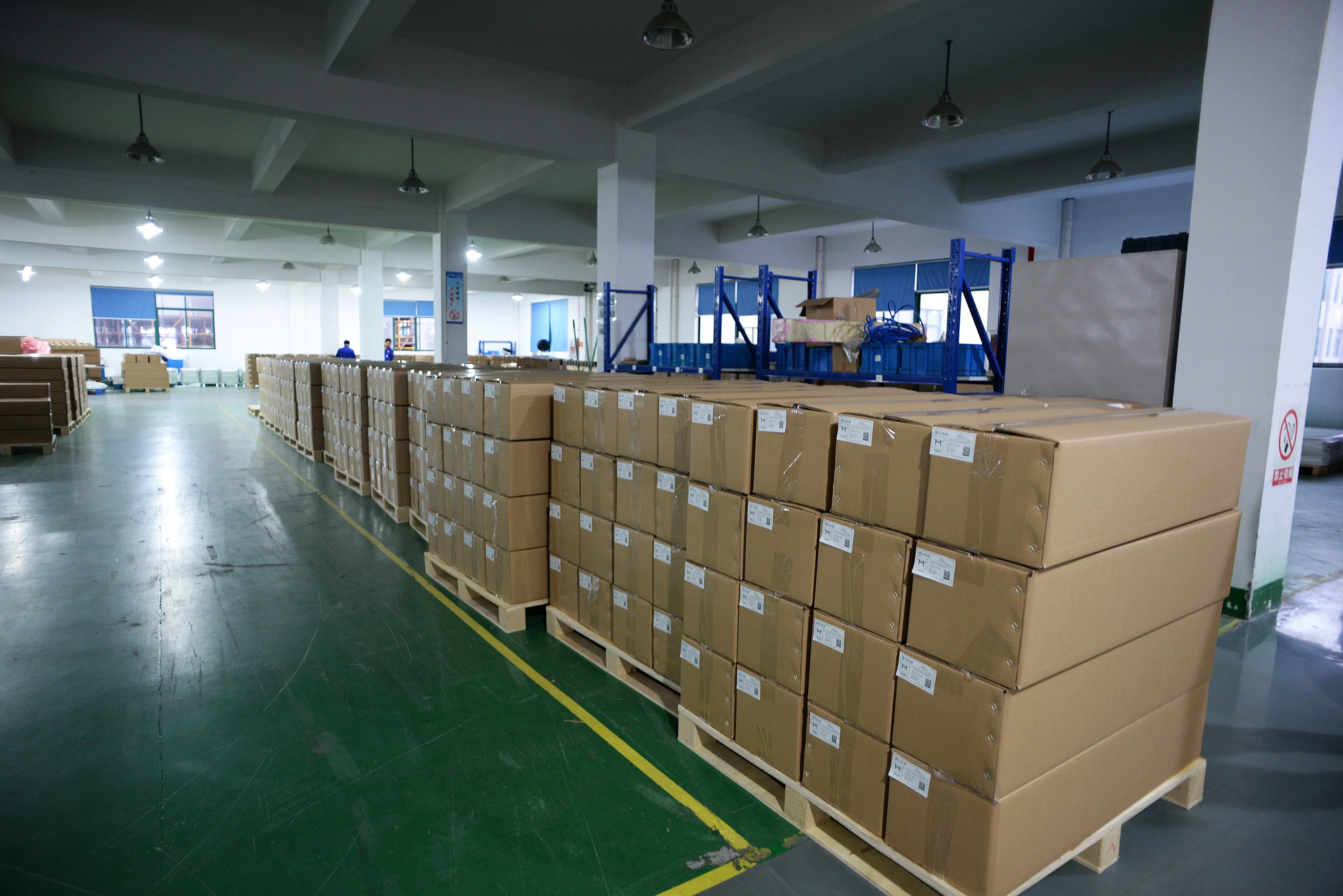

Packing & Delivery
2PCS PER CARTONS
Company Profile
NINGBO SUMMITE IMPORT ANDEXPORT COMPANY was established in 2003. Our company is located in NingBo China.We own the share of the factories in Wenzhou and Wuxi. We are specialized in manufacturing and customizing a great varied of DC linear actuators and Standing desk . Our company offers a full line of standard electric actuators, each specifically designed to meet the needs of light duty, general duty and rugged duty applications. All products are engineered for maintenance-free, long-life service, providing maximum value for our customers. Our electric actuators are engineered and produced using quality components from ISO registered key suppliers.
FAQ
1. who are we?
We are based in Zhejiang, China, start from 2015,sell to North America(50.00%),Western Europe(25.00%),South America(10.00%),Eastern Europe(5.00%),Oceania(5.00%),Africa(5.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
linear actuator,lifting column,height adjustable standing desk,electric standing desk,Control box
4. why should you buy from us not from other suppliers?
Our company is a professional supplier of linear actuator and lifting column.
We have 10 years experience in the OEM and ODM for linear actuators.
Our engineer team can provide the best solution for your project.
We never let you down.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
We are based in Zhejiang, China, start from 2015,sell to North America(50.00%),Western Europe(25.00%),South America(10.00%),Eastern Europe(5.00%),Oceania(5.00%),Africa(5.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
linear actuator,lifting column,height adjustable standing desk,electric standing desk,Control box
4. why should you buy from us not from other suppliers?
Our company is a professional supplier of linear actuator and lifting column.
We have 10 years experience in the OEM and ODM for linear actuators.
Our engineer team can provide the best solution for your project.
We never let you down.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
