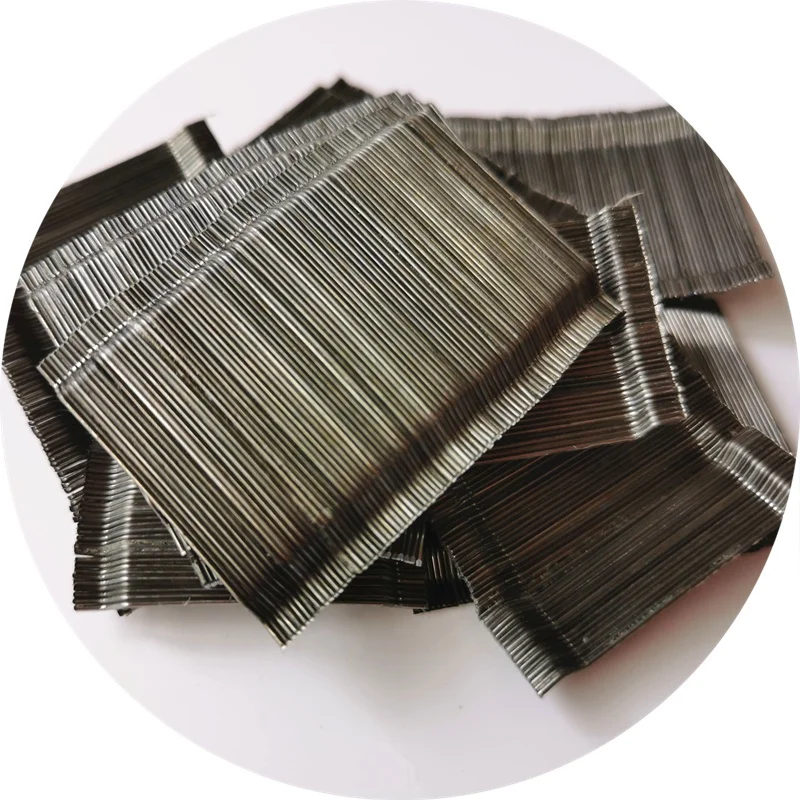

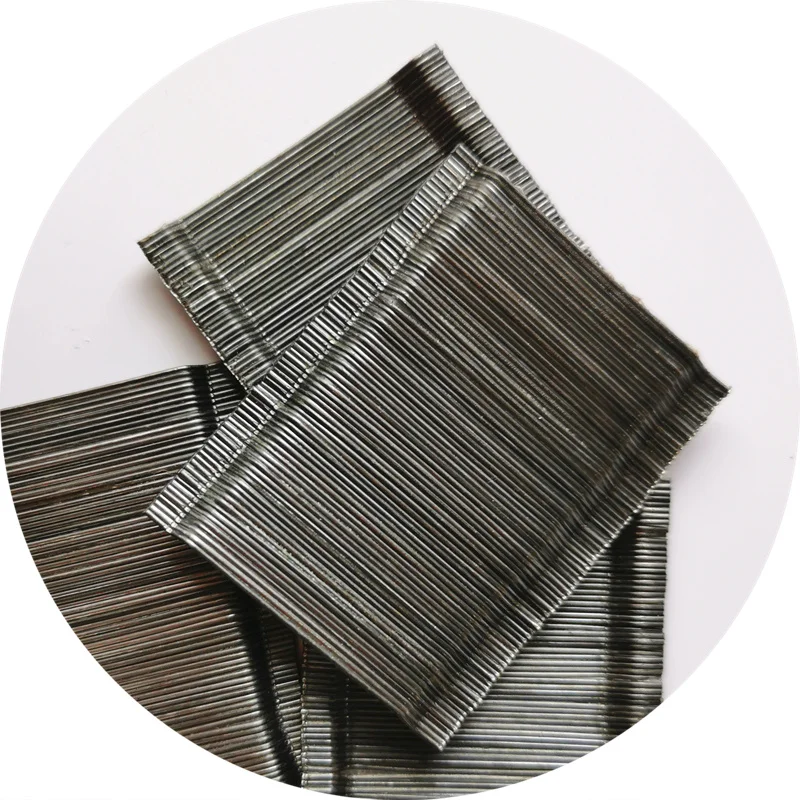

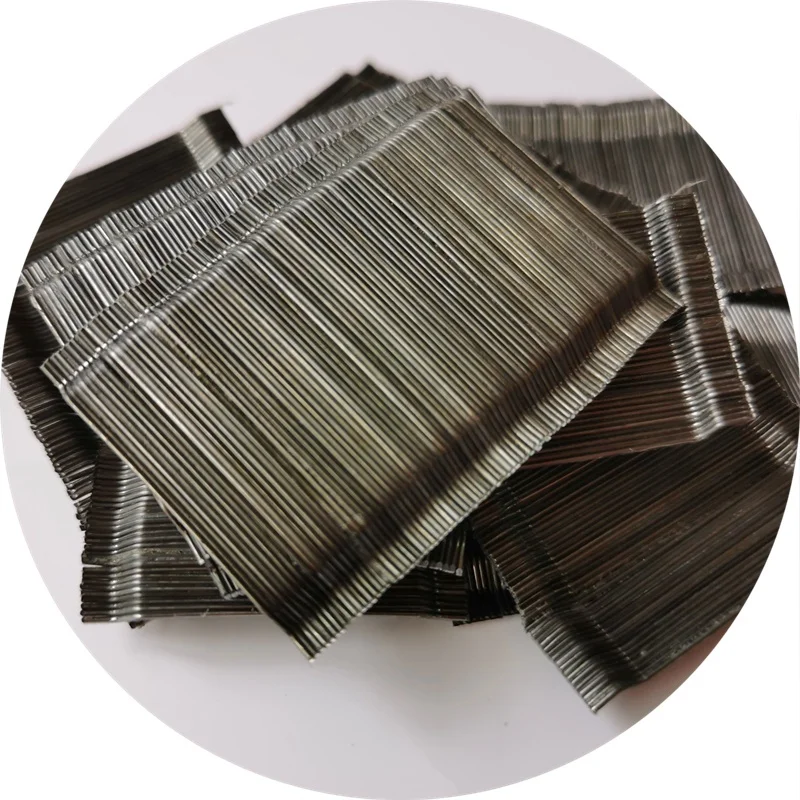

Yusen Manufacturing Steel Fiber In Straight Wave Waved Wavy Corrugated Price For Shotcrete Construction Hydropower Stationi

Product Overview

Description

Yusen Manufacturing Steel Fiber In Straight Wave Waved Wavy Corrugated Price

For Shotcrete Construction  Hydropower Stationi





Such products use high-quality low-carbon steel wire, they are high-performance steel fiber, with the characteristics of the high tensile strength, good toughness, etc. The product is widely used and also for export products.

Specification of Glued Endhooked Steel Fiber for Concrete:

Diamter: 0.75mm

Length:60mm

Tensile strength:>1100MPa

All the specification of Glued Endhooked Steel Fiber for Concrete

Type	Diameter	Length	Ratio	Tensile strength
YS-65/50	0.92	60	65	≥1100
YS-80/60	0.75	60	80	≥1100
YS-65/50	0.77	50	65	≥1100
YS-65/35	0.55	35	65	≥1100
YS-45/35	0.77	35	45	≥1100
YS-55/30	0.55	30	55	≥1100
YS-60/30	0.5	30	55	≥1100





Reference example of  Steel Fiber mixing proportion
Areas of application	LBS/Y3	(KG/M3)
Industrial Ground Floor Slabs	20-120	(12-72)
Airport(aprons, taxiways and runways)	20-160	12-95
Dolomite	80	48
Cemetery	25	15
Cement Slurry	40-120	20-72
Military Structure	160-200	95-120
Maritime	40-160	24-36
Highways	50-140	30-78
Bridge Decks	50-160	30-95
Dam and Stabilization	120	72
Commercial and Residential slabs	40-100	24-60
Cement Conduits	100-120	60-72
Cesspools	40	24
Shotcrete	40-60	24-36
Roads	20-25	12-15
