AMY 6300 150kg Thin Arduino Strain Gauge Load Cell
- Category: >>>
- Supplier: Hanyu Electronic Technology Co. Ltd.
Share on (1600629309737):
Product Overview
Description
Product Description

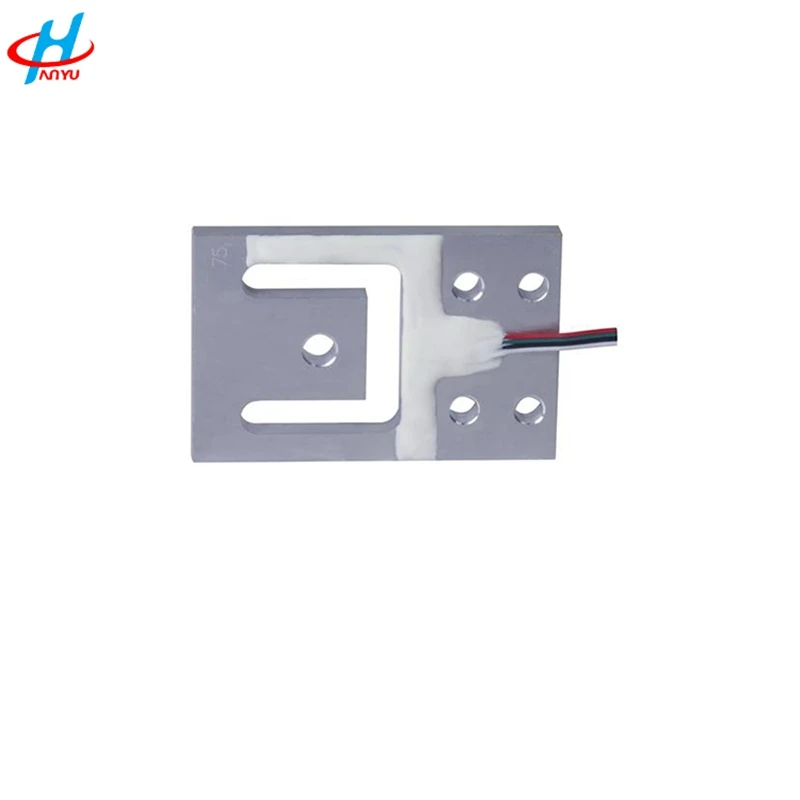

AMY-6300 AMY-6300 150kg Thin Arduino Strain Gauge Load Cell
Description
Model: AMY-6300
Capacity: 30,75,150,300kg
Usage: personal scale,bathroon scale,weighing scale.
Dimension: W*T*70
Features
- planar beam load cells
- capacity:30kg,...,300kg
- accuracy:0.05%R.O.
- very low profile
- matched output
- aluminum construction with surface anodized
- environment protection class:IP65
Applications
- retail scales
- medical scales
- personal scales
- bathroom scales
- airport baggage scales
- postal scales
- any weighing environment where space is a limiting factor.
Description
What is AMY-6300 Planar Beam Load Cell?
a planar beam load cell range is designed for applications where a low profile solution is needed. Typically, our planar beam load cells would be used in sets of three or four per scale in applications such as retail scales, medical scales or any weighing environment where space is a limiting factor.For optimum performance, use GALOCE load mounts and high precision measuring electronics with these load cells.
FEATRUES

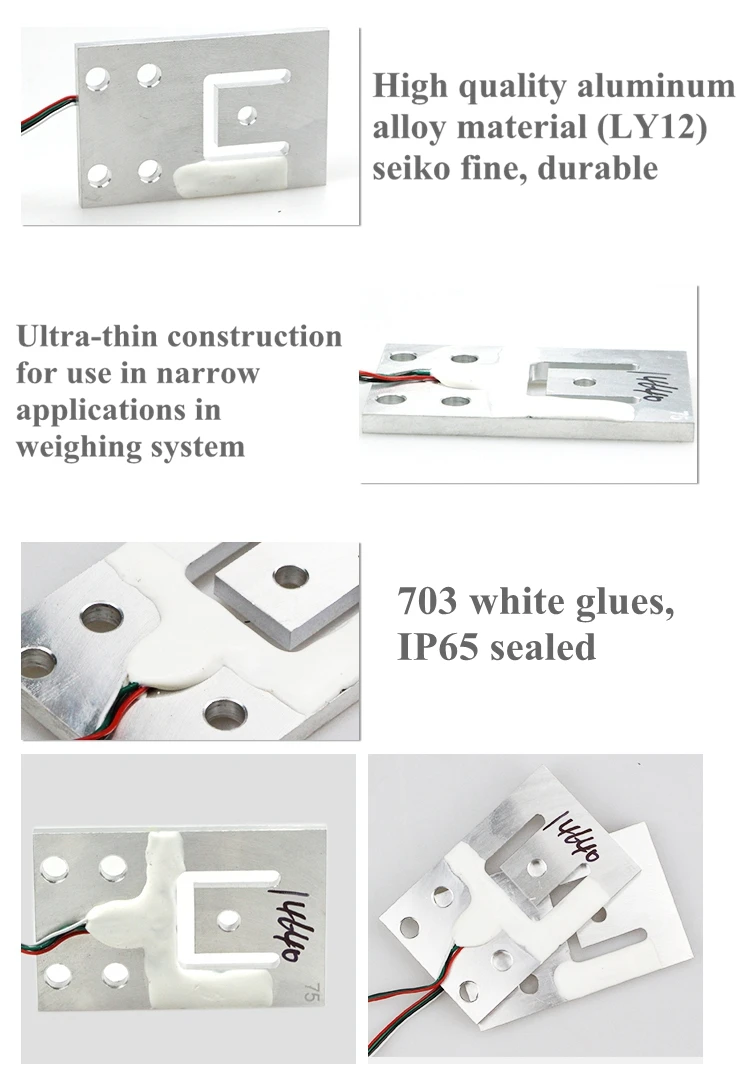

* Anodized aluminum alloy construction
* Ultra-low profile
* Wide range of capacities

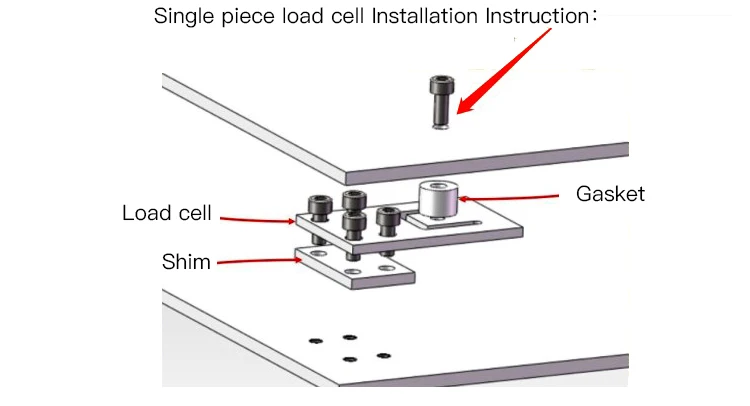

* Can be used as single or multiple load cell structured platform scales
* Widely used for low profile infant and adult medical scales, low profile platform scales, personal scales, airport baggage scales, postal scales , medical equipment, test & measurement applications
| Planar beam load cell | |
| Rated Capacity | 30, 75, 150, 300 (kg) |
| Accuracy Class | S |
| Rated Output | (1.0-2.0) ± 10%mV/V |
| Zero Balance | ± 0.1 mV/V |
| Input Resistance | 1130±20Ω |
| Output Resistance | 1000±10Ω |
| Linearlty Error | ±0.05%R.O. |
| Repeatability Error | ±0.05%R.O. |
| Hysteresis Error | ±0.05%R.O. |
| Creep in 2 Min. | ±0.05%R.O. |
| Temp.Effect on Output | ±0.05%R.O./10℃ |
| Temp.Effect on Zero | ±2%R.O./10℃ |
| Compensated Temp.Range | 0-+40℃ |
| Excitation,Recommended | ≤ 10VDC |
| Operating Temp.Range | -10-+40℃ |
| Safe Overload | 120%R.C. |
| Insulation Resistance | ≥2000MΩ(50VDC) |
| Cable,Length | ø0.8mm×0.6m * |
| Protection Class | IP65 |

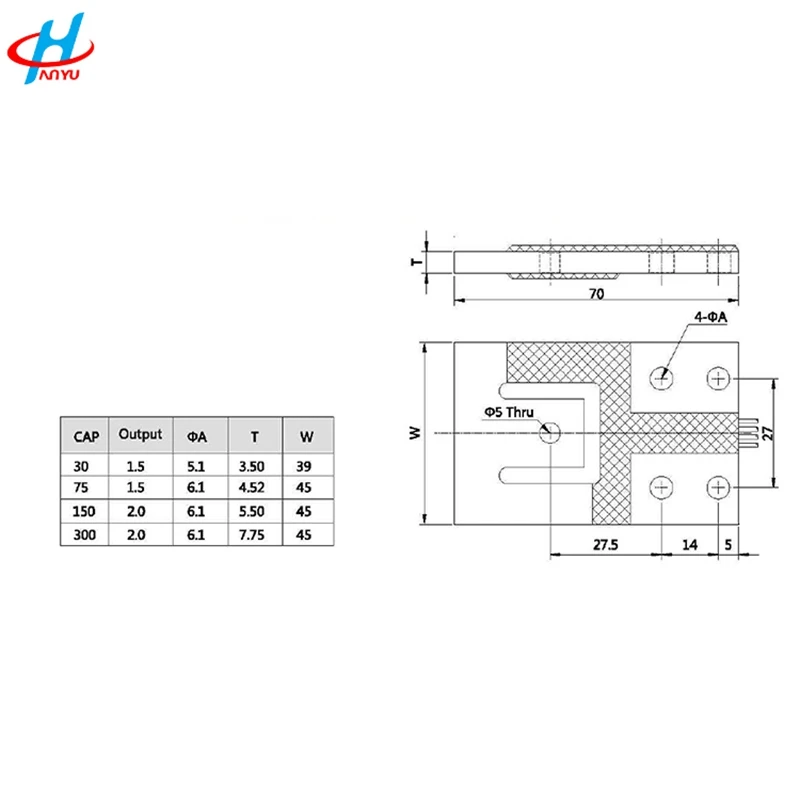

Dimension:
Transport & Packing
Payment method:
Alibaba Trade Assurance Order, L/C, T/T Bank, Western Union, MoneyGram, Paypal, Payoneer
Company Information
FAQ
- Can you provide the sample to check?
- Sure, sample time 1~3 working days
- Can you put our logo on the product?
- Yes.silk-print, sticker, laser and etc. all workable.
- Can you provide the customized package to us?
- Yes.OEM package welcome!
- What certificate do you have?
- CE,ROHS,OIML
- What is the lead time for mass production?
- Normally 5~10 working days. For OEM order, 15~30 working days.
- What trade terms can you accept?
- We accept EXW, FOB, CIF, Door to door service and etc.
