Product Overview
Description
Bulk Rolls 1050 3105 5052 H32 3003 H24 Color Aluminum Coil
Description
Common Specifications
| Shape | Aluminum coils or sheets |
| Color | RAL colors, like white, black, red etc, and wood grain, stone pattern |
| Process | Single or double coating, single or double sides coated etc |
| Common Width | 30 - 1500mm |
| Common Thickness | 0.01mm - 2.0mm |
| Coating Material | PE, HDPE, PVDF |
| PE Thickness | Over 18 micron |
| PVDF Thickness | Over 25 micron |
| Unit Weight | 100KG - 2500KG per coil |
| Technology | Hot rolling, cold rolling |
| Delivery | 15 - 20 days of 5-10 tons for reference |
| Samples | Free |
| Main features | Long color life, bright colors, rustless |
| Usage | ACP, PC case, Ceiling, Rain gutter, Shutter door, Building, License plate |
 | |
Applications
1. For constructional exterior curtain walls, ACP of aluminum composite panel, Decorative Renovation Buildings, Building Facades, Siding, Window, , Exterior and Interior Cladding Wall Panel, Indoor and Outdoor Ceiling, Roller Shutter Doors, Roofing Material and so on.
2. Eaves Trough, Rain Gutters and Downspouts, Soffits and so on.
3. Decorative renovation for storey-added old buildings, Wallboard and ceilings for tunnels.
4. Channel Letters, Advertisement board, display platforms, LED Signs, UV printing, Advertising Boards, Billboards, Signboards, Wallboards and so on.
5. Raw materials in industrial purpose.
6. Material for Vehicle Bodies, Yacht Bodies, Boat Bodies, Bus Body, and so on.
7. Fan blade sheets, louver window shades blinds.
Features
| 1. Rustless. | 2. Eco-friendly. |
| 3. High definition. | 4. Vibrant colors. |
| 5. Super texture and feel. | 6. Excellent fire resistance. |
| 7. Excellent impact strength. | 8. Super weather resistance. |
| 9. Waterproof and easily clean. | 10. Good gloss and smoothness. |
| 11. Light weight and easy to process. | 12. Uniform and plenty colors of coating. |
| 13. Extremely durable scratch resistant surface. | |
 | |

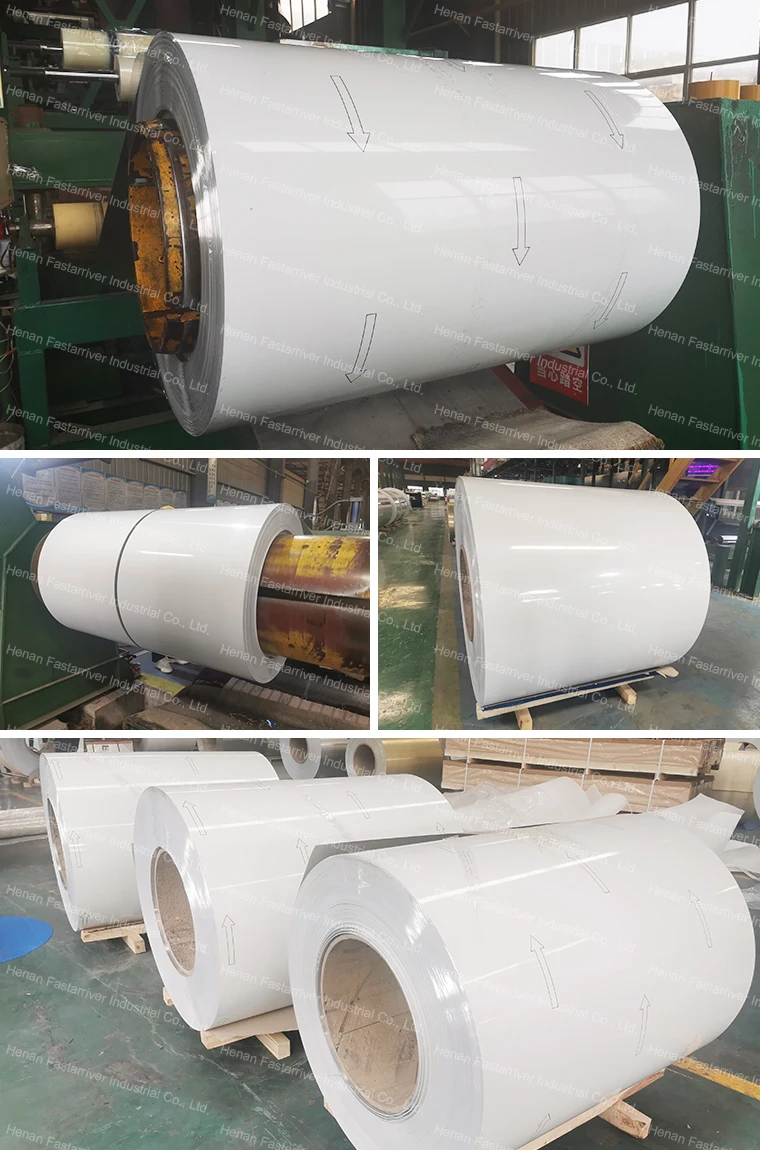

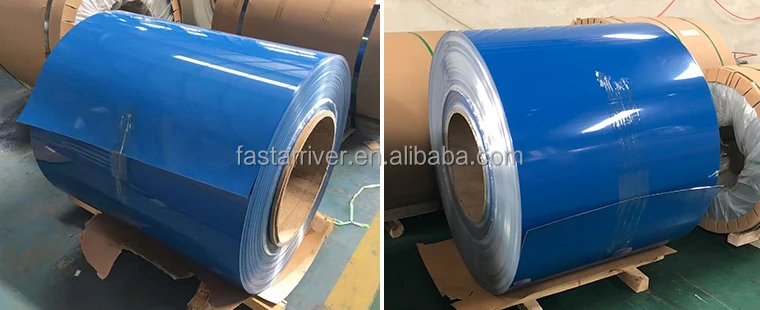

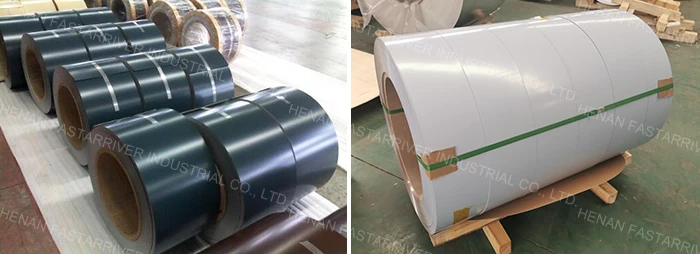

Color coated aluminum coil is the aluminum coil surface coating color with PE/PVDF.
PE Coating: excellent flexibility and machinability (T-bend); it is widely used in aluminum coil system.
| Technical Data of PE | |||
| Test Item | Test Result | Coating Film Thickness | 16μm (average 17μm) |
| Gloss Tolerance | 1.5 | Abrasion Resistance | 1000 times No change |
| Pencil Hardness | 3H | Acid Resistance | No change |
| Coating Flexibility | 1T | Solvent Resistance | No change |
| Impact Resistance | 50kg·cm | Boiling-Water Resistance | No change |
| No depainting, No crack | |||
| |||
PVDF Coating: excellent anti-corrosion, long weather resistance and strong adhesion; soft paint film, it is widely used in the area of super weather resistance.
| Technical Data of PVDF | |||
| Test Item | Test Result | Color Retention | E=0.35 |
| Coating Thickness | 26μm | Chalk Resistance | No change |
| Gloss Tolerance | 38% | Gloss Retention | 84.50% |
| Pencil Hardness | 2H | Surface Bruning Behavior | Class:A |
| Coating Flexibility | 2T | Salt-spary Resistance | 3000hrs no blister |
| Adhesive Force | 4B | Humidity Resistance | 3000hrs no blister |
| Abrasion Resistance | 55L/mil | Solvent Resistance | No change |
| Impact Resistance | >=100kg-cm | Acid Resistance | No change |
| Boiling-water Resistance | No change | Alkali Resistance | No change |
| |||
A wide variety of colors for your choice or according to your samples

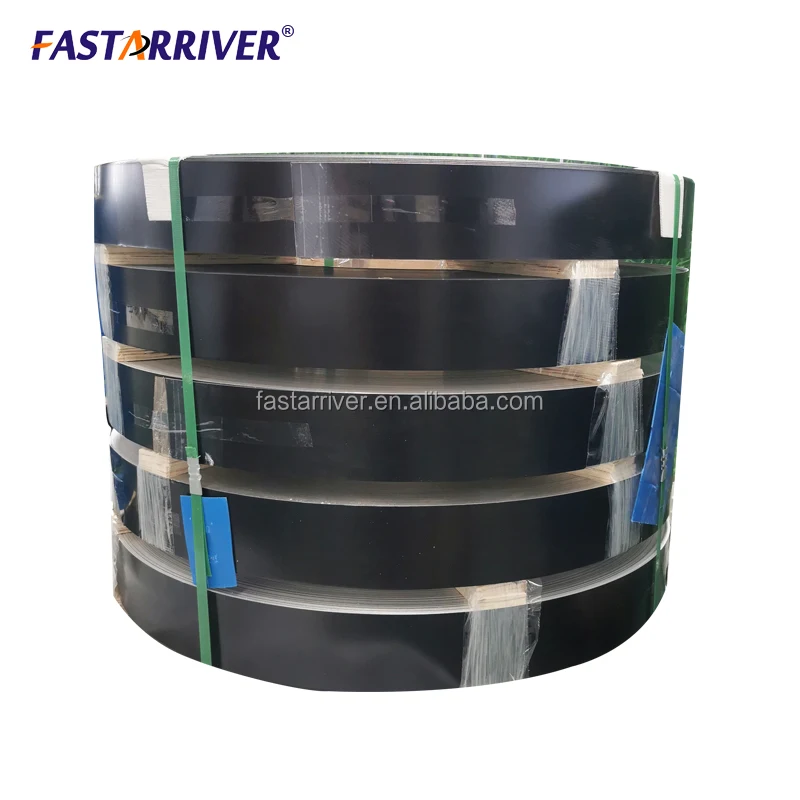

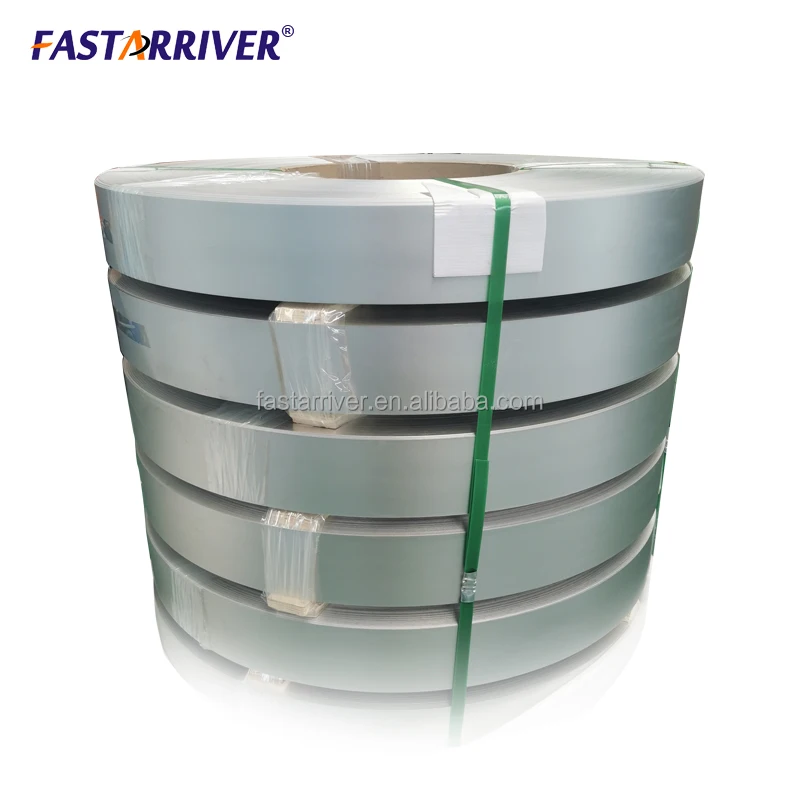

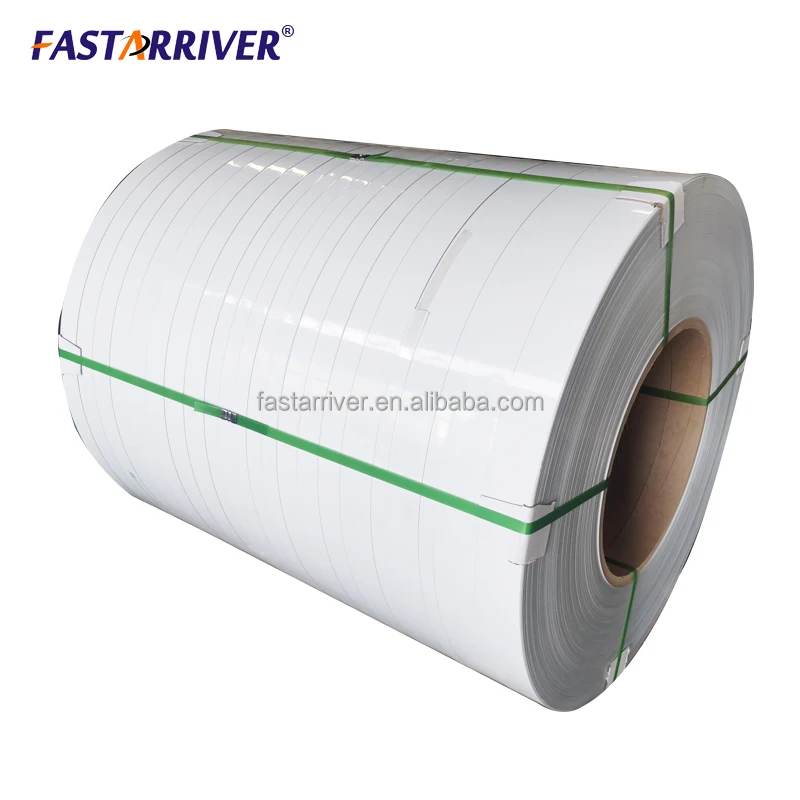

According to your requirements to customize strip cutting
The weight of each coil / pallet According to your requirements
| Chemical Composition (%) | ||||||||
| Grade | Si | Fe | Cu | Mn | Mg | Zn | Ti | Al |
| 1050 | 0.25 | 0.40 | 0.05 | 0.05 | 0.05 | 0.05 | 0.03 | 99.5 |
| 1060 | 0.25 | 0.35 | 0.05 | 0.03 | 0.03 | 0.05 | 99.6 | |
| 3003 | 0.6 | 0.7 | 0.05-0.2 | 1.0-1.5 | 0.1 | Rem. | ||
With embossed processing |
 |
| With mirror polished processing |
 |
Brushed processing with Color coating one side or both
Various samples
Packaging & Shipping

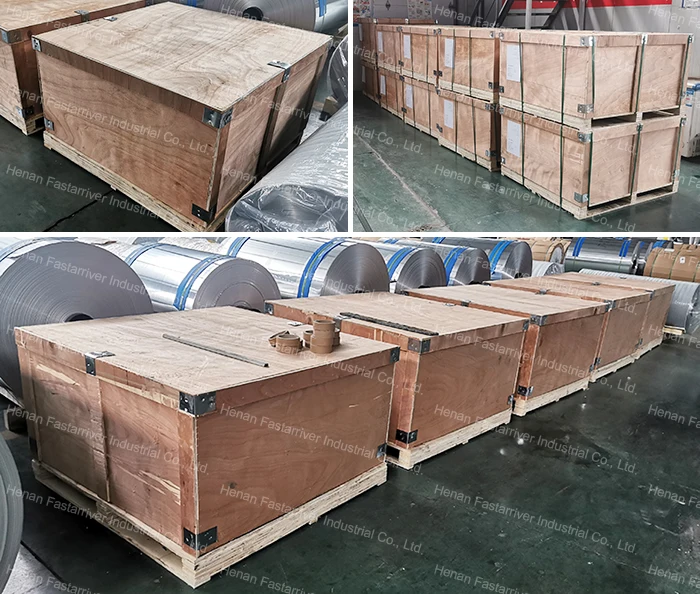

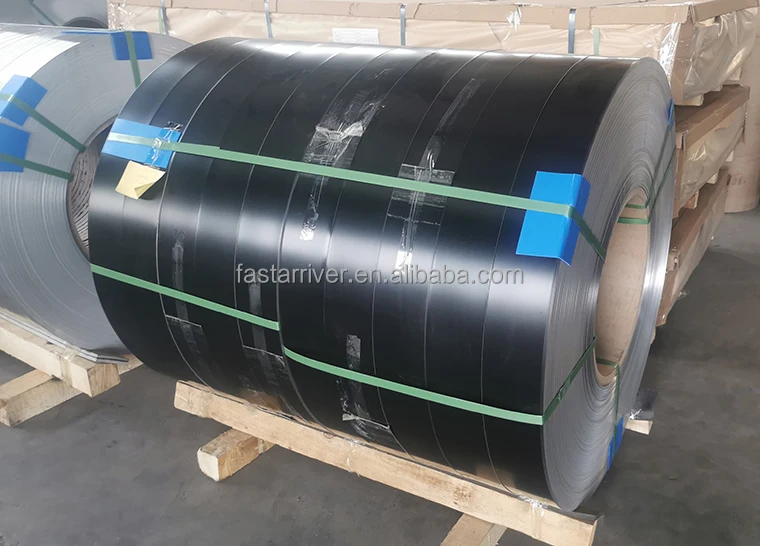

| Standard seaworthy exporting packing with carton or pallets. | |
| 1. Waterproof plastic and strong wrapping paper cover | 2. Metal belts baling and wooden pallets on the bottom |
| Also can packing as your request. | |
Clear dimensions are calculated by your inquiry. For your reference, 1mm thick, 1200 x 2400mm size, 1000 pieces, weight is estimated 7850KG, volume is estimated 6CBM. | |
| Shipping from Shanghai or Qingdao port usually, other main ports in China is available too. | |
Recent Exhibitions
More exhibitions are arranged and going on.
Customer feedbacks
| Prof. James : Any of my questions, dear Ms Mandy reply to me always quickly. Her attitude and passion attract me to keep a long cooperation with her. |
| Dr. Pankaj : I did not have much faith on China products before. I only ordered few tons for test at first. Now I just place 40tons of two containers again. They let me feel what is the win-win cooperation and how to keep a longtime partner. |
| Engr. Tariq : Customer service during request for quote and ordering process was exceptional. Quick fulfillment. Rapid shipping. Product quality exceeded expectations. |
| Ms. Katazyna : Very positive shopping experience. Dimensions are exact to my specs. Packaging is impressive. I will be back again. |
 |
Company Information
Henan FASTARRIVER Industrial Co., Ltd., aluminum products factory!!!
FASTARRIVER Industrial company supplies the most extensive aluminum sheets and coils. For further information about any of our products, please feel free to contact me. And if you do not know the professional details, just tell me its size and use, I will offer a fully solution for you! "Quality is culture! " We insist WIN-WIN cooperation to build longtime relationship with our customers. Hope to cooperate with you to make us advanced together. |
|

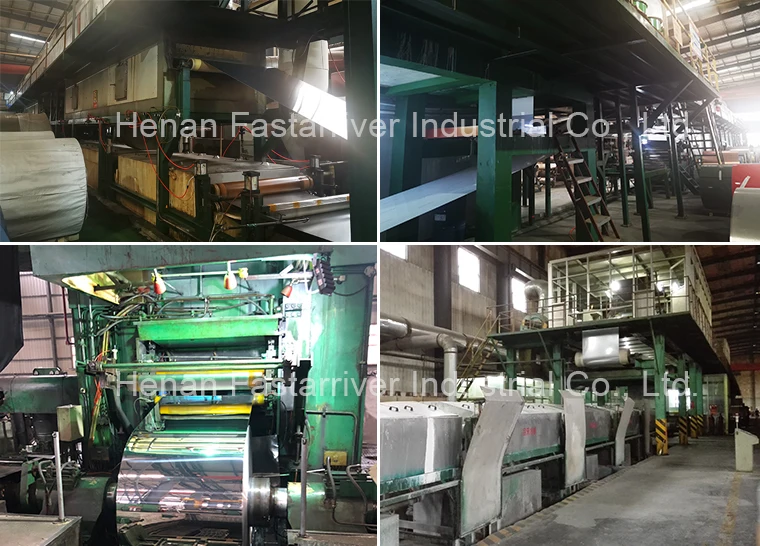

We have a complete production, processing and quality control system.
| 6 continuous casting-rolling production lines. | 4 sets cold rolling machines. |
| 4 sets foil rolling machines. | 2 sets continuous rotary coating machines. |
| 2 sets mirror surface polishing machines. | 2 sets laminating machines. |
| 3 sets embossing machines and other processing machines. | |
| Especially a (1+4) hot rolling production line with 30,000 tons annual output. | |
Our Services
 | |
| In addition, we provide a complete suite of aluminum processing services, includes mill finish, colored, embossed, brushed, mirror polished, etc. The most important is we are focusing on and leading the insulation jacketing aluminum, with Polysurlyn or Polykraft Moisture Barrier. | |
Quality control system
| Chemical analysis laboratory, oil analysis laboratory, spectral analysis laboratory, tensile laboratory, micro analysis laboratory. Strict control of production materials, and strictly monitor the production process, meet customers' demands exactly. |
 |
