Photovoltaic Panel Brackets Making Machine Solar Power Generation C Channel Making Solar Photovoltaic Bracket Machine

Product Overview

Description

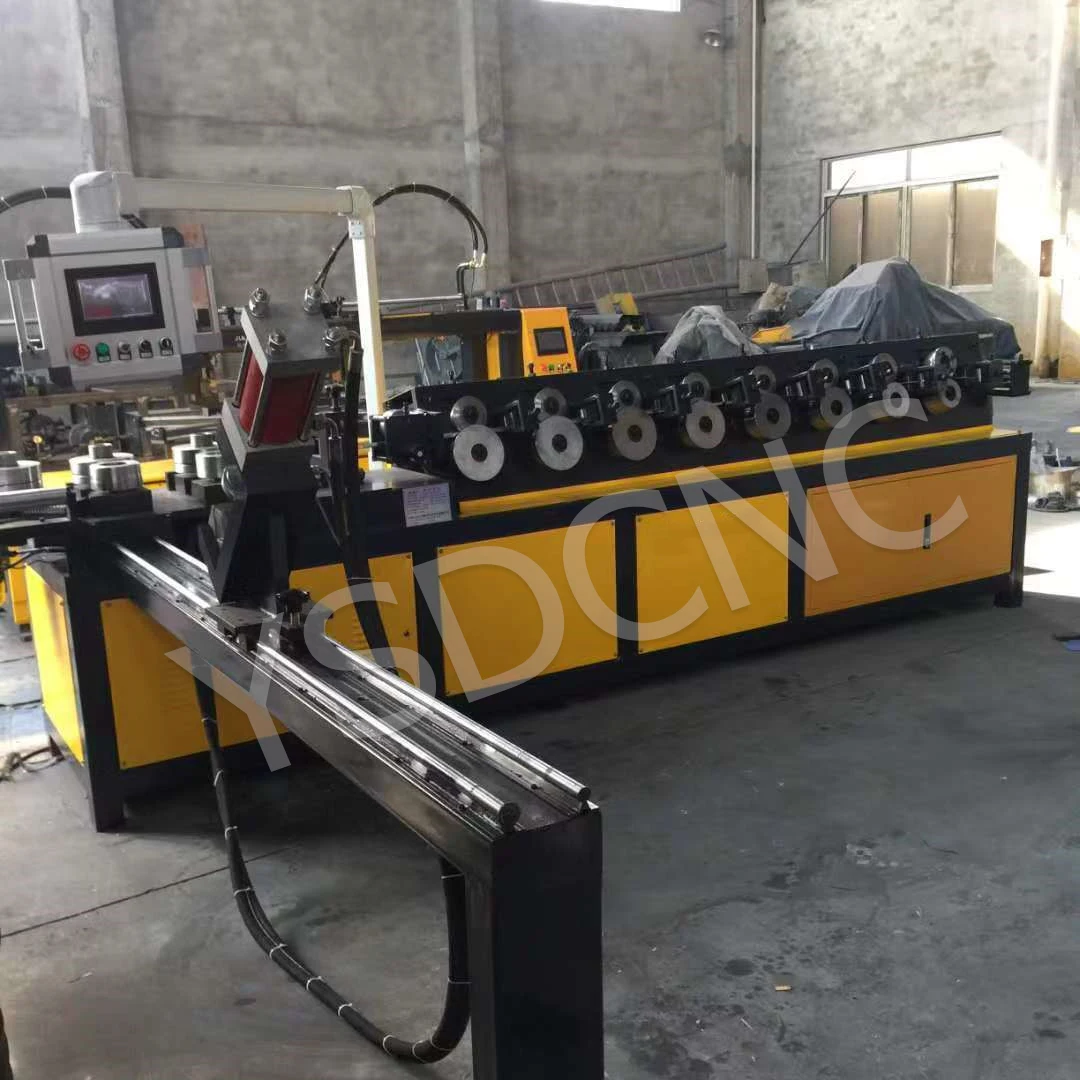

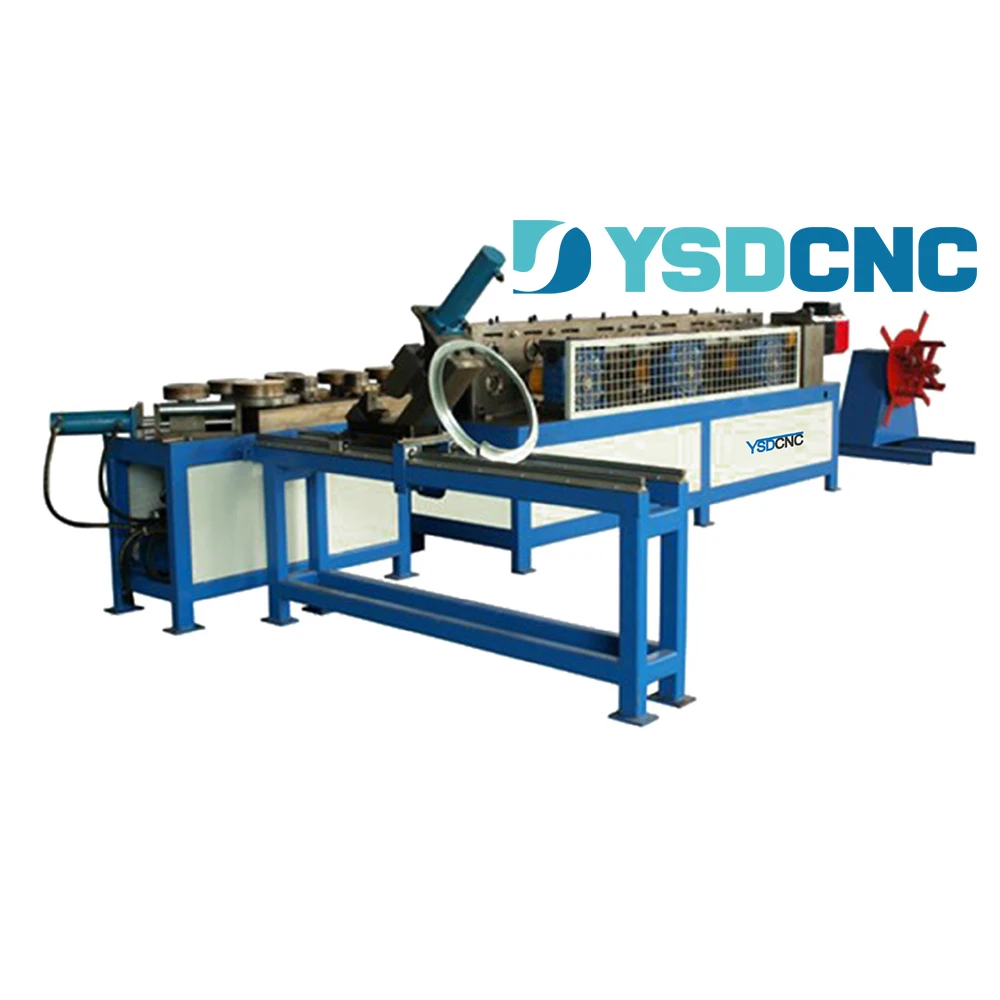

Photovoltaic Panel Brackets Making Machine Solar Power Generation C Channel Making Solar Photovoltaic Bracket Machine



Nanjing Shanduan CNC Machine Tool Co., Ltd is one of the Top 3 press brake and shearing machine in China, which specializing in manufacturing and marketing of press brake,shearing machine,press machine, square duct production line LINE5,4,3,2,1;spiral duct machine, locking forming machine;folding machine,plasma cutting machine, power press,ironworker,hydraulic notching machine, beading machine,flange forming machine,shearing machine & press brake,Blade/Mold, etc.





Company Name (manufacturer):     Nanjing Shanduan CNC Machine Tool Co., Ltd.

Brand:    YSDCNC

Address: MINGJUR INDUSTRIAL CONCENTRATION DISTRICT,SHIQIU TOWN,LISHUI AREA,NANJING,JIANGSU

Tel:+86 025-57262305 Phone:+86 18851629789

WhatsApp/Skype /Wechat :+86 18851629789

Website: www.ysdcnc.com



 Detailed parameters and features:
1. Automatic flange forming machine Touch screen setting, microcomputer
PLC control system.
2. The frame of the automatic round flange production line is welded with
high-strength steel plates, and the rollers are made of Cr12MOV material,
which is sturdy and durable.
3. Steel belt type angle iron flange roll material application range: thickness
1.8-4MM iron material, stainless steel material 1.8--3 equilateral or unequal
side angle iron and flange diameter 200~2000 forming and shearing.
4. Working action category of CNC round flange rolling machine: strip steel
coil material ---- feed wheel - forming angle steel - - rounding - forming and
cutting
5. Fully automatic round flange forming oil pressure system: the working
pressure is adjusted steplessly, the oil pressure circuit adopts a zero-load
design, and is matched with a 4kw motor and a high-pressure oil pump motor
of Shanghai Airlines, which can effectively reduce the noise and sound,

thereby improving the performance and life of the motor.
6. Electronic control system of CNC round flange production line: equipped
with human-machine interface, diameter forming positioning wheel, distance
adjustment position using Taiwan encoder, high accuracy, sensitive response,
accurate positioning, so that the flat steel rolling machine can operate
accurately and efficiently. simple and clear.
7. Flange processing speed: 1000MM/MIN
Eight, CNC round flange rolling machine processing front and rear straight
parts without loss of material, high efficiency of flange finished products,
reducing the cost of angle steel flange rounding.
9. The finished product size of the steel belt round flange is accurate, and the
diameter tolerance is within ±2mm.





More details:

Roll diameter	The diameter can be selected between 200~2000mm, and the processing diameter shall not be less than 10 times the width of the flange
molding raw material	Galvanized coil, stainless steel coil, black iron coil,
Production Process	The flat strip material is straighter at one time; fully automatic one-time rounding, no second rewinding, no longer accurate
Production speed	7 meters per minute molding, one molding
Type of finished product	Material width 90 equilateral or unequal circular flanges
skills requirement	PLC control, ordinary workers can operate, no need for skilled technicians to operate, labor costs are reduced by more than half
Diameter accuracy	PLC turbine gear motor control, no error (or minimal error), the encoder memorizes the direct position
Material loss	There is no material loss before and after adjustment, zero material waste
maintenance	Modular design, simple mechanical maintenance and convenient maintenance





Technical specification:

model	YSD-F-B200
Scope of application	Manufacture of 1.8-4mm thick galvanized steel tape angle round flange
Manufacturing Specifications	&250-2000mm
Total power	AC380V 18KW
Overall size	4400*3000*1400mm
Total Weight	2500KG
operating mode	PLC man-machine panel, foot switch control
