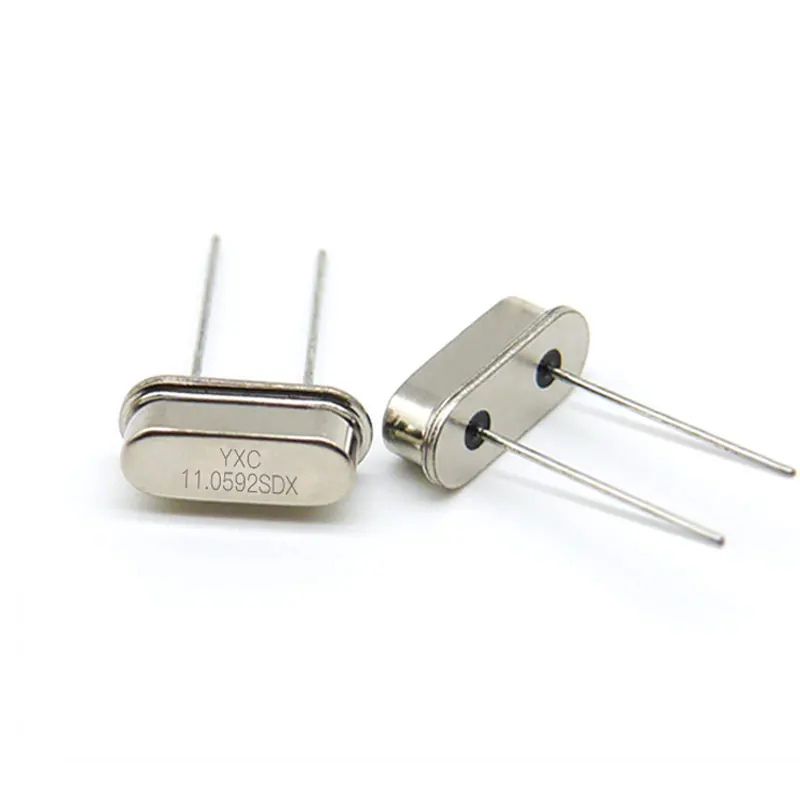

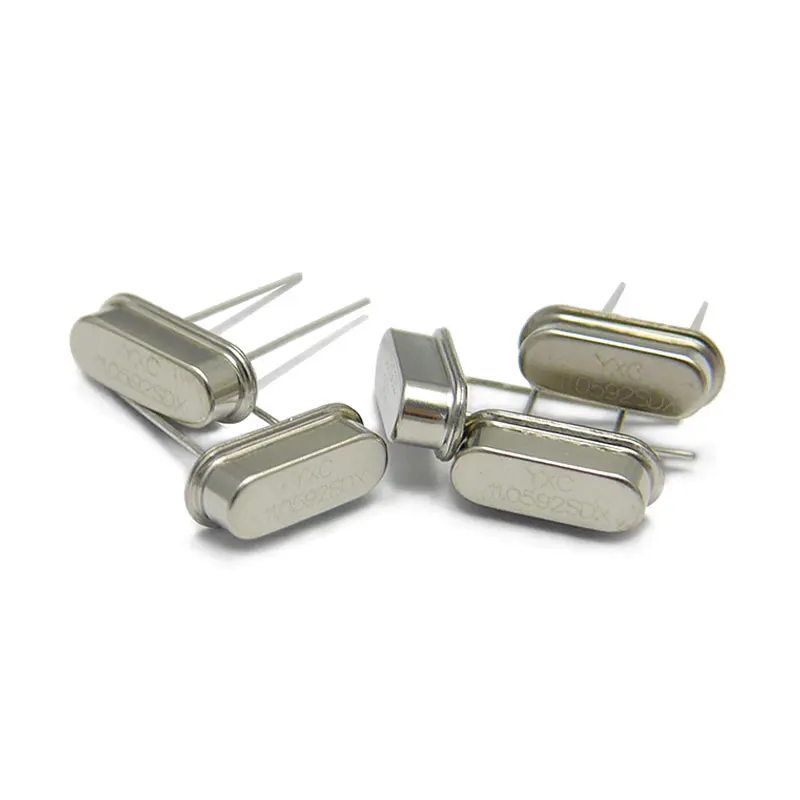

Xtal HC 49S 11.0592 MHz 20ppm DIP Quartz Crystal Oscillator 11.0592MHz 20pF
- Category: >>>
- Supplier: Yqm Electronics Intl Limited
Share on (1600629366402):
Product Overview
Description
Specifications

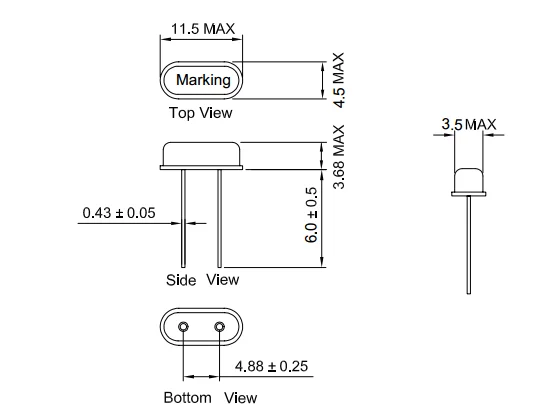

External Dimensions
Electrical Specifications
Item/Type | HC-49US |
Nominal Frequency Range | 3.2768~64MHz |
Vibration Mode | AT Fundamental |
Load Capacitance | 12pF, 20pF, or specify |
Frequency Tolerance (at 25°C): | ±10ppm;±20ppm or specify |
Frequency Versus Temperature Characteristics | ±20ppm or specify |
Operating Temperature | -20°C ~ +70°C -40°C ~ +85°C or specify |
Storage Temperature | -40°C ~ +85°C or specify |
shunt Capacitance | 7pF Max |
Level of Drive | 1~500 μW(100μW typical) |
Frequency Aging (at 25℃) | ±3ppm/year Max |
REMARK:SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE. PLEASE CONFIRM WITH OUR SALES ENGINEER FOR PDF FILE.
