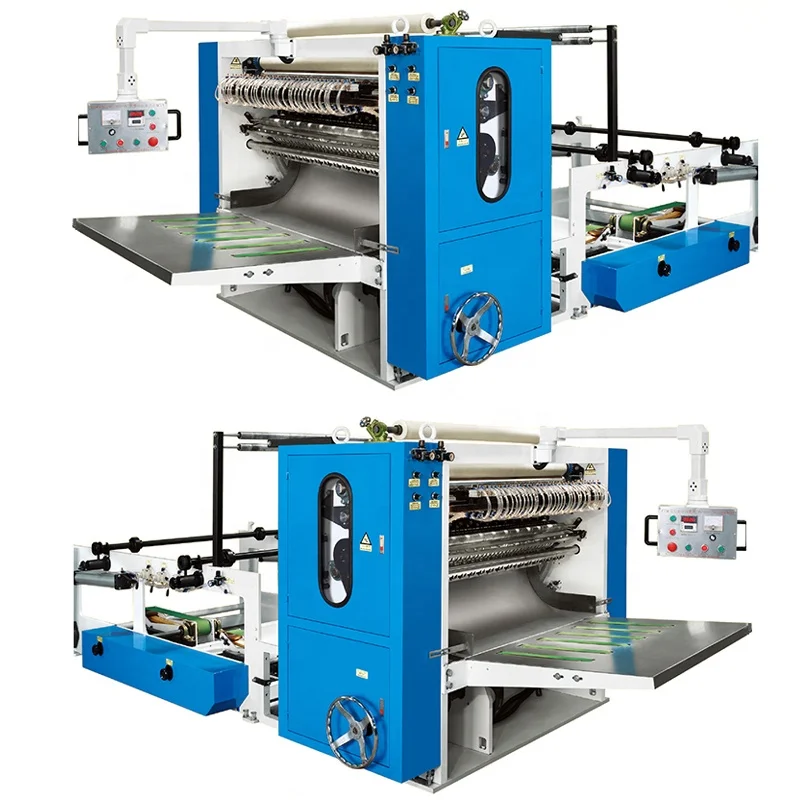

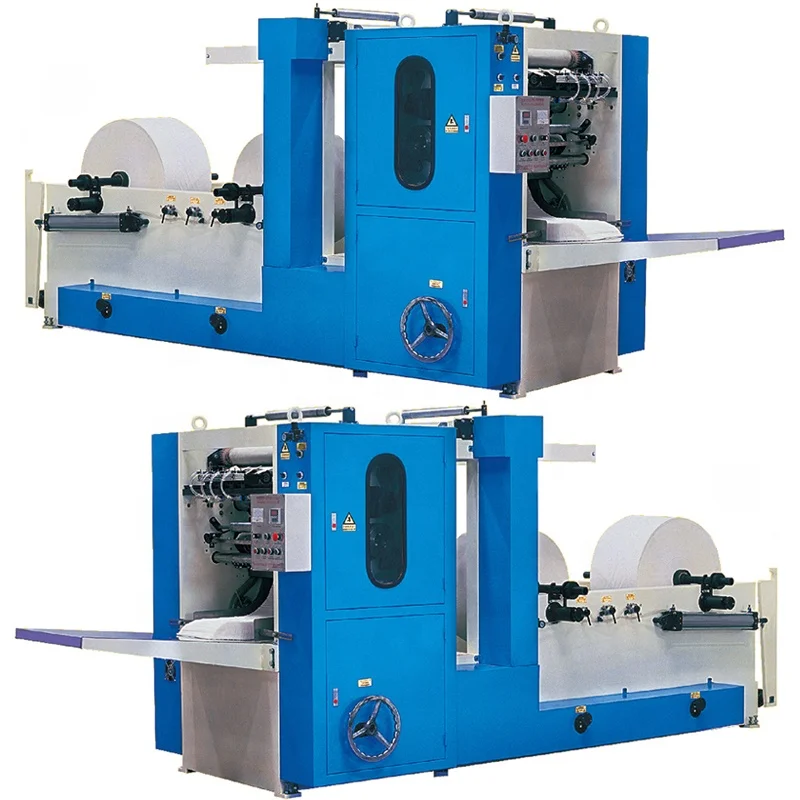

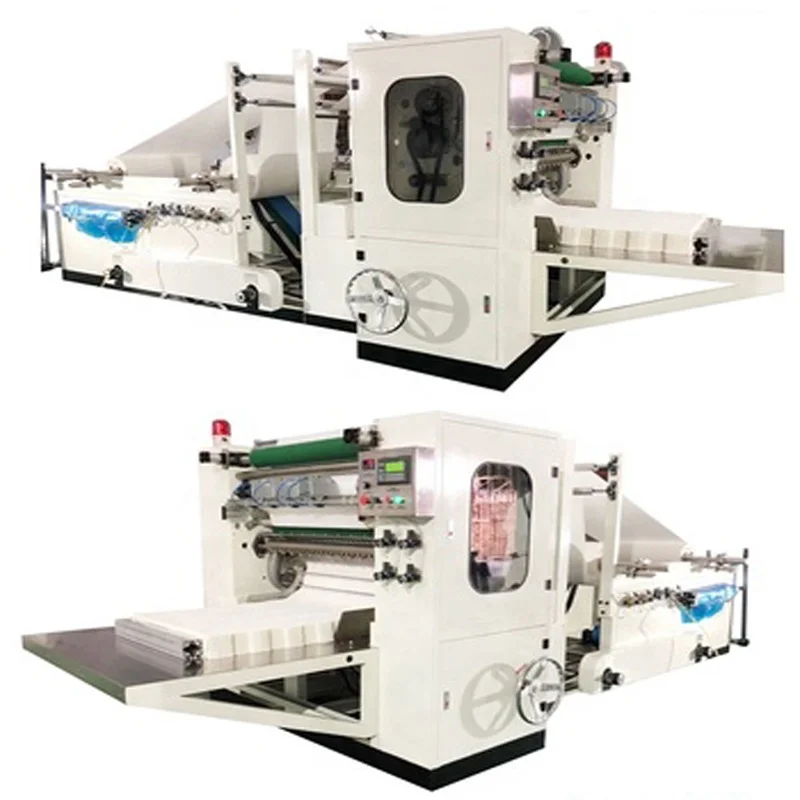

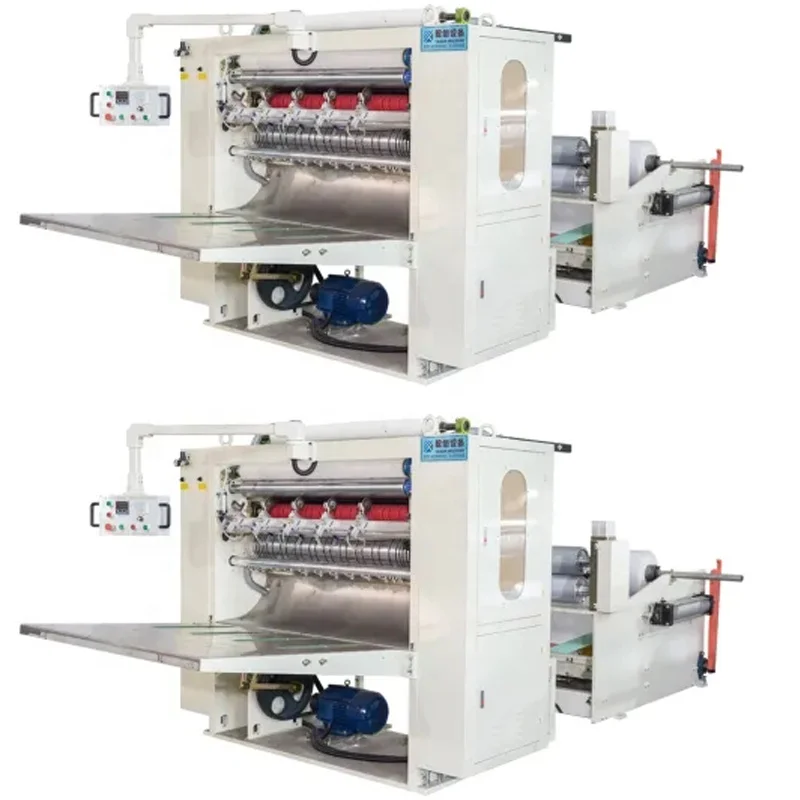

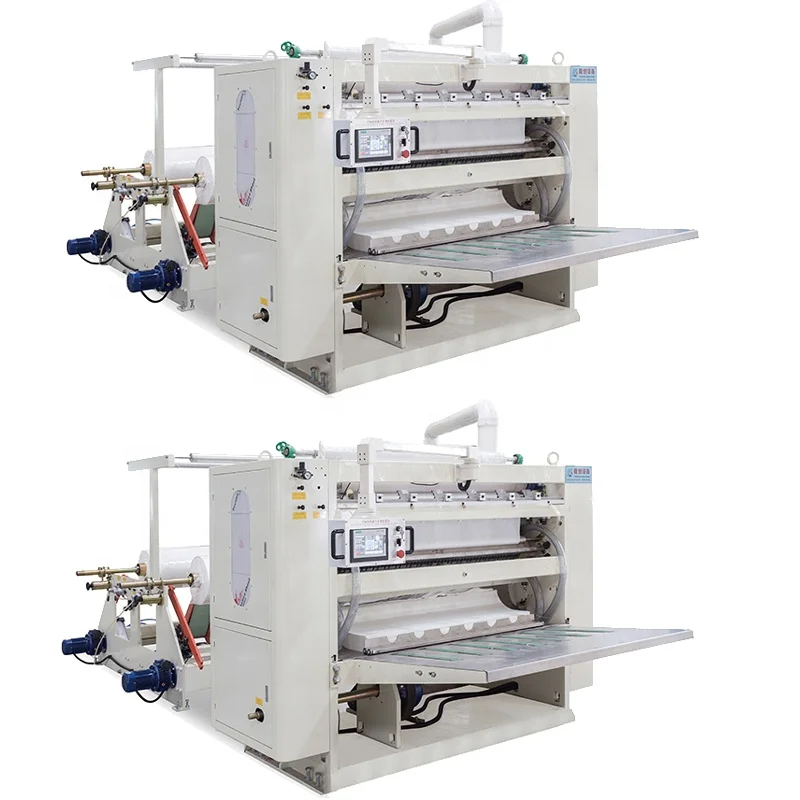

2/3/4/5/6/7 Line Steel To Rubber/Steel Embossing V Fold Soft Facial Tissue Paper Folding Machine
- Category: >>>
- Supplier: Foshan City Xiehecheng Machinery Equipment Co. Ltd.
Share on (1600629533236):
Product Overview
Description
Products Description
Facial Tissue Folding Machine Introduction
1：Machine Name：Facial Tissue Folding Machine with Edge or Full Embossing.
2：Tissue weight: 13-18g/25g/㎡ wrinkled Tissue paper (bamboo, wood pulp).
3：Raw Paper Max Width：2 Lines / 3 Lines / 4 Lines / 5 Lines / 6 Lines / 7 Lines....10 Lines.
4：Raw Paper Diameter：≤1200mm or 1500mm.
5：Tisse Layer：2~3 Layers/Sheet.
6：Folding Specification(Folding Width)：80mm/85mm/90mm/95mm/100mm/105mm/110mm.......Customized Size.
7：Raw Paper Core Diameter：φ76.2mm.
8：Raw Paper Elogation：5%～25%.
9：2 Back Stands.
2：Tissue weight: 13-18g/25g/㎡ wrinkled Tissue paper (bamboo, wood pulp).
3：Raw Paper Max Width：2 Lines / 3 Lines / 4 Lines / 5 Lines / 6 Lines / 7 Lines....10 Lines.
4：Raw Paper Diameter：≤1200mm or 1500mm.
5：Tisse Layer：2~3 Layers/Sheet.
6：Folding Specification(Folding Width)：80mm/85mm/90mm/95mm/100mm/105mm/110mm.......Customized Size.
7：Raw Paper Core Diameter：φ76.2mm.
8：Raw Paper Elogation：5%～25%.
9：2 Back Stands.
10: SIEMENS PLC.
Specification
Machine Name | V-folding Facial Tissue Folding Machine with Edge or Full Embossing |
Machine Size(mm) | L(6000~8000) * W(2600~3200) * H(1800~3000) mm |
Jumbo Roll Width Size(mm) | 2Lines(420mm) / 3Lines(620mm) / 4Lines(840mm) / 5Lines(1050mm) / 6Lines(1260mm) / 7Lines(1470mm) / 8Lines(1680mm) /9Lines(1890mm) / 10Lines(2100mm) |
Facial Tissue Folding Way | V Folding |
Packing Speed (m/min） | 70-100 m/min |
Facial Tissue Folding Width Size(mm) | 80mm/85mm/90mm/95mm/100mm/105mm/110mm.......Customized Size |
Total Power (kw) | 21.5~45KW |
Air Pressure (Mpa） | 0.5-0.6 Mpa(User supplied） |
Power Source | 380V 50Hz (Three phase) |
Machine Weight(KG) | 5000~10000 KGS |
Raw Material | Pulp Paper Jumbo Roll |
Max.Diameter of Jumbo Roll | 1200mm or 15oomm |
Core Diameter of Jumbo Roll | 76.2mm |
Packing & Delivery
Recommend Products
Company Profile
Foshan Xiehecheng Machinery Equipment Co., Ltd was found in 2005, We are specialized in manufacturing all kinds of tissue paper making & Packing machines in Foshan city of Guangdong province of China, such as pocket tissue(handkerchief tissue) making & Packing machine and production line, napkin tissue folding & Packing machine and production line, facial tissue folding & Packing machine and production line, kitechen / toilet tissue rewinding & Packing machine and production line.
We're the member of the China National Household Paper Industry Association (CPIA) and we are granted "high-tech enterprise" by the government. We have been cooperating with many big enterprises in China, such as Vinda, Xingya and huayi...etc, and we also export to North America, South America, Middle East, Asia, Africa...etc over 30 countries and regions. To meet the oversea markets requirement, we continue to upgrade ourselves and we have obtained ISO & CE certificate.
Welcome all customers around the world to visit us or contact us in any time, we are expecting to seeing you in our factory or in the international exhibitions for tissue paper, let's work together to create a brilliant future for the tissue paper industry.
We're the member of the China National Household Paper Industry Association (CPIA) and we are granted "high-tech enterprise" by the government. We have been cooperating with many big enterprises in China, such as Vinda, Xingya and huayi...etc, and we also export to North America, South America, Middle East, Asia, Africa...etc over 30 countries and regions. To meet the oversea markets requirement, we continue to upgrade ourselves and we have obtained ISO & CE certificate.
Welcome all customers around the world to visit us or contact us in any time, we are expecting to seeing you in our factory or in the international exhibitions for tissue paper, let's work together to create a brilliant future for the tissue paper industry.
Certifications
Exhibition
FAQ
1. Are you manufacturer or trading company ?
We are tissue machines manufacturer located in Foshan city of Guangdong province of China .
2. When did your factory establish ?
Our factory established in Foshan city since 2005.
3. Before where did you export your tissue machines to ?
All around the world , such as North America, South America, Europe, Asia, Middle East, Africa...etc about 30 countries.
4. What is the warranty of your tissue machines ?
One year's warranty.
5. Do you offer installation service ?
We offer on-site installation & video installation service.
6. How long is the delivery time ?
It depends on the quantity and model, some are 15 days, some are 30 days, some are 60~100 days.
