HY DAMTE Hot Selling Automatic Weather Station Data Logger Industrial wifi wind alarm sensor PLC control
- Category: >>>
- Supplier: Hongyuv Technology Co. Ltd.
Share on (1600629636792):
Product Overview
Description
Product Description
Brief Introduction
HY-DAMTE is an universal data acquisition module developed by Hongyuv Technology. Not only can it display real-time data, history
graph, store data, but also upload data to your server via TCP connection or HTTP request.
It also support uploading data to Weather Underground platform, HongYuv IoT platform. All data received by serial port(UART,
RS485, RS232, TTL) can be configured to uploaded to your server.
It’s working based on embedded real-time operating system, which is stable, free of system crash. It can support all kinds of
HongYuv protocols: unsolicited(active) ASCII string output, NMEA0183, MODBUS-RTU.
We also provides IoT integration service to clients, and program HY-DAMTE data acquisition module to sample data from UV sensor,
solar radiation sensor, PAR sensor, soil humidity / temperature, air quality, noise, water quality, water level, visibility, road
state sensor, rain sensor etc.
Below introduction is one of HY-DAMTE designed for HongYuv weather stations. Display interface for different sensors will be
different.
graph, store data, but also upload data to your server via TCP connection or HTTP request.
It also support uploading data to Weather Underground platform, HongYuv IoT platform. All data received by serial port(UART,
RS485, RS232, TTL) can be configured to uploaded to your server.
It’s working based on embedded real-time operating system, which is stable, free of system crash. It can support all kinds of
HongYuv protocols: unsolicited(active) ASCII string output, NMEA0183, MODBUS-RTU.
We also provides IoT integration service to clients, and program HY-DAMTE data acquisition module to sample data from UV sensor,
solar radiation sensor, PAR sensor, soil humidity / temperature, air quality, noise, water quality, water level, visibility, road
state sensor, rain sensor etc.
Below introduction is one of HY-DAMTE designed for HongYuv weather stations. Display interface for different sensors will be
different.
Features

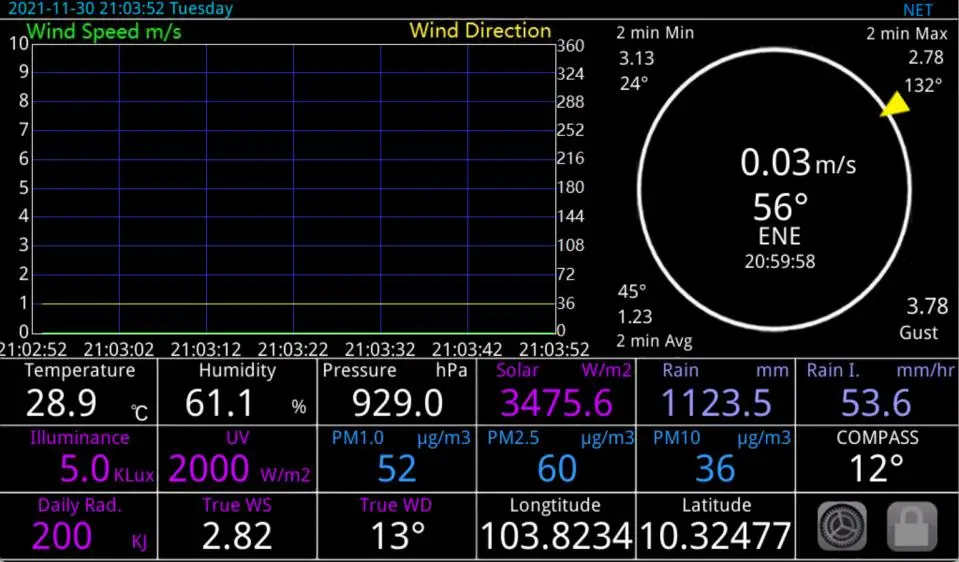

Wind Sector indicationReal-time wind speed direction graph
Wind and Temperature Alarm
Configurable wind, temp,pressure, rain unit
TCP connection supported
Report data to Weather Underground free IoT platform
Firmware can be upgraded via WIFI or LAN or 4G
SD TF store over 4000 days’ data Support HongYuv IoT platform
Can upload data to your own server or IoT platform
Wind and Temperature Alarm
Configurable wind, temp,pressure, rain unit
TCP connection supported
Report data to Weather Underground free IoT platform
Firmware can be upgraded via WIFI or LAN or 4G
SD TF store over 4000 days’ data Support HongYuv IoT platform
Can upload data to your own server or IoT platform

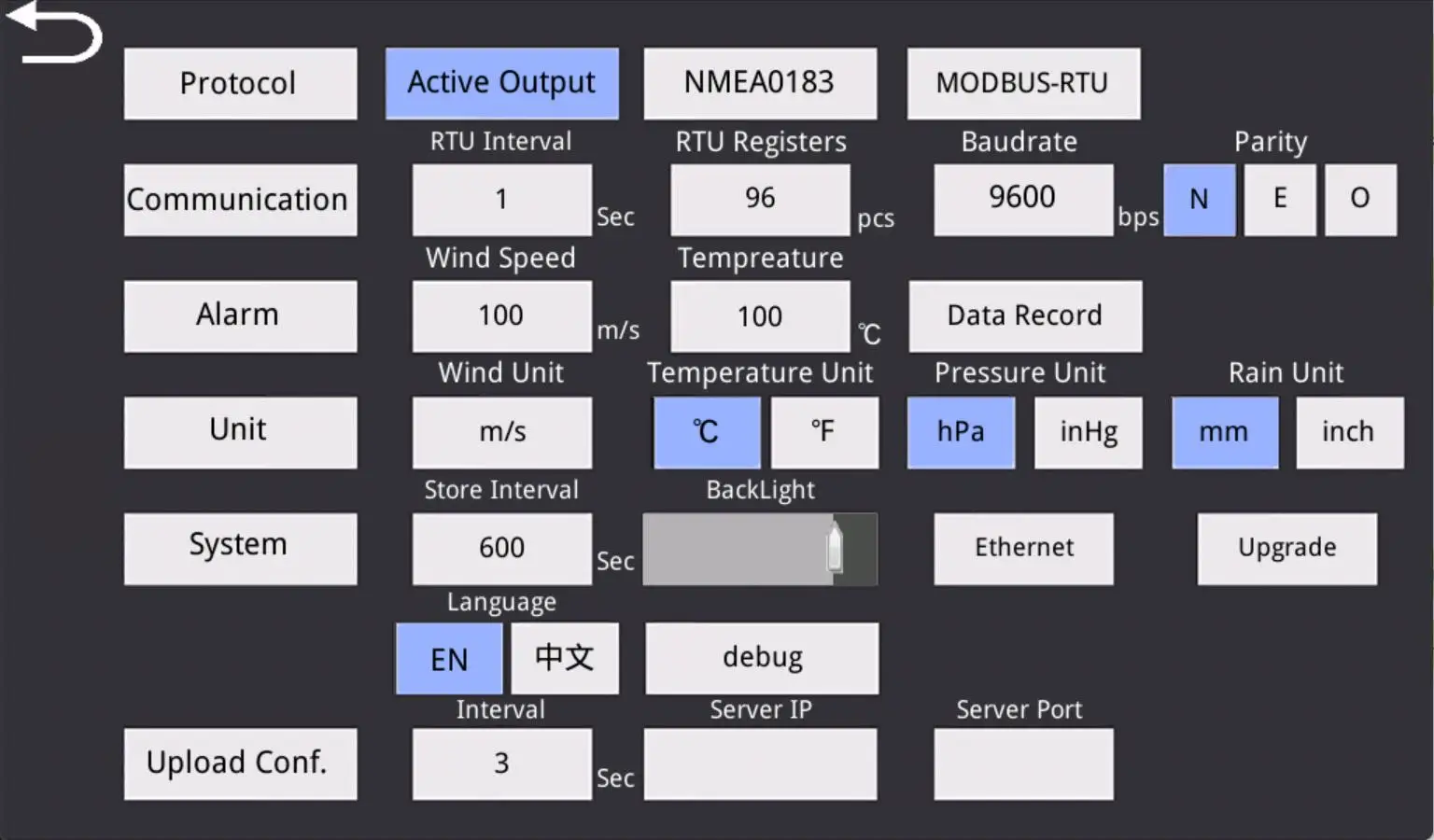

System setting page
You can set protocol, serial port configuration, alarm value, unit, upload interval at this page.

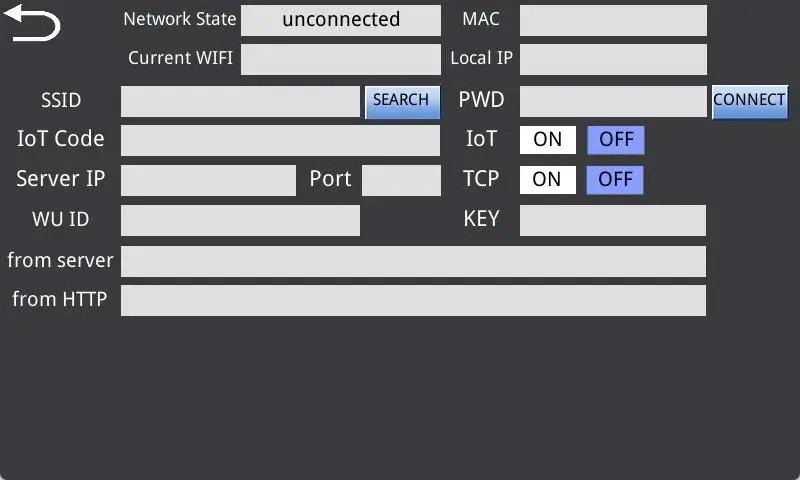

HY-DAMTE data acquisition module has WiFi or Ethernet interface for option Ethernet setting page for RJ45 Ethernet interface

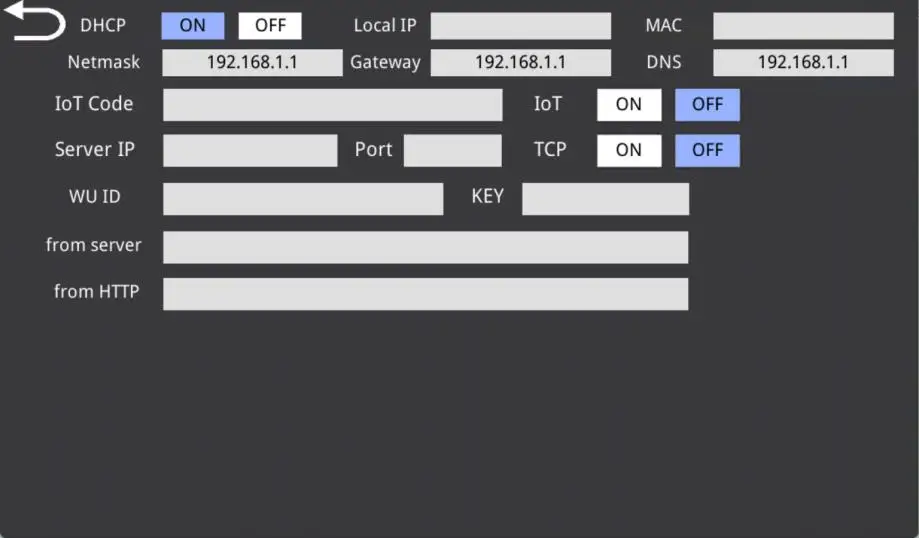

This is LAN setting page
You can either upload data to our cloud platform or your own server.
HY-DAMTE can also upload data to WUnderground free weather platform.

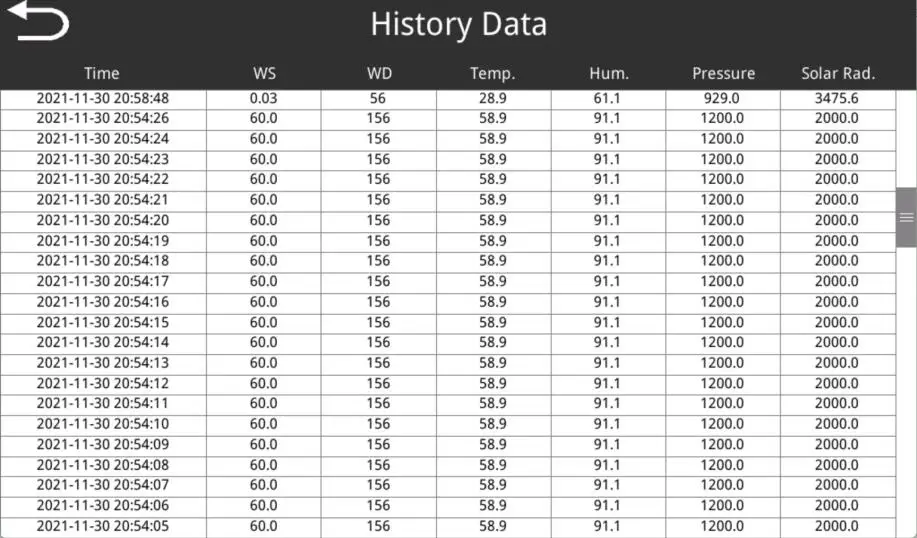

History data reviewing page.

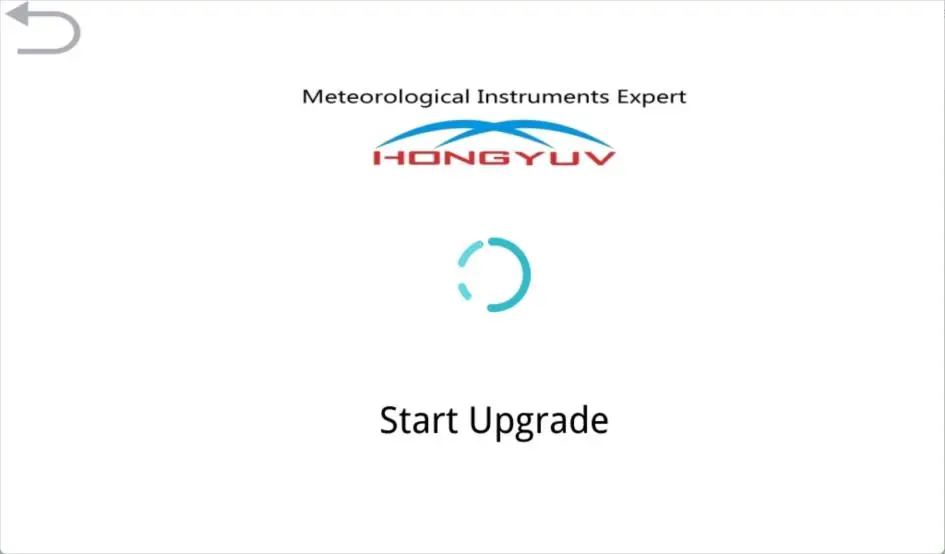

Firmware upgrade page.
Firmware can be upgraded via hot spot shared by phone or router within seconds. Upgrade only consumes about 3MB each time. You don’t need to send back HY-DAMTE data acquisition module iff you have projects that need our customization service, we can upgrade it remotely by WiFi or Ethernet.

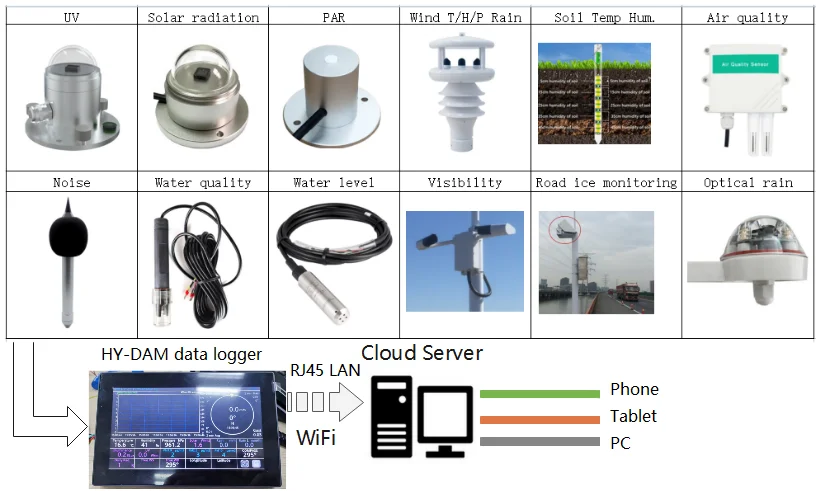

Integration diagram
We also provide IoT integration service to clients, and program HY-DAMTE data acquisition module to sample data from UV sensor, solar radiation sensor, PAR sensor, soil humidity / temperature, air quality, noise, water quality, water level, visibility, road state sensor, rain sensor etc.

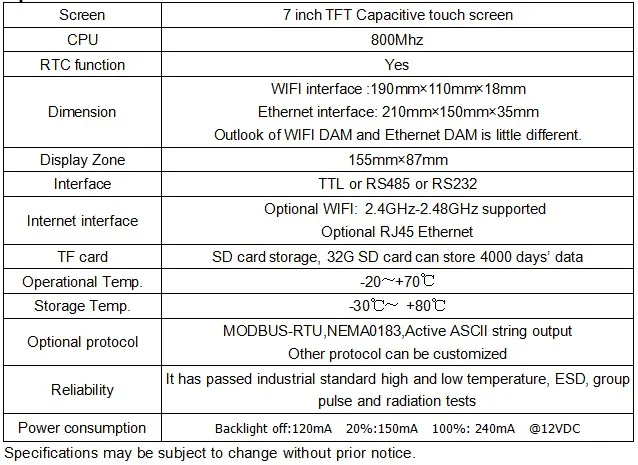

Specification
