Plastic Recycling PP LDPE Two Stage Single Screw Granulating Extruder Line Automatic Plastic Recycling Machine LDPE washing line
- Category: Plastic Granulators >>>
- Supplier: Yuyao Wutian Machine Equipment Co. Ltd.
Share on (1600629690781):
Product Overview
Description
VIDEO DESCRIPTION
PRODUCT DESCRIPTION
Product Description:

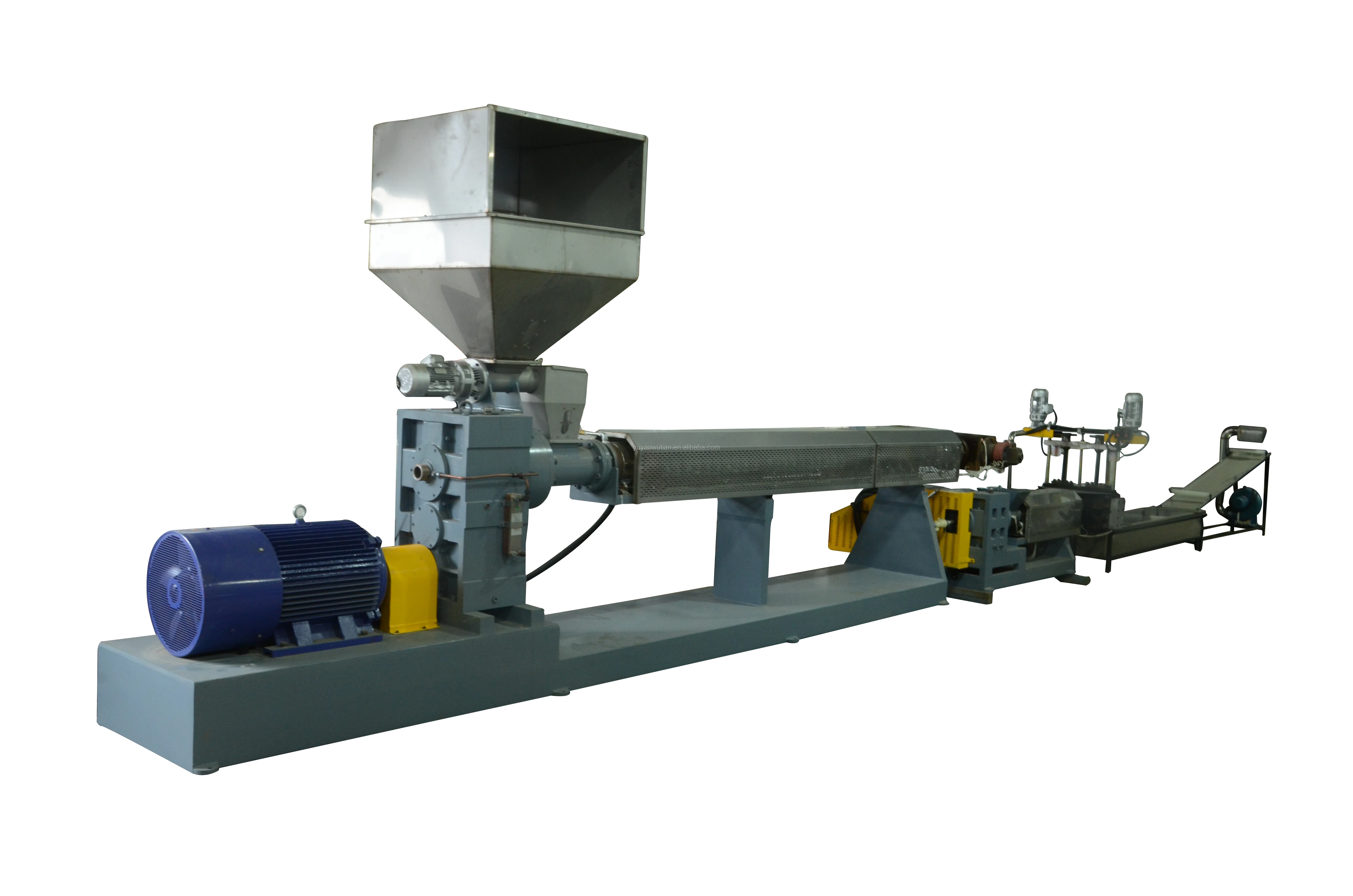

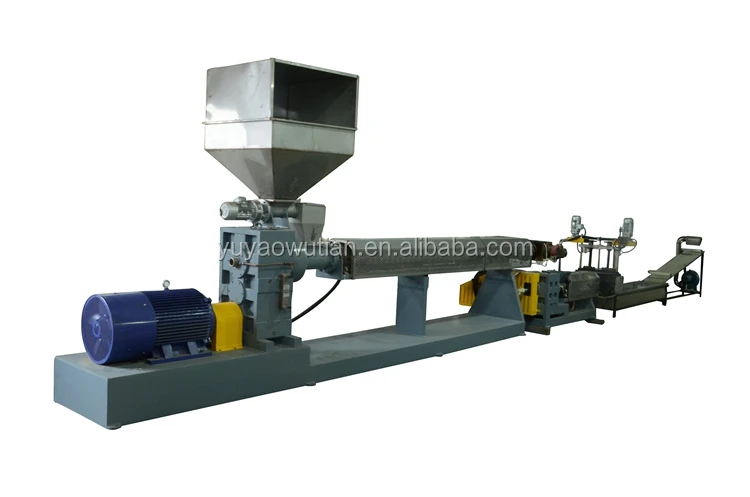

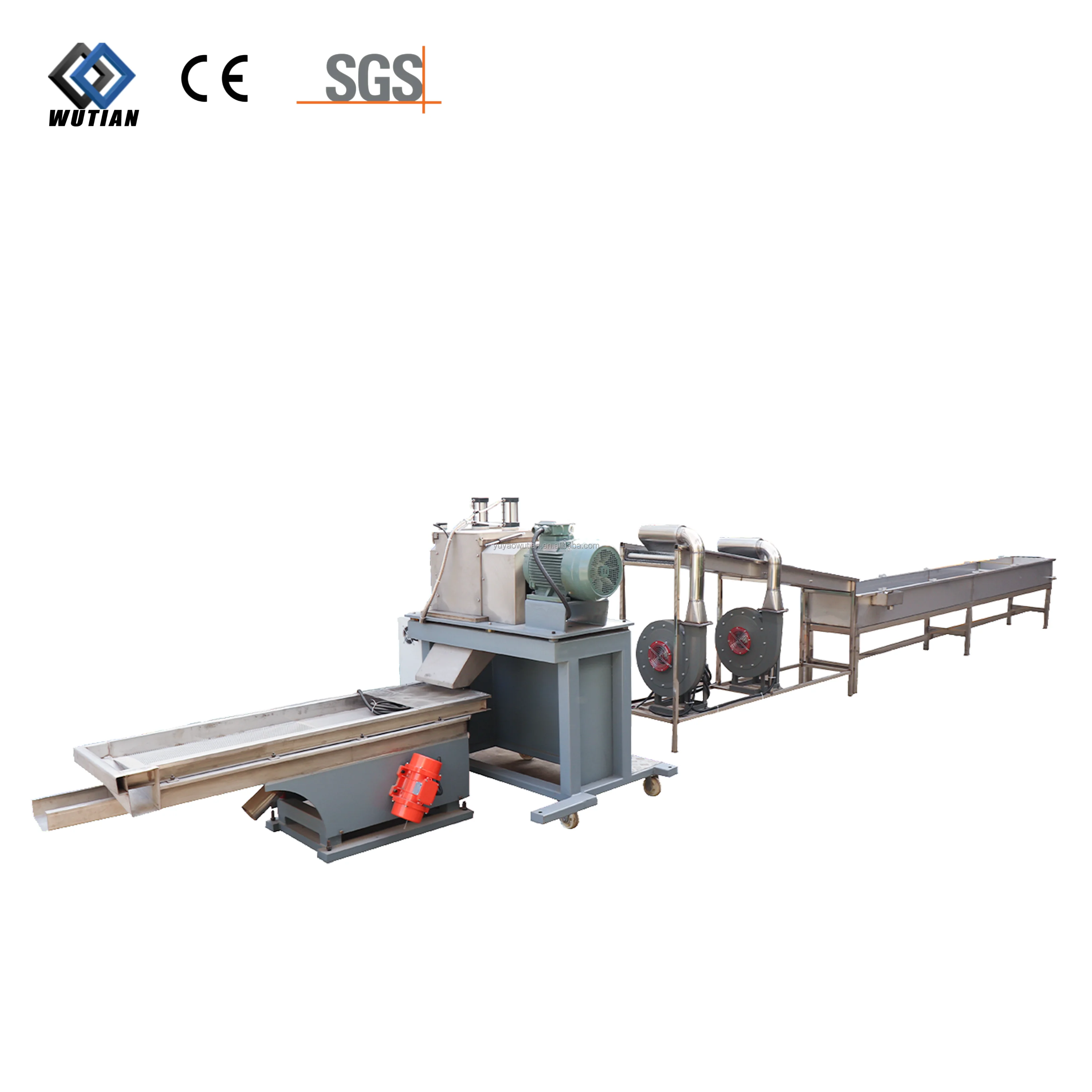

This Two Stage Single Screw Granulating Recycling Line is used for clean PP, LDPE scraps/flakes/diced form, NOT for film type. This plastic granulator line is composed of deironing/iron-removed conveyor belt, special designed single screw granulators, water tank, dehydrate blower, pelletizer, vibration sieve, air feeding blower, and storage tank.
The production line can be customized according to the quality of the raw material and special needs of the customer.
This Two Stage Single Screw Granulating Recycling Line is used for clean PP, LDPE scraps/flakes/diced form, NOT for film type. This plastic granulator line is composed of deironing/iron-removed conveyor belt, special designed single screw granulators, water tank, dehydrate blower, pelletizer, vibration sieve, air feeding blower, and storage tank.
The production line can be customized according to the quality of the raw material and special needs of the customer.
1.The raw material is sent to the force feeder through the deironing conveyor belt.
2.Then it is fed into the single screw granulator. The plastic scraps are heated and extruded to strips/noodle-shaped.
3. Cool-downed underwater through the water tank.
4. Dehydrated by blowers.

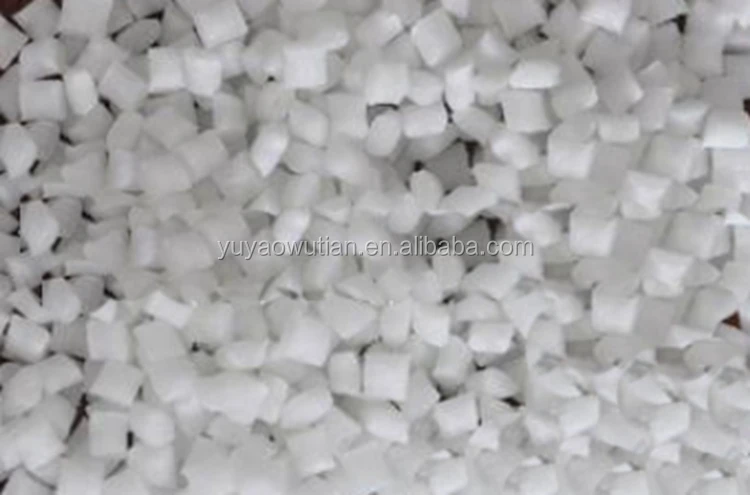

5. Cut into pellet by pelletizer.
6.Screened by vibration sieve.
7.Transported to storage tank by air feeding blower.
The complete production line is/has:
1. Highly automatic, user-friendly control, high efficiency, environmental protection and energy saving.
2. Different pelletizing methods, such as cold strand, water-ring, for various raw materials and production requirements.
3. Hydraulic Screen, and automatic screen changing can reduce manual labor and improve operation convenience.
4. Vacuum system of Air-vent and filtering system ensure high quality of the final products.
5. Suitable for diverse materials processing, also can be customized one material or different materials, which reduces customer’s investment cost.
2.Then it is fed into the single screw granulator. The plastic scraps are heated and extruded to strips/noodle-shaped.
3. Cool-downed underwater through the water tank.
4. Dehydrated by blowers.
5. Cut into pellet by pelletizer.
6.Screened by vibration sieve.
7.Transported to storage tank by air feeding blower.
The complete production line is/has:
1. Highly automatic, user-friendly control, high efficiency, environmental protection and energy saving.
2. Different pelletizing methods, such as cold strand, water-ring, for various raw materials and production requirements.
3. Hydraulic Screen, and automatic screen changing can reduce manual labor and improve operation convenience.
4. Vacuum system of Air-vent and filtering system ensure high quality of the final products.
5. Suitable for diverse materials processing, also can be customized one material or different materials, which reduces customer’s investment cost.

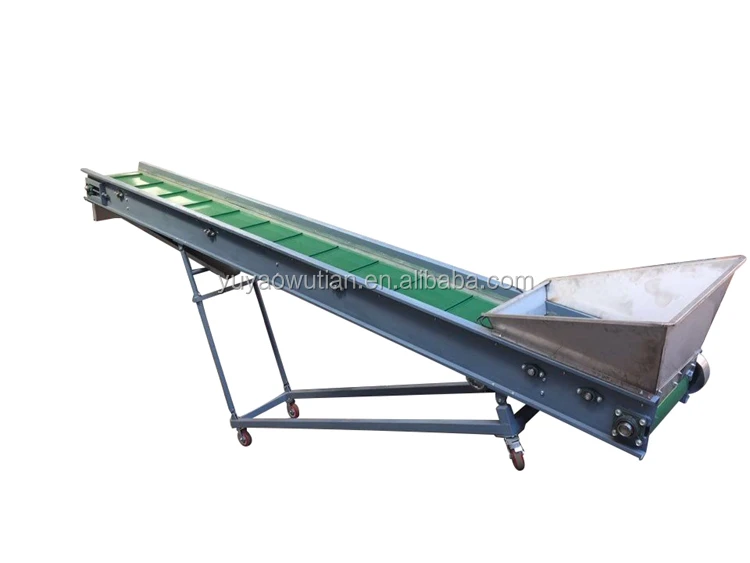

Deironing Conveyor Belt:
Transport raw materials to the granulator. This machine is special designed to remove irons that are mixed within raw materials.
This machine can also avoid manual feeding in order to reduce labor intensity, cost savings and to improve work efficiency.
This machine can also avoid manual feeding in order to reduce labor intensity, cost savings and to improve work efficiency.

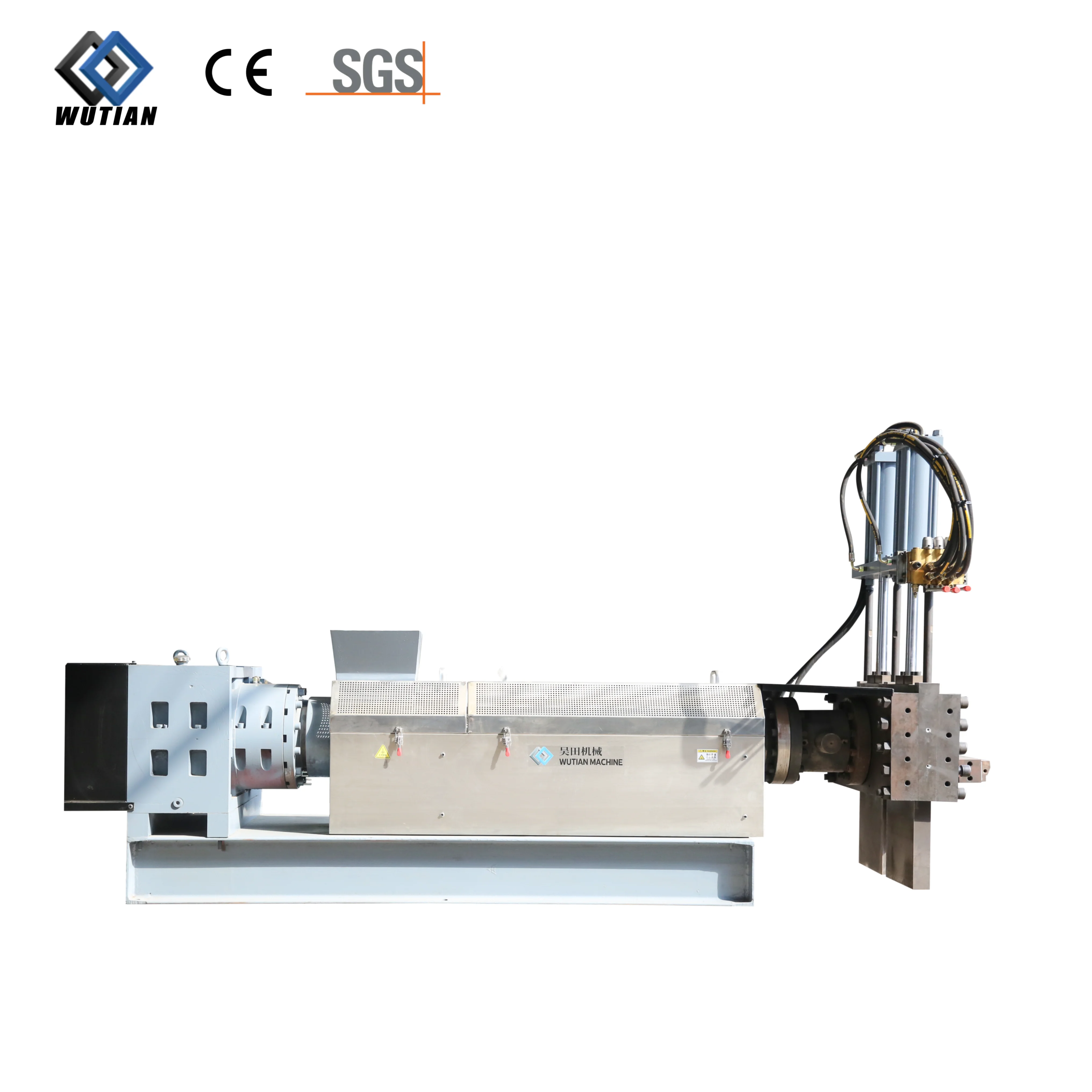

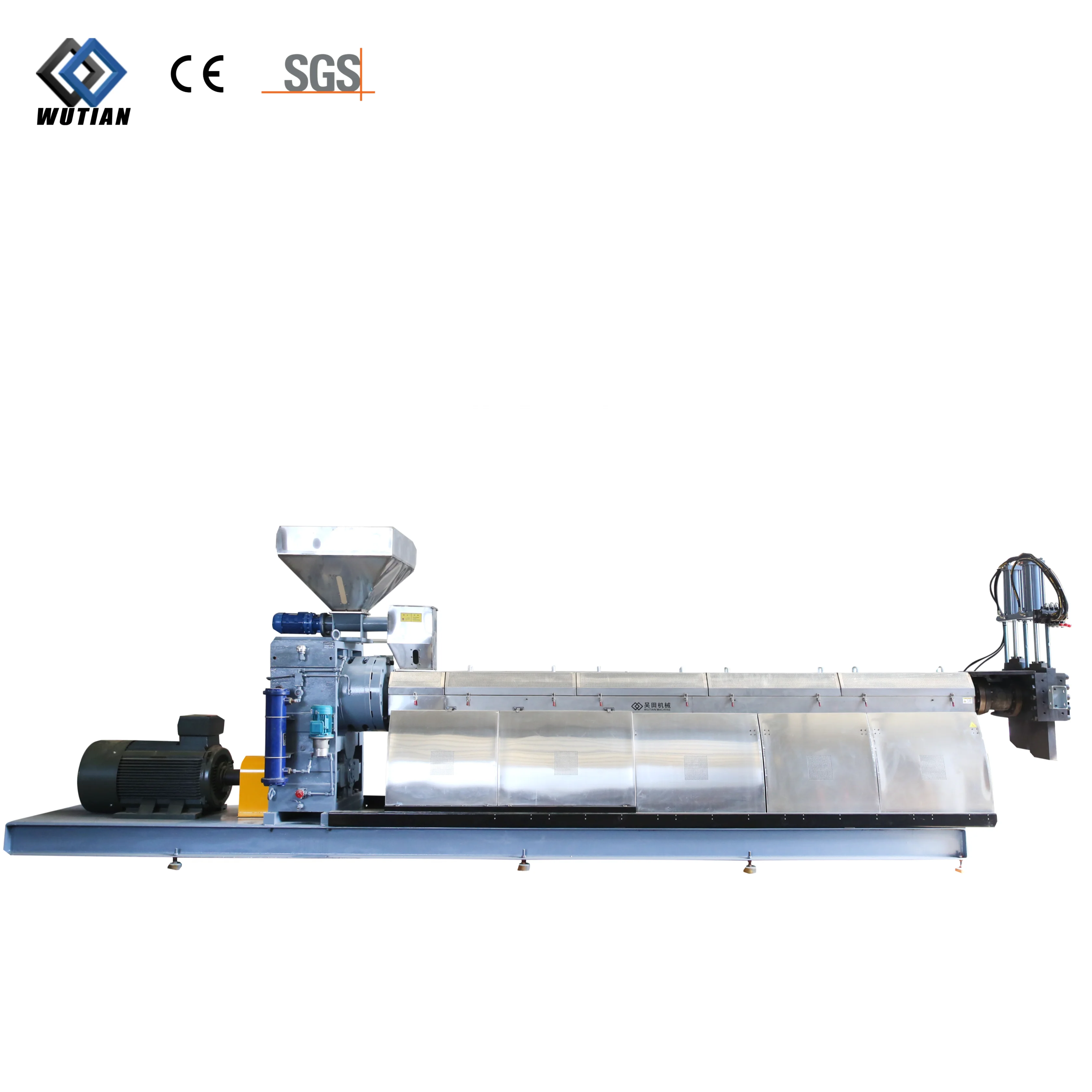

Granulator/Extruder:

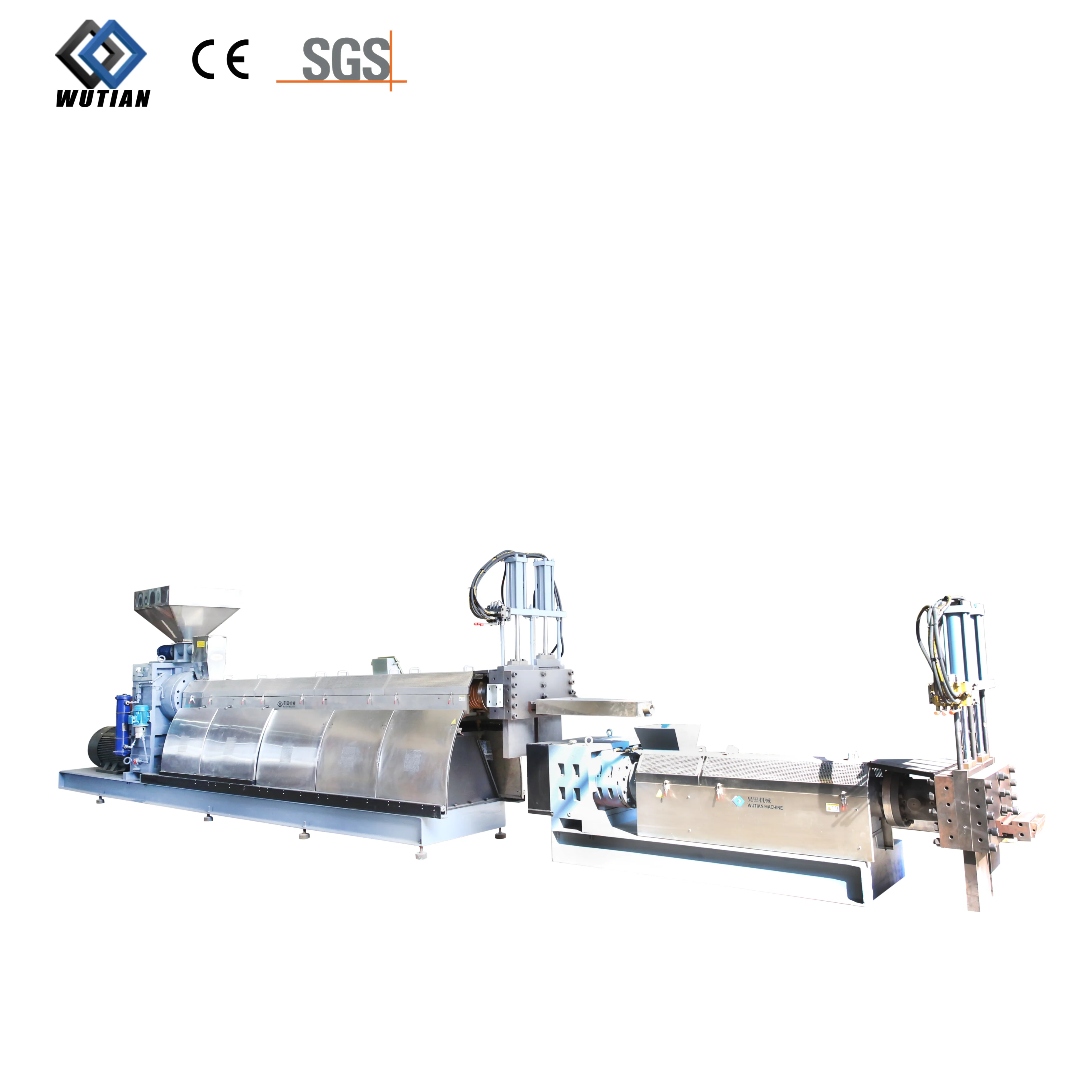

This two-stage granulator using two extruders to pass the material through a secondary filtration, which makes the final particles cleaner and improves its quality.
The screen changer of Stage 1 granulator is 20-mesh no screen changing scraper type, which is time-saving and has long service life(about 6 months). Hydraulic screen changer is installed on the die-head of the granulator to effectively remove the impurities in the material.
The screen changer of Stage 1 granulator is 20-mesh no screen changing scraper type, which is time-saving and has long service life(about 6 months). Hydraulic screen changer is installed on the die-head of the granulator to effectively remove the impurities in the material.
With natural exhaust and vacuum system, it can remove water inside the material effectively. This machine uses ceramic heating ring, which is durable and easy to maintain.
Compactor cutter can effectively dry materials, high-speed forced feed into the screw after the material reaches a certain temperature, improve the output and reduce the heating of the screw to the plastic, accelerate the plasticization process, save energy effectively.
The special design of the granulator head part can effectively remove the hidden moisture inside the material and improve the granulation quality. Different quality of the finished product can be produced through different mesh filters. Stainless steel 304 net can be an alternate option, which doesn’t need to be changed frequently.

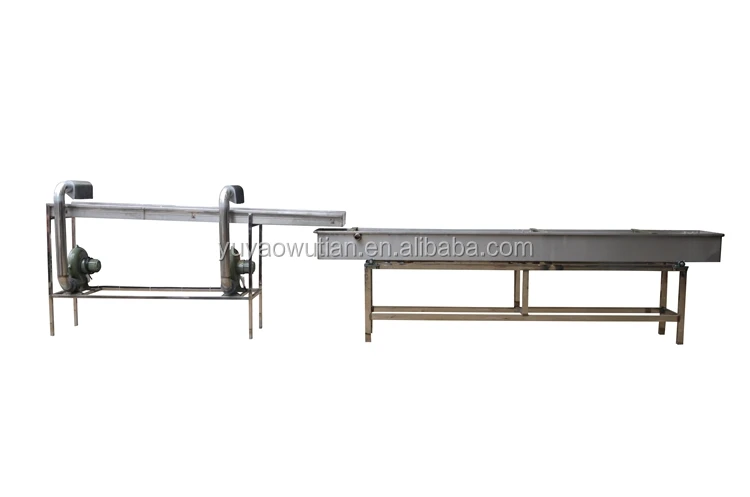

Water tank is mainly used to cool down the plastic strips and to maintain its shape. The blowers are used to dehydrate.

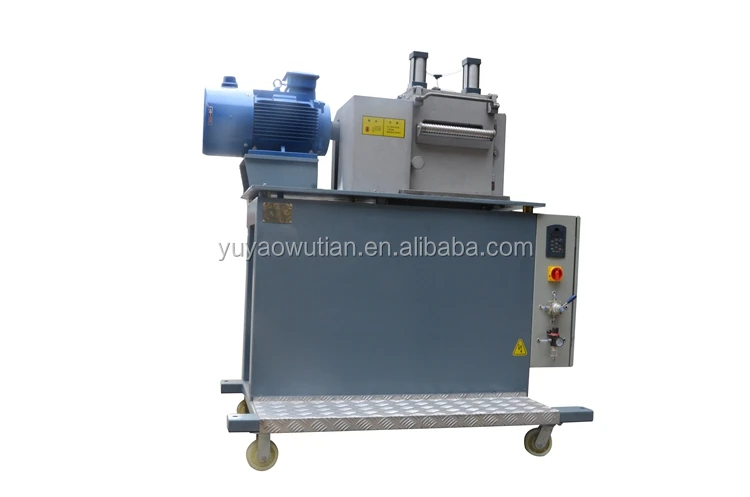

The pelletizer/cutting machine is made of stainless steel. It has frequency control of motor speed.

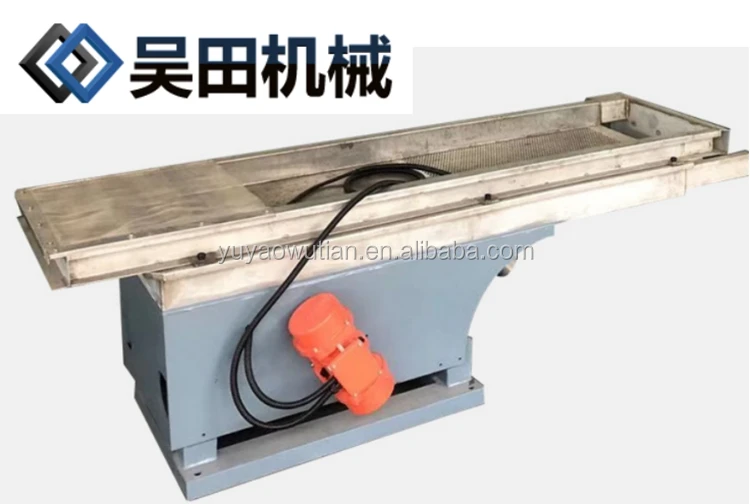

Vibration Sieve:
Air Feeding Blower + Storage Hopper/Tank:
The air feeding blower is high efficient, which ensures high speed feeding, improves work efficiency.
There are two layers of sound insulation materials on the inside of the storage hopper, which reduces noise level effectively. The storage hopper’s capacity is 500 kg, which is suitable for general situations.
Filter Cleaner:
DETAIL SPECIFICATIONS
Technology Parameter | ||||||||||
Plastic Processed | Scarps of PP, LDPE (NO FILMS, FLAKES) | |||||||||
Model | THNL120 | THNL150 | THNL170 | THNL190 | ||||||
Output(kg/h) | of PP | 250 | 500 | 700 | 1000 | |||||
of LDPE | 200 | 450 | 600 | 850 | ||||||
Length(mm) | 20000 | 25000 | 28000 | 32000 | ||||||
Width(mm) | 5700 | 2100 | 2200 | 2300 | ||||||
Height(mm) | 2200 | 2600 | 3000 | 3200 | ||||||
Single Screw: 38 CrMoAL, nitrited， Alloy Steel) | Size (mm) | φ120 x 3200 | φ150 x 4500 | φ170 x 5100 | φ190 x 5700 | |||||
1. Deironing Conveyor Feeder | Power(KW) | 1.5 | 1.5 | 1.5 | 1.5 | |||||
2. Stage 1 Granulator (Frequency Control ) | Power(KW) | 45 The Secondary Start-up (No Frequency Control of Motor Speed) | 110 | 200 | 220 | |||||
Screen Changer: Screen-Less scraper type | Size | 20 mesh | 20 mesh | 20 mesh | 20 mesh | |||||
Feeder (Frequency Control ) | Power(KW) | 1.5 | 1.5 | 2.2 | 2.2 | |||||
Air-Vent | with vacuum unit | |||||||||
3. Stage 2 Granulator | Size(mm) | φ110 x 1200 | φ140 x 1400 | φ180 x 1800 | φ200 x 2000 | |||||
Frequency Control of Motor Speed | Power(KW) | 18.5 | 30 | 45 | 55 | |||||
Screen Changer: Hydraulic Lift Double Mesh | Size (mm) | 200 x 200 | 300 x 300 | 300 x 300 | 300 x 300 | |||||
Barrel Screw | Automatic Temperature-Controlled Water Cooling System | |||||||||
4. Cooling Tank with Dehydrating (Stainless Steel) | Size(mm) | 300 x 500 x 4000 | 300 x 500 x 6000 | 300 x 500 x 4000 (Two of this) | 300 x 500 x 5000 (Two of this) | |||||
5. Bracket Supporting Rack With Blower | Power(KW) | 1.5 (One Blower) | 1.5 x Two Blowers | 1.5 x Two Blowers | 1.5 x Two Blowers | |||||
6. Plastic Cutting Machine (Stainless Steel) | Size(mm) | φ200 x 200 | φ200 x 200 | φ200 x 300 | φ200 x 300 | |||||
Power(KW) | 5.5 (Frequency Control ) | 7.5 | 11 | 11 | ||||||
7. Vibration Sieve (Stainless Steel) | Vibrator Power(KW) | 0.08 x 2 | 0.15 x 2 | 0.15 x 2 | 0.15 x 2 | |||||
8. Particle Blower Feeder | Power(KW) | 2.2 | 3 | 4 | 4 | |||||
Capacity(kg) | 500 | 500 | 500 | 500 | ||||||
9. Spare Hydraulic Flat Mesh Head | Size(mm) of Mesh sheet | NA | NA | NA | 400 x 400 | |||||
OUR SERVICE
COMPANY PROFILE
Why Choose Us
FAQ
1. who are we?
We are based in Zhejiang, China, start from 2002,sell to Domestic Market(60.00%),Southeast
Asia(20.00%),Africa(10.00%),Mid East(10.00%).
2. Are we a machinery factory or trading company?
We are a machinery factory with 25-year experience in Ningbo, Zhejiang. We are capable of exporting machines by
ourselves.
3. Which kind of machine do we make?
We mainly produce plastic recycling machines, granulators, pelletizers, vibration sieves and other auxiliary machines.
For different raw material, different output, different voltage requirements, we always have the right machine for you to
choose.
4. How can we guarantee quality?
Always use highest quality equipments.
Always manufacture our products strictly according to national and international standard.
Always do a trail run on every machine as a final inspection before shipment.
5. How about price?
We are factory and be able to give you the best price with good quality, and we have a policy that “ for saving time and
absolutely honest business attitude,we quote as low as possible for any customer, and discount can be given according
to quantity”.
