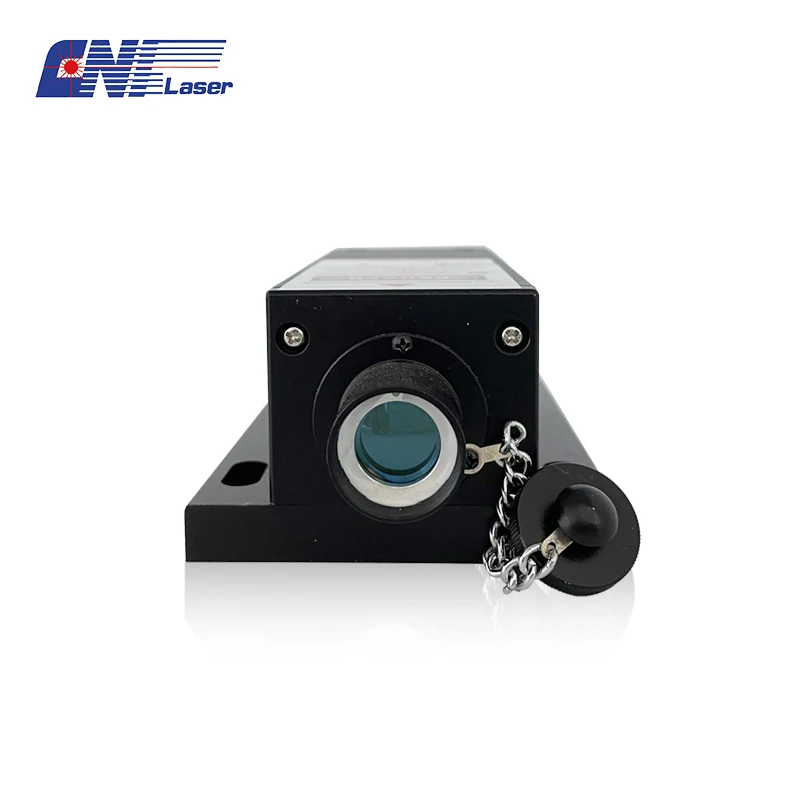

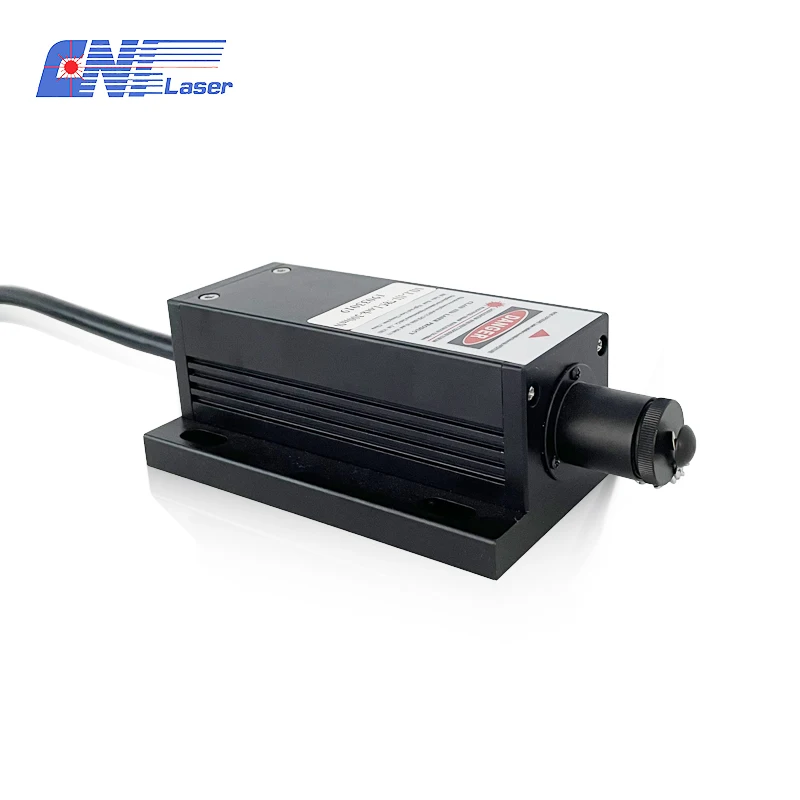

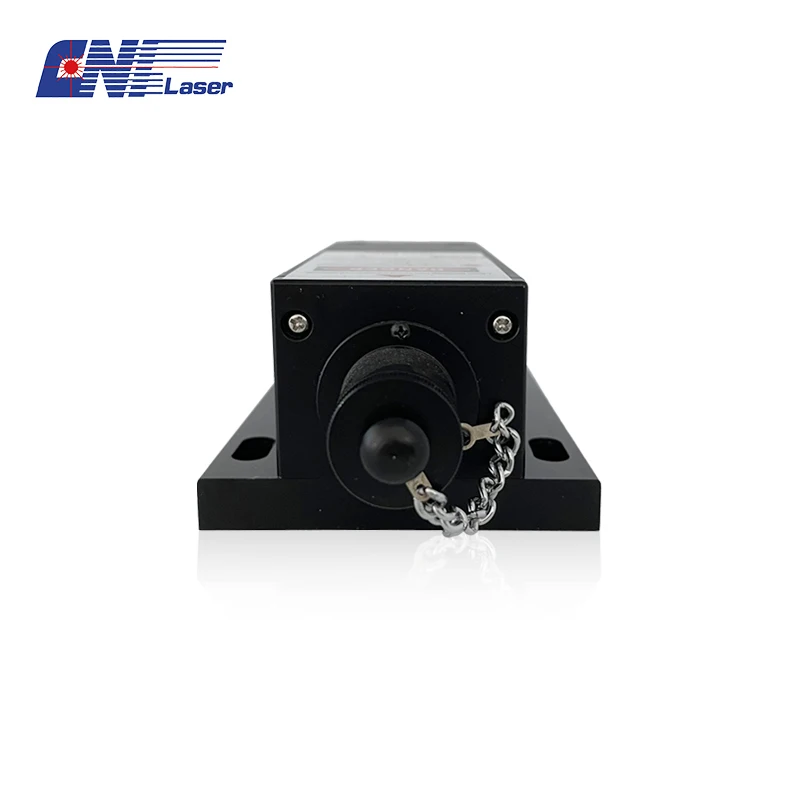

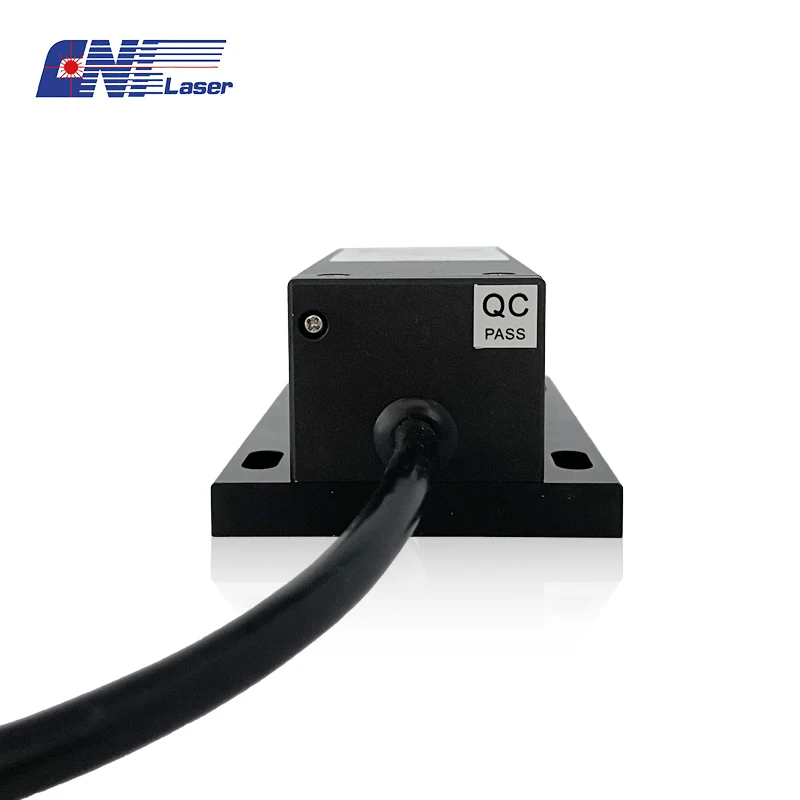

Long life 808nm diode laser ir laser industry laser equipment parts for measuring communication spectrum analyzer
- Category: >>>
- Supplier: Changchun New Industries Optoelectronics Tech Co. Ltd.
Share on (1600629696720):
Product Overview
Description
Product Description
Central wavelength (nm) | 808±5 | ||
Operating mode | CW | ||
Output power (mW) | > 1,2,3 … … ,200 | ||
Power stability (rms, over 4 hours) 25C | < 1%, <2%, <3% | ||
Transverse mode | TEM00 | ||
Ellipticity | >0.95 | ||
M2 factor | < 1 . 1 | ||
Beam diameter at the aperture ( 1/e2,mm) | ~ 1.0 | ||
Beam divergence, full angle (mrad) | < 1.5 | ||
Warm-up time (minutes) | <5 | ||
Beam height from base plate (mm) | 25 | ||
Operating temperature (C) | 25+/-3 | ||

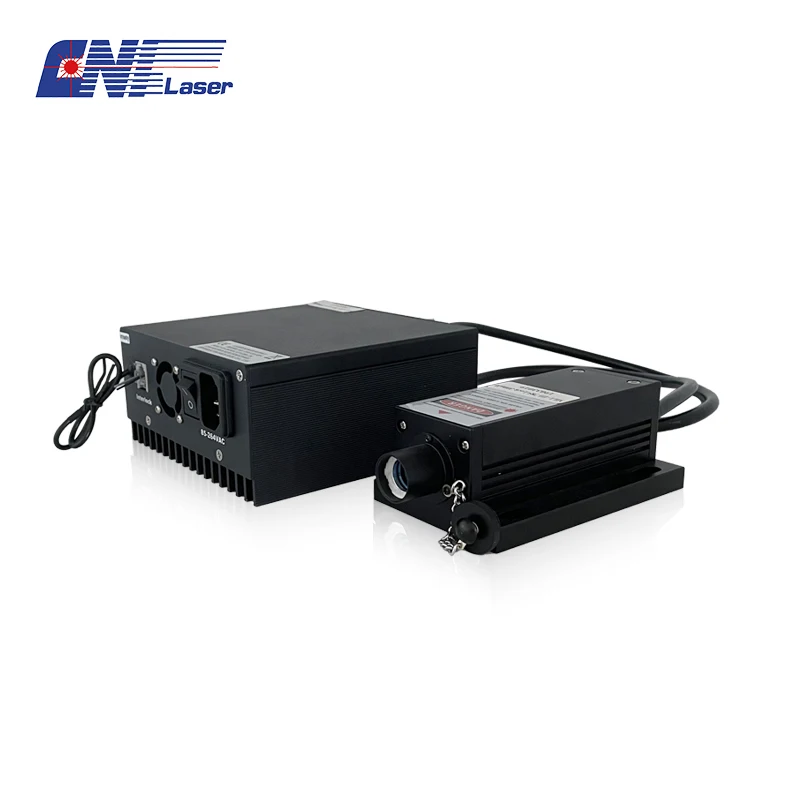

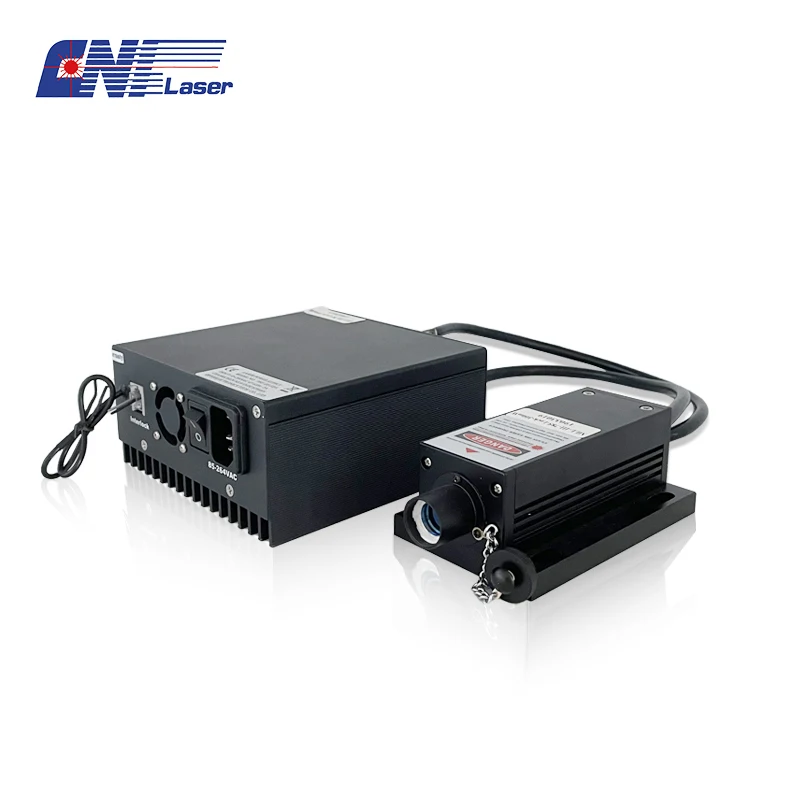

Power supply (85-264VAC) | PSU-III-LED | PSU-III-FDA | |
TTL / Analog modulation | TTL or Analog with 1Hz- 1kHz 1kHz- 10kHz, 10kHz-30kHz optional | ||
Expected lifetime (hours) | 10000 | ||
Warranty | 1 year | ||
