Plunger Metering Pump Chemical metering Pump Industrial Electric High pressure hydraulic diaphragm dosing pump
- Category: >>>
- Supplier: Hangzhou Royal Pharmaceutical Equipment Co. Ltd.
Share on (1600629706660):
Product Overview
Description
Brief Introduction

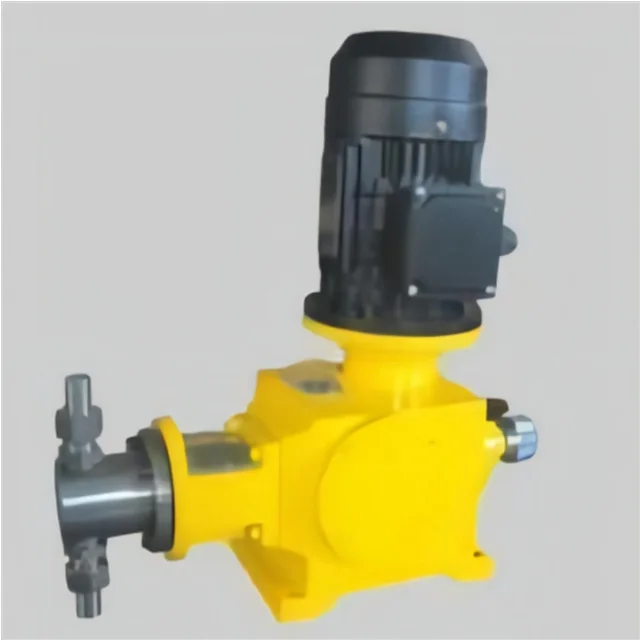

RYZRX Plunger Metering Pump
Mechanical diaphragm metering pump products are widely used in petroleum, chemical, water treatment, environmental protection, food, light industry, paper making, pharmaceutical, printing and dyeing, metallurgy, mining and other industries.
The characteristics of pump, the best cost performance. Simple structure, easy maintenance.Eccentric CAM mechanism drive, compact mechanism, equipment installation space is small.
New PTFE AND RUBBER composite diaphragm, corrosion resistance, long service life, suitable for conveying all kinds of corrosive, dangerous liquids.
Oil infiltration slippery, only need to change the lubricating oil regularly, lubrication system without special maintenance. Double CAM ball bearing drive, work smoothly.The flow rate can be adjusted when the pump is running or stopped.
A variety of optional flow materials, can also be customized according to the use of other special materials, to transport a variety of corrosive and non-corrosive liquids.

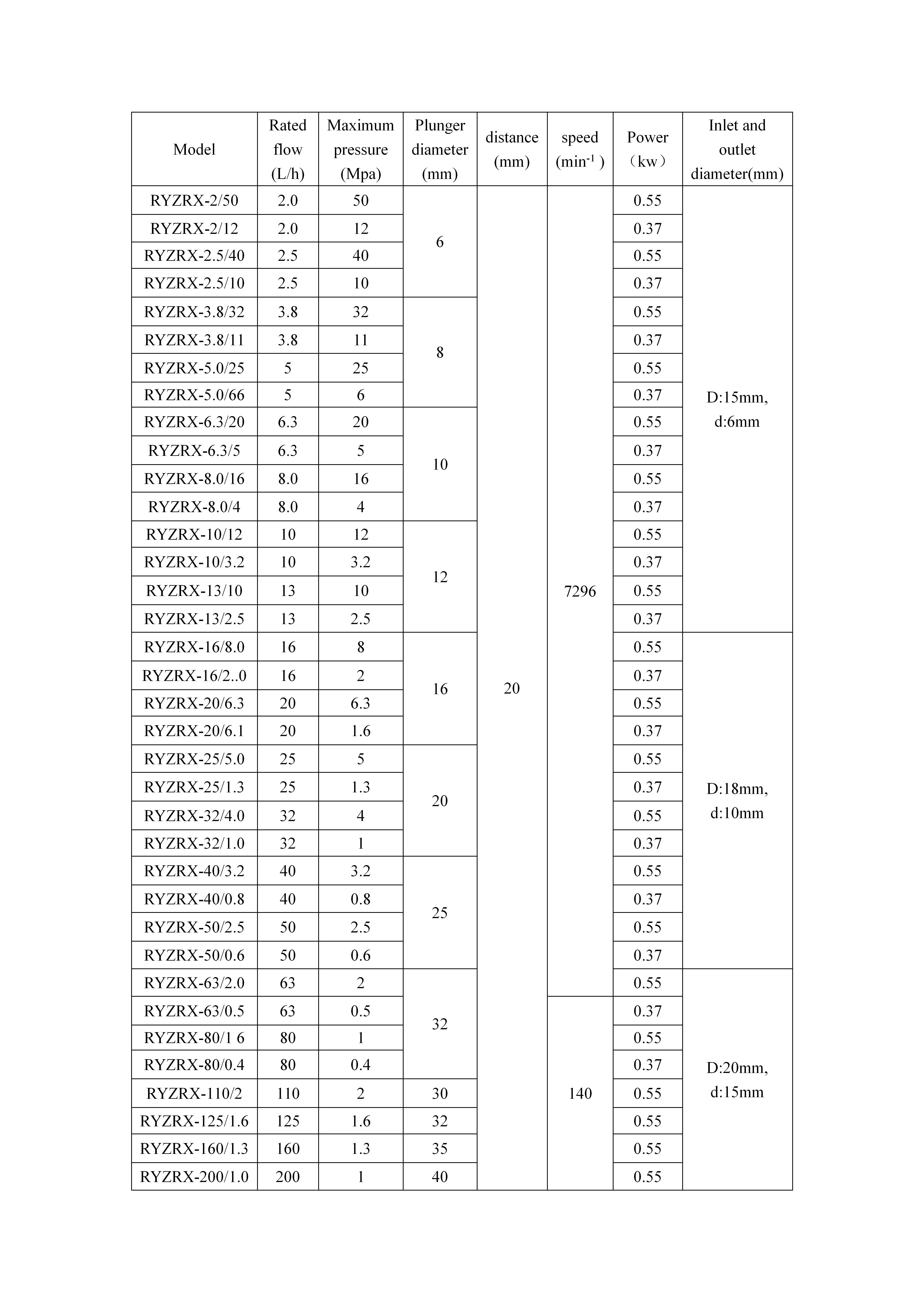

Main Technological Parameter
Model | Rated flow (L/h) | Maximum pressure (Mpa) | power (KW) | Distance (mm) | speed (min-1 ) |
RYZRX-2/50 | 2 | 50 | 0.55 | 20 | 7296 |
RYZRX-2/12 | 2 | 12 | 0.37 | 20 | 7296 |
Above flow parameters are obtained by using silicone tube to transfer pure water under normal temperature and pressure, in actually using it is effected by specific factors such as pressure, medium etc. Above for reference only.
Recommend Products
Sales and Service Network

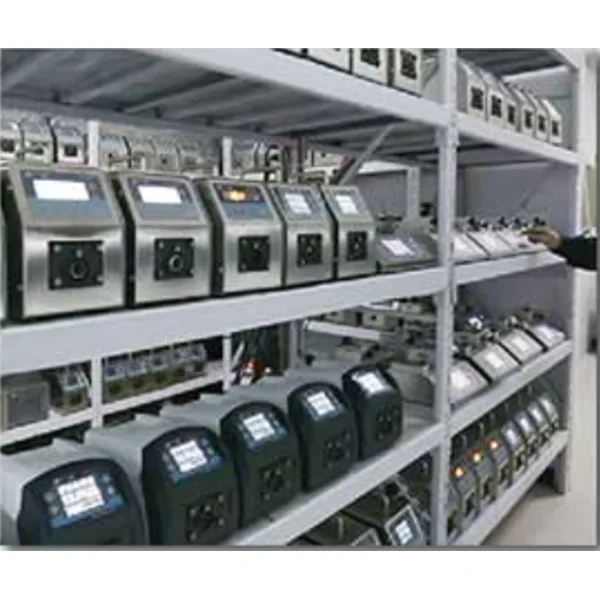

Factory Workshop
Dosing Device In Papermaking Industry
RY Series Accessories of Metering Pump
The accessories of the metering pump are the supporting or auxiliary equipment of the system equipment in which the metering pump is used. It can effectively improve the metering accuracy of the metering pump, improve the working environment of the metering pump, and thus extend the service life of the metering pump.
Product packaging
Why Choose Us
ROYAL PHARM is strong producer and supplier for different pumps that used for the chemical and pharmaceutical industry. Mainly include: Pneumatic Diaphragm pump, Peristaltic Pump, Syringe pump, Gear pump, Metering pump, plunger metering pump, Magnetic Driven pump, Centrifugal Pump. The materials can be customized based on your requirement of the usage.
