CS Stainless Steel 360 Degree High Pressure cip system cleaning Oil Tank Jet Cleaning Spray Nozzle
- Category: >>>
- Supplier: Dongguan CS Hardware Technology Co. LTD
Share on (1600629773308):
Product Overview
Description
Contact us
Products Description

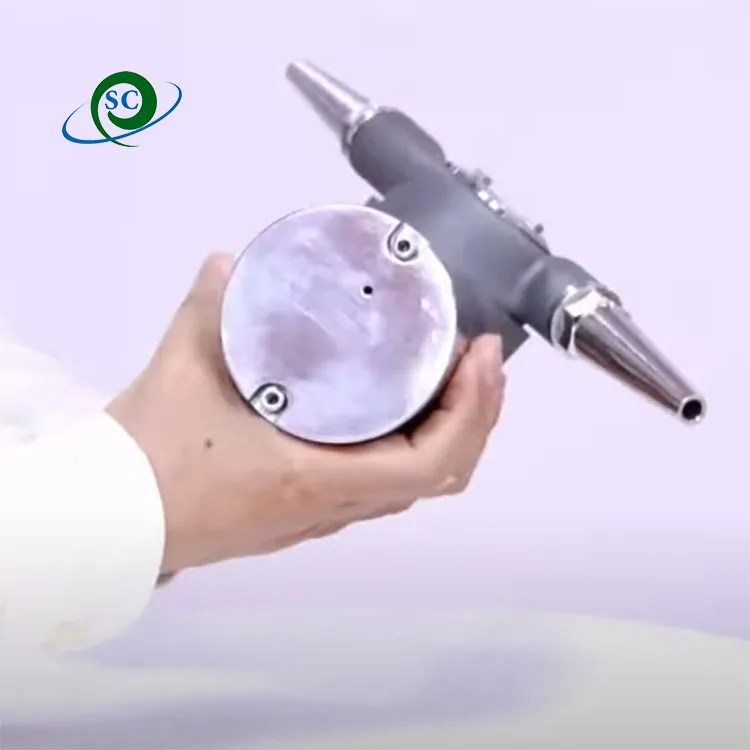

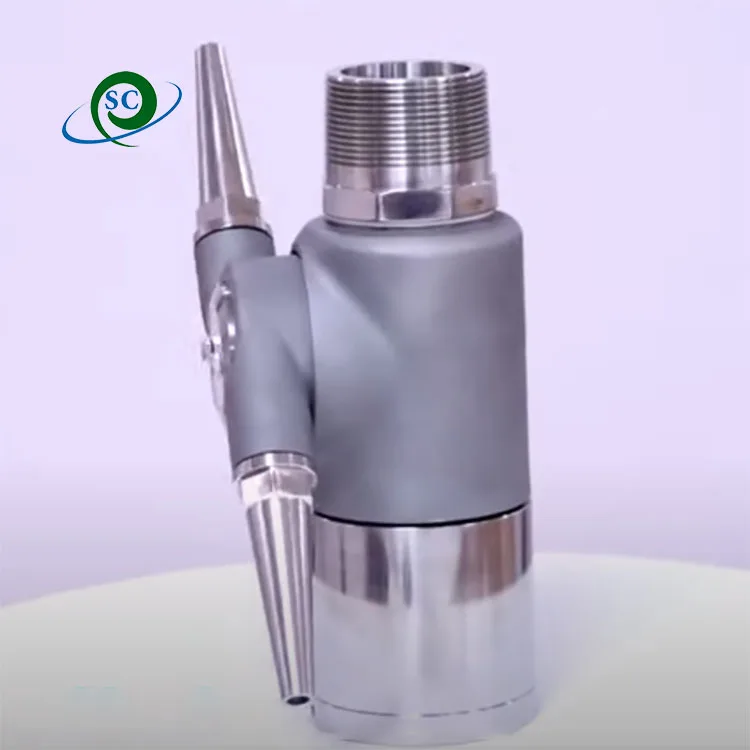

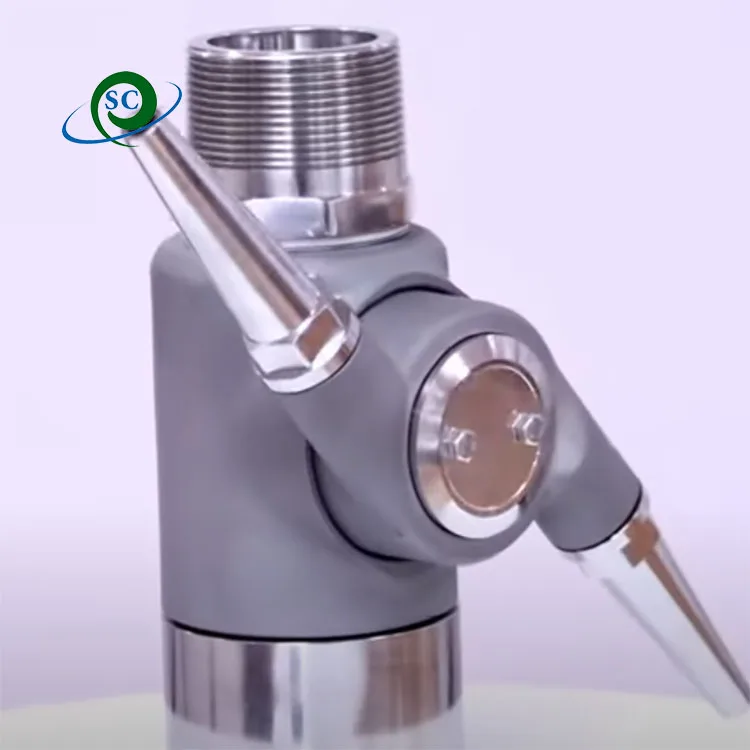

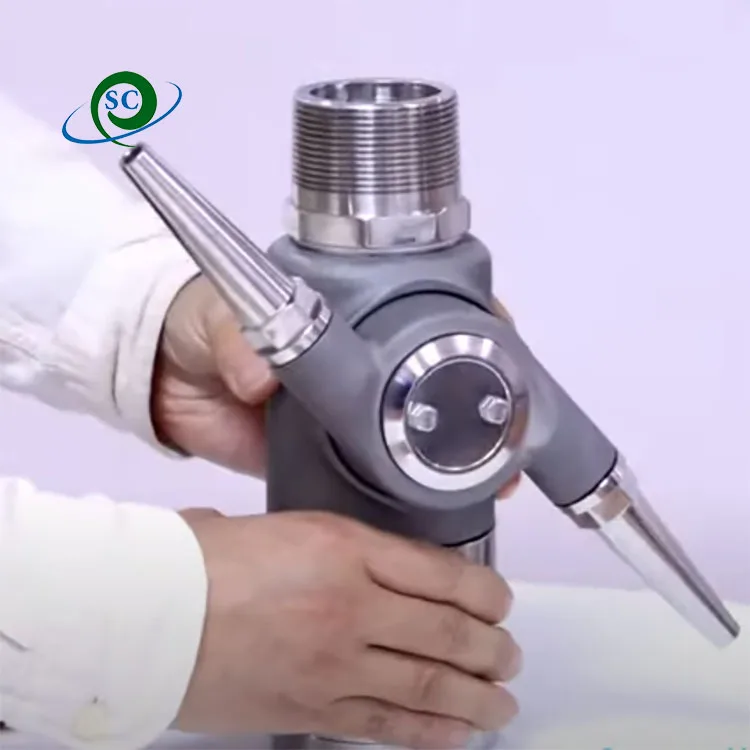

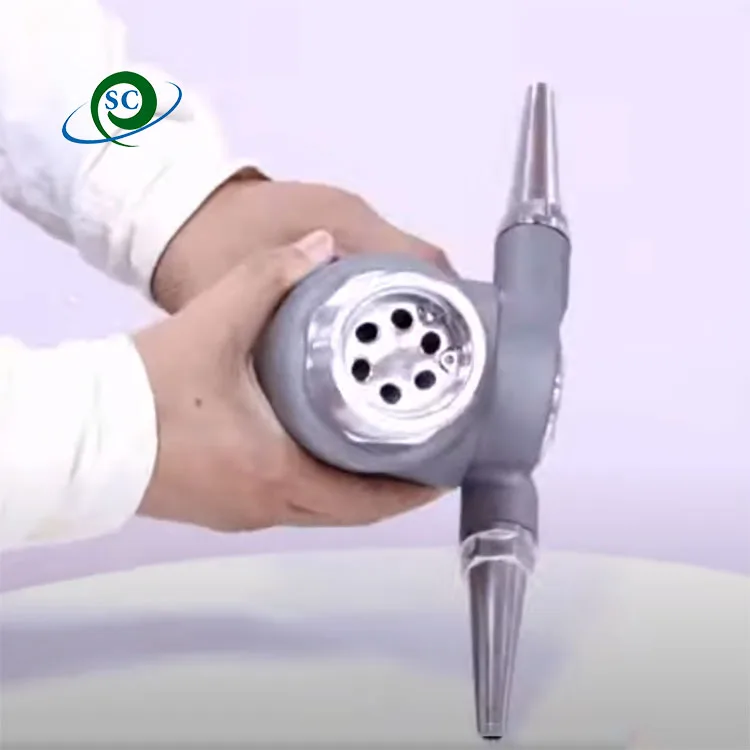

CS Stainless Steel 360 Degree High Pressure Oil Tank Jet Cleaning Spray Nozzle
Product Name | High Pressure 360 Rotary Tank Washing Nozzle |
Material | Ss303,SS304 ,SS316 |
Thread Type | NPT, BSPT |
Spray Angle | 360° |
Thread Size | 2" BSPP female （or quickly connection fitting ） |
Item No | BG30 |
Main material | 316 L |
Sealing material | PEEK/EPDM |
Cleaning diameter（φ) | 30.5 m |
Recommend pressure | 3-24 bar |
Cycle time | 10 to 30 min |
Flow rate | 110-1135 L/min(30-300 gpm) |
Working temperature | 30-120 ℃ |
Min tank opening size | 158 mm |
N.W.: | 11 kg |
Application | Blenders • Brewery tanks • Food processing vats and tanks • Pulp storage chests • Petrochemical/chemical processing reactors • Processing tanks • Tanker trucks • Wine vats |
360 degree tank cleaner diameter 100 ft. (30.5 m) 3D Tank Spray Nozzles
The series of 3D tank cleaning nozzle drive the turbine through the cleaning fluid to drive the internal speed reduction
mechanism, and the gear mechanism operates according to the set track to realize the revolution and the rotation, thereby
achieving 360° thorough cleaning.
The series of 3D tank cleaning nozzle drive the turbine through the cleaning fluid to drive the internal speed reduction
mechanism, and the gear mechanism operates according to the set track to realize the revolution and the rotation, thereby
achieving 360° thorough cleaning.
Details Images
Application Scenario
Spraying a liquid through a spray nozzle can serve different purposes:
DISTRIBUTION
Engineers design nozzles with different spray distribution patterns. Patterns can be solid stream, full cone, hollow cone, flat spray, spoon flat fan. The nozzle design aims at the uniformity and impact force of the jet sprayed whether nozzles are used individually or overlapping. Below figures show detailed information for a variety of capacities and spray sections. We mark distribution on every page for your convenience.
Engineers design nozzles with different spray distribution patterns. Patterns can be solid stream, full cone, hollow cone, flat spray, spoon flat fan. The nozzle design aims at the uniformity and impact force of the jet sprayed whether nozzles are used individually or overlapping. Below figures show detailed information for a variety of capacities and spray sections. We mark distribution on every page for your convenience.
Certifications
Company Profile
Our advantage
● 360 million kinds of nozzle products to meet the different needs of various industries.
● Automatic spray system: according to customer needs, provide automatic spray system design, planning and manufacturing.
● Process design:Provide nozzle specification selection, nozzle configuration planning and complete system design services according to customer needs.
● Automatic spray system: according to customer needs, provide automatic spray system design, planning and manufacturing.
● Process design:Provide nozzle specification selection, nozzle configuration planning and complete system design services according to customer needs.
If you want to find OEM Supplier in China, contact us !
If you want to find Competitve Price in China, contact us !
If you want to find Competitve Price in China, contact us !
If you want to find Professional nozzle products Factory in China,
contact us !
contact us !
If you want to find Negotiable MOQ Supplier in China, contact us!
If you want to find Responsible Partner who help you save trouble and time in program, contact us !
If you want to find Responsible Partner who help you save trouble and time in program, contact us !
Our products are sold all over the world with guaranteed quality
FAQ
Q: How do you control the quality ?
A:CSCO have reliable and strict quality control system,100% aging testing before packaging.Third party inspection are also acceptable. Free Sample: Sample cost can be refundable if your following order quantity is large enough.
Q:What payment ways available?
A:CSCO suggest Trade Assurance. Also we accept Paypal & W/U, T/T and more other options.D/P D/A L/C are acceptable.
Q:How do you ship the goods and how long does it take?
A:Usually by DHL, UPS, FEDEX,TNT. It usually takes 3-6 days to arrive. By air,by sea are also acceptable. EXW, DDU, DDP, FOB, CIF, DAP...All terms are available.
Q: What about the delivery time?
A:Usually the delivery time for ready style/sample is 1- 3 working days, for custom style less than 5,000pcs is 10 to 15working days, bulk order is 20 to 30 working days.
Q:How to return if product defective?
A:1) We will offer online support or replace it if the product you received isdefective.
2) Please send the goods back to us only if you contact us for details return process and make sure everything goes smoothly.
A:CSCO have reliable and strict quality control system,100% aging testing before packaging.Third party inspection are also acceptable. Free Sample: Sample cost can be refundable if your following order quantity is large enough.
Q:What payment ways available?
A:CSCO suggest Trade Assurance. Also we accept Paypal & W/U, T/T and more other options.D/P D/A L/C are acceptable.
Q:How do you ship the goods and how long does it take?
A:Usually by DHL, UPS, FEDEX,TNT. It usually takes 3-6 days to arrive. By air,by sea are also acceptable. EXW, DDU, DDP, FOB, CIF, DAP...All terms are available.
Q: What about the delivery time?
A:Usually the delivery time for ready style/sample is 1- 3 working days, for custom style less than 5,000pcs is 10 to 15working days, bulk order is 20 to 30 working days.
Q:How to return if product defective?
A:1) We will offer online support or replace it if the product you received isdefective.
2) Please send the goods back to us only if you contact us for details return process and make sure everything goes smoothly.
