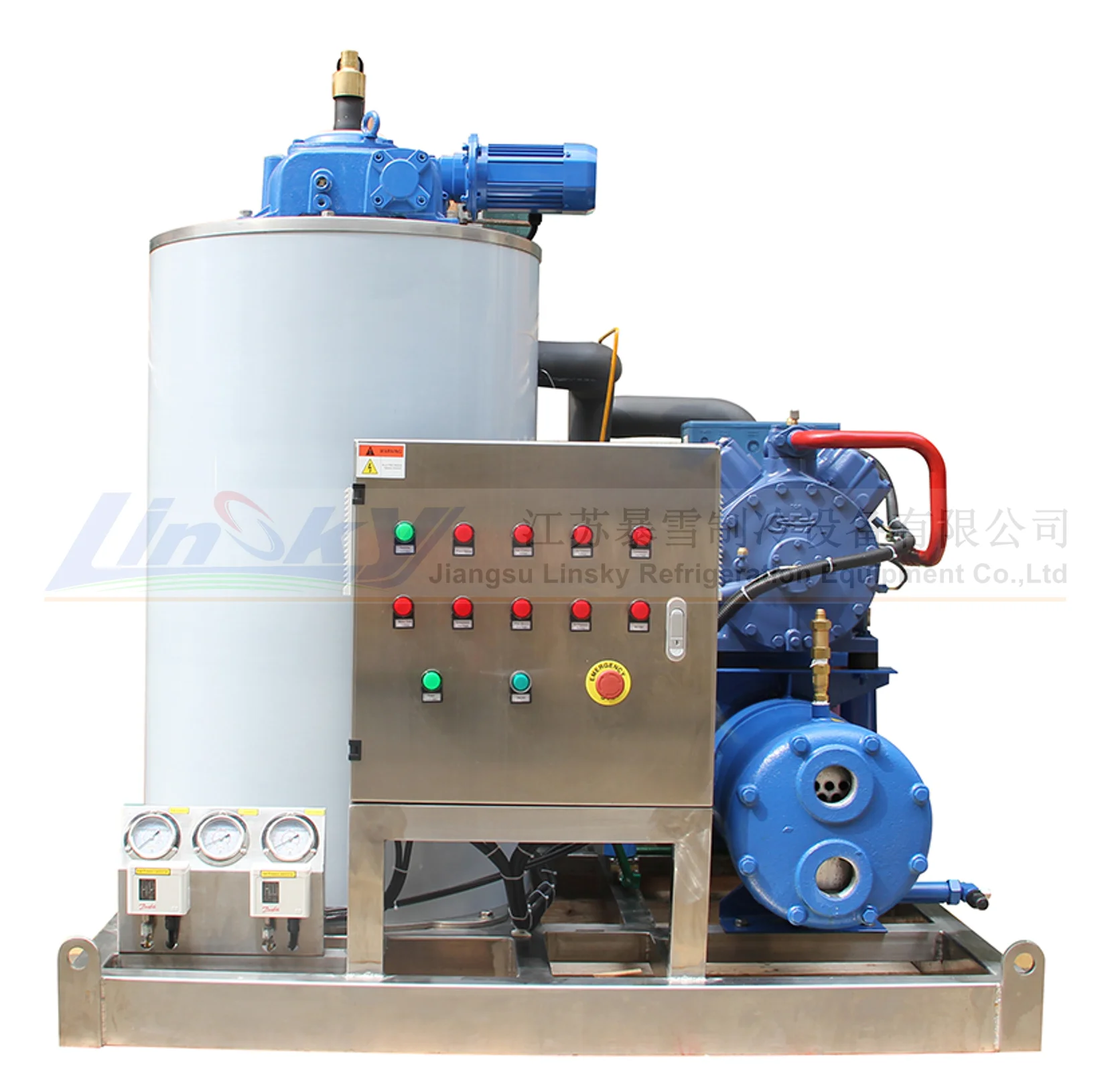

Ice maker 3000kg /24 hours seawater Marine ice maker
- Category: >>>
- Supplier: Jiangsu Linsky Refrigeration Equipment Co. Ltd.
Share on (1600629818002):
Product Overview
Description
Product Overview

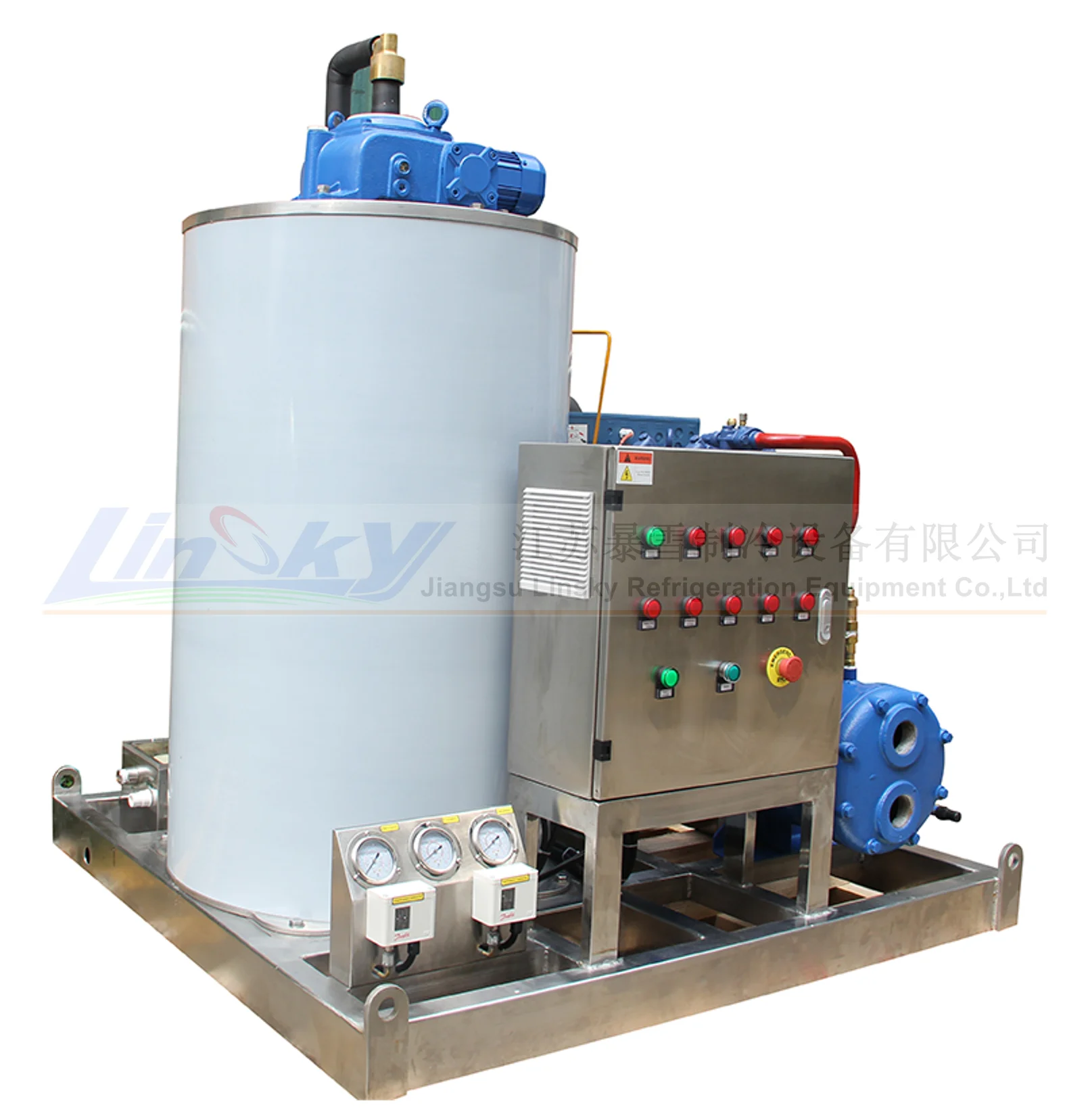

Marine Seawater flake ice machine
●The material of flake ice machine is stainless steel and antisepsis aluminum alloy to get over seawater and sea wind erosion.
●Adopt piston compressor with deepened oil tank and marine seawater condenser guarantee normal running even vessels shake at 30°.And low noise,high quality impact resistant steel valve plate,high efficiency, anti- liquid hammer and long service life.
●Module design adopted with all parts welded,more space-saving.
●Adopt piston compressor with deepened oil tank and marine seawater condenser guarantee normal running even vessels shake at 30°.And low noise,high quality impact resistant steel valve plate,high efficiency, anti- liquid hammer and long service life.
●Module design adopted with all parts welded,more space-saving.
Product features

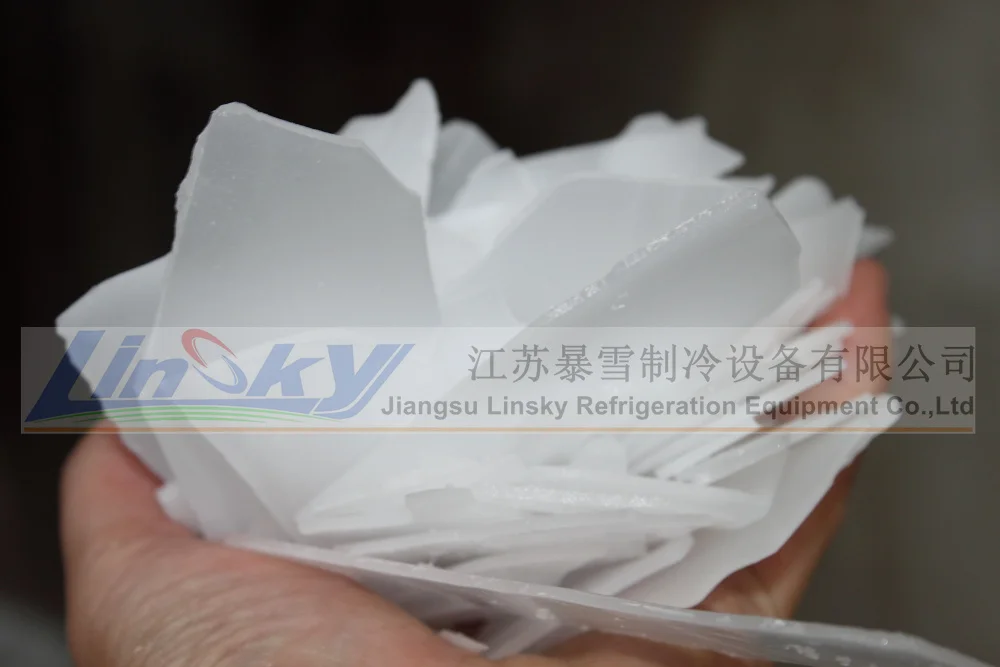

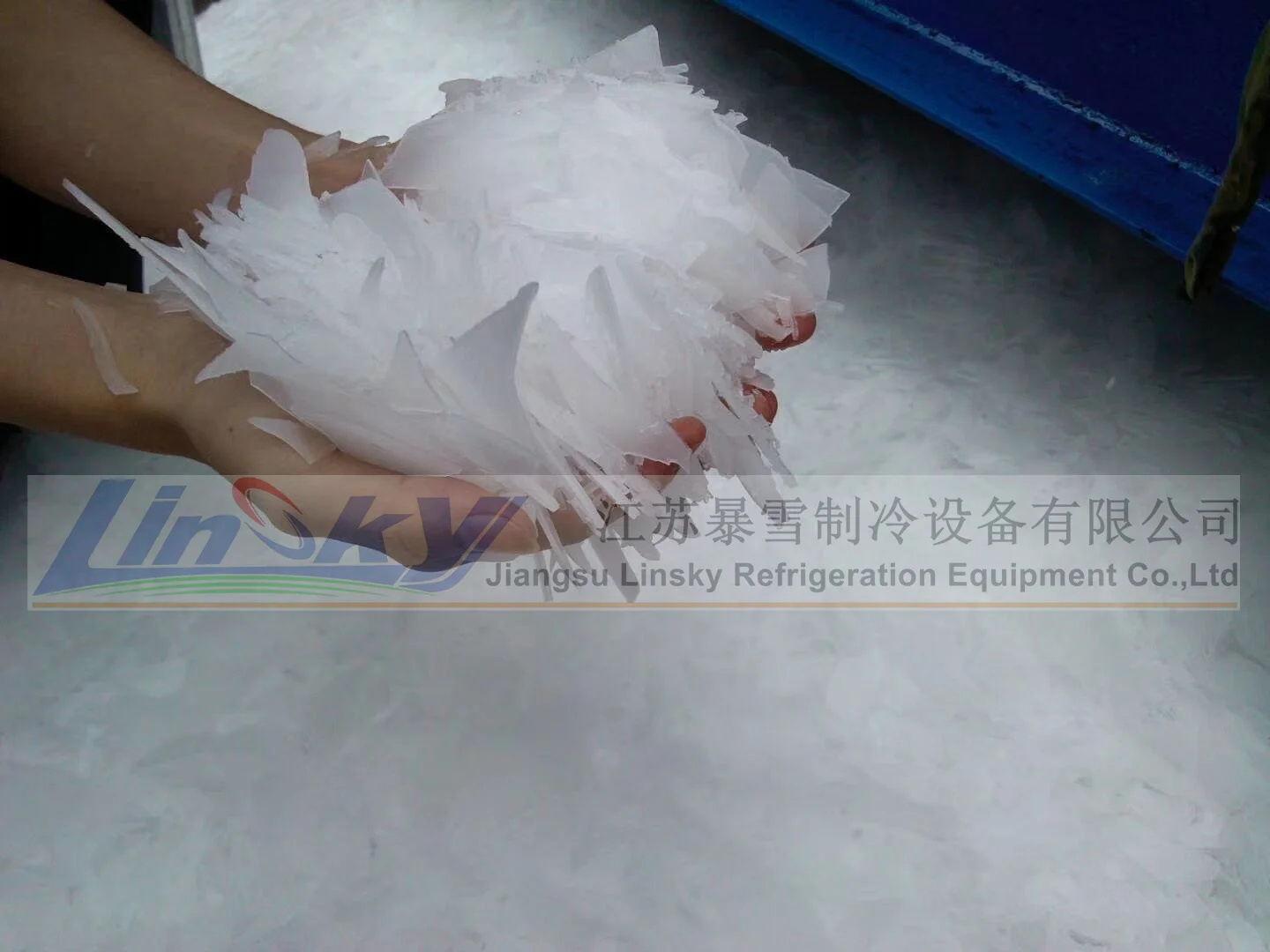

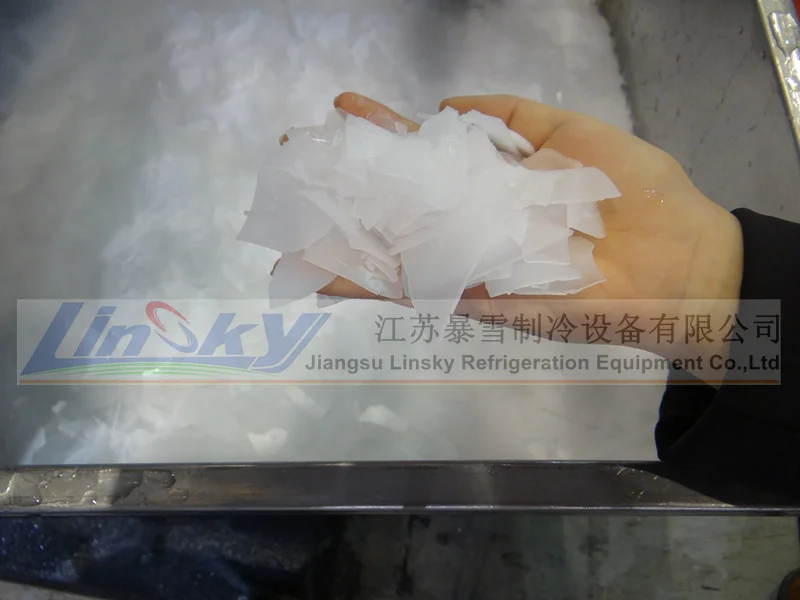

●Flake ice is an irregular ice type with a thickness of 1.5mm~2.5mm
●Flake ice temperature approx. -8“C , with great cooling efficiency, fit for perishable product immediate cooling
●Flake ice completely dry, it not easy rapidly freezing together, so easier for storage and distribution
●Flake ice has no acute edges and corners so it will not damage the surface of the cooled object
●Flake ice have large contact area, good mobility,which means large heat exchange surface area,faster and better cooling effect than other types office
●Flake ice is easy to crush and has strong plasticity
●Fast ice making speed, can produce ice within 3 minutes after starting machine, don't need extra person to take off and get the ice
●Flake ice can be made from fresh water or seawater
●Flake ice temperature approx. -8“C , with great cooling efficiency, fit for perishable product immediate cooling
●Flake ice completely dry, it not easy rapidly freezing together, so easier for storage and distribution
●Flake ice has no acute edges and corners so it will not damage the surface of the cooled object
●Flake ice have large contact area, good mobility,which means large heat exchange surface area,faster and better cooling effect than other types office
●Flake ice is easy to crush and has strong plasticity
●Fast ice making speed, can produce ice within 3 minutes after starting machine, don't need extra person to take off and get the ice
●Flake ice can be made from fresh water or seawater
Ice application
Aquatic applications
Fishing fresh: Ice is used in supermarket fresh stable and in restaurant for fresh of fish and other food.
Fishery production and processing: In fishing and fish processing factory, lots of ice is
needed as a cold storage and preservation of aquatic products.
Fishery production and processing: In fishing and fish processing factory, lots of ice is
needed as a cold storage and preservation of aquatic products.

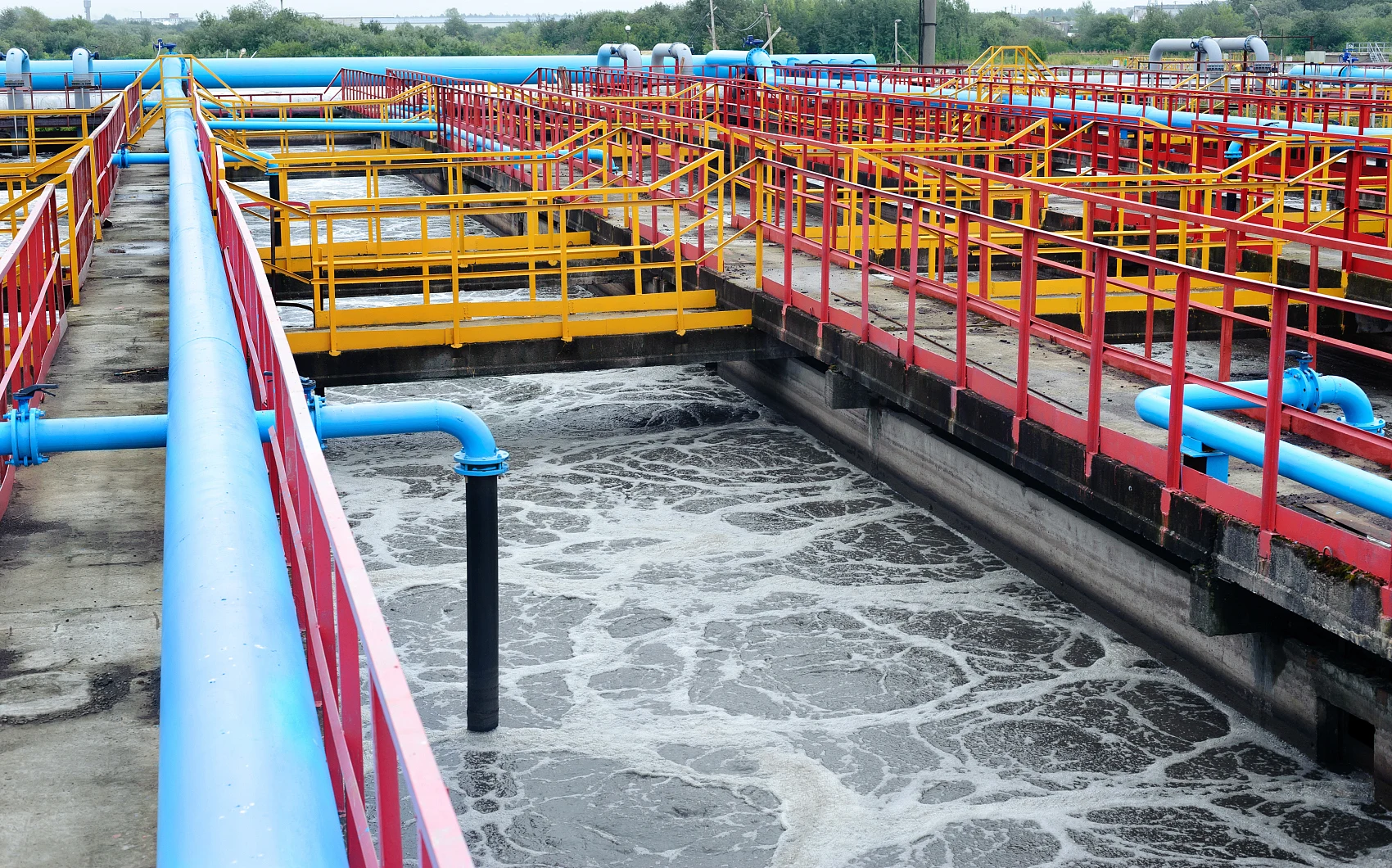

Chemical applications
Printing and dyeing chemical industry: In the paint,dye production,diazotization,coupling and condensation are the necessary synthesis process. Lots of heat is cool down with ice cooling.Pharmaceutical and chemical.
Pharmaceutical and chemical: In the synthetic production process of biopharmaceutical, chemical and pharmaceutical industry,much ice is used to control temperature and maintain biological activity.
Pharmaceutical and chemical: In the synthetic production process of biopharmaceutical, chemical and pharmaceutical industry,much ice is used to control temperature and maintain biological activity.
Meat applications

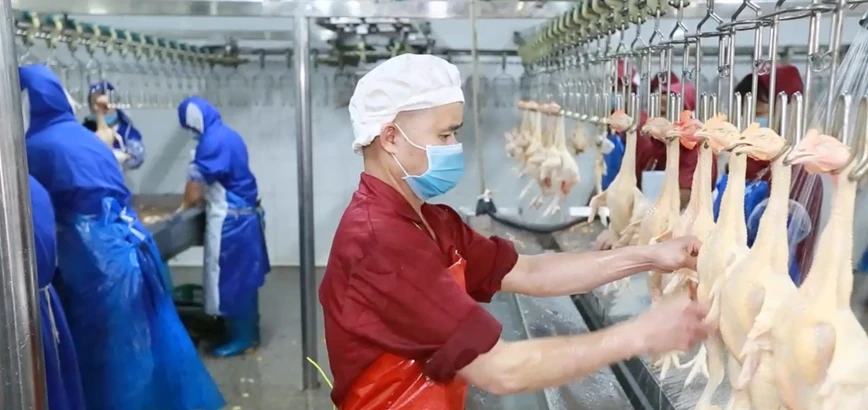

Cooling slaughtered industry: In production of poultry slaughter, ice is for cooling poultry. Food processing: In the cooked food
production, ice water is for cooked chopped mix processing
production, ice water is for cooked chopped mix processing
Other food
Dairy processing: Much crushed ice particles is used in ice cream processing.
Bread processing: In the beating of bread flour, ice water can improve the processing temperature.
Bread processing: In the beating of bread flour, ice water can improve the processing temperature.
Fruit, vegetable distribution and preservation
Fruit and vegetable fresh: Flake ice can
quickly cool the original temperature of fruits and vegetables to storage temperature and maintain that temperature in order to ensure product quality.
quickly cool the original temperature of fruits and vegetables to storage temperature and maintain that temperature in order to ensure product quality.
PRODUCT SPECIFICATIONS
Ice maker 3000kg /24 hours seawater Marine ice maker | ||
Model | LIF-30M | |
Daily capacity | 3ton/24hr | |
Power supply | 380V/50Hz/3P | |
Power | 11.3KW | |
Refrigerant | R404A | |
Unit Dimension(mm) | 1700x900x1200 | |
Unit weight | 720kg | |
Ice Machine Manufacturing Technique

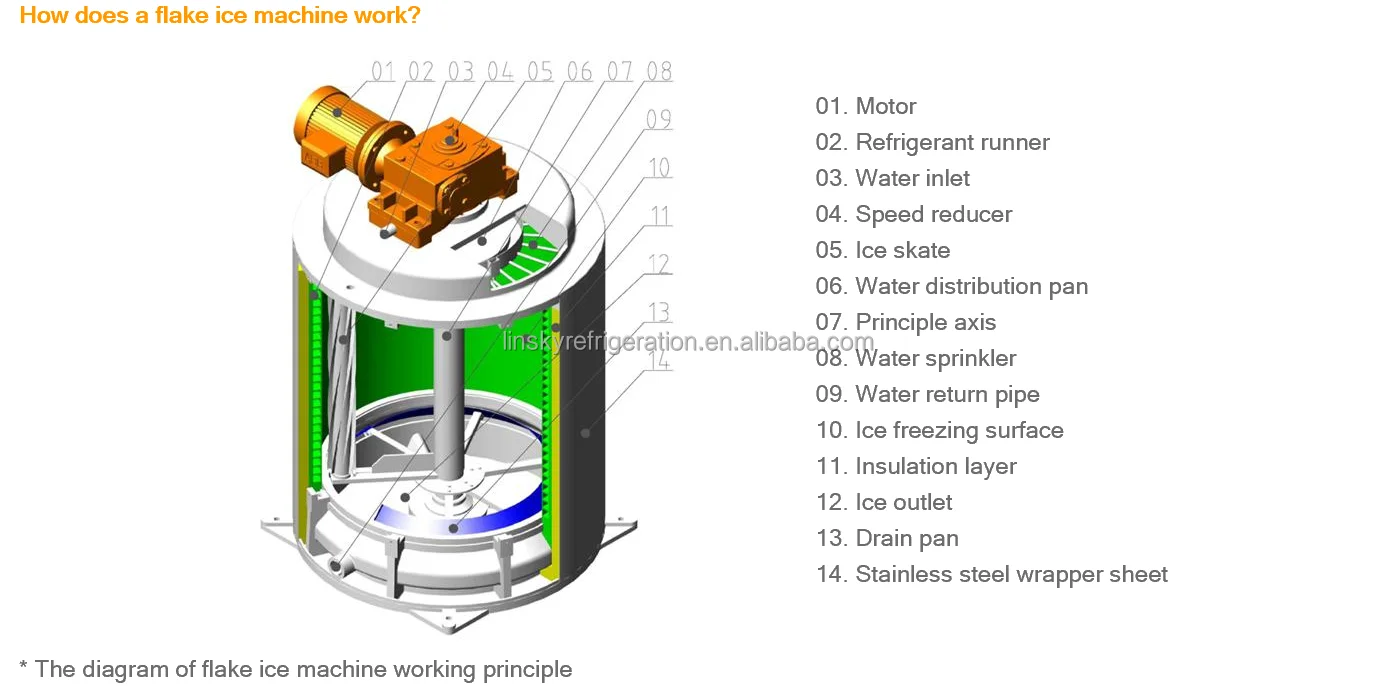

As shown:

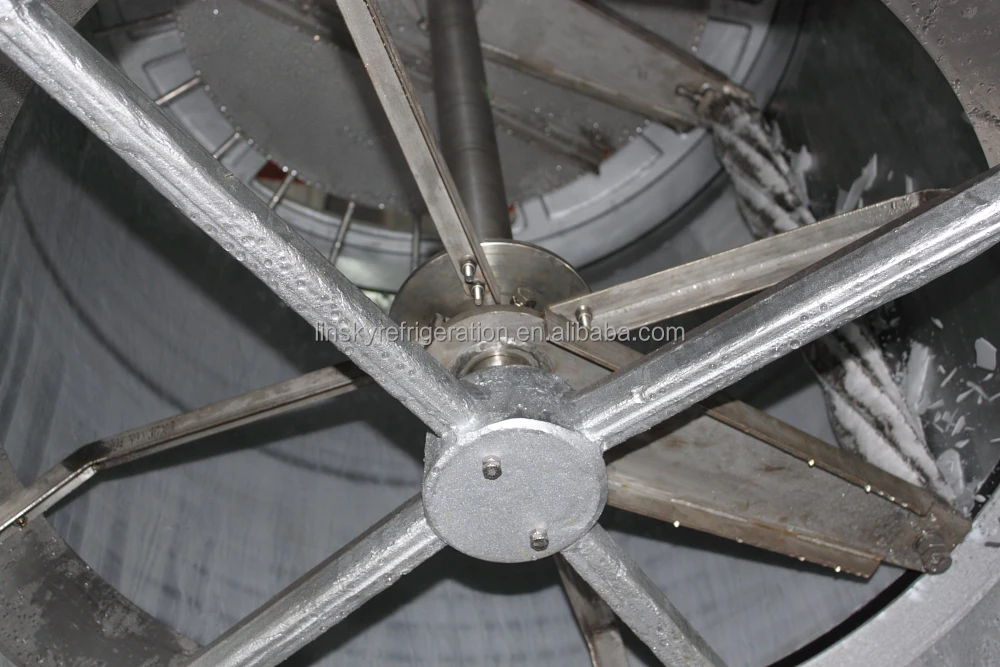

motor(01) drives speed reducer(04) running. Ice skate (05), Water distribution pan (06), principle axis (07), water sprinkler(08) and drain pan(13) are driven by reducer and run continuously.From water inlet(03),water flows into water distributor pan (06) then sprinkles water on ice freezing surface (10) evenly, herein a film of water is formed.
While the ice machine is running, refrigerant evaporate in refrigerant runner (02).The temperature of water decreases quickly till a layer of thin ice is formed on ice freezing surface. Under t the extrusion of ice skate(05),the thin ice layer turns into ice flake and then falls from ice outlet (12) below evaporator. And the partial unfreezing water returns to the cold water tank through drain pan from water return pipe (09).
While the ice machine is running, refrigerant evaporate in refrigerant runner (02).The temperature of water decreases quickly till a layer of thin ice is formed on ice freezing surface. Under t the extrusion of ice skate(05),the thin ice layer turns into ice flake and then falls from ice outlet (12) below evaporator. And the partial unfreezing water returns to the cold water tank through drain pan from water return pipe (09).
About LINSKY Factory Introduction
Linsky Refrigeration Equipment Co., Ltd,
Linsky Refrigeration Equipment Co., Ltd, as the leading manufacturer and exporter of commercial and industrial ice machines in China, with a decade of professional experience in ice cooling field, has been approved with CE and ISO 9001-2000.
Linsky products lineup include high quality tube ice machine, aluminum direct system block ice machine, brine system ice block machine, flake ice machine, plate ice machine, cube ice machine, water chiller, cold room units and other associated equipments such as rake type automatic ice storage, screw type automatic ice storage, pneumatic ice delivery system, screw ice delivery system, ice crusher, ice weighing system, ice packaging machine and more.We don't just make ice machines. We also help customer design ice cooling solutions. The main feature of Linsky product is tailored specifically to the demands of the customer. Above all else, this includes energy efficient, longevity and hassle-free.
Linsky is headquartered in Shanghai and the factory in Jiangsu. As a medium-sized company we combine flexibility, acumen and speed with customer-oriented innovation. Therefore, we can make and offer solutions more quickly and proficiently than many larger companies.
Through our teams' efforts over these years, we have achieved some performance. Linsky engineers have obtained multiples of invention and utility patents. Our products have sold worldwide, particularly in Southeast Asia，Middle East, South America,Africa,and Europe. Now our company has developed a vast range of offerings in large system including design and fabrication of high quality ice machines, refrigeration unit, concrete cooling system and fully automatic ice making plant etc.
We adhere to strict standard of high quality for remarkably cooling performance and trust we would always be an excellent company in ice machine industry if we persist to execute this principle strictly.
Linsky products lineup include high quality tube ice machine, aluminum direct system block ice machine, brine system ice block machine, flake ice machine, plate ice machine, cube ice machine, water chiller, cold room units and other associated equipments such as rake type automatic ice storage, screw type automatic ice storage, pneumatic ice delivery system, screw ice delivery system, ice crusher, ice weighing system, ice packaging machine and more.We don't just make ice machines. We also help customer design ice cooling solutions. The main feature of Linsky product is tailored specifically to the demands of the customer. Above all else, this includes energy efficient, longevity and hassle-free.
Linsky is headquartered in Shanghai and the factory in Jiangsu. As a medium-sized company we combine flexibility, acumen and speed with customer-oriented innovation. Therefore, we can make and offer solutions more quickly and proficiently than many larger companies.
Through our teams' efforts over these years, we have achieved some performance. Linsky engineers have obtained multiples of invention and utility patents. Our products have sold worldwide, particularly in Southeast Asia，Middle East, South America,Africa,and Europe. Now our company has developed a vast range of offerings in large system including design and fabrication of high quality ice machines, refrigeration unit, concrete cooling system and fully automatic ice making plant etc.
We adhere to strict standard of high quality for remarkably cooling performance and trust we would always be an excellent company in ice machine industry if we persist to execute this principle strictly.
Customer Photos
FAQ
Q: Can you send me the video to show how the machine works?
A: Certainly, we have made video of each machine.
Q: What is the MOQ?
A: We accept the minimum order quantity of one unit.
Q: What is your best price for this product?
A; The price is negotiable.It can change according to your quantity or package.When you are making an inquiry, please let us know the quantity you want.
Q: what about the warranty?
A: We are very confident in our products,and we pack them very well,so usually you will receive your order in good condition.
