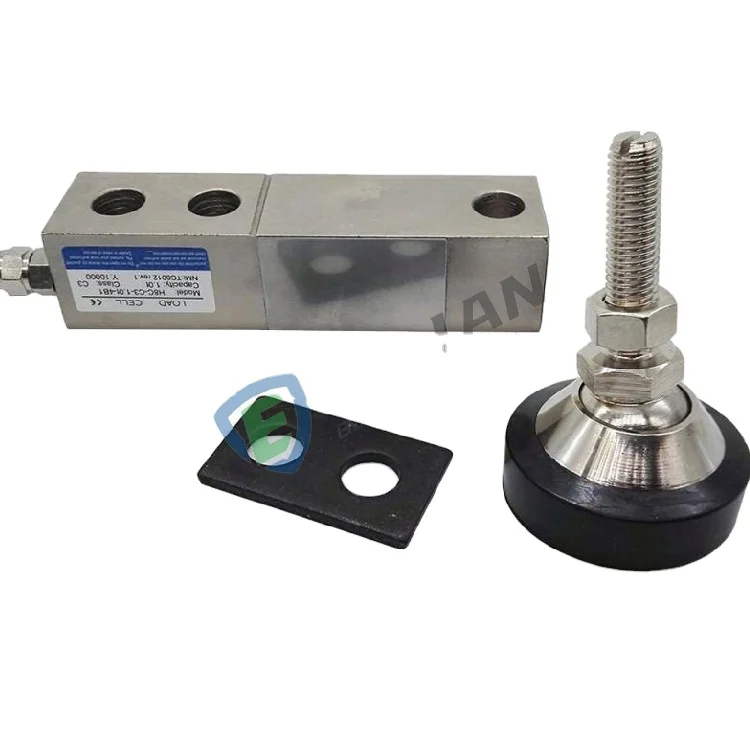

Strain Gauge Shear Beam Load Cell bending weight sensor
- Category: Sensors >>>
- Supplier: Shaanxi,Elian,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
• Nickel plated alloy steel IP67 shear beam load cell (100kg & 250kg are bending beam load cells)
• Adhesive sealed
• Suitable for platform weighing, bed weighing, etc.
• High accuracy
• High reliability
• Current calibrated (SC-option)
Features and uses
Cable type: Shielded, 4 or 6 conductor cable, conductor AWG 22
Cable diameter: Ø 5.0mm
Cable length: 4m for 100kg – 2t; 6m for higher capacities
Shield not connected to element
Technical parameter
| Accuracy Class | EL R60 C3 | EL R60 C4 | EL R60 C5 | ||
| Output Sensitivity ( = FS ) | mV/V | 3.0 ± 0.003 | |||
| Maximum Capacity ( Emax ) | t | 0.1, 0.25, 0.5, 075, 1, 1.5, 2, 2.5, 3, 5, 10 | 0.1, 0.25,0.5, 0.75, 1,1.5, 2, 2.5 | 3, 5, 10 | |
| Max. Number of Load Cell Intervals | nLC | 3000 | 4000 | 5000 | |
| Ratio of min. LC Verification Interval | Y = Emax / vmin | 10000 | 15000 | 20000 | 18000 |
| Combined Error | %FS | ≤± 0.023 | ≤± 0.0175 | ≤± 0.014 | |
| Creep Error (30 minutes) | %FS | ≤± 0.016 | ≤± 0.012 | ≤± 0.010 | |
| Temperature Effect on Zero (ZTC) | %FS/10°C | ≤± 0.015 | ≤± 0.010 | ≤± 0.007 | |
| Temperature Effect on Sensitivity (STC) | %FS/10°C | ≤± 0.011 | ≤± 0.009 | ≤± 0.008 | |
| Zero Balance | %FS | ≤± 1.0 | |||
| Safe Overload | %FS | 150 | |||
| Ultimate Overload | %FS | 300 | |||
| Maximum Deflection | mm | 0.1t – 0.2t: 0.3 | 0.5t – 5t: ~ 1.2 | 10t: 0.8 | |
| Excitation, Recommended Voltage | V | 5 ~ 12 | |||
| Excitation, Maximum Voltage | V | 18 | |||
| Input Resistance | Ω | 350 ± 3.5 | |||
| Output Resistance | Ω | 350 ± 3.5 | |||
| Insulation Resistance (50V) | MΩ | MΩ ≥5000 | |||
| Compensated Temperature | °C | -10 ~ + 40 | |||
| Operating Temperature | °C | -35 ~ + 65 | |||
| Storage Temperature | °C | -40 ~ + 80 | |||
| Load Cell Weight | kg | 0.1t – 2.0t: ~ 0.9 | 2.5t – 5t: ~ 1.7 | 10t: ~ 3.6 | |
| Element Material | Nickel plated alloy steel | ||||
| Ingress Protection (acc. to EN 60529) | IP67 | ||||
| Recommended Torque on Fixation Bolts | Nm | M12: 100 M18:200 M24:700 | |||
| ATEX Classification (optional) | II1G Ex ia II1C T4 | II1D Ex iaD 20 T73°C | II3G Ex nL IIC T4 | ||
