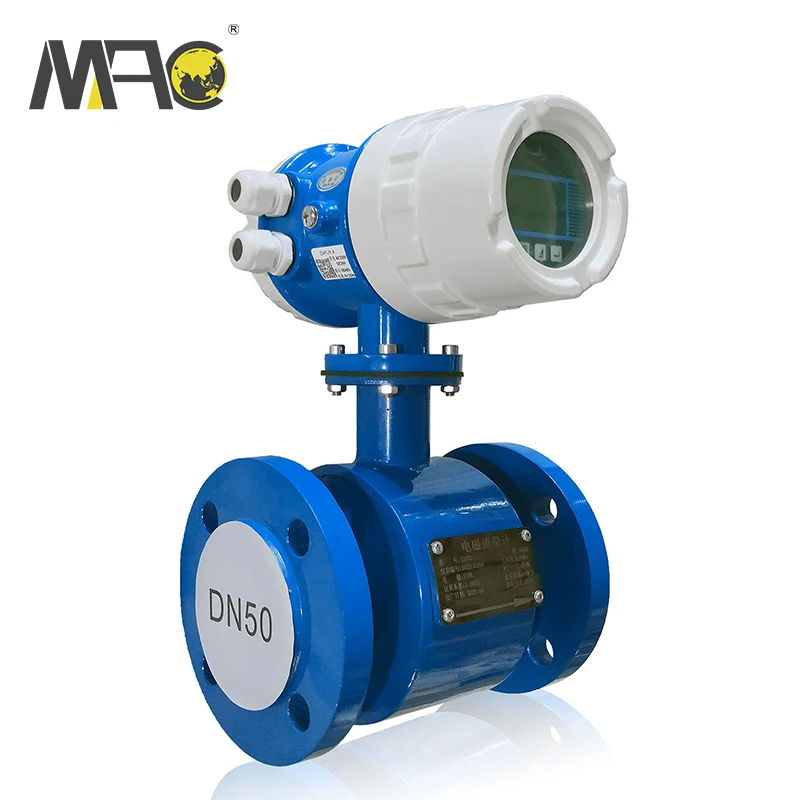

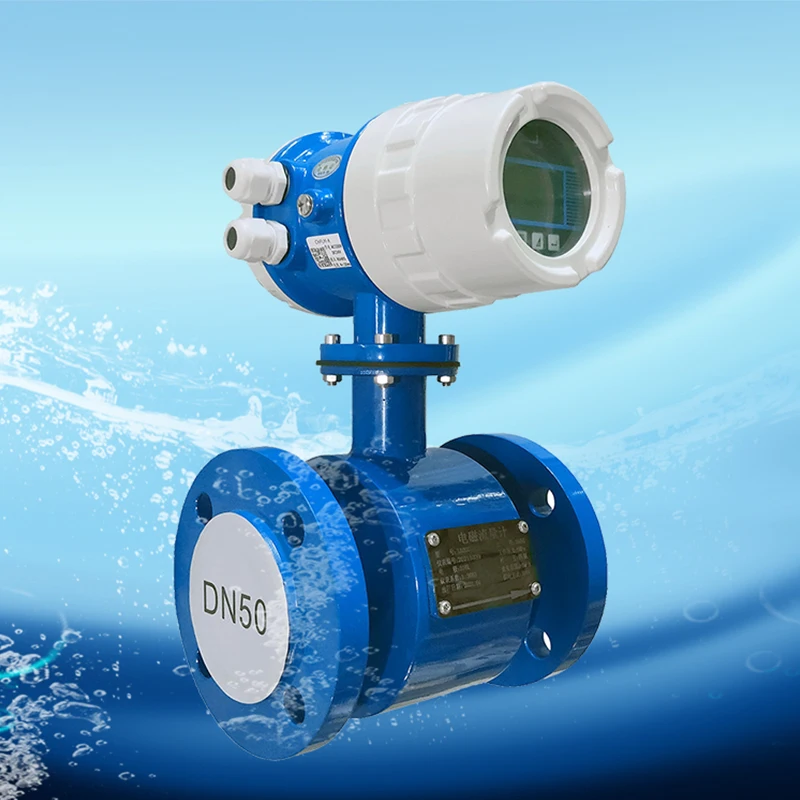

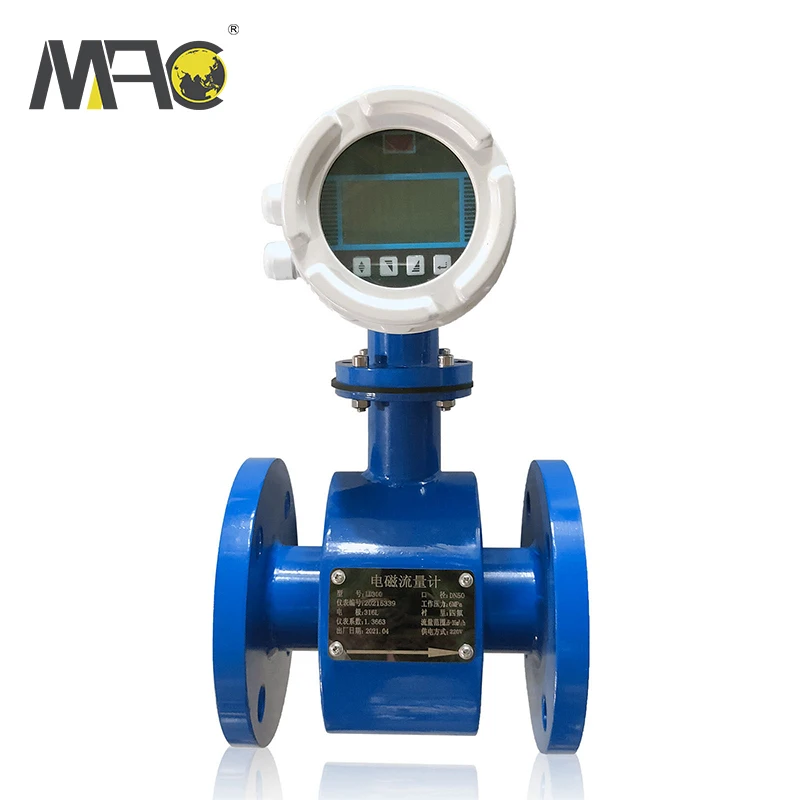

Technical specification for LD300 series of electromagnetic flow meter

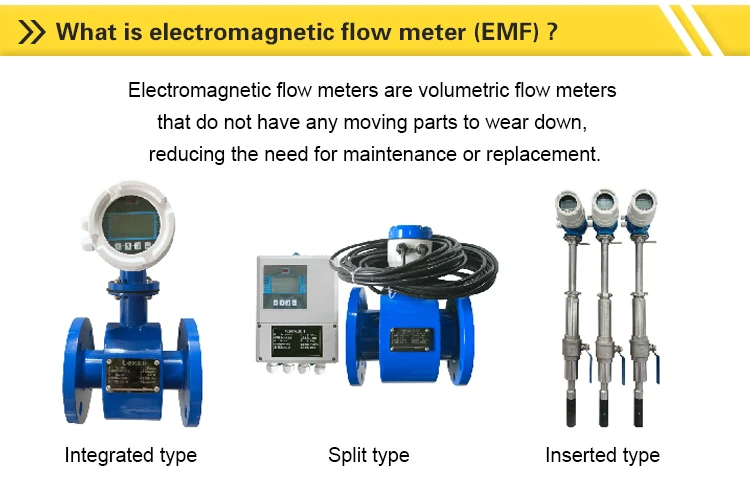

|Model||Integrated type: LD300|
Split type: LD300-S
|DN size(mm)||DN6-3000mm(for LD300, LD300-S)|
|Maximum flow speed||0.5~10m/s|
|Output signal||Analog output;|
0~10mA, load resistance: 0~1. 5KΩ;
4~20mA, load resistance: 0~750KΩ;
|Power Supply||AC power supply, voltage range: 85VAC~250VAC;|
DC 24V power supply, voltage range: 20VDC- -36VDC;
Self-powered 3.6V power supply
|Working temperature||-20~60°C .|
|Accuracy||0.5% (for LD300, LD300-S)|
1. 5% (for LD300-P)

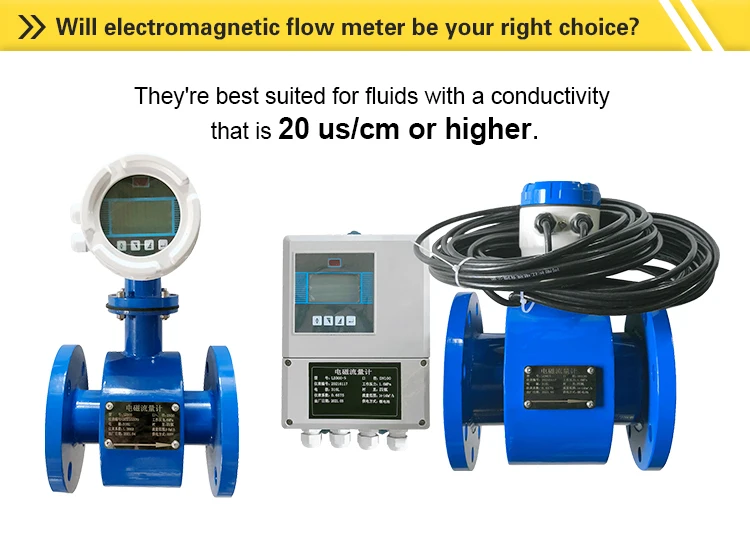

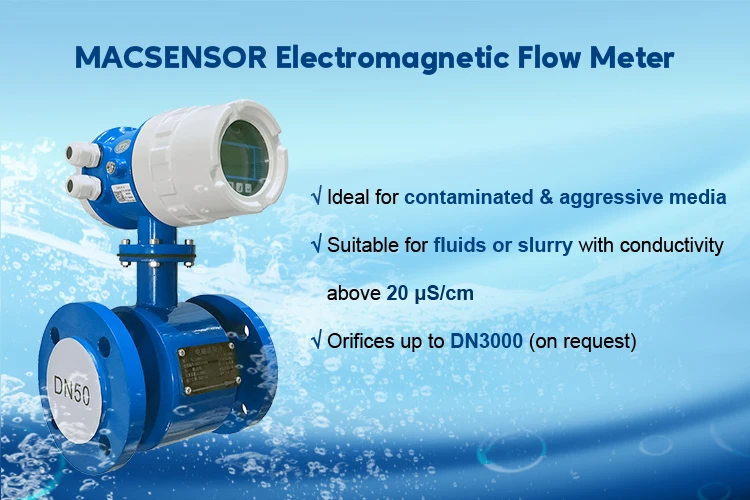

|Conductivity of the measured medium||≥20μs/cm|
|Measuring parameters||Instantaneous flow, flow rate, forward and reverse accumulated flow Alarm display (excitation open circuit alarm, empty pipe alarm, flow over limit alarm).|
Four membrane touch switches for data setting.
|Network function||HART , MODBUS, GPRS, PROFIBUS optional|
|IP rating||IP65 standard;IP 67, IP68 by customized for the transmitter of the separated versions only.|
MACSENSOR is a professional vertically integrated manufacturer and approved high-tech enterprise engaged in product design, development, manufacture, and one-shop solutions service for measuring instruments & equipment since 2009. The manufacturing bases cover an area of about 6000 m² and have been inspected by SGS and TUV. The annual export sales are more than 10 million units.
From shell processing to components selection, MACSENSOR do excellent, use of the international management system, to control every production process, to ensure that each product is qualified before delivery. The product failure rate is less than 1% and the order repurchase rate is as high as 98%.
MACSENSOR is committed to providing more efficient, greener and safer superior performance measurement and control in industrial automation field instrumentation, measurement and control. The main products cover various pressure sensors, liquid level meters, flowmeters, meteorological monitoring products, water quality detecting products, wireless IoT systems, etc., and provide one-stop solutions for water monitoring systems, flood warning systems, meteorological monitoring, agricultural monitoring, and oil and gas industry monitoring, etc.
MACSENSOR brings together a group of outstanding automation engineers, electronic engineers, mechanical engineers and computer experts in various fields, 90% of whom have bachelor's degrees or above.
At MACSENSOR, we believe that by providing you with unique, customized solutions and supporting your needs well beyond your initial purchase, we can become more than a manufacturer. We can become a long-term partner that continues to add value and make your business run more efficiently with
1. Fast response time: 24h response rate ≥99%
2. One-to-one professional sales engineer support to ensure an effective procurement process.
3. Customize the most economical solution for your project.
4. One-stop service whilst minimising time and costs.
5. Easy Ordering with various payment terms.
6. Fast and efficient logistics solution
7. Intimate after-sales service
8. Online training services
9. Ongoing business development and review
After years of unremitting efforts, MACSENSOR becomes a well-known leading brand with good fame and successfully supplied one-stop monitoring solutions to thousands of projects in the world.
Contact the MACSENSOR team today to have all your questions answered and get exactly what you need.
