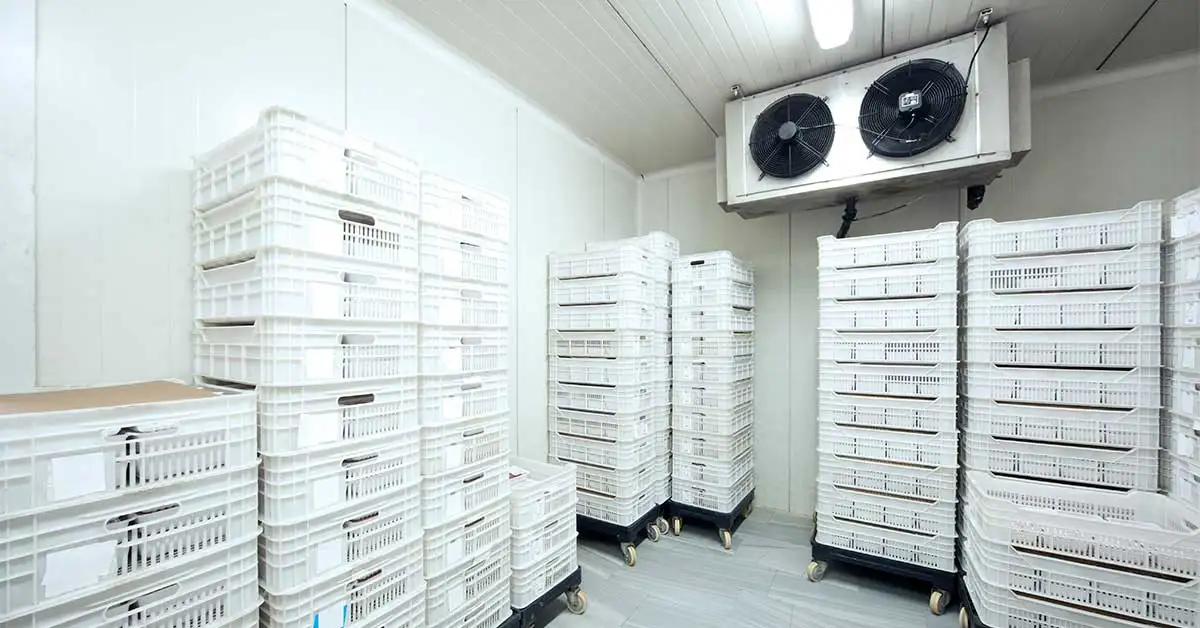

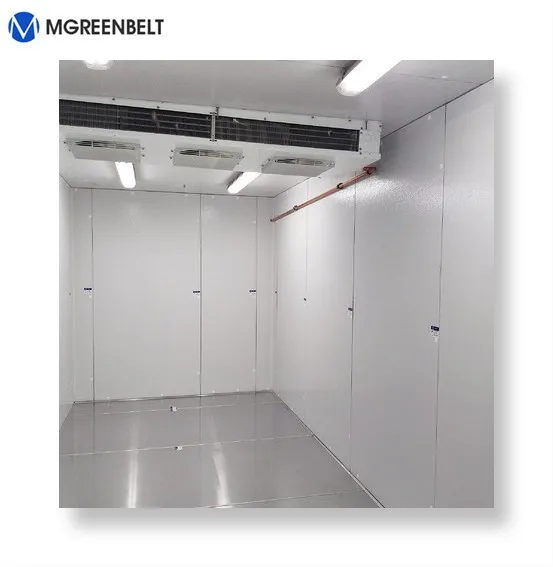

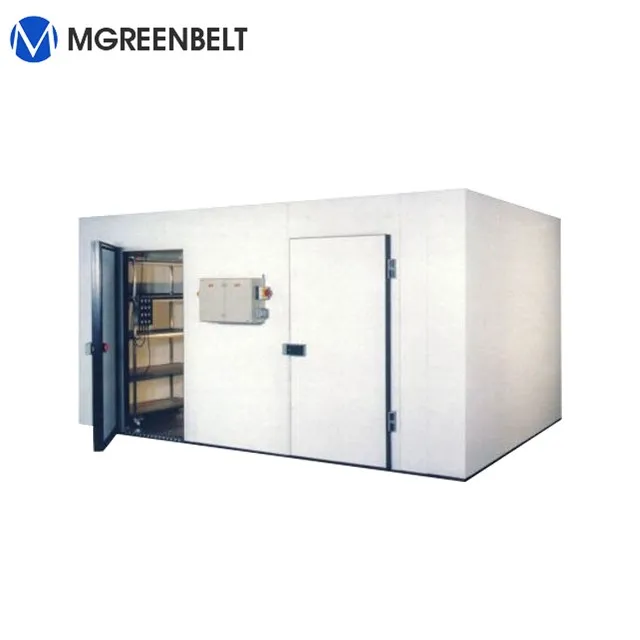

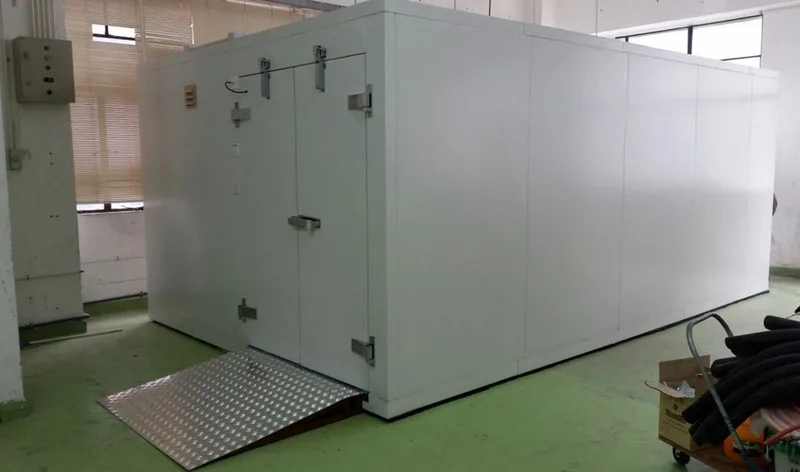

Industrial Freezer Cold Storage with Cold Room Refrigeration Unit
- Category: >>>
- Supplier: Jinan Mgreenbelt Machinery Co. Ltd.
Share on (1600629876027):
Product Overview
Description
Product Overview
Cold room is according to the temperature required to store the items, artificially control and maintain the temperature of the
room space, so as to achieve the effect of freezing and storage. Frozen cold storage frozen items, the temperature is not the
lower the better, but according to the different items to determine the corresponding temperature range. Frozen cold storage is
widely used in fruit&vegetable, food, fish, meat, cold drink factory, ice cream factory and so on. The temperature in the freezer
is generally from about -15°C to -35°C.
room space, so as to achieve the effect of freezing and storage. Frozen cold storage frozen items, the temperature is not the
lower the better, but according to the different items to determine the corresponding temperature range. Frozen cold storage is
widely used in fruit&vegetable, food, fish, meat, cold drink factory, ice cream factory and so on. The temperature in the freezer
is generally from about -15°C to -35°C.
Product Paramenters
Dimension | Length(m)*Width(m)*Height(m) Customized | ||||||
Fireproof | polyurethane insulation panel 40kg/m³ Fire Prevention B2 Engineering Grade | ||||||
Thickness of panel | 50mm, 75mm, 100mm, 120mm, 150mm, 200mm, optional | ||||||
Steel cover of cold room | Stainless steel plates color steel plates embossed aluminum plates | ||||||
Panel Connection | Cam lock type use hexagonal key to assemble and disassemble | ||||||
Refrigeration Units | Bitzer Copeland Emerson | ||||||
Refrigeration Type | air cooled 404a or R22 | ||||||
Fittings of cold room | all necessary fittings are included optional | ||||||
Voltage of cold room | 220V/50HZ 220V/60HZ 380V/50HZ optional | ||||||
PRODUCT CONFIGURATION
PUR Panel
Cam-lock PUR Panel (PPGI)
-- ceiling & wall & floor panel
-Thickness: 120 mm
-Thickness of metal: 0.5 mm
-Density of PU: 42±2 kg/m³
-New Material: cyclopentane (CFC free )
-Cam lock connection,waterproof rate
Condensing Unit
Model: MGBT03U-C- Low temp
-Compressor HP: 2HP : 2FES-2Y
-Compressor brand : America original Bitzer
-Refrigerant: R404a
-SDT : +40 ℃ SST : -25℃
-Condenser: h type with anti-corrosion fins / blue fins
Evaporator— Air cooler
Model: MGBT03U-A
-With CE ceitificate
-Blue fins
Factory production
Successful Project
Blast Freezer For
Slaughter House in Kenya
Cold Room Project for
Seafood Factory in Argentina
Cold Storage for Philippines
Why Choose Us
The extensive Mgreenbelt chiller product line was developed based on decades of knowledge and industry leadership, and includes piston, screw and scroll compressor chillers, ranging in capacities from 2 to 300+ tons.
Mgreenbelt chillers are relied upon for both suitable and process applications in many countries.
Our products are mainly exported to the US, Canada, Australia, Malaysia, Brazil, Russia, South Africa, UAE, Saudi Arabia, Israel, India, Thailand, Singapore, Vietnam, Philippine and South Korea etc.
We have already provided corollary equipment and technical support to 3500 domestic and international factories.
Our mission is to provide customers the best products and services through our wide range of equipment, parts, and services. Our goal is to be a one-stop-shop for your water system needs.
Our mission is to provide customers the best products and services through our wide range of equipment, parts, and services. Our goal is to be a one-stop-shop for your water system needs.
Certificates
FAQ
As a professional cold storage solution provider, we will make different cold storage solution according to your working need, so if you can not choose the right model, please kindly inform us the follows details:
1. What's the cold room dimension need? L*W*H (mm)
1. What's the cold room dimension need? L*W*H (mm)
2. What's the product capacity you put in per hour? may you use Ton?
3. What's the temperature input ? and what's the temperature you need to freezing to?
4. What's the power supply need? Phase/voltage/frequency
5. What's your ambient temperature as usual?
We can send you the complete cold storage solution, with full technical details and quotation.
3. What's the temperature input ? and what's the temperature you need to freezing to?
4. What's the power supply need? Phase/voltage/frequency
5. What's your ambient temperature as usual?
We can send you the complete cold storage solution, with full technical details and quotation.
We will reply as soon as possible.
