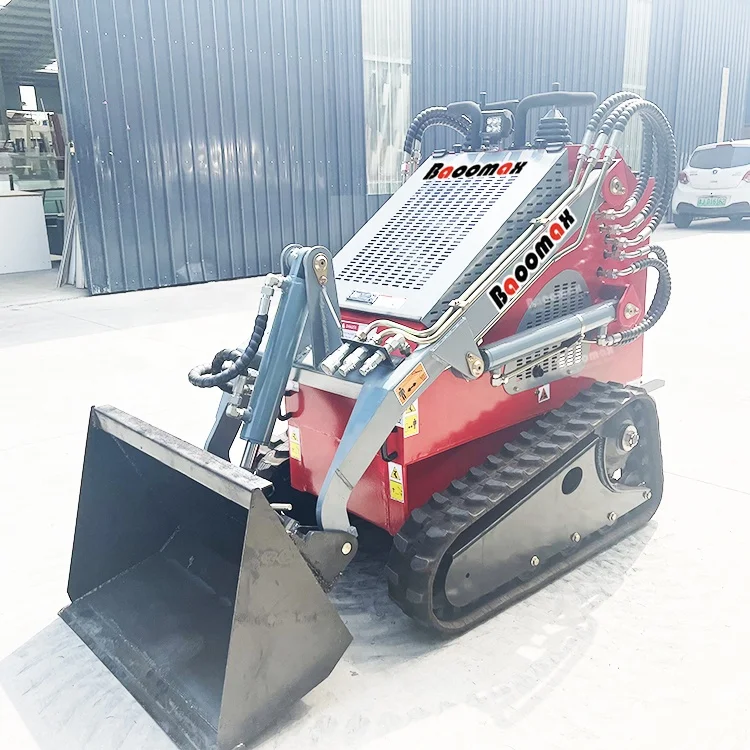

Factory price earthmoving machinery compact track tractor loader cheap mini front loader attachments like toro Dingo
- Category: >>>
- Supplier: Weifang Baoomax Construction Machinery Co. Ltd.
Share on (1600629890071):
Product Overview
Description
Product Overview

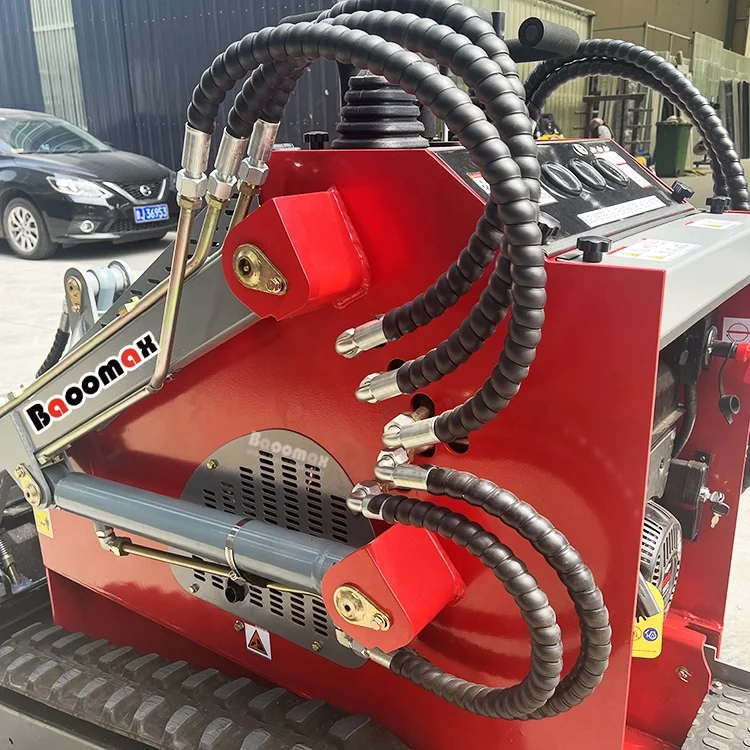

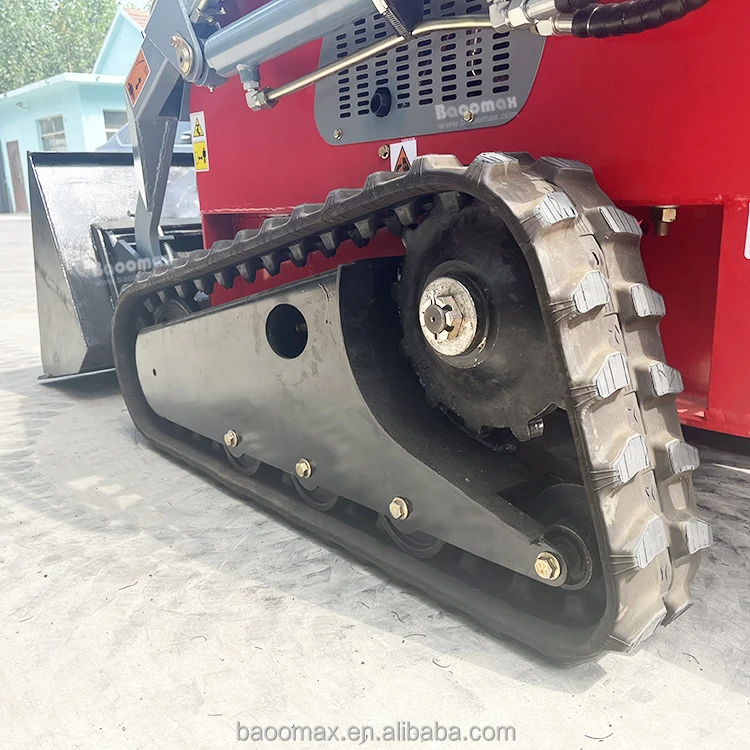

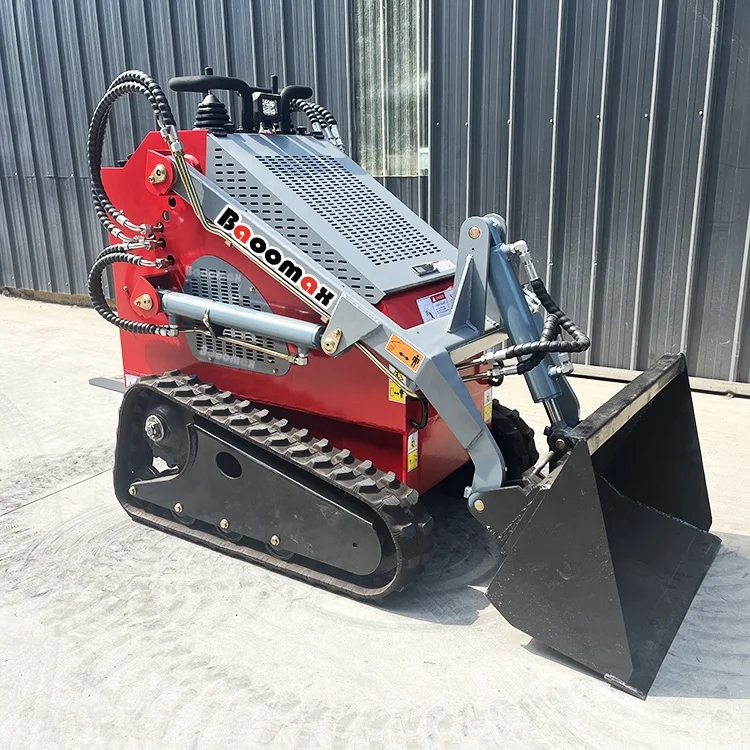

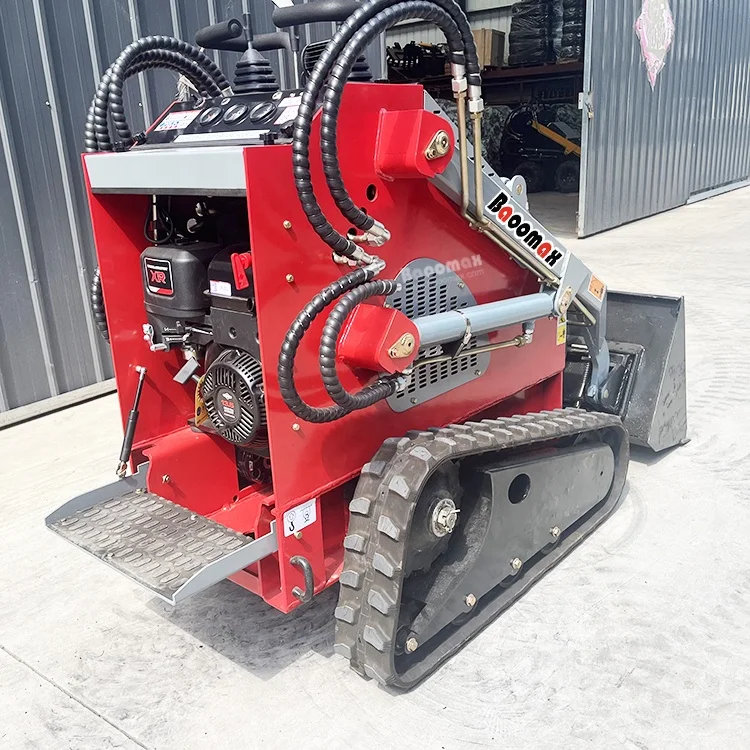

BA26 mini skid steer loader
Factory price earthmoving machinery compact track tractor loader cheap mini front loader
FEATURES AT A GLANCE
Compact Dimension

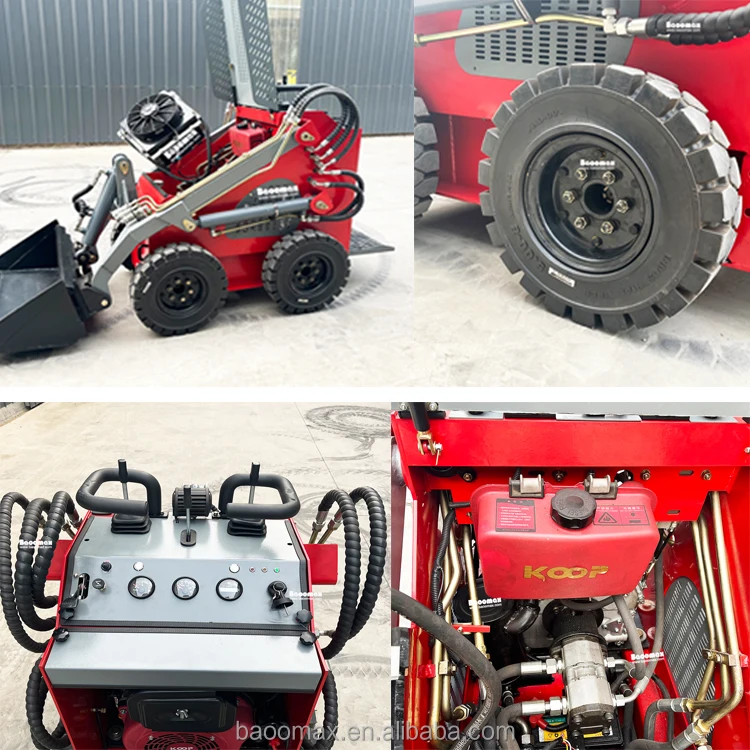

Koop diesel engine 14HP
or Loncin engine or Briggs&Stratton
Loading capactiy: 260KG
4 wheel motors drive
Simple control
Easy maintenance

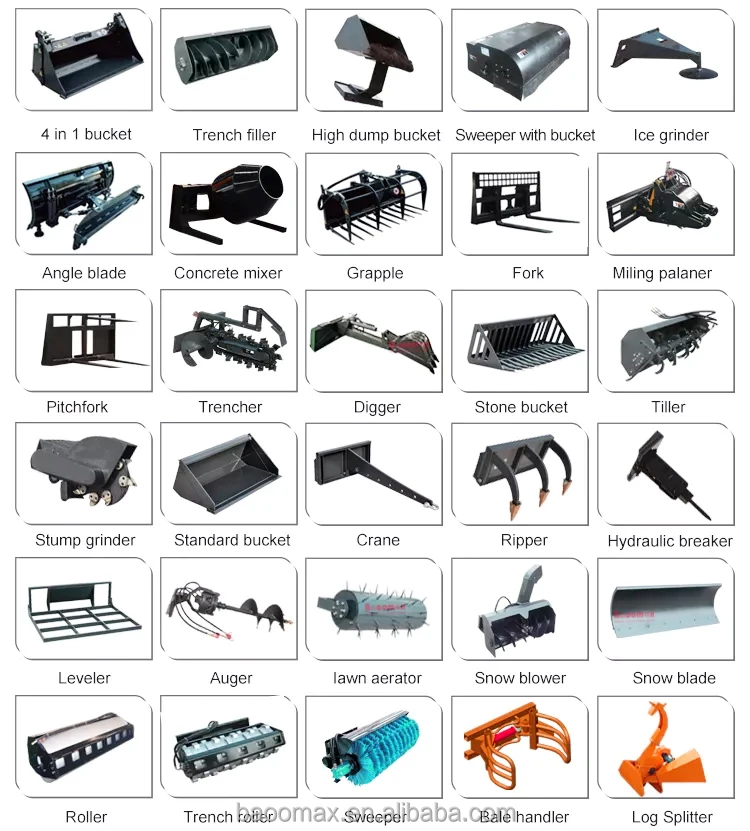

Different attachments for optional:
like digger,auger , pallet fork , sweeper ect
PRODUCT SPECIFICATIONS
Item | Metric |
Max working height（A） | 2450 mm |
Max pin height （B） | 1900 mm |
Max dump height（C） | 1510 mm |
The highest point discharge distance（D） | 450 mm |
Bucket swing angle（β） | 55° |
Bucket unloading angle（γ） | 30° |
Opening-closing angle（θ） | 27° |
Angle of departure（α） | 26° |
Total height （H） | 1260mm |
The height from the ground（F） | 124mm |
Wheelbase （G） | 665 mm |
No bucket length（J） | 1680 mm |
Total width （W） | 770 mm |
Bucket width （K） | 800 mm |
Total length（L）（with bucket） | 2240 mm |
Turning radius (R) | 1307 mm |
Machine weight | 680kg |
Engine | Koop diesel engine 14HP |
Engine speed | 3000rpm |
Bucket capacity | 0.13cbm |
Rated capacity | 260kG |
Speed | 0-6KM/h |
Fuel capacity | 5.5L |
Tyre | Solid tyre 5.00-8 |
Company Profile
Product packaging
Certifications
Why Choose Us
