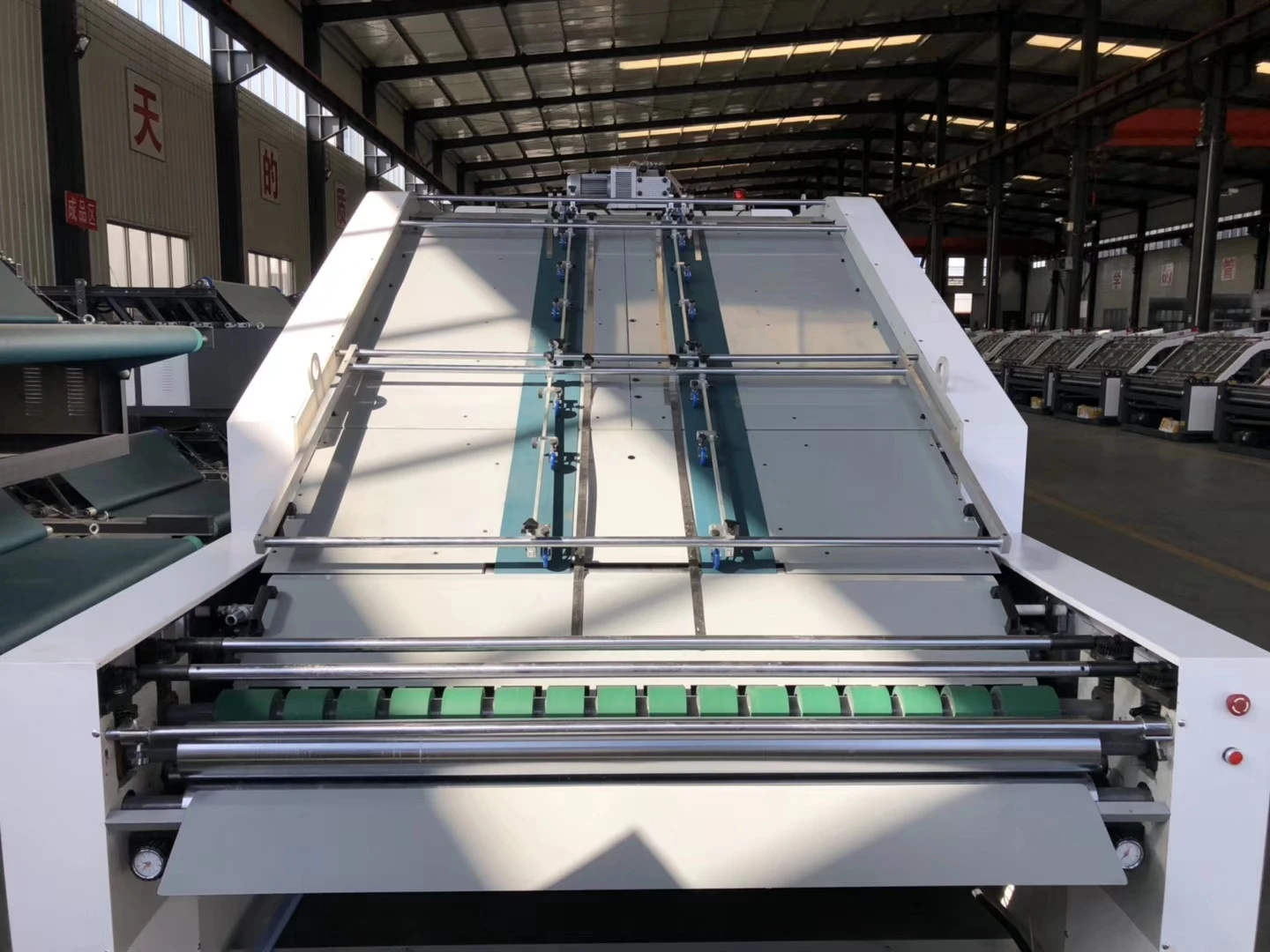

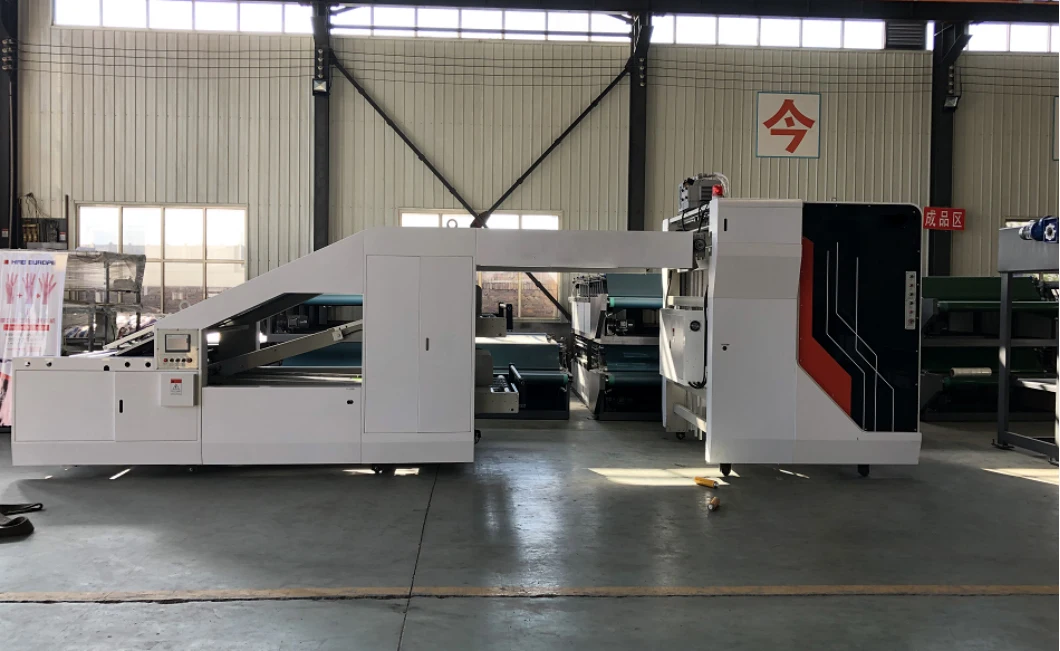

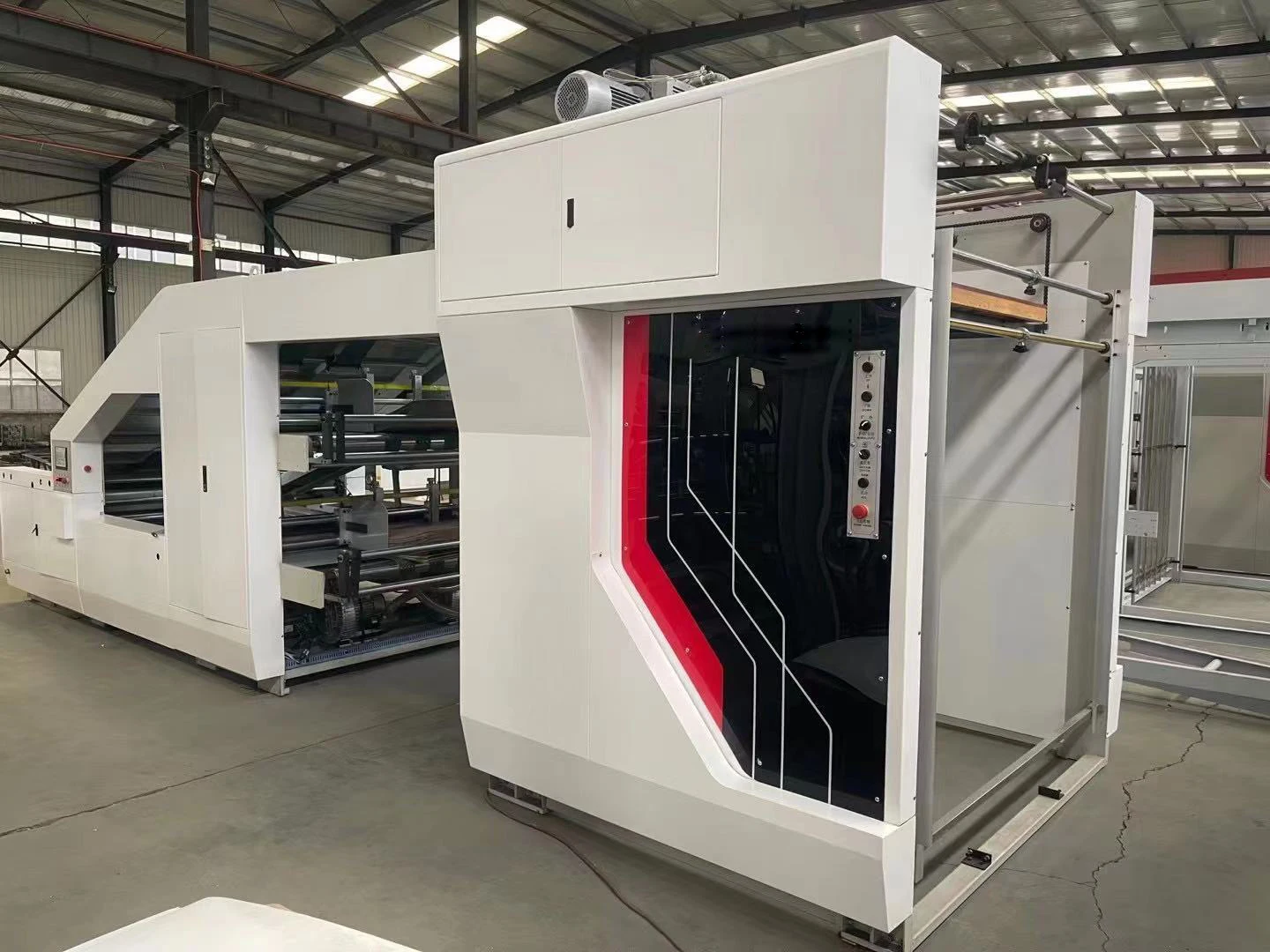

High efficiency Intelligent 5 layer automatic flute laminator machine
- Category: >>>
- Supplier: Cangzhou Liqiang Packaging Machinery Co. Ltd.
Share on (1600629907317):
Product Overview
Description
Product Description
High Quality corrugated cardboard production line
The main function of HRB-1450 intelligent high-speed laminating machine is to make paper and cardboard fit together so as to increase the strength and thickness of material or special effect. Billboards, etc.
The equipment adopts the perfect combination of motion control system and servo correction and correction system, and controls the servo motor on both sides of the surface paper to do independent compensation by using the relative position of multi-group photoelectric induction base paper, so that the adjustment equipment can be completed automatically by inputting the size of the paper. Run and produce.
The equipment adopts the perfect combination of motion control system and servo correction and correction system, and controls the servo motor on both sides of the surface paper to do independent compensation by using the relative position of multi-group photoelectric induction base paper, so that the adjustment equipment can be completed automatically by inputting the size of the paper. Run and produce.
Specification
model | HRB-1450G | HRB-1650G | ||
Max. Sheet Size (W*L) | 1450mm*1400mm | 1650mm*1600mm | ||
Min. Sheet Size (W*L) | 450mm*370mm | 450mm*370mm | ||
Top paper thickness | 120~600g/m² | 120~600g/m² | ||
Bottom sheet thickness | Corrugated: 0.5-10mm(B,A,AB,E flute, etc.) Paper: ＞ 350g | |||
Laminating Accuracy | Corrugated:±1mm Paper:±0.5mm | |||
Max. Speed | 12000p/h 9000m/h | 12000p/h 9000m/h | ||
Power | 22KW | 22KW | ||
Dimension L*W*H | 13.5m*2.4m*2.4m | 14.5m*2.6m*2.6m | ||
Height of Bottom Paper | 400mm | 400mm | ||
Height of Top Paper | 1800mm | 1800mm | ||
Paper mounting accuracy: the standard precision is ±1mm, at a speed less than 9000 sheets per hour, the accuracy can reach to ±0.5 mm; | ||||
Glue consumption: glue consumption is generally 25 to 30 grams per square meter, operator's operation technology and pit type of pit paper will also affect glue consumption | ||||
Detail of machine
BOTTOM SHEET SYSTEM

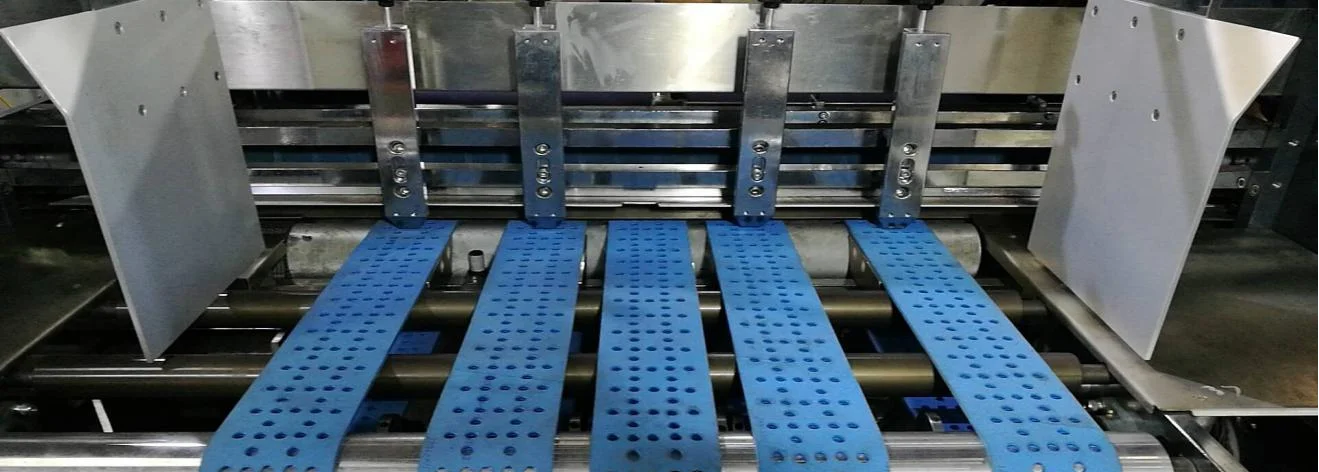

Import servo motor is used to drive the suction belt bottom paper conveying structure, matching the Japanese neon suction belt and SMC high frequency valve, so that the base paper (corrugated, paper jam) transmission distance is accurate and smooth.Pit paper bending, pneumatic press can press the front end of the pit paper, to ensure smooth paper.

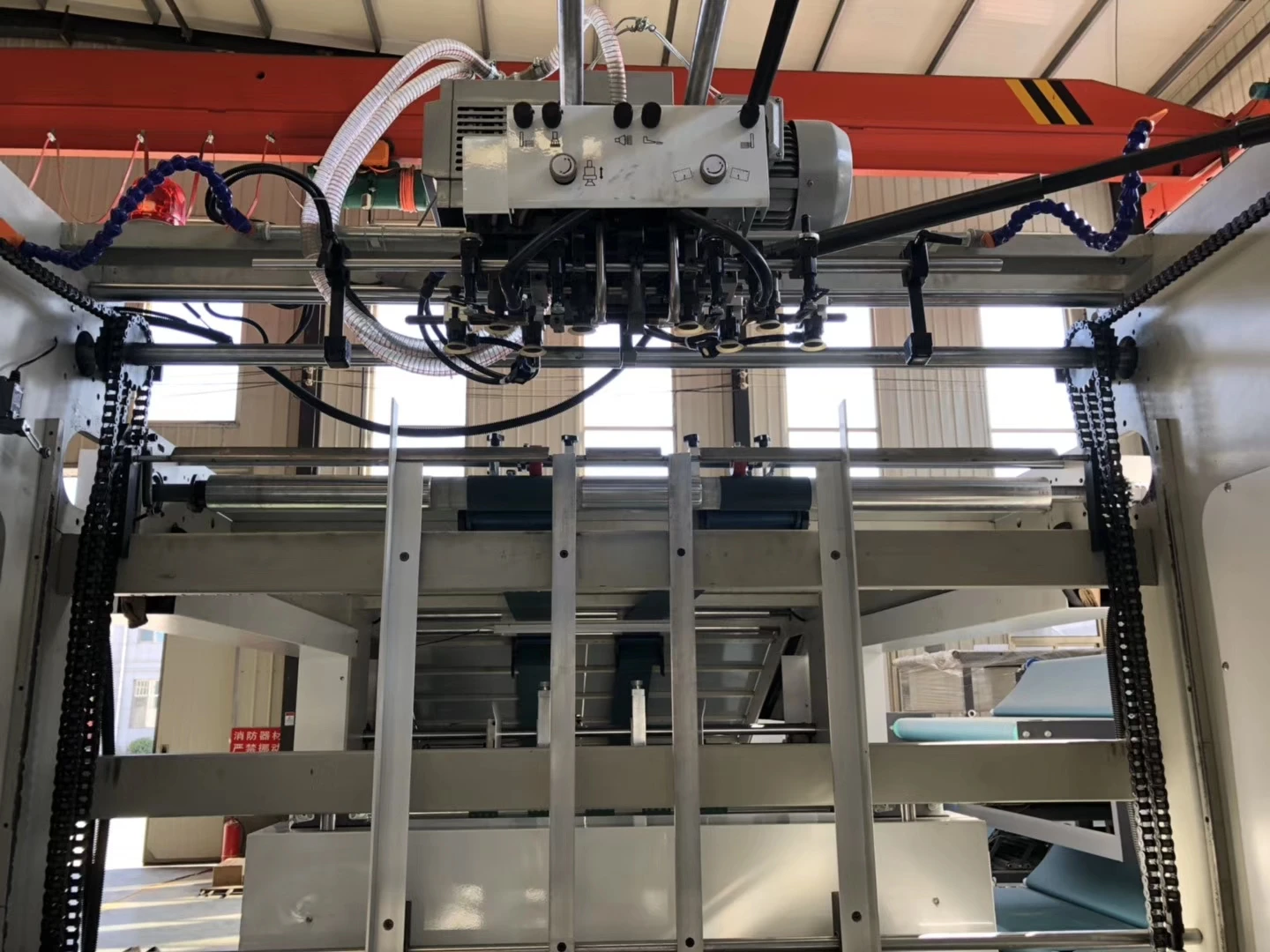

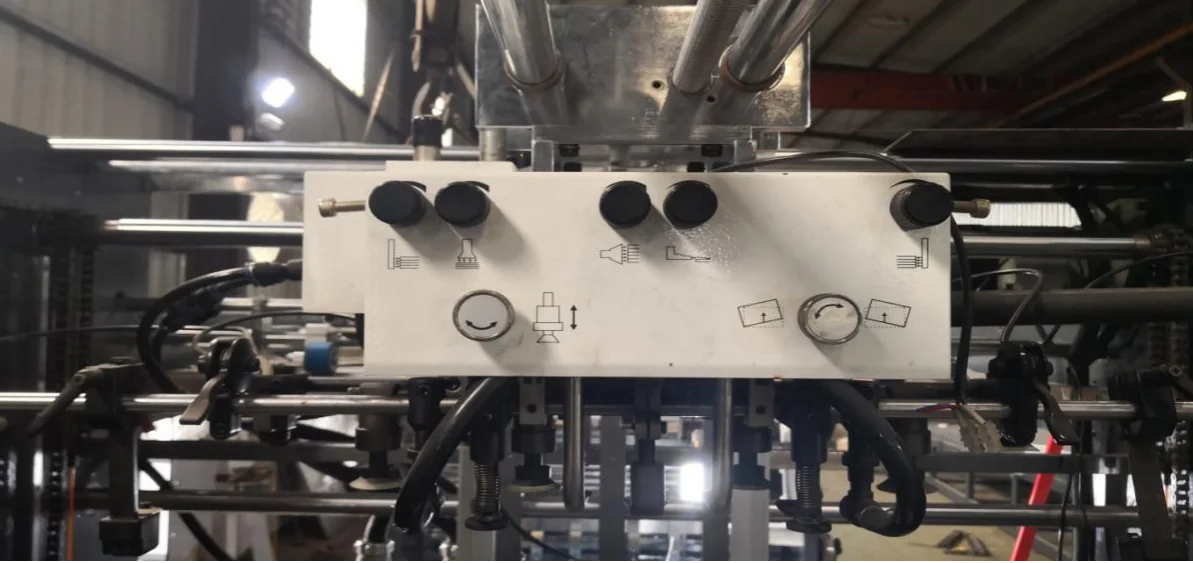

TOP PAPER SYSTEM
Adopt the structure of four-suction and four-feed paper, conjugate cam structure to feed paper, feed paper smoothly and reliably.Valve core easy to disassemble, easy to clean.
The adjustment of paper deviation and split suction nozzle can be carried out under the condition of not stopping.
DRIVE SYSTEM

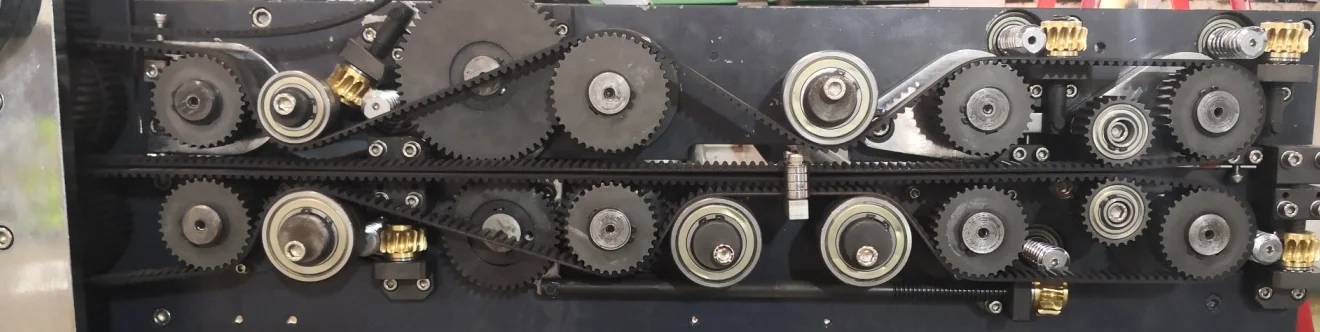

Power transmission uniform distribution, the whole machine adopts imported double-sided tooth synchronous belt transmission, maintenance-free. Bottom noise. high efficiency
Positioning and gluing system

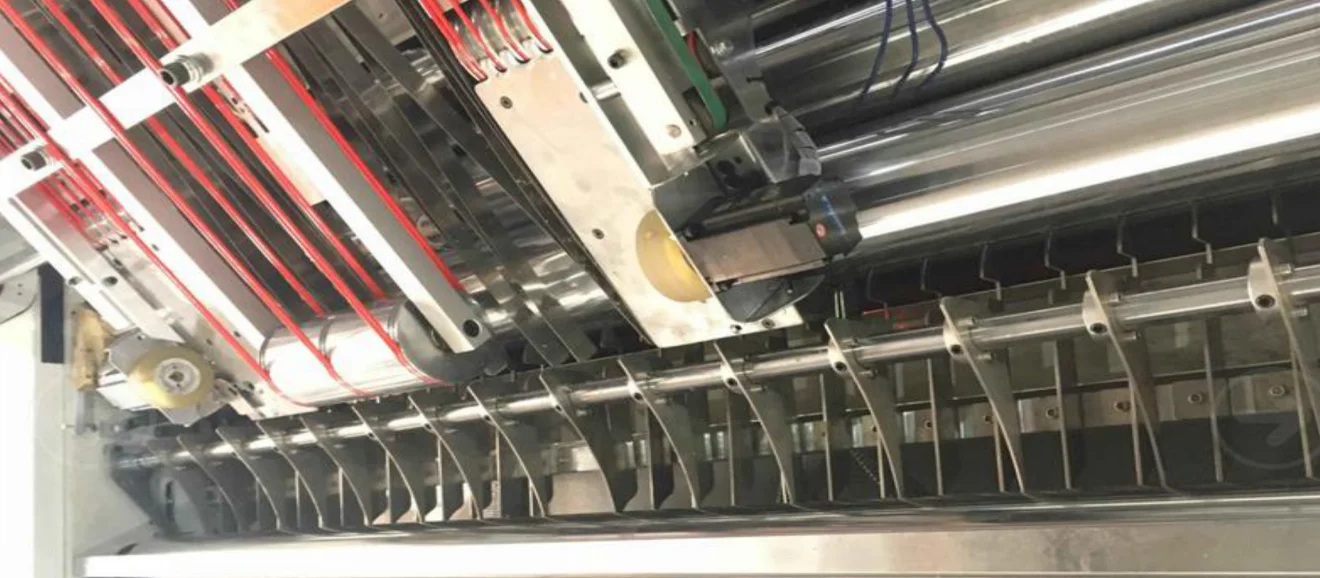

High-precision stainless steel roller, never rusting, fine grinding to ensure uniform gluing.
The specially machined copper block ensures that the high-speed rollers do not get rid of the rubber, overflow the rubber and adjust the backflow of the glue, ensure the cleaning of the equipment and the service life of the bearing.
By using many groups of photoelectric detection and calculating the error value between the surface paper and the bottom paper, the servo motor on both sides of the surface paper is controlled to compensate the surface paper to the redetermined position for the same precision fitting.
The specially machined copper block ensures that the high-speed rollers do not get rid of the rubber, overflow the rubber and adjust the backflow of the glue, ensure the cleaning of the equipment and the service life of the bearing.
By using many groups of photoelectric detection and calculating the error value between the surface paper and the bottom paper, the servo motor on both sides of the surface paper is controlled to compensate the surface paper to the redetermined position for the same precision fitting.
Company Profile

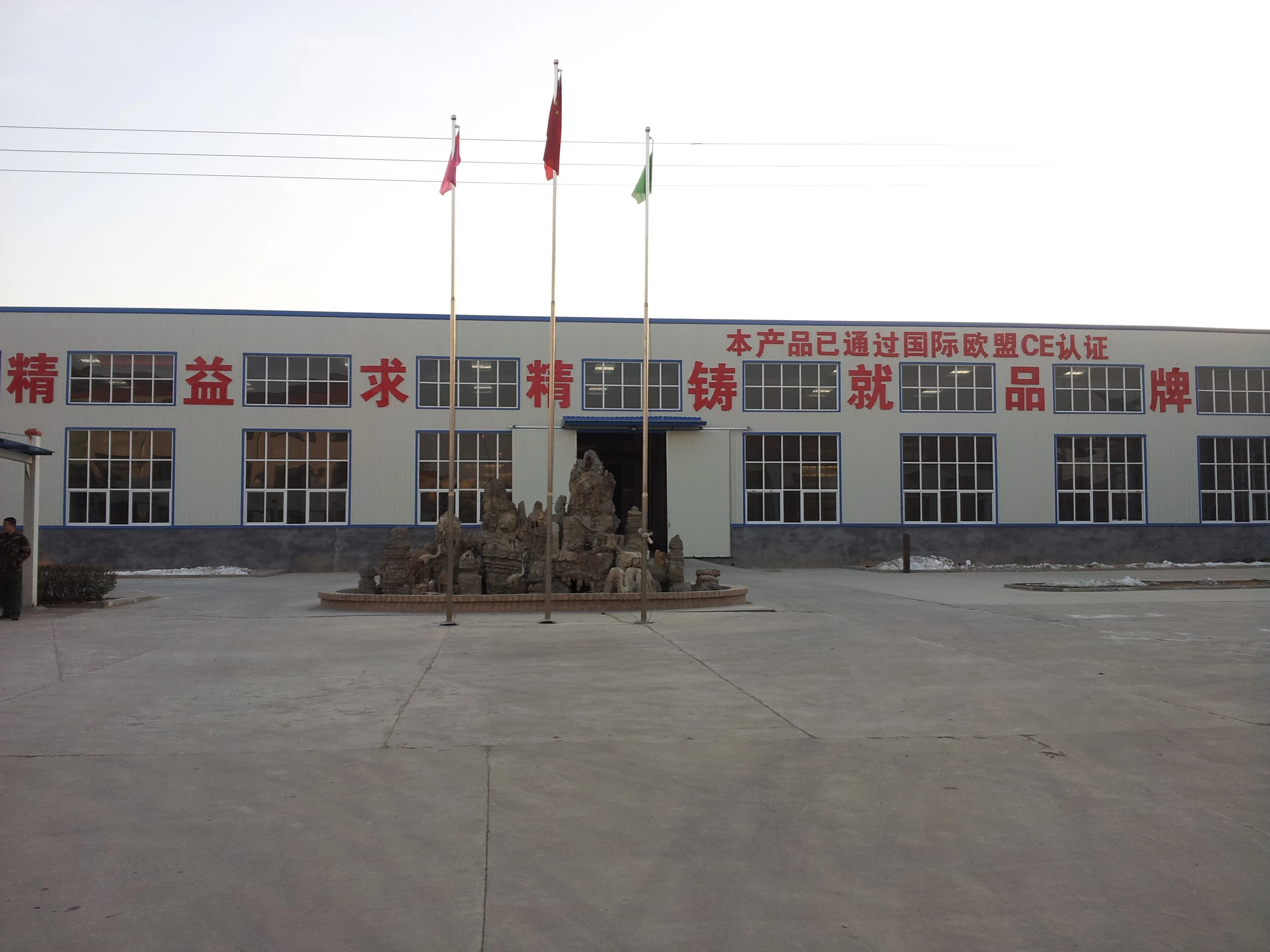

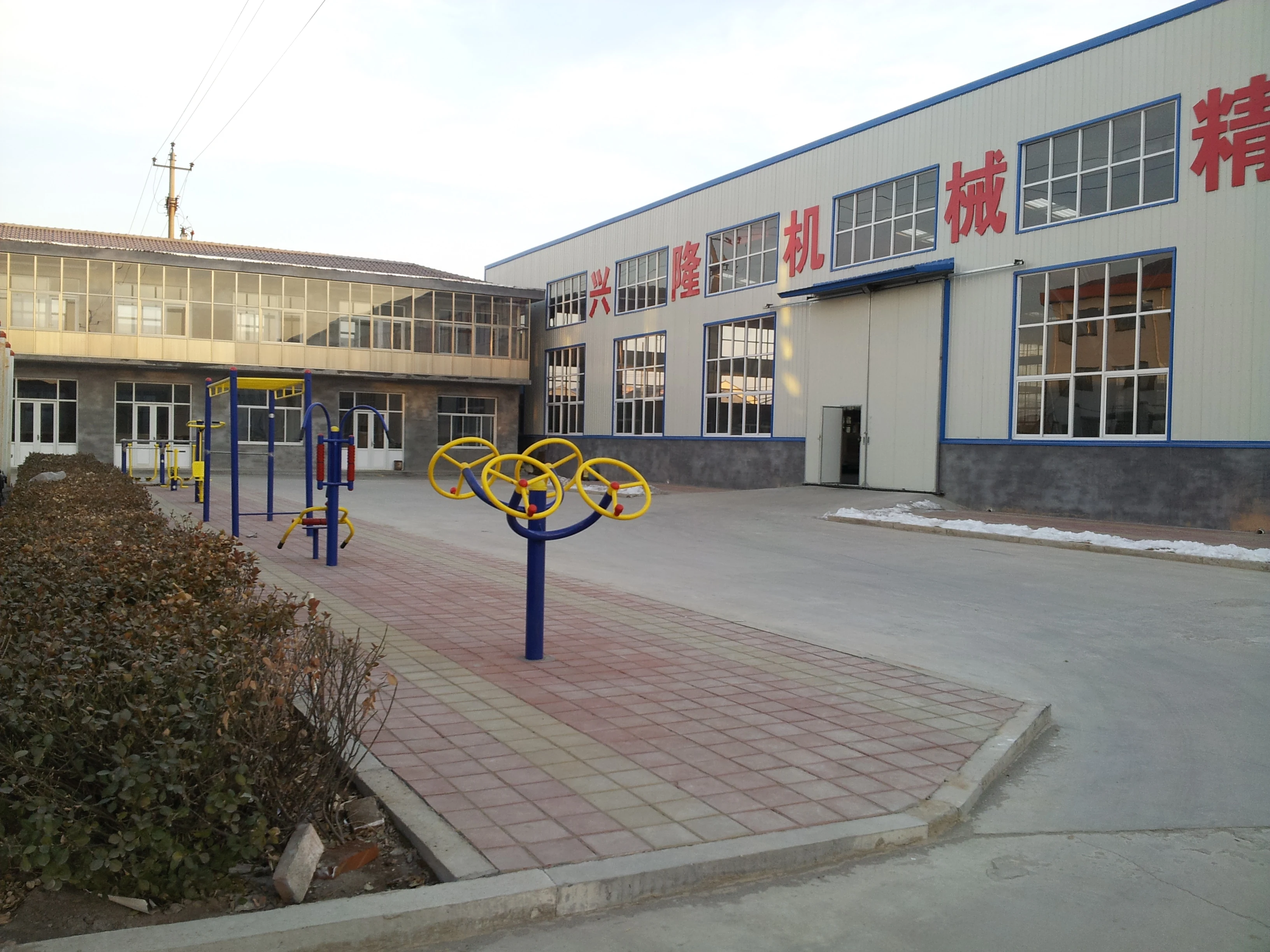

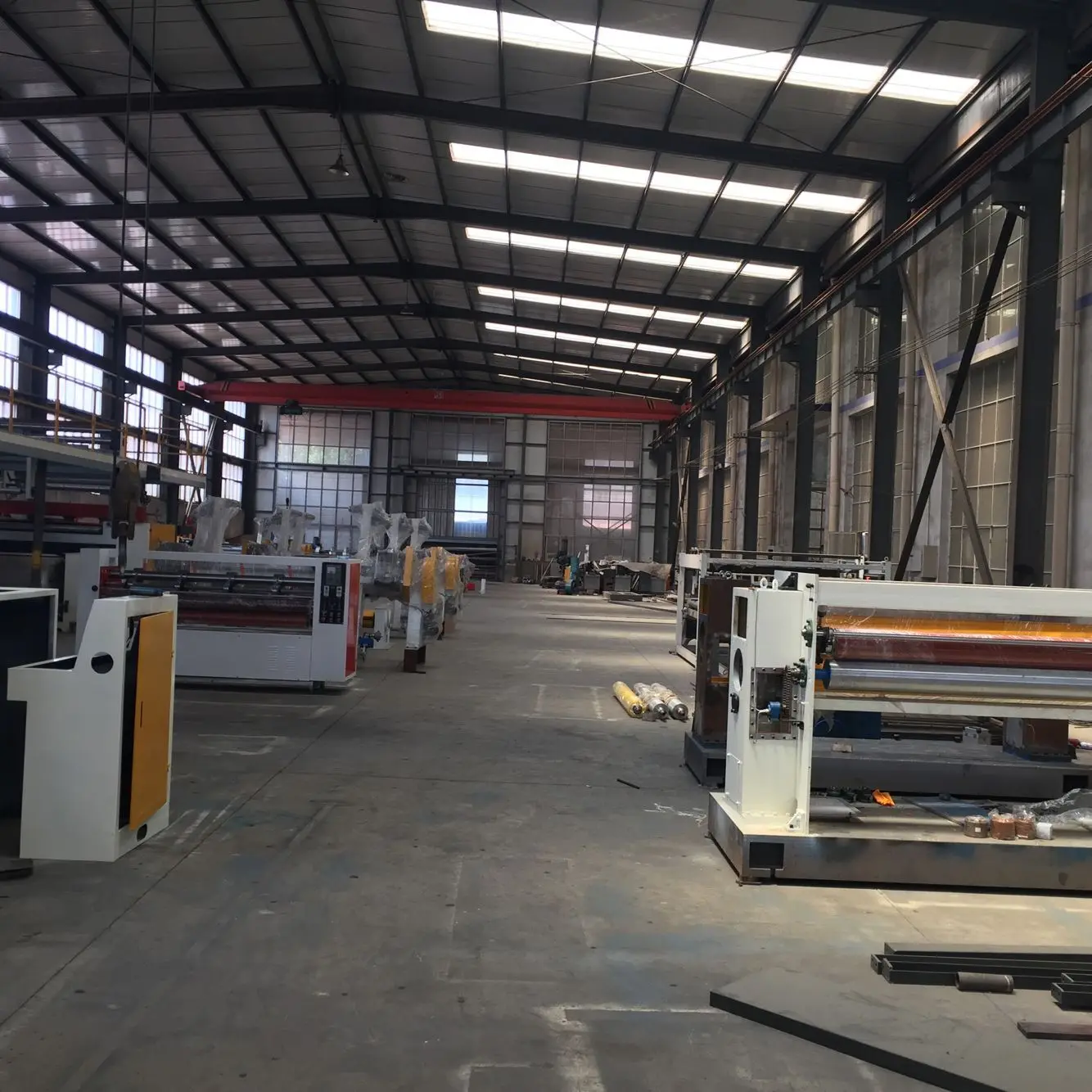

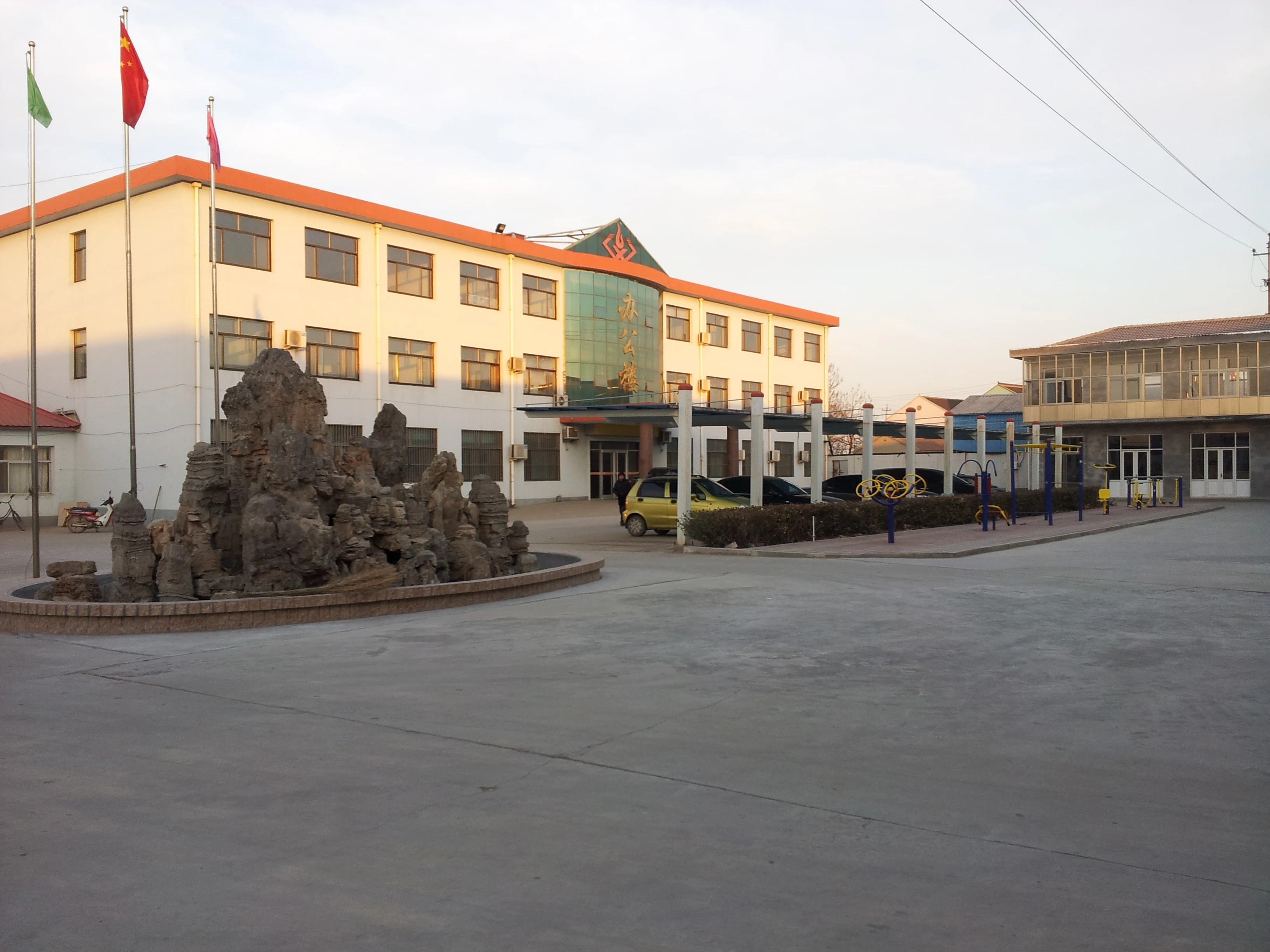

CANGZHOU LIQIANG PACKAGING MACHINE CO.,LTD is a manufacturer of packing machinery. Factory is located in DONGUANG COUNTY, HEBEI PROVINCE. The factory covers an area of 50000 sqm, include workshop and office house.
Since the company established,we adhere to the “made in heart, for your life career” business philosophy, introduced and train talents, self-design and introduced advanced technology. We already developed a comprehensive enterprise of machine produce, after sale service, and machine parts sale.

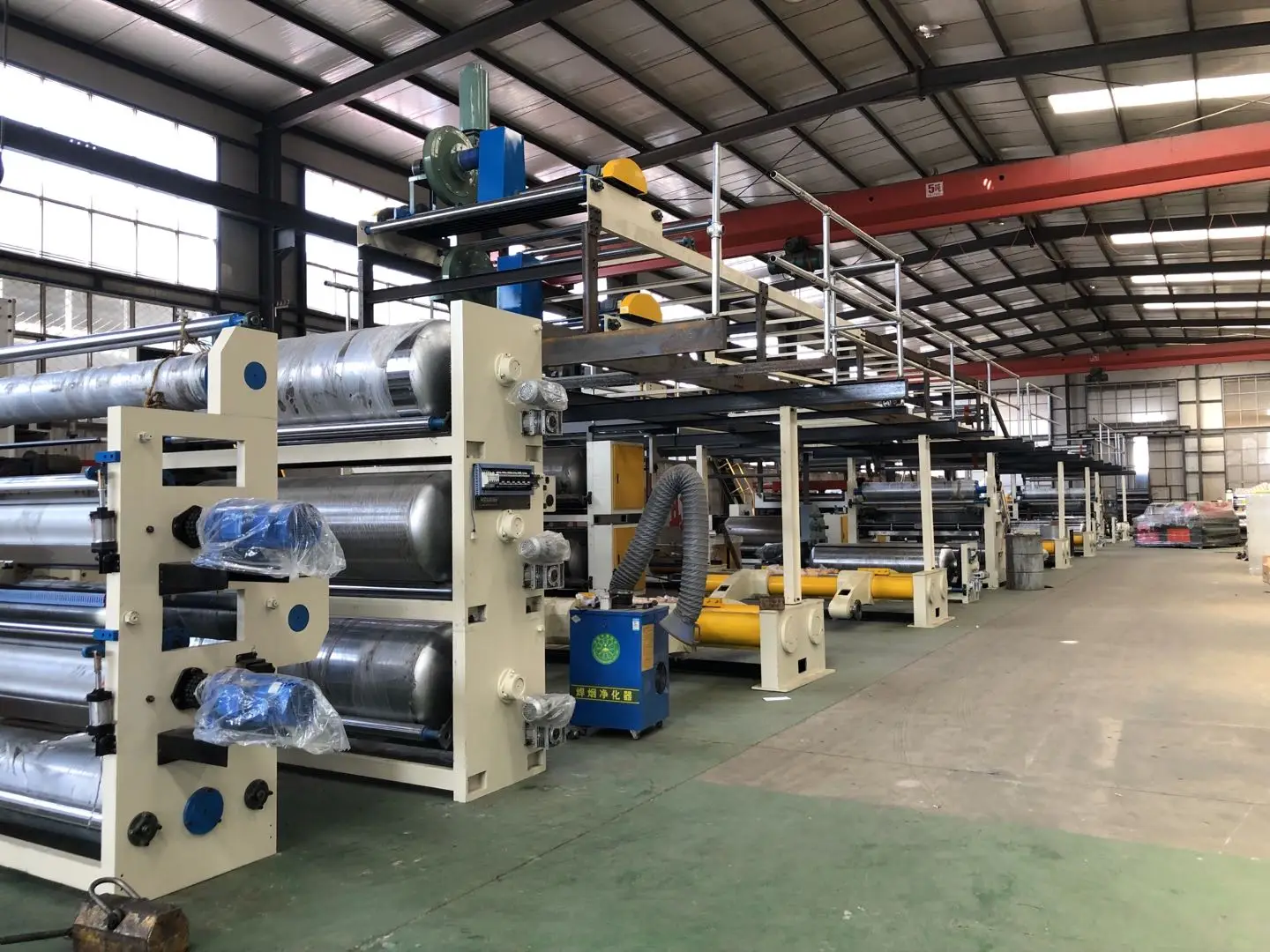

Main product include 3ply, 5ply, 7ply corrugated production line, high speed printing machine, semi-automatic printing machine, single facer, rotary die cutter, carton folder gluer and so on. Our machine have been exported to all continents of the world ,such as, Canada, Ecudor, Mexico, Germnay, Romania, Russia,Uzbekistan， India, Egypt.Product quality and enterprise reputation get the high praise at home and abroad.
We are willing to cooperate with domestic and foreign insight, strive for innovation, coexit win-win, hand in hand altogether will create package future.
Since the company established,we adhere to the “made in heart, for your life career” business philosophy, introduced and train talents, self-design and introduced advanced technology. We already developed a comprehensive enterprise of machine produce, after sale service, and machine parts sale.
Main product include 3ply, 5ply, 7ply corrugated production line, high speed printing machine, semi-automatic printing machine, single facer, rotary die cutter, carton folder gluer and so on. Our machine have been exported to all continents of the world ,such as, Canada, Ecudor, Mexico, Germnay, Romania, Russia,Uzbekistan， India, Egypt.Product quality and enterprise reputation get the high praise at home and abroad.
We are willing to cooperate with domestic and foreign insight, strive for innovation, coexit win-win, hand in hand altogether will create package future.

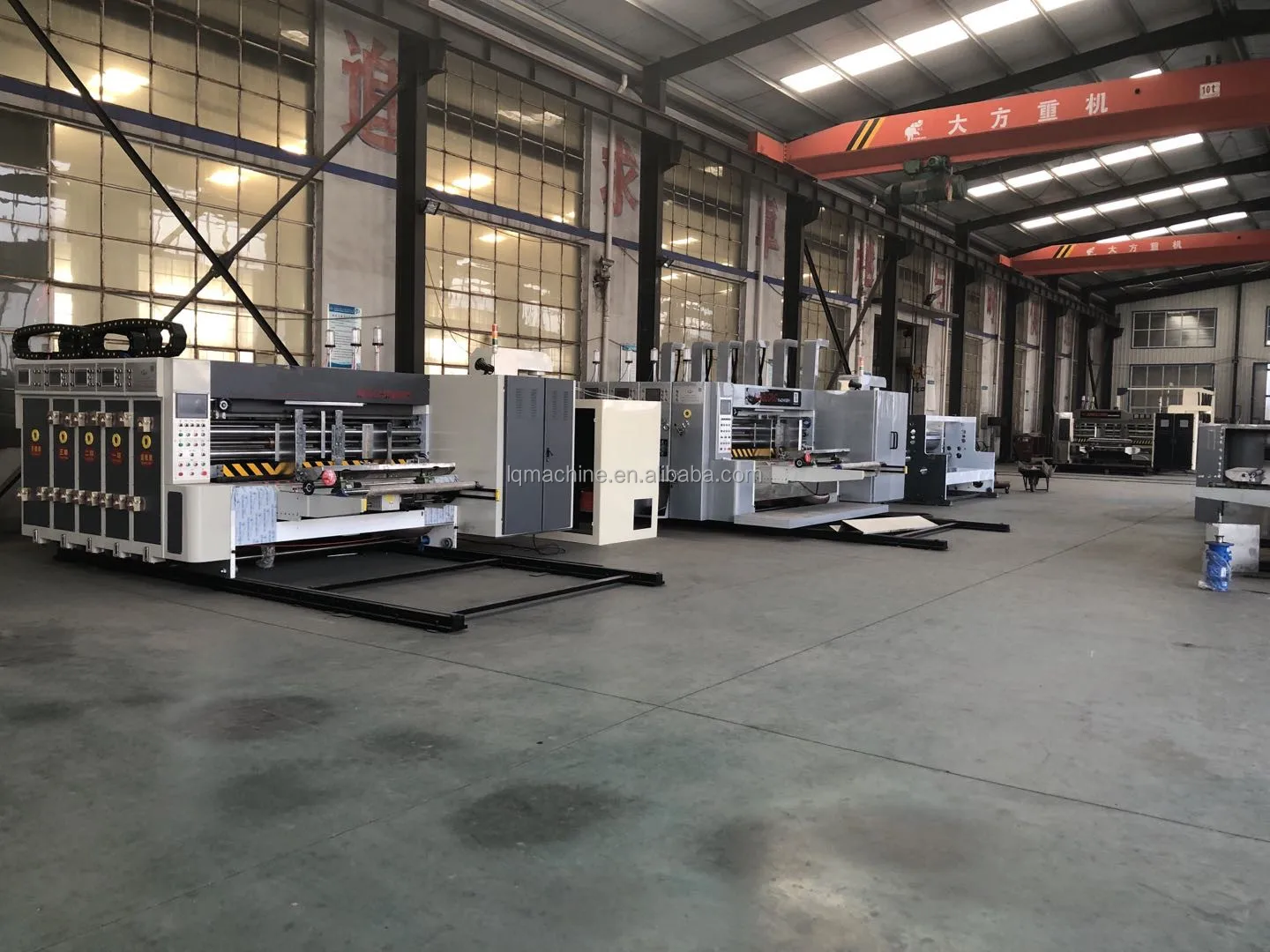

Manufacturing Technique
Our Advantages

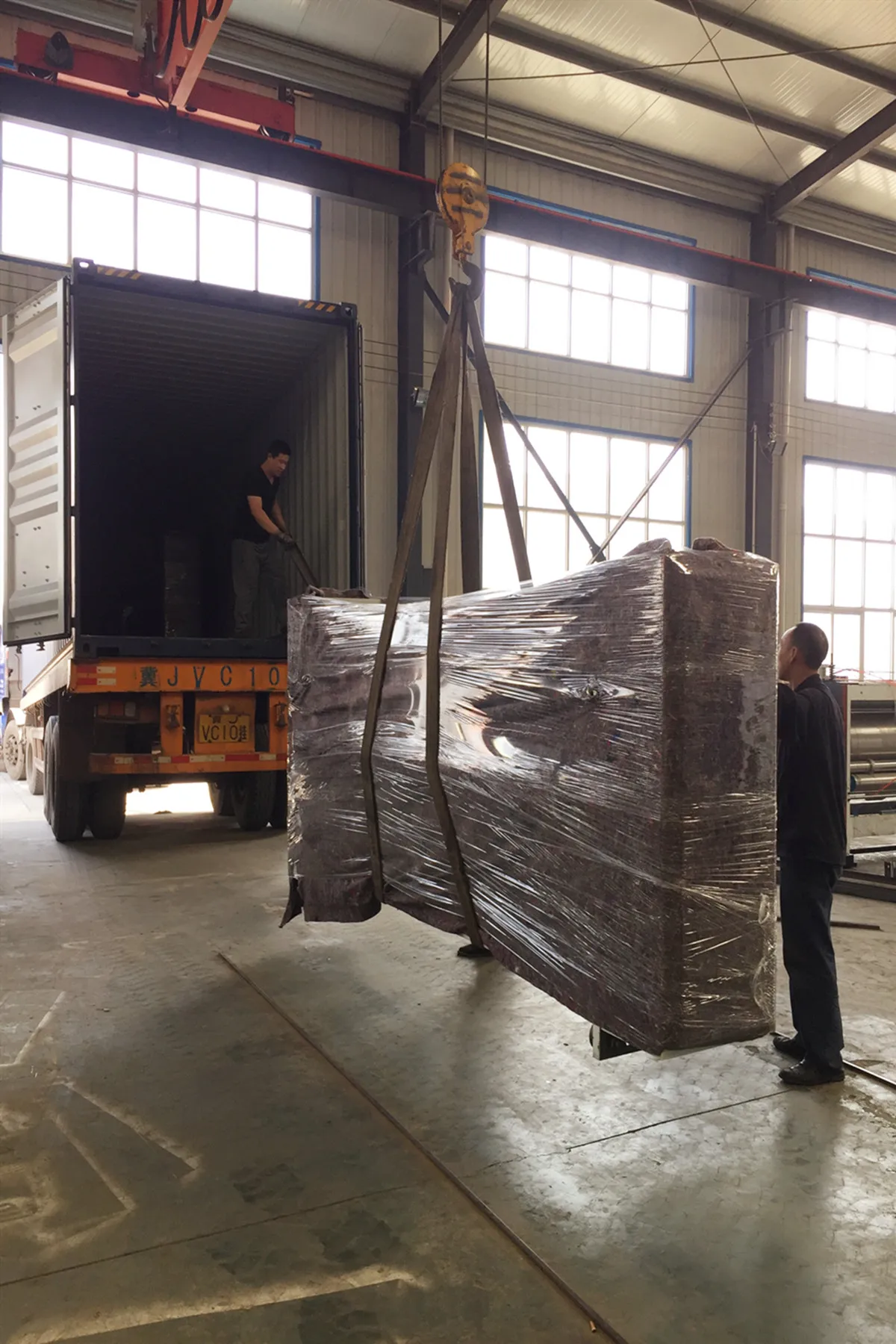

Packing & Delivery
