Scratch Resistant Lexan clear solid polycarbonate plastic roof sheet
- Category: >>>
- Supplier: Zhenghe,(suzhou),New,Material,Co.,Ltd.
Share on:
Product Overview
Description
Product name | Polycarbonate sheet |
Thickness | 1.5mm~20mm |
Size | 1.22m*2.44m,customized |

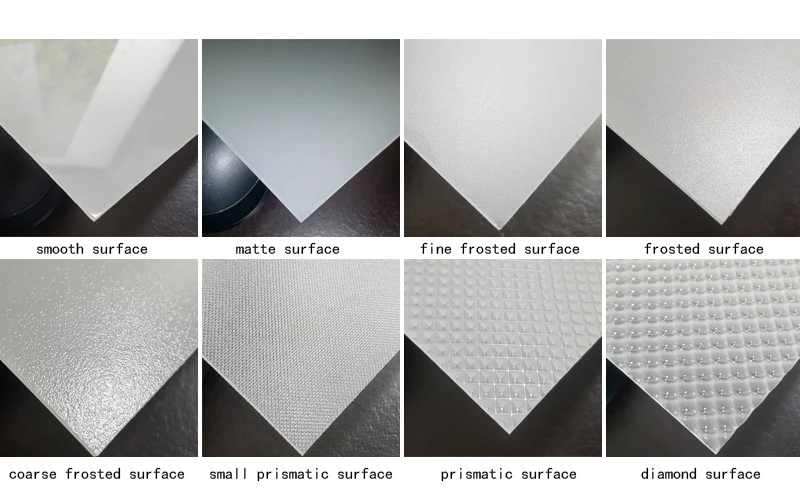

Surface | UV-coating is regular.Anti-scrath and anti-fog are avaliable based on cutomer's requirement |
Warranty | 10 years |
Application | Skylight,Carport,Awning,Roofing,Greenhouse,machine guard,Other processing product |

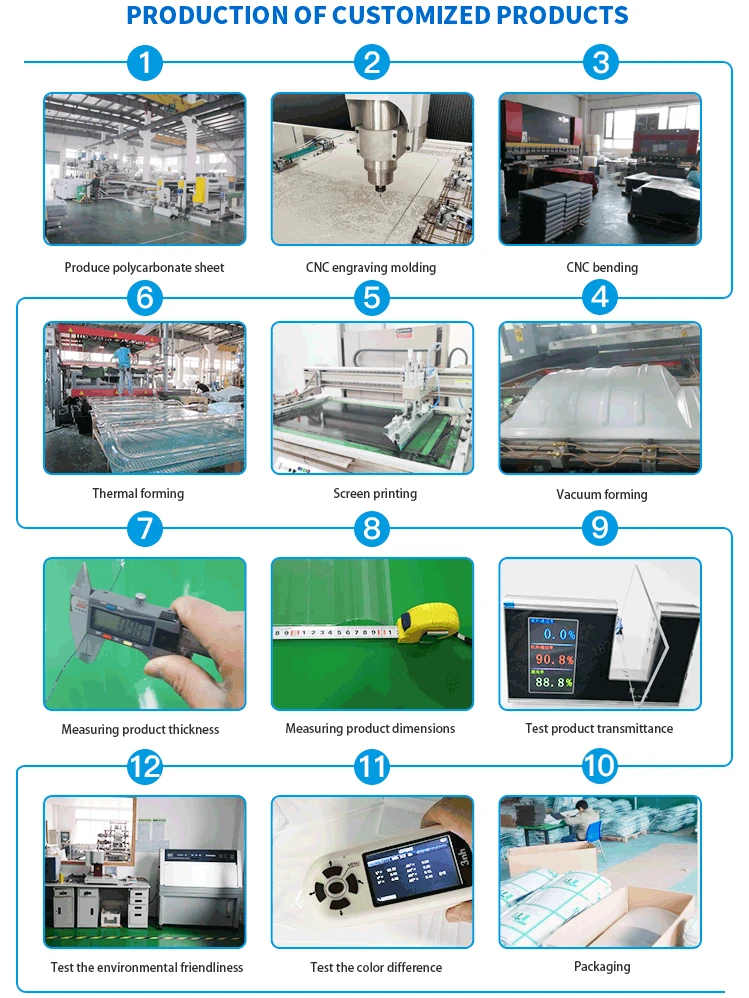

Don't have the style you want?
It doesn't matter, you just need to tell us your specific needs and we can provide you with
customization including but not limited to style, color, material, specification and so on.
customization including but not limited to style, color, material, specification and so on.
Item | unit | Index Value | Test Method(ASTM) |

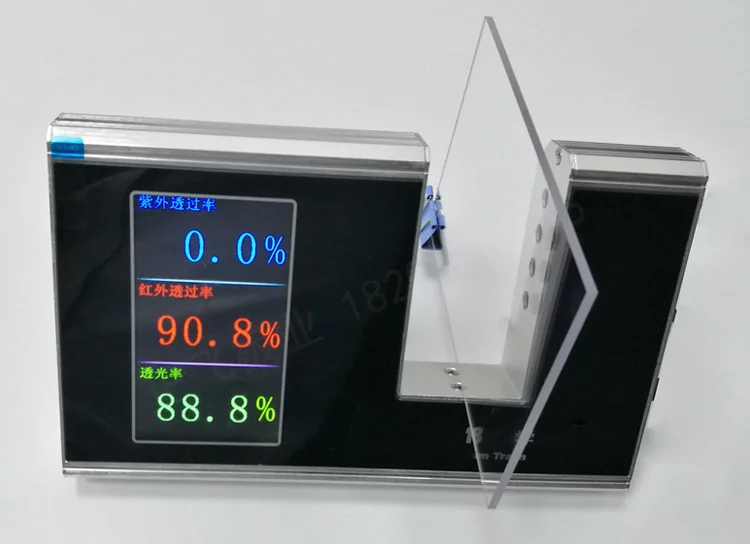

Transmittance | % | 88 | D-792 |
Specific Gravity | g/cm3 | 1.2 | D-792 |
Impact Strength(lzod,Nick) | J/M | 907 | D-256 |
Tensile Yield Strength | Mpa | 69 | D-638 |
Tensile Break Strength | Mpa | 71 | D-638 |
Tensile Elongation,yield | % | 6.5 | D-638 |
Tensile Elongation,break | % | 120 | D-638 |
Tensile Strength | Mpa | 86 | D-695 |
Tensile Modulus | Mpa | 2400 | D-638 |
Thermal Expansion Coefficient | W/m.℃ | 6.0*10-5 | D-696 |
Thermal Conductivity | W/m.K | 0.22 | C-177 |
Heat Deformation Temperature | ℃ | 135 | D-648 |
(Load 1.81Mpa) | ℃ | 135 | D-648 |
Impact strength: | 850J/m. About 200-350 times of common glass. |
Light weight: | About 1/2 times of glass of the same thickness. |
Light transmission: | 80%-92% for different thickness of clear color |
Specific gravity: | 1.2 g/cm3 |
Coefficient of thermal expansion: | 0.065 mm/m° C |
Temperature range: | -40° Cto 120° C |
Heat conductivity: | 2.3-3.9 W/m2 º |
Tensile strength: | >=60N/mm2 |
Flexural strength: | 100N/mm2 |
Heat deflection temperature | 140 ° C |
Modulus of elasticity: | 2, 400mPa |
Tensile street at break: | >=65mPa |
Elongation at break: | >100% |
Specific heat: | 1.16J/kgk |
Soundproof index: | 4mm-27dB,10mm-33dB |
We have more than 20 patents and certificates
Q: Are you trading company or manufacturer ?
A: We are factory.located in jiangsu,China.
Q:Is there UV resistant layer on the sheets ?
A:Yes, our PC sheet usually has one-side UV resistant layer.We also provide both sides UV resistant layer if the customer need.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
Q:Are polycarbonate sheets bad for the environment?
A:Using a very recyclable and sustainable material and 20% renewable energy,polycarbonate sheets do not emit toxic substances during combustion.
Q: Do you provide samples ? is it free or extra ?
A:Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A:Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment.
Q:Is there UV resistant layer on the sheets ?
A:Yes, our PC sheet usually has one-side UV resistant layer.We also provide both sides UV resistant layer if the customer need.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
Q:Are polycarbonate sheets bad for the environment?
A:Using a very recyclable and sustainable material and 20% renewable energy,polycarbonate sheets do not emit toxic substances during combustion.
Q: Do you provide samples ? is it free or extra ?
A:Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A:Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment.
We can provide samples free of charge.
You just need to tell us your needs, we can provide you with a total solution.
