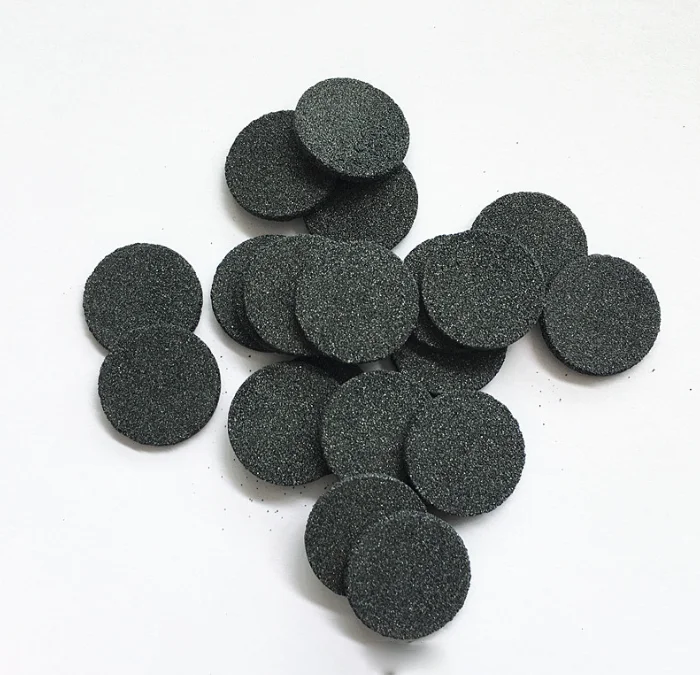

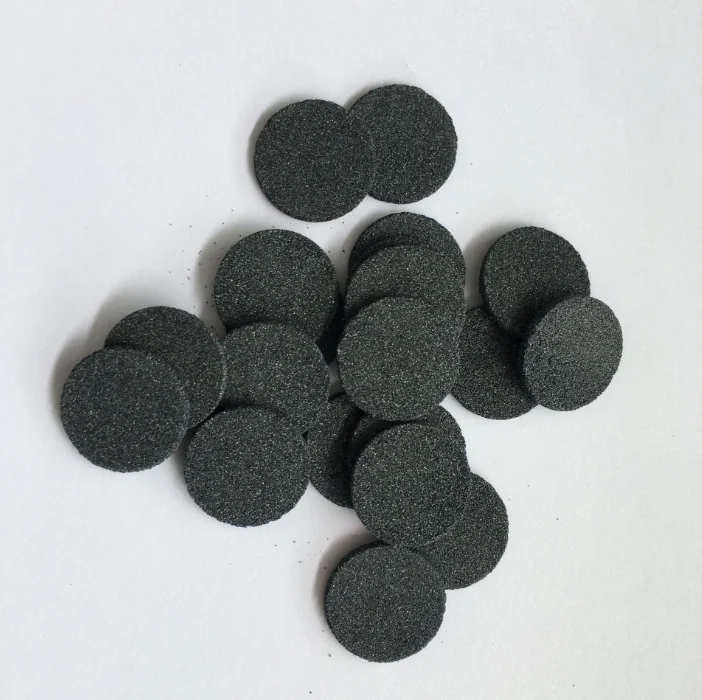

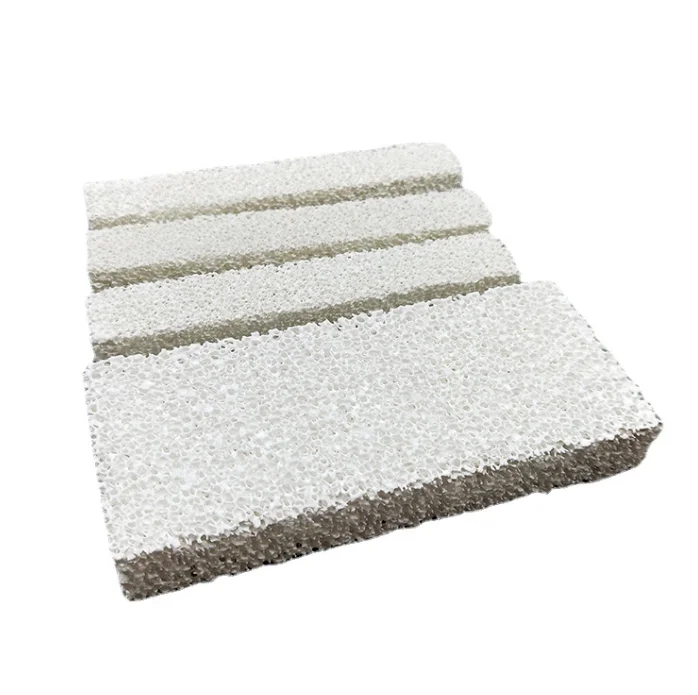

Reasonable Price High Mechanical Strength Black and Gray Silicon Carbide Ceramic Foam Filter
- Category: >>>
- Supplier: Bold Hunter Import & Export (tianjin) Co. Ltd.
Share on (1600629934330):
Product Overview
Description
Products Description
Ceramic foam filter is a special technology. It has a foam-like porous structure of ceramic products, and its light weight, chemical stability, large surface area through-hole rate, corrosion resistance, high strength, good thermal shock resistance characteristics.

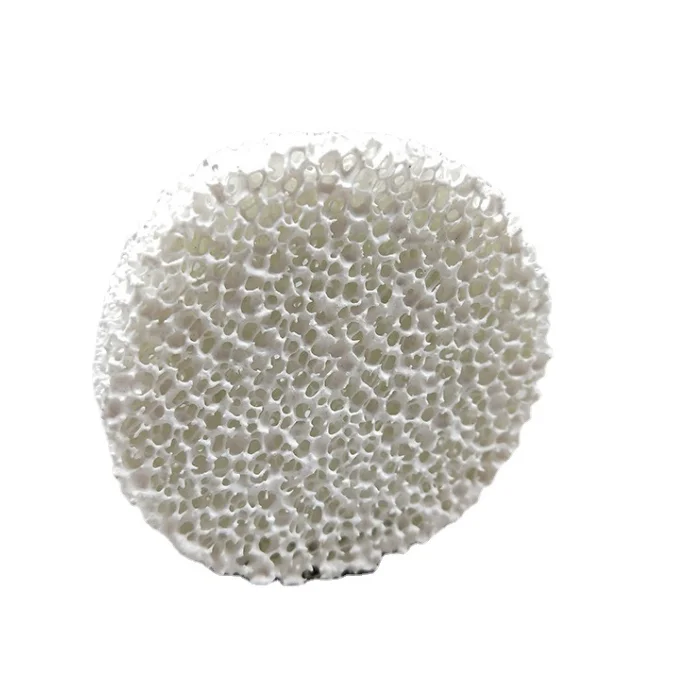

Divided into two shapes: round specifications, square specifications and weaving way: honeycomb.
Application?
Zirconia ceramic are used in Electrical cooling towers, electromechanical platforms, automobile exhaust pipes, textile equipment, laser cutting machine platforms, instruments and equipment.and The application fields of porous ceramics have been extended to the fields of aviation, electronics, medical materials and biochemistry.
Adavantage?
1. Adopt adsorption principle to filter, can effectively remove large inclusions in molten aluminum, and effectively
absorb small inclusions;
absorb small inclusions;
2. No slag, effectively reducing the pollution to molten aluminum;
3. Good thermal shock resistance and
improved corrosion resistance to molten metal;
improved corrosion resistance to molten metal;
4. Automatic assembly line production, three calibration procedures, accurate size,
more in line with the filter box;
more in line with the filter box;
5. Improve the surface quality, improve product performance, improve the role of microstructure.

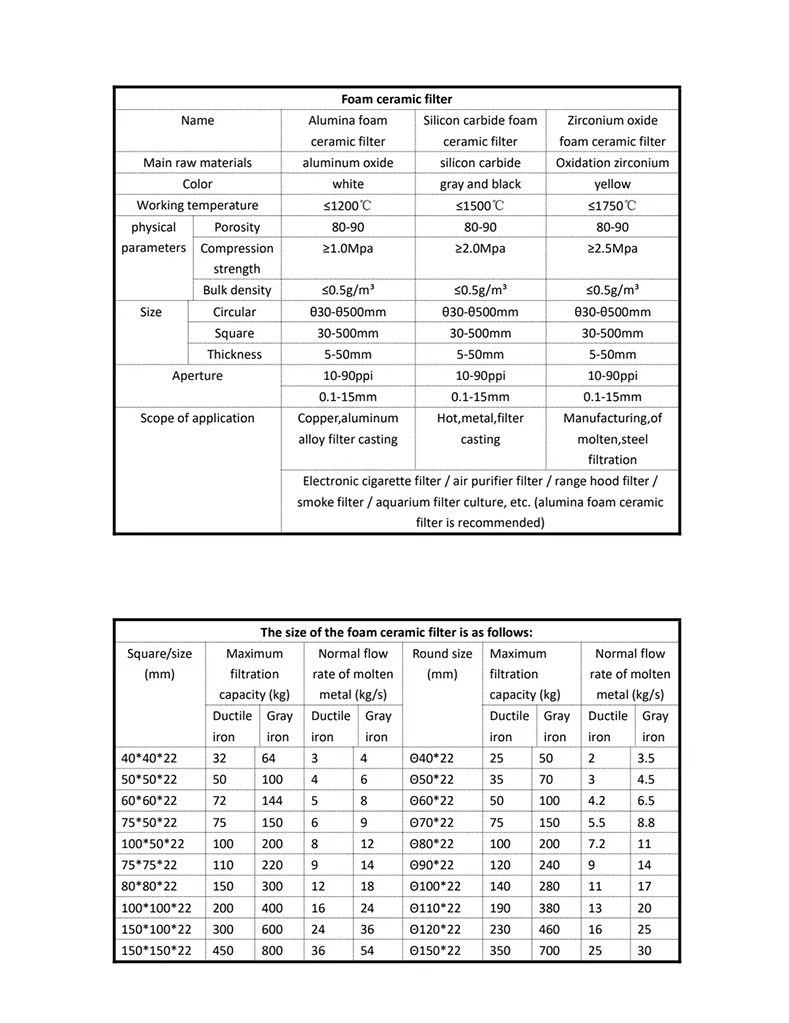

Product Paramenters
Details Images
Porous ceramics are used for:
Ceramic Vacuum Chucks
Ceramic Filters
Ceramic Diffusers
Ceramic Air Bearings
Ceramic Permeable Substrates
Ceramic Dispersion Media
Ceramic Ash Handling
Ceramic Wicking Media
Ceramic Fluidized Bed Plates
Ceramic Specialty Spargers
Ceramic Breathers – Vents
Size
The size are available in square, round and custom geometric shapes; sizes ranging from 10mm up to 600mm, and thicknesses from
10-50mm. The most common porosities are 10ppi, 15ppi, 20ppi, 25ppi. Higher porosities are available upon request. Custom-made
cut-to-size filters are also possible.
Common size in Round shape:
40x11mm, 40x15mm, 50x15mm, 50x20mm, 60x22mm,
70x22mm, 80x22mm , 90x22mm,100x22mm, 305x25mm

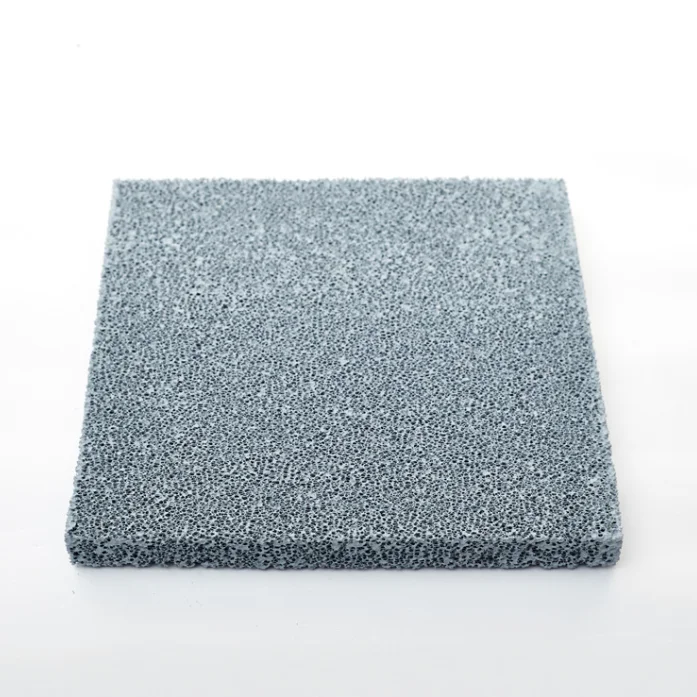

Common sizes in Square shape:
40x40x13mm, 40x40x15mm, 50x50x15mm, 50x50x22mm, 75x75x22mm,
50x75x22mm, 100x75x22mm, 100x100x22mm, 55x55x15mm, 150x150x22mm
Ceramic Vacuum Chucks
Ceramic Filters
Ceramic Diffusers
Ceramic Air Bearings
Ceramic Permeable Substrates
Ceramic Dispersion Media
Ceramic Ash Handling
Ceramic Wicking Media
Ceramic Fluidized Bed Plates
Ceramic Specialty Spargers
Ceramic Breathers – Vents
Size
The size are available in square, round and custom geometric shapes; sizes ranging from 10mm up to 600mm, and thicknesses from
10-50mm. The most common porosities are 10ppi, 15ppi, 20ppi, 25ppi. Higher porosities are available upon request. Custom-made
cut-to-size filters are also possible.
Common size in Round shape:
40x11mm, 40x15mm, 50x15mm, 50x20mm, 60x22mm,
70x22mm, 80x22mm , 90x22mm,100x22mm, 305x25mm
Common sizes in Square shape:
40x40x13mm, 40x40x15mm, 50x50x15mm, 50x50x22mm, 75x75x22mm,
50x75x22mm, 100x75x22mm, 100x100x22mm, 55x55x15mm, 150x150x22mm
1. Has low thermal conductivity
2. Excellent thermal shock resistance and other characteristics
3. Heat-resistant material
4. The typical heat-resistant materials made of foamed ceramics are heat-resistant bricks, which are made of ZrO2, SiC, magnesium salts and calcium salts.
5. Use temperature up to 1600℃
2. Excellent thermal shock resistance and other characteristics
3. Heat-resistant material
4. The typical heat-resistant materials made of foamed ceramics are heat-resistant bricks, which are made of ZrO2, SiC, magnesium salts and calcium salts.
5. Use temperature up to 1600℃
6.Good chemical stability.
7.The general working temperature can reach 1000℃—1100℃, and the maximum working temperature can reach 1600℃;
8.Good antibacterial properties.
Manufacturing Technical
Foam Ceramic are mainly used for filtration of aluminium and aluminium alloys in foundries and cast houses . With their excellent thermal shock resistance and corrosion resistance from molten aluminum, they can effectively eliminate inclusions, reduce trapped gas and provide laminar flow, and then the filtered metal is significantly cleaner. Cleaner metal results in higher-quality castings, less scrap, and fewer inclusion defects, all of which contribute to bottom-line profit.
High porosity, Low loss of thermal shock, High mechanical strength at normal and high temperature, Large specific surface, Good chemical stability and Excellent filtering functions ofscreen, filtering residuum collection and adsorption especially for tiny impurity of 1~10μm. The three-dimensional structure can improve the cast quality in large scale by changing the molten metal from turbulence flow to lamellar flow, removing the gass and smoothing the casting. Ceramic foam filter is not only applied for molten metal filtering in high temperature, but gas treatment in high temperature, carrier of catalyzer, solid heat exchange and advanced filling for chemical industry.
High porosity, Low loss of thermal shock, High mechanical strength at normal and high temperature, Large specific surface, Good chemical stability and Excellent filtering functions ofscreen, filtering residuum collection and adsorption especially for tiny impurity of 1~10μm. The three-dimensional structure can improve the cast quality in large scale by changing the molten metal from turbulence flow to lamellar flow, removing the gass and smoothing the casting. Ceramic foam filter is not only applied for molten metal filtering in high temperature, but gas treatment in high temperature, carrier of catalyzer, solid heat exchange and advanced filling for chemical industry.
Company Profile

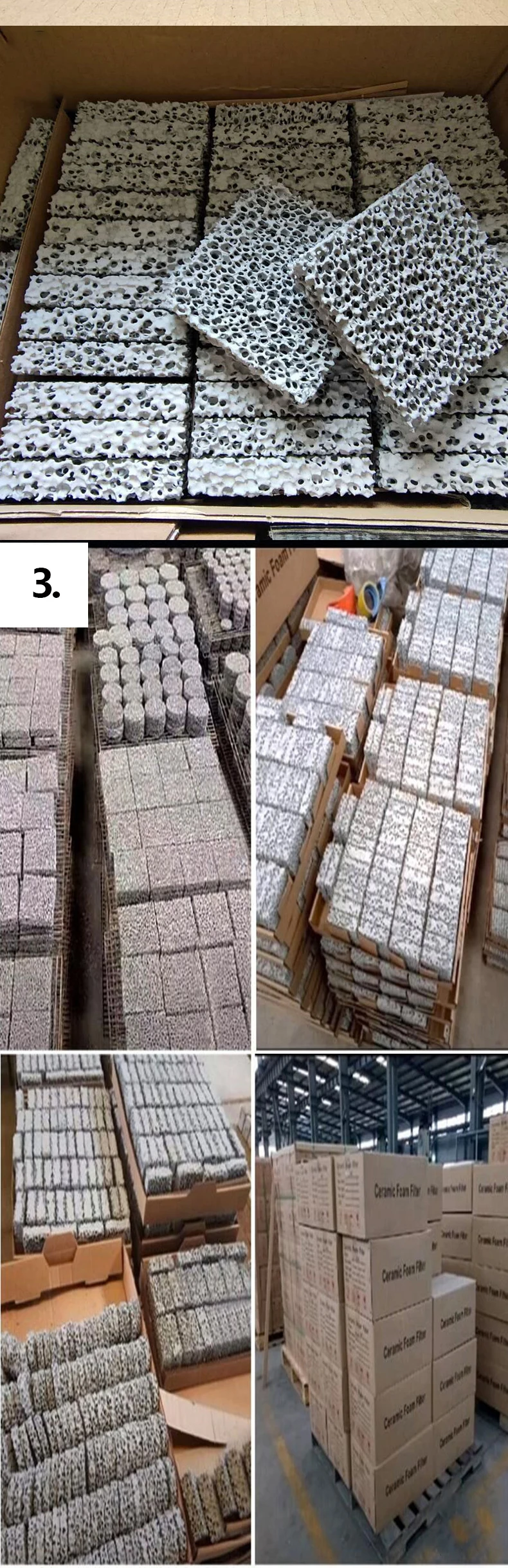

Product packaging
FAQ
Why Choose Us?
1.15 years of professional production industrial ceramics factory.
2. High quality products based on reasonable price.
3. High precision parts with lowest tolerance.
4. Reliable production time.
5. Experienced, professional and efficient R&D team.
6. Much experience of exporting.
7. MOQ is not limited, small quantity is acceptable too.
8. Best good after-sales service.
FAQ
Q: Are you trading company or manufacturer?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. If customization, it's about 15-30 days, it is according to
quantity.
Q: Do you provide samples? Is it free or extra?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
2. High quality products based on reasonable price.
3. High precision parts with lowest tolerance.
4. Reliable production time.
5. Experienced, professional and efficient R&D team.
6. Much experience of exporting.
7. MOQ is not limited, small quantity is acceptable too.
8. Best good after-sales service.
FAQ
Q: Are you trading company or manufacturer?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. If customization, it's about 15-30 days, it is according to
quantity.
Q: Do you provide samples? Is it free or extra?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Welcome to inquire us!
