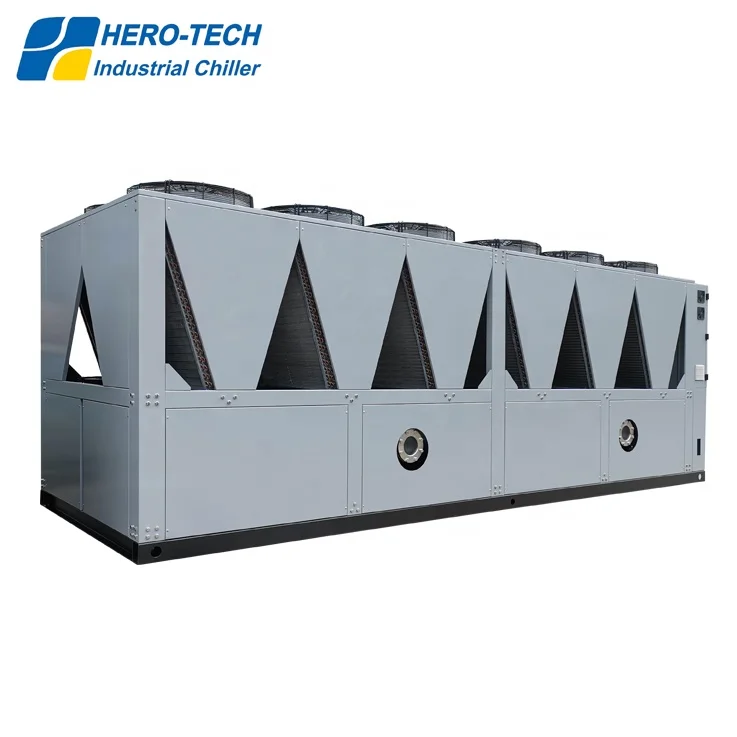

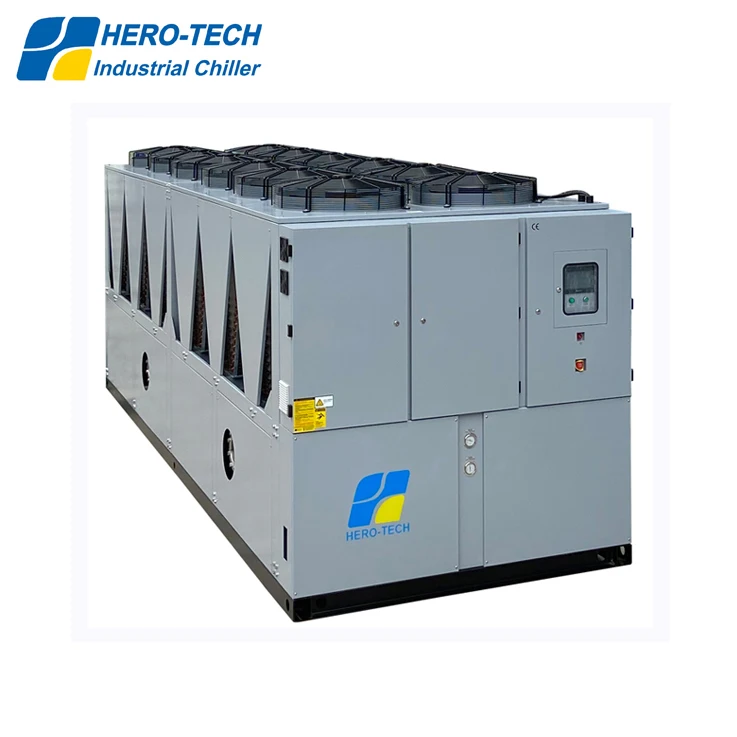

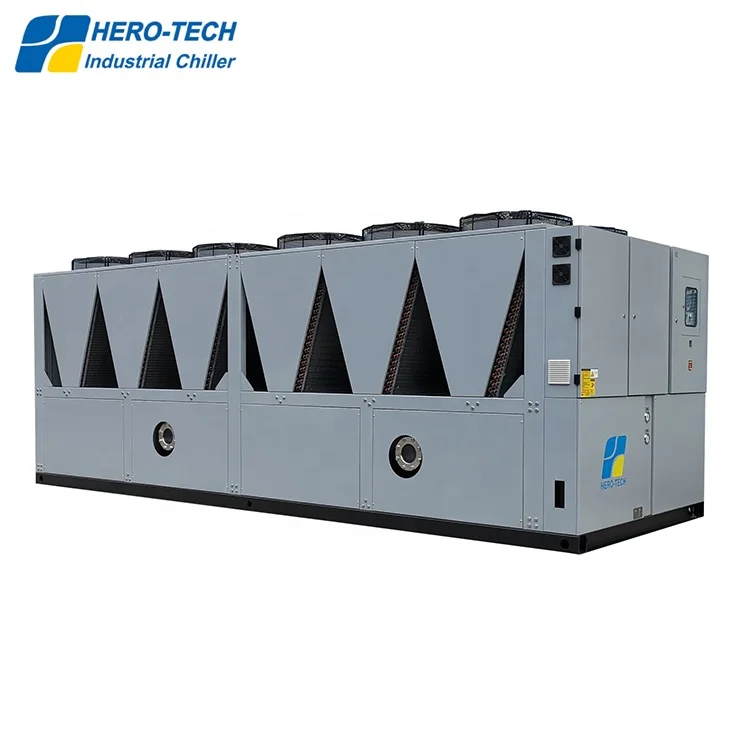

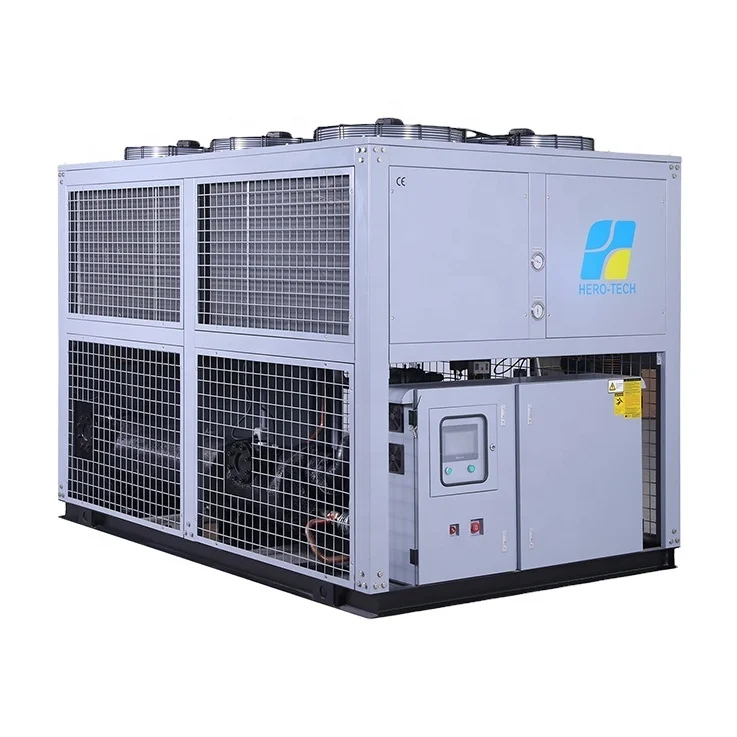

120hp 30C 90.4kw glycol water air cooled screw water chiller
- Category: >>>
- Supplier: Shenzhen Hero-Tech Refrigeration Equipment Co. Ltd.
Share on (1600629934883):
Product Overview
Description
Product Description
Model | HTSL-120A | 120HP*1 | |
Cooling capacity | 221.5KW | @-10C | |
147.5KW | @-20C | ||
90.4KW | @-30C | ||
Input Power | 128.6KW | 3PH380V50HZ | |
Refrigerant | R22/R407c | 84KG*1 | |
Compressor | Semi-hermetic screw | 119kw*1 | |
Evaporator | Shell and tube | ||
Conderser | Finned copper coil + axial fan | ||
Chilled Water | 34.6CBM/h | 4inch | |
Dimension | 4.87*1.8*2.243m | 19.66CBM | |
Weight | 3000KG (Net) | 3330KG(Running) | |
HTSL-A series low temperature screw chiller is widely adopted in manufacturing process in industries such as non-ferrous smelting, chemical and pharmaceutical, petroleum chemistry, grain and oil, food and beverage, mechanical, electric, air separation,etc.
Unit main parts include semi-hermetic screw compressor, oil separator, condenser, economizer, evaporator and control system.
Not all chillers are created equal. For efficient cooling and long-lasting performance, you can depend on HERO-TECH of Cooling Products for all your cooling needs.
HERO-TECH always present qualified, best and solution based service.
Not all chillers are created equal. For efficient cooling and long-lasting performance, you can depend on HERO-TECH of Cooling Products for all your cooling needs.
HERO-TECH always present qualified, best and solution based service.
Details Images
Design Features
Coolant temperature range from 5ºC to - 40ºC.
Adopt high efficient semi-hermetic twin-screw compressor, high COP steady performance and long service life.
Compressor stepped capacity control, minimize starting current and impact to grid.
25%-100% continuous capacity control, ensuring compressor full performance, saving running cost for customers.
Adopt high accuracy touch screen and imported PLC controller.
Multi-protection function: compressor discharge over temperature, motor over temperature, anti-freezing, over current, phase sequence, high/low pressure, flow switch.Mass storage PLC, allows permanent reservation of more than 100 fault records, precisely monitors unit running state.
Pass word setting, avoids unit from shut down or damaged by accidental factor.
Control components including thermal expansion valve, solenoid valve, check valve are supplied by international brand, ensuring steady and efficient running under wide range of working condition.
Units are completely tested and operated at full load, leave factory with refrigerant, can be start once water and power is
connected.
Compressor with built-in patented exhaust silencer ensures low noise running.
Corrosion-resistance water system could be designed upon request.
Refrigerant option: R22, R407C, R404A.
Coolant temperature range from 5ºC to - 40ºC.
Adopt high efficient semi-hermetic twin-screw compressor, high COP steady performance and long service life.
Compressor stepped capacity control, minimize starting current and impact to grid.
25%-100% continuous capacity control, ensuring compressor full performance, saving running cost for customers.
Adopt high accuracy touch screen and imported PLC controller.
Multi-protection function: compressor discharge over temperature, motor over temperature, anti-freezing, over current, phase sequence, high/low pressure, flow switch.Mass storage PLC, allows permanent reservation of more than 100 fault records, precisely monitors unit running state.
Pass word setting, avoids unit from shut down or damaged by accidental factor.
Control components including thermal expansion valve, solenoid valve, check valve are supplied by international brand, ensuring steady and efficient running under wide range of working condition.
Units are completely tested and operated at full load, leave factory with refrigerant, can be start once water and power is
connected.
Compressor with built-in patented exhaust silencer ensures low noise running.
Corrosion-resistance water system could be designed upon request.
Refrigerant option: R22, R407C, R404A.
Application
Main Parts
Project shows
Company Introduction
Hero-Tech refrigeration Equipment Co., Ltd, subordinated to Hero-Tech Group, was founded in Shenzhen Guangdong Province in 2005, with registered capital RMB5,000,000.00. And we have our own heat exchanger processing factory and Casing processing factory.
Since its inception, Hero-Tech adhered to Germany technique and management and passed certification of ISO9001:2000 and CE. 20 years experience in industrial refrigeration made Hero-Tech front-runner status in China. Meanwhile, oversea sales network was built and improved, covering dozens of countries and areas, such as the Occident, Middle-East, South-East Asia and Australia. It brings continuing rapid growth of annual export volume. Till the end of 2019, export value contributes more than 70% of the annual sales turnover.
“Professional, therefore take the lead”. After years of development, Hero-Tech has domestic and foreign customers consistent high praise because of excellent product performance and high efficiency service.
Since its inception, Hero-Tech adhered to Germany technique and management and passed certification of ISO9001:2000 and CE. 20 years experience in industrial refrigeration made Hero-Tech front-runner status in China. Meanwhile, oversea sales network was built and improved, covering dozens of countries and areas, such as the Occident, Middle-East, South-East Asia and Australia. It brings continuing rapid growth of annual export volume. Till the end of 2019, export value contributes more than 70% of the annual sales turnover.
“Professional, therefore take the lead”. After years of development, Hero-Tech has domestic and foreign customers consistent high praise because of excellent product performance and high efficiency service.
Exhibition
FAQ
Q1: Could you help us to recommend the model for our project?
A1: Yes, we have professional engineer to check the details and choose the correct model for you. Based on the following:
Voltage;
A1: Yes, we have professional engineer to check the details and choose the correct model for you. Based on the following:
Voltage;
Cooling capacity, If you don’t know, you can offer the flow rate to your machine, temperature in and temperature out from your using part;
Application industry;
Environment temperature;
Refrigerant type, R22, R407c or other, pls clarify;
Pump flow and pressure requirements;
Any other special requirements.
Q2: How to ensure your product with good quality?
A2: All our products with CE certificate and our company Strictly comply with ISO900 quality management system. We use the worldwide famous brand accessories, such as DANFOSS, COPELAND, SANYO, BITZER, HANBELL compressors, Schneider electrical components, DANFOSS/EMERSON refrigeration components.
The units will be fully tested before package and The packing will be carefully checked.
Q3: What's the warranty?
A3: 1 year warranty for all parts; Whole life labor free!
Q4: Are you a manufacturer?
A4: Yes, we have more than 23 years in industrial refrigeration business. We have patent on the chillers’ design. Our factory located in Shenzhen; Welcome to visit us at anytime.
Q5: How can I get the best price?
A5: Contact our online customer service, or call us via Cel / Whatsapp / WeChat number +86 13510583050
Application industry;
Environment temperature;
Refrigerant type, R22, R407c or other, pls clarify;
Pump flow and pressure requirements;
Any other special requirements.
Q2: How to ensure your product with good quality?
A2: All our products with CE certificate and our company Strictly comply with ISO900 quality management system. We use the worldwide famous brand accessories, such as DANFOSS, COPELAND, SANYO, BITZER, HANBELL compressors, Schneider electrical components, DANFOSS/EMERSON refrigeration components.
The units will be fully tested before package and The packing will be carefully checked.
Q3: What's the warranty?
A3: 1 year warranty for all parts; Whole life labor free!
Q4: Are you a manufacturer?
A4: Yes, we have more than 23 years in industrial refrigeration business. We have patent on the chillers’ design. Our factory located in Shenzhen; Welcome to visit us at anytime.
Q5: How can I get the best price?
A5: Contact our online customer service, or call us via Cel / Whatsapp / WeChat number +86 13510583050
