2800mm Sliding Table Saw
Item# CPS2800
CPS2800 Panel Saw is dedicated designed and engineered for professional operations in job shops and small factories. Its compact size and foot print are ideal for space limited facilities. CPS2800 is engineered with all necessary functionalities, including 315mm main blade, scoring blade, 2800mm sliding table, tilting arbors, dust hose between blade guard and dust port on cabinet, 1220mm solid rip fence, right-hand and rear extension boards. CPS2800 is available on output 2.5kw single phase motor or 3kw three phase motor.


Features


* Heavy-duty rugged steel frame
* 2800mm length sliding table
* Powerful 2.5kw/1ph or 3kw/3ph industrial motor
* Precision ground and coated worktable
* Dynamically balanced spindles perform at extreme low noise and vibration
* 1220mm rip cutting capacity

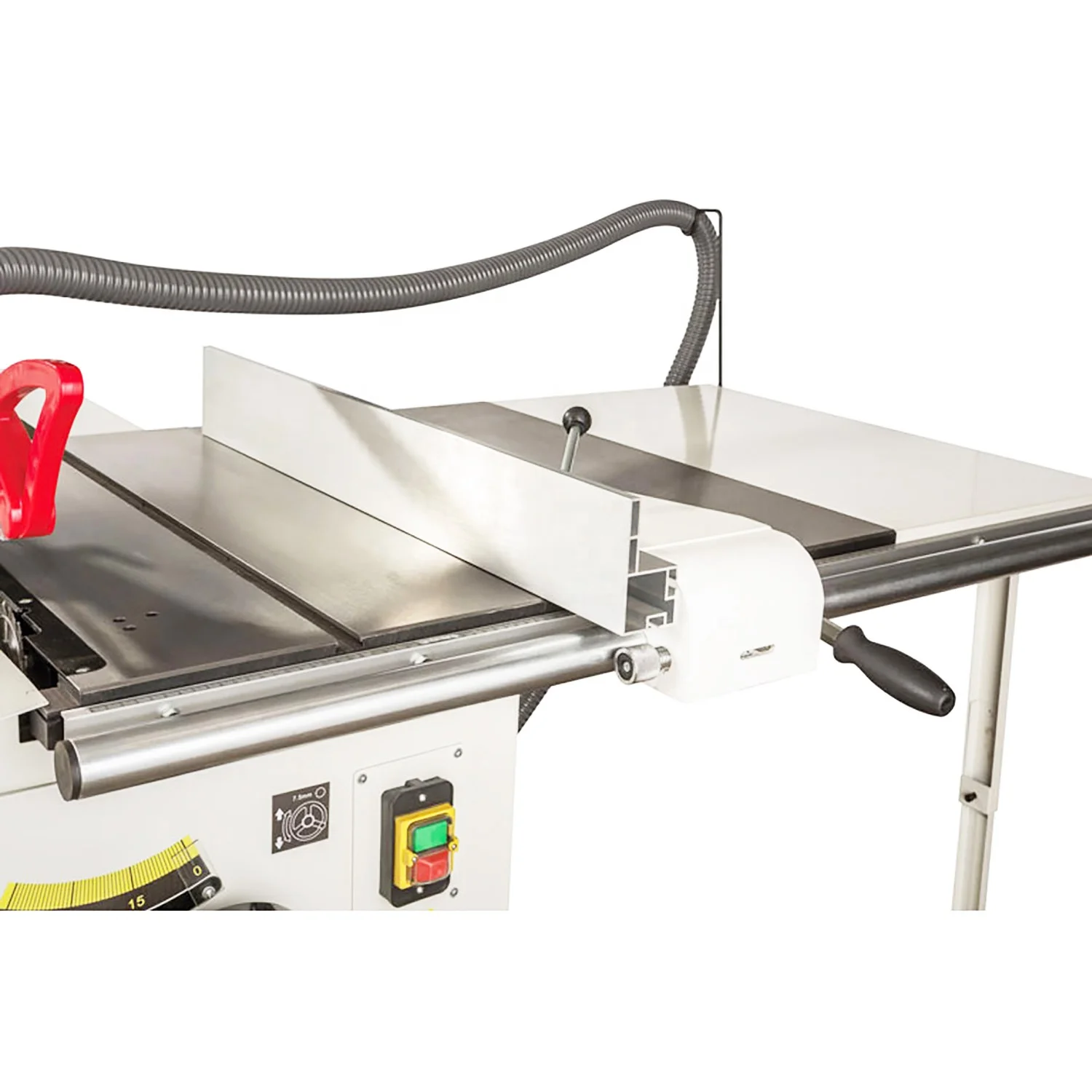

* Chromed and hardened solid rip fence rail
* Blade left tilting 45 degree
* Oversized 30mm spindle with 315mm main blade
* Standard scoring system for tear-free cutting
* Magnetic safety switch
* Outrigger table

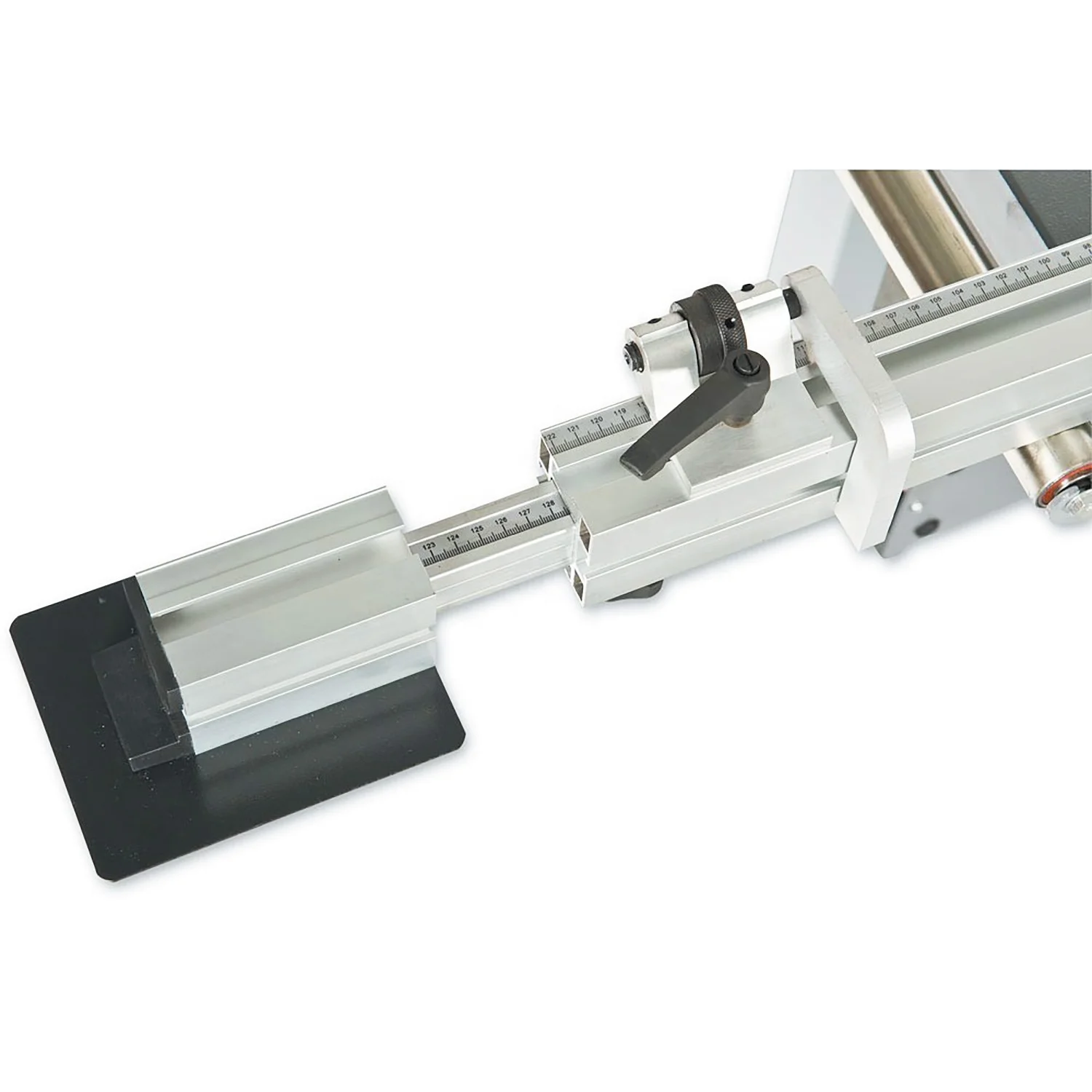

* Cross cutting fence with extension
* Standard camlock hold down and trimming shoe

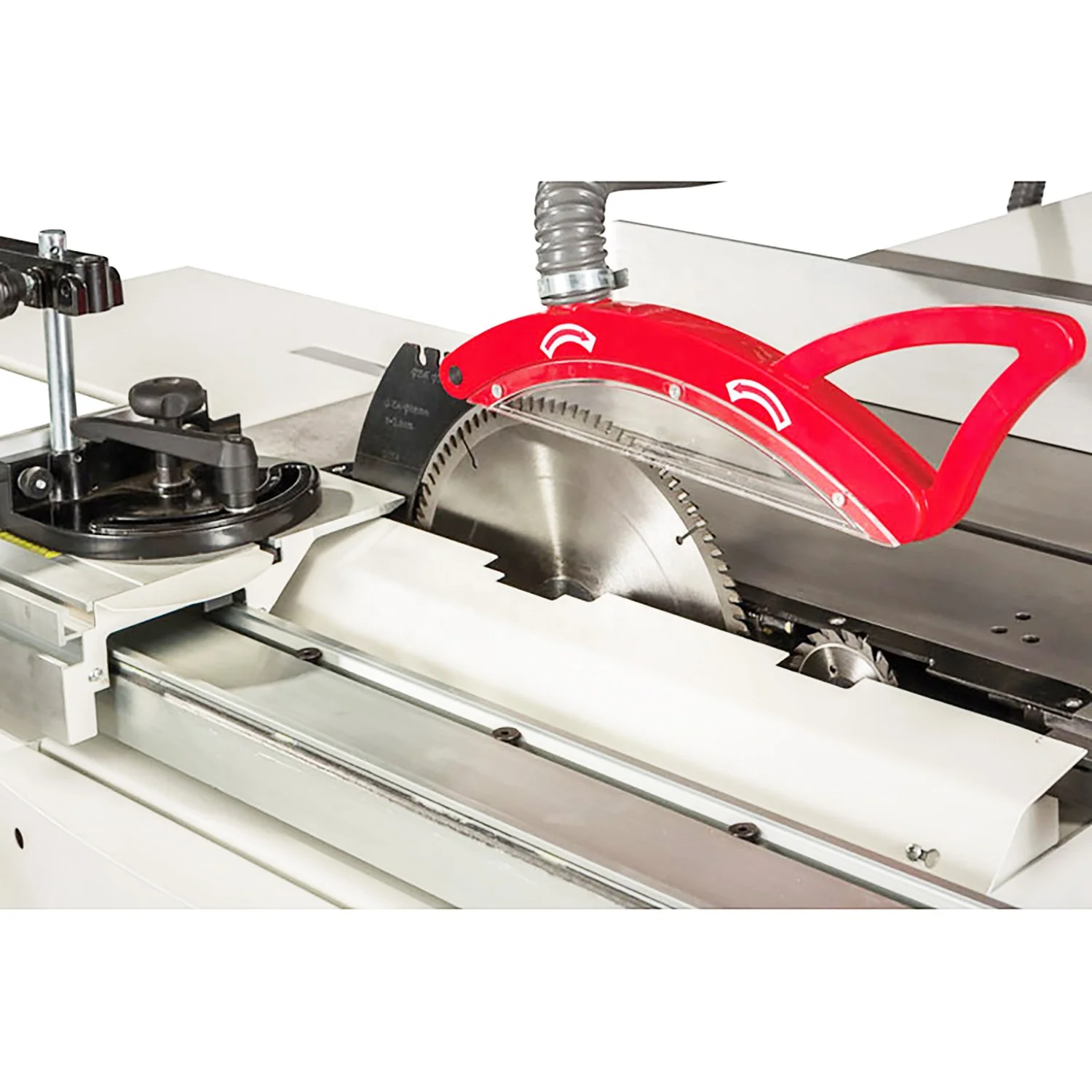

* User-friendly blade guard with dust hose
* CE approved



Details Images




Specification
Motor
220v/3ph/3kw, or 220v/1ph/2.5kw
Main casting table size
440mm x800mm
Right extension board size
440mm x800mm
Rear extension board size
310mm x500mm
Sliding table size
2800mm x270mm
Max. travel of sliding table
2800mm
Cross cut table size
680mm x580mm
Cross cut fence capacity
1220mm - 2200mm
Main spindle size
30mm
Main blade size
315mm
Main blade speed
4700rpm
Scoring blade size
90mm
Scoring spindle size
20mm
Scoring blade speed
8700rpm
Blade tilting
0 - 45°
Max. cut depth @ 90°
100mm
Max. cut depth @ 45°
80mm
Max. length to rip fence
1220mm
Max. cross cut length
2800mm
Max. cross cut width
1350mm
Dust port
100mm
Machine weight
315kgs
Packing dimensions
1600 x756 x1050mm (Saw Body), 2860 x250 x320mm (Sliding Table)
Shipping weight
390kgs
