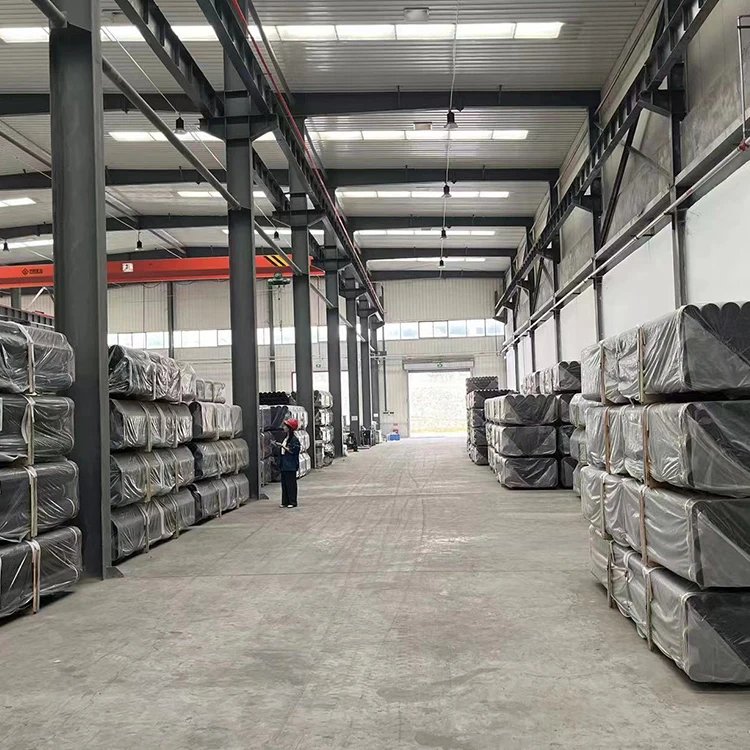

6 литых труб из высокопрочного чугуна, 10 дюймов за метр, 450 мм, квадратные кованые трубы
- Category: Iron Pipes >>>
- Supplier: Henan Boxi Technology Co. Ltd.
Share on (1600629972200):
Product Overview
Description

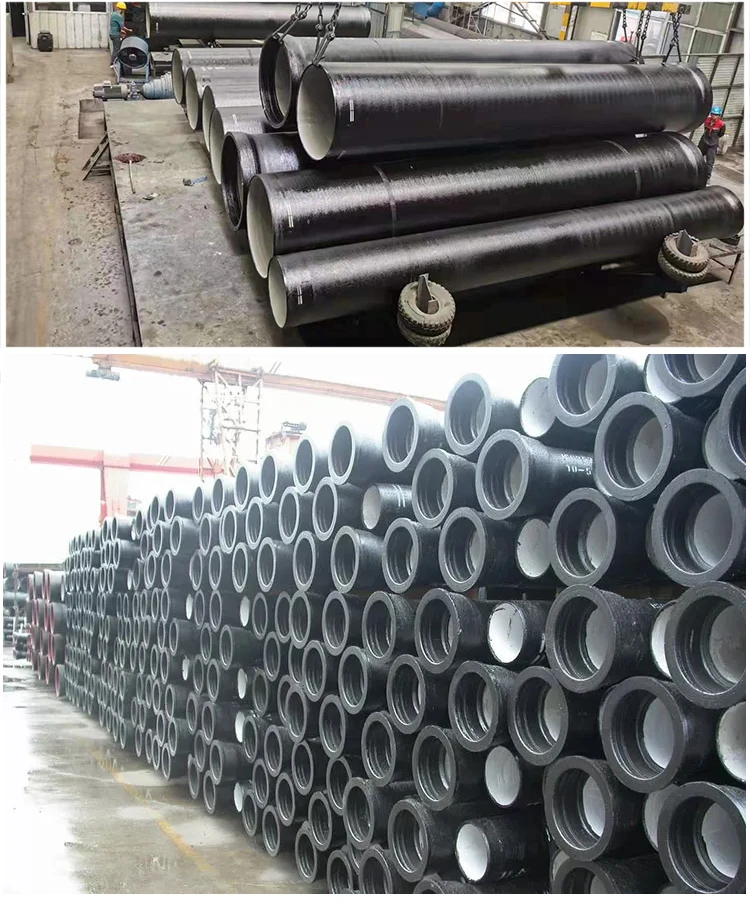

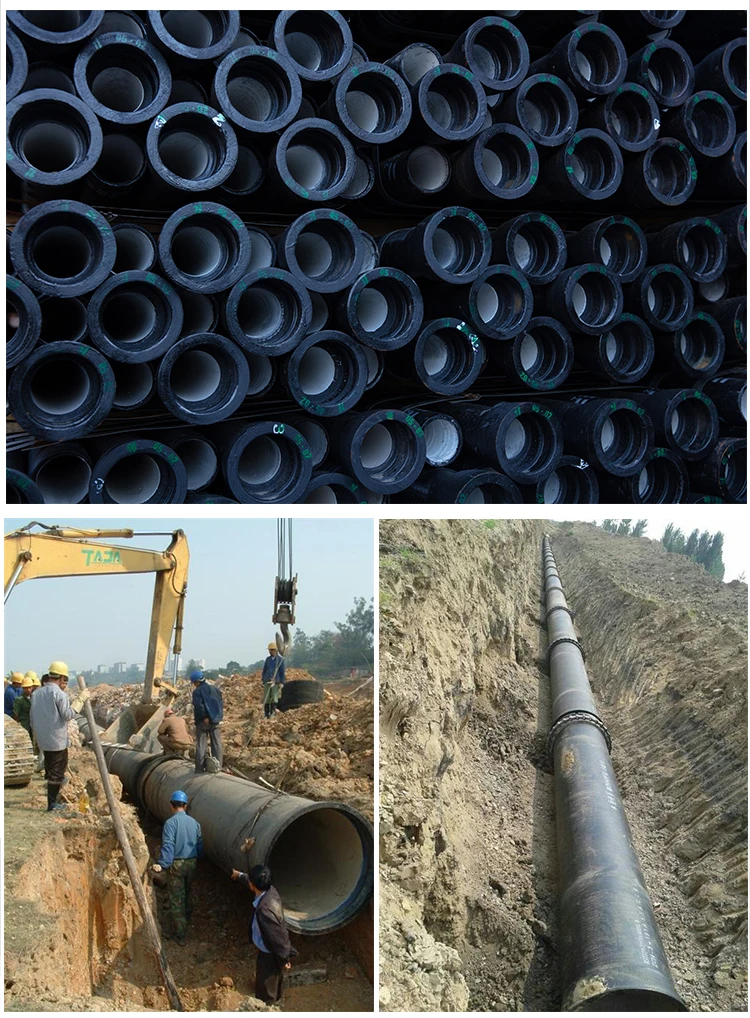

Product Display
BOXI can supply the Centrifugally Cast Ductile Iron Restrained Joint Socket and Spigot Pipe according to ISO 10804, ISO2531, EN545,EN598, from DN80 to DN2000, including K7, K8, K9, K10,K12, K14, C20, C25, C30, C40, C50, C64, C100, with the coating of Metallic Zinc (130-400g/m2), Zn-Al Alloy 85/15, Black Bitumen coating, Red/Blue Epoxy coating, Cement lining or PU (polyurethane) coating.
Centrifugally Cast Ductile Iron Pipe is a kind of pipe made from spherical graphite cast iron by centrifugal spinning process. The pipes, which can convey many fluid media such as water, oil and gas, are widely used in various pipeline projects for metallurgy, mine, water conservancy, petroleum and urban public service utility.
W-type specification
Nominal diameter DN | DE/MM | Wall thickness T/mm | WEIGHT/KG | ||
L=1500MM | L=3000MM | ||||
50 | 61 | 4.3 | 8.3 | 16.5 | |
75 | 86 | 4.4 | 12.2 | 24.4 | |
100 | 111 | 4.8 | 17.3 | 34.6 | |
125 | 137 | 4.8 | 21.6 | 43.1 | |
150 | 162 | 4.8 | 25.6 | 51.2 | |
200 | 214 | 5.8 | 41.0 | 81.9 | |
250 | 268 | 6.4 | 56.8 | 113.6 | |
300 | 318 | 7.0 | 74.0 | 148.0 | |
W1-type specification
Nominal diameter DN | Dg/MM | Wall thickness T/mm | WEIGHT/KG | |||||||||
Straight pipe | pipe fitting | L=3000mm | ||||||||||
Standard | minimum | Standard | minimum | |||||||||
50 | 58 | 3.5 | 3.0 | 4.2 | 3.0 | 12.9 | ||||||
75 | 83 | 3.5 | 3.0 | 4.2 | 3.0 | 18.9 | ||||||
100 | 110 | 3.5 | 3.0 | 4.2 | 3.0 | 25.3 | ||||||
125 | 136 | 4.0 | 3.5 | 4.7 | 3.5 | 35.8 | ||||||
150 | 161 | 4.0 | 3.5 | 5.3 | 3.5 | 42.6 | ||||||
200 | 213 | 5.0 | 4.0 | 6.0 | 4.0 | 70.6 | ||||||
250 | 268 | 5.5 | 4.5 | 7.0 | 4.5 | 98.0 | ||||||
300 | 318 | 6.0 | 5.0 | 8.0 | 5.0 | 127.0 | ||||||
Note: The weight of W1 type straight pipe fittings is calculated according to the standard wall thickness. | ||||||||||||
Our advantages

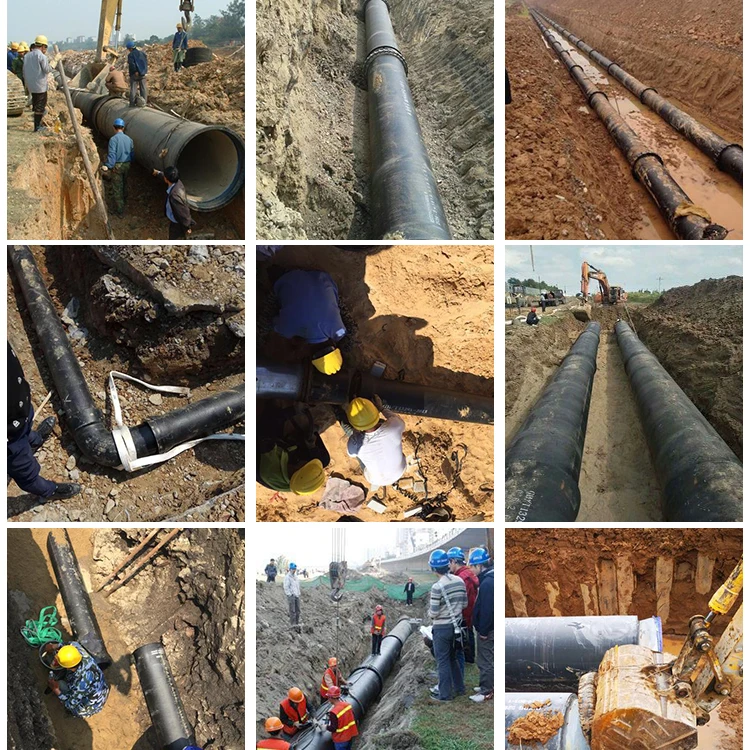

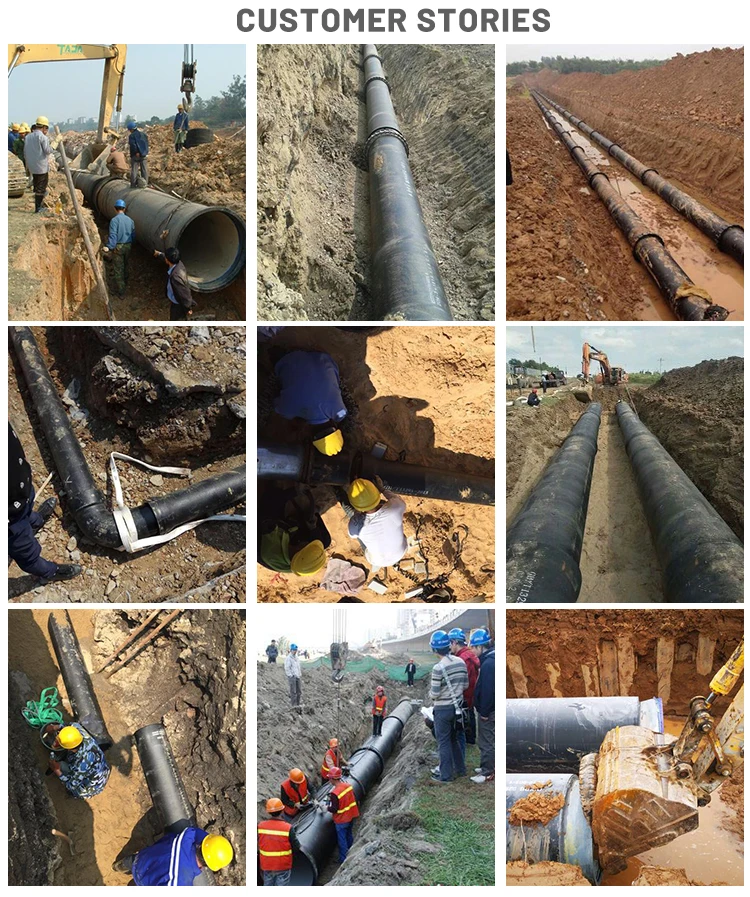

CUSTOMER CASE
Why Choose Us
Quality Control
- physical and chemical analysis
- dimension measurement
- weighting and other inspection of the raw material and finished products
- particular test for different products
- visual measurement and conformation to standards
- identifying, recording and disposing of rejected material.
- physical and chemical analysis
- dimension measurement
- weighting and other inspection of the raw material and finished products
- particular test for different products
- visual measurement and conformation to standards
- identifying, recording and disposing of rejected material.
ABOUT US
FAQ
1.Q: Why choose us?
A: We are an iron and steel enterprise integrating industry and trade，Our company have been in steel business for more than ten years, we are internationally experienced, professional, and we can provide variety of steel products with high quality to our clients
2.Q: Can provide OEM/ODM service?
3.Q: How is your Payment Term?
2.Q: Can provide OEM/ODM service?
A: Yes. Please feel free to contact us for more details discuss.
3.Q: How is your Payment Term?
A: Our usual payment methods are T/T, L/C, D/A, D/P, Western Union, MoneyGram, payment methods can be negotiated and customized with customers.
4.Q: Do you accept the third party inspection?
A: Yes absolutely we accept.
5.Q: How could you guarantee your products?
A: Each piece of products is manufactured by certified workshops, inspected by piece by piece according to national QA/QC standard. We also could issue the warranty to customer to guarantee the quality.
6.Q: Can we visit your factory?
A: Warmly welcome. Once we have your schedule, we will arrange the professional sales team to follow up your case.
7.Q: Can you provide sample?
A: Yes, for regular sizes sample is free but buyer need to pay freight cost.
8.Q:How can I get a quotation from you ?
A:You can leave us message, and we will reply every message in time. Or we may talk on line by Trademanager. And you can also find our contact information on contact page.
4.Q: Do you accept the third party inspection?
A: Yes absolutely we accept.
5.Q: How could you guarantee your products?
A: Each piece of products is manufactured by certified workshops, inspected by piece by piece according to national QA/QC standard. We also could issue the warranty to customer to guarantee the quality.
6.Q: Can we visit your factory?
A: Warmly welcome. Once we have your schedule, we will arrange the professional sales team to follow up your case.
7.Q: Can you provide sample?
A: Yes, for regular sizes sample is free but buyer need to pay freight cost.
8.Q:How can I get a quotation from you ?
A:You can leave us message, and we will reply every message in time. Or we may talk on line by Trademanager. And you can also find our contact information on contact page.
