Automatic Sticker Label Slitting Rotary Die Cutting Machine
- Category: >>>
- Supplier: Zhejiang Deguang Machinery Co. Ltd.
Share on (1600630002103):
Product Overview
Description
Product Description

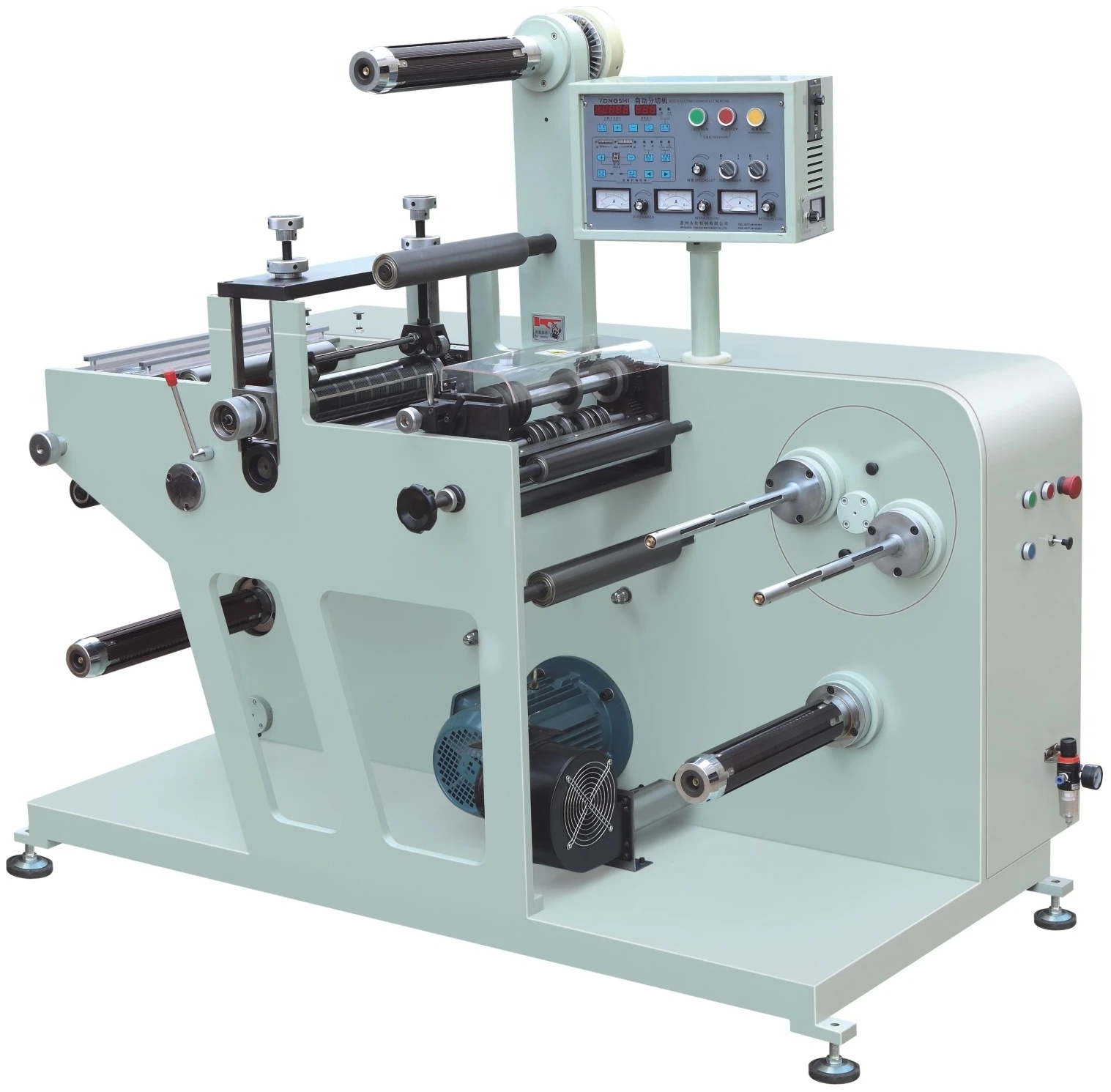

Automatic Sticker Label Slitting Rotary Die Cutting Machine
Application:
This machine is suitable for slitting and die cutting paper, paper adhesive label etc.
Slitting and die cutting function in one machine.
Feature:
1. Unwind air shaft is controlled by magnetic powder brake
2. Double EPC device
3. Main motor inverter motor

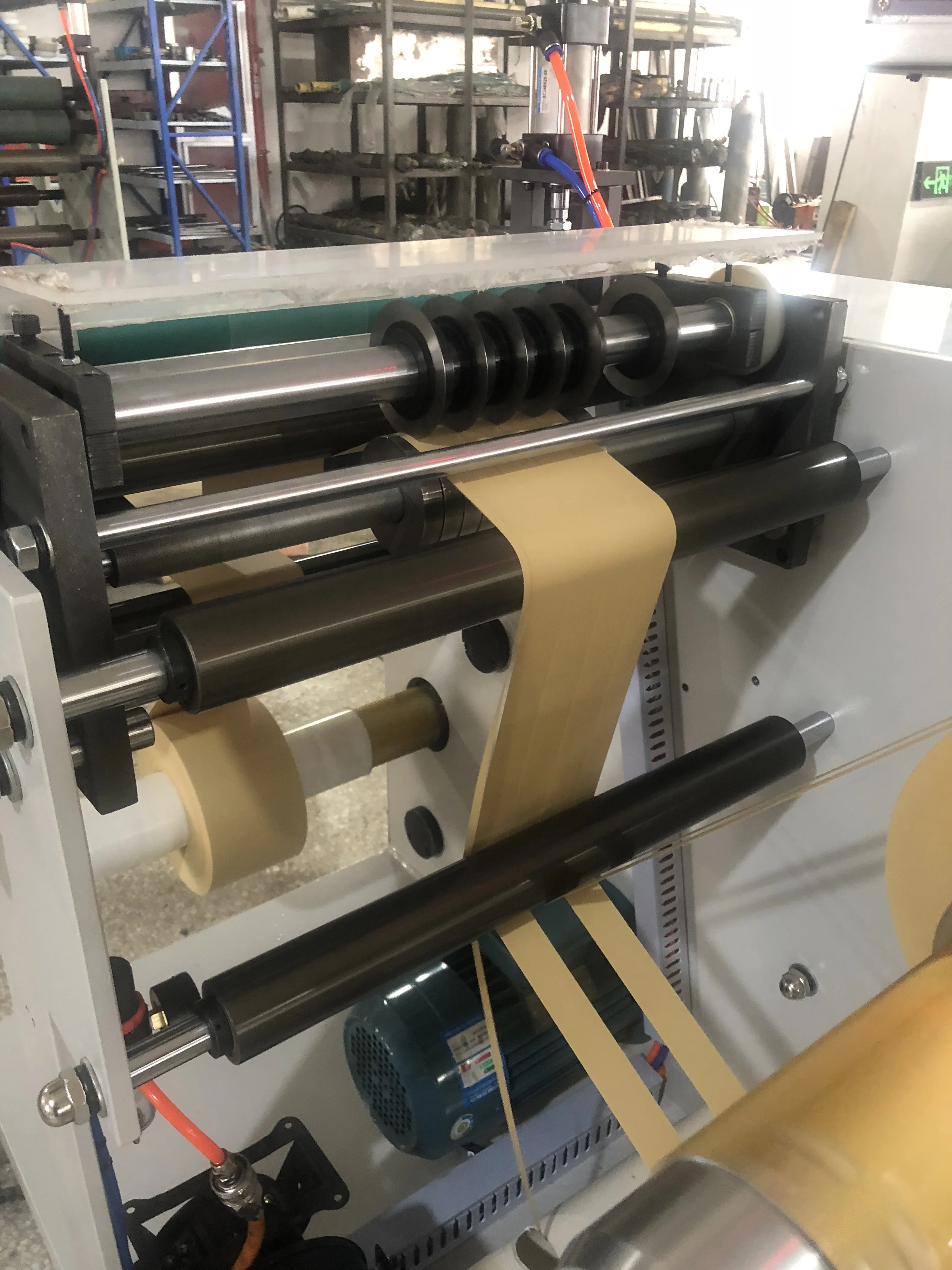

4. Equipped with circular blade slitting, blower blow trim away
5. Rotary die cutting station, waste rewinding device
6. Rewind with single shaft and turret type for automatic roll change
Speicification:
| Model | FMQ350 |
| Width | 350mm |
| Speed | 120 m/min |
| Unwind diameter | 500mm |
| Rewind diameter | 300mm |
| Rewind structure | Single shaft and turret type together |
| Paper core diameter | 38 or 76mm |
| Slitting width | 10-350mm |
| Power | 5kw |
| Voltage | 380V 50HZ 3 phase |
| Dimension | 1700*1100*1500mm |
| Weight | 800kg |
Slitting Die Cutting Sample:
Certification:
Our company:
Workshop:
CNC facility:
Packing and shipping:
Exhibition:
