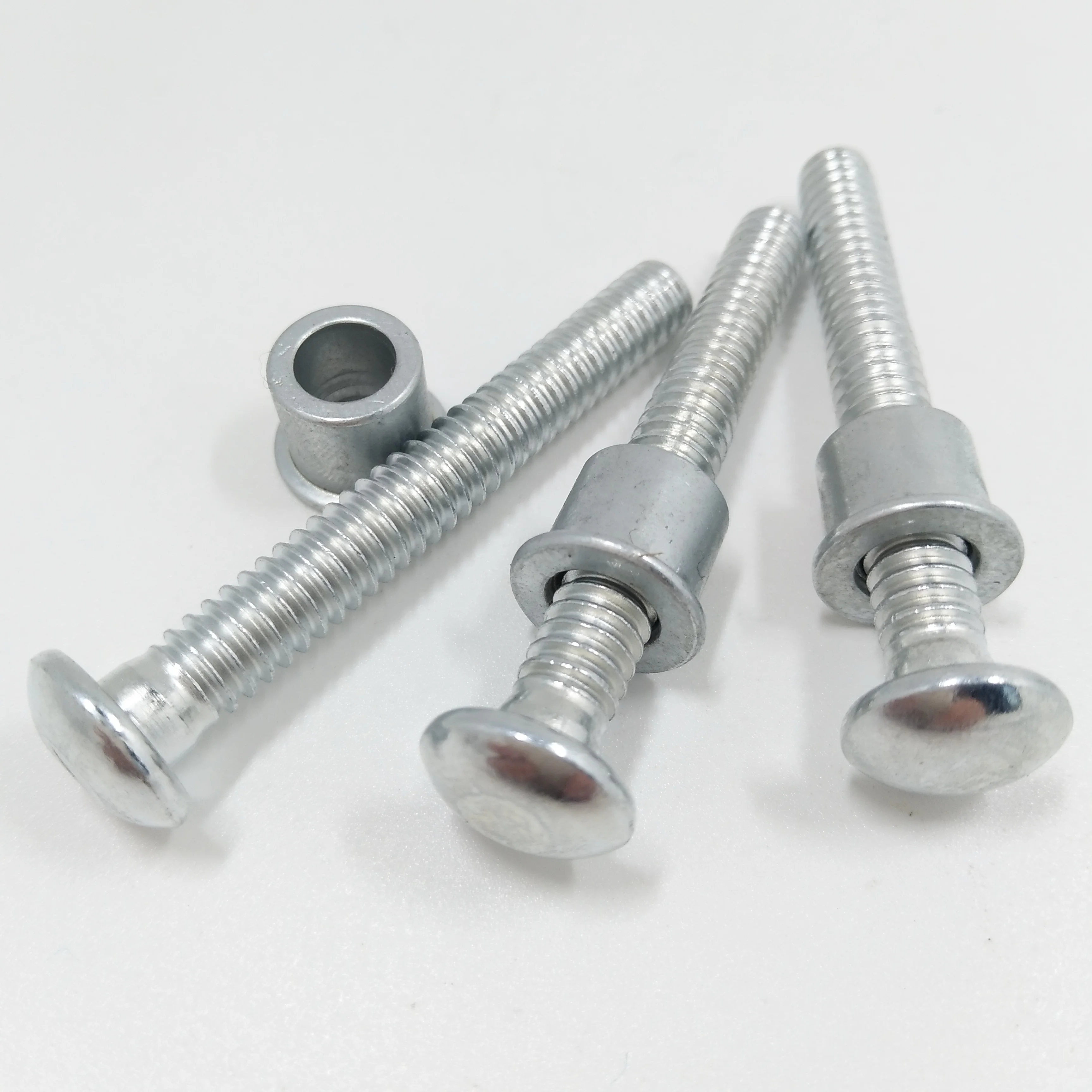

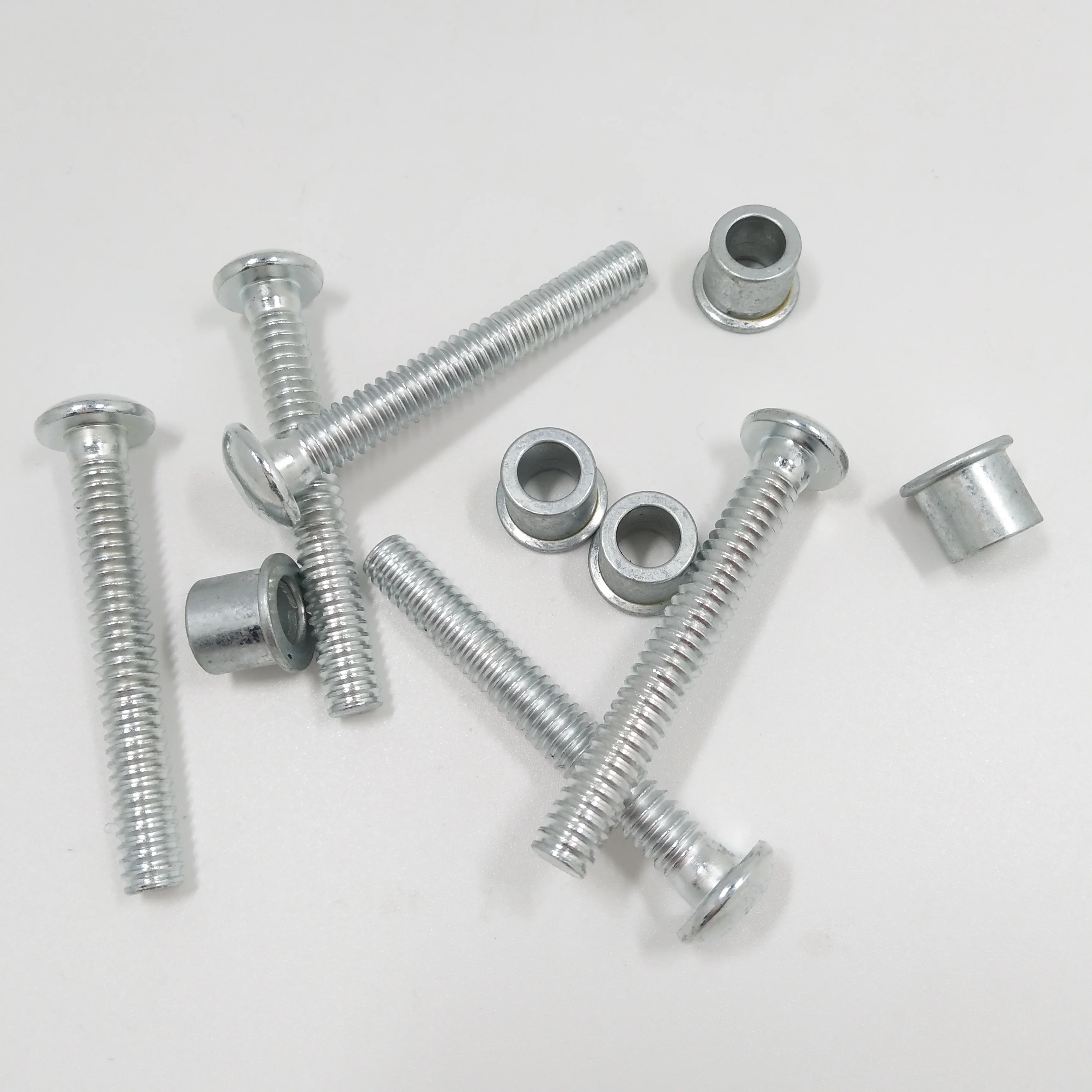

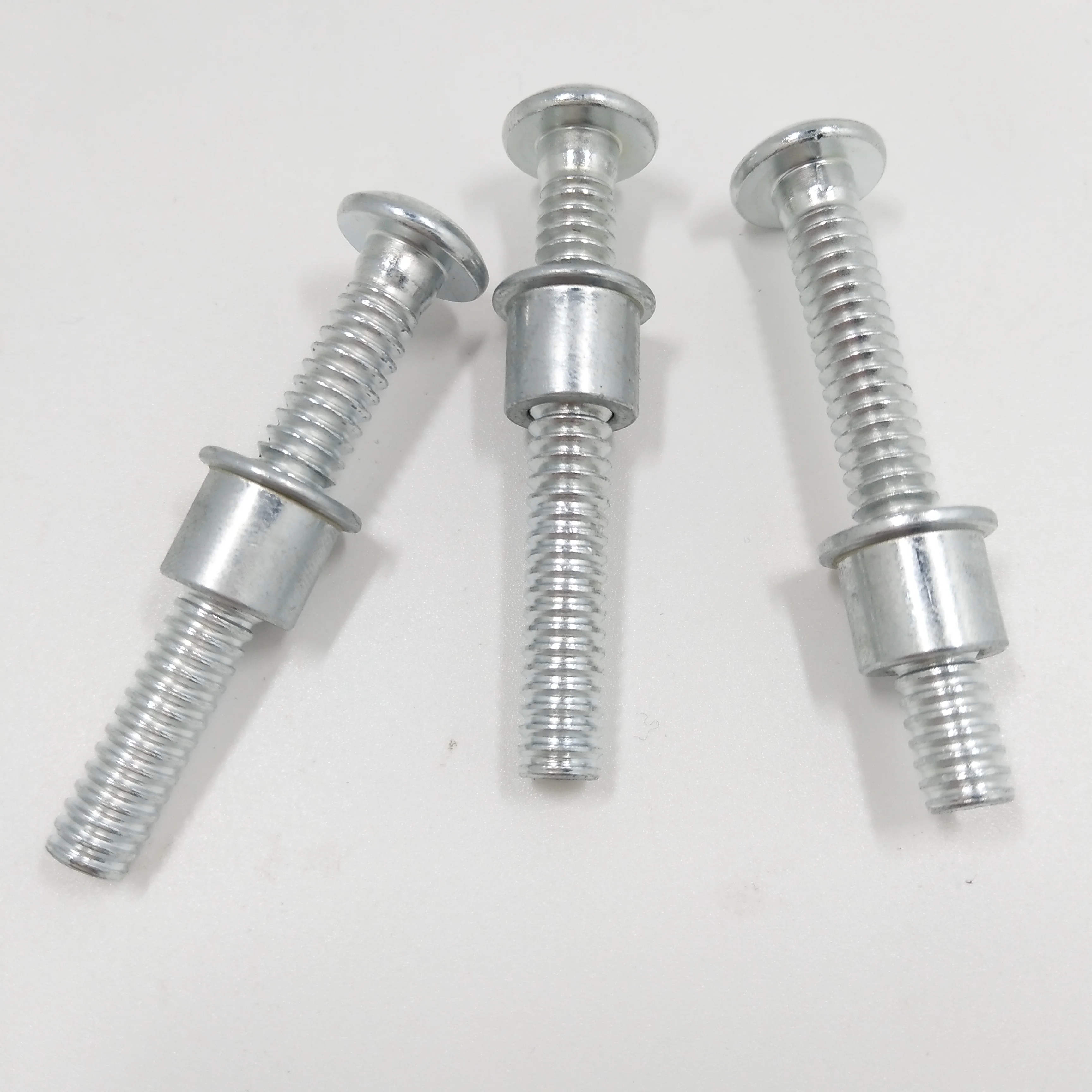

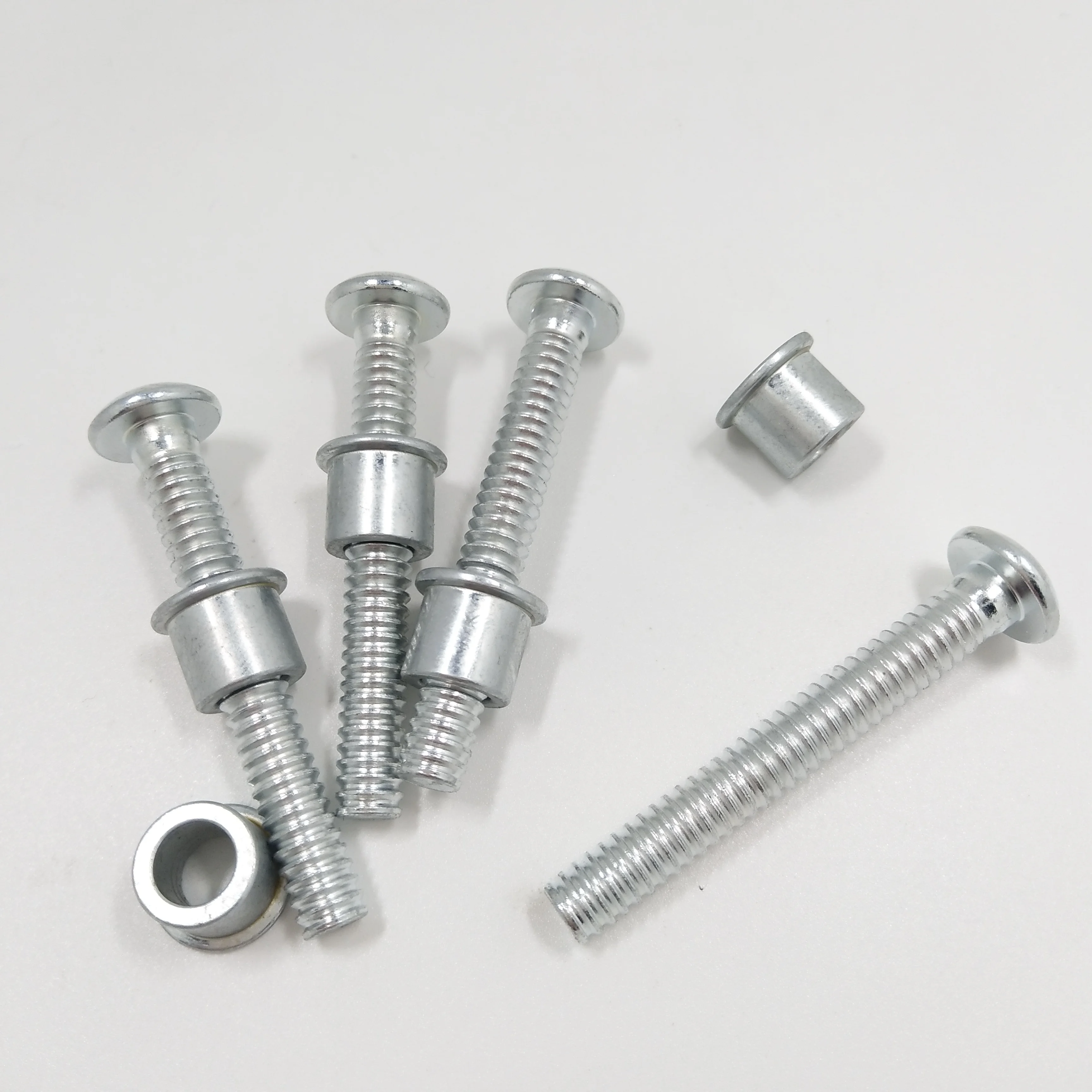

Mgp Huck Magna Grip MGPB R8 10G Fasteners Magna Grip Huck Lock Bolt Non Groove Ring Grooved Rivets with Collars

Unlike any other fastener in the world, huck bolts are precision engineered two-piece fasteners that, once installed, never come loose. No matter how vibration-intensive the environment, Lock bolt rivet stay put. huck bolt provide direct metal-to-metal contact when installed, which eliminates the transverse vibration often found in conventional nuts and bolts. Engineered for a wide range of applications, huck bolt deliver superior joining strength, shear, and tensile strength for an unmatched fastening solution.

1.The bolt is inserted into the prepared hole and the smooth bore collar is placed on the bolt.
2.The installation tool is applied to the pintail. When the tool is activated, the jaws in the nose assembly pull on the pintail and the nose anvil pushes on the collar to remove any gap.
3.The nose anvil starts to swage the collar into the lockgrooves on the bolt. Continued swaging causes the collar to lengthen and develop clamp.
4.When swaging of the collar into the lockgrooves is complete, the pintail separates from the bolt which completes the installation cycle.

ALUMINUM HUCK BOLT WITH COLLAR
